AU Skid Steer Blower User manual

OPERATOR’S MANUAL
Accessories Unlimited Skid Steer Blower
move any amount of snow with ease and reliability
Made in the USA

i
TABLE OF CONTENTS
Introduction ............................................................................................................................ 1
To the Purchaser ........................................................................................................ 1
Safety Precautions................................................................................................................ 2
Before Operation........................................................................................................ 2
Notice.............................................................................................................................. 3
The Snowblower ......................................................................................................... 3
Before Operation............................................................................................. 3
Snowblower Operation ................................................................................. 4
The Skid Steer............................................................................................................... 5
General Information ....................................................................................... 5
Operating the Skid Steer ............................................................................... 5
During Operation ............................................................................................. 6
Roll-Over Protective Structure (ROPS) During Operation.... 6
Maintenance .................................................................................................................. 7
Transporting ................................................................................................................ 8
Storage .......................................................................................................................... 8
Operation.................................................................................................................................. 9
General Preparation.................................................................................................. 9
Engine Speed ...................................................................................................... 9
Increasing Traction and Stability ............................................................... 9
Engaging the Drive Mechanism ..................................................................... 9
Deflector Adjustment if Manual ............................................................. 10
Skid Shoe Adjustment .................................................................................. 10
Snow Removal Methods ..........................................................................................11
Maintenance ...........................................................................................................................12
Lubrication..................................................................................................................13
Parts.........................................................................................................................................14
Introduction ...............................................................................................................14

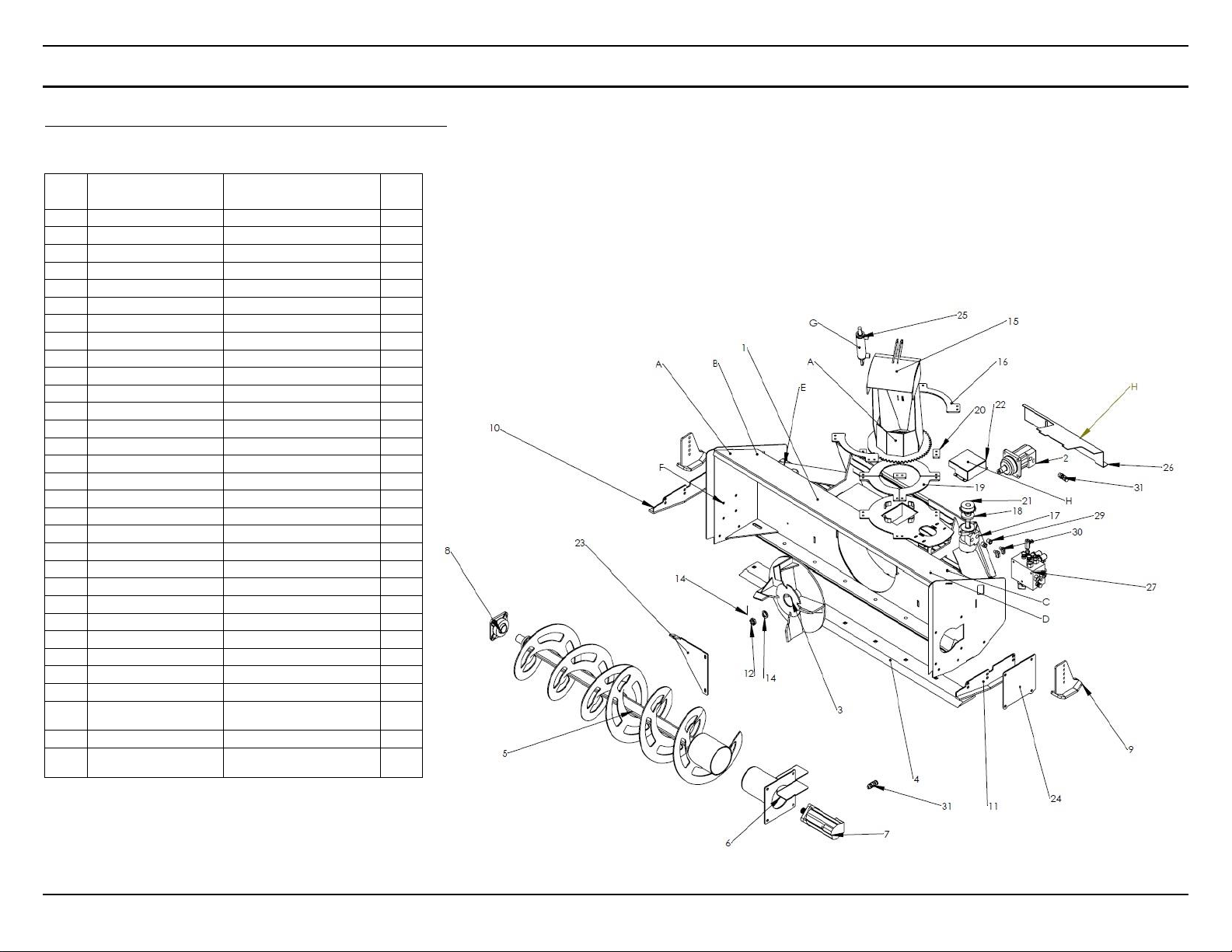

Skid Steer Blower Parts and Assembly AU-01-1500 REV 5 ..........................15
Skid Steer Blower Parts and Assembly AU-01-1501 REV 1 ..........................16
Hoses.............................................................................................................................17

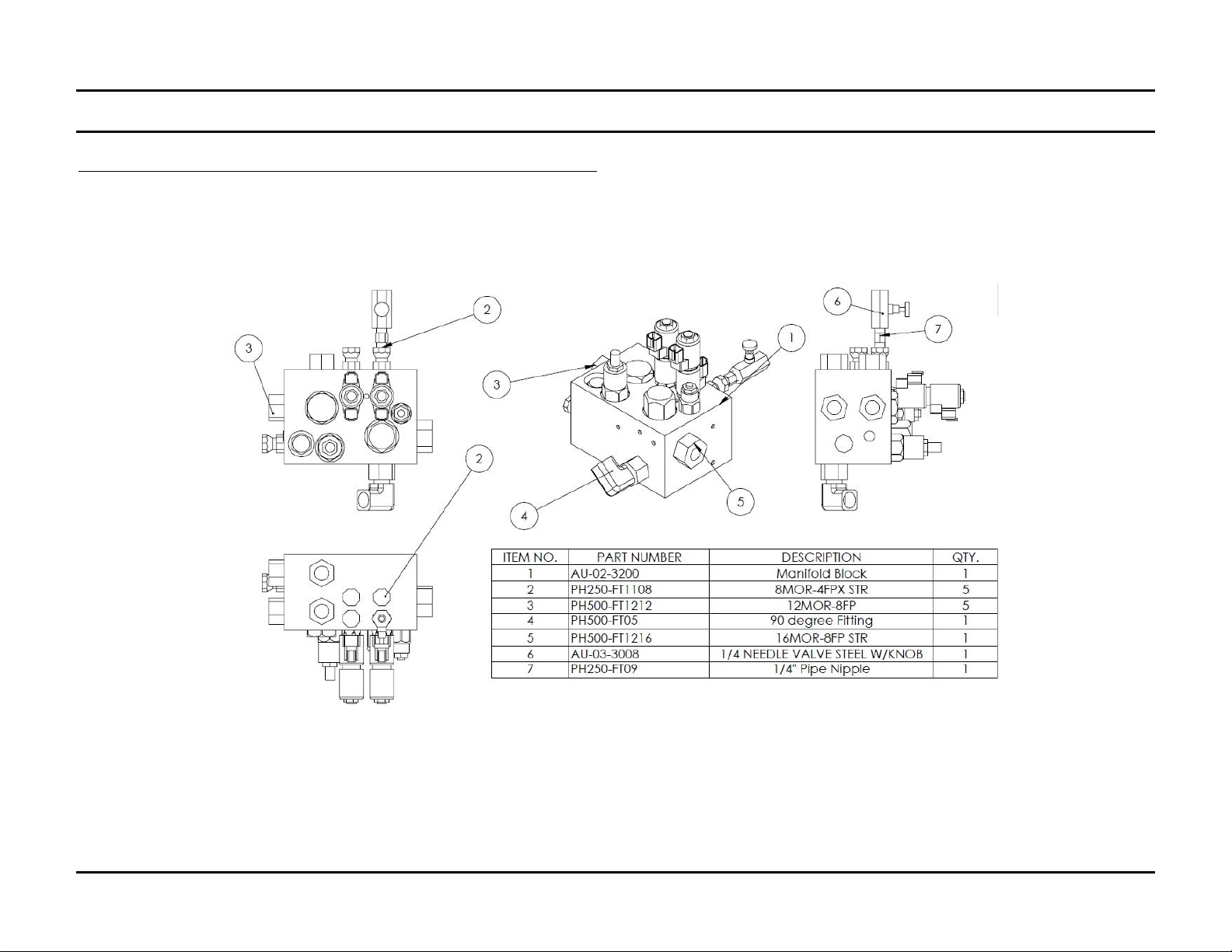

Skid Steer Blower Hydraulic Parts and Assembly AU-02-3200 ..................18
Skid Steer Plug Wiring Pins....................................................................................20
Wiring Guide ................................................................................................................21
Torque Specification Table....................................................................................23
Warranty.................................................................................................................................24

1
INTRODUCTION
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained according to
instructions. Read and understand this manual before
operation.
This manual has been prepared to assist the owner and
operators in the safe operation and suitable maintenance
of the equipment. The information was applicable to
products at the time of manufacture and does not include
modifications made afterwards.
Read and understand this operator’s manual before
attempting to put equipment into service. Familiarize
yourself with the operating instructions and all the safety
recommendations contained in this manual and those
labeled on the equipment and on the skid steer. Follow
the safety recommendations and make sure that those
with whom you work follow them.
Illustrations
The illustrations may not necessarily reproduce the full
detail and the exact shape of the parts or depict the
actual models, but are intended for reference only.
Direction Reference
All references to right and left, forward or rearward, are
from the operator’s seat, facing the steering wheel.
SERIAL PLATE
MODEL NUMBER
SERIAL NUMBER
MADE IN THE USA
To assist your dealer in handling your needs, please record hereafter the model number and the serial number of your
equipment and skid steer. It is also advisable to supply them to your insurance company. It will be helpful in the event
that an equipment or skid steer is lost or stolen.
SKID STEER IMPLEMENT
MODEL:
SERIAL NUMBER:
DATE OF PURCHASE:
DEALER NAME:

2
SAFETY PRECAUTIONS
SAFETY FIRST
This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on the machine itself to
warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions
and safety regulations before you attempt to assemble or use this unit.
DANGER:
Indicates an immediate hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, will result in death or
serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
IMPORTANT:
Indicates that equipment or property damage could result if instructions are not followed.
NOTE:
Gives helpful information.
All products are designed to give safe, dependable service if they are operated and maintained according to instructions.
Read and understand this manual before operation. It is the owner’s responsibility to be certain anyone operating this
product reads this manual, and all other applicable manuals to become familiar with this equipment and all safety
precautions. Failure to do so could result in serious personal injury or equipment damage. If you have any questions,
consult your dealer.
BEFORE OPERATION
Children
Tragic accidents can occur if the operator is not alert to the presence of children. Children are generally attracted to
machines and work being done. Never assume children will remain where you last saw them.
1. Keep children out of the operating area and under the watchful eye of another responsible adult.
2. Be alert and turn machine off if children enter the work area.
3. Before and when backing, look behind for small children.
4. Never carry children while operating the machine. They may fall off and be seriously injured or interfere with the safe
operation of the machine.
5. Never allow children to play on the machine or attachment even when they are turned off.
6. Never allow children to operate the machine even under adult supervision.
7. Use extra care when approaching blind corners, shrubs, trees, or other obstructions that might hide children from sight.

3
SAFETY PRECAUTIONS –CONTINUED
NOTICE
A safe operator is the best assurance against accidents. All operators, no matter how experienced they may be, should
read this operator’s manual and all other related manuals before attempting to operate the equipment. Please read the
following section and pay particular attention to all safety recommendations contained in this manual and those labeled on
the equipment and on the skid steer.
THE SNOWBLOWER
Before Operation
1. Read and understand this operator’s manual and skid steer operator’s manual. Know how to operate all controls and
how to stop the unit and disengage the controls quickly.
2. Never wear loose, torn, or bulky clothing around the skid steer and the snowblower. It may catch on moving parts or
controls, causing injury.
3. Before and during the snow season, thoroughly inspect the area where the equipment is to be used and remove all
objects that may cause damage to the equipment.
4. Set transmission to neutral and disengage clutch, if equipped, before starting the engine.
5. Do not operate equipment in wintertime without wearing adequate winter garments and protective clothing.
6. Never attempt to make any adjustments while engine is running. Read this manual carefully to acquaint yourself with
the equipment as well as the skid steer operator's manual. Working with unfamiliar equipment can lead to accidents.
Be thoroughly familiar with the controls and proper use of the equipment.
7. Keep all safety guards in place and verify hardware for proper tightening.
8. Check for moving parts excessive wear regularly. Replace worn parts with genuine parts.
9. Replace all missing, illegible, or damaged safety and warning decals. See list of decals in operator's manual.
10. Keep safety decals clean of dirt and grime.
11. Do not modify or alter this equipment or any of its components, or any equipment or any of its components, or any
equipment function without first consulting your dealer.
12. Use of counterweights is recommended. Weights provide the necessary balance to improve stability, traction and
steering. Use only those recommended by your dealer.

4
SAFETY PRECAUTIONS –CONTINUED
Snowblower Operation
1. Before leaving the skid steer unattended, take all possible precautions. Park the skid steer/snowblower on level
ground, place the transmission in neutral, set the parking brake, disengage the Aux hydraulics, lower the equipment to
the ground, place all levers including auxiliary control levers in neutral, shut off the engine and remove the ignition key.
2. Before starting the skid steer/snowblower, remove any ice that has accumulated in the auger/fan.
3. Prior to operation, clear work area of all objects that can be picked up and thrown. Mark all curbs, pipes, etc. that
cannot be moved.
4. Be sure the Aux hydraulics switch/lever is in OFF position before starting engine.
5. Exercise extreme caution when operating on or crossing a gravel drive, walks, or roads. Stay alert for hidden hazards
or traffic.
6. Do not carry passengers.
7. Adjust skid shoes –housing height to clear gravel or crushed rock surface.
8. Keep clear of rotating parts. Do not put hands or feet under or into snowblower with engine running, and allow the
rotating parts to stop BEFORE unclogging the collector/fan housing or chute, and making any repairs, adjustments or
inspections. Use only a 36" long piece of wood to unclog blower.
9. Park the skid steer/snowblower on level ground, place the transmission in neutral, set the parking brake, disengage the
Aux hydraulics, lower the equipment to the ground, place all control levers in neutral, shut off the engine, remove the
ignition key and allow the rotating parts to stop BEFORE unclogging the collector/fan housing or chute, and making any
repairs, adjustments or inspections. Use only a 36" long piece of wood to unclog blower.
10. If the snowblower starts to vibrate abnormally, disengage the Aux hydraulics, stop the engine immediately and check for
cause. Excessive vibration is generally a sign of trouble.
11. Do not run the engine indoors except when starting engine and transporting attachment in or out of building. Carbon
monoxide gas is colorless, odorless and deadly.
12. Do not attempt to operate on steep slopes. If operating on slopes is necessary, exercise extreme caution when
changing direction.
13. Never operate snowblower without guards, and other safety protective devices in place.
14. Keep clear of chute discharge. This chute has the capability of throwing objects at far distances.
15. Never operate snowblower near glass enclosures, automobiles, window wells, embankments, etc. without proper
adjustment of snow discharge angle.
16. Never operate machine at high transport speeds on a slippery surface.
17. Use extra caution when backing up.
18. Do not direct discharge at bystanders or animals. Ejected objects may cause injury.
19. Disengage power to auger/fan when transporting or when not in use.
20. Never operate the snowblower without good visibility and lighting.
21. Prolonged exposure to loud noise can cause impairment or loss of hearing. Wear a suitable hearing device such as
earmuffs or earplugs to protect against objectionable or uncomfortable noises.
22. Never allow anyone near the work area.

5
SAFETY PRECAUTIONS –CONTINUED
THE SKID STEER
General Information
1. Read the operator's manual carefully before using skid steer. Lack of operating knowledge can lead to accidents.
2. Do not permit anyone but the operator to ride on the skid steer. There is no safe place for passengers.
Operating the Skid Steer
1. Never run the skid steer engine in a closed building without adequate ventilation, as the exhaust fumes are very
dangerous.
2. Adopt safe driving practice: Keep the parking brake on at all times during transportation.
3. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an emergency
stop to be safe and secure.
4. Reduce speed prior to turns to avoid the risk of overturning. Keep speed to a minimum.
5. Always keep the skid steer in gear to provide engine braking when going downhill. Do not coast.
6. Never allow an open flame near the fuel tank or battery.
7. Make sure the proper shields are installed when using the equipment and always replace the shields if damaged.
8. Park the skid steer/snowblower on level ground, place the transmission in neutral, set the parking brake, disengage the
Aux hydraulics, lower the equipment to the ground, place all levers including auxiliary control levers in neutral, shut off
the engine and remove the ignition key BEFORE leaving the skid steer.
9. Never park the skid steer on a steep slope.
10. Do not attempt to operate on steep slopes. Avoid sudden uphill turns on steep slopes.
11. Use of counterweights for better traction and stability is recommended.
12. Handle fuel with care, as it is highly flammable.
13. Use approved fuel container.
14. Never add fuel to running engine or a hot engine.
15. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors. Replace fuel cap securely and wipe up spilled
fuel.
16. Never allow anyone to operate the snowblower until they have read the manual completely and are thoroughly familiar
with basic skid steer and snowblower operation.
17. Make sure the skid steer is counterweighted as recommended by your dealer. Weights provide the necessary balance
to improve stability, traction and steering.
18. Always make sure all snowblower components are properly installed and securely fastened BEFORE operation.
19. Never attempt to start the engine and/or engage snowblower drive while standing beside the skid steer.
20. Always start the engine from the operator's seat with all the transmission lever(s) and snowblower drive lever in neutral.
21. DO NOT bypass the safety system by shorting across the terminals of the starter motor to start the engine. This may
cause the skid steer to move suddenly.
22. If the safety start system does not work, consult your dealer immediately.

6
SAFETY PRECAUTIONS –CONTINUED
During Operation
1. Do not allow passengers on the skid steer/snowblower at any time. There is no safe place for passengers on the
equipment. The operator MUST sit in the skid steer seat.
2. Eye and hearing protection is recommended when operating the snowblower.
3. Operate only during daylight hours, or when the area is well lit with bright artificial light.
4. Park the skid steer/snowblower on level ground, place the transmission in neutral, set the parking brake, disengage the
Aux hydraulics, lower the equipment to the ground, place all control levers in neutral, shut off the engine and remove
the ignition key BEFORE leaving the operator’s seat.
5. Inspect the snowblower after striking any foreign object to assure that all snowblower parts are safe and secure and not
damaged.
6. Be especially observant of the operating area and terrain. Watch for holes, rocks, or other hidden hazards. ALWAYS
inspect the area prior to blowing.
7. DO NOT blow near the edge of drop-offs or banks.
8. DO NOT blow on steep slopes as overturn may result.
9. Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
10. Drive skid steer backwards up steeper slopes with blower off. Then blow as you travel down the slope.
11. Slow down before you change directions on any slope.
12. Use wheel weights on your skid steer to increase stability on slopes.
13. Never stand alongside of the unit while the engine is running.
Roll-Over Protective Structure (ROPS) During Operation
1. DO NOT weld, drill or alter the ROPS. Damaged ROPS must not be straightened or used. If damage does occur,
consult your dealer.
2. If ROPS is lowered or removed from the skid steer for any reason, it must be erected and/or refitted immediately.
Original bolts or equivalent replacements must be used and tightened to the correct torque.
3. Your dealer does not recommend usage of skid steer with ROPS removed.
4. Seat belt usage: With ROPS installed on the skid steer it is imperative that the seat belt be installed, used and correctly
adjusted, at all times. DO NOT use a seat belt if operating without ROPS.
5. Keep all shields and covers in place. All skid steer and equipment shields and covers must be correctly installed at all
times. When necessary to remove these, they must be reinstalled immediately.
6. Keep clear of all rotating driveline components. Be especially observant of implement areas of discharge, intake or
other mechanical motion.
7. Securely lock equipment drive shaft. Check that all skid steer and equipment drivelines are in good working order.
8. Additional safety equipment: A fire extinguisher and first aid kit should be kept readily accessible. These are available
through your dealer.

7
SAFETY PRECAUTIONS –CONTINUED
MAINTENANCE
Always use genuine parts when replacement parts are required during operation.
1. Keep the skid steer and snowblower properly maintained.
2. Park the skid steer/snowblower on level ground, place the transmission in neutral, set the parking brake, disengage the
Aux hydraulics, lower the equipment to the ground, place all control levers in neutral, shut off the engine and remove
the ignition key and allow the rotating parts to stop BEFORE making any snowblower adjustments.
3. To avoid injury, do not adjust, unclog or service the snowblower with the skid steer engine running. Make sure rotating
components have completely stopped before leaving the operator's seat.
4. Keep the skid steer/snowblower clean. Snow and ice build-up can lead to malfunction or personal injury from thawing
and refreezing in garage.
5. Always wear eye protection when cleaning or servicing the snowblower.
6. Service the unit in safety: DO NOT service the skid steer while the engine is running or hot, or if the unit is in motion.
Always lower snowblower to the ground. If necessary to service unit with blower raised, securely support with stands or
suitable blocking before working underneath. Do not rely on hydraulically supported devices for your safety. They can
settle suddenly, leak down, or be accidentally lowered.
7. Do not attempt to service machine, clear obstructions or unplug blockages with the engine running. Always shut off
engine and allow all motion to cease.
8. The manufacturer will not claim responsibility for fitment of unapproved parts and/or accessories and any damages as a
result of their use.
9. Make sure all shields and guards are securely in place following all service, cleaning, or repair work.
10. Do not modify or alter this equipment or any of its components or operating functions. If you have any questions
concerning modifications, consult with your dealer.
11. Do not operate a unit which is defective or has missing parts. Make sure that all recommended maintenance
procedures are completed before operating the unit.
12. Check all controls regularly and adjust where necessary.
13. Periodically check all nuts and bolts for tightness, especially wheel hub and rim nuts.
14. Snowblower fan and auger must be checked for tightness. Remove any twine, wire, etc. that may have wrapped on the
fan or the auger.
15. To avoid serious personal injury: Escaping hydraulic/diesel fluid under pressure can penetrate the skin causing serious
injuries. Do not use your hands to check for leaks. Use a piece of cardboard or paper to search for leaks.
16. Stop engine and relieve pressure before connecting lines. Tighten all connections before starting engine or
pressurizing lines.

8
SAFETY PRECAUTIONS –CONTINUED
TRANSPORTING
1. Transporting on public roadway: When driving the skid steer and equipment on the road or highway under 25 mph, at
night or during the day, use flashing amber warning lights and the Slow Moving Vehicle ("SMV") identification emblem.
2. Check local traffic codes that may apply to unit usage on public roads and highways in your area. The use of flashing
amber lights is acceptable in most localities. However, some localities may prohibit their use.
3. Always disengage equipment drive prior to transporting unit.
STORAGE
Before storing the snowblower, certain precautions should be taken to protect it from
deterioration.
1. Clean the snowblower throughout.
2. Make all the necessary repairs.
3. Replace all safety signs that are damaged, lost, or otherwise become illegible. If a part to be replaced has a sign on it,
obtain a new safety sign from your dealer and install it in the same place as on the removed part.
4. Repaint all parts from which paint has worn or peeled.
5. Lubricate the snowblower as instructed under the "Lubrication" section.
6. When the snowblower is dry, oil all moving parts. Apply oil liberally to all surfaces to protect against rust.
7. Store in a dry place.

9
OPERATION
GENERAL PREPARATION
1. Read the operator's manual carefully before using the skid steer and snowblower. Be thoroughly familiar with the
controls and proper use of the equipment. Know how to stop the unit and disengage the controls quickly.
2. Wear adequate winter outer garments while operating the equipment.
3. Make sure the snowblower is clear of snow and other material before engaging the snowblower.
4. Make sure the auger and fan operate freely.
5. Adjust the skid shoes so the snowblower runs leveled.
6. Before engaging the snowblower drive, always have the engine running at idle.
7. Operate the snowblower at maximum to 3/4 engine RPM.
Engine Speed
1. Start the skid steer engine. Let the engine warm up at least one minute before engaging the drive mechanism then
increase speed gradually.
2. Make sure the snowblower head is properly positioned and engage the drive mechanism.
3. Adjust the ground speed according to conditions. For maximum power, run engine at or near full throttle.
IMPORTANT: Use full RPM power when removing wet, sticky snow. Low RPM power will tend to
clog the chute.
WARNING:
To avoid serious personal injury: Do not use your hands to unclog the chute. Use a
36" (925mm) stick or board. Do not attempt to unclog the chute while engine is
running. If the chute is clogged, shut off the skid steer engine, remove the key and
allow the rotating parts to stop before removing the snow from the chute.
Increasing Traction and Stability
The use of approved tire chains and wheel weights is recommended for extra traction and stability, especially when
operating in snow and/or on slippery surfaces. See your dealer for details.
Engaging the Drive Mechanism
Refer to the skid steer's operating manual for instructions.

10
OPERATION –CONTINUED
WARNING:
To avoid serious personal injury: Make sure skid steer engine and snowblower come to
a complete stop and skid steer drive mechanism is disengaged BEFORE making any
adjustments.
Deflector Adjustment if Manual
The deflector angle must be set according to the distance the snow must be thrown. To adjust the angle:
Turn the chute to right as far as possible.
Remove hairpin from adjustment tube and adjust the deflector with the adjustment rod.
Reinsert hairpin in adjustment tube.
Skid Shoe Adjustment
Adjust the skid shoes so that the snowblower runs level and according to the surface conditions so that stones are not
thrown with the snow.
Adjust both skid shoes to the same height to keep the cutting edge level and adjust upwards for smooth surfaces.
Remove skid shoe bolts (item 2) and adjust according to instructions below, and securely tighten bolts:
Clearance between cutting edge and surface:
Level paved surface: Adjust to 1/16" to 1/8"
Uneven or gravel surface: Adjust 1/2" to 5/8"

11
OPERATION –CONTINUED
SNOW REMOVAL METHODS
When removing snow, do not use the snowblower as a dozer blade to push snow. Let the snowblower work its way through
deep drifts. If the speed of your skid steer is too fast, the snowblower may become overloaded and clog. For best results,
raise the snowblower and remove a top layer of snow. A second pass with the snowblower will remove the remaining snow.
IMPORTANT: Use full RPM power when removing wet, sticky snow. Low RPM power will tend to
clog the chute.
WARNING:
To avoid serious personal injury: Do not use hands or feet to unclog chute. Do not
attempt to clear clogged chute of snow while skid steer engine is running. If the chute
clogs, disengage the Aux hydraulics, shut off the skid steer engine, set the parking
brake, lower snowblower to the ground, place transmission in neutral, remove the
ignition key, wait for all movement to stop, then clear the snow from the chute.
A definite pattern of operation is required to thoroughly clean the snow area. These patterns will avoid throwing snow in
unwanted places as well as eliminating a second removal of snow.
PATTERN 1
DISCHARGE SNOW BOTH SIDES
PATTERN 2
DISCHARGE SNOW BOTH SIDES
Where it is possible to throw the snow to the left and
right (above), as on a long driveway, it is
advantageous to start in the middle. Plow from one
end to the other, throwing snow to both sides without
changing the direction of the discharge guide.
DISCHARGE SNOW THIS SIDE ONLY
If the snow can only be thrown to one side of the
driveway or sidewalk (above), start on the opposite
side. At the end of the first pass, rotate the discharge
guide 180 degrees for the return pass. At the end of
each succeeding pass, rotate the discharge guide
180 degrees to maintain direction of throw in the
same area.

12
MAINTENANCE
Always use genuine parts when replacement parts are required.
WARNING:
To avoid serious personal injury:
Before cleaning, adjusting or repairing the snowblower: Bring the skid steer to a complete stop,
disengage the Aux hydraulics, apply parking brake, lower the implement to the ground, shut off
the engine and remove the ignition key.
Never park the skid steer inside a building where an open flame or sparks are present. Allow the
engine to cool down before storing in any enclosure.
Run the snowblower a few minutes after blowing snow to prevent freeze up of auger and fan.
Provide adequate blocking before working under the snowblower when in raised position.

13
MAINTENANCE –CONTINUED
LUBRICATION
Use oil or grease gun and lubricate as follows:
DESCRIPTION
INTERVAL
LUBRICATION REQUIRED
Bearing
8 hours of operation
Grease each auger bearing.

14
PARTS
INTRODUCTION
All parts are illustrated in "exploded views" which show the individual parts in the normal relationship to each other.
Reference numbers are used in the illustrations. These numbers correspond to those in the "Item No." column, and are
followed by the description and quantity required.
The manufacturer reserves the right to change, modify, or eliminate from time to time, for technical or other reasons, certain
or all data, specifications, or the product or products themselves, without any liability or obligation.

15
PARTS –CONTINUED
SKID STEER BLOWER PARTS AND ASSEMBLY
AU-01-1500 REV 5
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
A- Warning Do Not put Hands in Decal
B- Accessories Unlimited Contact Info Decal
C- Accessories Unlimited Logo Decal (Large)
D- Auger Warning Decal
E- Model/Serial Number Decal
F- Grease Daily Decal
G- Accessories Unlimited Logo Decal (Small)
H- Caution Do Not Operate with Guard Removed Decal
1
AU-02-1505 Rev 3
Auger Motor Mount
1
2
AU-02-1504-Width Rev 2
Auger
1
3
104-4236-006
Auger Drive Motor
1
4
105-1488-006 For 84”
105-1374-006 For 72”
Fan Impeller Motor
1
5
AU-02-1502 Rev 3
Chute Assembly
1
6
AU-01-1600
Chute Tip Cylinder
1
7
AU-02-1602
Foot
2
8
AU-02-1671
Left Skid Shoe
1
9
AU-02-1672
Right Skid Shoe
1
10
AU-03-1673
Auger Motor Inspection Cover
1
11
AU-03-1504-Width
Cutting Edge
1
12
AU-03-1510
Rotation Motor
1
13
AU-03-5042
Rotation Sprocket
1
14
AU-03-1645
Chute Hold Down
2
15
AU-03-1625
1.750 Flange Bearing
1
16
AU-03-1674
Fan Restrictor
1
17
AU-03-5043
Rotation Guard
1
18
AU-03-1687
Chute Riser Pad
4
19
AU-03-5114
Spacer
1
20
AU-03-5093
Chute Spacer Plate
4
21
AU-03-3014
Impeller Fan Nut
1
22
AU-03-3015
Lock Washer
1
23
.125 x 2.00 Cotter Pin
Cotter Pin
1
24
AU-02-1613 Rev4
Blower Body
1
27
AU-02-1501-Rev 4
Fan
1
28
AU-03-1775
Wire Harness
1
29
AU-03-5121
Manual Canister
1
30
PH250-FT12
-10 Male ORB to ¼”NPT
Female Rigid
2
31
PH500-FT11
-10 Male ORB to ½” NPT
Female Swivel
4
32
Manifold Block Assembly
See Break Down
1
33
PH250-FT05
¼” NPT ST 90
2
34
AU-03-1686-Width
Hydraulic Guard
1

16
PARTS –CONTINUED
SKID STEER BLOWER PARTS AND ASSEMBLY
AU-01-1501 REV 1
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
A –Warning Do Not Put Hands In Decal
B –Accessories Unlimited Website Decal
C –Large Accessories Unlimited Logo Decal
D –Auger Warning Decal
E –Serial Number Decal
F –Grease Daily Decal
G –Small Accessories Unlimited Logo Decal
H –Caution Do Not Operate With Guard Removed Decal
1
AU-02-1613-20-Width
Blower Body
1
2
105-1556-006
Fan Motor
1
3
AU-02-1501-20
Impeller Fan
1
4
AU-03-1504-Width
Cutting Edge
1
5
AU-02-1504-Width Rev 2
Auger
1
6
AU-02-1505 Rev 3
Auger Motor Mount
1
7
104-4236-006
Auger Motor
1
8
AU-03-1625
1.750 Flange Bearing
1
9
AU-02-1602
Foot
2
10
AU-02-1672
Right Skid Shoe
1
11
AU-02-1671
Left Skid Shoe
1
12
AU-03-3014
Fan Nut
1
14
.125 x 2.00 Cotter Pin
Cotter Pin
1
14
AU-03-3015
Lock Washer
1
15
AU-02-1502-20
Chute Assembly
1
16
AU-03-1645-20
Chute Hold Down
2
17
AU-03-1510
Rotation Motor
1
18
AU-03-5114
Spacer
1
19
AU-03-1687-20
Chute Riser Pad
4
20
AU-03-5093
Chute Spacer Plate
4
21
AU-03-5042
Rotation Sprocket
1
22
AU-03-5043
Rotation Guard
1
23
AU-03-1674-20
Fan Restrictor
1
24
AU-03-1673
Auger Motor Inspection Cover
1
25
AU-01-1600
Chute Tip Cylinder
1
26
AU-03-1686-20-Width
Hydraulic Guard
1
27
Manifold Block Assembly
See Break Down
1
28
AU-03-5121
Manual Canister
1
29
PH250-FT12
-10 Male ORB to ¼” NPT
Female Rigid
2
30
PH250-FT05
¼” NPT ST 90
2
31
PH500-FT11
-10 Male ORB to ½” NPT
Female Swivel
4

17
PARTS –CONTINUED
HOSES

18
PARTS –CONTINUED
SKID STEER BLOWER HYDRAULIC PARTS AND ASSEMBLY
AU-02-3200 MANIFOLD BLOCK
