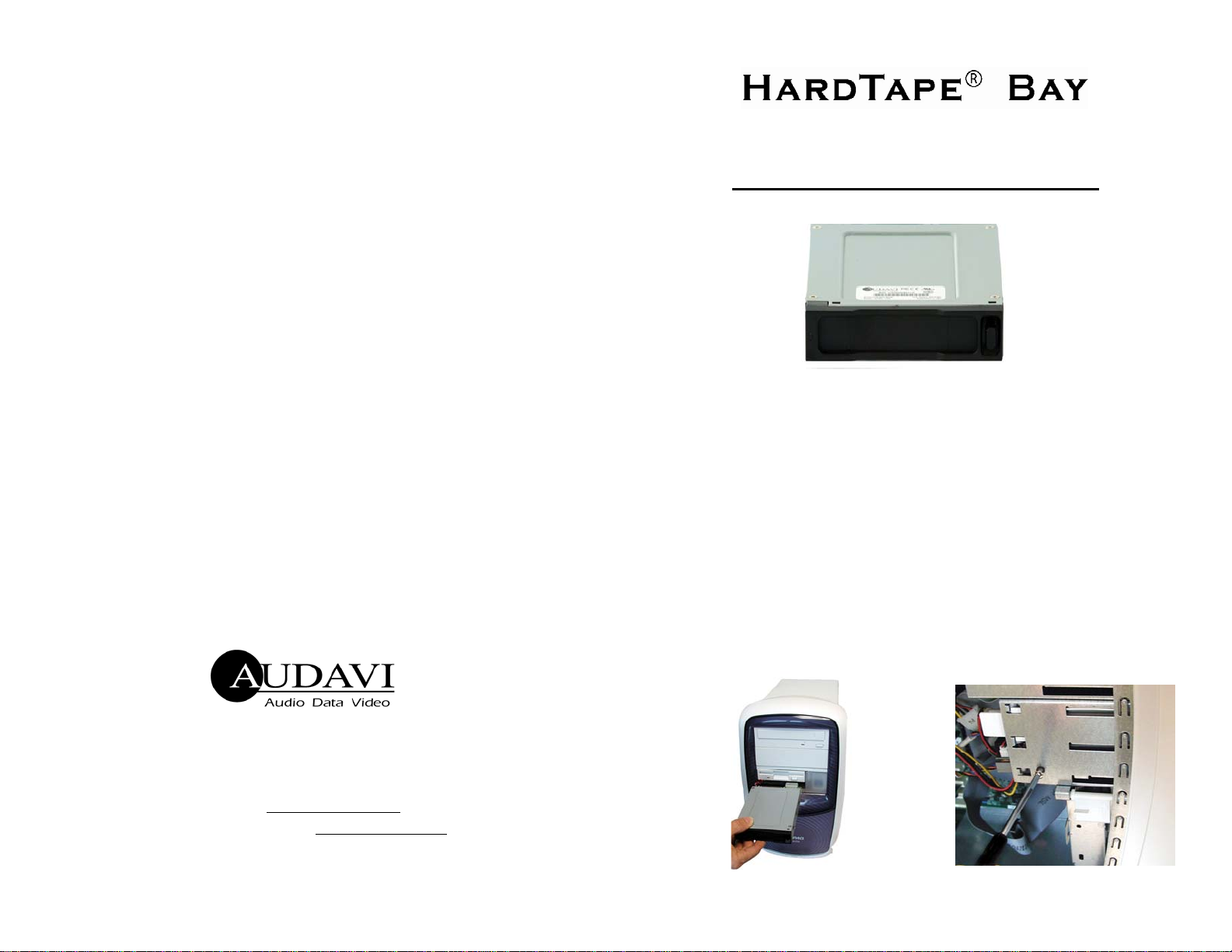

Audavi Ultra Narrow SCSI HardTape Bay User manual

1430 Tully Road; Suite 416 • San Jose, CA 95122 USA
Phone: [phone] • Fax: [phone]
-87053005E-
Email: [email protected]
Corporate Website: www.audavi.com
©COPYRIGHT 2002—2010 AUDAVI CORPORATION.
ALL BRAND AND PRODUCT NAMES ARE REGISTERED TRADEMARKS OF THEIR RESPECTIVE OWNERS.
Troubleshooting
If you install an Ultra Narrow SCSI HardTape Bay and it does not function
properly, please follow the troubleshooting steps below.
Step 1. Check Host Adapter
Verify the adapter card is seated in its slot on the motherboard.
Step 2. Check all Connectors and Cables.
Check to ensure Bay PCB power connector, internal SCSI connector and ribbon
cable connectors are properly seated. Ribbon cables are easily damaged due to
improper folding. Replace a damaged or suspect cable with a known good
cable. Make sure no connector pins are bent. Verify pin-1 on the interface
cable is aligned with pin-1 on the drive and host adapter.
Step 3. Verify the Jumper Setting.
Review the section “Configuring your Ultra Narrow SCSI HardTape Bay to
check if the jumper setting is correct.
Step 4. SCSI ID Conflict.
If you have multiple SCSI devices, please make sure that no ID numbers are
duplicated. To reduce the chance the ID switch will malfunction, test each
SCSI device individually.
Step 5. Poor External Cable Problems.
Weak electrical grounding may occur if many SCSI devices are daisy chained
and some of the external cables are not “high density” 50-pin cables. For
example, if you are daisy chaining many SCSI devices to MAC through 50-pin
SCSI cables and you have intermittent failures, it is recommended that you
replace this cable with a better quality cable.
Quick Start Guide
Ultra Narrow SCSI HardTape Bay
The Ultra Narrow SCSI HardTape Bay is designed to allow HardTape
cartridges to interface with a wide range of SCSI cards, including SCSI cards
for both Mac and Sun workstations.
Installing Host Adapter
To Install the host SCSI adapter, please refer to the instructions provided by the
manufacturer of your adapter.
Ultra Narrow SCSI HardTape Bay Installation
Step 1. Mount the HardTape bay into any vacant 3.5” floppy slot [you
may also mount in a vacant 5.25” slot using a 3.5” to 5.25” adapter
bracket (P/N HTS-6500-ADAP-BK/BG)]. Using the supplied M3
mounting screws, tighten two screws on each side until the HardTape bay
is tight and doesn’t move.
-1-
Figures 1

Step 2. Locate pin-1 of the 50-pin
SCSI connector on the Ultra Narrow
SCSI HardTape Bay PCB. (See
Figure 2).
Step 3. Identify pin-1 of the SCSI ribbon cable connector. This will be
the same side as the colored line on the ribbon cable itself (See Figure 2).
Step 4. Connect the SCSI ribbon cable connector to the Bay PCB
connector aligning pin-1 to pin-1.
Step 5. Connect the 4-pin power cable to the Bay PCB.
Configuring jumper settings on your Ultra Narrow SCSI HardTape Bay.
There are three functions to set via jumper selection on the SCSI
HardTape Bay JP2 connector (See Figure 3):
• Terminator enable/disable
• Terminator power on/off
• SCSI ID number setup
Figure 3
Figure 2
Please follow the instructions below to determine your jumper setting.
Step 1. Terminator Enable / Disable (pins 9-10)
When your device is at the end of the SCSI bus cable or there is only one
device on this cable, the terminator should be enabled. If you need to
disable the terminator, remove the factory installed jumper from pins 9
and 10 (see Figure 4).
Pins
1, 3, 5 : SCSI ID Number
2, 4, 6 : SCSI ID Common Ground
7,8 : Not Used
9, 10 : Terminator Enable/Disable
11, 12 : Terminator Power On/Off
Figure 4
Step 3. Terminator Power (Pins 11-12)
Default setting is on. However, you can turn it off by removing the
jumper between pins 11 and 12.
Figure 5
Step 2. SCSI ID Number (Pins 1-8)
For every device on one SCSI adapter card, there is a unique ID number
identifying that device. Use the information in Figure 5 to set a unique ID
number for your SCSI bay.
