Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 1 of 20
Document Revision History
Rev. Level Date Description
IR 09/2006 Initial Release
IR1 10/2006 Clarified Mating Connector Information
Reference Documents
Document # Description
525641 LCD-9151-201-x Outline Drawing
525667 SP-LCD6 Assembly Drawing
Service Bulletin List
Service
Bulletin # Subject Manual
Revision
Revision
Date
Table of Illustrations
Section # Description Page #
2.3 Typical Application 4
6.0 Reference Drawings 18-20
PROPRIETARY NOTICE: Despite any other copyright notice, this document and information
disclosed herein contains confidential, proprietary designs owned by Audio International, Inc.
Neither this document nor the data contained herein shall be reproduced, used, or disclosed to
anyone without the written authorization of Audio International, Inc.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 2 of 20
Table of Contents
Section Description Page
1.0 General Information ……………………………………………. 3
1.1 Introduction ……………………………………………………….. 3
1.2 Purpose of the Equipment ………………………………………. 3
1.3 Optional Equipment ……………. .………………………………. 3
2.0 Application ……………………………………………………….. 4
3.0 Installation ……………………………………………………….. 5
3.1 Prior to Installation ……………………………………………….. 5
3.2 Unpacking and Inspection ………………………………………. 7
3.3
Cautions & Warnings …………………………………………….. 7
3.4 Wiring Requirements …………………………………………….. 8
3.5 Electrical Characteristics…………………………………………. 9
3.6 Mating Connector Information ……………..……………………. 11
3.7 Pinout Assignment Descriptions ………………………………... 12
3.8 SP-LCD6 Configuration Overview………………………………. 13
4.0 Instructions for Continued Airworthiness ……..………….. 14
4.1 Airworthiness Limitations………………..……………………..… 14
4.2 Cleaning Method………………………………………………….. 15
4.3 General Troubleshooting Procedures ………………………….. 16
4.4 Troubleshooting Chart………………………………………….. 16
5.0 Specifications …………………………………………………… 17
5.1 Unit Specifications-LCD-9151-201-x..………………………….. 17
5.2 Unit Specifications-SP-LCD6……………………………………. 17
6.0 Reference Drawings ……………………………………………. 18
6.1 LCD-9151-201-x………………………………………………….. 18
6.2 SP-LCD6…………….. …………………………………………… 20
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 3 of 20
LCD-9151-201-x
15.1" Flat Panel LCD Monitor
1.0 General Information
1.1 Introduction
This manual contains information for the proper installation of the Audio
International, Inc. (AI) 15.1″Flat Panel LCD Monitor, Model No: LCD-
9151-201-x. The “-x” suffix designates the type of connector utilized; “-1” =
Positronic and “-2” = D-Subminiature. Also included are physical and
electrical characteristics of the unit.
1.2 Purpose of the Equipment
Audio International’s LCD-9151-201-x is a 15.1" flat panel LCD monitor
with Composite NTSC, PAL, and SECAM video, PC Graphic capabilities,
and Serial Digital interface capabilities. It provides a 1024 x 768 (XGA)
resolution display. A state of the art “thin film transistor active matrix drive
system” provides brilliant and accurate color reproduction, excellent high
contrast images, cross talk suppression, and fast response time with no
distortion or smearing. The monitor is designed for bulkhead mounting.
1.3 Optional Equipment
Audio International, Inc. offers a comprehensive family of Cabin Control
Modules and Source Equipment, such as DVD players and Videocassette
Players. These modules provide convenient solutions for a variety of
frequently encountered interfacing needs or special requirements and are
an important part of AI’s “building block” system for configuring total cabin
management.
An optional mounting kit (part number LCDKIT-9151-01) may be
purchased for added mounting provisions. This kit is comprised of angle
brackets and spring clips to enable bulkhead and cover bezel installation
as well as behind bulkhead installation.
Additionally, an optional cover bezel (part number LCDCB-9151-0x; -01
for a black anodized finish, -02 for no finish) may be ordered for additional
décor. The LCDCB-9151-0x includes the LCDKIT-9151-01, so it is not
necessary to order both LCDCB-9151-0x and LCDKIT-9151-01.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 4 of 20
2.0 Application
2.1 Introduction
The LCD-9151-201-x is a flat panel LCD monitor with Composite video,
PC Graphic capabilities, and Serial Digital interface capabilities. If any
one of these formats is applied to their respective inputs, the monitor will
display that format. In the case that both Composite and VGA are applied,
the monitor defaults to the VGA input. The user can switch between
inputs, or set video input priority, using the On Screen Display (see
Section 3.8)
2.2 Communication
This unit incorporates an RS-485 serial data bus interface for
communication purposes to other network-connected devices. All RS-485
serial data bus electronic interface parameters are compliant to AI
document #640071.
2.3 Typical Application
2.4 Typical Interfaces
Typical Video Input (Analog) interfaces include various types of level
compliant sources of Composite (SECAM, PAL, and NTSC), and XGA PC
Graphics.
The digital video input accepts SDI Video as defined by ANSI/SMPTE
259M-1997 digital format.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 5 of 20
2.5 SP-LCD6 is an external switch utilized for monitor set-up. The switch,
which must be ordered separately, provides configuration control via AI’s
proprietary RS-485 digital data bus communication or may be configured
directly to the P2 connector. Refer to Section 3.8, Configuration
Overview, for monitor set up. The SP-LCD6 may be removed and stored
after the monitor is set up or can be mounted near the monitor for frequent
use. Connector P2 provides to the switch panel +28 VDC power and
ground input, serial data bus control, and unit ID strapping pins to allow
programming of multiple units.
2.6 Device addressing is accomplished via three (3) ID pins, which allow for a
total of eight (8) monitors to be independently addressed on the data bus.
2.7 The monitor casing is specially designed for EMI and noise filtering,
guaranteeing a reduction in interference to ensure a high-quality display.
2.8 Inside the monitor, a cooling fan ventilates internal components and
prevents undesirable heat buildup. Because this fan is thermostatically
controlled, it only runs when heat build-up requires it, providing a much
quieter viewing experience than many monitors.
2.9 A shallow mounting depth makes this monitor ideal for bulkhead use.
Convenient mounting holes are strategically located on the left and right
sides. An optional front cover bezel (see Section 1.3) may be purchased
for added mounting capabilities. Other plating options are available and
allow matching to other cabin décor of the aircraft.
3.0 Installation
3.1 Prior to installation, the following items should be considered:
3.1.1 During the design and layout of the aircraft cabin, careful
consideration of the location of this module is necessary. Some of
the items to be considered include:
•Space
•Available power supply
•Environmental conditions (temperature, humidity, etc.)
•Length of cable runs
3.1.2 The LCD-9151-201-x shall be installed to conform to the standards
designated by the customer, installing agency, and existing
conditions as to the unit location and type of installation.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 6 of 20
3.1.3 If the adjustment switch (SP-LCD6) is to be mounted in the aircraft,
the following should be considered; the pigtail is 24 inches
(60.96 cm) in length ±1 inch (2.54 cm) and has 6-32 x 0.75 inch
mounting studs. Refer to Sections 5.0 and 6.2 for the adjustment
switch characteristics.
3.1.4 An internal fan exhausts heat from the unit. Proper ventilation must
be allowed for when specifying the installation location. The
closeout area of the monitor shall have a clearance of 2 inches
(5.08 cm) minimum for the air inlet and exit areas. The closeout
area of the monitor case shall not block the air inlet or exhaust
openings of the monitor case. The fan will only run when the unit is
turned on.
3.1.5 Mounting provisions are provided via right-angle flanges attached
to each side of the monitor case. These flanges provide the user
with the means of mounting the unit. Refer to Section 6.0,
Reference Drawings, for mounting hole diameters and
configuration.
3.1.6 The monitor should be located as close to the source equipment as
possible in order to reduce the possibility of noise introduced into
the video. Refer to Section 6.0 for unit dimensions.
3.1.7 The LCD-9151-201-x is configured using the external menu
selection switch, SP-LCD6. The switch utilizes a D-Subminiature
connector. This connector mates with the D-Subminiature
connector on the LCD-9151-201-1 model monitor.
3.1.8 A 3/8″long grounding lug is included as part of the housing. See
Section 6.0 for details.
3.1.9 The maximum length of the connection to PC Graphic (VGA) input
is 15 feet.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 7 of 20
3.2 Unpacking and Inspection
3.2.1 Carefully open the packaging and remove the LCD-9151-201-x.
Verify that all components have been included in the package per
the packing list. Inspect the unit for damage. Retain the packing
materials and packing list.
3.2.2 If damage has occurred during shipping, a claim should be filed
with Audio International WITHIN 24 hours and a Return Request
Authorization Number shall be obtained from AI by contacting the
Repair Department at 501.801.0640. Repackage the unit in its
original packaging materials and return it to AI following instructions
given by the AI representative. Refer to the front cover of this
manual for address. If no return is necessary, retain the packing
list and the packing materials for storage.
3.3 Cautions and Warnings
3.3.1 It is important to do a pin-to-pin power and ground check on all
connectors. Ensure that power and ground are applied only where
specified. Damage to the unit may result if power or ground is
applied to the wrong points.
3.3.2 DO NOT connect or disconnect the monitor while power is applied.
3.3.3 DO NOT remove any factory-installed screws. Damage to the unit
may result and void any warranties.
3.3.4 DO NOT expose to moisture.
3.3.5 The SP-LCD6 can be removed and stored after the monitor is set
up or it can be mounted near the monitor for frequent use. Ensure
power is removed from the monitor and/or entertainment system
before connecting or disconnecting the SP-LCD6.

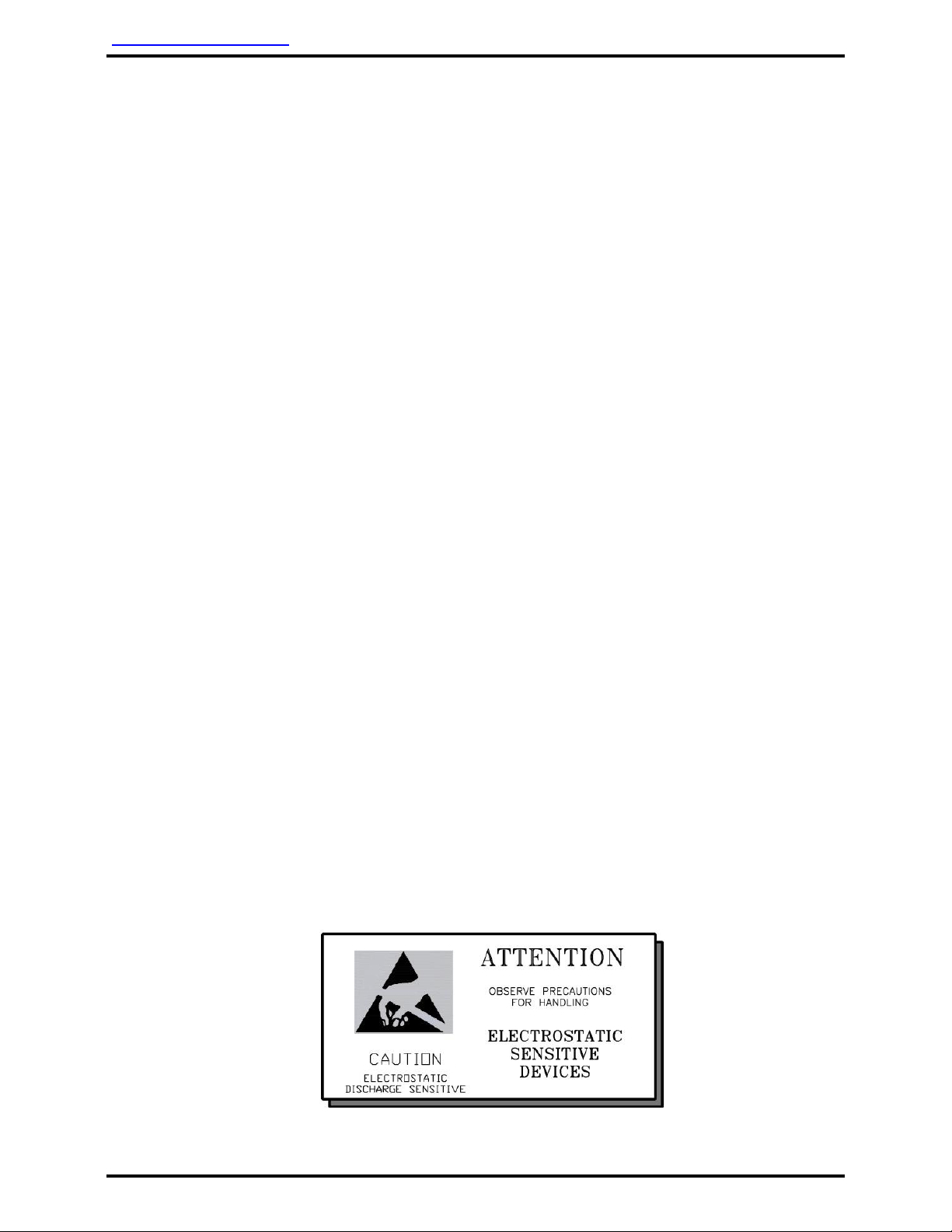

3.3.6 ESD (Electro Static Discharge) guidelines shall be followed.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 8 of 20
3.4 Wiring Requirements
3.4.1 Introduction
The installing agency shall supply and fabricate all external cables
and mating connectors. The length and routing of external cables
should be carefully studied and planned before attempting
installation of the equipment. Allow adequate space for installation
of cable and connectors. Avoid sharp bends and placing cables
near aircraft control cables. Maintain a minimum clearance of three
(3) inches from any control cable. If wiring is run parallel to
combustible fluid or oxygen lines, maintain a separation of six (6)
inches between the lines.
3.4.2 Power Wires
Audio International recommends that the chassis be electrically
bonded to the airframe structure by a conductive mounting point
with <0.1 Ωresistance using <50 Ωimpedance cable. Aluminum
wool, nylon webbing impregnated with aluminum oxide abrasive or
fiber bristle brushes are the approved tools for removing anodized
surfaces at mounting point where the bonding wire is attached.
Power and Ground wires shall be in accordance with MIL-W-22759
or equivalent. Protect power wires with circuit breakers or fuses
located close to the electrical power source bus.
3.4.3 Video Lines
Composite video connections shall be shielded coaxial cable in
accordance with M17/94-RG179 or equivalent. Cable shields shall
be grounded at the source. Use of individual wires rather than
proper coaxial cable connections through production breaks is
unacceptable, and will cause significant and detrimental noise
introduction to the video signal supplied to the LCD-9151-201-x.
Serial digital video connections are recommended to use shielded
coaxial cable in accordance with PIC V76261 or equivalent.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 9 of 20
3.4.4 RS-485 Connections
RS-485 connections shall be twisted shielded cable with the shield
properly grounded at the source (ideal practice) and floating at the
load end. If shield cannot be grounded at the source, then ground
at the load end with the source end floating. Each wire length shall
be terminated at one end only. The shield for RS-485 shall be
terminated to a dedicated pin. Twisted shielded cable shall be in
accordance with NEMA WC 27500 or equivalent.
3.4.5 RGB Connections
RGB wiring shall be in accordance with NEMA WC 27500 or
equivalent.
3.5 Electrical Characteristics
3.5.1 Electrical Specifications for LCD-9151-201-x:
Electrical Nominal Power 1.2 A @ +28 VDC
Maximum Power 1.5 A @ +28 VDC
Operating Voltage
Range +18 to +32 VDC
Screen Size 15.1" (38.35 cm)
diagonal
Screen Resolution 1024 x 768 (H x V)
Luminance 250 cd/m²
Color Depth 8-bits, 16,777,216 colors
Viewing Angle 170° Horizontal
170° Vertical
Contrast Ratio 400 : 1
Video Format
Composite (SECAM,
PAL, and NTSC), and
XGA PC Graphics
Operating Temperature +32°to +122°F
0°to +50°C
Storage Temperature -4°to +158°F
-20°to +70°C
Composite Video Input 1 V(p-p), 75 Ω
Component RGB Input Industry Standard
Digital Video Input ANSI/SMPTE 259M-
1997
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 10 of 20
3.5.2 Electrical Specifications, SP-LCD6:
Electrical Power 80 mA at +28 VDC,
maximum
Switch Backlighting Green
Mounting Studs 6-32 x 0.75 inches long
3.5.3 The LCD-9151-201-x utilizes three (3) connectors. P1 is a 13-pin
connector that provides power input, ground, video input, monitor
on/off control and monitor status.
The monitor on/off function (P1, Pin 5) is transition level sensitive.
Either a constant ground input or momentary ground input may be
used. If constant ground input is used, the monitor will activate to
the ON state when +28 VDC power is applied to Pin 1 and a
constant ground is on Pin 5. If no constant ground is present, then
this input will float to a high level causing the monitor to be in the
OFF state.
If momentary ground input is used, the monitor will alternate
between ON and OFF states with each momentary ground pulse of
duration between 50 and 250 msec. If momentary ground logic is
used, then the monitor will power up to an OFF state when power is
applied to Pin 1.
3.5.4 P2 is a 9-pin connector that provides power output to the SP-LCD6,
ground, and data bus control. Three (3) ID pins are also provided
on the P2 connector. These ID pins allow for up to eight (8) units to
be connected on the same AI proprietary RS-485 data bus while
maintaining independent control of each unit. Depending upon the
necessary configuration, the ID 0, ID 1, and ID 2 pins shall connect
to the ID common as suggested below:
ID 2 ID 1 ID 0 No. of Units
1 1 1 1
1 1 0 2
1 0 1 3
1 0 0 4
0 1 1 5
0 1 0 6
0 0 1 7
0 0 0 8
0 = Connected to ID Common 1 = N/C
3.5.5 P3 is a 15-pin high-density connector that provides VGA signal to
the monitor.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 11 of 20
3.5.6 The SP-LCD6 utilizes one (1) 9-pin connector that mates with P2 of
the LCD-9151-201-x. This connector provides +28 VDC power
input, ground, data bus connections, and data bus configuration ID
connections.
3.6 Mating Connector Information
All wiring harnesses to the unit shall be supplied and fabricated by the
installing agency.
P1 CONNECTOR
PART NUMBER MATING CONNECTOR
LCD-9151-201-1
CBC13W3F140000 Female Plug or equivalent
A1 size 8 Contact: FCC4102D (Positronic Industries)
A2 size 8 Contact: 110236 (PIC Wire & Cable)
LCD-9151-201-2
DBA13W3SF0 Female Plug w/male jackscrews or equivalent
A1 size 8 Contact: D130344 (ITT Cannon)
A2 size 8 Contact: 110236 (PIC Wire & Cable)
P2 CONNECTOR
PART NUMBER MATING CONNECTOR
LCD-9151-201-1 RD9M10JVL0 Male Plug or equivalent
(Positronic Industries)
LCD-9151-201-2 DEMA-9P Male Plug w/male jackscrews or equivalent
(ITT Cannon)
P3 CONNECTOR
PART NUMBER MATING CONNECTOR
LCD-9151-201-1 DD15M10JVL0 Male Plug or equivalent
(Positronic Industries)
LCD-9151-201-2 DAMA-15P Male Plug w/male jackscrews or equivalent
(ITT Cannon)
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 12 of 20
3.7 Pinout Assignment Descriptions
3.7.1 Pinout assignment for the LCD-9151-201-x is as follows:
P1
Pin # Description
1 +28VDC Power Input
2 Ground
3 Reserved
4 Monitor Status Gnd Output
5 Monitor On/Off Gnd Input
6* SE Video Enable
7* SE Video Common
8-10 Reserved
A1 Composite Video
A2 Serial Digital Video
A3 Reserved
* note that pins 6 and 7 tie together for single-ended composite video sources
P2
Pin # Description
1 +28VDC Power Output For Monitor Control Panel
2 Ground
3 Data Bus A
4 Data Bus B
5 Data Bus Shield
6 ID0
7 ID1
8 ID2
9 ID Common
P3
Pin # Description
1 Red Video
2 Green Video
3 Blue Video
4 Reserved
5 Ground
6 Red Ground
7 Green Ground
8 Blue Ground
9 Key
10 Sync Ground
11 Reserved
12 Reserved
13 Horizontal Sync
14 Vertical Sync
15 Reserved
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 13 of 20
3.7.2 Wiring description for the SP-LCD6 is as follows:
SP-LCD6
Pin # Description
1 + 28 VDC Power Input
2 Power Ground
3 Serial Data Bus A (HI)
4 Serial Data Bus B (LO)
5 Serial Data Bus Shield
6 Unit ID 0
7 Unit ID 1
8 Unit ID 2
9 Unit ID Common
3.8 SP-LCD6 Configuration Overview
Configuration is typically accomplished via an SP-LCD6 attached to the
D-Subminiature connector on the monitor. Audio International reserves
the right to add, delete, or alter functions from the setup menus without
advance notification to the user. To access the Main Menu, press the
“MENU 1” button, which will cause the Monitor setup menu to be
displayed on the LCD-9151-201-x. To scroll through the setup modes,
press the “MENU 2” button to scroll forward or the “MENU1” button to
scroll back. When in the desired mode for setup monitor, press either
LEFT (-) or RIGHT (+) to change the selected value. Pressing the LEFT
button decreases the selected value and pressing the RIGHT button
increases the selected value. Press the appropriate button for the desired
adjustment. Press the “MENU 2” button to scroll to the next menu option.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 14 of 20
A typical Monitor Setup Menu consists of the following modes:
1. “OSD TIMEOUT”- Timeout period until monitor defaults out of menu mode.
2. “BACKLIGHT”- Backlighting intensity.
3. “FACTORY PRESET”- All modes may be reset to the default factory setting. Select
either “YES” or “NO”.
4. “SOURCE PRIORITY”- Selects priority operating mode to “PC” (personal computer)
or “None”. Setting this mode to “PC” allows user to normally view composite video
until a PC laptop is turned on, then the monitor will automatically switch to PC input
upon sensing VGA input.
5. “H-POS”- Adjusts viewing area horizontally.
6. “V-POS”- Adjusts viewing area vertically.
7. “SHARPNESS”- Adjusts picture sharpness.
8. “COLOR”- Adjusts picture color.
9. “TINT”- Adjusts picture tint.
10. “CONTRAST”- Adjusts picture contrast.
11. “BRIGHT”- Adjusts picture brightness.
The setup menu may vary slightly from monitor model to model. As
technology advances, additional features may be added to the setup
menu and existing features may be modified. Audio International’s
intention is to provide clear and concise instructions on any new or
modified feature in the setup menu as these changes occur.
4.0 Instructions for Continued Airworthiness
4.1 Airworthiness Limitations
No periodic scheduled maintenance or calibration is required for continued
airworthiness of the LCD-9151-201-x. If the unit fails to perform to
specifications, it must be removed and serviced by a qualified service
facility.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 15 of 20
4.2 Cleaning Method
The LCD-9151-201-x should be cleaned at least once every three months
or when excessive dust or dirt becomes apparent.
Use a twin pack cleaning system that employs a wet pad pre-moistened
with an Isopropyl Alcohol based cleaner/anti-static solution and a lint-free
drying cloth. Audio International, Inc. recommends using “Kleen & Dry”
RR1205 manufactured by READ RIGHT, Nanuet, NY 10954.
¾Do not use benzene, ammonia, thinner, or any other volatile
substance to clean the monitor or screen. These chemicals may
damage the screen or internal circuitry.
¾Do not allow cleaner to puddle or pool around edges. Seepage
may damage internal circuitry.
Audio International’s recommended cleaning method follows:
A. Turn off monitor.
B. Open pre-moistened pad and gently wipe evenly across
display glass. Do not allow solution to “pool” or puddle
around display edges.
C. Immediately dry display using the absorbent, lint-free cloth.
Gently wipe display to a dry, clear finish.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 16 of 20
4.3 General Troubleshooting Procedures
•Verify power to the unit by rechecking +28 VDC power is applied to the
proper pins on the unit. Use a voltmeter to verify correct level.
•Remove power from the unit for at least one (1) minute and reapply
power.
•Recheck all connections to the unit for security. Check all harness
runs for possible pinching. Recheck all pinouts for application
accuracy.
•Check data bus integrity by utilizing a voltmeter, oscilloscope, or other
voltage instrument to verify proper input voltage on the data bus pins.
Typical measurements are as follows:
A to Ground: 4.0 to 4.5 VDC
B to Ground: 0.1 to 1.0 VDC
If any device is transmitting (i.e., holding bus active), then these typical
measurements would be reversed for the A-to-Ground and B-to-
Ground. This troubleshooting tool can help indicate a data bus lockup.
If this occurs, remove the data bus from all other equipment one piece
at a time. As each is removed, check the bus status to see if it is now
functioning properly. Once you have removed the piece or pieces of
offending equipment, disconnect power and then reconnect everything
but the suspect component. Reapply power and then test the
functionality of the unit(s).
4.4 Troubleshooting Chart
Problem Possible Cause Solution
Poor picture quality or
scrambled video
¾LCD backlight malfunction
¾SP-LCD6 programming
¾Poor video source
•Contact AI
•Check setup
•Change cassette
Blank screen* ¾LCD not receiving power
¾Mother board malfunctioning
•Check all cable
connections
•Contact AI
*The monitor displays a black screen with the unit turned on and no video
signal.
Audio International, Inc. LCD-9151-201-x Installation Manual
Document # 540334, Rev IR1, 10/2006 Page 17 of 20
5.0 Specifications
5.1 Unit Specifications for LCD-9151-201-x:
Physical Specifications – LCD-9151-201-x
Screen Size 15.1 (38.4 cm) diagonal
Weight Approx. 5.86 lb / 2.66 kg
Dimensions
(l x w x h)
13.31" x 1.50" x 10.21"
33.81 cm x 3.81 cm x 25.93 cm
5.2 Unit Specifications for SP-LCD6:
Physical Specifications – SP-LCD6
Bezel Plating Raw, unless otherwise specified
Weight Approx. 0.13 lb / 0.06 kg
with connector
Dimensions
(l x w x h)
2.83" x 2.78" x 1.32"
7.19 cm x 7.06 cm x 3.35 cm
Other manuals for LCD-9201-101-x
1
Table of contents
Other Audio international Monitor manuals
