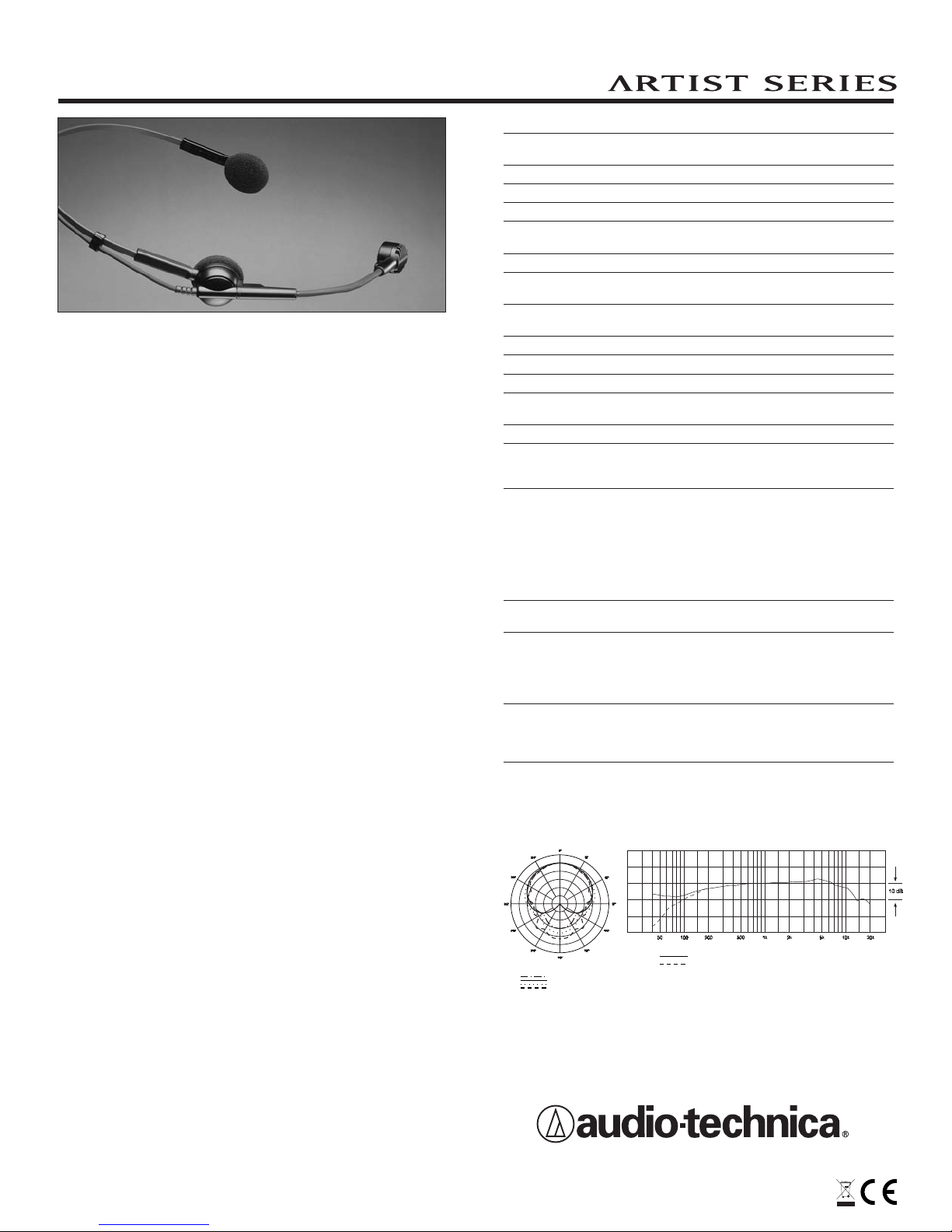

• Professional-quality vocal pickup with hands-free operation
• Low-visibility headband provides stable, comfortable fit
• Pivot-mounted flexible mic boom descends from left or right side
• Belt-mounted power module operates on battery or phantom
power
• Cardioid polar pattern improves isolation of desired sound source
• Also available as: ATM75cW – less power module; 55" (1.4 m)
cable terminated with locking 4-pin connector for A-T UniPak™
wireless systems
The ATM75 requires 11V to 52V DC phantom power or a 1.5V AA
battery for operation. A battery need not be in place for phantom
power operation.
Battery installation: Remove the cap from the top of the power
module. Insert a fresh 1.5V AA battery (“+” end toward the cap
release button), then reassemble the power module. Alkaline
batteries are recommended for longest life. Remove the battery
during long-term storage.
Output from the power module's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2 and
3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive
acoustic pressure produces positive voltage at Pin 2.
An integral 80 Hz high-pass UniSteep®filter provides easy switching
from a flat frequency response to a low-end roll-off. The roll-off
position reduces the microphone's sensitivity to popping in close
vocal use. It also reduces the pickup of low-frequency ambient noise
(such as traffic, air-handling systems, etc.), room reverberation and
mechanically coupled vibrations.
For maximum stability and minimum visibility, the adjustable
headband should be worn around the back of the head, with each
cushioned support pad resting on the temple in front of the ear. The
cable should remain clipped to the headband, with some slack at the
boom connection.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods.
Extremely high humidity should also be avoided.
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51808 ©2006 Audio-Technica U.S., Inc. Printed in Japan
ATM75
ATM75 SPECIFICATIONS†
ELEMENT Fixed-charge back plate
permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 100-13,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY –51 dB (2.8 mV) /
(Phantom / Battery) –53 dB (2.2 mV) re 1V at 1 Pa*
IMPEDANCE (Phantom / Battery) 200 ohms / 270 ohms
MAXIMUM INPUT SOUND LEVEL 132 dB / 121 dB SPL,
(Phantom / Battery) 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 96 dB / 85 dB,
(Phantom / Battery) 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO158 dB, 1 kHz at 1 Pa*
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical
BATTERY TYPE 1.5V AA/UM3
BATTERY CURRENT/LIFE 0.4 mA / 1200 hours typical
(alkaline)
SWITCH Off, on-flat, on-roll-off
WEIGHT
MICROPHONE 2.1 oz (60 g)
POWER MODULE 4.9 oz (139 g)
DIMENSIONS
HEADSET 4.72" (120.0 mm) nominal at
widest point,
3.17" (80.5 mm) flexible boom
MICROPHONE 0.80" (20.4 mm) diameter
POWER MODULE 3.31" (84.0 mm) H x
2.48" (63.0 mm) W x
0.87" (22.0 mm) D
OUTPUT CONNECTOR Integral 3-pin XLRM-type
(power module)
CABLE 4.6' (1.4 m) long (permanently
attached to microphone), 0.11"
(2.8 mm) diameter, 2-conductor
shielded cable with TA3F-type
connector
ACCESSORIES FURNISHED AT8531 power module; AT8439
clothing clip; AT8139L large
windscreen; AT8139S small
windscreen; battery
†In the interest of standards development, A.T.U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL
1Typical, A-weighted, using Audio Precision System One.
Specifications are subject to change without notice.
CARDIOID CONDENSER
HEADWORN MICROPHONE
8 kHz
Polar Pattern
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
Frequency in Hertz
LEGEND 12" or more on axis
Roll-off
Frequency Response
Response in dB
