Audiophony PA AMP480 User manual

USER GUIDE
10506 / 10511 / 10512 - Version 1 / 08-2016
1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 2

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 3
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 4
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product,
and avoid any overheating risk.
Do not obstruct or cover these vents as it may
result in overheating and potential physical injury or
product damage. This product should never been
operated in a closed non-ventilated area such as a flight case
or a rack, unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed
upon or against them, paying particular attention
to cords at lugs, convenience receptacles and the
point where they exit from the fixture.
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or
maintenance by yourself. Refer all servicing to
qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place.

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 5
3 - Presentation
2 - Introduction
Our new AMP amplifiers series dedicated to installations combine sound quality, easy installation and
handiness.
The AMP480, AMP4120 and AMP4240 operate at 100V, and have been designed to fit any installation.
Their high-pass filter allow them to limit basses, allowing more subtle ambient music without compromising
on power.
1
2
3 4
65
7

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 6
4Output terminals
Connect here your speakers or ceiling speakers.
The terminals might be used differently depending on
the installation.
Please refer to next chapter for more details about each
type of installation.
5HPF Switch
Allows you to activate or deactivate the high-pass filter.
This filter can be activated of loud noises or interferences
can be heard.
6INPUT and LINK sockets
INPUT : Connect here a line-level source.
LINK : Allows you to send the signal to another device.
7INPUT ADJUST control knob
Allows you to adjust the incoming signal level from
-12dB to 0dB.
1LED indicators
These LEDs indicate the current status of your device:
- SIGNAL: Indicates that an incoming signal has been
detected.
- -10 dB: Indicates that the incoming signal is within the
best range possible to get a perfect audio output.
- CLIP: Indicates that signal levels are too high.
- PROTECT: Indicates that the protection has been
activated because your device of short-circuits or
overheating.
Notes :
-The PROTECT LED usually lights up when turning on
your device.
-If the PROTECT LED remains lit, please turn off your
amplifier, wait for it to cool down, and check the
cables.
-If this LED remains lit upon activation of your device,
and the aforementioned steps have already been
tried, please ask for a qualified technician.
2Power button
Allows you to turn you device ON/OFF.
The POWER LED is lit when your device is activated.
3Power input with fuse
Connect here the supplied IEC cord then connect it to
the mains after making sure the voltages are compatible.
Fuse values
AMP480 T4 AL / 250V
AMP4120 T4 AL / 250V
AMP4240 T6.3AL / 250V

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 7
Input connectors
Output terminals
4 - Using your amplifier
CAUTION: Please make sure your amplifier is not plugged in and is OFF when checking cables.
The line-level plug (INPUT) and LINK output are balanced.
However, they can still receive unbalanced signals.
You can also send the incoming signal from one way to another one as described below:
Please use high-quality cables to connect your speakers.
In order to prevent short-circuits, please tin the cables before connecting them to the output terminal.
You will find below a table of correspondence between the amplifier/speakers distance and cable sections in
order to prevent signal quality losses.
Distance Section
Up to 8 m 1,5 mm²
Between 8 and 12 m 2 mm²
Between 12 and 18 m 3,5 mm²
Between 18 and 30 m 5 mm²
Between 30 and 45 m 8,5 mm²
Between 45 and 60 m 13 mm²
Note: Never use screened cable to carry amplified signal.

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 8
Wiring
100V speaker or ceiling speakers
Transformer
Transformer
Please make sure to respect the polarities when connecting your speakers to your amplifier.
Connect the speakers equipped with transformers to COM and 100V terminals.
Caution: The sum of all
connected speakers must not
exceed the maximum power of
your amplifier
Dangerous voltage
Speakers must be connected last to
the amplifier.
Turn the amplifier on when the
installation is over and has been
checked thoroughly.

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 9

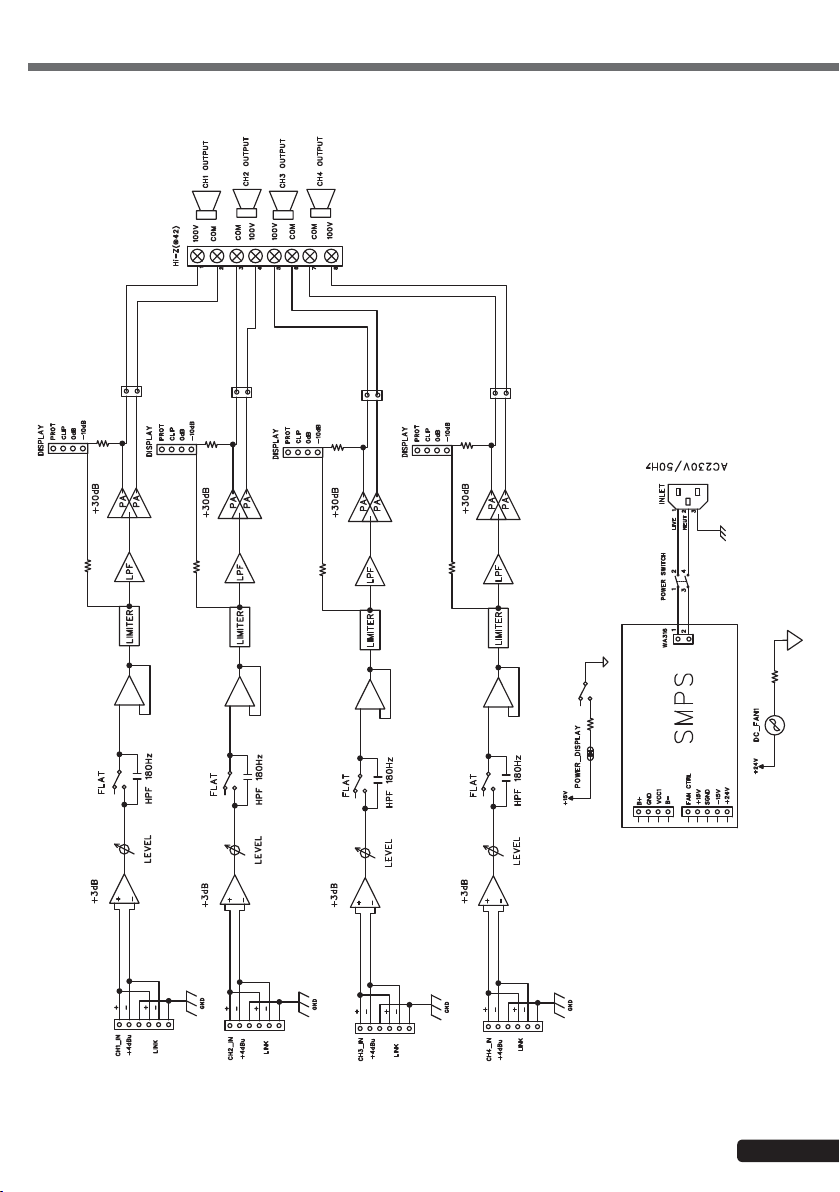

5 - Synoptic
Note AMP480 is a mono-channel amplifier yet the synoptic is identical.

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 10
7 - Technical specifications
AMP480 AMP4120 AMP4240
ELECTRICAL SPECIFICATIONS
Power
(T.H.D 1,0%, 1KHz) 1 x 480 Watts 4 x 120 Watts 4 x 240 Watts
Input sensitivity (INPUT andf LINK)
(Balanced input) + 4dB
Cross-over distortion higher than 70 dB
Frequency response 50 Hz - 15 KHz
Signal to noise ratio higher than 90dB
T.H.D at 1 KHz (nominal power) less than 0,1%
Output voltages and impedances 42Ω/ 100V 83Ω/ 100V 42Ω/ 100V
Power supply 100V~240V AC, 50/60Hz
PHYSICAL CHARACTERISTICS
Cooling system Fans
Operating temperature and humidity 0°~40° with 95% humidity max.
Dimensions (W x D x H) 483 x 380 x 88 mm
Net weight 6,6 Kg 7,2 Kg 7,5 Kg

AMP480/4120/4240 - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs
Page 11

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
