audiophony MOJO1200LINEevo User manual

USER GUIDE
H11174 - Version 1 / 10-2020
1200W amplified system with subwoofer and column + DSP + Bluetooth®+ TWS

English MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 2
1 - Please read carefully :
We strongly recommend to read carefully and understand the safety instructions before
attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any physical harm or property
damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other wet locations.
6 - Installation :
We strongly encourage you to only use a fixation system or support recommended
by the manufacturer or supplied with this product. Carefully follow the installation
instructions and use the adequate tools.
Always ensure this unit is firmly fixed to avoid vibration and slipping while operating
as it may result in physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid any overheating risk.
Do not obstruct or cover these vents as it may result in overheating and potential
physical injury or product damage. This product should never been operated in a
closed non-ventilated area such as a flight case or a rack, unless cooling vents are
provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause overheating and product
damages. Please keep this product away from any heat source such as a heaters,
amplifiers, hot plates, etc...
Sound levels
Our audio solutions deliver important sound pressure levels
(SPL) that can be harmful to human health when exposed
during long periods. Please do not stay in close proximity of
operating speakers.
WARNING
1 - Safety information
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the housing or attempt
any maintenance by yourself. In the unlikely even your unit may require service, please contact your
nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord extension
or connecting system without making sure they are
perfectly isolated and present no defect.
10 - Electric power supply :
This product can only be operated according to a very specific voltage. These
information are specified on the label located at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at
lugs, convenience receptacles and the point where they exit from the fixture.
12 - Cleaning precautions :
Unplug the product before attempting any cleaning operation. This product should be
cleaned only with accessories recommended by the manufacturer. Use a damp cloth
to clean the surface. Do not wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the electronic components
and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by yourself. Refer all servicing
to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C, relative humidity must be less than
85% (when cooling vents are not obstructed).
Do not operate this product in a non-ventilated, very humid or warm place.
Recycling your device
• As HITMUSIC is really involved in the environmental cause,
we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to
a collection point designated by local authorities. The
separate collection and recycling of your product at the time
of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health
and the environment.
This symbol signals an important safety precaution.
IMPORTANT
The CAUTION symbol signals a risk of product deterioration.
CAUTION
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
WARNING
Instructions and recommendations

English
MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 3
2 - Technical specifications
COLUMN
Power 180W RMS - 360W max
Nominal impedance 6 Ohms
Boomer 6 X 3"
Tweeter 1 x 1"
Dispersion 120° x 30° (HxV)
Connector Slot-in inegrated into the subwoofer
Dimensions 103 x 750 x 100 mm x 2
Net weight Column: 3.75 Kg / Spacer: 2.1 Kg
SUBWOOFER
Power 250W RMS - 500W max
Nominal impedance 4 Ohms
Boomer 1 x 10"
Dimensions 389 x 626 x 626 mm
Net weight 21.8 kg
COMPLETE SYSTEM
Frequency response 38Hz -18KHz
Max. SPL (@1m) 122 dB
AMPLIFIER MODULE
Low frequencies 1 x 300W RMS / 600W Max
Mid/High frequencies 1 x 300W RMS / 600W Max
Inputs
CH1 : 1 x Combo XLR/Jack Ligne/Micro
CH2 : 1 x Combo XLR/Jack Ligne/Micro
CH3 : 1 x Jack Ligne
CH3 : 1 x RCA L/R ligne + Bluetooth®
Outputs
1 Slot-in on the top of the subwoofer for the column
1x XLR balanced MIX OUT for the link with another system
2x XLR balanced LINE OUT for the channel 1 and 2 link
DSP 24 bit (1 in 2 out)
EQ / Presets / Low cut / Delay / Bluetooth® /TWS
Level Volume settings for each way + Master
Sub Subwoofer volume settings

English MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 4
3 - Presentation
A- Rear view
3
4
5
6
7
8
9
10
CH 1 CH 2 CH 3 CH 4/5
AC INPUT 100-240V / 50-60Hz
FUSE : 8A 250V
12

English
MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 5
1- Power input socket and Fuse
Allows you to connect the speaker to an electrical outlet. Use the supplied IEC cord, and make sure the voltage
delivered by the outlet is in adequation with the value indicated by the voltage selector before turning on the built-in
amplifier. The fuse protects the power supply module and the built-in amplifier.
If need to replace the fuse, please make sure the new fuse has exactly the same characteristics.
2 - Power switch
3- Subwoofer sound level
Allows you to adjust the sound level of the bass.
This setting also affects the main volume level.
(PLEASE MAKE SURE TO CONFIGURE IT IN ORDER TO PREVENT THE LIMIT FROM BEING LIT).
4- Multi functions knob
Allows you to enter into each function of the DSP and make the adjustements. Please check next page for more
details.
5- Display
Show the inputs level and the differents DSP functions
6- Channels 1 and 2 input selector
Allows you to choose the type of source connected to each channel.
7- Channels sound level
Allows you to adjust the sound level of each channel.
This setting also affects the main volume level of the amplification system.
(PLEASE MAKE SURE TO CONFIGURE IT IN ORDER TO PREVENT THE LIMIT FROM BEING LIT).
8- Input connectors
CH1 and CH2 input via balanced COMBO (Mic 40k Ohms / Line 10k Ohms)
Connect here an XLR or JACK plug from a line level music instrument or a microphone.
CH3 input via balanced Jack (Line 20k Ohms)
Connect here a JACK plug from a line level music instrument like guitar
CH4/5 inputs via RCA and Bluetooth®
Connect a line level instrument via the RCA. The Bluetooth®receiver is also on this channel.
9- Balanced line output
LINE LINK output for brodcast the channel 1 and 2
MIX OUTPUT allow you to link another system. The level is line and signal is master mixed.
Bluetooth®pairing :
With the multi functions knob (4) go to BT menu and set it to ON.
The Bluetooth®logo is blinking quickly on the display to indicate that its searching a Bluetooth®connexion.
On your smartphone or computer select the "MOJO1200LINE" in the list of the Bluetooth®devices to connect it.
The Bluetooth®logo is blinking slowly on the display and a sound signal indicate that your device is connected.
CAUTION
Please make sure to properly configure the sound levels of your system. In addition to being unpleasant for
the audience, improper settings can damage your whole sound system.
The "LIMIT" indicators will light on when the maximum level is reached and must never be permanently lit.
Beyond this maximul level, the volume will not increase but will be distorted.
Moreover, your system can be destroyed by an excessive sound level despite of the internal electronic protections.
First, in order to prevent that, adjust the sound level via the Level of each channel.
Then, use the High/Low equalizer to adjust the acoustic as you wish and then the Master level.
If the sound output does not seem powerful enough, we strongly recommend to multiply the number of systems in
order to spread the sound output evenly.

English MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 6
4 - DSP

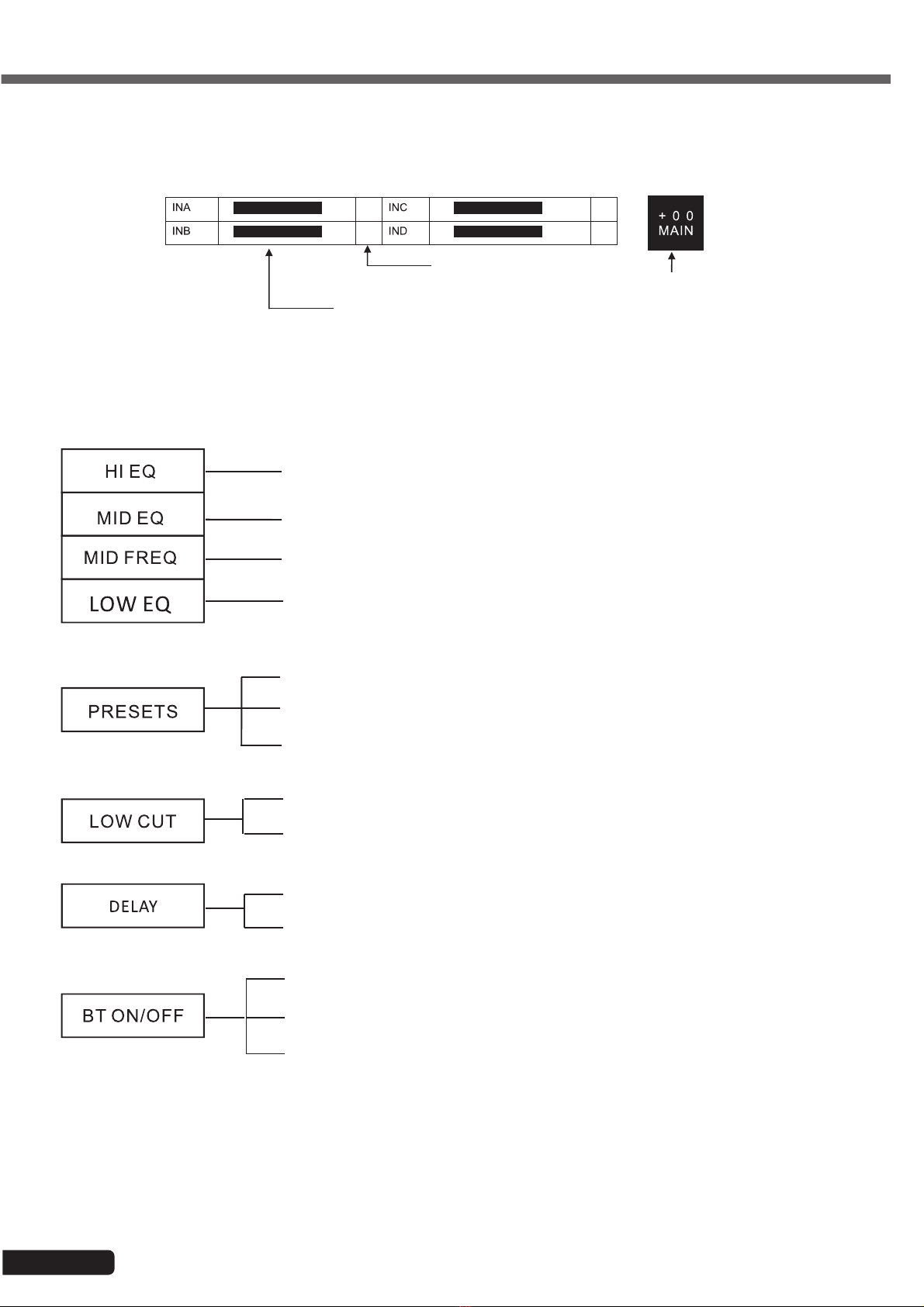

4.1 - Level bargraph :
The display show the of each 4 channels and of the Master.
This allow you to visualize the signal and adjust the input level. There you can see also if the Limiter is activated.
Channel level
Max level zone
Master level and
Limiter display
4.2 - Menus :
High adjustement +/- 12 dB at 12 kHz
Mid adjustement +/- 12 dB on the frequency choosed below
Setting of the Mid frequency adjustement
Low adjustment +/- 12 dB at 70 Hz
MUSIC mode, this equalizer setting is almost flat.
VOICE mode, this mode allows to get more clear voices
DJ mode, this preset makes the bass and high more punchy.
OFF : no cutting
Low cut frequencies choice : 80 / 100 / 120 / 150 Hz
OFF : no delay
Adjustment of the delay from 0 to 100 meters
OFF : the Bluetooth®receiver is OFF
ON : switch ON the Bluetooth®receiver and send to channel 4/5
TWS : Allow to connect another MOJO1200LINE in stereo by Bluetooth®

English
MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 7

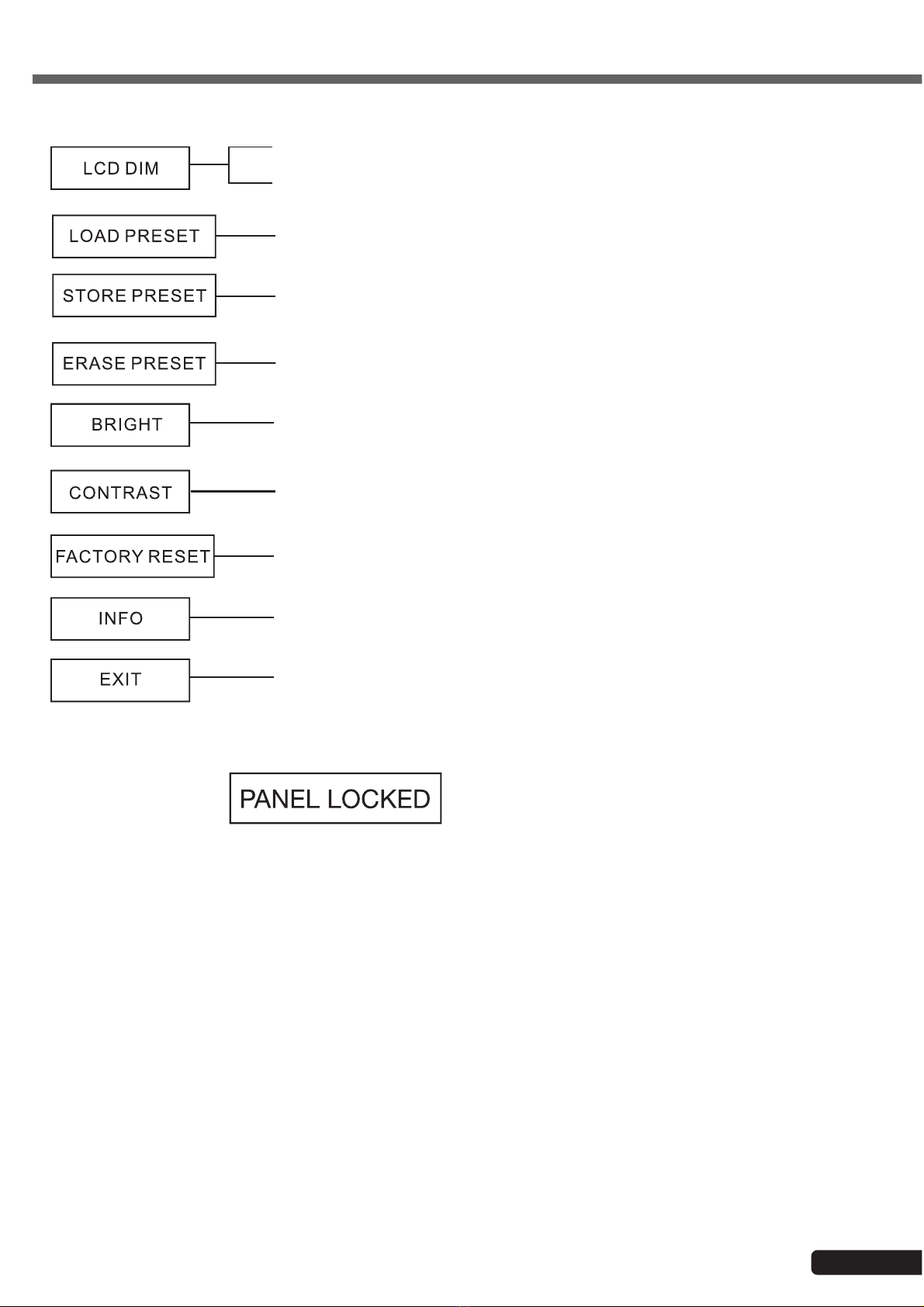

OFF : the display never dim
ON : after 8 secondes the display switch off
Allow to load recorded preset
Allow to record a preset
Erase the recorded preset
Adjust the brightness of the display from 0 to 10
Adjust the contrast of the display from 0 to 10
Reset all the adjustments. Default factory setting is Music mode.
Firmware version information
Exit of the menu
Note: If you press and hold the multi-function key (4) for more than 5 seconds, you lock the menu.
The display then shows
To unlock the menu, press and hold the multi-function button again for more than 5 seconds.
4.3 - TWS mode operation :
The Bluetooth TWS mode allows you to connect two MOJO1200LINEevo together in Bluetooth to broadcast in
stereo from a single Bluetooth source (phone, tablet, ... etc).
Switching on the TWS mode :
1 - If you have already paired one of the two MOJO1200LINEevo, go to the Bluetooth management of your source
and deactivate Bluetooth.
2 - On both MOJO1200LINEevo, activate the TWS mode. A "Left Channel" or "Right Channel" voice message will
be emitted to confirm that the TWS mode is active.
3 - Reactivate Bluetooth on your source and pair the device named MOJO2200LINE.
4 - You can now play your music in stereo on two MOJO2200LINE.
Note: The TWS mode only works with a Bluetooth source.

English MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 8
The column were designed to be operated
with this subwoofer.
Please do not use any other type of satel-
lites as it may damage the whole sound
system.
CAUTION
The MOJO1200LINEevo column is directly mounted above the
subwoofer thanks to its contact slot.
This slot guarantees the transmission of the audio signal between the
column and the subwoofer. Cables are not required in this case.

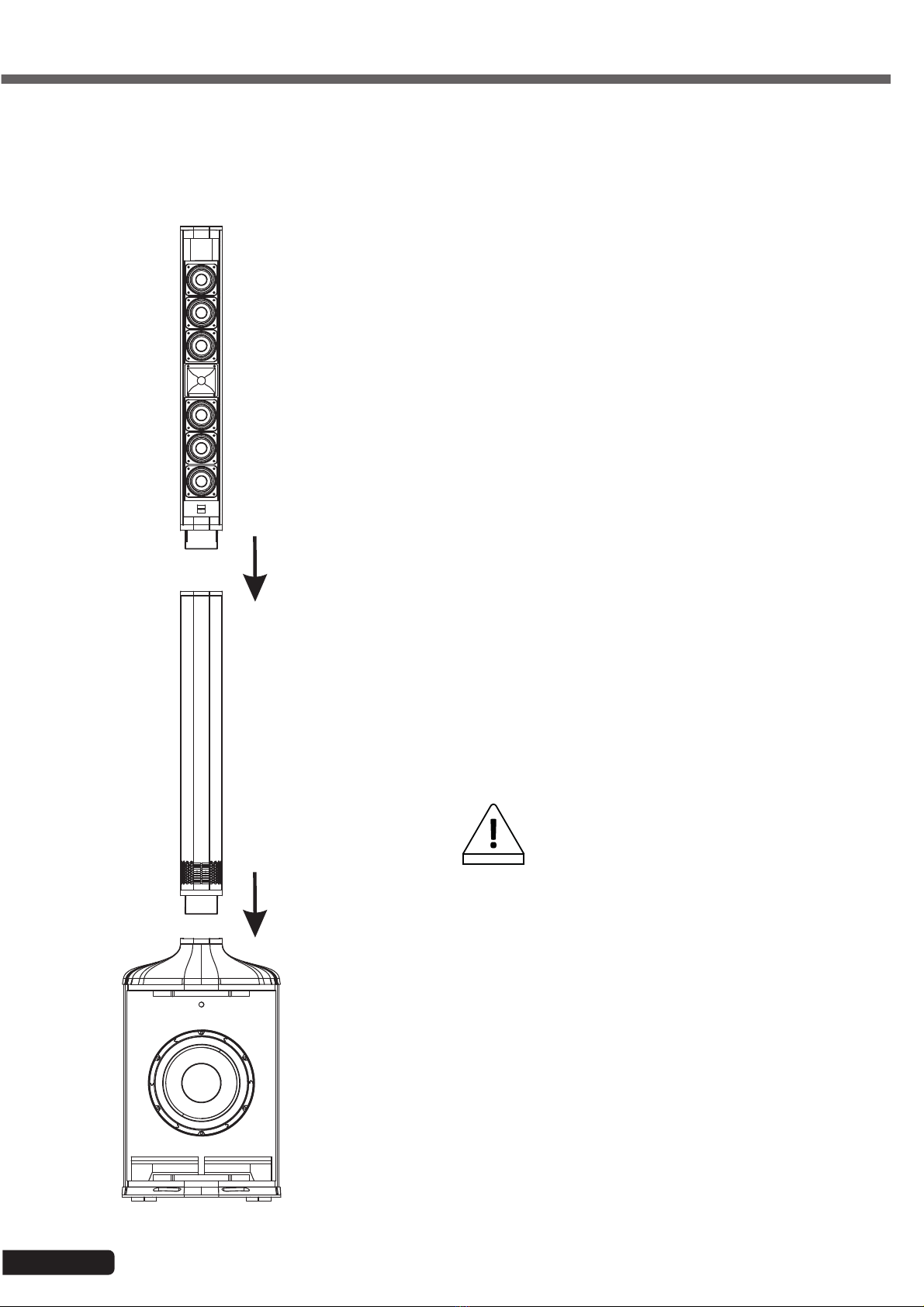

The drawing opposite describes column speaker mounted above the
subwoofer.
5 - Column
5.1 - How to plug the column on the subwoofer

English
MOJO1200LINEevo - Amplified system with subwoofer and column + DSP + Bluetooth®+ TWS
Page 9
6 - Connections
CAUTION
Please make sure to properly configure the sound levels of your system. In addition to being unpleasant for
the audience, improper settings can damage your whole sound system.
The "LIMIT" indicators will light on when the maximum level is reached and must never be permanently lit.
Beyond this maximul level, the volume will not increase but will be distorted.
Moreover, your system can be destroyed by an excessive sound level despite of the internal electronic protections.
First, in order to prevent that, adjust the sound level via the Level of each channel.
Then, use the High/Low equalizer to adjust the acoustic as you wish and then the Master level.
If the sound output does not seem powerful enough, we strongly recommend to multiply the number of systems in
order to spread the sound output evenly.

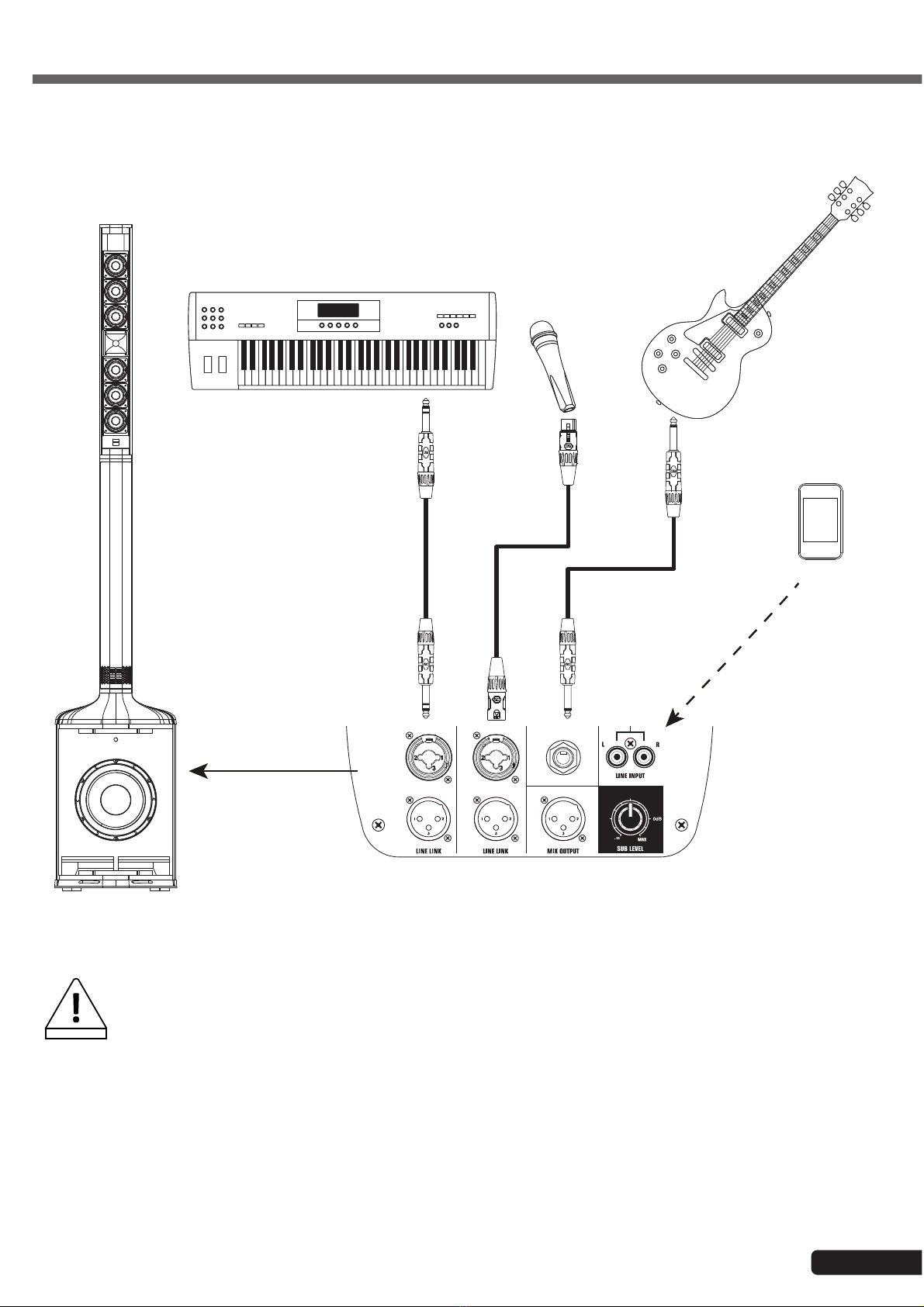

CH2 : MIC
CH1 : LINE
CH3
CH4/5 : Bluetooth®

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE
