Tangent MCS-600 User manual

Instruction manual
MCS-600

This operation manual supplies all the information that you need to have about your Tangent MCS-600.
Please read this operation manual carefully before you start using the unit!
02
The objective of every Tangent product
is that fundamentally correct
design can produce a product
capable of achieving excellent
performance and affordability.
www.tangent-audio.com

CONTENTS
03
Safety precautions 4
Important safety instructions 5
Important information 7
Connection to the mains 8
Front and rear panel functions 9
Front panel functions 9
Rear panel functions 10
Remote control 11
Installation of batteries 11
Using the remote control 11
Remote control functions 12
Connections 14

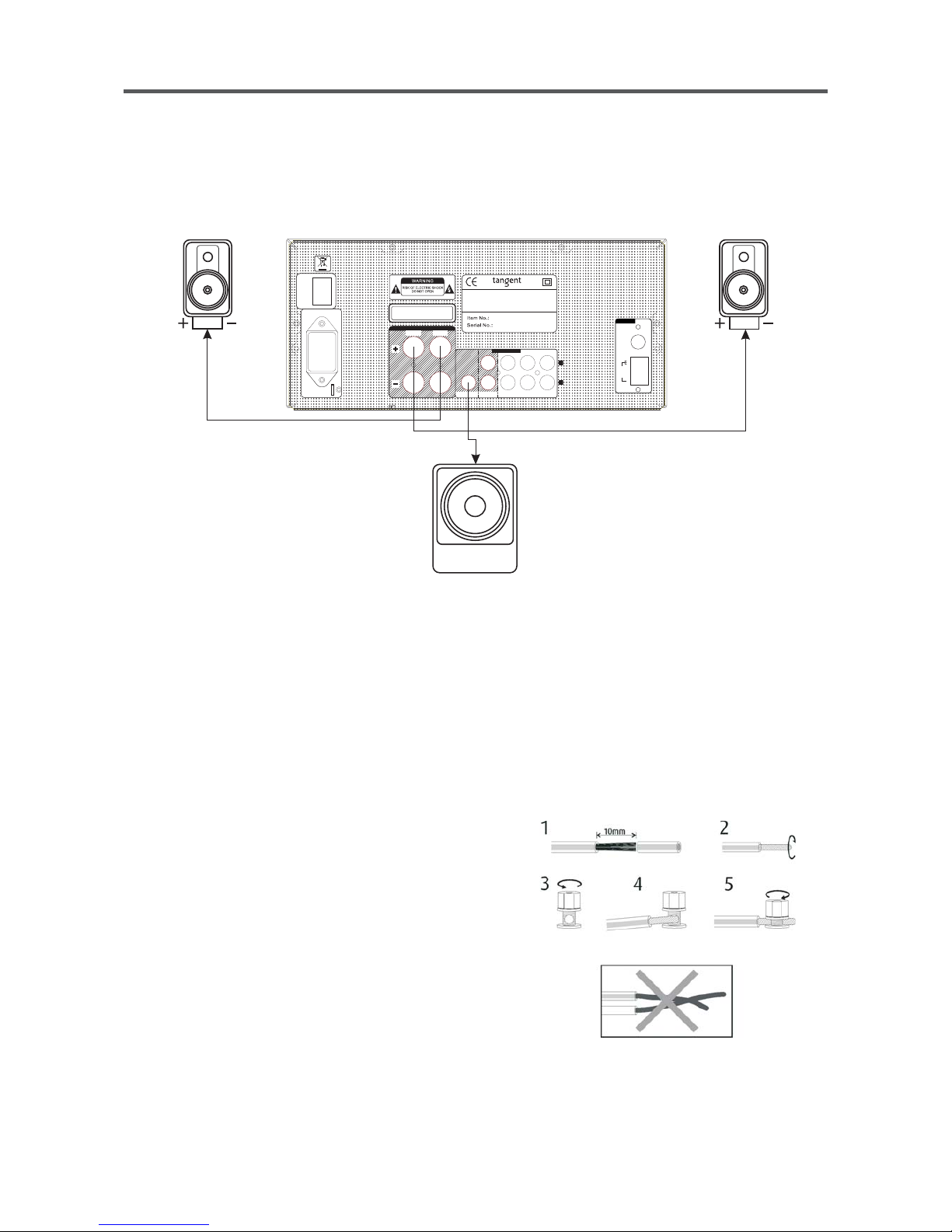

Connection of speakers 14
Rear panel connections 15
Front panel connections 15
Using the radio 16
Connecting an antenna 16
Tuning in channels 16
RDS (Radio Data System) 17
Back-up memory 17
Troubleshooting guide 18
Specifications 19

TO MINIMISE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THE UNIT TO
RAIN OR MOISTURE. DO NOT OPEN THE CABINET AS IT CONTAINS DANGEROUS VOLTAGE.
ONLY QUALIFIED TECHNICIANS ARE ALLOWED TO CARRY OUT REPAIR AND SERVICE.
If the plug of the power cord needs to be replaced, it is important that the replacement is identical to
the plug to be replaced, or that the new plug has been recommended by the manufacturer
A triangle with a lightning symbol draws the user's attention to
"dangerous voltage" without insulation in the cabinet which may be
high enough to entail a risk of electric shock.
A triangle with an exclamation mark draws the user's attention to
important instructions for use and maintenance in the enclosed
manual, which should be studied.
TO AVOID ELECTRICAL SHOCK, IT IS IMPORTANT TO INSERT THE PLUG CORRECTLY INTO
THE SOCKET.
SAFETY PRECAUTIONS
A symbol for CLASS II (double insulation)
WARNING:
CAUTION:
04
The marking of products using lasers (except for some areas). The label is attached to the rear panel
and says that the component uses beams that have been classified as Class 1, which means the unit
is utilizing laser beams that are of weaker class. There is no danger of hazardous radiation outside the
unit.

WARNING: IT IS IMPORTANT THAT YOU READ AND OBSERVE BOTH THE INSTRUCTIONS IN THIS MANUAL AND THE
INSTRUCTIONS ON THE UNIT. KEEP THIS MANUAL FOR FUTURE REFERENCE.
This unit was designed and manufactured with a view to providing maximum safety for the user. Incorrect use of the unit
may cause electrical shock or fire. The protection devices built into this unit will protect the user if the procedures below are
observed in connection with installation, use and repair. This unit is fully electronic and contains no parts that can be
repaired by the user.
DO NOT REMOVE THE CABINET. RISK OF DANGEROUS VOLTAGE. ONLY QUALIFIED TECHNICIANS ARE ALLOWED TO
REPAIR THE UNIT.
Heat
Do not place the unit near sources of heat such as radiators,
heat registers, ovens or other units that produce heat.
Water and moisture
The unit must not be placed close to water, such as bathtub,
wash basin, kitchen sink or laundry tub, in a damp cellar or
close to a swimming pool, etc.
Cleaning
Unplug the unit before cleaning. Do not use liquid detergents
and aerosol cleaning agents. Use a dry cloth.
Power cords
Wiring must be organised to prevent people from stepping on
the cables and to avoid pinching by objects placed on or
beside them. Take special care around sockets and plug boxes
and where the power cords leave the unit.
Overloading
Make sure that wall sockets, extension cords and plug boxes
are not overloaded as this may lead to fire or electrical shock.
Read the manual
Upon unpacking the unit, please read the manual carefully
and observe all the instructions given.
Power supply
Only the power supply indicated on the rating plate must be
used for this unit. If you are not sure which power supply you
have, please contact the distributor or the local electricity
supplier.
Earthing or polarisation
If the plug cannot be inserted properly into the socket, or if the
plug does not fit, the unit must not be used in your country.
IMPORTANT SAFETY INSTRUCTIONS
Ventilation
The cabinet is provided with slots and openings to ensure
ventilation and reliable operation and to protect the unit
against overheating. Do not block or cover these openings.
The openings must never be blocked, for instance by placing
the unit on a bed, a sofa, a carpet or similar surface.
05

Service
Do not attempt to carry out any service work yourself. By
opening or removing the cabinet, you will be exposed to
dangerous voltage or other hazards. Any service work should
be carried out by qualified technicians.
Spare parts
If spare parts are required, make sure that the service
technician uses spare parts specified by the manufacturer or
spare parts with the same characteristics as the original.
Unauthorised spare parts may cause fire, electrical shock, etc.
Safety check
After service or repairs on the unit, ask the service technician
to carry out a safety check to ensure that the unit is ready for
use.
Damage
Unplug the unit and contact qualified technicians in the
following cases:
A) If the power cord or the plug is damaged.
B) If liquid has been spilled on the unit or objects have fallen
into the unit.
C) If the unit has been exposed to rain or water.
D) If the unit does not work properly after adhering to the
instructions in the operation manual. Only the settings
described in the operation manual must be made as
incorrect setting may result in damage and often will make
it difficult for a qualified technician to make the unit work
properly again.
E) If the unit has been dropped or damaged in any other way.
F) When the operation of the unit changes drastically, the unit
requires service.
Lightning
Unplug the unit for additional protection during thunder or
when the unit is not used for prolonged periods. This will
prevent damage to the unit from lightning and power surges.
Penetration of objects and liquid
Never push any foreign objects through the openings into the
unit, as they may touch dangerous voltage points or short-
circuit parts and thus cause fire or electric shock. Do not spill
liquid on the unit.
Accessories
Do not place the unit on unstable surfaces such as a trolley,
stand, tripod, shelf or table. The unit may fall and injure
children or adults or be seriously damaged. Use only trolley,
stand, tripod, shelf or table that is very stable or provided with
the unit. The unit must be installed in accordance with the
manufacturer's instructions and by means of installation
equipment recommended by the manufacturer. If the unit is
placed on a trolley, the trolley must be moved very carefully.
Sudden stops, unnecessary force and uneven surfaces may
cause the trolley to turn over.
Loads
Do not place heavy loads on the unit and do not step on it.
The load may fall and cause serious injury to persons or
damage to the unit.
IMPORTANT SAFETY INSTRUCTIONS
06

IMPORTANT INFORMATION
Handling instructions
- The top and back panel of the unit may become warm after
prolonged use. This is not due to a defect.
- Turn off the power when the unit is not used.
Protect the power cord
- Follow the instructions below to prevent abnormal
operation, electrical shock, fire or personal injury:
- Hold the plug firmly when inserting it into the socket.
- Avoid heat-producing devices.
- Do not place objects on the power cord.
- Do not carry out service work on or change the power cord.
Positioning
Do not place the unit in any of the fol. places:
- In sunlight, close to heat-producing devices or in an
enclosed rack.
- In places with high temperatures (40C or more) or high
relative humidity (90% or more).
- In dirty places as some internal parts may be damaged.
Do not put your fingers or any
other objects into the unit
- Touching the internal parts is dangerous and may cause
injury or damage. Do not open the cabinet.
- Do not place any foreign matter in the unit.
Interference
Placing the unit near a television set, radio or video player
may cause poor picture and sound quality. In that case, move
the unit further away from the television set, radio or video
player.
Condensation
Condensation may occur in the following cases:
- When the unit is moved directly from a cold to a warm place.
- When the unit is used in a room where the radiator has just
been switched on or a place where the cold air from the air-
conditioning system is directed at the unit.
- If the unit is used in the summer in a warm and humid room
just after it has been moved from an air-conditioned room.
- If there is steam or a high level of humidity in the room.
In case of condensation, the unit will not work properly. Turn
off the unit. Unplug the unit and leave it for 2-3 hours. The
unit will then have adapted to the environment and any
condensation will have disappeared.
07

CONNECTION TO THE MAINS
Connection to the mains
Do not turn on the power before all connections have been made correctly.
Check that all connections have been made correctly before turning on the power.
Check that the mains voltage is 220-240V AC50~60Hz before turning on the power.
(US version 110-130V AC50 )~60Hz
Connection to the mains
Check that all other connections have been made correctly before inserting the mains plug into the wall socket.
Then insert the plug into a suitable socket.
If the unit is to be used abroad, you may need an adapter.
08
SPEAKER 6-8OHM
R
L
FM
75W
FM
75W
AM
LOOP
CLASS 1 LASER PROCUCT
TAP E IN DVD INAUX1IN
ON
POWER
OFF
ANTENNA
AUDIO
Model: MCS-600
Power rating: AC 220V - 240V~50Hz
Max Power Consumption:120W
220-240V
~50Hz
SUB
LINE OUT
REC OUT
LEFTRIGHT

FRONT AND REAR PANEL FUNCTIONS
09
1
5
34
6 78910
11 12 13 14 15 16
1. Standby LED
2. Power Standby
3. VFD Display
4.
5. Tuning +/-
6. Station
7. Source
8. Repeat
9. Previous (I<<)
10. Next (>>I)
11. Play/Pause
12. Open/Close/Stop
13. Phones
14. Disc Tray
15. Line In
16. Aux 2
The standby LED indicates wether the unit is on or in standby. When the receiver is on, the standby LED will glow green. When
the receiver is in standby, the standby LED will glow red
Press the + or / button to adjust up or down in frequency in radio mode.
Press this button to change between stored radio presets.
Press this button to select different kinds of source: CD, FM, AM, AUX1, TAPE, DVD, LINE IN, AUX2
Press this button to activate repeat playback. Press it repeatedly to change between REPEAT ONE, REPEAT ALL and REPEAT
OFF.
Press this button to skip to previous track in CD mode.
Press this button to skip to next track in CD mode.
Press this button if you want to start or interrupt the disc playing
In CD mode, press this button if you want to stop the disc playing, press the button once more to open the disc tray. And once
again to close the tray again
This connecter is for connecting headphone. Adjust the volume so that it does not hurt your ears when using headphones. If you
do not intend to use your headphones, always ensure that you unplug them.
Connect to a MP3 player or other audio device by using a Ø3.5mm jack line.
Connect to the audio line output terminals of an external source.
Press the power button to set the receiver into standby. The standby LED will turn red. Press the power button once again, to
turn on the receiver on again. The standby LED will turn green.
Shows information of the selected input source, adjustments and system state.
Turn this button clockwise and counterclockwise to adjust the master volume. Turn the knob clockwise to increase the volume
and counter clockwise to decrease the volume.
Master volume.
P
2
The points below contains a brief description of the front panel buttons, inputs and outputs. For more detailed descriptions of the
functions and connections, please see the following pages of the manual.
Front panel functions
MCS-600 Mini CD System
VOLUME
LINE IN AUX 2
PHONES
TUNING
STANDBY
POWER
REPEATSOURCE
STATION

FRONT AND REAR PANEL FUNCTIONS
10
The points below contains a brief description of the rear panel buttons, inputs and outputs. For more detailed descriptions of the
functions and connections, please see the following pages of the manual.
Rear panel functions
1. Mains power switch.
2. Mains power input.
3. Speaker output terminals.
4. Subwoofer pre output.
5. Record output
6. Tape input connection.
7. AUX1 input connection.
8. DVD input connection.
9. AM antenna input.
10. FM antenna input.
Mains power ON/OFF switch. This is not a standby function. This is the mains power switch. When this switch is set to OFF, the
receiver will not use any power at all. Please notice that the stored radio presets and sound adjustments will be erased from the
receiver when it is turned off on the powerswitch for a period longer than one week.
Connect the AC power cord to this jack when the installation is complete. To ensure safe operation, use only the power cord
supplied with the receiver. If a replacement is required it must be of the same type and capacity.
For connecting the speakers of the system. Note that the impedance of the connected speaker must be between 4 and 8 ohm.
Please make sure that the power is disconnected from the receiver while making any speaker connection.
Connect an active subwoofer.
Record outputs for a tape recorder. These outputs must be connecter in order to be able to record. Please notice that the tape
output signal is an analog stereo record output tape recorders.
Analog inputs for an analog tape recorder.
Analog inputs for an auxiliary stereo source.
Analog inputs for a DVD player or another analog stereo source. Please notice that the input signal must be an analog stereo
signal.
Connect the included AM loop antenna to this input or an external AM antenna.
Connect the included FM antenna whip to this input or an external FM antenna. Make sure the cable used for this is a 75 ohms
coaxial antenna cable.
1
2347891056
SPEAKER 6-8OHM
R
L
FM
75W
FM
75W
AM
LOOP
CLASS 1 LASER PROCUCT
TAP E IN DVD INAUX1IN
ON
POWER
OFF
ANTENNA
AUDIO
Model: MCS-600
Power rating: AC 220V - 240V~50Hz
Max Power Consumption:120W
220-240V
~50Hz
SUB
LINE OUT
REC OUT
LEFTRIGHT

REMOTE CONTROL
Installation of batteries
1 Remove the battery cover as illustrated.
2 Position two batteries of the type AAA/R03/UM4 in the
battery compartment. Make sure that the orientation of the
batteries is correct (see drawing at bottom).
3 Replace the battery cover.
- Do not mix new and old batteries and do not use different types of batteries.
- If the remote control is not used for prolonged periods, remove the batteries from the remote control to avoid corrosion.
Using the remote control
Direct the remote control at the sensor on the front panel of the unit. When the remote control signal is received, the unit reacts
accordingly. The remote control works within a range of 6 metres.
- Sometimes the remote control does not work well in strong
light. You may have to move the unit if it is a problem.
- Malfunction may occur if other remote controls are used near
the unit.
- Do not place any objects on the remote control, as the batteries
may become flat if a key is depressed constantly.
- Make sure that there are no obstacles between remote control
and unit.
- Do not position the unit behind tinted glass as it may reduce the
maximum range of the remote control.
11
MCS-600 Mini CD System
VOLUME
LINE IN AUX 2
PHONES
TUNING
STANDBY
POWER
REPEATSOURCE
STATION
POWER
MCS-600
VOLUME
0
1234
5678
910+
TUNINGTUNING
STATION
STATION
CD TUNER
AUX1 AUX2
DVD
TAPE LINE IN
ST/MO
PTY
SEARCH
APSMEMAUTO
BASS TREBLE BALANCE
REPEATDISPLAYLOUDNESS
MUTE

REMOTE CONTROL
12
1. Power
Press the power button to set the receiver into standby.
The standby LED will turn red. Press the power button
once again, to turn on the receiver on again. The standby
LED will turn green.
Use these buttons to select radio presets or CD tracks.
Use this button to store a radio station to any given
preset.
Press this button to change between Auto search or step
search during manual tuning on FM or AM.
2. 0-9 Digits
3. Memory
4. Auto
Remote control functions
2
1
3
4
5
6
7
8
9
11
12
13
14
15
18
19
20
21
22
23
24
25
26
27
28
29
30
POWER
MCS-600
VOLUME
0
1234
5678
910+
TUNINGTUNING
STATION
STATION
CD TUNER
AUX1 AUX2
DVD
TAPE LINE IN
ST/MO
PTY
SEARCH
APSMEMAUTO
BASS TREBLE BALANCE
REPEATDISPLAYLOUDNESS
MUTE
16
17
10
31
32
5. DVD
6. CD
7. AUX 2
8. AUX 1
Press this button to select the DVD input on the rear
panel.
Press this button to select the CD player as source.
Press this button to choose the analog stereo AUX2 input
on the front panel.
Press this button to choose the analog stereo AUX1 input
on the rear panel.

REMOTE CONTROL
13
9. Tuning and Station buttons
Tuning +/-:
Station +/-:
10. Treble
11. Bass
12. Display
13. Loudness
14. Stop
15. Pause
16. Fast reverse
17. Previous
18. Open/Close
19. +10
20. APS
21. PTY Search
Use this button to manually search up and
down in frequency for radio stations.
Press this button to select the previous or
next stored preset in radio mode.
Press this button to active the treble equalizer. Press the
volume + and - buttons (29) to adjust.
Press this button to active the bass equalizer. Press the
volume + and - buttons (29) to adjust.
Press this button to change the information on the
selected input source, adjustments and system state.
Press this buttopn to set the loudness function on and off.
Press this button to stop CD playback
Press this button to pause CD playback. Press the Play
button (30) to start playback again.
Press this button to rewind CD playback. Press the Play
button (30) to start playback again.
Press this button to select the previous CD track.
Press this button to open and close the CD tray in CD
mode.
Press this button and then one of the 0-9 digits to select a
radio preset or CD track higher than 9.
Ex.: Press the +10 button and then the 5 digit to select 15.
Auto Preset Search. Press this button and the unit will
search and store all available presets on FM.
Press the button once to activate the PTY search
function. PTY search will flash in the display. Use the
TUNING+/- button to select the genre you wish to search
for. Press the PTY search button again, and the unit will
find the PTY genre if available.
22. Tuner
23. ST/Mo
24. Tape
25. Line in
26. Mute
27. Balance
28. Repeat
29. Volume + and - buttons
30. Play
31. Fast Forward
32. Next
16. Fast reverse
32. Previous
Press this button to choose the built in tuner. Press it
again to change between FM and AM.
Use this button to change between Stereo and Mono on
FM.
Press this button to choose Tape input on the rear panel.
Press this button to activate the 3.5mm stereo line input
on the front panel.
Press this button to mute all sound. Press it again to
cancel the mute function.
Press this button to adjust the volume individually for each
channel. Press the volume + and - buttons (29) to adjust.
Press this button to activate REPEAT ONE during CD
playback. Press it again to activate REPEAT ALL and
once again turn deactivate the repeat function.
For adjusting Master volume, Bass and Treble.
Press this button to start playback.
Press this button to fast forward CD playback. Press the
Play button (30) to start playback again.
Press this button to select the next CD track.
Press this button to rewind CD playback. Press the Play
button (30) to start playback again.
Press this button to select the previous CD track.

CONNECTIONS
14
Before Connection
Speaker Connections
Caution:
Before connection turn off the power of all the equipment.
Read instructions of each component you intend to connect to
this unit.
Be sure to insert each plug securely. To prevent hum and
noise, do not bundle the interconnection leads with power
cord or speaker leads.
To avoid damaging the speakers with a sudden high-level
signal, be sure to switch the power off before connecting the
speakers.
Check the impedance of your speakers.
Connect speaker with an impedance between 4 and 8
ohms. The amplifier's colored speaker terminals are the +
(positive) terminals and the black terminals are the
(negative) terminals.
The + side of the speaker cable is marked to make it
distinguishable from the side of the cable. Connect this
marked side to the colored + terminals and the unmarked
side is the black terminal.
!
!
!
!Prepare the speaker cords for connection by stripping off
approximately 10 mm or less (no more as this could cause
a short-circuit) of the outer insulation. Twist the wires tightly
together so that they are not straggly.
Colored: positive (+)
Black: negative (-)
1. Unscrew the knob
2. Insert the speaker cable.
3. Tighten the knob and secure the cable.
How to connect
Connecting speakers
Left front
Active subwoofer
Right front
SPEAKER 6-8OHM
R
L
FM
75W
FM
75W
AM
LOOP
CLASS 1 LASER PROCUCT
TAP E IN DVD INAUX1IN
ON
POWER
OFF
ANTENNA
AUDIO
Model: MCS-600
Power rating: AC 220V - 240V~50Hz
Max Power Consumption:120W
220-240V
~50Hz
SUB
LINE OUT
REC OUT
LEFTRIGHT

CONNECTIONS
15
SPEAKER 6-8OHM
R
L
FM
75W
FM
75W
AM
LOOP
CLASS 1 LASER PROCUCT
TAP E IN DVD INAUX 1 IN
ON
POWER
OFF
ANTENNA
AUDIO
Model: MCS-600
Power rating: AC 220V - 240V~50Hz
Max Power Consumption:120W
220-240V
~50Hz
SUB
LINE OUT
REC OUT
LEFTRIGHT
Tape player/recorder CD player DVD player
MCS-600 Mini CD System
VOLUME
LINE IN AUX 2
PHONES
TUNING
STANDBY
POWER
REPEATSOURCE
STATION
CD player
MP3 player/
Cell phone
Rear panel connections:
Note:
The rear panel has three analog stereo inputs (TAPE, AUX1 and DVD) and one analog record output. Connect to source equipment
using phono cables (stereo 2RCA-2RCA). Choose the source by pressing the button on the remote that fits the wanted input.
Do not plug in the mains power lead or turn on the unit all connections have been made.
Front panel connections:
Note:
The front panel has two analog stereo inputs (Line in and AUX2). These inputs are intented for temporary and easy connections. The
line in is a Ø3.5mm stereo jeck input, made for easy connection of Cell phones, Mp3 players, etc. The AUX2 input is a standard 2
RCA input, that should be connected the same way as the inputs on the rear panel. Choose the source by pressing the button on the
remote that fits the wanted input.
Do not plug in the mains power lead or turn on the unit all connections have been made.

SPEAKER 6-8OHM
R
L
FM
75W
FM
75W
AM
LOOP
CLASS 1 LASER PROCUCT
TAPE I N DVD INAUX1IN
ON
POWER
OFF
ANTENNA
AUDIO
Model: MCS-600
Power rating: AC 220V - 240V~50Hz
Max Power Consumption:120W
220-240V
~50Hz
SUB
LINE OUT
REC OUT
LEFTRIGHT
USING THE RADIO
16
Connecting an antenna
Before you can start listening to radio stations, you must
connect an antenna to the MCS-600.
The receiver is able to receive both FM and AM radio. It is
therefore possible to connect both an AM and a FM antenna
to the receiver.
1. FM antenna input. Connect the included FM antenna whip
to this input. Adjust the position of the antenna whip until
optimum reception is achieved. If an satisfying signal
cannot be received with the included antenna whip, an
external FM antenna must be connected instead. Make
sure the cable used for this is 75 ohms coaxial antenna
cable. The input can also be used for connection to an
antenna cable network if available.
2. AM antenna input. Connect the included AM loop antenna
to this input. Move the antenna until optimum reception is
achieved.
1
2
Note:
It is strongly recommended to use outdoor external antenna to
acheive the optimum antenna signal.
Tuning in channels
To tune in channels on the MCS-600, you have three options:
- APS (Auto Program Scan)
- Automatic frequency search
- Manual frequency search
Press the APS button on the remote. The receiver will
automatically search the entire band for channels, and
store them as they come. This is the easiest way to tune in
radio channels. The downside to this is that the channels
will be stored in the order they have been found in.
Press the AUTO button on the remote. The diplay will show
the test AUTO. Press and hold the TUNING + or TUNING -
button on the remote for 1 second. The receiver will
automatically scan the frequency up or down, until a radio
station is found. You can also turn the TUNING knob on the
front panel of the receiver to scan up or down in frequency.
APS (Auto Program Scan)
Automatic frequency search
Manual frequency search
To search manually in the frequencies, press the the AUTO
button on the remote. The display will then show the text
MANUAL. Then press the TUNING +/- button on the
remote to step up or down in frequency. If you press and
hold the TUNING +/- button on the remote, the receiver will
keep stepping up or down in frequency, until you let go of
the button. You can also turn the TUNING button on the
front panel of the receiver to manually tune up or down in
frequency.
To store a frequency to a preset after automatic or manual
searching, press the MEM button on the remote once. The
text TUNED will start to flash in the display. Then press the
TUNING +/- button to choose the preset number you whish to
store the frequency to. Finally press the MEM button once
again. The frequency has now been stored to a preset after
your choice.
Use the STATION + and STATION - buttons on the remote to
change between the stored stations.
If your antenna signal is too weak, you might experience some
noise when listening to radio in stereo. You can some times
remove this noise by switching to mono. This is done by
pressing the ST/MO button on the remote.
APS
AUTO
TUNING +
POWER
MCS-600
VOLUME
0
1234
5678
910+
TUNINGTUNING
STATION
STATION
CD TUNER
AUX1 AUX2
DVD
TAPE LINE IN
ST/MO
PTY
SEARCH
APSMEMAUTO
BASS TREBLE BALANCE
REPEATDISPLAYLOUDNESS
MUTE
TUNING -
ST/MO
AUTO
STATION +
STATION -

USING THE RADIO
17
RDS is a method for the transmission of additional information
from Radio Stations. It is only available in FM mode. For
example, the name of the radio station, the name of the
program or the type of program can be shown on the display.
It functions only when the broadcasting station has the RDS
transmission and the signal is strong enough.
Press “DISPLAY” on remote control to display the RDS
information. RDS contains the following informations:
PS (Program Service name)
PTY (Program TYpe)
CT (Clock Time)
RT (Radio Text)
Press the DISPLAY button on the remote until PS appears.
The current stations name will be shown.
NO PS will be shown if the signal from the radio
station is not strong enough or no such service is available.
A) PS (Program Service Name)
Note:
RDS (Radio Data System)
This receiver is equipped with a back-up memory. This
function ensures that radio preset, and sound adjustments will
be preserved if you experience power failures or you
disconnect the receiver from the power socket. The back-up
memory will preserve the radio presets and sound
adjustments for approximately one week/7 days.
If the power is disconnected for more than one week, the radio
presets and sound adjustments will be erased.
Back-up memory
B) PTY (Program Type)
Note:
C) CT (Clock - Time)
Note:
D) RT (Radiotext)
Note:
PTY SEARCH (Program Type Search)
Press the DISPLAY button on the remote until PTY
appears. The current type of the program will be shown.
NO PTY will be shown if the signal from the radio
station is not strong enough or no such service is available.
Press the DISPLAY button on the remote until WAITING CT
will appear. The current time from the radio Station will be
shown, e.g. 15:30
1. The Clock - Time will be only transmitted from the radio
stations once a minute, so you need to wait for less
than 1 minute to see the time.
2. NO CT will be shown if the signal from the radio station
is not strong enough or no such service is available.
Press the DISPLAY button on the remote until RT appears.
The text message will start to scroll across the display.
NO RT will be shown if the signal from the radio
station is not strong enough or no such service is available.
1. Press the PTY SEARCH button on the remote, PTY
SELECT will flash on the display.
2. Press the TUNING + /- on the remote to choose the
program type, for example, NEWS, SPORT, etc.
3. Press the PTY SEARCH button again to choose the
program type shown in the display.
4. When the type of program is tuned in, it will stop searching,
otherwise, NOTHING will appear in the display.
PTY SEARCH
POWER
MCS-600
VOLUME
0
1234
5678
910+
TUNINGTUNING
STATION
STATION
CD TUNER
AUX1 AUX2
DVD
TAPE LINE IN
ST/MO
PTY
SEARCH
APSMEMAUTO
BASS TREBLE BALANCE
REPEATDISPLAYLOUDNESS
MUTE
DISPLAY

TROUBLESHOOTING
18
To determine any problem with your receiver, always check the most obvious possible causes first. If your problem still remains
after your having checked the items below, consult your nearest dealer.
Possible cause
The left and right front speakers have been
connected wrong/switched.
The receiver or a cable has been placed too
close to a power cord.
The balance is adjusted to one side.
The impedance of the connected speakers
are lower than prescribed.
One of the connected speakers are defected
or short circuited.
The speaker polarity (+/-) has been switched.
A slight noise may be heard because the
method used for modulation of FM stereo
broadcasts in different than that used for
monaural broadcasts.
Poor location and/or direction of the antenna.
Transmitted station is too far away.
Broadcast signals are poor or poor antenna
placement
Poor reception area
Problem
Amplifier
Tuner
When listening to stereo the front speakers are
reversed.
A low humming or buzz sound can be heard in
the speakers.
Sound is only heard from one speaker.
The sound cuts off when listening to music or
there are no sound at all.
Low bass response.
An unusual hissing noise is heard when listening
to the broadcast in stereo, but not heard when
listening monaurally.
Noise is excessive in both stereo and monaural
broadcasts.
Sound is distorted and/or the volume level
becomes low.
Excessive distortion in speaker output
Possible solution
Switch the left and right front speakers to obtain
the correct sound image.
Move the receiver or the wire that has been
placed too close to the powercord.
Adjust the balance to the middle.
Turn down the volume. Turn the receiver of and
on again. If the sound comes back, disconnect
your speakers and replace them with speakers
that has impedance between 4 and 8ohm.
Check all your speaker connections to see if a
wire has been short circuited.
Check the connections of the speakers. Make
sure + and - on the speaker is connected to +
and - on the receiver.
Try reducing the treble sound by turning the
treble controls.
Set the FM mode to monaural by pressing the
ST/MONO button. (Note that the broadcast will
then be heard as monaural sound)
If an indoor antenna is being used, change to an
outdoor antenna
Try using an antenna with more Elements.
The batteries are exhausted.
The remote control unit is too far from the
receiver or out of the effective range.
Remote Control Unit
Remote control not working Replace with new batteries.
Operate the Remote Control unit within the
effective range

TECHNICAL SPECIFICATIONS
19
AUDIO SECTION
LINE INPUT
WOOFER OUTPUT
FM TUNER SECTION
AM TUNER SECTION
GENERAL
DIMENSIONS
WEIGHT kg (net)
Audio Power Output 2 x 60W
Output Impedance FRONT (L/R) 4-8 ohm
Total Harmonic Distortion Less than 0.2%
Input Sensitivity/Impedance 200mV/47kohms
Frequency Response 20Hz~20KHz +0.5/-3dB
Tone Control Range BASS +/- 10dB
TREBLE +/- 10dB
Signal-Noise Ratio 90dB
Rated Output/Impedance 2V/2.2kohms
Frequency Response 10Hz~120Hz +/-3dB
Frequency Range 87.5~108MHz
Sensitivity 14dB (5uV)
Antenna Terminal 75 ohm (unbalanced)
Frequency Range EU version 522~1629kHz, 9kHz step
US version 530~1710kHz, 10kHz step
Sensitivity 60 dB/m
Signal-to-Noise Range 50 dB
Antenna Loop Antenna
Power Requirement EU version 220-240VAC~50/60Hz
US version 110-130VAC~50/60Hz
Max Power Consumption 120Watts
275 (W) x 350(D) x 125 (H) mm
5.8
*Design and specifications are subject to change without notice.

For further information please visit our website:
www.tangent-audio.com Item no. 40527
Service hotline [phone]
