audiophony Compact7000 User manual

USER GUIDE
10136 - Version 1 / 11-2013
COMPACT700
ACTIVE SUBWOOFER AND SATELLITES

ENGLISH COMPACT700 - Active subwoofer and satellites
Page 2

ENGLISH
COMPACT700 - Active subwoofer and satellites
Page 3
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

ENGLISH COMPACT700 - Active subwoofer and satellites
Page 4
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or
maintenance by yourself. Refer all servicing to
qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place.
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product,
and avoid any overheating risk.
Do not obstruct or cover these vents as it may
result in overheating and potential physical injury or
product damage. This product should never been
operated in a closed non-ventilated area such as a flight case
or a rack, unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at lugs, convenience receptacles
and the point where they exit from the fixture.

ENGLISH
COMPACT700 - Active subwoofer and satellites
Page 5
2 - Introduction
Thank you for purchasing this sound system.
This user guide will allow you to understand and use all of its functions.
Please keep it within reach during the first uses in order to get familiar with the unit.
Due to the constant evolution of norms and regulations, AUDIOPHONY® reserves the right to modify
the technical specifications and informations in this user guide without prior notice.
Please go on www.audiophony.com/en/ to get the latest version of this guide.
If the product needs maintenance or for more information about the warranty, please contact your
retailer.
Upon receipt of your product, please inspect it carefully to detect any defect. Each AUDIOPHONY®
product has been thoroughly controlled and must be delivered in perfect condition.
If any defect is discovered, please contact immediately the carrier or your retailer, as the recipient
only can make a claim for transportation damages.
Please retain the packaging as proof for the shipping company.
2.1 - Welcome to AUDIOPHONY
2.2 - Unpacking the product

ENGLISH COMPACT700 - Active subwoofer and satellites
Page 6
1 - L and R balanced (XLR) and unbalanced (RCA) inputs
Connect here your mixing desk or any other line level source.
2 - Master volume
This fader affects the volume of the whole amplification system.
(ADJUST THE SOUND LEVEL SO THE CLIP INDICATOR IS NOT
CONTINOUSLY LIT)
3 - L and R balanced outputs
Allow you to retrieve the incoming signal to transmit it, for instance, to
active speakers.
4 - Low-pass outputs settings (in Hertz)
This 3-position switch allows you to limit the bandwidth of the signal sent
to the outputs.
- 22 Hz: Only the sub-basses are eliminated.
- 80 Hz: Any frequency below 80 is eliminated.
- 125 Hz: The frequency above 125 Hz only will be sent.
5 - Signal level LEDs
- SIGNAL indicates an incoming signal
- CLIP indicates an incoming signal above 0 dB.
(ADJUST THE SOUND LEVEL SO THE CLIP INDICATOR IS NOT CONTINOUSLY LIT)
6 - Subwoofer volume
The volume of the subwoofer can be adjusted separately. The middle position is the default configuration. (ADJUST
THE SOUND LEVEL SO THE CLIP INDICATOR IS NOT CONTINOUSLY LIT)
7 - Activation of the limiter
The limiter protects the amplification system, by activating this function you are preventing the system from being
damaged by a too powerful incoming signal.
12 3
4
5
6
7
11 98
10
12
12
3
3 - Presentation
3.1 - Active subwoofer:
1 - Power switch
2 - Power input socket
3 - Satellites SpeakOn outputs.
Caution: the minimum impedance level is 8
Ohms. Please refer to the wiring
instructions in paragraph 4 .
3.2 - More details about the command panel of the subwoofer:
CAUTION

ENGLISH
COMPACT700 - Active subwoofer and satellites
Page 7
8 - Subwoofer/satellites cutoff frequency (in Hertz)
This function depends on the acoustics of your room and determines the frequecy from which the subwoofer will start
playing its role. Use this function to even the sound distribution between the satellites and the subwoofer.
9 - Phase switch
Use this function if you notice any lack of basses.
In most cases the satellites position relative to the subwoofer is responsible for this "lack" of basses, and this function
can solve the problem.
10 - Equalizer and balance
Allows you to correct the incoming signal basses and trebles and spread the signal across the right and left satellites.
11 - MIC1 and MIC2 Volume
This setting affect the mic 1 and 2 inputs sound level.
12 - MIC1 and MIC2 inputs
Connect your wired microphone here.
CAUTION
Please make sure to properly configure the sound levels of your system. In addition to being unpleasant for
the audience, improper settings can damage your whole sound system.
The "LIMIT" indicators will light on when the maximum level is reached and must never be permanently lit.
Beyond this maximul level, the volume will not increase but will be distorted.
Moreover, your system can be destroyed by an excessive sound level despite of the internal electronic
protections.
First, in order to prevent that, adjust the sound level via the Level of each channel.
Then, use the DSP to adjust the acoustic as you wish.
Finally, adjust the volume of the subwoofer.
If the sound output does not seem powerful enough, we strongly recommend to multiply the number of systems or
satellites in order to spread the sound output evenly.

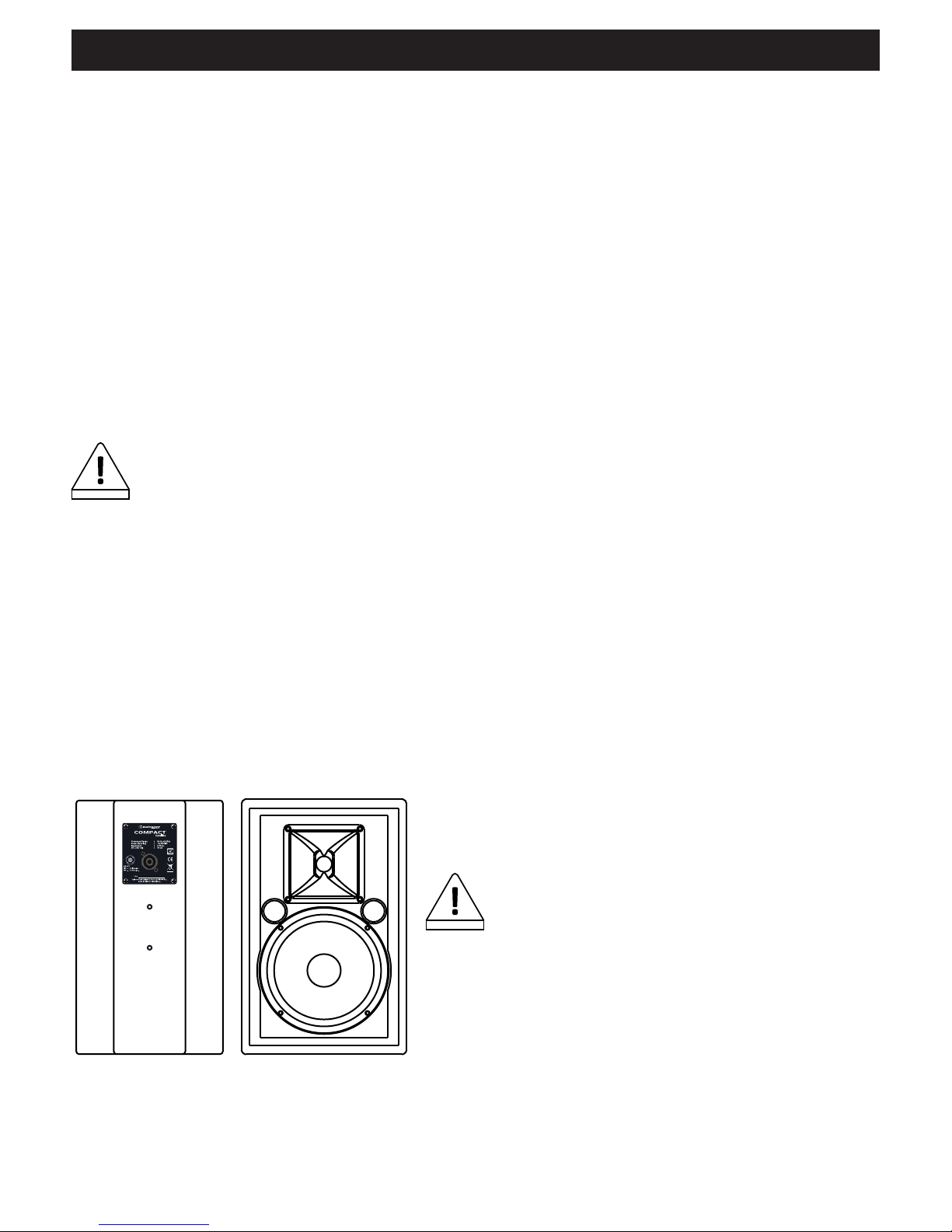

3.3 - Satellites:
Satellite of the COMPACT system:
The satelitte has an impedance of 8 Ohms and a power of
100W.
Only one 8 Ohms satellite can be connected
to the active output of the subwoofer.
The satellites were designed to be operated with this
subwoofer.
Please do not use any other type of satellites as it may
damage the whole sound system.
CAUTION

ENGLISH COMPACT700 - Active subwoofer and satellites
Page 8
4 - Wiring
S.N.:
Engineeredand designed in France by HITMUSIC S.A.,
MADEIN CHINA for HITMUSIC S.A.
FrequencyRange : 80Hz - 20 Khz
PowerHandling : 100 W RMS
Impedance : 8Ohms
SPL(1W/1m) : 93 dB
IN/ OUT
PIN1+ : Full Range +
PIN1- : Full Range -
Satellite
COMPACT
S.N.:
Engineeredand designed in France by HITMUSIC S.A.,
MADEIN CHINA for HITMUSIC S.A.
FrequencyRange : 80Hz - 20 Khz
PowerHandling : 100 W RMS
Impedance : 8Ohms
SPL(1W/1m) : 93 dB
IN/ OUT
PIN1+ : Full Range +
PIN1- : Full Range -
Satellite
COMPACT
T
Mixer
Link outputs for powered speakers
Satellite 1
XLR inputs for a mixer
Satellite outputs for
“COMPACT satellite”
speaker
8 Ohms - 100W
Satellite 2

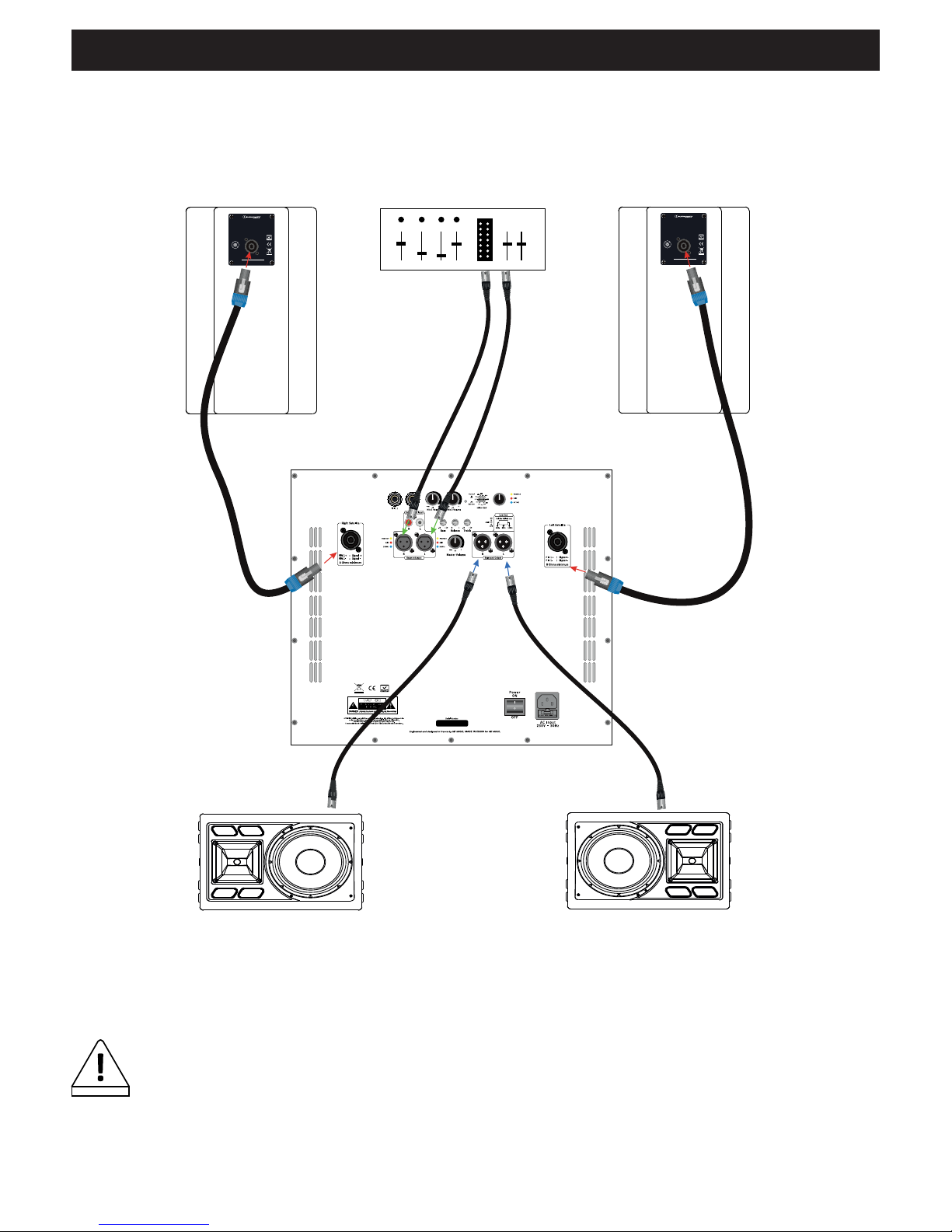

The drawing above describes an installation with a mixing desk linked to other sources (CD player,
turntable etc.).
You can also connect microphones directly to the MIC1 and MIC2 inputs, and a player to the RCA
"unbalanced inputs".
However, it is preferable to use a mixing desk to control the levels and multiply the sources.
CAUTION
The satelitte has an impedance of 8 Ohms and a power of 100W.
Only one 8 Ohms satellite can be connected to the active output of the subwoofer.
The Link output can be used to connect active speakers or an extra COMPACT system, for instance.
4.1 - Wiring the COMPACT system:

ENGLISH
COMPACT700 - Active subwoofer and satellites
Page 9
The COMPACT satellites are equipped with M6 inserts allowing you to hang them to walls.
Please find below more details about these inserts.
Note :
- No matter which hanging system you choose, you must use a double safety cable to
secure the fixation.
- Please make sure the type of support chosen is compatible with the weight of the
satellite.
- Please check the type of fixation is adapted to your wall.
The COMPACT satellites can be equipped with an accessory featuring a 35mm baseplate to mount
them on a compatible speaker stand, as described on the drawing opposite.
Please respect the following safety precautions when using speaker stands:
- When using speakers stands outdoors, please make sure the stands are
secured, even perhaps guyed, in order to prevent any risk of fall.
- If the speaker stands are in a crowded area, make sure to prevent the
audience from accessing them.
- When mounting the stands, make sure to spread the tripod as much as
possible to stabilise the stand.
- Please make sure to install your stands on a flat, even surface.
- Tighten the clamping knobs properly before turning the speakers on
60mm
Ø 6mm
5 - Setting up the sattelites
WARNING
WARNING
4.1 - Using a speaker stand
5.2 - Using a wall hanging system:

ENGLISH COMPACT700 - Active subwoofer and satellites

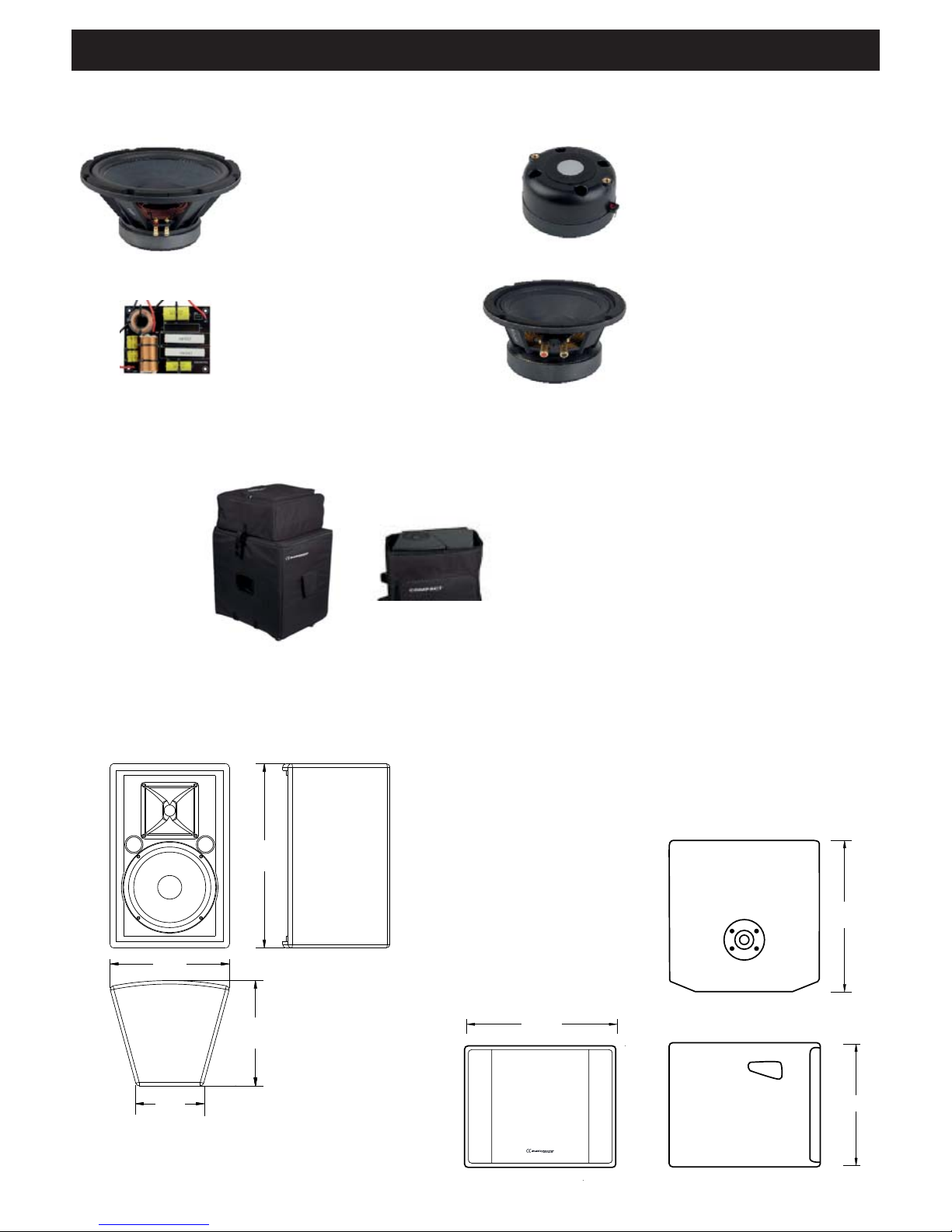

Page 10
7 - Dimensions
6 - Accessories and spare parts
OWB12-400-4
Subwoofer boomer:
400 W - 4 Ω
Les
Satellites
Le Caisson
OCDR-20
Satellites driver:
COMPACT
AXO-COMPACT
COMPACT Satellite
filter - 8 Ω
OWB6-100
COMPACT satellites
boomer :
100 W - 8 Ω
215
105
220 375
470
490
360
COVCOMPACT700
Complete protective
and transport cover

ENGLISH
COMPACT700 - Active subwoofer and satellites
Page 11
8 - Technical specifications
SATELLITE
Power output 100W RMS - 200W max
Frequency response 80Hz -20KHz
Sensitivity(1W@1m) 93 dB
Max. SPL (@1m) 116 dB
Nominal impedance 8 Ohms
Boomer 6.5 inches
Tweeter 1" compression
Dispersion 90° x 60°
Connector 1 x Speakon
Fixation system 4 x M6 inserts and 35mm mounting plate
Dimensions 215 x 375 x 220 mm
Net weight 6 kg
SUBWOOFER
Power output 450W RMS - 800W max
Frequency response 52 - 200Hz
Sensitivity (1W@1m) 95 dB
Max. SPL (@1m) 125 dB
Boomer 12 pouces
Dimensions 470 x 360 x 490 mm
Net weight 23,5 kg
AMPLIFICATION
Low frequencies 1 x 450W RMS / Class D - 4 Ohms
Mid/High frequencies 2 x 125W RMS / Class D - 8 Ohms
Active filter Adjustable from 80 to 200Hz
High-pass filter 3 Positions: 22 / 80 / 125Hz
Subwoofer phase switch Normal / Sub reverse
Limiter ON/OFF
MIC1 and MIC2 volume settings Volume of both microphone inputs
Subwoofer and Master volume
settings Subwoofer and Master volume
Cooling fans Forced ventilation system (front to rear)
Connectors
2 x XLR and 2x line level RCA inputs
2x Jack 6.35 for microphones
2 x XLR link/outputs
2 x Speakon for satellites

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
