Audioplex IR STATION User manual

TECHNOLOGY
TEST
Termination and trouble-shooting point for IR repeating systems
404 GWH P.O. BOX 440 MELVIN VILLAGE, N.H. 03850 603-544-8601 FAX: [phone]
E-MAIL: [email protected]
INSTALLATION MANUAL
IR STATIONTM
SPECIFICATIONS
Connectors: Screw-type (depluggable connectors for in-wall versions)
Emitter outputs: 1/8" mini-jack
Power supply: +12vdc power supply (unregulated, included)
Dimensions: Chassis version: 6.75"H x 1.625"W x 1"D
Test Jack: Allows testing of IRTargets and Emitters (1/8" IRTarget Tester optional).
The IRStation provides a convenient connecting point and trouble shooting station for a remote relay system, eliminating
hard-wiring. Each room has it's own screw-down connector for the IRTarget (depluggable screw-down connectors for in-wall
versions), each emitter and the power supplies have their own plug-in jacks. Every IRBug(Stick-emit) or IRFlood(TBW) has
it's own visible LED which flashes to verify operation.
The IRStation includes a jack for an optional 12vdc wall adaptor. By plugging the adaptor into your receiver's switched AC
outlet, you will provide SYS-TAT power whenever the receiver is turned on.

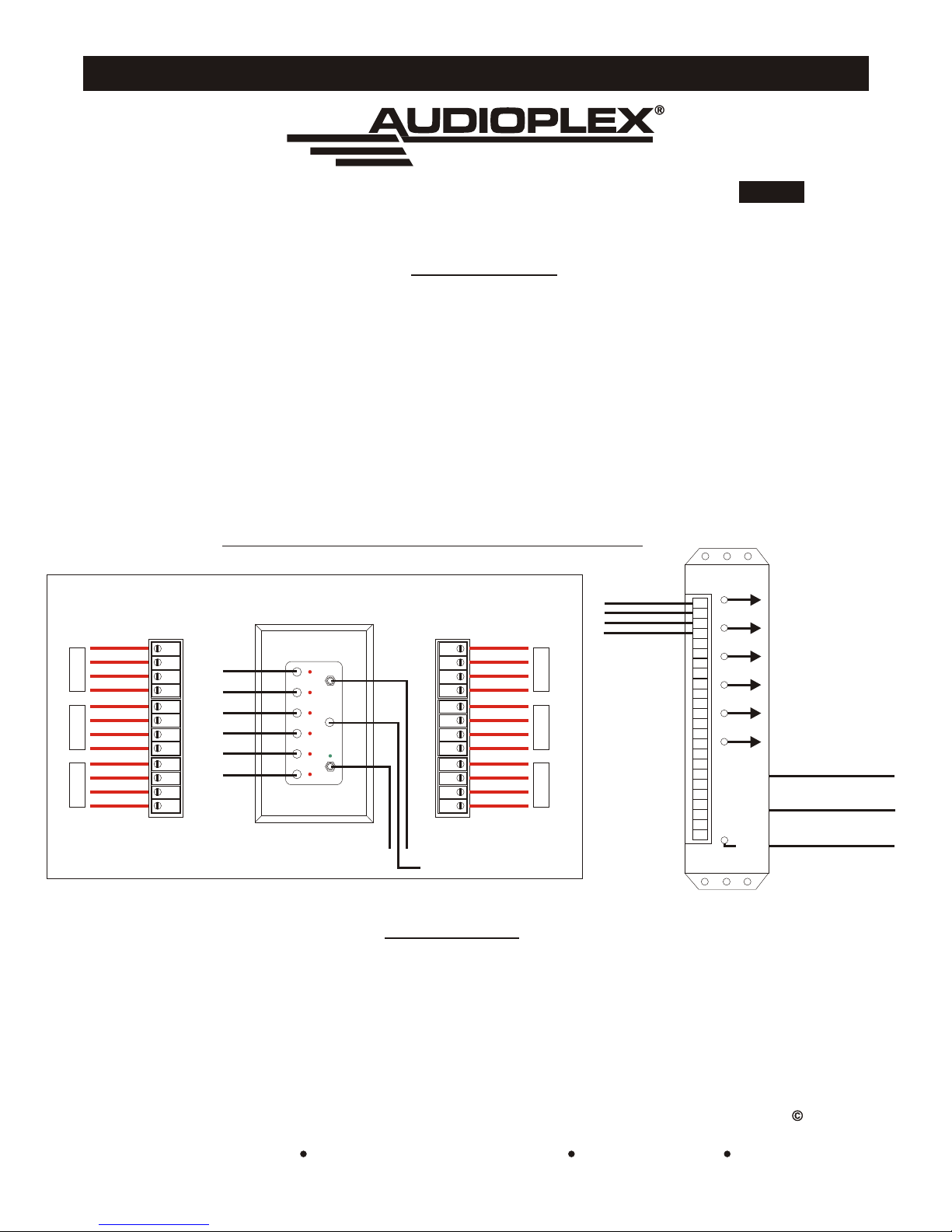

CHASSIS / IN-WALL
T
S
G
V
EMITTERS
1
2
3
4
5
6
STATUS(T)
TEST
T
S
G
V
T
S
G
V
T
S
G
V
T
S
G
V
T
S
G
V
POWER(V)
YourAUDIOPLEX TECHNOLOGY(tm) IRStation(tm) is covered by a lifetime warranty against any defects in workmanship and
materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or by accident is not considered to be a defect, and not covered by this warranty. AUDIOPLEX
TECHNOLOGY(tm) is not responsible for defective operation caused by abuse or by modification or service by any unauthorized person or
agency.
The unit must be properly installed and operated according to instructions for the warranty to apply. Any necessary servicing must be
done by AUDIOPLEX TECHNOLOGY(tm). The unit must be shipped with the proof of purchase and in the original carton and packing materials
to avoid damage.
WARRANTY
2002 - 8/23/02
ROOM 1ROOM 2ROOM 3
DEPLUGGABLE
CONNECTOR
T
S
G
V
T
V
S
G
T
V
S
G
T
V
S
G
T
V
S
G
T
V
S
G
ROOM 4ROOM 5ROOM 6
DEPLUGGABLE
CONNECTOR
Back connections
out to emitters
from IRTargets
12 vdc system status(optional)
1/8" test input connector
1/8" test input connector
12 vdc system status
(optional)
12 vdc power supply 12 vdc power supply
Back connections
IN-WALL VERSION
CHASSIS VERSION
SYS-TAT(optional)
SYS-TAT(opt.l)
SIGNAL
SIGNAL
GROUND
GROUND
12 vdc
12 VDC
TO BE USED WITH AUDIOPLEX BRAND IR ONLY!
NOTE: must ground yellow wire(S1) from IRTarget for proper operation.
BLUE
PURPLE
BLACK
RED
BLUE
PURPLE
BLACK
RED
REV.B
IMPORTANT! Refer to IRTarget sheet for detailed wiring diagram
