Audioplex OA-602 User manual

Pre-construction brackets for AT-
Series speakers. Adjustable to fit
AT-502, AT-602, AT-802 and
AT880S Subwoofer(see R-27).
PRE-B1
SPEAKERS
R30
Based on ported acoustical instrument principles (violins,
cellos, guitars), the uniquely shaped tubular Acouti-Port on the
redesigned AT-Series speakers were researched and molded with
the same dedication a fine crafstman spends carving an instru-
ment. By studying the different sound properties of composite
materials, the size and shape of the speaker's ports and the way
tones would escape form the speaker's body, new life is brought
to music. Finally, a mid-level in-wall speaker has been intro-
duced that will have audiophiles taking note!
Smooth, Rich Bass Response for Large and Small Outdoor
Areas. Available in either the 5" OA-502 or the 6" OA-602,
Audioplex's new ultra-rigid poly-mica woofers offer bass
response never heard before. Specifically designed to
reproduce the exact tones and timbres lost in the outdoors, the
OA-502 and 602 both deliver extraordinarily satisfying deep
bass with chest thumping impact! Choose the OA-502 when
your speakers can be placed within 12' of your listening
position and the OA-602 when you have a larger area to cover.
Smooth, Natural Response with Unprecedented Clarity and
TM
Detail because of Audioplex's WeatherDome tweeter. The
WeatherDome utilizes advanced composite materials in a
uniquely shaped mount. A product of years of research and
development, the Audioplex WeatherDome is the first tweeter
ever produced for an outdoor speaker that exhibits truly broad
bandwidth and ultra-smooth response.
High Technology Enclosure and Brackets are completely
weatherproof. A revolutionary new technique enables Audioplex
to completely cover all parts of the enclosure with a penetrating
and even coating of protective material. Guaranteed not to fade,
chip or peel for five years, the grill and enclosure finish protects
the OA-Series from the harshest elements.
New Version! Our popular OA-602 is now available in a 4 ohm
version providing a 3dB boost over the original! Now you can
put the power of your system to where it's needed the
most...outdoors.
Convenient Mounting Accessories include Audioplex's
swiveling weatherproof bracket and all necessary mounting
hardware. Unlike competitors that charge extra for mounting,
Audioplex includes everything but the speaker wire for your
installation. OA Series speakers are covered by a 5 year warranty.
Finely tune the AT-Series for rooms with many reflective,
hard surfaces or for rooms with dull, sound absorbing
attributes. The in-wall AT-Series features a swiveling tweeter
with +/-3dB of adjustment quickly allowing custom installers
to compensate for different room characteristics.

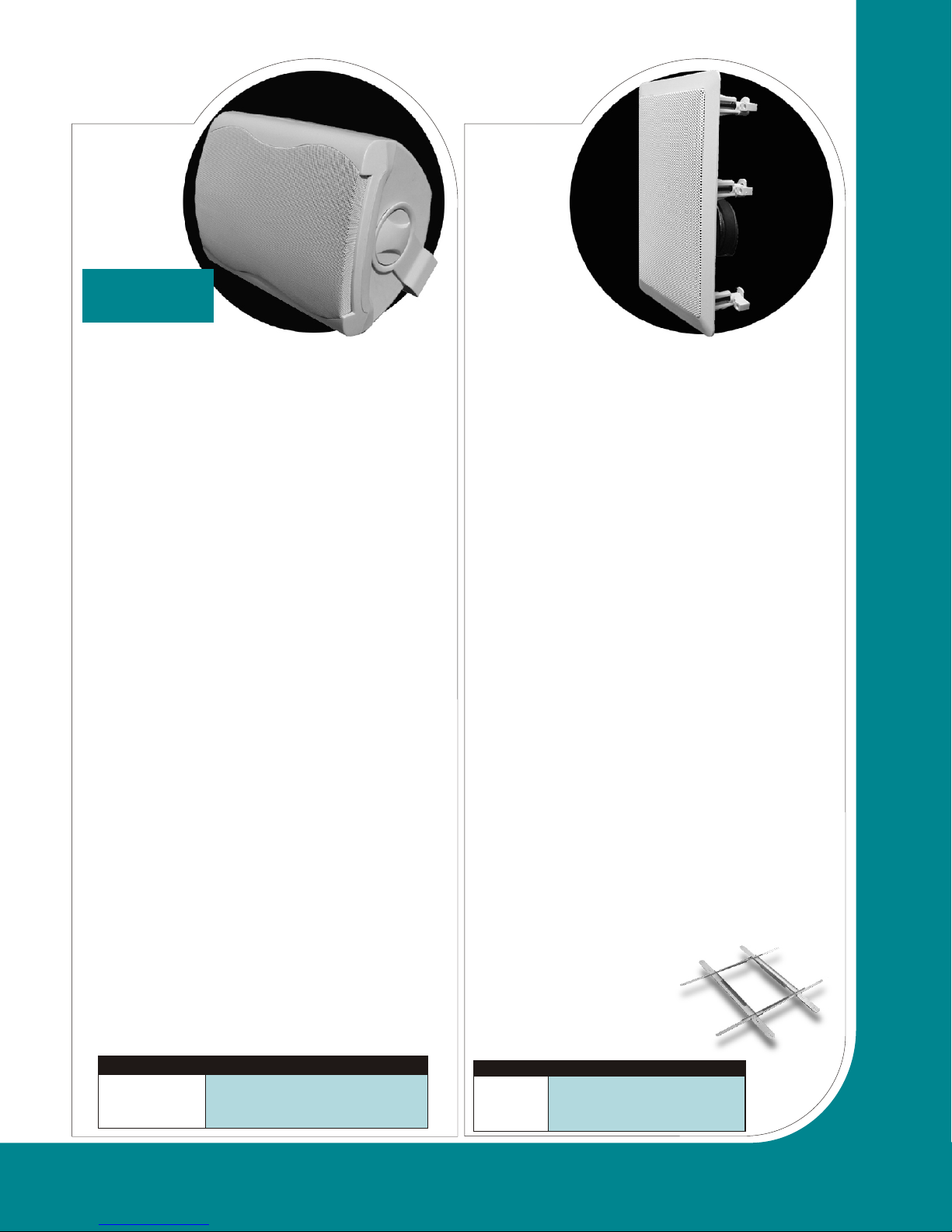

AT 502,602
& 802
OA 502 &
OA 602
Featuring Acousti-
TM
Port Sound
Technology
Revolutionary new
open air speakers
deliver incredible
bass for their size.
Self-adjusting mounting clips will grip nearly any thickness of
drywall for a fast, easy installation. A fine mesh paintable,
corrosion-free aluminum grill will blend seamlessly into any
decor---even damp areas like bathrooms or covered porches.
AT-Series speakers come with a 5 year warranty!
AT-502
AT-602
AT-802
PRE-B1
5.25" Woofer, 50 Watts
6.5" Woofer, 100 Watts
8" Woofer, 200 Watts
Pre-construction Bracket
OA-502
OA-602
OA-602-4OHM
5" Woofer, 80 Watts
6.5" Woofer, 100 Watts
6.5" Woofer, 100 Watts, 4 Ohm
Boxed and priced in pairs
Boxed and priced in pairs, Specify White or Black
OA-502
OA-602 / OA-602-4OHM*
Max power input: 80 watts
Freq. response: 50 Hz - 22 KHz
Impedance: 8 Ohms
Dimensions: 9"W x 6.75"H x 5.75"D
Woofer: 5"
Tweeter: 3/4" Dome
Shipping Weight: 12 lbs.
Sealed Speaker
Woofer: 6.5"
Tweeter: 3/4" Dome
Shipping Weight: 18 lbs.
Ported Speaker
AT-502
AT-802
AT-602
Max power input: 50 watts
Freq. response: 60Hz - 20KHz
Impedance: 8 Ohms
SPL: 88dB +/-3dB
Dimensions: 7-7/8"W x 11-5/16"H
Depth: 3.5"
Cut out: 6.5"W x 9"H
Tweeter: 1" mylar swivel
Woofer: 5.25" polypropylene
Weight: 6 lbs
Max power input: 200 watts
Freq. response: 45Hz - 20KHz
Impedance: 8 Ohms
SPL: 88dB +/-3dB
Dimensions: 10-1/4"W x 14-5/16"H
Depth: 3.625"
Cut out: 8.875"W x 12"H
Tweeter: 1.75" mylar swivel
Woofer: 8" polypropylene
Weight: 11 lbs
Max power input: 100 watts
Freq. response: 55Hz - 20KHz
Impedance: 8 Ohms
SPL: 90dB +/-3dB
Dimensions: 8-11/16"W x 12-5/16"H
Depth: 3.5"
Cut out: 7.5"W x 11"H
Tweeter: 1.25" mylar swivel
Woofer: 6.5" polypropylene
Weight 7 lbs
Max power input: 100 watts
Freq. response: 40 Hz - 22 KHz
Impedance: 8 Ohms / *4 Ohm
Dimensions: 10.25"W x 8.5"H x 7"D Cutout Sizes: 6-5/8"W x 10-1/8"H
7-1/2"W x 11"H
8-7/8"W x 12-7/8"H
OA-602 is now
available in
4 ohm version
