Auloma Attaphoto Curva 45 User manual

IT
MANUALE ISTRUZIONI
EN
INSTRUCTION MANUAL
ES
MANUAL DE ISTRUCCIONES
FR
MANUEL D'INSTRUCTIONS
1
attaphoto CURVA-45
by
Auloma Holding S.r.l.

1
2
3
4
5
7
8
6
6A
5
11
91 0
1 2
EN
ES
FR
IT
1nob
2Cover
3Rewind nob
4Slot
5disengagement machanism
6Revolution Counter
7Takeup Spool
8Winding nob
6a Index
9Threaded Hole
1 0 Level
11 Security nob
1 2 Shutter
8

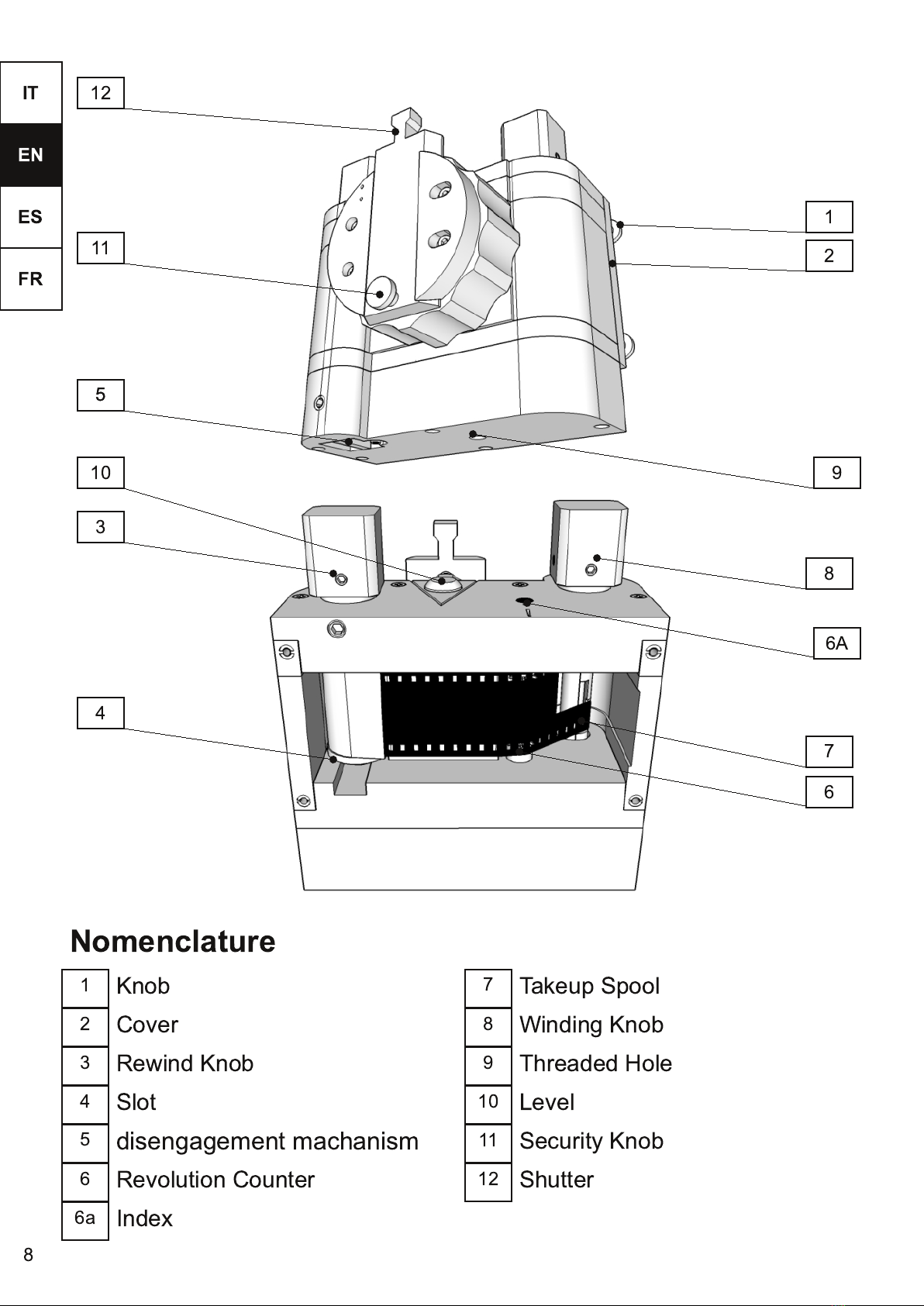

Nomenclature

Working theory
1.
Children from 0 to 1 4 years of age are not allowed to use the camera.
The camera is composed by detachable components that could be
ingested.
2.
Do not use the pinhole of the camera to observe the sun or other
sources of light, this could damage your eyes.
3.
eep the camera away from heat sources >90°C, to avoid irreparable
damage
4.
eep the camera away from fire to avoid damage or burning.
5.
eep the camera at least 30mm away from objects that could be
damaged by the magnetic field by the neodymium magnet mounted on
the shutter, such as: magnetic stripe cards or badges, hearing aids,
pacemakers, mechanical watches in accordance with ISO 764,
For NON ISO 764 watches, maintain a distance of at least 61 mm.
A safety distance cannot be determined to avoid damage to hard
disks.
9
Thank you for purchasing the Auloma Attaphoto CURVA-45. Please read
this instruction manual carefully before operating
The pinhole camera Auloma Attaphoto CURVA-45 uses a standard 1 35-film
format and uses the principle of pinhole photography. The camera produces
images of dimensions 35 x 24 mm and has the capacity to take a number of
photographs equal to the capacity of the film (24 or 36 frames) loaded. You
can use films of any sensitivity, the opening times of the shutter depend on
the sensitivity of the film, in the package is provided a reference table with
the approximate opening times of the shutters using a film ISO / ASA 1 00 in
various light conditions, while to obtain more accurate shutter opening
values we recommend you visit our website www.auloma.com. The
rewinding system of the camera roll allows to easily rewind the film in its
container avoiding any accidental exposure to light.
Caution - Sa ety precautions
EN
ES
FR
IT
Note
•
Do not disassemble the camera
•
The camera isn't waterproof. Do not immerse the camera in liquids or
under running water.

•
Do not use acids, corrosive substances, hydrocarbons or anything else
not indicated for cleaning surfaces.
Preparation be ore use
Release the four knobs 1 and remove the cover 2 , pull the rewind knob 3
until it clicks and insert the film cartridge into slot 4 . Re-insert the rewind
knob 3 so that the film cartridge is secured inside the camera. Pull the
disengagement machanism 5 to the mechanical lock, then pull the film just
enough to insert its holes in the cogs on the revolution counter 6 . Continue
to pull the film until insert its initial part into the slot of the takeup spool 7 , so
take care that a hole in the film is engaged in the hook present in the base of
take up spool. Turn the winding knob 8 slightly with one hand to make sure
that the takeup spool drags the film and then without letting go of the grip
with the other hand push in the disengagement mechanism 5 until it stops.
Reinsert the cover 2 closing the film compartment and secure it to the
camera by screwing the four knobs 1 . Turn the winding knob 8 to wind the
part of the film exposed during the loading operations, turn until will be
executed three revolutions of the index 6A placed on the revolution counter,
only now the camera will be able to take the first picture.
Take photographs
Mount the camera on the tripod using the threaded hole 9 or secure it on a
support surface, level 10 will help you to understand if the camera is level,
unscrew the security knob 11 , lift the shutter 12 to the stop and leave it in
place for the time necessary to impress the film and then lower it back to the
initial position. Turn winding knob 8 to wind the film and take the next photo,
the film will be in the correct position to take the next photo after the index
6A has taken a revolution. When the film is depleted, winding knob 8 will be
locked automatically. Before storing the camera, it is recommended to screw
the safety knob 11 back on.
•
The camera uses a neodymium magnet that can lose part of its
attraction force when heated to a temperature of >80°.
1 0
EN
ES
FR
IT
•The camera is a handcrafted product with surfaces finished by abrasive
discs. Possible scratches due to processing are a characteristic of our
product and can't to be considered defects or that the product has been
used.

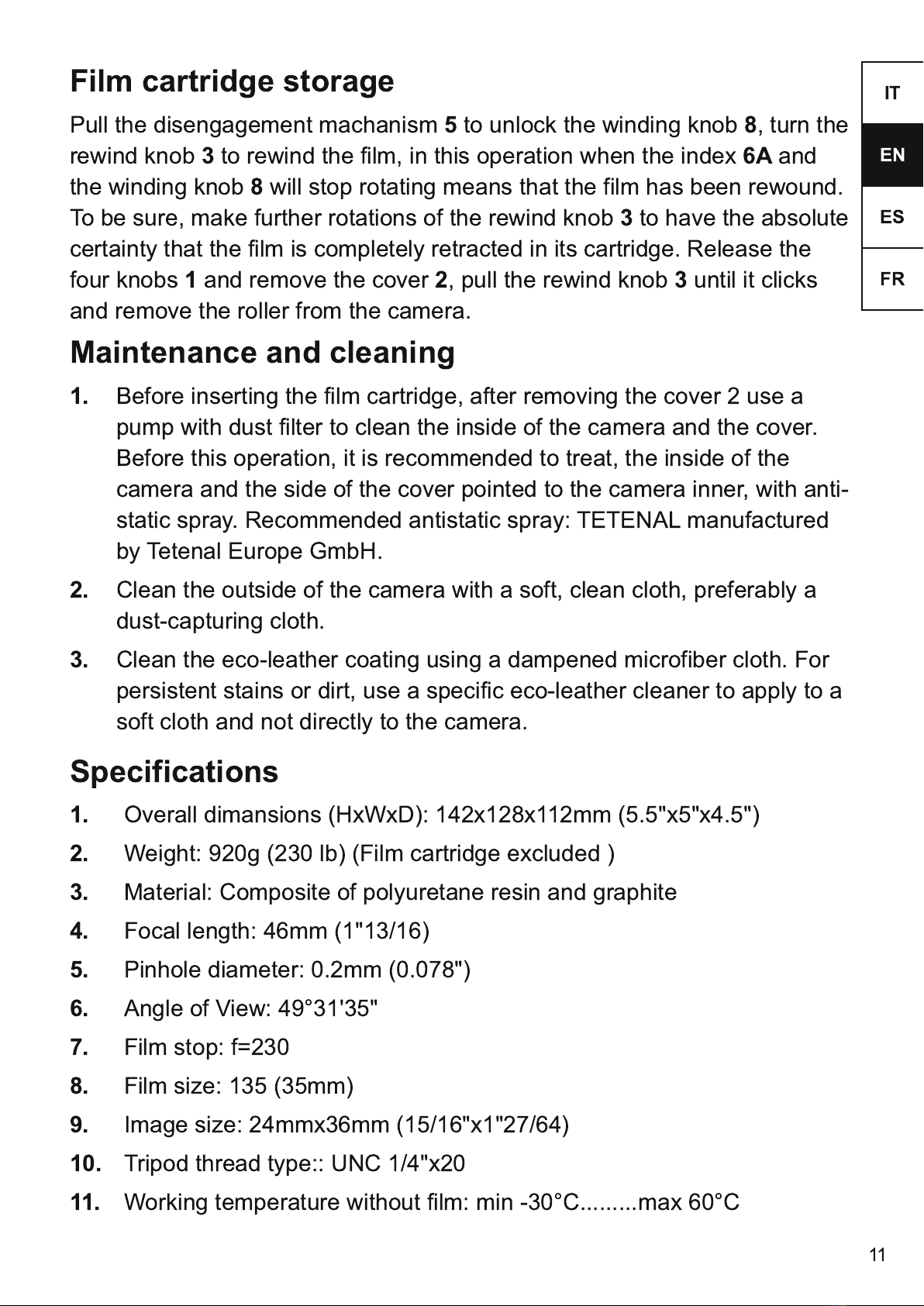

Film cartridge storage
Pull the disengagement machanism 5 to unlock the winding knob 8 , turn the
rewind knob 3 to rewind the film, in this operation when the index 6A and
the winding knob 8 will stop rotating means that the film has been rewound.
To be sure, make further rotations of the rewind knob 3 to have the absolute
certainty that the film is completely retracted in its cartridge. Release the
four knobs 1 and remove the cover 2 , pull the rewind knob 3 until it clicks
and remove the roller from the camera.
Maintenance and cleaning
1.
Before inserting the film cartridge, after removing the cover 2 use a
pump with dust filter to clean the inside of the camera and the cover.
Before this operation, it is recommended to treat, the inside of the
camera and the side of the cover pointed to the camera inner, with anti-
static spray. Recommended antistatic spray: TETENAL manufactured
by Tetenal Europe GmbH.
2.
Clean the outside of the camera with a soft, clean cloth, preferably a
dust-capturing cloth.
3.
Clean the eco-leather coating using a dampened microfiber cloth. For
persistent stains or dirt, use a specific eco-leather cleaner to apply to a
soft cloth and not directly to the camera.
Speci ications
1.
Overall dimansions (HxWxD): 1 42x1 28x11 2mm (5.5"x5"x4.5")
2.
Weight: 920g (230 lb) (Film cartridge excluded )
3.
Material: Composite of polyuretane resin and graphite
4.
Focal length: 46mm (1 "1 3/1 6)
5.
Pinhole diameter: 0.2mm (0.078")
6.
Angle of View: 49°31 '35"
7.
Film stop: f=230
8.
Film size: 1 35 (35mm)
11
9.
Image size: 24mmx36mm (1 5/1 6"x1 "27/64)
10.
Tripod thread type:: UNC 1 /4"x20
EN
ES
FR
IT
11 .
Working temperature without film: min -30°C.........max 60°C

Disposal o the camera
Under no circumstance should you dispose of the camera in
normal domestic waste. Dispose of the camera via an appro-
vated disposalcompany of your municiplal waste facility. Please
observe currently applicable regulations. Please contact your
waste disposal center if you need any further information. The
following is a list of the materials that compose the camera for
ease of disposal:
Polyurethane resin with graphite additive.
•
Brass
•
Tin
•
Steel
•
Polyurethane eco-leather
•
Neodymium
•
Disposal o card exposure times
The exposure times card is made of paper material coated with
plastic film. Do not release into the environment and please
respect the current regulations on waste disposal.
Disposal o instructions manual
The instruction manual enclosed in the package is printed on
paper and can be disposed of at your recicling plant.
1 2
EN
ES
FR
IT 12.

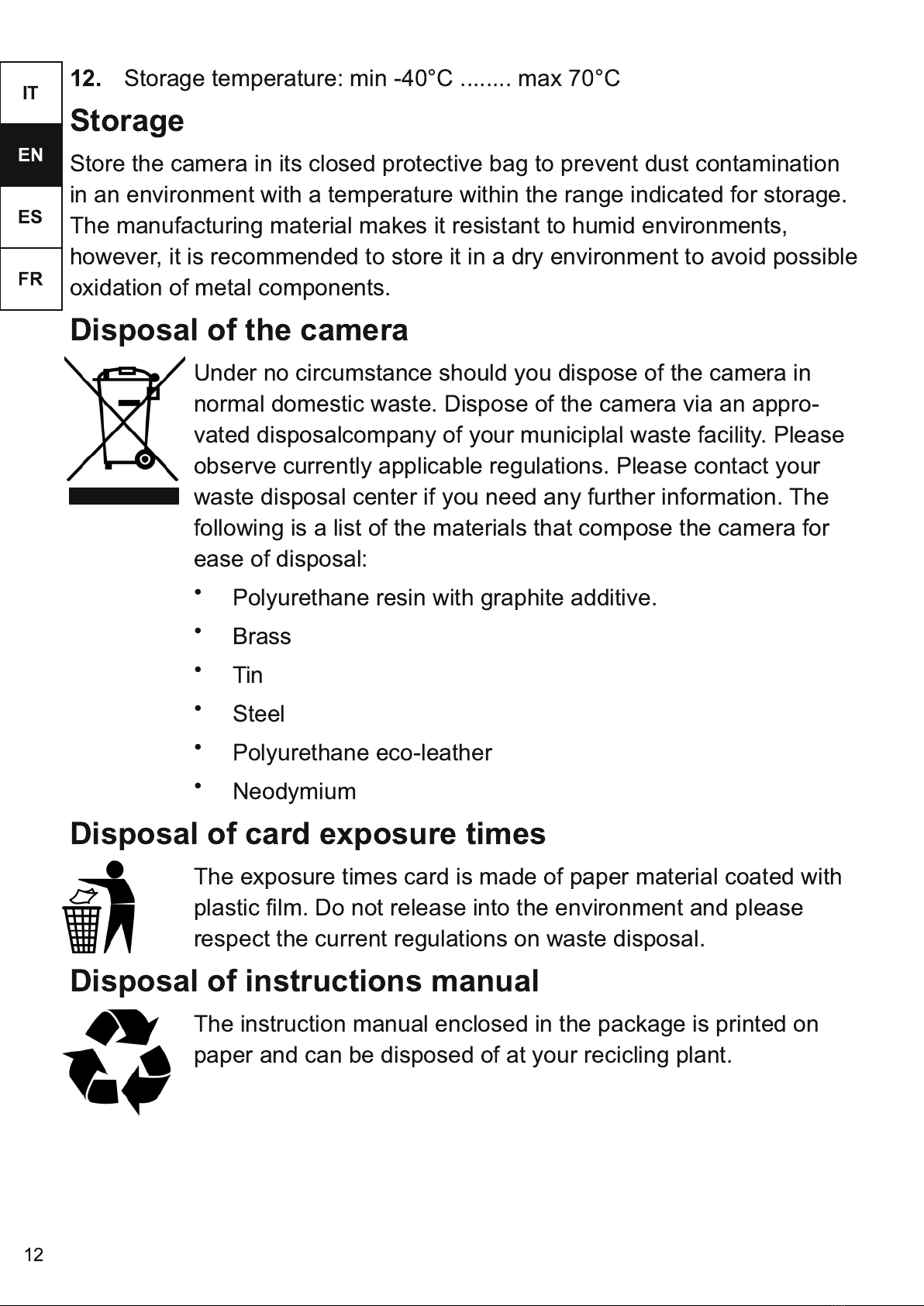

Storage temperature: min -40°C ........ max 70°C
Storage
Store the camera in its closed protective bag to prevent dust contamination
in an environment with a temperature within the range indicated for storage.
The manufacturing material makes it resistant to humid environments,
however, it is recommended to store it in a dry environment to avoid possible
oxidation of metal components.

Disposal o protective bag
The bag is made of recyclable material and can be disposed of
at your recicling plant.
Disposal o packaging
The packaging is made of recyclable material and can be
disposed of at your recicling plant.
1 3
Customer service
To ensure speedy handling of your issue, please email us for assistance
Email: [e-mail]
Social comunity
Owning an Auloma pinhole camera allows you to share your experiences
and emotions obtained using this product also through dedicated social
platforms. If you are interested in sharing your photos with other
photography enthusiasts, publish your photos on the dedicated flickr space:
https://www.flickr.com/groups/auloma/,
Or share your photos on the web using #attaphoto tag
https://www.auloma.com
https://attaphoto.com
https://twitter.com/Auloma2
https://www.facebook.com/auloma.holding/
EN
ES
FR
IT
Intended use
The camera Auloma Attaphoto CURVA-45 is used for taking pictures. Do not
use the camera for other purposes, Auloma Holding is not liable for damage
caused by improper use of the product.
