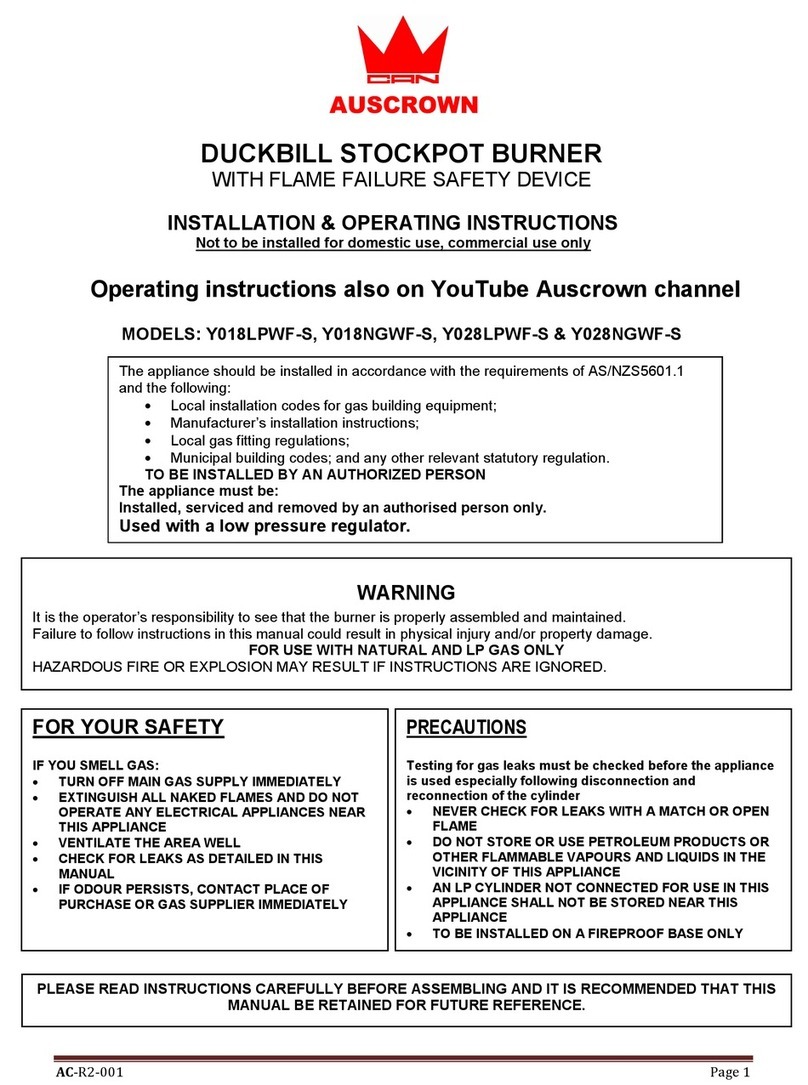

Auscrown Y018LPWF Manual

Revision 2 November 2012
MODELS: Y018LPWF, Y018NGWF, Y028LPWF & Y028NGWF
DUCKBILL STOCKPOT BURNER
WITH FLAME FAILURE SAFETY DEVICE
INSTALLATION & OPERATING INSTRUCTIONS
Not to be installed for domestic use, commercial use only
The appliance should be installed in accordance with the requirements of
AS/NZS5601.1 and the following:
Local installation codes for gas building equipment;
Manufacturer’s installation instructions;
Local gas fitting regulations;
Municipal building codes; and any other relevant statutory regulation.
TO BE INSTALLED BY AN AUTHORIZED PERSON
The appliance must be:
Installed, serviced and removed by an authorised person only.
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND IT IS
RECOMMENDED THAT THIS MANUAL BE RETAINED FOR FUTURE REFERENCE.
PRECAUTIONS
Testing for gas leaks must be checked before the
appliance is used especially following
disconnection and reconnection of the cylinder
NEVER CHECK FOR LEAKS WITH A MATCH OR OPEN
FLAME
DO NOT STORE OR USE PETROLEUM PRODUCTS OR
OTHER FLAMMABLE VAPOURS AND LIQUIDS IN THE
VICINITY OF THIS APPLIANCE
AN LP CYLINDER NOT CONNECTED FOR USE IN THIS
APPLIANCE SHALL NOT BE STORED NEAR THIS
APPLIANCE
TO BE INSTALLED ON A FIREPROOF BASE ONLY
FOR YOUR SAFETY
IF YOU SMELL GAS:
TURN OFF MAIN GAS SUPPLY IMMEDIATELY
EXTINGUISH ALL NAKED FLAMES AND DO
NOT OPERATE ANY ELECTRICAL
APPLIANCES NEAR THIS APPLIANCE
VENTILATE THE AREA WELL
CHECK FOR LEAKS AS DETAILED IN THIS
MANUAL
IF ODOUR PERSISTS, CONTACT PLACE OF
PURCHASE OR GAS SUPPLIER
IMMEDIATELY
WARNING
It is the operator’s responsibility to see that the burner is properly assembled and maintained.
Failure to follow instructions in this manual could result in physical injury and/or property damage.
FOR USE WITH NATURAL AND PROPANE GAS ONLY
HAZARDOUS FIRE OR EXPLOSION MAY RESULT IF INSTRUCTIONS ARE IGNORED.

Revision 2 November 2012
IMPORTANT
Read the following instructions carefully and be sure your appliance is properly installed, assembled and
cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage.
This appliance is intended for commercial use only.
This appliance is adjusted to operate on the gas specified on the gas type label and on the data label.
The gas type label is located front of the appliance and data label RH side front of the appliance. If in
doubt as to the type of gas available contact the network operator or gas supplier for confirmation of gas
type.
It is the operator’s responsibility to check the appliance is properly assembled and maintained
The heat shield located beneath the burner must always be in place during burner operation.
Do not lay the gas cylinder down – cylinder should be stored / used in the upright position
Hazardous fire or explosion may result if instructions are ignored.
Leak test all connections before use and after each cylinder refill
Never check for leaks with a match or naked flame
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
Use only in well ventilated areas, but not facing against any draught.
WARNING! Carbon monoxide hazard – this appliance can produce carbon monoxide which has no
odour. Using the appliance in an enclosed space (for example, boats, caravan, tent, car, and mobile
home) may cause death.
Do not move the appliance during operation
Avoid twisting or kinking of the flexible gas hose
Do not use the appliance near any air opening(s) into buildings (i.e. windows, doorways, ventilation ducts
etc.)
Leak test all connections before use and after each cylinder refill – refer “How to Check for Gas Leaks” in
this manual.
An LP gas cylinder not connected for use in this appliance shall not be stored near this appliance.
Ensure the gas hose is not placed under the appliance or allowed to contact any hot surfaces of the
appliance
This appliance must not be modified or changed in any way.
Disconnect the gas cylinder from the burner prior to storage. It is also recommended that the gas
cylinder be stored outdoors in a well-ventilated area.
Do not use any other gas type except the one specified on the label/data plate.
Use only the gas regulator and hose supplied with this appliance. An inferior or a damaged regulator
could cause an incomplete combustion or other troubles with the burner.
Do not leave the burner unattended when in use. Always turn off the burner and the main gas valve after
each use.
Do not use the burner as a space heater under any circumstance.
Do not cover or blow off the flames. This could cause gas leaking.
Always keep inflammable materials away from the burner.
Make sure that you use cooking woks, pots or pans that sit firmly on the trivet. Do not use pots that are
too small / large for the burner size, as they could be unstable on the trivet.
If abnormal combustion is observed when in use, turn off the main gas valve and examine the burner
(Refer to Trouble-Shooting Guide).
Do not attempt to repair the burner yourself.
Do not install into a marine environment.
This appliance is suitably protected while it is on its way to you. All materials used for packaging are
suitable for recycling. Please make a contribution to protecting the environment by disposing of the
packaging appropriately
HOW TO CHECK FOR GAS LEAKS
To check for leaks, turn on gas supply with the appliance gas valves in the OFF position (DO NOT
IGNIGHT) Check for leakage by brushing a solution of soapy detergent and water onto the connection
points at the bottle and the appliance. If bubbling is evident (it may take more than 30 seconds to
appear) this indicates a gas leak is present. If disassembling, cleaning, reassembling and tightening the
connection does not rectify the leak you should close the gas cylinder valve and consult the place of
purchase for assistance.

Revision 2 November 2012
PROCEDURES FOR GAS LEAKAGE
The strong and distinctive odour of gas may make you aware of a gas leak. If you suspect a gas leak:
Immediately turn off the main gas supply.
Turn off all appliances and pilot lights;
Do not allow gas to build up in the area. Open all the windows and doors.
Do not use any naked flame or other ignition source (such as light switches, power points, mobile
phones and pagers);
Do not operate any electrical equipment in the vicinity of a gas leak;
Contact your licensed gas fitter to repair the leak and re-light the appliance.
NEVER attempt to repair the appliance yourself.
IT MUST BE SERVICED BY AN AUTHORIZED PERSON.
PART INDEX
1. Burner
2. Safety Switch ‘A’
3. Piezo Igniter ‘B’
4. Control Handle ‘C’
5. Gas Inlet
6. Body
7. Trivet
DIMENSIONS
Y018 Series
Y028 Series

Revision 2 November 2012
PREPARE TO ASSEMBLE THE APPLIANCE
Check for damage on the appliance. If damage occurs, please contact Austcrown or your dealer. Do not use
a damaged appliance.
WARNING! It may hazardous to attempt to use a damaged appliance.
Positioning the Appliance
Only use the appliance in well ventilated areas.
CLEARANCE: The appliance must be sited with at least a 1000 mm gap between both sides, from the front
and the rear of the appliance and at least 2700 mm from the trivet of the appliance and any combustible or
non-combustible materials above the appliance.
When the appliance is assembled abutting a side or rear wall, the wall must be of non-combustible material,
e.g. ceramic tiles. If surrounding walls are constructed with a combustible material, refer AS/NZS5601.1 for
information on the clearance required.
The appliance must be used on a level, stable, non-flammable surface when in use. This appliance is
intended for commercial use only.
It is important that the ventilation openings of the appliance are not obstructed. The appliance should be
protected from direct draughts.
The appliance should not be positioned or protected against direct penetration by any trickling water (e.g.
rain).
If the appliance is installed outdoors, a proper shelter with good ventilation should be used to protect the
appliance from draughts and rain. Some examples of shelters are shown below,
IMPORTANT: The dimension and building materials of the shelter must meet the requirements mentioned
above, or contact your gas filter / local Gas Authority for information on clearances and material required
EXAMPLE 1

Revision 2 November 2012
EXAMPLE 2
EXAMPLE 3
EXAMPLE 4

Revision 2 November 2012
Gas Type and Gas Pressure
Do not use any other gas type except the one specified on the data label.
For LP Gas Model (Supplied with regulator type 73-1-8 AGA 3884 and Hose TPA type APH801 6356)
This model of appliance is suitable for use with propane gas and are set to operate under gas pressure of
2.75kPa.
*The LP gas regulator and hose supplied are for outdoor installations only.
Indoor installations must be installed in accordance with the requirements of AS/NZS5601.1, Local
State and Territory regulations, municipal building codes, and any other relevant statutory
regulations.
For Natural Gas Model (Supplied with Bromic type 980L regulator AGA 5862)
This model of appliance is only suitable for use with natural gas and are set to operate under gas pressure
of .90kPa.
WARNING! It is hazardous to attempt to use other types of gas with this appliance.
The Gas Inlet is located for model Y028NGWF/Y028LPWF 300mm up from the base and 25mm in from
the RH side leg. For model Y018NGWF/Y018LPWF the gas inlet is located 260mm up from the base
and in line with the RH leg side.
Gas Cylinder (For LP Gas Model only)
Only cylinders which comply with AS2030.1 should be used. The appliance is suitable for use with gas
cylinders of 3.9 kg or greater.
The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must
be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the stove.
WARNING! It may hazardous to use a damaged or dented gas cylinder.
Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must
never be stored under direct sunlight or where temperatures can reach over 50C. Do not store the cylinder
near flames, pilot lights or other sources of ignition. DO NOT SMOKE around the cylinders.
WARNING! It may hazardous to store gas cylinder in an enclosed place.
Exchanging of the gas cylinder
Ensure the valve on the cylinder is closed. Remove the hose assembly. Connect in reverse order and check
for gas leakage at all joints with soapy water.
Gas Hose Assembly
Use only the hose assembly supplied with the appliance. Use only a gas hose that complies with
AS/NZS1869. The appliance requires a ‘Class B’ Gas hose. The hose should be secured to the regulator
and the appliance with spanner. Use the hose with the right threads, DO NOT use adaptors. Inspect the
hose assembly before each use of the appliance.
The life expectancy of the hose is estimated at 5 years. It is recommended that the hose is changed every 5
years.
The use of the wrong hose is unsafe. Always check that you have the correct items before operating the
appliance.
WARNING! It may hazardous to use the wrong type of hose.
The length of the hose must not excess 1.8 metres (maximum). Worn or damaged hose must be replaced if
there is evidence of excessive abrasion or wear. A replacement hose is supplied by Austcrown, refer to
contact detail. Ensure that the hose is not obstructed, kinked, or in contact with any part of the appliance
other than at its connection.
WARNING! It may hazardous to use a damaged hose.
Regulator
Use only the gas regulator supplied with the appliance which complies with AS4618. The appliance must be
used with a LOW pressure regulator with output pressure of 2.75kPa for LP gas and 0.90kPa for Natural Gas.
Use a regulator with the right threads.
For Propane Gas Model: 73-1-8, AGA 3884
Outlet Pressure: 2.75kPa
Flow Capacity: 3kg/hr (For Y018LPWF)
Flow Capacity: 10kg/hr (For Y028LPWF)
Inlet Fitting: CGA-510 POL with Soft Nose
Outlet Fitting: 3/8” BSPF Thread
For Natural Gas Model: Bromic 980L, AGA 5862
Outlet Pressure: 0.90kPa
Flow Capacity: 2 M3/hr (For Y018NGWF)
Flow Capacity: 3 M3/hr (For Y028NGWF)
Inlet Fitting: ½” BSPF Thread
Outlet Fitting: ½” BSPF Thread

Revision 2 November 2012
WARNING! It may hazardous to use the wrong type of regulator.
Storage of Appliance
Always wait for the appliance to cool down before attempting to transport or store. Storage of an appliance
for transport or indoors is only permissible if the cylinder is disconnected and removed from the appliance.
When the appliance is not being used for a period of time it should be stored in a dry dust free environment.
INSTALLATION
1. Open carton and take out the appliance (CAUTION: VERY HEAVY! SHOULD BE LIFTED BY TWO
PEOPLE). Check carefully for any damage on the appliance; call your dealer if damage occurred. DO
NOT install damaged appliance.
2. Find a well ventilated and level place to install the appliance. The appliance is fitted with 4 adjustable
legs. Place the appliance on a flat base and adjust legs to maintain a level cooking surface.
3. A LOW PRESSURE regulator MUST BE used with this the appliance. (Details refer to Regulator in the
“PREPARE TO ASSEMBLE THE APPLIANCE” section)
4. The gas inlet is located at the rear right hand side of the appliance. The gas inlet fitting is ½” BSPF for
Natural Gas Model and CGA-510 POL with Soft Nose for LPG Model.
5. Connect the gas inlet to the main gas supply in accordance to Australia Standard. If a flexible hose is to be
used, DO NOT assemble beneath the appliance, under direct sunlight or close to other sources of heat.
6. The length of connection between the appliance and the main gas supply should not exceed 1.8m.
7. Check for gas leakage at all joints with soapy water or other approved methods.
UNDER NO CIRCUMSTANCES SHOULD A NAKED FLAME
BE USED IN CHECKING FOR GAS LEAKS.
OPERATING INSTRUCTIONS
Ignite the Burner
1. Ensure the Control Handle (C) is at ‘OFF’ position.
2. Turn on the main gas supply.
3. Press and Hold Switch (A) down.
4. Press Switch (B) down, to ignite the pilot flame. Release Switch (B)
5. Repeat Step 4 until the pilot flame is alight.
6. Continue to hold down Switch (A) for 10 second, and then release.
7. Repeat Step 1 – 6 if pilot fails to stay alight.
8. Turn Handle (C) to ‘ON’ position.
Turn off Burner
1. Turn Control Handle (B) to ‘OFF’ position.
2. Turn off main gas supply.
ABNORMAL OPERATION
You should cease using the appliance and seek service from an authorised agent if any of the following are
observed during operation of the appliance:
Carbon Build up on the appliance or pans,
Excessive yellow tipping of the burner flame,
Flame lifting off the burner ports or flashing back.
Flame abnormality may be due to gas supply restriction or blockage of burner ports or venturi. Gas spillage
may occur if the burner inlet is partially blocked. The gas may ignite around the burner inlet.
It is recommended that an authorised person/service agent perform all maintenance.

Revision 2 November 2012
If the burner fails to operate correctly, contact place of purchase or authorised agent for advice and service.
RECOMMENDED POT SIZE
Y018 Series — Minimum: Ø44cm, Maximum: Ø49cm
Y028 Series — Minimum: Ø44cm, Maximum: Ø61cm
CAUTION

Revision 2 November 2012
MAINTENANCE
Do not touch hot surfaces. Do not attempt any cleaning or maintenance within 30 minutes of the appliance
being used. Periodic maintenance should be performed at intervals not exceeding 6 months or when evident
such as with flame abnormality or burner discolouration. Flame abnormality or burner discolouration is
generally a sign of gas supply restriction or blocked burner ports.
The pilot provides a flame to light the main burner. If the pilot is blocked by debris, spider webs, etc., the
pilot flame may be too small resulting in erratic ignition of the main burner. If this occurs, it will be necessary
to clean the pilot with compressed air. It is recommended that an authorised person perform all maintenance.
If the appliance fails to operate normally, contact the place of purchase, or their authorised agent for advice
and service. DO NOT ATTEMPT REPAIRS YOURSELF.
It is also recommended that the hose assembly and regulator inlet fitting seals be checked for damage,
abrasion, cracking or displacement before each use. PVC hose assemblies may harden with age and should
be replaced if this occurs. If a replacement part or assembly is required please contact place of purchase or
authorized service agent for advice.
TROUBLESHOOTING . DO NOT MODIFY THIS APPLIANCE.
If the appliance cannot be adjusted to perform correctly contact after sales service contact
details this page.
Problem Possible Cause Solution
No Ignition
Main Gas Valve is not
turned on.
Air trapped in the gas
hose.
The safety valve is not
open.
Turn off the gas valve once and then turn it on fully.
Repeat the ignition process until all air in the hose is
purged completely.
Follow the procedures from 1 to 6 in the section of “Ignite
the burner”.
Gas Leaking Failure of the gas valve. Contact your dealer for a service/repair.
DO NOT ATTEMPT TO REPAIR IT YOURSELF.
Incomplete
Combustion
(Yellow Flame)
Injector is clogged. Clean the injector.
SPECIFICATIONS
Product Name 18 Jet Duckbill Burner Cooker 28 Jet Duckbill Burner Cooker
Model No. Y018LPWF Y018NGWF Y028LPWF Y028NGWF
Gas Type Propane Natural Propane Natural
Gas Pressure 2.75kPa 0.90kPa 2.75kPa 0.90kPa
Injector Size Ø0.58mm Ø0.98mm Ø0.58mm Ø0.98mm
Gas Consumption 1.34kg/hr 1.76m³/hr 2.08kg/hr 2.74m³/hr
Inlet Fitting CGA-510 POL
with Soft Nose ½” BSPF CGA-510 POL
with Soft Nose ½” BSPF
Heat Capacity 73MJ/hr 104MJ/hr
Dimensions W55cm x D56cm x H44.5-49.5cm W68cm x D70cm x H52-57cm
Pot Size (Min/Max) Ø44cm/Ø49cm Ø44cm/Ø61cm
Approval No.: IAPMO Gas Mark GMK10005
Austcrown Pty Ltd and their appointed agents will not be liable in respect of any misuse, which is not in
accordance with the instructions and precautions specified in this booklet.

Revision 2 November 2012
AUSTCROWN PTY LTD
18 / 634 Mitcham Road, VERMONT VIC 3133, AUSTRALIA
Fax: [phone]
Email: [email protected] Website: www.auscrown.com
SERVICE AGENTS
For services and repairs, contact our service agent or any other authorised gas fitter and plumber.
Progress Plumbing and Gas Maintenance
16 Raymond Street, BLACKBURN VIC 3130
Ph: 9878 5845 Mobile: [phone]
SERVICE INSTRUCTIONS
DO NOT MODIFY THIS APPLIANCE
SERVICE AND MAINTENANCE MUST ONLY BE CARRIED OUT BY AN AUTHORIZED
PERSON.
Disconnect gas supply and ensure appliance is cold before servicing.
Burner removal
The gas control needs to be removed to allow removal of the burner. Remove gas control handle
by unscrewing centrally located 10mm hex screw. Remove gas control cover by unscrewing
centrally located upper and lower 10mm hex screws. Unscrew pilot and thermocouple connections
from gas control. Loosen and remove the gas control by rotating until the burner galvanised supply
pipe is disengaged from the galvanised elbow. Remove the burner galvanised supply pipe.
Remove the burner by unscrewing centrally located 10mm hex screws. Note the pilot and
thermocouple assembly is secured independently via a bracket onto the burner locating frame.
This can also be removed to prevent damage to the assembly. Replace in reverse order ensuring
all connections are gas tight.
Pilot and flame safeguard (thermocouple) removal
The gas control needs to be removed to allow removal of the pilot and thermocouple assembly.
Remove gas control handle by unscrewing centrally located 10mm hex screw. Remove gas control
cover by unscrewing centrally located upper and lower 10mm hex screws. Unscrew pilot and
thermocouple connections from gas control. Assembly is located adjacent to the second duckbill
injector. Remove from bracket or loosen 8mm hex screws and remove pilot and thermocouple.
Replace in reverse order ensuring all connections are gas tight.
Adjustment to pilot
If the pilot flame has reduced in size or if the flame is not enveloping the top of the thermocouple
the pilot aeration may need cleaning. Loosen 8mm hex screws and remove pilot head. The
aeration slide should be fully open and the 3mm diameter aeration hole free of debris. When
assembled the gap between the pilot head and thermocouple is 10mm and between pilot head and
duckbill injector is 20mm.

Revision 2 November 2012
