Austin Hughes Electronics Cyberview CS-116 User manual

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
dedicated KVM switch and rackmount screen technology
User Manual
CS - 116
1U Serial Console Server
Designed and manufactured by Austin Hughes
751

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
< Part 2 > Connection & Operation
2.1 Device Setup
2.2 IP Configuration
2.3 IP Filtering
2.4 Web Server Configuration
2.5 Serial Port Configuration
2.6 Serial Port Connection
2.7 Serial-to-Serial Function
2.8 System Status & Log
2.9 System Administration
2.10 Date and Time
2.11 Firmware Upgrade
2.12 Cat5 IP Serial Console Specification
2.13 Connector Pin Assignment
2.14 Appendix A
P.4 - 6
P. 7
P.8 - 9
P.9 - 11
P.12 - 17
P.17 - 18
P.19 - 20
P.21
P.22 - 23
P.24
P.25 - 26
P.27
P.28
P.28
< Part 3 > FAQ P.29 - 30
< Part. 1 > CS-116
1.1 Package Contents
1.2 Connection to Serial Device or Server
1.3 Membrane
Contents
P. 1
P. 2
P. 3

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
Installation for serial console server
C
e
b
yr
V
e
iw

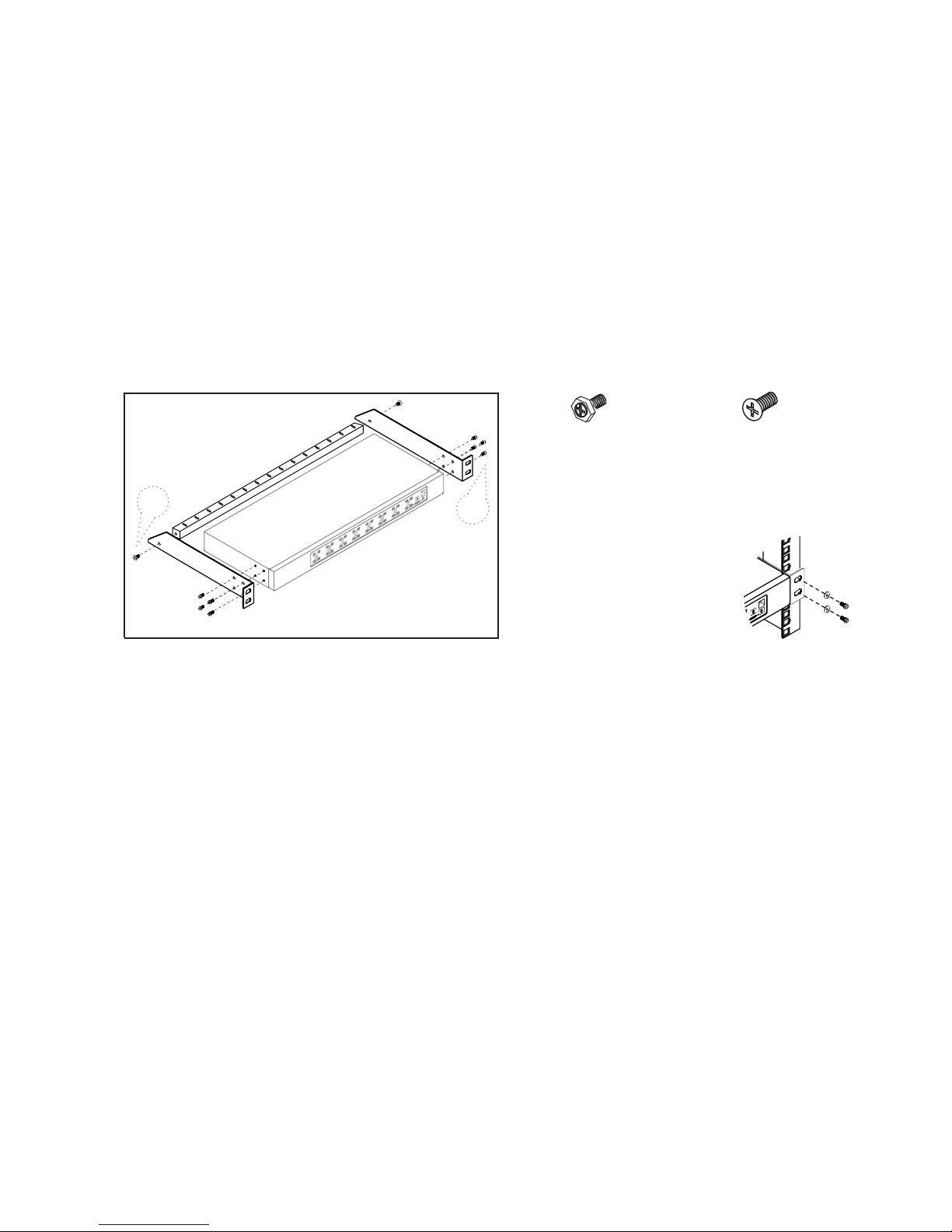

■Install each bracket using screws
provided shown in Figure 1.
AB
M3.2 x 4.5 mm M4 x 10 mm
■Fix the serial console server
into the rack
Figure 1.
Screw A: 2 pcs Screw B: 8 pcs
CS-116
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
Model Product Dimension
(W x D x H) Packing Dimension (W x D x H) Net Weight Gross Weight
CS-116 443 x 180 x 44 mm
17.4 x 7.1 x 1.73"
500 x 400 x 90 mm
19.7 x 15.7 x 3.5"
3.5 kg
8 lb
4.5 kg
10 lb
P. 1
< 1.1 > Package Content CS-116
< Part 1 >
• CS-116 unit x 1
• Mounting set w/ bracket & screws x 1
• Power cord x 1
• RJ45-DB9 female adapter x 1
• RJ45-DB9 male adapter x 1
C
e
b
yr
V
e
iw
CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
Console
P. 2
< 1.2 > Connect to Single Serial Device or Headless Server
SG-100F
RJ45-DB9
female adapter
Cat5 cable
Computer with RS-232 serial port
Hub
Router
Switch
PDU
UPS
Power module
Serially
managed device
SG-100F
RJ45-DB9
female adapter
SG-100M
RJ45-DB9
male adapter
Cat5 cable Cat5 cable Cat5 cable
Network device
hub or router
Headless servers
CS-116
CS-116
Power
Optional Accessories
SG-100F
■RJ45-DB9 female adapter
SG-100M
■RJ45-DB9 male adapter
RJ45 Serial port

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
P. 3
< 1.3 > Membrane
Power ON
■Turn off all devices / servers and Cat5 IP serial console
■Make sure all cables / connectors are properly connected

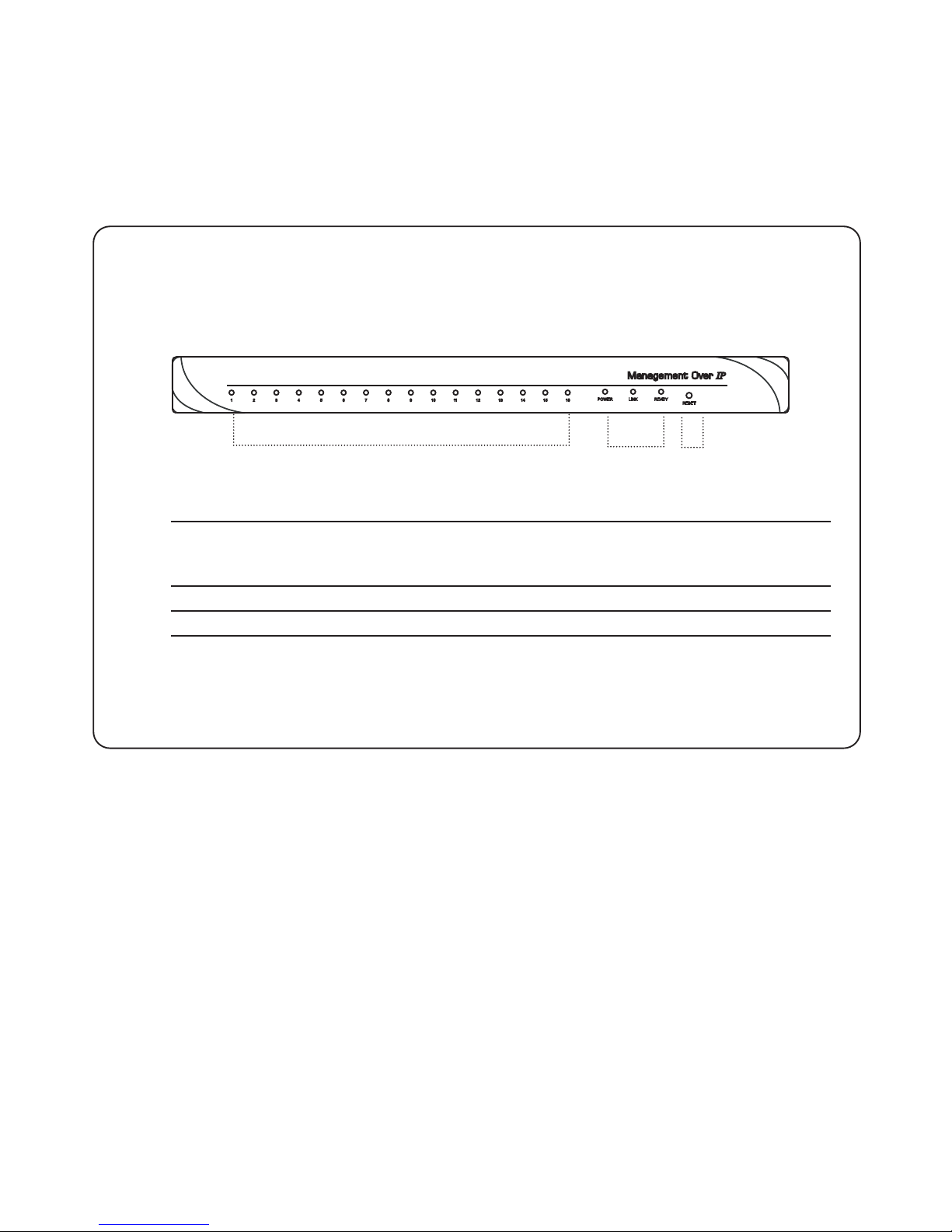

16 ports
Port activity Status LEDs Reset button
Power Red: Power on indication
Link Orange: 10BaseT Ethernet connection
Green: 100BaseT Ethernet connection
Ready Green: Blinking per second when system is busy
Port LED Green: Traffic activity
Reset button Press reset button to reboot the unit
Front Panel - Port LED Indications
CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
2.1.1 Setup the IP address from Console Port
The IP serial console offers user-friendly menu-driven user interface. User can simply connect a VT-100 terminal to the
console port to access to the unit. This is useful when you does not know the network settings of the server, and cannot
access to the server. In this case, you can view or change the settings (IP address, Subnet mask, etc) via the console port.
Please follow the steps below:
1. Connect the console port on the rear panel to a serial port on a PC host using the CAT5 cable and
the appropriate RJ45/DB9F adapter packaged with the IP serial console.
2. Configure a terminal emulation program, such as HyperTerminal, using the following settings:
Baud Rate = 115200, Data bits = 8, Stop bits = 1, Parity = none, Flow control = none
3. Enter the user name and password in order to access to the system.
User Name Default Password
root root

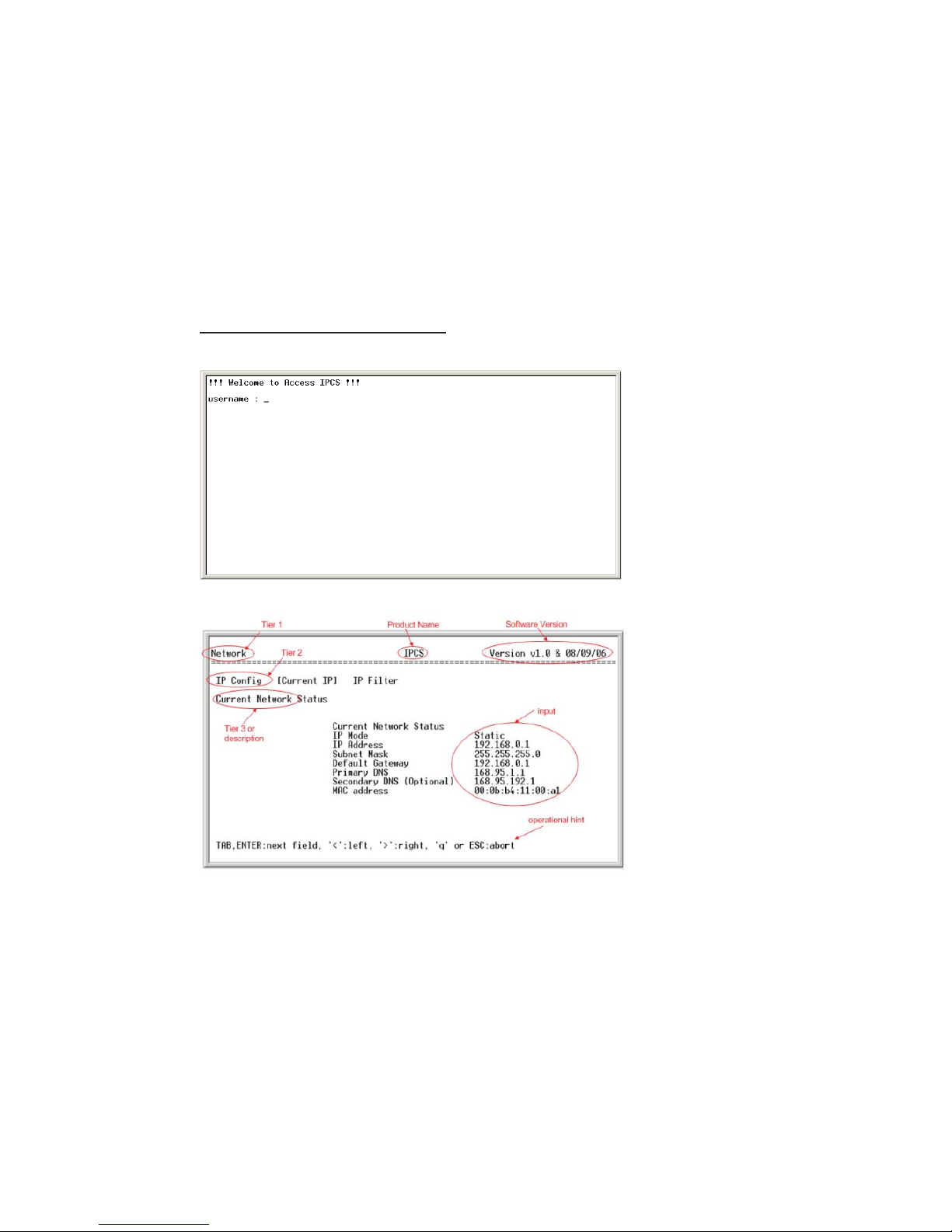

The following figure depicts the structure of the interface.
Network >
IP Config: The following shows the IP configuration items.
1. For IP mode, you can press SPACE bar to select Static mode or DHCP mode.
2. For IP Address, Subnet mask, Default Gateway, Primary DNS, and Secondary DNS you can change
these network settings.
3. After changing the settings, the final enter, the unit will prompt to confirm YES or NO.
If select YES, the IP serial console will reboot and save the settings into the Flash memory.
Current IP: To show the current network setting.
IP Filter: To enable/disable IP filter function.
System >
Reboot: To reboot the IP SERIAL CONSOLE SERVER
Reset to Default: To reset configuration to Factory Default Settings.
*Note: only the root user has the privilege to perform this function.
Status: To show the system status.
P. 4
< 2.1 > Device Setup
< Part 2 > Connection & Operation CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
2.1.2 Setup the IP address from Ethernet port
In addition to VT100 interface, we also provide a Network Setup Software tool as below for the network
settings to the IP serial console.
The operation procedures are as follows:
1. Run the software tool IP serial console IPCS_Setup.exe
2. Click Search Devices to find out the IP serial console devices on the network. After few seconds, the MAC
addresses of found devices will show on Device MAC address field.
3. Select the MAC address on Device MAC address, then click Query Device to get the device configuration
on the right pane.
4. If you want to change the settings. Enter the Super user name & password. Change the settings on the right
pane. Then click Update Device. The new settings will be save to the IP serial console unit, then the unit will
be reboot automatically.
Access IP serial console
Using the HTTP protocol and entering the configured IP address of IP serial console into the web browser
to remote access the IP serial console.
With successful connection to IP serial console, the login page will show as below, then key in the default user
name & password when connecting to the IP serial console unit, the IP serial console system (web server,
Telnet server or SSH server) will prompt user to enter the user name and password in order to access to the
system.
There are two levels of access privileges:
User Default Access
Name Password Privileges
root root Full access
(user define) (user define) Limit access to serial port
The administrator can add or remove a user easily via
the web pages of System administration.
For details, please visit the link below :
http://www.austin-hughes.com/support/utilities/cyberview/IPCS_Setup.exe
P. 5
< 2.1 > Device Setup CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
2.1.3 Web Management Interface
The IP serial console supports both HTTP and HTTPS (HTTP over SSL) protocols. The user must authenticate themselves by
logging into the system with a correct user name and password
To access the IP serial console Web management pages, enter the pre-set IP address or resolvable hostname into the web
browser’s URL/Location field. This will direct the user to the login screen.
Figure below shows the user homepage of the Web management interface. A menu bar, provided on the left hand side of the
screen. Selecting an item on the menu bar opens a tree view of all the submenus available under each grouping. Selecting a
submenu item will allow the user to modify parameter settings for that item.
Every page will allow the user to Save to flash, Apply or Cancel their actions. To apply all changes made, the user must select Apply.
Only when the user selects Apply will the new parameter values be applied to the IP serial console configuration and
go effective. But new settings are not saved to non-volatile memory (Flash) unless user clicks Save to flash button.
If the user does not want to save the new parameter values, the user can click Cancel. All changes made will be lost and the
previous values restored.
P. 6
< 2.1 > Device Setup CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
User can do the network IP settings via V-100 or web pages. This chapter describes the usage of web pages. The default IP settings are
as follows.

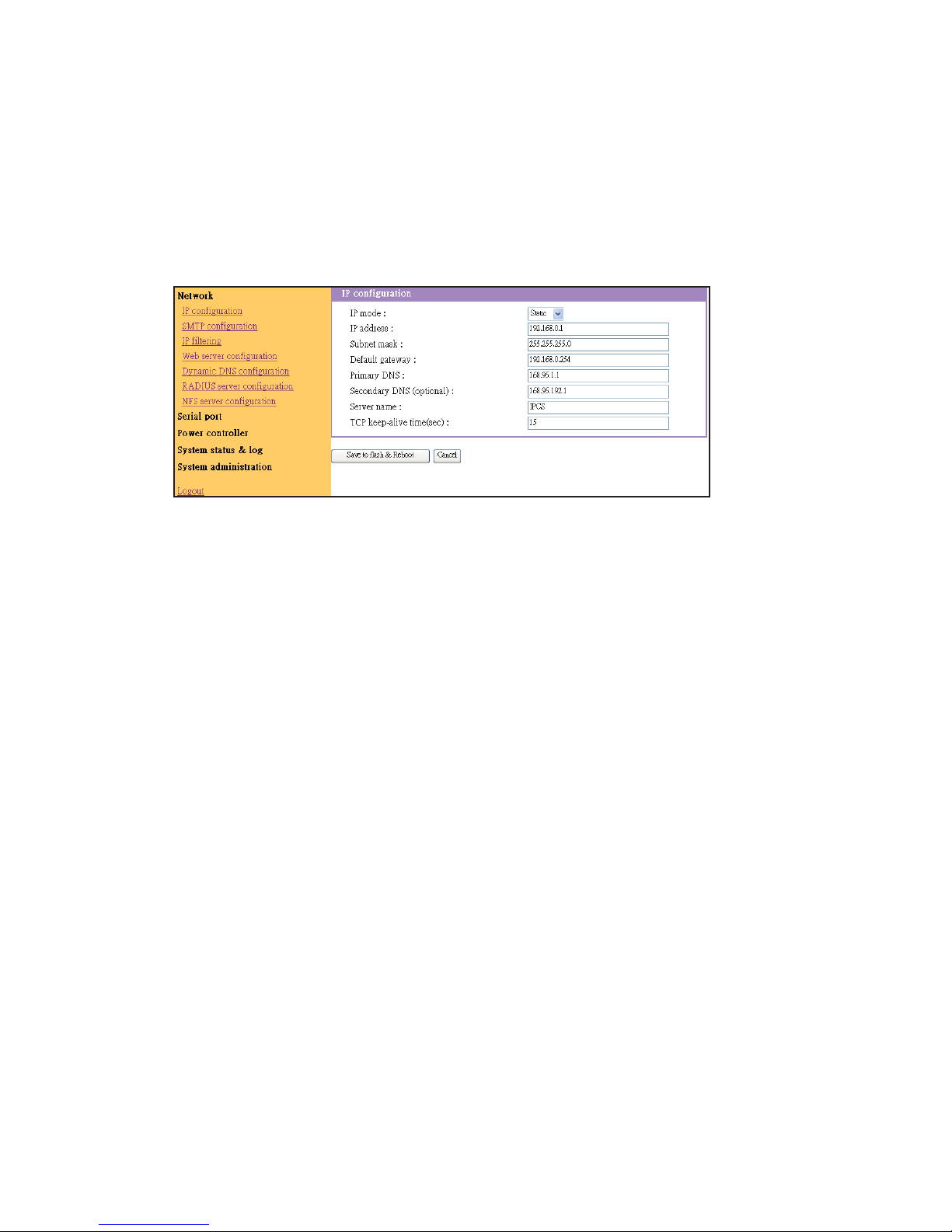

2.2.1 IP Configuration
The IP serial console requires a valid IP address to operate within the user’s network environment. If the IP address is not
readily available, contact the system administrator to obtain a valid IP address for the IP serial console. Please note that the
IP serial console requires a unique IP address to connect to the user’s network.
There are two types of IP assignments user can choose from:
■Static IP
■DHCP (Dynamic Host Configuration Protocol)
The IP serial console is initially defaulted to Static IP mode, with a static IP address of 192.168.0.1.
*The onfiguration setting will not go into effect until clicking the button Save to flash & reboot.
2.2.2 SMTP Configuration
The IP serial console (IP SERIAL CONSOLE SERVER) can send an email notification when the number of system log
messages reaches to certain value and/or when an alarm message is created due to an issue with serial port data.
The user must configure a valid SMTP server to send these automatically generated emails.
The “device mail address” must be registered to SMTP server.

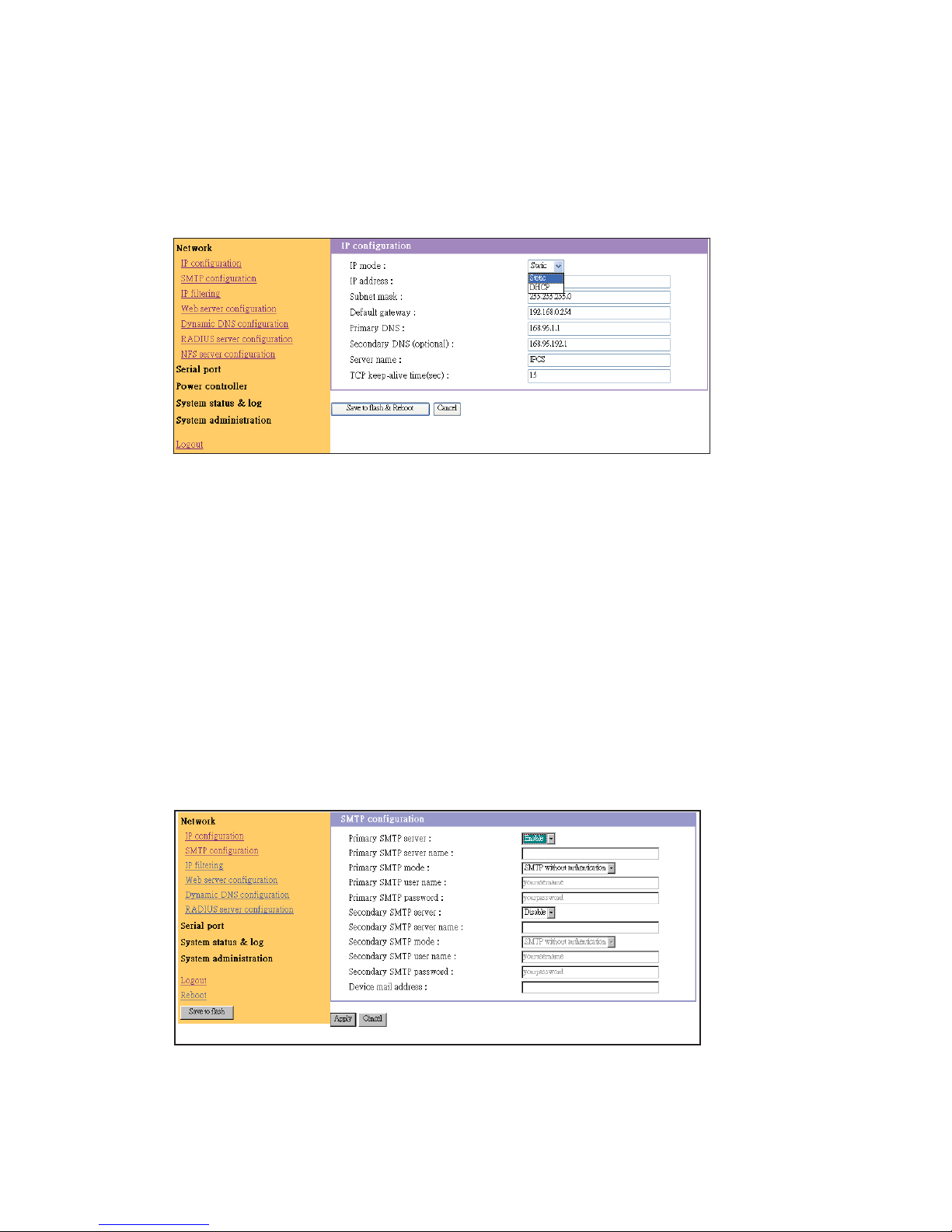

The IP serial console supports two SMTP server types:
■SMTP without authentication
■SMTP with authentication
The SMTP user name and SMTP user password are required when selecting SMTP with Authentication.
Secondary SMTP configuration is also provided so that mail can be delivered even when the primary SMTP server fails.
Only when the primary SMTP server fails, the secondary SMTP server will be tried for mail delivery.
P. 7
< 2.2 > IP Configuration CS-116

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.3.1 IP Filtering
The IP filtering function keeps unauthorized hosts from accessing to the IP serial console by specifying IP filtering rules. It is
important to fully understand what an IP filter is. If you don’t fully understand this, you will get unexpected results against your
original plan.
The IP address/ Mask specifies the host range by entering base host IP address followed by / and subnet mask. The host IP
addresses to be filtered based on the rule defined. The table below gives examples of IP address/ Mask settings.
Specified host range Base Host IP address Subnet mask
Any host 0.0.0.0 0.0.0.0
192.168.1.120 192.168.1.120 255.255.255.255
192.168.1.1 ~ 192.168.1.254 192.168.1.0 255.255.255.0
192.168.0.1 ~ 192.168.255.254 192.168.0.0 255.255.0.0
192.168.1.1 ~ 192.168.1.126 192.168.1.0 255.255.255.128
192.168.1.129 ~ 192.168.1.254 192.168.1.128 255.255.255.128
The Port is a port or port range of the IP serial console which hosts try to access to.
Chain rule
The chain rule determines whether the access from the hosts is allowed or not. It can be one of the these two values :
■ACCEPT : access allowed
■DROP : access not allowed
When the IPCS receives a TCP packet, it will process the packet with the chain rule depicted below. The process ordering is
important; The packet will enter the chain rule 1 first, if meet the rule then take action directly, otherwise go to chain rule 2.
TCP packet
No
Rule 1
Rule 2
Rule ..
Rule n
Default Rule
Action 1
Yes
No
No
No
Action 2
Yes
Action 3
Action 4
Action 5
Yes
Yes
Yes
P. 8
< 2.3 > IP Filtering

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.3.2 IP Filtering

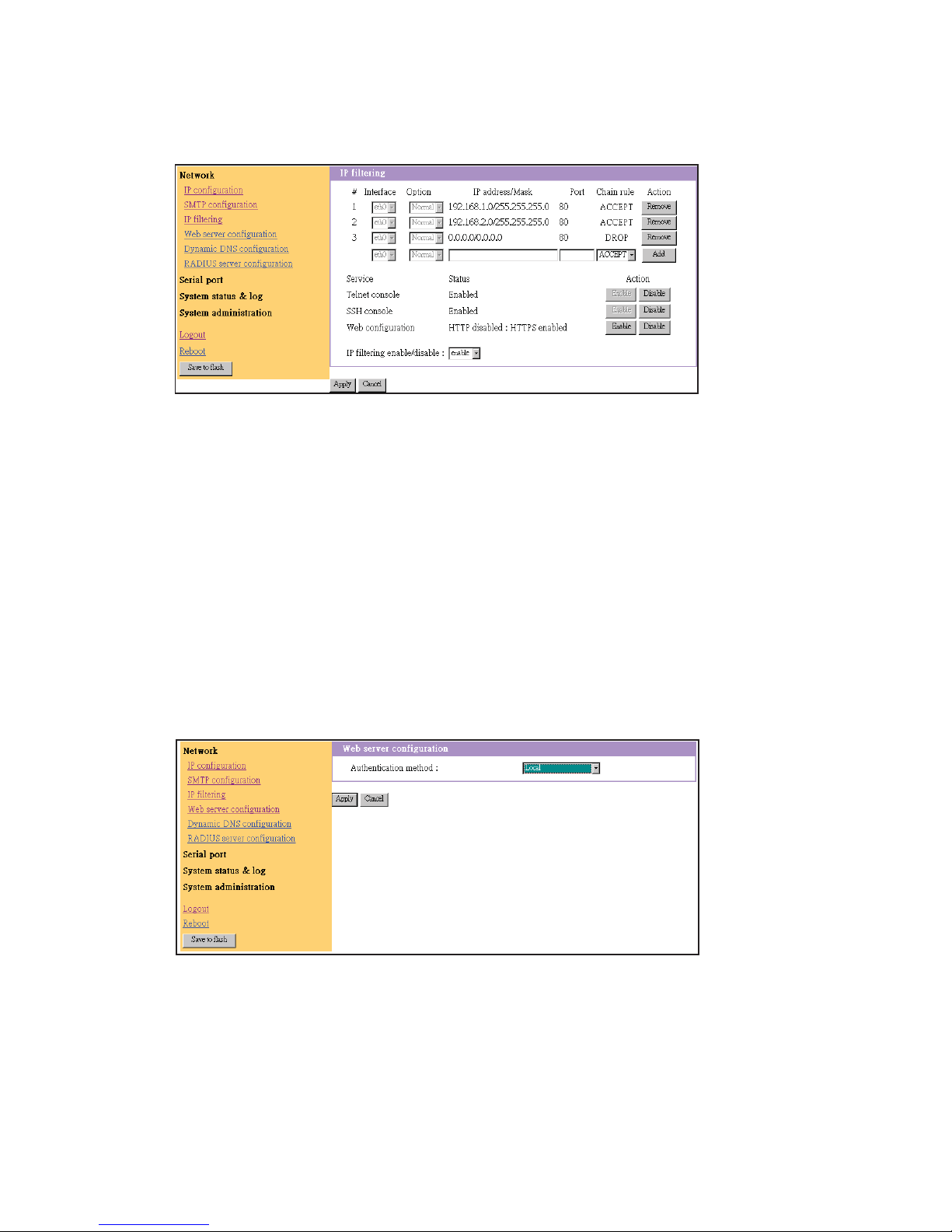

Users can add a new IP filtering rule by setting the properties at adding line and then clicking the button Add. User can remove
a rule by clicking the button Remove.
In the example above, no host is allowed to connect to the IPCS through http (port 80) by the #3 rule but the hosts whose
subnet is 192.168.1.x is allowed by the #1 rule and 192.168.2.x by the rule #2. So, only the hosts which elong to the subnet
192.168.1.x or 192.168.2.x can access to the IPCS through http by the #1, #2 and #3 rules.
The IP serial console Web server supports both HTTP and HTTPS (HTTP over SSL) services simultaneously. Users can select
user authentication method for the IPCS web pages login. The IP serial console currently provides authentication methods of
Local and RADIUS.
2.4.1 Local
The IP serial console always refers to the local database for the web server login user authentication.
P. 9
< 2.3 > IP Filtering
< 2.4 > Web Server Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.4.2 Dynamic DNS
When users connect the IP serial console to a DSL line or use a DHCP configuration, and get a dynamic IP address from the
network, the IP address may not the same as previous. It can therefore be very difficult to know if an IP address has changed,
or what the new IP address is.

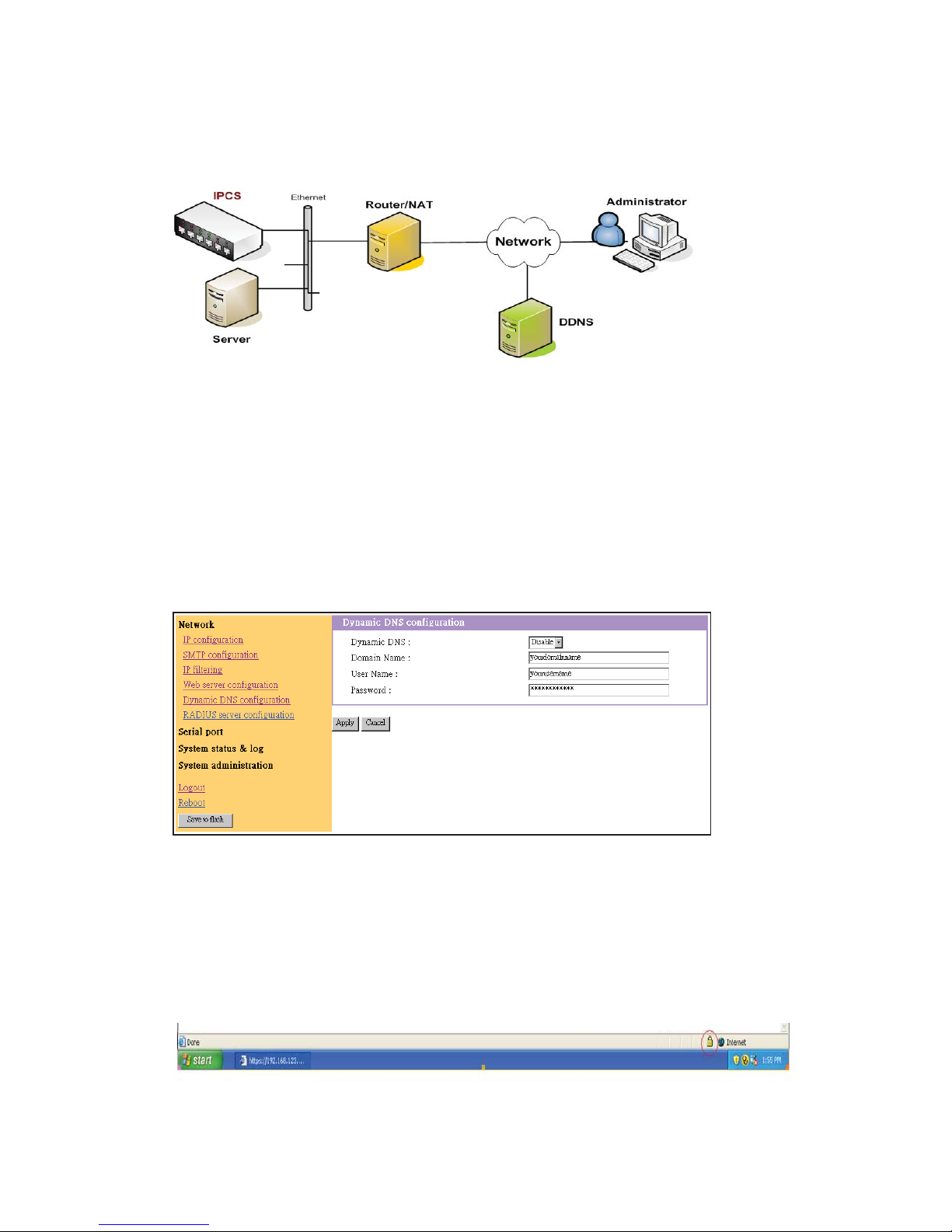

A Dynamic DNS service is provided by various ISPs or organizations to deal with the above issue. By using the Dynamic DNS
service, users can access the IP serial console through the hostname registered in the Dynamic DNS Server regardless of any
IP address change.
By default, the IP serial console only supports Dynamic DNS service offered at Dynamic DNS Network Services, LLC
(www.dyndns.org).
To use the Dynamic DNS service provided by Dynamic DNS Network Services, the user must set up an account. In their
Members’ NIC (Network Information Center - http://members.dyndns.org). The user may then add a new Dynamic DNS Host
link after logging in to their Dynamic DNS Network Services Members NIC.
After enabling the Dynamic DNS service in the Dynamic DNS Configuration menu, the user must enter the registered Domain
Name, User Name, and Password. After applying the configuration change, users can access the IP serial console using only
the Domain Name. The DNS (Domain Name Systems) is the internet service that translates your domain names into IP addresses.
2.4.3 HTTPS / SSL
The IP serial console Web server supports both HTTP and HTTPS (HTTP over SSL) services simultaneously.
The user can to enable or disable security function of each port individually. HTTPS provides a secure, encrypted web interface
over SSL (secure sockets layer). The following steps to use the HTTPS protocol:
1. Change the URL from “http://xxx.xxx.xxx/” to “https://xxx.xxx.xxx/”.
2. If connect success, it will show up the “Lock” icon on the right-hand side of the taskbar.
P.10
< 2.4 > Web Server Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.4.4 RADIUS
Authentication is the process of identifying an individual, usually based on a username and password. The IP serial console
supports various authentication options, such as Local, RADIUS, to authenticate the users who access the serial port. When
the authentication is set to Local, the IP serial console will use its own user list to authenticate a user. If configured otherwise,
the IP serial console will request authentication from the external authentication servers (i.e. RADIUS).

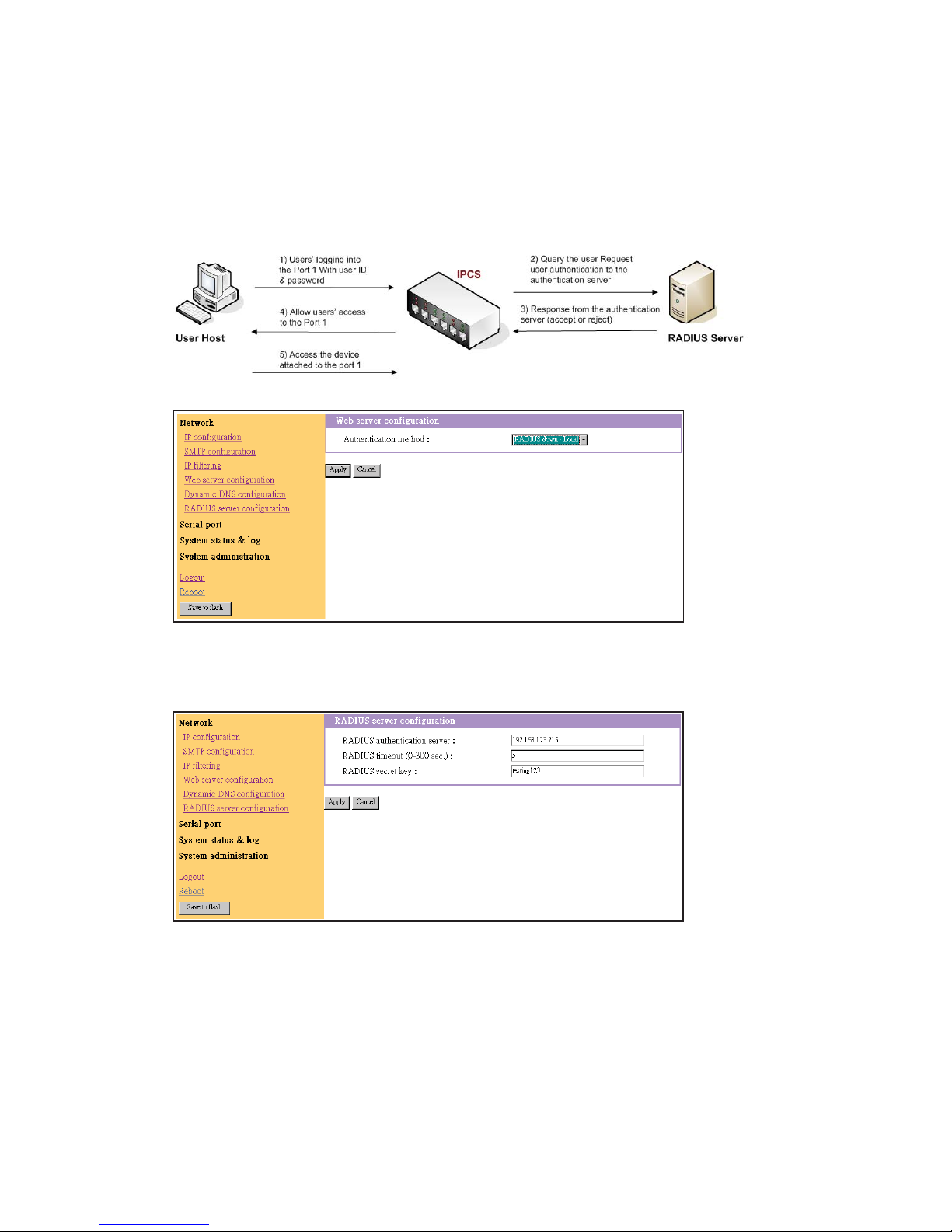

Figure below shows conceptually the user authentication process when using an external authentication server.
Radius server configuration
P. 11
< 2.4 > Web Server Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
Under the Serial Port heading, click Configuration will show the list of port summary as below.
2.5.1 Port Authentication
Authentication is the process of identifying an individual, usually based on a username and password. The IP serial console
supports various authentication options, such as Local, RADIUS, to authenticate the users who access the serial port.
When the authentication is set to Local, the IP serial console will use its own user list to authenticate a user. If configured
otherwise, the IP serial console will request authentication from the external authentication servers (i.e. RADIUS) Figure below
shows conceptually the user authentication process when using an external authentication server.
2.5.2 Port Enable / Disable
Each serial port can be enabled or disabled. A disabled serial port cannot be accessed by user. User can reset the serial port to
default settings by clicking the button Set to default.
P.12
< 2.5 > Serial Port Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.5.3 Port Title
Users can enter descriptive information for each port based on the device attached to it.
We can use the shortcut Move to on the up-right corner to go to the wished port page directly.
P.13
< 2.5 > Serial Port Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.5.4 Operation Modes

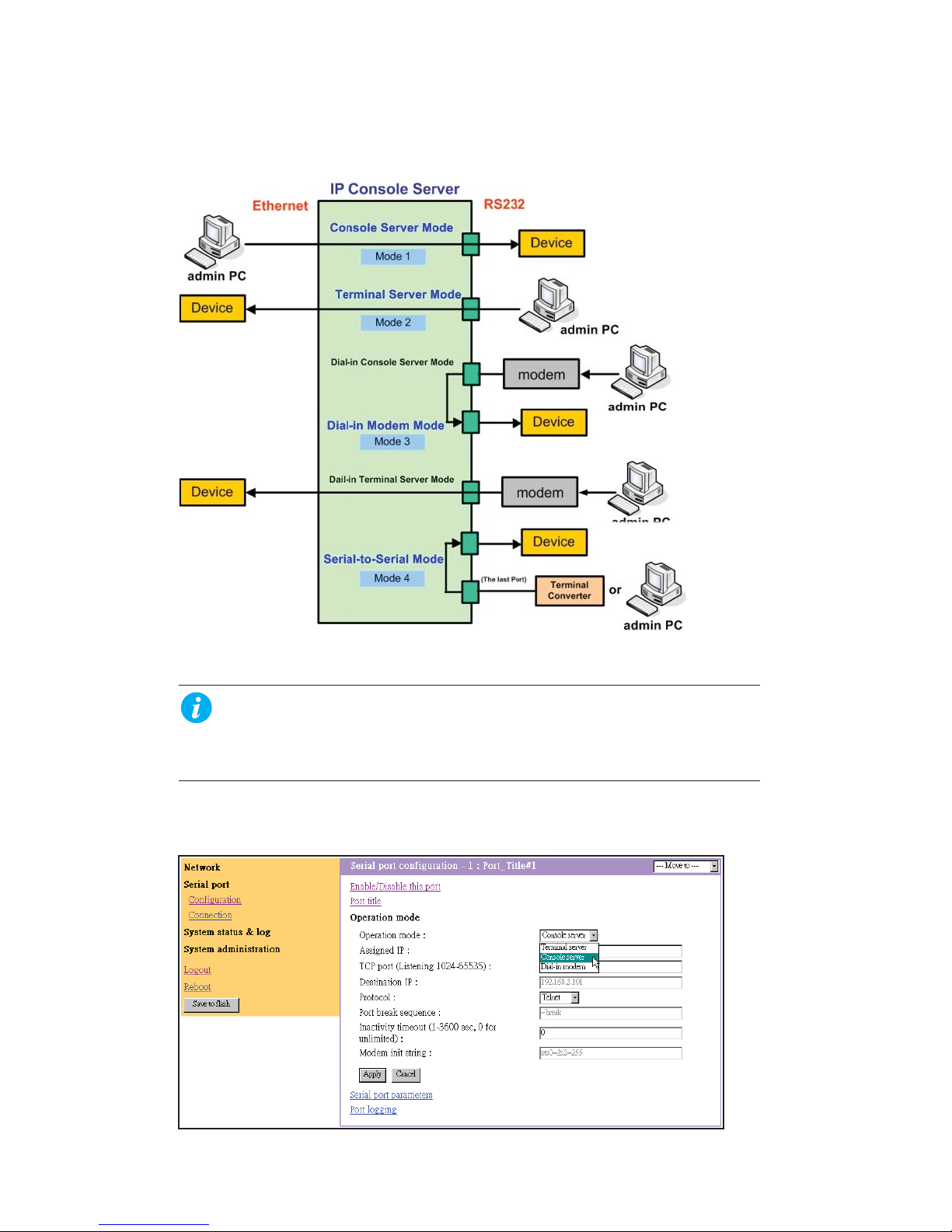

The IP serial console unit provides four types of operation modes. These are described in the following sections.
P.14
Note :
■The last port (e.g., Port #16 of IP serial console) can also be used as External ESP (Entry Serial Port)
in Serial-to-Serial operation mode. Refer to the section Serial-to-Serial Function for details.
< 2.5 > Serial Port Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
Console Server Mode
Configuring a serial port as a console server creates a TCP socket on the IP serial console unit that listens for a Telnet or SSH client
connection. When you connect to the TCP socket, you have access to the device attached to the serial port as if the device were
connected directly to the network. Data stream can be sent back and forth between the device and the Telnet/SSH client program.
Raw TCP is also supported with the Console Server Mode.
For console server mode, the user can configure the following parameters:
Listening TCP port number
The user can also access a serial port through the IP address of the IP serial console and the listening TCP port number of the serial
port. If the IP address of the IP serial console and the serial port are assigned as 192.168.123.100 and listening TCP port number
4001, the user can connect to the port as follows: telnet 192.168.123.100 4001
Protocol
Select Telnet, SSH or Raw TCP as the protocol. If the users are using a Telnet client program, select Telnet. If the users are using an
SSH client program, select SSH. When Raw TCP is selected, direct TCP socket communication is available between the IPCS
and the remote host.
Inactivity timeout
In order to avoid a client holding a TCP connection while no data transferring on the serial port for long time. If the inactivity timeout is
enabled, and no data activity between the IP serial console and the Telnet/ SSH client for the specified inactivity timeout interval
(no data activity in the serial port), the existing TCP session will automatically be closed. If the user wants to maintain the connection
indefinitely, configure the inactivity timeout period to 0.
TCP Keep-alive (no configuration required)
In order to avoid TCP connection lockup, the IP serial console will continue to check the connection status between the Telnet/ SSH
client and the IP serial console by sending “keep alive” packets periodically. If the Telnet/ SSH client does not answer the packets in a
period of time, system will assume that the connection is down unintentionally. The IP SERIAL CONSOLE will close the existing Telnet/
SSH connection, regardless of the inactivity setting. So the TCP connection won’t be deadlocked when user’s application closed
improperly or the network link interrupted.
Terminal Server Mode
In terminal server mode, the IP serial console will unit’s serial port is configured to wait for data from the device connected to the port.
If data arrive is detected, the IP SERIAL CONSOLE unit starts a TCP session as a Telnet or SSH client to a pre-defined server. The
server must be defined by you before the port can be configured for a Telnet or SSH client. This mode is used when you want to
access servers on the network from a serial terminal. Raw TCP is also supported with the Terminal Server Mode.
Dial-in Modem Mode
In this mode, the IP serial console unit assumes an external modem is attached to the serial port and is waiting for a dial-in
connection from a remote site. When a user dials-in using a terminal application, the IP serial console unit accepts the connection
and displays the appropriate prompt or menu for you that logged in.
P.15
< 2.5 > Serial Port Configuration

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.5.5 Serial Port Parameters
To connect the serial device to the IPCS serial port, the serial port parameters of the IP serial console should match exactly to
that of the serial device attached.
2.5.6 Port Logging
With the Port logging feature while in console server mode, the data receiving from the tracking serial port will be buffered in
IP serial console memory. The user can also define keywords for each serial port that will trigger an email notification if the
keyword is found in the logged data. This will enable the user to monitor the data from the attached device. The Port logging
feature is valid and visible only if the operation mode of the serial port is configured to console server mode.
P.16
< 2.5 > Serial Port Configuration
