Austin Hughes CyberView F117 User manual

UM-CV-751-F117-Q419V2 www.austin-hughes.com
Designed and manufactured by Austin Hughes 751
F1417
1920 x 1080 native resolution
User Manual 1U 17″FHD LCD Console Drawer
dedicated KVM switch and rackmount screen technology
1920 x 1080 native resolution
F117
Ultra short depth
400mm / 15.7″

UM-CV-751-F117-Q419V2 www.austin-hughes.com
Legal Information
First English printing, December 2019
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment offand on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-F117-Q419V2 www.austin-hughes.com
Contents
< Part. 1 > F117 / F1417
1.1 Package Content P.1
1.2 Structure Diagram & Dimension P.1 - 3
1.3 Installation P.4 - 6
1.4 Connection P.7 - 8
< Part. 2 > Specifications / OSD
2.1 Product Specifications P.9 - 10
2.2 Keyboard / Mouse Specifications P.11 - 13
2.3 On-screen Display Operation ( OSD ) P.14 - 15
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input P.16
3.2 HDMI 1.4 video input
Audio input & output ( F117 only ) P.17
3.3 F17″Touchscreen : Resistive 1-point touch P.18 - 19
3.4 DC Power : 12V / 24V / 48V / 125V P.20
3.5 ORB-2.1 : 2-post rack mounting brackets P.21
< Part. 4 > KVM Integration
4.1 F117 P.22
4.2 F1417 P.23

UM-CV-751-F117-Q419V2 www.austin-hughes.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip offthe finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3
4

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 1
- CX-6A 6ft DVI-D console cable X 1
( Alternative : CB-6A 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
- CX-6A 6ft DVI-D console cable X 1
( Alternative : CB-6A 6ft VGA console cable )
- 2.5A Power adapter & Power cord X 1
- M6 screw, cage nut & cup washer X 8
< 1.1 > Package Content
< Part 1 >
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, Touchscreen & DC power.
< 1.2 > Structure Diagram
4
1
2
5
6
7
311
9
10
8
11
10
9
8
7
6
5
4
3
1LCD interchangeable module kit
Membrane switch (KVM option)
Installation Slides
LCD membrane
Micro switch for screen auto power off
Audio speaker ( for SDI or HDMI option )
Keyboard interchangeable module kit
Mouse interchangeable module kit
Blue Power LED
Front USB port for device access
( USB Hub KVM only )
Molded front handle
2
6
4
5
8
2
1
3
7
8
7
6
5
4
3
1LCD interchangeable module kit
Installation Slides
Molded front handle
Audio speaker ( for SDI or HDMI option )
LCD membrane
Micro switch for screen auto power off
Keyboard interchangeable module kit
Mouse interchangeable module kit
2
F1417F117

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 2

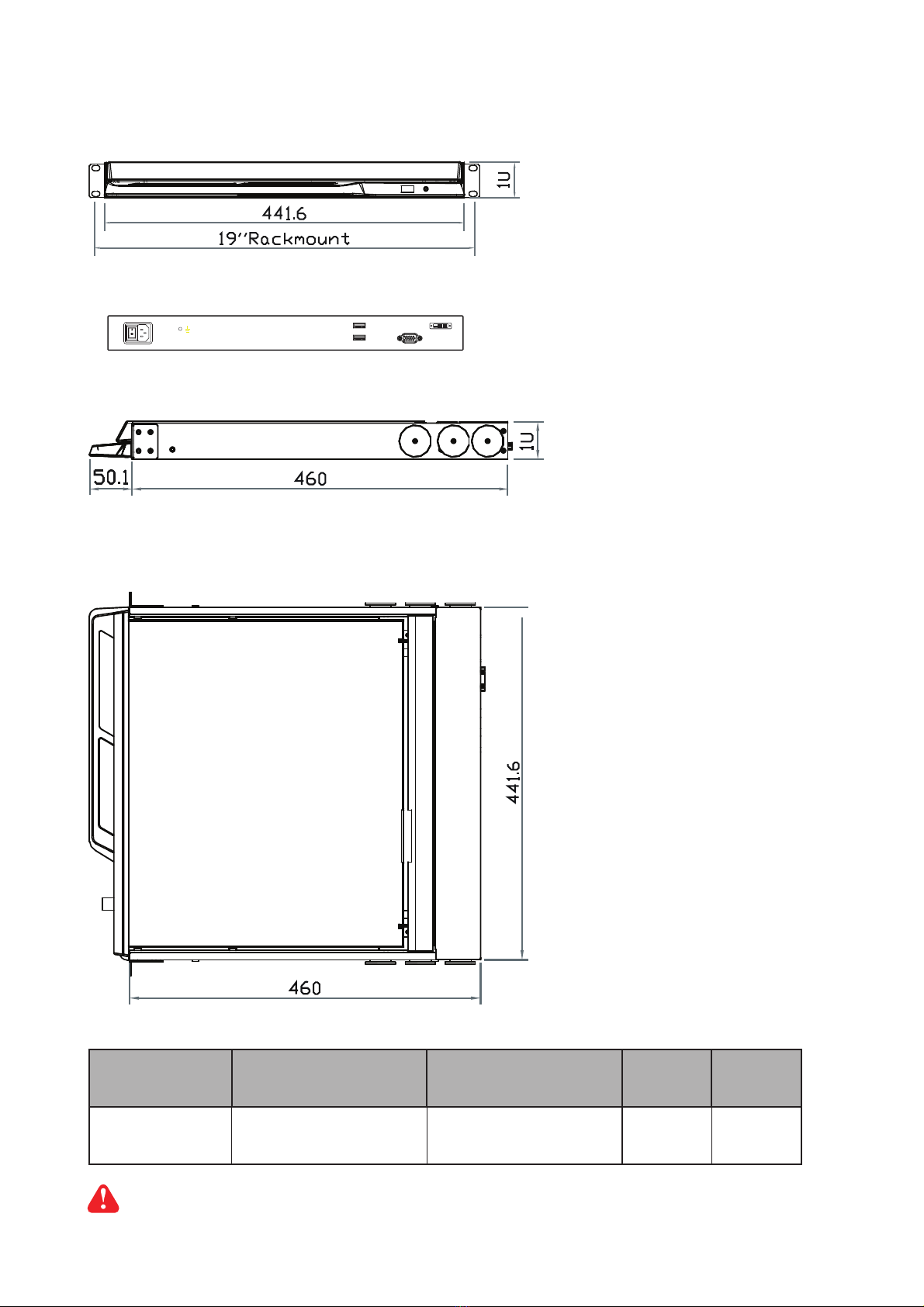

< 1.2 > Dimension - F117
Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI, Audio & DC power.
UNIT : mm
1mm = 0.03937 inch
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
F117 441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
10.8 kg
23.8 lb
15.8 kg
34.8 lb
Power VGA
DVI-DUSB
Rear View
F117
AC Input
100~240V

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 3
Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI & DC power.
UNIT : mm
1mm = 0.03937 inch
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
F1417 441.6 x 400 x 44 mm
17.4 x 15.7 x 1.73 inch
590 x 622 x 140 mm
23.2 x 24.5 x 5.5 inch
8.6 kg
18.9 lb
13.6 kg
29.9 lb
Rear View
Power VGA
DVI-DUSB

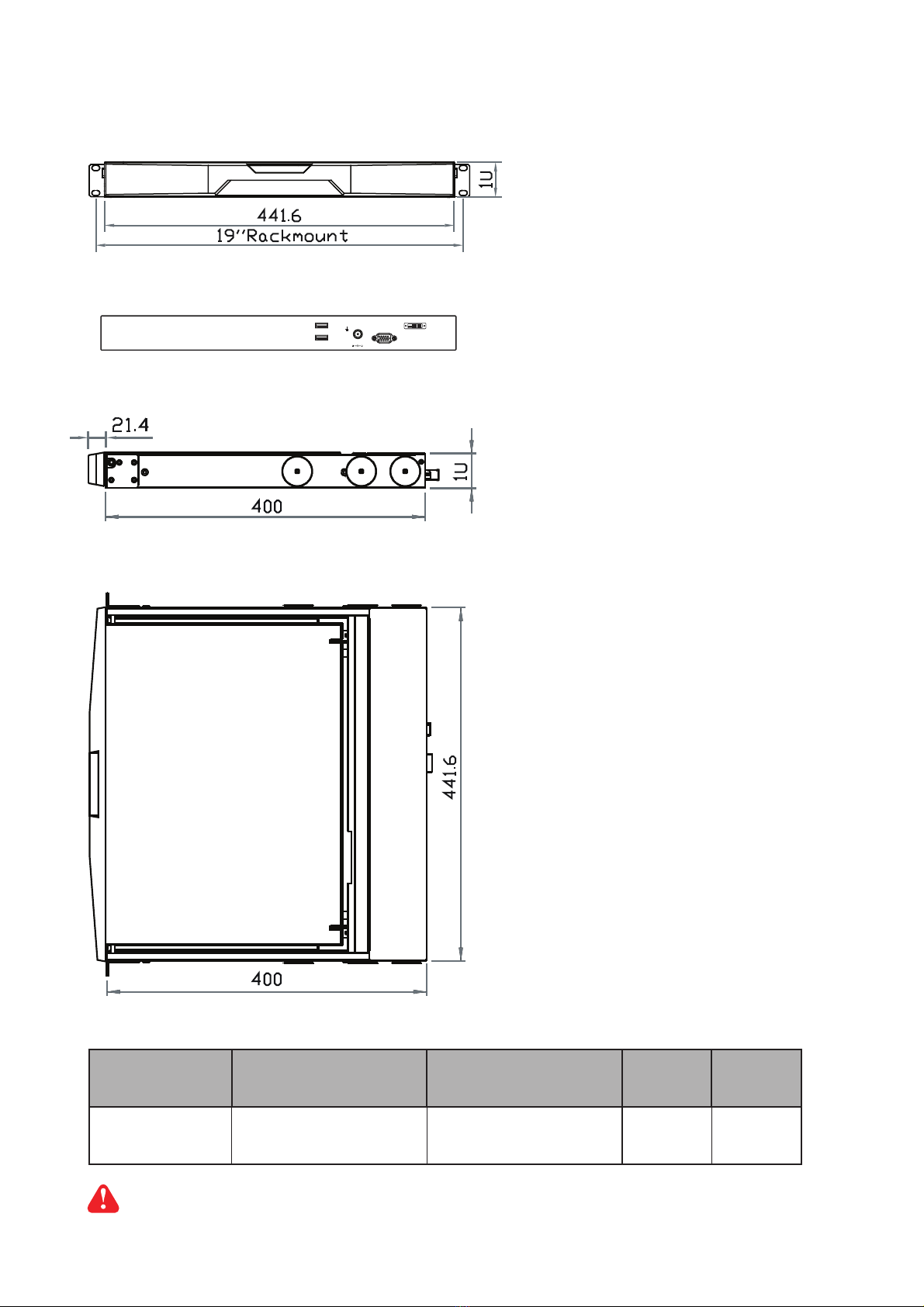

< 1.2 > Dimension - F1417
F1417
+12 VDC

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 4
< 1.3 > Installation - Installation Slides
■Fix the LCD console drawer into the rack.
Complete the installation
Step 3
■Insert the left and right rear mounting brackets into
the LCD console drawer.
Step 1
Step 2
■Measure the depth of the front and rear mounting rails.
■Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 5

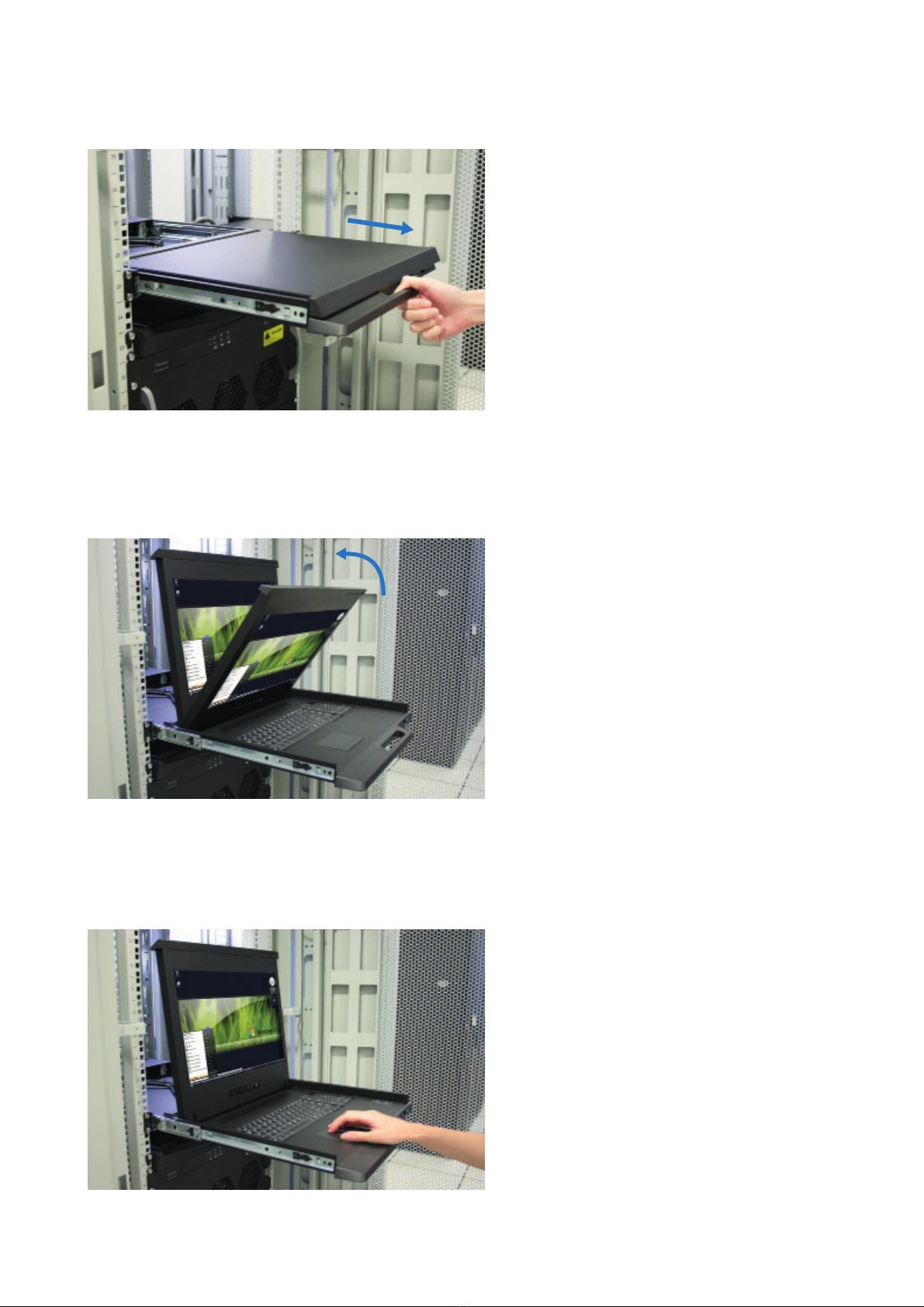

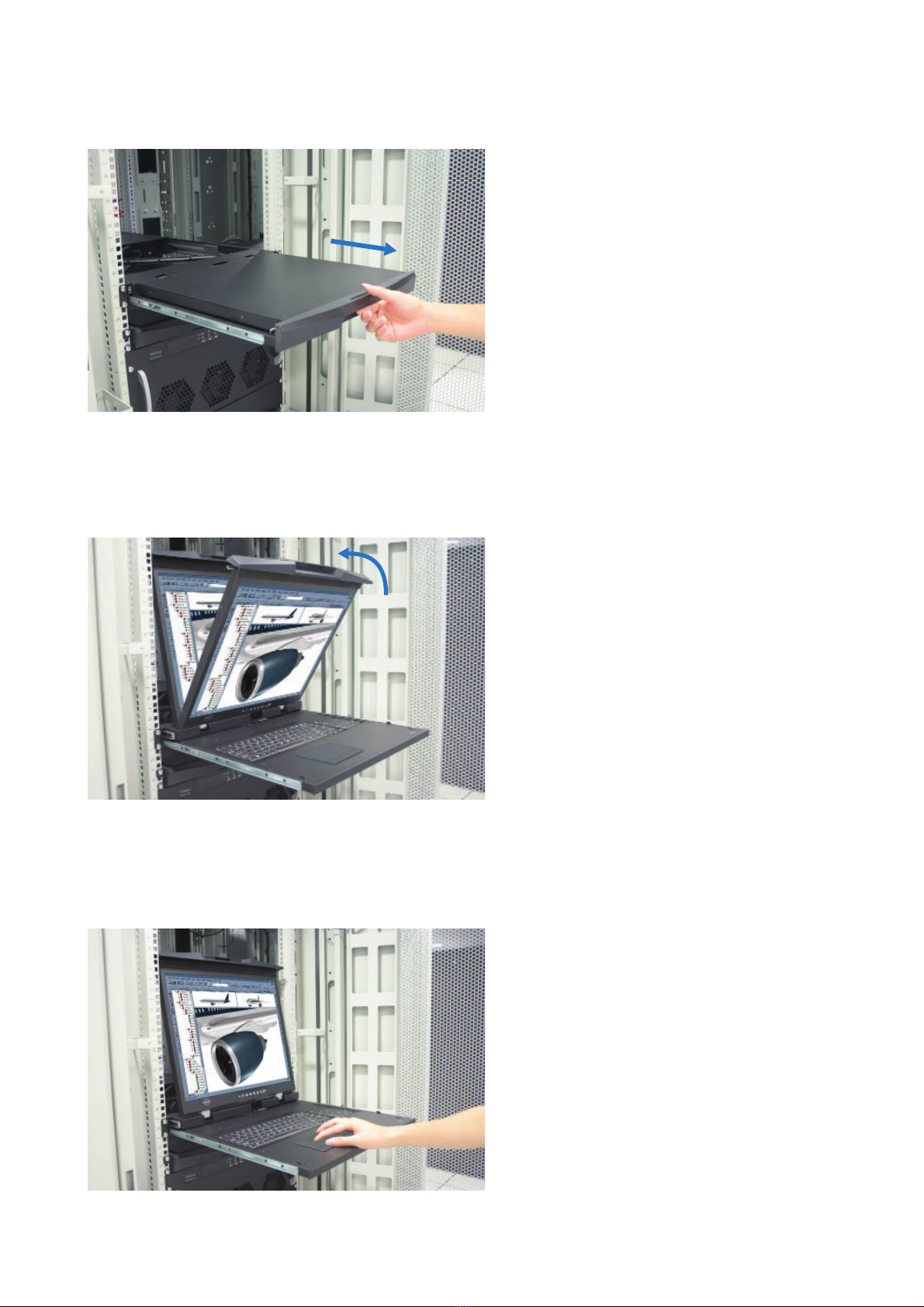

■Hold the handle and slide out the
drawer.
■Operate the LCD console drawer.
■Flip up the LCD to a suitable angle.
< 1.3 > Installation - How to use the F117 drawer

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 6
< 1.3 > Installation - How to use the F1417 drawer
■Press the handle button and gently slide out
the drawer.
■Flip up the LCD to a suitable angle.
■Operate the LCD console drawer.

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 7
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
* F1417 in external power
* F1417 in external power

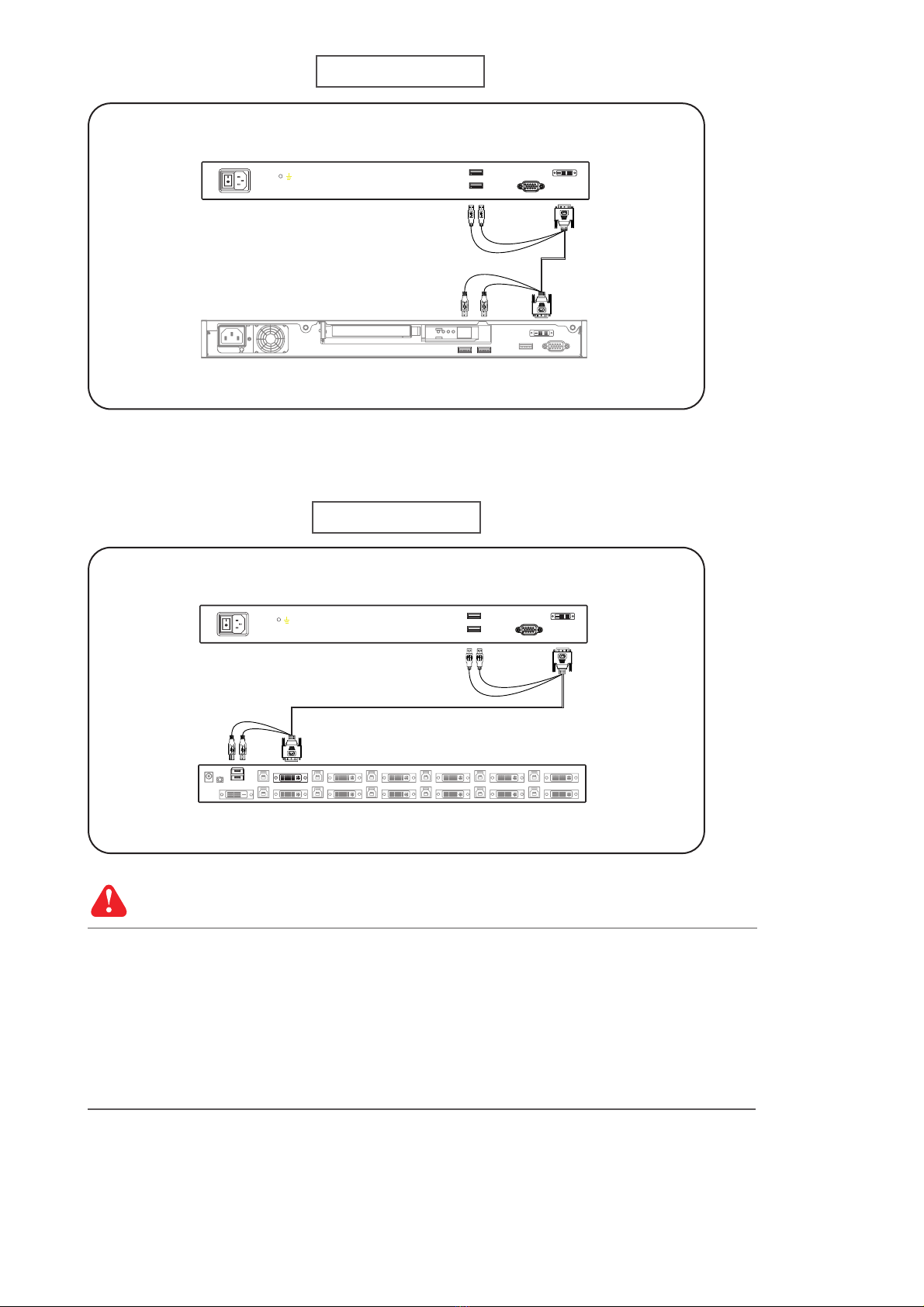

< 1.4 > Connection to USB Server via CX-6A cable
< 1.4 > Connection to external KVM via CX-6A cable
AC Input
100~240V
LCD Console Drawer
USB server
CX-6A DVI-D
console cable
DVI-DUSB
POWER
DVI-D
USB
POWER
DVI console KVM
LCD Console Drawer
CX-6A DVI-D
console cable
DVI-D
DVI-D
USB
USB
AC Input
100~240V

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 8
AC Input
100~240V

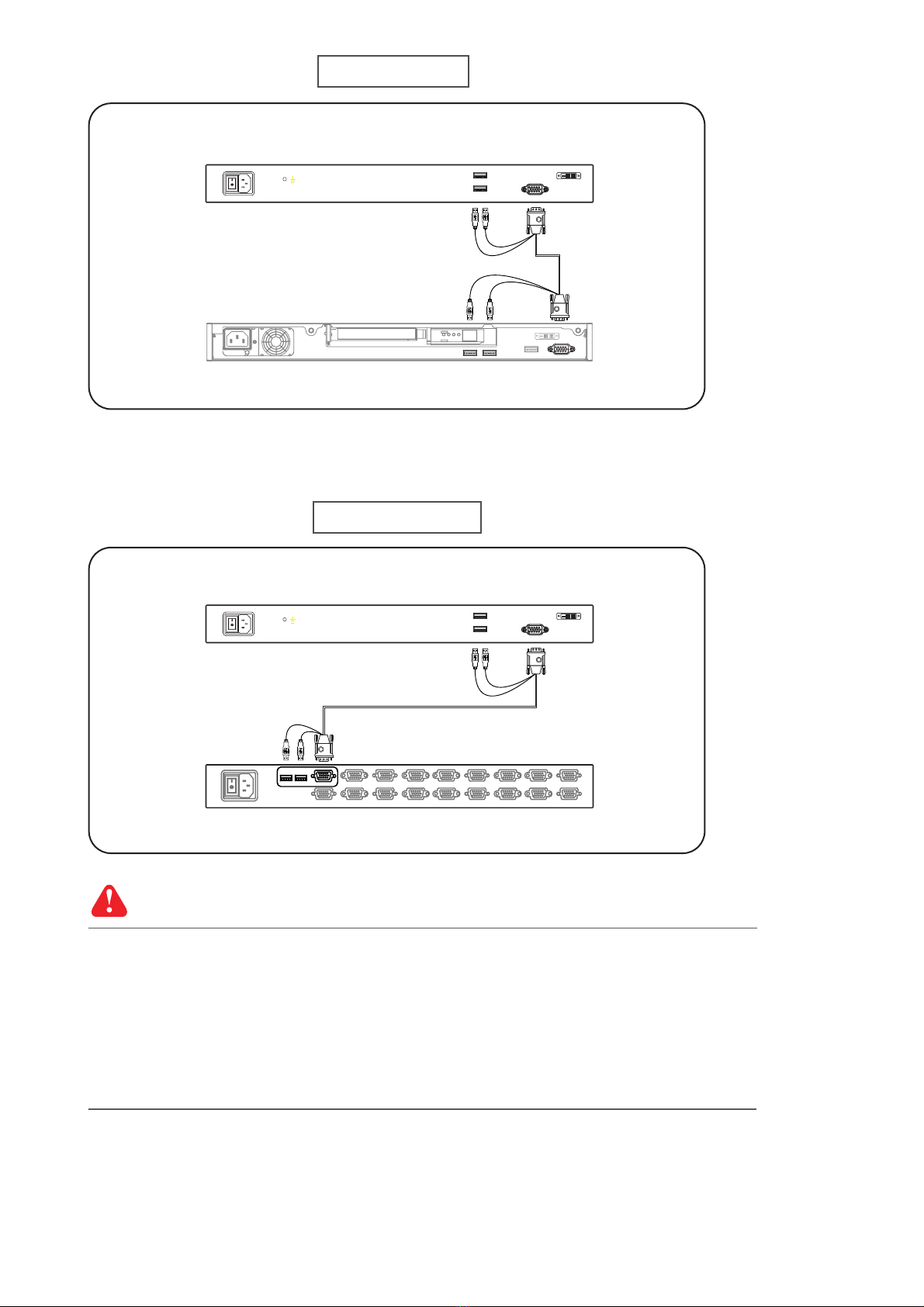

< 1.4 > Connection to USB Server via CB-6A cable
< 1.4 > Connection to external KVM via CB-6A cable
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning offthe power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
* F1417 in external power
* F1417 in external power
VGA console KVM
LCD Console Drawer
CB-6A VGA
console cable
USB
POWER VGA USB
VGA
AC Input
100~240V
POWER
USB server
LCD Console Drawer
CB-6A VGA
console cable
VGA
VGA
USB
USB

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 9
Compliance EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption for
Single Console
Screen ON Max. 25W
Power saving mode Max. 4W
Power button OFF Max. 1W
Power Consumption
with KVM integration
Screen ON Max. 55W
Power saving mode Max. 34W
* For details, please refer to our KVM rear kit user manuals
< 2.1 > Product Specifications
LCD
Panel
F117 / F1417
Native Resolution 1920 x 1080
Panel Size ( diagonal ) 17.3"
Brightness ( cd/m² ) 400
Contrast Ratio ( typ. ) 600:1
Colors 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 80/80/60/80
Response Time ( ms ) 5.5
Dot pitch ( mm ) 0.1989
Display Area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 50,000
Video Digital HDMI HDMI 1.4 / HDCP 1.4
DVI-D DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
< Part 2 >

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.10
Applicable
Format
DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Audio Signal 2ch Linear PCM
HDMI Input PC Signal Same as VGA
HDMI 1.4 1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio Signal 2ch Linear PCM
* In some circumstances, if the user connects the LCD to PC via HDMI port or video and audio signals, the LCD may display incorrectly
on a full screen. If so, please adjust the display card setting on display size to fix the issue.
Physical
Specification
F117 F1417
Product ( W x D x H ) 441.6 x 460 x 44 mm 441.6 x 400 x 44 mm
17.4 x 18.1 x 1.73 inch 17.4 x 15.7 x 1.73 inch
Packing ( W x D x H ) 590 x 808 x 140 mm 590 x 622 x 140 mm
23.2 x 31.8 x 5.5 inch 23.2 x 24.5 x 5.5 inch
Net Weight 10.8 kg / 23.8 lb 8.6 kg / 18.9 lb
Gross Weight 15.8 kg / 34.8 lb 13.6 kg / 29.9 lb
* All dimensions stated are subject to change if options are selected / integrated to base model part codes
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage /
Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random

UM-CV-751-F117-Q419V2 www.austin-hughes.comP. 11
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
OS support Windows / Linux / Unix / Mac OS
< 2.2 > Standard Keyboard / Mouse Specifications
G keyboard integrated with trackball
Gb
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Norway
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
G keyboard integrated with touchpad
Ge

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.12
< 2.2 > MAC Keyboard / Mouse Options
MAC keyboard integrated with trackball
Mb
MAC keyboard integrated with touchpad
Me
How to Use "MAC" Keyboard
Keyboard Features
F1
Decrease display brightness
F9
Fast-forward
F2
Increase display brightness
F10
Mute sound
F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
F11
Decrease volume
F4
Dashboard
F12
Increase volume
F7
Rewind Eject disc
F8
Play / Pause Command
Supporting layouts
America
United States
F8F7F8F7

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.13
Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
< 2.2 > SUN Keyboard / Mouse Options
Num LED in Green mode
Key pad behaves as a normal key
pad mode
■Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■104 key notepad keyboard with full numerical pad and SUN function
■USB interface
■US layout only
S keyboard integrated with touchpad / trackball
Num LED in Offmode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "S" Keyboard
S keyboard integrated with trackball
Sb
S keyboard integrated with touchpad
Se
Num Cap s Scro l l Compo se Num Cap s Scro l l Compo se

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.14
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn offafter 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2
< 2.3 > On-screen Display Operation ( OSD )
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / offLCD
Power light
Green = On
Orange = Power saving
Membrane Switch Function
F117
F1417

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.15
< 2.3 > On-screen Display Operation ( OSD )
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
1
PC
Auto adjust : Automatically adjust sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
H. Position : Align the screen image left or right
V. Position : Align the screen image up or down
2
MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the offtime
PIP mode : Adjust picture in picture setting
PIP position : Enter into PIP position
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
4
Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass : Set the value of bass sound
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn offthe surrounding sound
3

UM-CV-751-F117-Q419V2 www.austin-hughes.comP.16
< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input
*** For SDI option, F117 chassis extension in depth to 530mm ( 20.9” )
SDI
out - in
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
Austin Hughes’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
F117
SDI
out - in
F1417
AC Input
100~240V
+12 VDC
