HIGH PRESSURE WASHER OPERATOR MANUAL

Please read and comply with

these original instructions prior to

the initial operation of your appli-

ance and store them for later use

or subsequent owners.

Contents

Model Overview

Safety Instructions

Assembly Instructions

Preparation

Operating Instruction

Using the Accessories

Working with Detergents

Taking a Break

Shutting Down & Clean Up

Winterizing & Long Term

Storage

Maintenance Instructions

Cleaning Tips

Troubleshooting

EN-3

EN-4

EN-6

EN-8

EN-9

EN-11

EN-12

EN-13

EN-14

EN-17

Specifications

AUTLEAD 3200PSI

Operating Pressure

Water Volume

Engine

Fuel Type

Fuel Tank Size

Engine Oil Type

Model Numbe

Serial Number

2600 PSI

2.6 GPM

OHV

Unleaded Gas

0.34 Gallons

(1.3 L)

SAE 10W-30

GSH01A

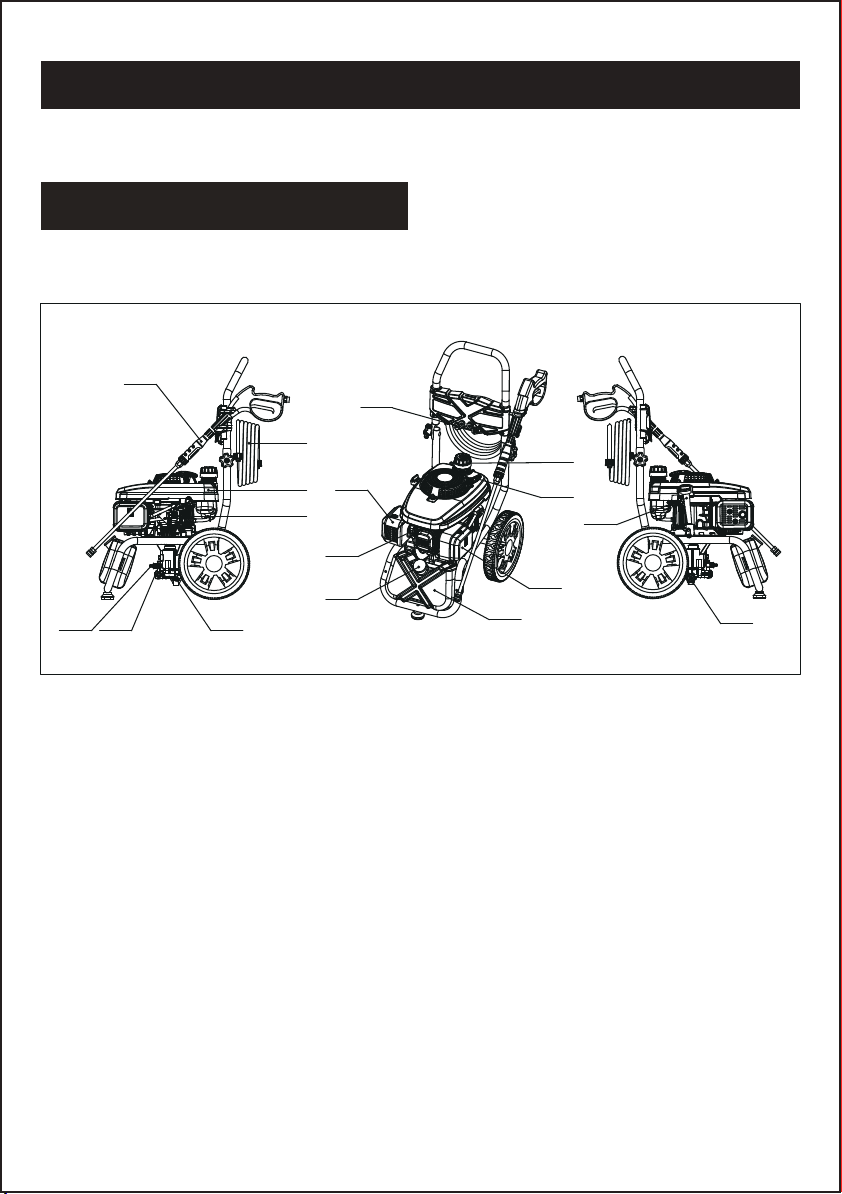

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

1Englis

英

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

11 12

9. Muffler

10. Spark Plug

11. Detergent Tank Cap

12. Detergent Tank

13. Air Filter

14. Hand Cord

15. Fuel Tank Cap

16. Oil Dipstick

17. Pump Inlet

Model Overview

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

GSH01A

2English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Hazard Levels

Safety Instructions

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

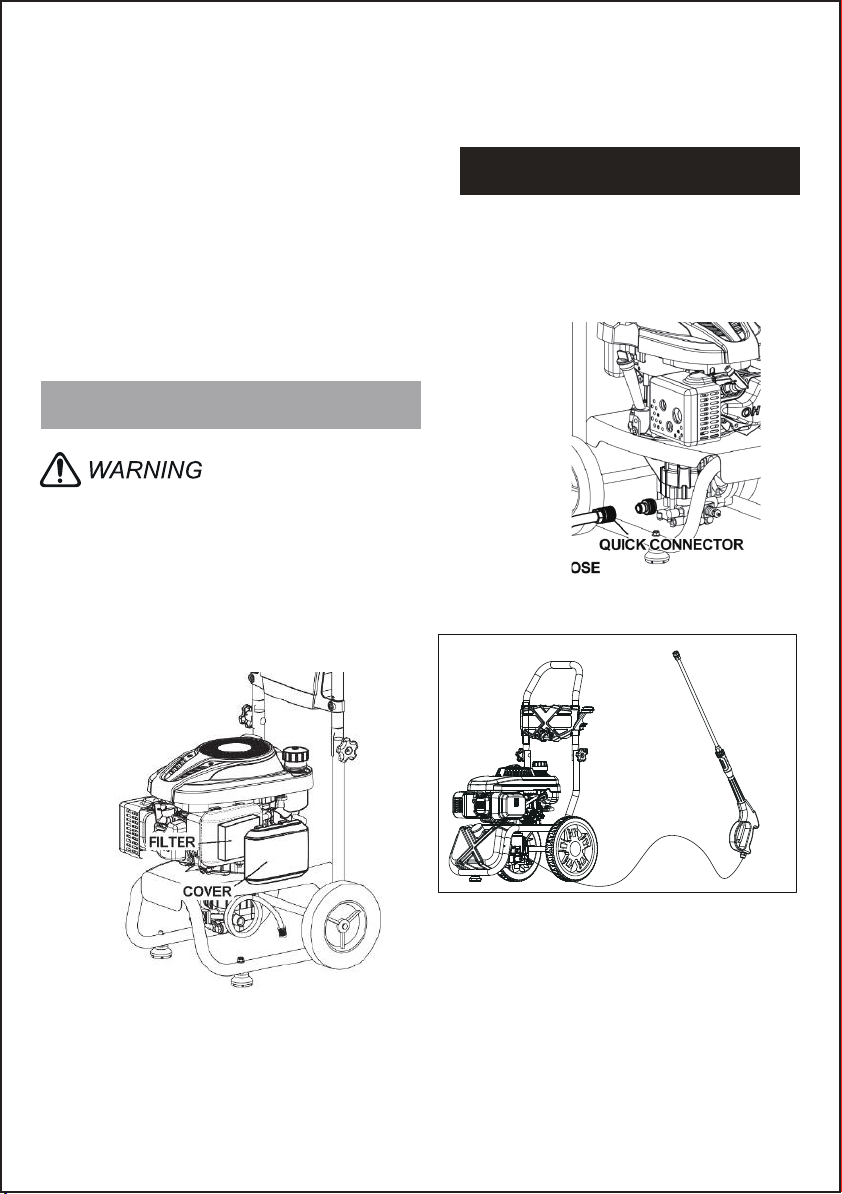

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

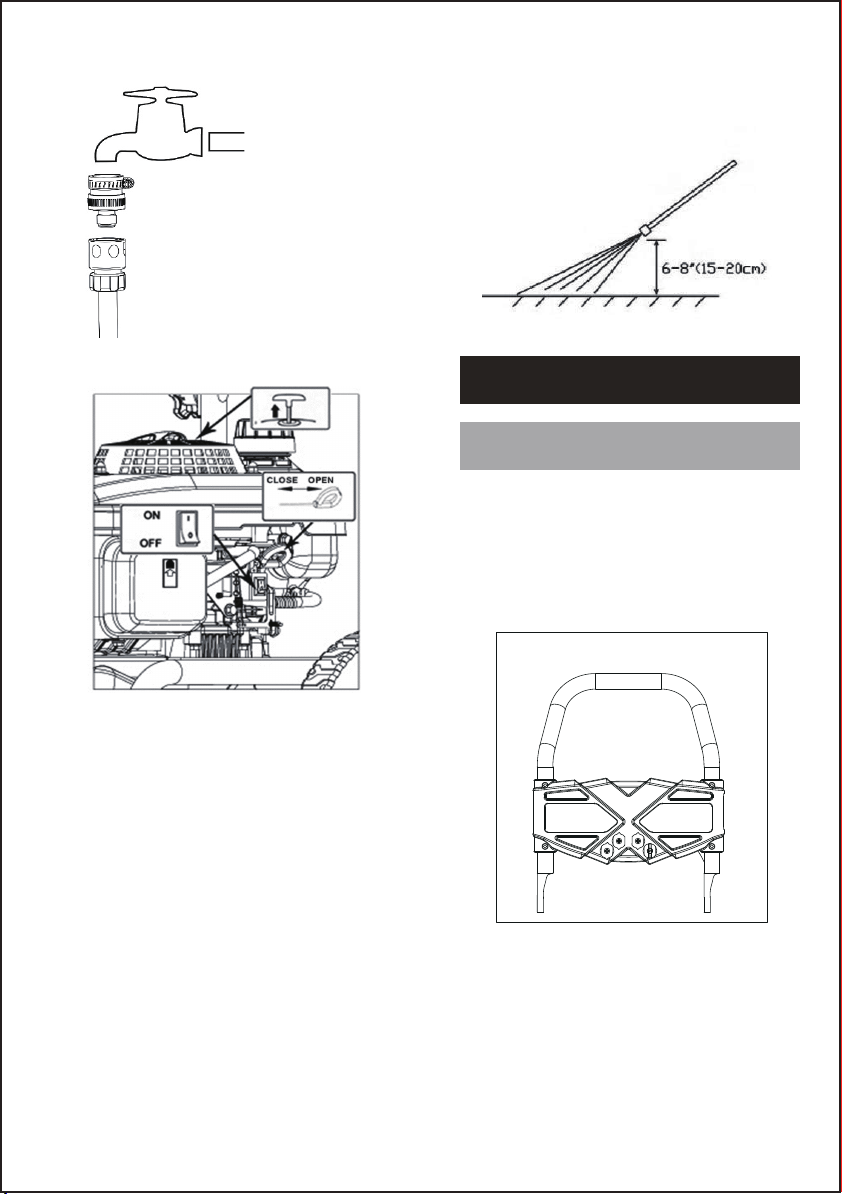

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

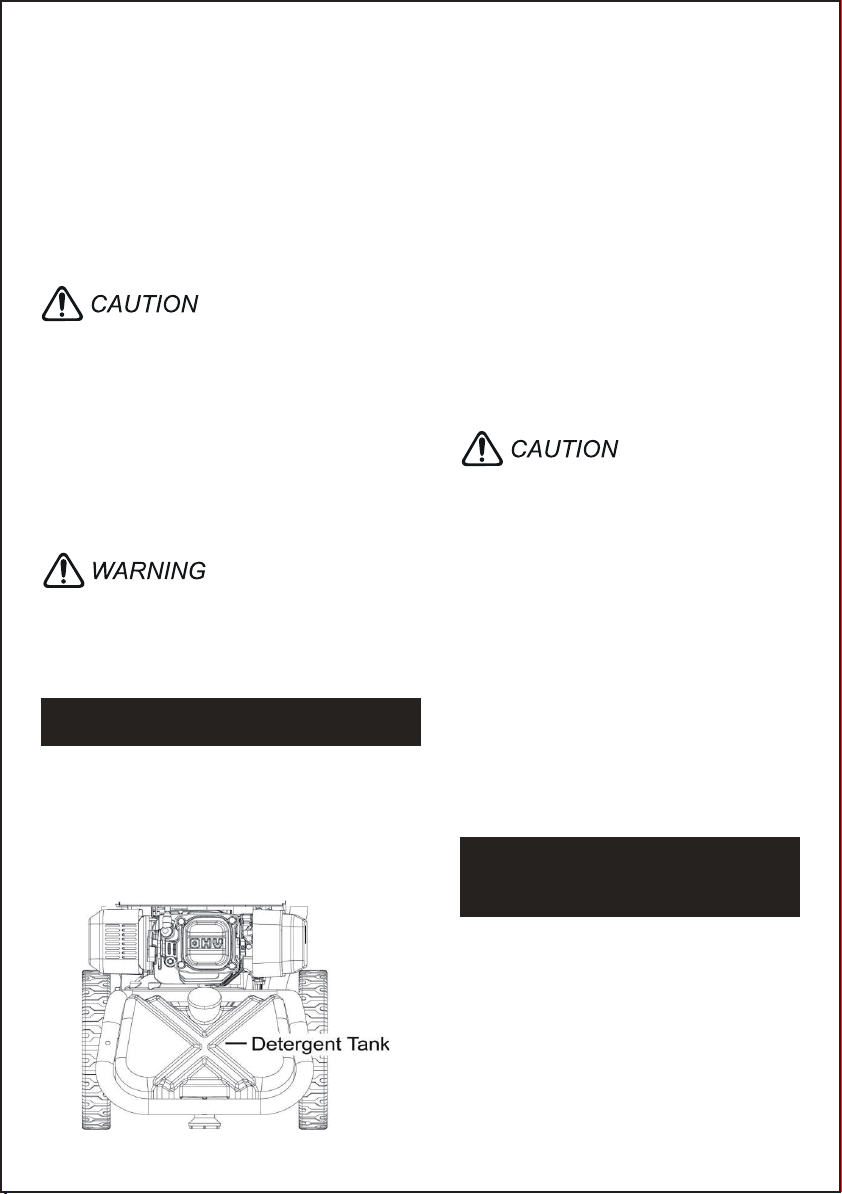

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

3English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Water Supply

(Cold Water Only)

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

4English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Assembly Instructions

Part List

A - Main Frame

B - Handle

C - Gun Hook

D - Knobs & Bolts

E – Pressure Hose

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

5English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Assembling

F - Spray Gun & Wand

G - Wheels

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

6English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Preparation

Oil Level

Fuel Level

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

7English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Operating Instructions

Air Filter

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

8English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Using the Accessories

Quick Connect Nozzles

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

9English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Working with Detergents

Pause von fünf Minuten

oder mehr einlegen

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

10 English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Shutting Down

&Clean Up

Winterizing &

Long-Term Storage

Maintenance Instructions

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Pump

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

11 English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Cleaning Tips

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Engine

Deck Cleaning

House Siding

Cement Patios, Brick &

Stone

Cars, Boats& Motorcycles

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

12 English

▬

►

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

►

► ►

►

▬

►

▬

►

NOTE: If unable to start the engine, repeat

the above operation one or two times.

Cleaning Procedure:

►

Always use SAE 10W-30 oil.

Oil crankcase capacity: 0.6L.

Reposition the oil gauge dipstick and

tighten it by turning clockwise.

Engine oil should be changed after the

first 5 hours, then every 50 hours.

Make sure there is enough fuel in the

fuel tank before operating.This is a

4-cycle engine and does not require a

gas/oil mixture. There is a separate

reservoir for gas and a separate reser-

voir for oil.

If it is necessary to add fuel, first make

sure the engine is OFF, and then

►

▬

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

Indicates “an imminently hazardous

situation which, if not avoided, will

result in death or serious injury.”

Indicates “a potentially hazardous

situation which, if not avoided, could

result in death or injury.”

Indicates “a potentially hazardous

situation which, if not avoided, may

result in minor or moderate injury or in

property damage incidents.”

When using this product, basic

precautions should always be

followed, including the following:

▬

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

▬

Read the operating instructions of

the engine manufacturer before

start-up and follow the safety

instructions carefully.

Read all instructions before using

product.

To reduce the risk of injury, close

supervision is necessary when the

product is used near children.

Know how to stop the product and

bleed pressures quickly. Be

thoroughly familiar with the

controls.

Stay alert - watch what you are

doing.

Do not operate when fatigued or

under the influence of alcohol or

drugs.

Keep operating area clear of all

persons.

Do not overreach or stand on

unstable support. Keep good

footing and balance at all times.

Wear safety goggles and ear

protection.

Follow the maintenance instruc-

tions specified in the manual.

To avoid risks, all repairs and

replacement of spare parts should

only be carried out by trained

personnel.

Tire pressure should not exceed

max. 25 psi.

Risk of injection or injury – Do not

direct discharge stream at

persons.

High pressure jets can be danger-

ous if misused. The jet must not

be directed at persons, animals,

electrical devices, or the unit itself.

Do not spray electrical connec-

tions, electrical outlets or fixtures.

Do not use acids, solvents, or any

alkaline or flammable material in

this product. These products can

cause physical injuries to the

operator and irreversible damage

to the machine.

Gun kicks back – Hold with both hands

The trigger gun safety lock prevents

the trigger from accidentally being

engaged. This safety feature must be

engaged when replacing nozzles or

not in use.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

Operation of this equipment may

create sparks that can start fires

around dry vegetation. A spark arrestor

may be required. Operator should

contact local fire agencies for laws or

regulations.

Risk of asphyxiation – Use this product

only in a well ventilated area. Do not

operate indoors or in any confined

area.

Operate and fuel machine in a well

ventilated area, free of devices featur-

ing an open pilot or flame such as

boilers, water heaters, etc.

Risk of fire/explosion – Do not add fuel

when the machine is operating or still

hot.

Risk of fire/explosion -Operate only

where open flame or torch is permitted.

Do not spray flammable liquids.

Do not operate if fuel has been

spilled. Instead, move machine to

different location and avoid creat-

ing sparks.

This machine has hot surfaces

which can cause burns. Operate

in a safe environment and away

from children.

Do not touch hot surfaces or allow

accessories to contact hot surfac-

es.

Do not leave machine running

unattended.

Avoid tipping machine on its side.

When connecting to water supply

mains, local regulations of your

municipal water company must be

observed. In some areas connect-

ing directly to public drinking water

supply may require a back flow

prevention device. This is to

ensure that there is no feedback

of chemicals into the water supply.

Use a water filter to avoid potential

damage from dirt in the water

supply.

Garden hose must be at least 5/8

inch diameter.

Flow rate of water supply must not

fall below 2.6 GPM(gallons per

minute)

Flow rate can be determined by

running the water for one minute

into an empty 5-gallon container.

The water supply temperature

must not exceed 122°F/50°C.

Never use the pressure washer to

draw in water contaminated with

solvents, e.g. paint thinners, gasoline,

oil, etc.

Always prevent debris from being

drawn into the unit by using a clean

water source. Use additional water

filter.

Do not operate pressure washer

without the water turned on.

Parts not shown:

1 - Manual

1 - Nozzle Cleaner

1 - Spark Plug Wrench

1 - O-Ring Set

(2 for pressure hose, 1 for spray gun)

►Install the wheels to the main frame by

pressing the spring loaded pin on

wheel axle, then insert wheel axle into

frame. Ensure that the spring pin is

fixed in position. Repeat for the other

wheel.

►

Attach the handle and main frame with

knobs and bolts.

Attach the gun hooks to handle.

Engine shipped without oil in crank-

case. Before starting engine, fill with

oil. Do not over-fill. Do not run the

engine with a high or low oil level as

this can cause engine damage. If you

have further questions regarding the

engine, please refer to the engine

manual included with the unit.

Turn the oil gauge dipstick counter

clockwise; remove it and clean it with a

clean cloth.

Fully reinsert the oil gauge dipstick and

pull it out to check the oil level.

If the oil level is halfway up the dipstick

or below, refill with SAE

10W -30 oil through the dipstick hole

until the oil level reaches 3/4 up the

dipstick or until it reaches the bottom

lip of the dipstick hole as shown.

remove the fuel cap by turning it count-

er clockwise.

When refueling, make sure the fuel

filter is in place and keep in mind all

safety precautions.

Use clean unleaded gasoline with a

minimum of 87 octane. DO NOT use

old gas. DO NOT mix oil with gasoline.

Fuel tank capacity: .34 Gallons (1.3 Lt)

The air filter should be checked after

prolonged storage, the following steps

should be done when checking the air

filter. It is recommended to replace the

air filter once every spring.

Press the two clips on the top of the air

filter cover to remove the cover.

Remove the air filter, wash filter in

kerosene, squeeze kerosene out, soak

filter in engine oil and squeeze engine

oil out.

Replace filter and replace the air filter

cover.

Starting Procedure:

Connect garden hose.

Connect spray gun and pressure hose.

Open water source.

Start the Engine

Turn the engine switch to "ON"

position.

Pull the choke lever towards the

CLOSE position

Pull trigger on spray gun to release

pressure.

Locate recoil cord and pull slowly until

resistance is felt. At this point, pull

rapidly to start engine.

Pull the choke lever towards the OPEN

position

Position the tip of the wand 6-8”

(15-20 cm) away from the surface to

clean at a 45°angle.

The color-coded quick connect

nozzles provide a wide array of spray

widths from 0° to 65° and are easily

accessible when placed in the conve-

nient nozzle holder.

0° spray angle = Red nozzle

For particularly stubborn accumulation

of grime. Not recommended for soft

materials like sidings, decks, painted

surfaces, cars.

15° spray angle = Yellow nozzle For

dirt accumulation over a surface.

For dirt accumulation over a large

surface.

40° spray angle = White nozzle

For moderate dirt accumulation over a

large surface.

Soap = Black nozzle

For operating with detergents or clean-

ing with low pressure.

High pressure in nozzle area. Risk of

injury caused by improperly locked

nozzle.

Make sure you hear the "click" when

inserting the nozzle tip into the quick

connection.

Pull the nozzle to make sure it is

seated properly before operating your

unit.

To avoid serious injury never point

spray nozzle at yourself, other persons

or animals.

Detergents can only be applied with

the black detergent nozzle.

Install the black detergent nozzle for

detergent application at low pressure.

Fill the detergent tank with Kärcher

Brand Detergent.

With the engine running, pull trigger to

operate unit.

Liquid detergent is drawn into the unit

and mixed with water.

Apply detergent to work area.

Do not allow detergent to dry on

surface.

Always flush the detergent tank with

fresh water when the cleaning job is

done, to rinse/flush any remaining

detergents from the injection system.

NOTE: For best results see Cleaning

Tips for specific information on how to

clean different surfaces.

Never use:

Bleach, chlorine products or other

corrosive chemicals.

Liquids containing solvents (i.e., paint

thinners, gasoline, oils.)

Tri-sodium phosphate products.

Ammonia products.

Acid-based products.

These chemicals will harm the unit and

will damage the surface being

cleaned.

Use of these items will void the warran-

ty.

Move the engine stop switch to the

OFF position.

For engine details see engine manual.

Release trigger and engage safety

lock.

If detergents have been used, insert 1

gallon of fresh water into Detergent

Tank. Siphon water at low pressure for

one minute to clear the line of residual

detergent.

Move the engine stop switch to the

OFF position. Close the fuel valve.

Turn off the water source.

Press trigger to release water pres-

sure.

Release trigger and engage gun safety

lock.

Disconnect the garden hose from the

water inlet on the unit.

Disconnect the high pressure hose

from the high pressure outlet. Store

the high pressure hose in the gun

holder assembly.

It is highly recommended to use a

small amount of antifreeze before

winter storage and during the cleaning

season to protect the pump from freez-

ing and premature wear.

Turn engine switch to the OFF position

Disconnect all hoses.

Unscrew cap from Pump Guard bottle.

Remove internal seal.

Reattach cap to Pump Guard bottle

and remove black protective cap.

Screw bottle into water inlet on pres-

sure washer pump and squeeze.

With ignition OFF, pull starter rope until

fluid starts to exit.

Unscrew bottle. Store or dispose prop-

erly.

If Guard is unavailable, perform the

following:

Disconnect all water connections.

Turn on the machine for a few

seconds, until the water which

remained in the pump exits. Turn off

engine immediately.

Failure to follow the above directions

may result in damage to the pump

assembly and accessories and void

the warranty.

Do not allow high pressure hose to

become kinked.

Store machine and accessories in a

room which does not reach freezing

temperatures. DO NOT store near

furnace or other sources of heat as it

may dry out the pump seals.

Pump Inspection

You should routinely make a visual

inspection of the pressure washer’s

pump. If you notice oil leaking around

the pump seals, you should take the

pressure washer to a Kärcher Autho-

rized Service Center for repair. (You

can locate a service center in your

area online at: www.karcher-ser-

vice.com).

Barbecue Grills, Outdoor

Power Equipment &

Gardening Tools

Patio & Lawn Furniture

Recommendations

Optional Accessories

Carry out maintenance tasks for the

engine according to the specifications

provided in the operating instructions

provided by engine manufacturer.

With or Without Detergent

Pre-rinse deck and surrounding area

with fresh water. For best results, limit

your work area to smaller sections of

approximately 25 square feet. Allow

Deck Wash to remain on surface 1-3

minutes. Do not allow detergent to dry

on surface. Rinse at high pressure in a

long sweeping motion keeping the

spray nozzle approximately 3-6 inches

from the cleaning surface. Always

clean from top to bottom and from left

to right. When moving on to a new

section of the cleaning surface, be

sure to overlap the previous section to

eliminate stop marks and ensure a

more even cleaning result.

With or Without Detergent

Pre-rinse vehicle with fresh water. For

best results, clean one side of vehicle

at a time and always apply detergent

from bottom to top, do not allow deter-

gent to dry on surface. If needed, use

special wash brush attachment (not

included) to remove stubborn dirt.

Rinse at high pressure

in a sweeping motion keeping the

spray nozzle approximately 6-8 inches

from the cleaning surface (distance

should increase when rinsing pin-strip-

ing or other sensitive surfaces).

Always clean from top to bottom and

from left to right. For best results, wipe

surface dry with a chamois or soft dry

cloth.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water.For best results, limit your work

area to sections of approximately 6

feet and always apply detergent

from bottom to top). Allow detergent to

remain on surface 1-3 minutes. Do not

allow detergent to dry on surface, if

surface appears to be drying, simply

wet down surface with fresh water. If

needed, use special wash brush

attachment (not included) to remove

stubborn dirt. Rinse at high pressure-

from top to bottom in an even

sweeping motion keeping the spray

nozzle approximately 6 inches from

the cleaning surface.

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. For best results, limit your work

area to smaller sections of approxi-

mately 25 square feet. Allow Pressure

Wash or Degreaser to remain on

surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure in a sweeping motion

keeping the spray nozzle approximate-

ly 3-6 inches from the cleaning

surface. Always clean from top to

bottom and from left to right. For

removing extremely stubborn stains,

use a DirtBlaster® Spray Nozzle (sold

separately).

With or Without Detergent

Pre-rinse cleaning surface with fresh

water. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. Rinse at

high pressure keeping the spray

nozzle approximately 3-6 inches from

the cleaning surface. For removing

extremely stubborn dirt, it may be

necessary to move the spray nozzle

even closer to the surface for greater

dirt cutting action.

With or Without Detergent

Pre-rinse furniture and surrounding

area with fresh water. If using Pressure

Wash, apply to surface at low pres-

sure. Allow Pressure Wash to remain

on surface 1-3 minutes. Do not allow

detergent to dry on surface. If needed

use special Wash Brush Attachment

(not included) to remove stubborn dirt.

Rinse at high pressure in a sweeping

motion keeping the spray nozzle

approximately 3-6 inches from the

cleaning surface. For best results,

clean from top to bottom and from left

to right.

Before cleaning any surface, an incon-

spicuous area should be cleaned to

test spray pattern and distance for

maximum cleaning results.

If painted surfaces are peeling or

chipping, use extreme caution as pres-

sure washer may remove the loose

paint from the surface.

When using on surfaces which might

come in contact with food, flush surfac-

es with plenty of drinking water.

For additional cleaning tips, visit our

website at www.?????????

Optional accessories are available to

further enhance your cleaning

capabilities. These accessories are

accurate as of the printing date of this

manual. Please check our website:

www.??????.com for pricing and up

to date information.

Extension Hose

DirtBlaster® Spray Nozzle

Universal Wash Brush Kit

13 English

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

Troubleshooting

Remove the spark plug cable to pre-

vent accidental ignition of the engine

before making any repair.

Symptom

Engine Will Not

Start

Unit Does Not

Reach High

Pressure

Output Pres-

sure Varies

High And Low

Cause

Diameter of garden

hose is too small.

Replace with a 5/8 inch or larger garden

hose.

Remove filter and rinse out in warm

water.

Remove black detergent nozzle and

attach high pressure nozzle.

Turn water on full force. Check garden

hose for kinks, leaks or blockage.

Check garden hose for kinks, leaks and

blockage.

Turn water on full force. Check garden

hose for kinks, leaks or blockage.

Water supply is

restricted.

Not enough inlet

water supply.

Water inlet filter is

clogged.

Not enough inlet

water supply.

Black detergent

nozzle is attached.

No Gasoline. Fill Gas Tank.

Slide lever out to closed position.

Turn Ignition switch on

Squeeze the trigger to release the

pressure.

Choke is not in the

correct position.

Ignition switch is

not in the correct position.

Water pressure built

up in the machine.

For additional engine problems refer to the engine manual.

Solution

14 English

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

Symptom

Output

Pressure

Varies Between

High And Low

No Detergent

Garden Hose

Connection

Leaks

Loose fittings.

Missing/worn

rubber washer.

Pump is sucking air.

Detergent suction

tube not properly

connected to the

machine.

Detergent is too

thick.

Filter on detergent

suction tube is

clogged.

Damaged or

clogged detergent

suction tube.

A high pressure

nozzle is attached.

Spray nozzle is

obstructed.

Check connection.

Dilute detergent, for best results use

Kärcher detergent.

Run warm water through filter to remove

debris.

Remove obstruction or replace detergent

suction tube.

Replace with black detergent nozzle.

Blow out or remove debris with fine

needle.

Tighten fittings.

Insert new washer.

Water inlet filter is

clogged.

Spray nozzle is

obstructed.

Calcified gun, hose

or spray wand.

Check that hoses and fittings are air

tight. Turn off machine and purge pump

by squeezing trigger gun until a steady

flow of water emerges through the

nozzle

Remove filter and rinse out in warm

water.

Blow out or remove debris with a fine

needle.

Run distilled vinegar through detergent

tank.

Cause Solution

15 English

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

Spray Wand

Leaks

Pump Is Noisy

Water Leaks

From Pump

(Up To 10 Drop

Per Minute Is

Permissible)

Oil Drip

Broken o-ring or

plastic insert.

Not enough gas or

engine oil.

Loose fittings.

Water seals are

damaged or worn.

Thermal protection

device is activated.

Oil seals are

damaged or worn. Visit www.autlead.com or locate a

service center at www.autlead.com

Visit www.autlead.com or locate a

service center at www.autlead.com

Thermal protection device will auto reset.

Do not run pump for more than 5 minutes

without spraying.

Spray wand not

properly attached. Turn the swivel nut of the gun clockwise

until connection is tight.

Visit www.autlead.com or locate a

service center at www.autlead.com.

Check that hoses and fittings are air

tight. Turn off machine and purge pump

by squeezing trigger gun until a steady

flow of water emerges through the

nozzle.

Check fittings.

Symptom Cause Solution

16 English

•

The warranty period is calculated from the date of purchase by the end user and covers

cost for replacement parts / equipment and warranty labor per-formed. A copy of the

original purchase receipt or gift receipt from the original retailer must also accompany

the war-ranty claim. To locate the nearest authorized Autlead service center, please

visit our website at www.autlead.com.

Autlead's obligation under this warranty shall strictly be limited, at Autlead's option,

either to replace or repair, through Autlead direct or through an Authorized Autlead

Service Dealer without charge during the warranty period any part, which in the opinion

of the manufacturer, shows defect in workmanship or material. Service will be sched-

uled according to the normal work flow and business hours at the service center, and

availability of replacement parts. All decisions of Autlead with regard to this limited

warranty shall be final.

This warranty does not cover:

•

1. Spray Gun

2. Pressure Hose

3. Fuel Tank

4. Engine Switch

5. Chemical Injector

6. Pump Outlet

7. Thermal Relieve Valve

8. Nozzles

If the symptom you are experiencing is not listed above, or if the provided solutions do

not solve your issue,please visit our extensive online troubleshooting database at:

www.autlead.com

High Pressure Washers

Limited 24 month warranty

Cold water gasoline pressure washers

This Autlead product is warranted by Autlead to be free of defects in workmanship and

materials under normal use.

Specific warranty applies to:

OHV engines are warranted for two (2) years on parts and labor.

Please reference the OHV Engine Manual for specific warranty instructions.

Pumps and engines are warranted for two (2) years on parts and labor.

Frames, handles and detergent tanks, as well as other structural components,

carry a one (1) year parts and labor warranty.

Standard accessories and attachments are warranted for a ninety (90) day period.

Any commercial, industrial or rental use of this equipment will reduce the warranty

to ninety (90) days.

Merchandise sold as reconditioned, used, demonstration or floor models.

Merchandise purchased on eBay and other online auction web sites.

17 English

•

Die Gewährleistungsfrist berechnet sich ab Kaufdatum durch den Endverbraucher und

deckt die Kosten für Ersatzteile, Geräte und die geleistete Gewährleistungsarbeit ab.

Eine Kopie des Original-Kaufbelegs oder des Geschenk Belegs des Original-Einzel-

händlers muss ebenfalls dem Garantieanspruch beigefügt werden. Um das nächstge-

legene autorisierte Autlead Service Center zu finden, besuchen Sie bitte unsere Web-

site unter www.autlead.com.

Die Verpflichtung von Autlead unter dieser Garantie ist strengstens beschränkt, nach

unserer Wahl, entweder durch Autlead direkt oder durch einen autorisierten

Service-Händler kostenlos während der Gewährleistungszeit einen Teil zu ersetzen

oder zu reparieren, der nach Meinung des Herstellers Fehler in der Ausführung oder im

Material zeigt. Der Service wird gemäß den normalen Arbeitsabläufen und

Geschäftszeiten im Service-Center und der Verfügbarkeit von Ersatzteilen geplant,

wobei alle Entscheidungen von uns im Hinblick auf diese eingeschränkte Garantie

endgültig sind.

Diese Garantie gilt nicht für:

•

HOCHDRUCKREINIGER BEDIENUNGSANLEITUNG

Bitte lesen und befolgen Sie

diese Originalanleitung vor der

Inbetriebnahme Ihres Gerätes

und bewahren Sie sie für den

späteren Gebrauch oder spätere

Besitzer auf.

Inhalt

Modellübersicht

Sicherheitshinweise

Montageanleitung

Vorbereitung

Bedienungsanweisung

Zubehörverwendung

Arbeit mit Reinigungsmitteln

Eine Pause einlegen

Herunterfahren und

aufräumen

Wintervorbereitung &

Langzeitlagerung

Wartungshinweise

Reinigungstipps

Fehlerbehebung

DE-3

DE-4

DE-6

DE-8

DE-9

DE-11

DE-12

DE-13

DE-14

DE-17

Technische Daten

AUTLEAD 3200PSI

Arbeitsdruck

Wassermenge

Motor

Kraftstoffart

Tankvolumen

Motoröltyp

Modellbezeichnung

Seriennummer

180 Bar

OHV

Bleifreies Benzin

1,3 l

SAE 10W-30

GSH01A

1. Spritzpistole

2. Hochdruckschlauch

3. Kraftstofftank

4. Motorschalter

5. Injektor

6. Pumpenausgang

7. Thermisches Entlastungsventil

8. Düsen

9. Schalldämpfer

Wenn das Symptom, von dem Sie betroffen sind, nicht oben aufgeführt ist oder wenn

die angebotenen Lösungen Ihr Problem nicht lösen, kontaktieren Sie uns oder ein

autorisiertes Service-Center.

Hochdruckreiniger

Begrenzte 24-monatige Garantie

Kaltwasser-Benzin-Hochdruckreiniger

Es wird garantiert, dass dieses Produkt bei normalem Gebrauch frei von Material- und

Verarbeitungsfehlern ist.

Spezifische Garantie gilt für:

Diese Garantie ist nicht übertragbar und gilt nur für Produkte, die über einen autorisier-

ten Händler erworben wurden. Diese Garantie gibt Ihnen bestimmte Rechte. Sie

können andere Rechte haben, die je nach Land und Staat/Provinz variieren.

Registrieren Sie sich bitte online unter www.autlead.com. Online-Registrierung ist

schnell, kostenlos und bietet Ihnen eine Bestätigungs-E-Mail für Ihre Unterlagen.

Wenn Sie keinen Internetzugang haben, geben Sie bitte die im Zubehörbeutel enthal-

tene Garantie-Registrierungskarte zurück. Bitte denken Sie daran, eine Briefmarke zu

verwenden. Die Postzustellung erfolgt nicht ohne Briefmarke.

1Deutsch

德

Table of contents

Languages:

Popular Pressure Washer manuals by other brands

Interpump

Interpump BOXJET TURBO 8.90 operating instructions

Troy-Bilt

Troy-Bilt PW101-2010 Operator's manual

Kärcher

Kärcher K 4 Silent Original operating instructions

Gerni

Gerni Classic 115.2 user guide

Simpson

Simpson MegaShot MSV2200 Operator's manual

SNOWJOE

SNOWJOE SUNJOE SPX160E-MAX Operator's manual

Black & Decker

Black & Decker PW1800 WSR PLUS manual

Kärcher

Kärcher HD 600 manual

OWT Industries

OWT Industries Power Stroke PS14120 Wiring diagram

Kärcher

Kärcher K1800 Original instructions

SNOWJOE

SNOWJOE SUNJOE SPX2688-MAX-RM Operator's manual

Powerplus

Powerplus POWXG90400 manual

Excell

Excell EPW1792500 Operation manual

ALLPOWER

ALLPOWER APW5101 owner's manual

Powerplay

Powerplay Spryder Black Series Assembly, care and use instructions

Power Stroke

Power Stroke PS80946A Operator's manual

blueclean

blueclean 610 manual

ALLPOWER

ALLPOWER APW5102 owner's manual

AUTLEAD GSH01A User manual

Popular Pressure Washer manuals by other brands
