Automotive Data Solutions BLADE-DL-VW1-EN Blade Series User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
Automotive Data Solutions Inc.
INSTALL GUIDE
BLADE-AL(DL)-VW1-EN
AVAiLABLE for: ADS-BLADE AL
VW1
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2014
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU WWW.BLADEUPTADE.com
PLEASE VISIT WWW.BLADEUPDATE.com FOR COMPLETE PRODUCT DETAILS
Rev. Date: October 06, 2014
Doc. No.: ##16713##
20140929

INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE DOOR STATUS OUTPUT HOOD STATUS OUTPUT TRUNK STATUS OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT TACHOMETER OUTPUT
AUDI
A3 STD key 06-11 1 • • • • • • • • • • • •
A3 STD key 12-13 5 • • • • • • • • • • • •
A4 Convertible/Sedan STD key 02-08 1 • • • • • • • • • • • •
A6/A6 Allroad Quattro STD key 06-11 3 • • • • • • • • • • • •
Q7 STD key 06-13 3 • • • • • • • • • • • •
S3 STD key 06-11 1 • • • • • • • • • • • •
S3 STD key 12-13 5 • • • • • • • • • • • •
S4 Convertible/Sedan STD key 02-08 1 • • • • • • • • • • • •
S6 STD key 06-11 3 • • • • • • • • • • • •
TT STD key 06-13 1 • • • • • • • • • • • •
VOLKS WAGEN
Beetle 12-14 4 • • • • • •
New Beetle Coupe/Convertible STD key 02-11 1* • • • • • • • •
CC PTS 09-14 2 • • • • • • • • • • • •
City Golf STD key** 07-10 1* • • • • • • • • • •
City Jetta STD key** 07-10 1* • • • • • • • • • •
Eos STD key 06-11 1 • • • • • • • • • • • •
Eos STD key 12-13 5 • • • • • • • • • • • •
Golf STD key 02-06 1* • • • • • • • • •
Golf 3-door/5-door/Wagon STD key 10-11 1 • • • • • • • • •
Golf 3-door/5-door/Wagon STD key 12-13 5 • • • • • • • • •
GLI STD key 11-13 5 • • • • • • • • • • • •
GTI STD key 02-06 1* • • • • • • • • •
GTI STD key 07-11 1 • • • • • • • • • • • •
GTI STD key 12-13 5 • • • • • • • • • • • •
Jetta STD key 02-05 1* • • • • • • • • •
Jetta STD key 06-10 1 • • • • • • • • • • • •
Jetta (2 plug BCM) STD key 11-14 4 • • • • • •
Jetta (3 plug BCM) STD key 11-14 5 • • • • • • • • ••••
Passat PTS 06-13 2 • • • • • • • • • • • •
Passat STD key 02-05 1* • • • • • • • • •
Passat STD key 12-13 5 • • • • • • • • • • • •
Rabbit STD key 07-09 1 • • • • • • • • • • • •
Tiguan STD key 09-11 1 • • • • • • • • • • • •
Tiguan STD key 12-14 5 • • • • • • • • • • • •
* -AL Module will be functional on these vehicles only if they are equipped with electric windows.
** With electric windows & sunroof.
NOTE
I Direct-Shift Gearbox (DSG):
Connect starter wire to starter solenoid in engine bay.
See RS manufacturer for wire information.
Page 2 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
AUDI
A3
STD key 06-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
A4
STD key 02-08 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
S3
STD key 06-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
S4
STD key 02-08 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
TT
STD key 06-13 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
VOLKS WAGEN
New Beetle
STD key 02-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
City Golf STD
key 07-10 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
City Jetta
STD key 07-10 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Eos
STD key 06-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Golf
STD key 02-06 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Golf 3-door
STD key 10-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Golf 5-door
STD key 10-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
GTI
STD key 02-06 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
GTI
STD key 07-09 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
GTI
STD key 10-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Jetta
STD key 02-05 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Jetta
STD key 06-10 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Passat
STD key 02-05 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Rabbit
STD key 07-09 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Tiguan
STD key 09-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Page 3 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 1 - WIRING DIAGRAM
BLUE/RED (NC)BLUE/RED (NC)
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK (NC)
PINK (NC)
REMOTE STARTER
WHITE/BLACKWHITE/BLACK
BROWN/RED - CANH
BROWN/RED - CANH
WHITE/RED (NC)
WHITE/RED (NC)
WHITE
WHITE
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
CANL
CANH
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
TWO KEYS ARE REQUIRED FOR THIS INSTALLATION.
ONE KEY WILL REMAIN PERMANENTLY IN THE VEHICLE.
THE OTHER KEY WILL BE USED FOR THE PROGRAMMING PROCEDURE.
IT WILL THEN BE RETURNED TO THE OWNER.
5-6 LOOPS
AROUND KEY
5-6 LOOPS
AROUND KEY BARREL
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 4 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
VOLKS WAGEN
CC
PTS 09-14
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
12V ~ ~ ~ ~ Red/Black (+) Parking light switch ~
Parking Light ~ ~ ~ ~ White/Black ~ Parking light switch ~
Ignition ~ ~ ~ ~ Green/Gray (+) Ignition switch ~
Starter ~ ~ ~ ~ Red/Gray (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (+) Ignition switch ~
Immobilizer 1 ~ ~ ~ ~ Black ~ ~ ~
Immobilizer 2 ~ ~ ~ ~ White ~ ~ ~
Passat
PTS 06-13
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
12V ~ ~ ~ ~ Red/Black (+) Parking light switch ~
Parking Light ~ ~ ~ ~ White/Black ~ Parking light switch ~
Ignition ~ ~ ~ ~ Red/Violet (+) Ignition switch ~
Starter ~ ~ ~ ~ Red/Gray (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (+) Ignition switch ~
Immobilizer 1 ~ ~ ~ ~ Black ~ ~ ~
Immobilizer 2 ~ ~ ~ ~ White ~ ~ ~
Page 5 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 2 - WIRING DIAGRAM
86
30
87
87A
85
86
30
87
87A
85
1N4001
DIODE
1N4001
DIODE
YELLOW (NC)YELLOW (NC)
REMOTE STARTER
CANL
IMMOBILIZER 1
IMMOBILIZER 2
CANH
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
WHITE/BLACKWHITE/BLACK
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
12V (+)
BROWN/RED - CANH
BROWN/RED - CANH
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
WHITE/RED
WHITE/RED
WHITE
WHITE
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - KEYSENSE AND IGNITION (+) OUTPUT
ORANGE - KEYSENSE AND IGNITION (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
STARTER (+)
IGNITION (+)
KEYSENSE (+)
TWO KEYS ARE REQUIRED FOR THIS INSTALLATION.
ONE KEY WILL REMAIN PERMANENTLY IN THE VEHICLE.
THE OTHER KEY WILL BE USED FOR THE PROGRAMMING PROCEDURE.
IT WILL THEN BE RETURNED TO THE OWNER.
5-6 LOOPS
AROUND KEYFOB
THE KEYSENSE WIRE MUST
BE POWERED BEFORE
THE IGNITION WIRE
WIRES AT IGNITION SWITCH
FACTORY
IMMOBILIZER
WIRES
VEHICLE SIDE
PARKING LIGHT
12V (+)
SWITCH SIDE
WIRES AT PARKING
LIGHT SWITCH
BLUE/RED (NC)
BLUE/RED (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK (NC)
PINK (NC)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 6 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
AUDI
A6
STD key 06-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Q7
STD key 06-13 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
S6
STD key 06-11 CanH ~ ~ ~ ~ Orange/LtGreen (DATA) Twisted wires, door harness, driver kick panel ~
CanL ~ ~ ~ ~ Orange/Brown (DATA) Twisted wires, door harness, driver kick panel ~
Page 7 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

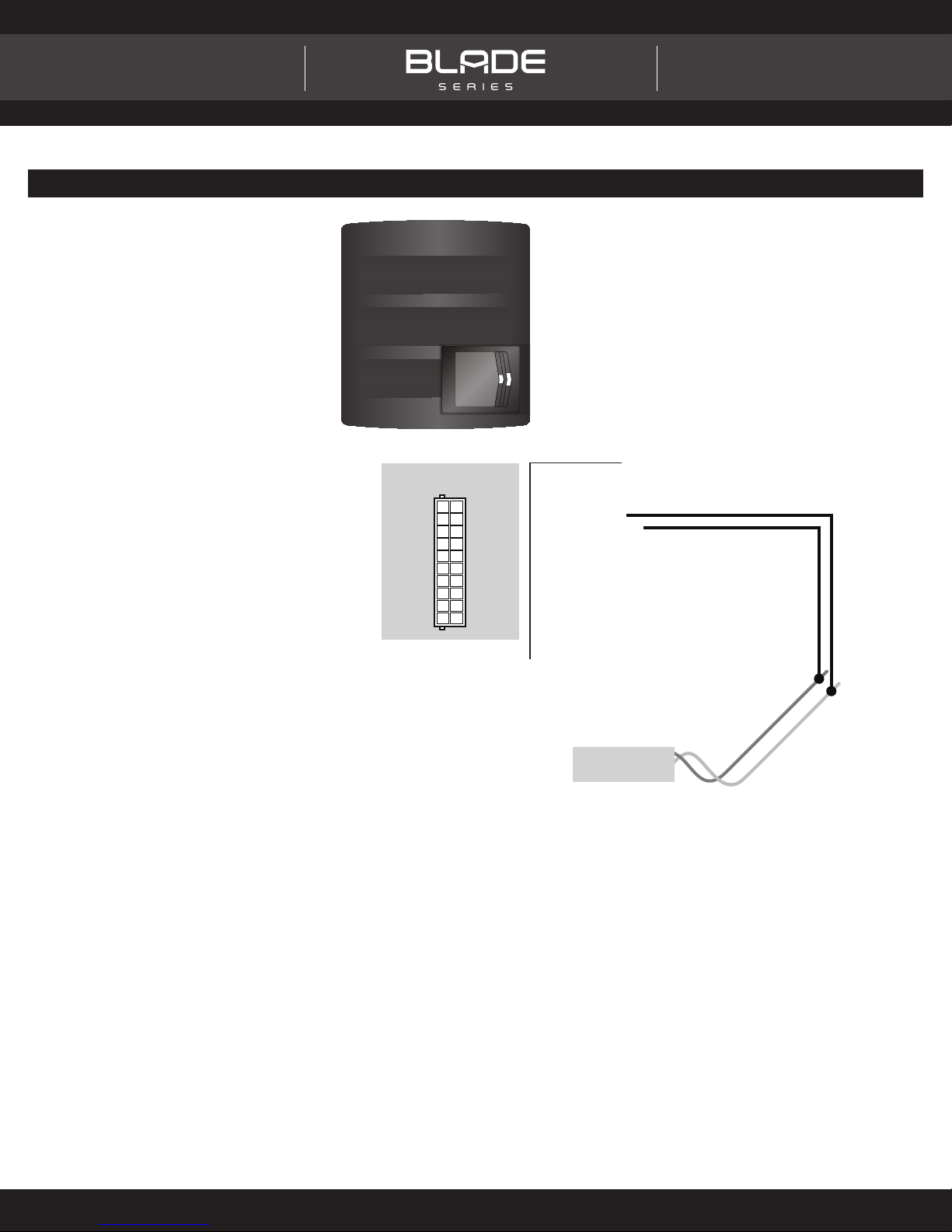

TYPE 3 - WIRING DIAGRAM
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE (NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK (NC)
PINK (NC)
WHITE/BLACK (NC)
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
REMOTE STARTER
CANL
CANH
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
TWISTED WIRES
IN DOOR HARNESS,
IN DRIVER KICK PANEL
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 8 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 4 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
VOLKSWAGEN
Beetle
STD key 12-14
CanH B White 73 pin 20 Orange/Green (DATA) BCM ~
CanL B White 73 pin 21 Orange/Brown (DATA) BCM ~
Doorlock A Black 73 pin 24 Blue/Red (MUX) BCM ~
Jetta
STD key 11-14
CanH B White 73 pin 20 Orange/Green (DATA) BCM ~
CanL B White 73 pin 21 Orange/Brown (DATA) BCM ~
Doorlock A Black 73 pin 24 Blue/Red (MUX) BCM ~
Page 9 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 4 - WIRING DIAGRAM
3
4
5
6
1
2
17
18
19
20
7
8
15
16
11
12
13
14
9
10
23
24
25
26
21
22
37
38
39
40
27
28
35
36
31
32
33
34
29
30
43
44
45
46
41
42
57
58
59
60
47
48
55
56
51
52
53
54
67
68
69
70
71
72
73
65
66
61
62
63
64
49
50
24
3
4
5
6
1
2
17
18
19
20
7
8
15
16
11
12
13
14
9
10
23
24
25
26
21
22
37
38
39
40
27
28
35
36
31
32
33
34
29
30
43
44
45
46
41
42
57
58
59
60
47
48
55
56
51
52
53
54
67
68
69
70
71
72
73
65
66
61
62
63
64
49
50
21
20
WHITE/BLACKWHITE/BLACK
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
WHITE/RED (NC)
WHITE/RED (NC)
WHITE
WHITE
(NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
(NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
PINK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
REMOTE STARTER
A - BLACK
DOORLOCK (MUX)
UNLOCK (-) OUTPUTUNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
TWO KEYS ARE REQUIRED FOR THIS INSTALLATION.
ONE KEY WILL REMAIN PERMANENTLY IN THE VEHICLE.
THE OTHER KEY WILL BE USED FOR THE PROGRAMMING PROCEDURE.
IT WILL THEN BE RETURNED TO THE OWNER.
5-6 LOOPS
AROUND KEY
5-6 LOOPS AROUND
KEY BARREL
CANH
CANL
BCM
B - WHITE
180Ω
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 10 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 5 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
AUDI
A3
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
S3
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
VOLKS WAGEN
Eos
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
Golf 3-door
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
Golf 5-door
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
GLI
STD key 11-13 CanH C Brown 52 pin 15 Orange/Green (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
GTI
STD key 12-13 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
Jetta
STD key 11-14 CanH C Brown 52 pin 15 Orange/Green (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
Passat
STD key 12-13 CanL C Brown 52 pin 15 Orange/Brown (DATA) BCM ~
CanH C Brown 52 pin 16 Orange/LtGreen (DATA) BCM ~
Tiguan
STD key 12-14 CanH C Brown 52 pin 15 Orange/LtGreen (DATA) BCM ~
CanL C Brown 52 pin 16 Orange/Brown (DATA) BCM ~
Page 11 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

TYPE 5 - WIRING DIAGRAM
3
4
5
6
1
2
17
18
19
20
7
8
11
9
10
23
24
21
22
37
38
39
40
35
36
31
32
33
34
29
30
43
44
45
46
41
42
16
25
26
47
48
14
15
51
52
12
13
27
28
49
50
16
15
CANH
CANL
BCM
WHITE/BLACKWHITE/BLACK
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
WHITE/RED (NC)
WHITE/RED (NC)
WHITE
WHITE
(NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
(NC)
ORANGE (NC)
PINK/BLACK (NC)
PINK/BLACK (NC)
(NC)
PINK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
REMOTE STARTER
TWO KEYS ARE REQUIRED FOR THIS INSTALLATION.
ONE KEY WILL REMAIN PERMANENTLY IN THE VEHICLE.
THE OTHER KEY WILL BE USED FOR THE PROGRAMMING PROCEDURE.
IT WILL THEN BE RETURNED TO THE OWNER.
5-6 LOOPS
AROUND KEY
5-6 LOOPS AROUND
KEY BARREL
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
C - BROWN
Page 12 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

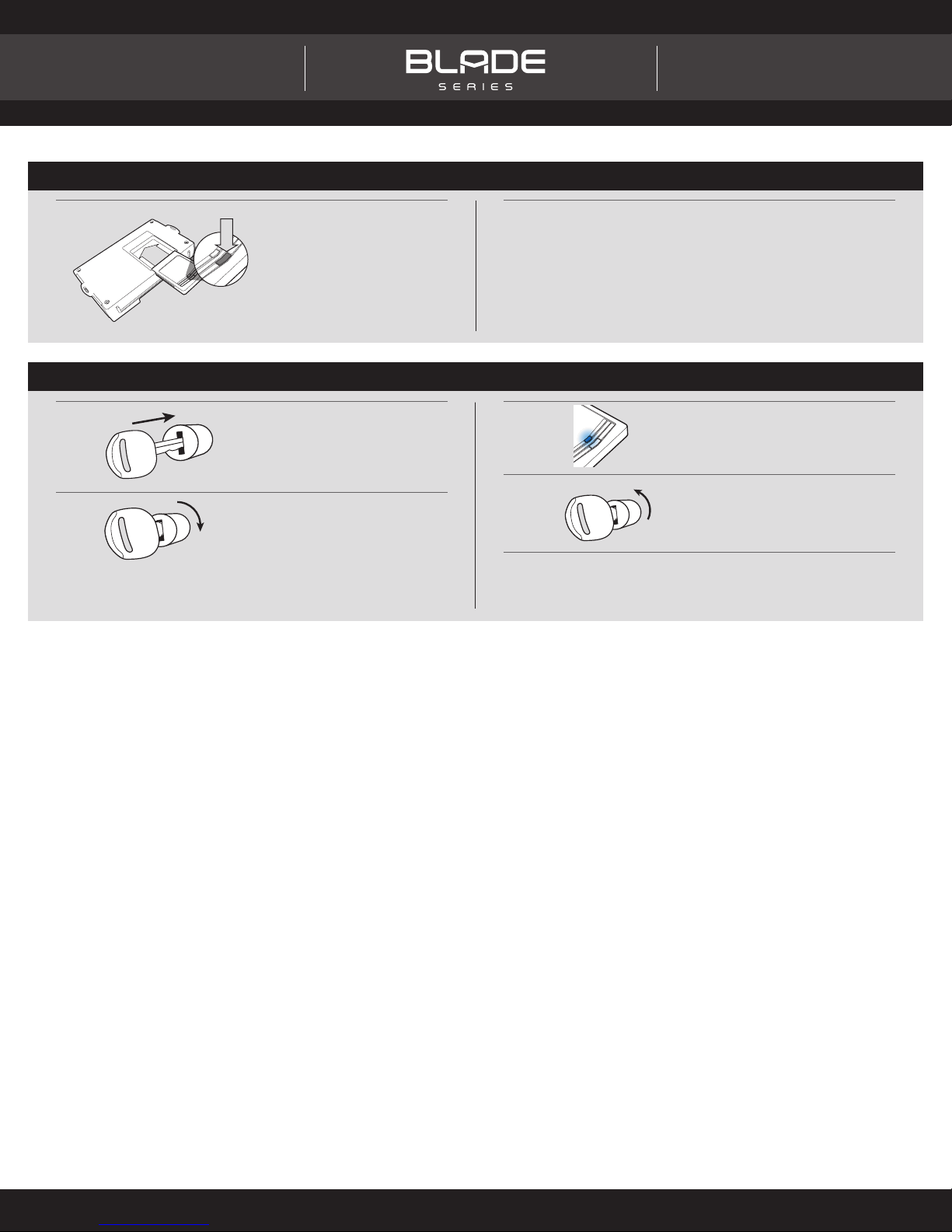

CARTRIDGE INSTALLATION
1Slide cartridge into unit. Notice
button under LED. 2Ready for Module Programming Procedure.
MODULE PROGRAMMING PROCEDURE
1Insert key into ignition.
2Turn key to ON position.
ON
5Module Programming
Procedure completed.
4Turn key to OFF position.
OFF
3Wait, LED will turn solid BLUE
for 2 seconds.
Page 13 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##

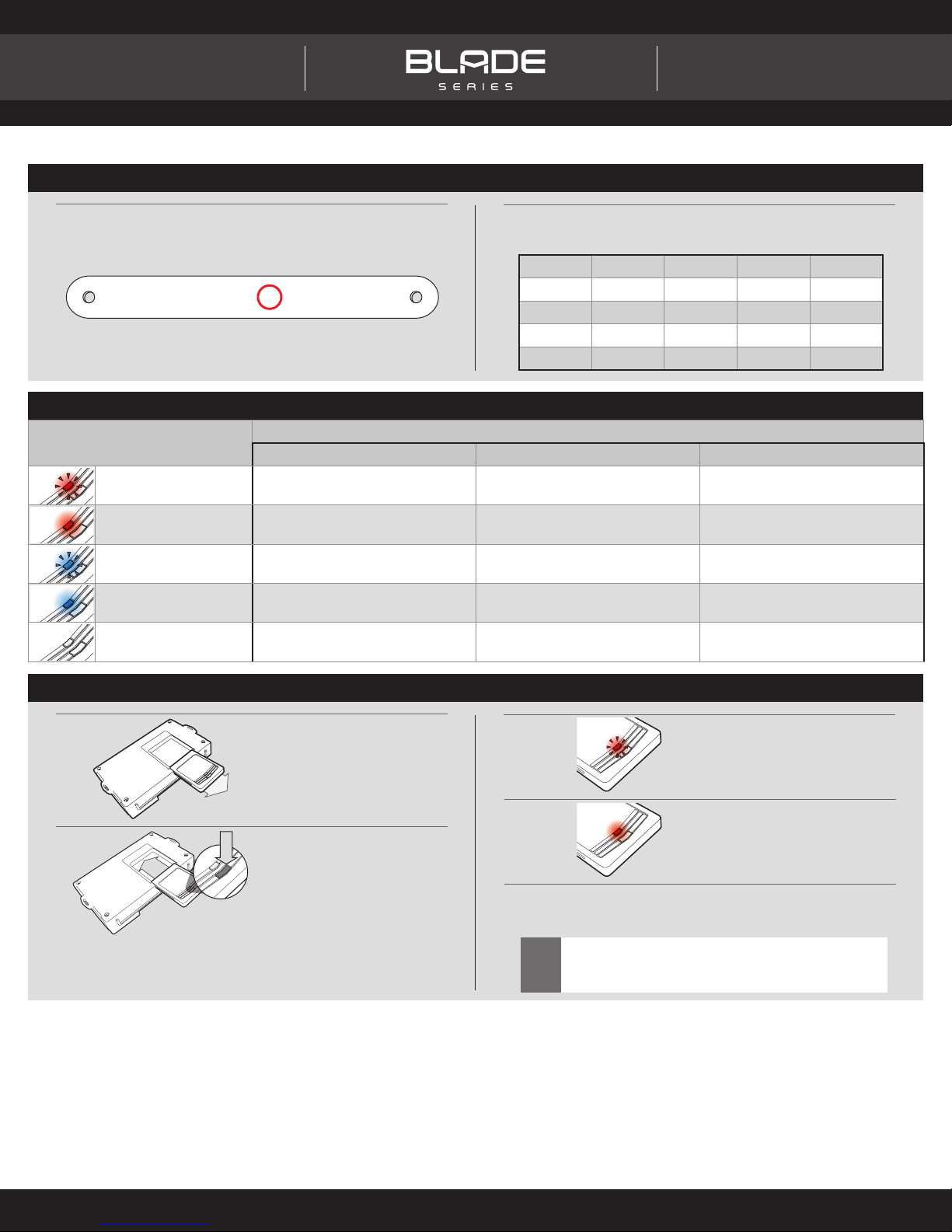

BLADE-AL PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing BLUE Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid BLUE then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
IDENTIFY VEHICLE YEAR
1Locate the Vehicle Identifi cation
Number (VIN) and identify the
10th character. 2Match the VIN’s 10th character
to its corresponding year.
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X
Æ
FACTORY RESET PROCEDURE
5RECONNECT all connectors.
Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT cartridge from
remote starter.
2PRESS AND HOLD programming
button while re-connecting
cartridge to remote starter.
3LED will fl ash red. Immediately
RELEASE programming button.
4LED will turn solid red for 2
seconds.
RESET COMPLETED.
Page 14 of 14 BLADE-AL(DL)-VW1-EN 20140929
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2014
DOORLOCK INTERFACE
Audi/VolkswAgen
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##16713##
