Auvi HI-FI VERTICAL CD/MP3 SHELF SYSTEM MSW1150 User manual

VISION BEYOND SOUNDVISION BEYOND SOUND®
®®
INSTRUCTION MANUAL
Product and Instruction Manual subject to change. Photo is for reference only.
MSW1150
HI-FI VERTICAL CD/MP3 SHELF SYSTEM WITH
USB FLASH/SD CARD READERS, AM/FM TUNER,
AND 6-WAY DETACHABLE SPEAKERS

Table Of Contents
Caution / Warning
Location of Controls
Remote Control Functions
Connection of Speaker Boxes
Power Supply
Quick Start
General Operation
Radio Operation
CD Player Operation
USB Flash Drive / SD Card Operation
Play Modes
Anti-Skip [ESP]
Line-in Connection
Connecting an External Subwoofer
Specifications
System Setup Procedure
Mounting Guides
Important Operating Instructions
Battery Backup
System Setup and Precautions
Digital Clock Functions
Timer Function
Sleep Function
Electronic Volume Control
Volume Memory Level
Music Equalizer
Auto-Start Playback Function
Scan Mode
Seek Mode
Station Preset Functions
Insert and Removeal of Disc
Normal CD Operation
Text Display Mode (ID3)
Searching for Song by Name
(MP3 Discs Only)
Searching for Song by Album
(MP3 Discs Only)
MP3 Playback
Displaying the Song/Title Name (ID3 Tag)
02
03
04
04
04
05
07
07
07
08
09
09
10
10
10
10
11
11
11
12
12
13
14
15
17
17
18
18
18
19
19
20
21
.....................................................................................................
.................................................................................................
....................................................................................
..............................................................................
..............................................................................................................
...................................................................................................................
.................................................................
......................................................................................................
.......................................................................
.....................................................................................
.....................................................................................................
.....................................................................................................
...............................................................................
.......................................................................................
.....................................................................................................
.........................................................................
.............................................................................................................
.............................................................................................................
...................................................................................
............................................................................
........................................................................................
....................................................................................
..........................................................................
.........................................................................
........................................................................................................
.................................................
..................................................................................................................
............................................................................................................
...................................................................................................
...................................................................
.............................................................................................................
........................................................................................
......................................................................................................

02
C A U T IO N
R IS K OF E L E C T R IC S HOC K
DO NOT OP E N
C L A S S 1 L A S E R P R ODUC T
K L A S S E 1 L A S E R P R O DU K T
L A S E R D E C L A S S E
L A S E R D I P R IMA C L A S S E
K L A S S E 1 L A S E R
L A S E R P R IME R A C L A S E
L AS E R C L A S S E 1
K L AS S E 1 L AS E R P R O DU K T
C A U T IO N : I NV IS IB L E L A S E R R A DIATI O N WH E N OP E N A ND
INT E R L OC K S DE F E AT E D. AV O ID E X P OS UR E TO B E A M.
V O R S IC HT: U NS IC HT B A R E L A S E R S T R A HL U NG T R IT T A US ,
W E NN DE C K E L G E ÖF F NE T UND W E NN S IC HE R HE IT S V E R R IE G E L UNG
ÜB E R B R ÜC K T IS T. N IC HT DE M S T R A HL A US S E TZE NI.
VA R NIN G : OS Y NL IG L A S E R S T R ÁL NIN G NÄR DE NNA D E L ÄR ÖP P NA D O C H
S P ÄR R ÄR UR K OP P L A ND. S T R ÁL E N ÄR FAR L IG .
A DVA R S E L : US Y NL IG L A S E R S TR ÁL ING V E D ÁB NIN G . N ÁR
S IK K E R HE DS A F B RY DE R E E R UDE A F F UNK T IO N. U NDG Á UDS /E T T E L S E F O R
S T R ÁL IN G .
AT T NE NZIO NE : R A DIO NS L A S E R IN V IS ID IL E . N ON G UA R DA R E
DIR E T TA ME NT E NE L L A S OR G E NT E DE L L A S E R .
A C HT UNG : L A S E R L INS E NIC HT B E R ÜHR E N U NS IC HT B A R E R L A S E R S T R A H L .
AV IS O : A L E NT E NUNC A D E V E S E R TO C A DA .
The lightning flash
and arrow head
within the triangle is a
warning sign alerting
you of "dangerous
voltage" inside the
product.
WARNING: To reduce the
risk of electric shock, do not
remove cover (or back). No
user-serviceable parts
inside. Refer servicing to
qualified service personnel.
The exclamation
point within the
triangle is a warning
sign alerting you of
important instructions
accompanying the
product.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS.
CAUTION: GROUNDING OR POLARIZATION. THE PRECAUTIONS
SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG
MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET".
CAUTION
DO NOT EXPOSE TO DRIPPING OR SPLASHING LIQUIDS!

03

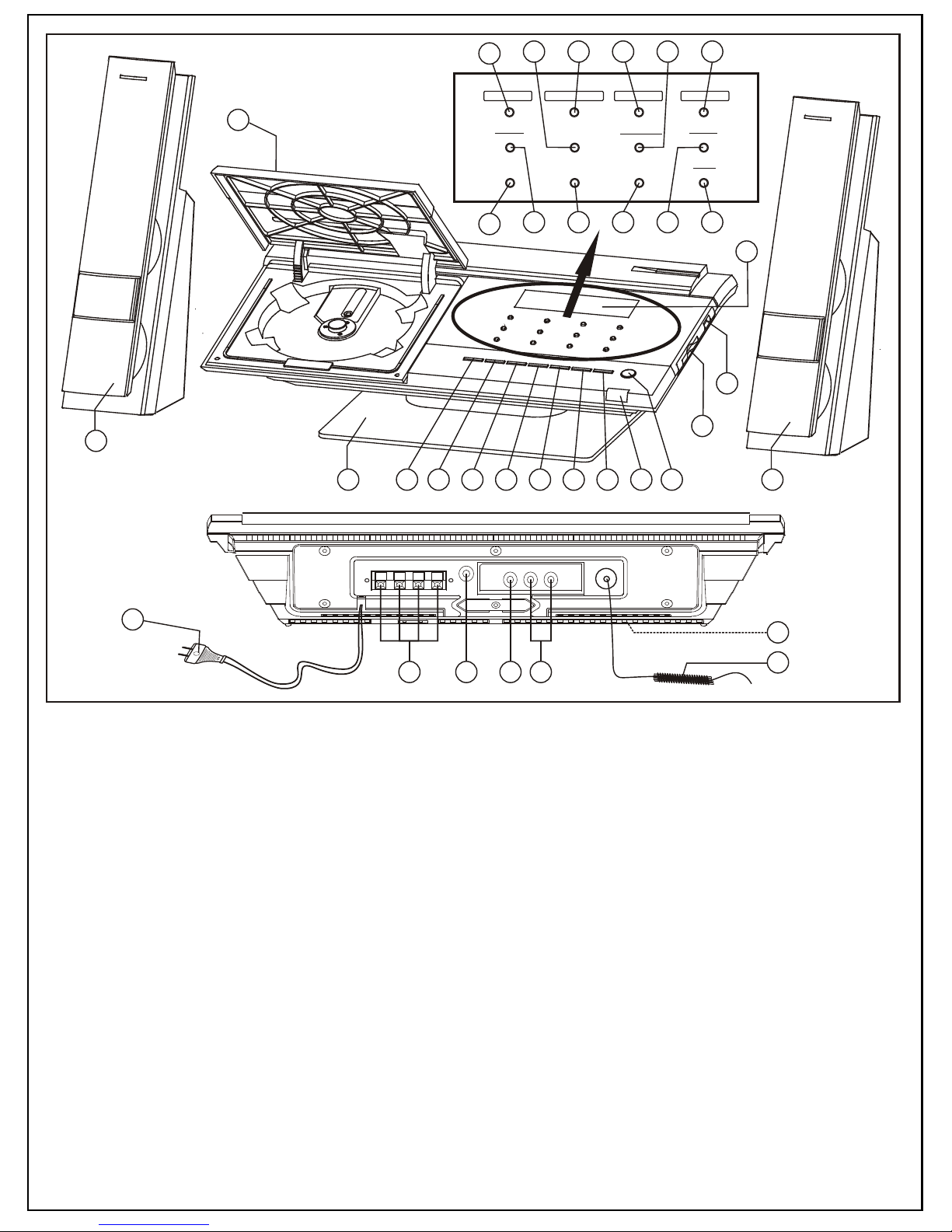

01. CD door
02. USB / SD key
03. CD programming key
04. Tuner / Band key
05. CD key
06. Play mode / Mono stereo key
07. Aux. key
08. Mem ( - ) / CD -10 key
09. Mem ( + ) / CD +10 key
10. Sleep key
11. Timer key
12. Find / Display key
13. EQ (equalizer) key
14. CD / Clock / Radio digital
multi-functional display
15. USB socket
16. SD card socket
17. On / Off key
18. Remote control sensor
19. Volume up key
20. Volume down key
21. CD next / Tune up key
22. CD stop key
23. CD back / Tune down key
24. CD play / Pause key
25. CD door open / Close key
26. Desk pedestal stand (removeable)
27. Speakers
28. AC cord plug
29. Speaker-out sockets (left and right)
30. Headphone jack
31. Subwoofer output
32. Audio line-in socket (left and right)
33. FM antenna wire
34. Backup battery compartment (under unit)
US B /S D TUNE R /B A ND C D A UX
FIND
DIS P LAY P R OGR AM
E Q TIME R S L E E P
+10
ME M (+)
-10
ME M(-)
PLAY-MODE
MONO /S T E R E O
27
1
26 24 23 22 21 20 19 18 17
16
25
15
27
14
2
3456 7
13 12 11 10
9 8
28
29 30 31 32 33
34

01. On / Off key
02. Find / M/S key
03. Timer key
04. EQ key
05. Sleep key
06. Memory down key
07. Band key
08. Intro key
09. Function key
10. Repeat key
11. Memory up key
12. Direct keys (Number keys)
13. Mute key
14. Memory / Program key
15. CD play / Pause key
16. CD Next / Tune-up key
17. CD back / Tune-down key
18. CD stop / Band key
19. Volume up key
20. Volume down key
Connection of Speakers
- Unwrap the speaker cords of both speakers.
- Insert the cables of the left speaker into the "Red" (+) and “Black” (-) speaker connectors which have
the "L" indication on the backside of the unit.
- Insert the cables of the right speaker into the "Red" (+) and “Black” (-) speaker connectors which have
the "R" indication on the backside of the unit.
- When inserting each wire into a connector, press firmly inwards on the connector's plastic knob (red
or black part) and push only the exposed metal end of the wire all the way into the hole. Do not insert
the plastic insulation of the wire into the holes.
- Important: Each speaker cable has 2 different wires with different colors or markings to indicate the 2
different polarities of each speaker. Please make sure to follow the same wire to connector combination
for both left and right speakers. (Eg. If you insert the black wire of left speaker into the red left connector ,
then you should also follow same combination for right speaker.
- Place the speaker boxes as far apart as possible for best sound effect.
- This unit works on normal household AC power.
- Make sure the set voltage of the unit matches your local voltage.
- Insert the plug of the AC cord into a wall outlet with AC power.
- Press the On/Off key to power on the unit.
Power Supply
Remote Control
1
2
3
4
5
6
7
8
9
10
20
11
12
13
15
17
19 18
16
14
Important: How To Tell If Power Is “On”?
When the power is “On” the entire digital display will be lit up with a blue back light.
04

1. Connect the speakers and table stand.
2. Plug the AC cord into a wall socket and connect the FM antenna wire.
3. Press the On/Off key to switch “On” the unit.
4. Listen to the CD player.
- Press the CD key - “CD” will be displayed.
- Press the Open/Close key.
- Insert a disc (audio CD or MP3 CD).
- The CD will automatically start playing.
- Adjust volume Vol + or Vol - as needed.
P
S
R
D
I
N
R
T
A
S
W
I
D
T
E
U
O
STEP 3
(INSERT CD)
STEP 1
(CD KEY)
STEP 2
(OPEN / CLOSE KEY)
FM ANTENNA WIRE
SPEAKER CABLES
AC CORD
PLUG
MP3MP3
PLLPLL
DIGITAL
TUNING
DIGITAL
TUNING
ULTRA HIGH POWER HIGH FIDELITY SYSTEMULTRA HIGH POWER HIGH FIDELITY SYSTEM
HIGH VELOCITY G EAR DRIVEN
MOTORIZED C D CO MPARTMENT
HIGH VELOCITY G EAR DRIVEN
MOTORIZED C D CO MPARTMENT
- SENSO R- SENSO R
iRiR
ON /O FFON /O FF
USBUSB
SDSD
CARD
READER
CARD
READER
FLASH
READER
FLASH
READER
PLAYBACK
CAPABLE
PLAYBACK
CAPABLE
USBUSB
SDSD
DRIVEDRIVE
CARDC ARD
PROG RAMPROG RAM MEMMEM ++
USB /SDUSB /SD
FINDFIND
DISPLAYDISPLAY
TUNER/BANDTUNER/BAND CDC D AUXAUX
MONO /STEREOMONO /STEREO
SLEEPSLEEPTIMERTIMER
EQEQ
1010
++
MEMMEM
1010
PLAY-MO DEPLAY-MO DE
WIDE SCREEN HIGH RESOLUTION BLUE LCD DISPLAYWIDE SC REEN HIG H RESOLUTION BLUE LCD DISPLAY
VOLUMEVOLUME
05
Quick Start

5. How to listen to the radio
- Press Tuner/Band key to switch to Radio Mode.
- Press Tuner key to switch to “FM” radio band.
- Press Tuner key again to switch to “AM” radio band.
- Press and release Next key to tune radio frequency up.
- Press and release Back key to tune radio frequency down.
- Press and hold Next key (2 seconds) to scan up (seek to next station).
- Press and hold Back key (2 seconds) to scan down ( seek to previous station).
BACK KEY TO TUNE
STATION DOWN
NEXT KEY TO TUNE
STATION UP
MP3MP3
PLLPLL
DIGITAL
TUNING
DIGITAL
TUNING
ULTRA HIGH POWER HIG H FIDELITY SYSTEM
HIGH VE LOC ITY G EAR DRIVEN
MOTORIZED C D C OMPARTMENT
- SENSOR- SENSOR
iRi R
ON / OFF
USBUSB
SDSD
CARD
READER
CARD
READER
FLASH
READER
FLASH
READER
PLAYBACK
CAPABLE
PLAYBACK
CAPABLE
USB
SD
DRIVE
C ARD
USB/SD
TUNER/BAND
C D AUX
VOLUME
6. Press the On/Off key to switch “On” the unit.
06

Battery Backup
- This unit is designed to operate without ever being totally powered “Off”. It will either be “On” or in
“Standby Mode”.
- In “Standby Mode”, the blue backlight of the digital display will be switched off. However, the clock
display will still be viewable.
- When in “Standby Mode”, you can use the power switch (on the remote control or on the front panel
of the main unit) to turn “On” or “Off” the unit.
Important Operating Instructions
System Setup and Precautions
Desk Setup Desk Setup
With Pedestal Wall - Mount Setup
- This unit has a battery backup system which keeps certain vital information saved in its internal
memory in case of power outage (i.e. blackout or AC cord accidentally becomes unplugged).
- To enable this battery backup feature, please insert 2 “AA” type batteries into the battery backup
compartment which is located under the main unit.
- These batteries will last for several months, and must be replaced periodically to maintain the backup
function.
- During a power outage, the battery backup system will save the time and programmed radio stations
into its memory, so that when the AC power is resumed, the unit does not need to be re-programmed.
- Please note that the unit itself cannot be operated on battery backup power during power outage.
- The battery backup has a limited duration during a power outage. If the AC power remains off for long
periods at a time, the battery backup system may not be able to keep the saved information in memory as
the batteries themselves are limited in their life. For this reason, it is recommended to use good quality
alkaline batteries, and to replace them periodically.
- When you are not using the unit for long periods, or if the unit will remain unplugged for many weeks,
it is recommended to remove the batteries to prevent leakage and damage.
- This unit is designed to be used on a desk (shelf or table) with or without the supplied pedestal, or as
a wall mounted unit.
- Please refer to the separate section entitled: “System Setup Procedure” for the method of installing
the pedestal or wall mounting bracket.
- Always position the unit away from direct sunlight or heaters and air-conditioning vents.
- Always position the unit with adequate ventilation at the rear and sides. Never block the ventilation
holes of the unit.
07

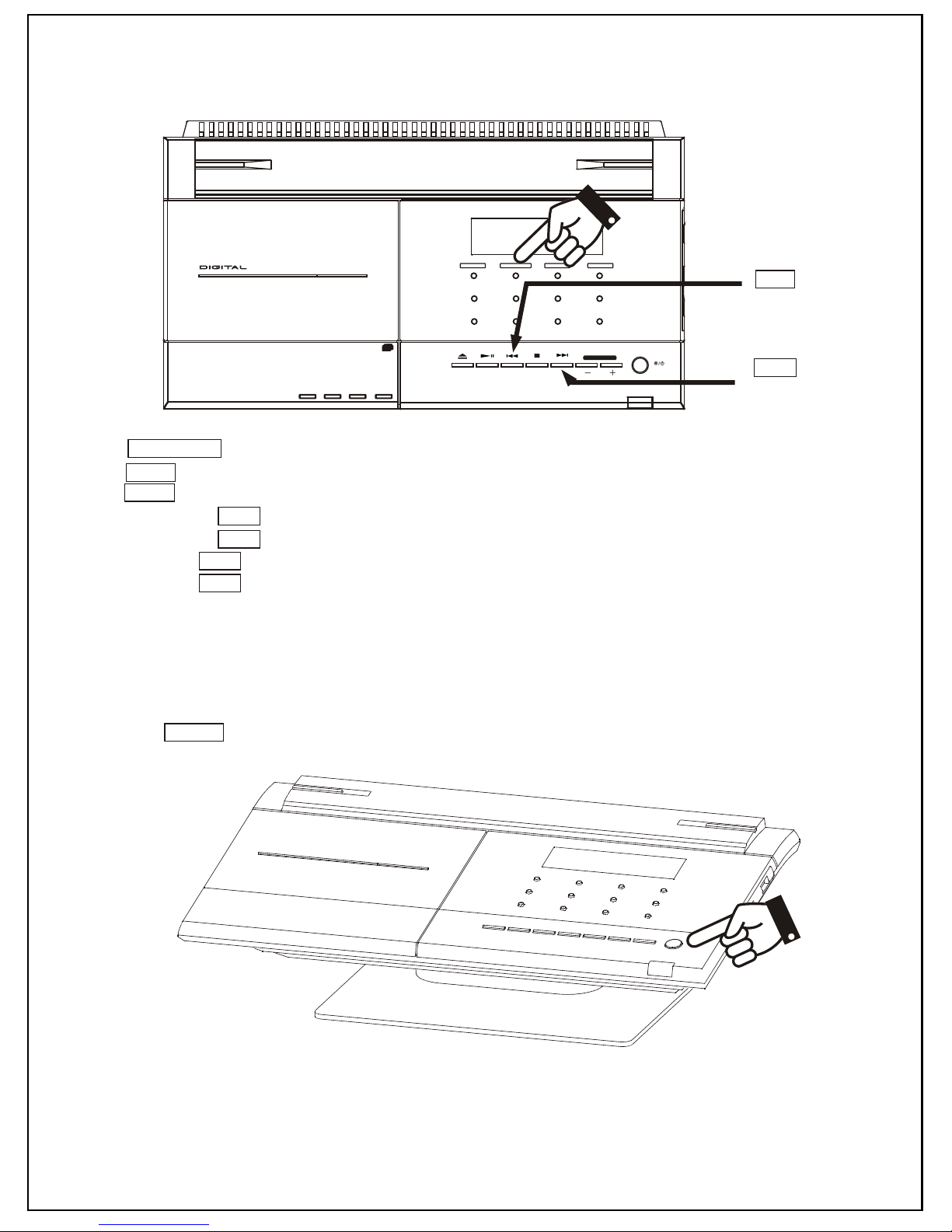

- This unit also has a built-in digital clock, which is displayed when the unit is in Standby Mode or when
you press and hold the Program key for two seconds during the CD or Radio operation.
- To set the correct time, follow the procedure below:
Switch unit to Standby Mode.
Display light will be “Off”
Digital Clock Functions
Press and hold Program for 3 seconds.
Display shows hour or hour (flashing).
12 24
Press Next or Back to select 12-hour
or 24-hour clock display system. Then press
Program to confirm your selection.
Press Next or Back repeatedly to set the
correct hour in the display. Then press
Program to confirm.
Correct time is now set and will be
shown in the display.
PM 3:25 15:25
EXAMPLE OF
12-HOUR CLOCK
EXAMPLE OF
24-HOUR CLOCK
08

Automatic Power On/Off Timer Function
Automatic Power Off Sleep Function
This unit has a timer function that enables you to program the unit to automatically turn “On” or “Off” at
preset times. This function can also serve as an alarm clock.
How To Set Timer
01. Press and hold Timer key. The symbol appears in the display.
02. Press Next or Back key to adjust the hour of the desired "Power on" time and then press Timer key
to confirm.
03. Press Next or Back key to adjust the minutes of the desired "Power on" time and then press Timer key
to confirm.
04. Now the symbol in the display changes to show .
05. Press Next or Back key to adjust the hour of the desired "Power off" time and then press Timer key
to confirm.
06. Press Next or Back key to adjust the minutes of the desired "Power off" time and then press Timer key
to confirm.
07. Now the display will indicate the "Wake Up Mode" (CD, Tuner, USB or SD-card). Press Next key to choose
the desired mode and press Timer key to confirm.
08. The display then shows the "Wake Up Mode Level" (Loundness). Press Next or Back key to decrease or
increase the volume level to be used for the music to be played when the timer switches on the unit at
the pre-set time.
09. Press Timer key to confirm. The unit will then automatically display all your settings in sequence:
"Power On Time" On
"Power Off Time" OFF
"Power On Mode" CD OR TUNER
"Power On Volume Level" LOUDNESS
10. Finally the unit will return to the normal display, except this the symbol will be shown, to indicate
that you have programmed a power on/off alarm setting.
11. In case you wish to disable the timer, press timer and the symbol disappears.
(NOTE: The automatic power On/Off timer will switch “On” the unit as if you have manually pressed the
Power key. If you have selected "Wake To Radio", the exact preset radio band and station will become
activated when power switches “On”).
- This unit has a special sleep timer function which can automatically turn off the unit. This is useful for
sleeping to music at night.
- At any time while the unit is operating (CD or Radio), press Sleep key repeatedly to choose the automatic
“Power Off Mode”.
90
MINS
80
MINS
70
MINS
60
MINS
50
MINS
40
MINS
30
MINS
20
MINS
10
MINS OFF
09

Electronic Volume Control
Volume Memory Level / Gradual Loudness Function
Music Equalizer
Auto-Start Playback Function (CD, MP3, USB, SD)
- This unit uses an electronic volume control .
- To increase or decrease the loudness of this unit, press the volume up Vol + or volume down Vol - keys.
- Release the key when volume level is at the desired loudness.
- Sometimes, especially during listening to the radio, you may notice a "click-click-click" repeating) sound
when you are increasing or decreasing the volume. This is a normal condition and the sound will
disappear when you release the volume key (when you reach the desired volume level).
- This unit will remember the last setting of the volume control level (loudness) each time you switch on
the power.
- This means that the volume level of the unit when you switch off the power will be stored in memory,
and the same volume level will be used when you turn “On” the unit again.
- To avoid sudden loudness (in case you used the unit at high volume level before turning “Off”), the unit
is also equipped with a special feature called “Gradual Loudness Function”. This special function controls
the volume automatically to increase it “gradually” (slowly) each time you switch “On” the unit.
- This means that the volume level will start at a moderately low level each time you power “On”, and
gradually go up automatically to the last volume level which is saved in memory.
- Press the EQ key repeatedly to choose the desired sound effect according to the music you are
listening to :
*Pass Classic Jazz Rock Pop
(*Pass means equalizer is "by-passed" or "off")
- This unit has a built-in function to automatically start playback of a CD, MP3 CD, USB-MP3 or SD-MP3 as
soon as you power “On” the unit, if the last saved “Mode” of the unit was one of these modes at
power “Off”.
- For example, if you were listening to some MP3 songs on a USB flash drive (using built-in USB socket), and
you switch “Off” the unit, then when you power “On” the unit next time, it will automatically start playing
the MP3 songs on the USB flash drive, as long as there is a USB flash drive still connected to the built-in
USB socket.
- This Auto-Start function also works if the unit is powered “On”, and you insert a CD, MP3 CD, USB flash
drive or SD card, and switch to the appropriate mode. Playback starts automatically from the first song,
without the need to press Play key.
10

Radio Operation
- Press the On/Off key once to switch on the unit.
- Press the Tuner key to select the desired radio band.
- For AM stations, rotate or reposition the set to improve radio reception.
- For FM stations, extend and adjust the telescopic antenna to obtain the best reception.
- Use the FM Mono/Stereo key to select the desired mode. In some cases, where reception is
poor, it may be advisable to select “Mono” mode to improve clarity of the radio signal.
Manual Frequency Adjustment (Scan Mode)
- Press (and immediately release) the Next or Back key to scan (manually adjust) the radio stations
up or down by 1-step at a time.
- The radio digital display will indicate the exact station at each position.
- When a desired station is reached, it can be saved into one of the memory postions. See Radio
Memory section.
Automatic Frequency Adjustment (Seek Mode)
- Press and hold (for 2 seconds) the Next or Back key to seek (automatically adjust) the radio frequency
up or down to the next available radio station.
- The radio digital display will indicate the exact frequency of the next station that is found.
- When a desired station is reached, it can be saved into one of the memory positions. See Radio
Memory section.
Radio Memory (Station Preset Memory Storage)
- At any time the currently displayed station or frequency can be stored into one of the memory positions.
- Press Program key once.
- Press M+ or M- key to select desired memory position. There are 10 memory positions for AM band and
30 memory positions for the FM band.
- Press Program key once to save the selected station into the selected memory position.
- To recall any saved memory simply press M+ or M- key, the saved radio-band will be recalled.
- To clear the memory of any position, simply save a new station to the same memory position.
IMPORTANT: Improving the radio reception.
For the FM band, fully extend the FM wire antenna at the rear of the unit.
Try to change its position until a clear reception is received.
In some areas, where FM signal is weak, you may need to switch to FM-Mono instead of stereo
to improve the FM band sound quality. Use the Mono-Stereo switch.
For the AM band, rotate the unit until a desired signal is reached.
Avoid placing the unit in direct sunlight and metal desks/surfaces. This may affect radio
reception.
11

Insertion And Removal Of Discs
- Press the CD key. The display will show “CD”.
- Press the Open/Close key to open the CD door. Carefully place a compact disc (CD or MP3 disc) onto
the center of the CD spindle. Make sure the printed side of the CD is facing up before closing the CD door.
- The CD display will show the total number of tracks on the disc. After a few seconds, the CD will be ready
to play.
- To remove the disc from the unit, press the Open/Close button. The CD door will open.
- Gently remove the CD from the CD spindle and place it back into its jewel case or protective sleeve.
CAUTION: Always hold a CD by its edges. Avoid getting any liquids, finger prints, smudges, or dirt onto the
CD. If this happens, use a soft cloth or specified CD cleaning kit to remove obstructions on face of the CD.
IMPORTANT:
- Press On/Off key to switch on the unit.
- Press the Function key repeatedly until the display shows “CD”.
- Press the Open/Close key and insert a CD as described.
- Press Play key. The disk will start spinning and the first song will start to play.
- At any time during playback, press the Play key to “pause” the CD.
- Once the CD is paused, press the Play key to resume the CD.
- Pressing the Stop button during anytime of the CD playing will stop all operation of the CD and
and will reset the CD back to its first track.
- To skip forward or back in track numbers, press the Next or Back keys.
- To skip ahead or behind in a song, simply hold down the Next or Back key to desired time in song.
- At any time during playback, press and hold the Find/Display key for 2 seconds. The display will show
the file name and song title. NOTE: This only works with an MP3 formatted disc.
Motorized Automatic CD Door - Operations and Precautions
- This unit has a motorized CD door.
- Please never try to open or close the door manually (by hand).
- Always use the CD Open/Close key
- When opening, the door will swing upwards and stop automatically. Never apply pressure
on the door to close it.
- If there is any obstruction when opening the door, the door will automatically stop and
reverse direction (close) after 4-5 seconds to prevent damage to the CD door.
12
Normal CD Operation

Normal CD Operation - cont.
- The CD player can be programmed to play up to 64 tracks (songs).
- Always press the Stop key before programming.
- Press the Program key once, the display will show the memory symbol to indicate that the set is now
programmed into the CD player.
- There are different procedures for programming a CD and a MP3 CD. Read how below:
Programming Procedure For Normal Audio CD:
- Press Next or Back key to select the song you would like to program.
- Press the Program button once to confirm your selection.
- For each additional song you would like to program, repeat steps listed above. Reminder, only 64 tracks
can be programmed to play at once.
- Once all songs are programmed, press the Program key. The display will now show memory to indicate
you have saved a program into memory.
- Press Play key. The CD will start to spin and play your selected tracks in the program.
- To clear out your programmed tracks, simply press the Stop key. This will reset the memory and clear
the program.
Programming Procedure For MP3 CD:
- Press the Next or Back key to select the Album (folder directory) number which contains the song you
wish to program.
- Press the Program key to confirm.
- Press the Next or Back key to select the song number.
- Press the Program key to confirm.
- Repeat the last 4 steps, each time selecting an Album and track number to be played into your CD
program.
- After a maximum of 64 tracks have been programmed, press Play key.
- To clear out the memory of your selected programmed songs, simply press the Stop key.
- This unit is capable of displaying the “Text Information” (ID3 Tag) of an MP3 song on the LCD.
- To turn on this function, simply press and hold the Find/Display key for 2 seconds.
- To switch back to normal display mode (display track number and timer) press and hold the Find key
again for 3 seconds.
Text Display Mode (ID3)
13
Normal CD Operation - cont.

Finding (Searching) MP3 Songs By Song Name
- During Stop or Play modes, press Find key once.
- The “Find” symbol will flash in the display, and the letter “A” will be shown (see example below).
- This is the “Search Alphabet”.
- Press the Next or Back key to advance the Search Alphabet to select the desired letter.
- At every selected letter, the lower part of the display will show the name of the first song beginning
with that selected letter on the disc.
EXAMPLE:
- With any selected letter, there might be several songs within that particular letter. To search for all
songs beginning with that letter, press and hold Next or Back key (for 2 seconds) until the searched
letter starts flashing in the display.
- Once the searched letter starts flashing, press the Next key to display the desired song starting with that
particular letter.
- At any time, when you have located a desired song (as shown above), just press Play key.
- To exit the Find mode, press the Find key twice (2 times) until the “Find” symbol disappears from the
display screen.
A -- APPLE . . . . .
NAME OF SONG
(MP3 FILE)
SEARCH
ALPHABET
PRESS ONCE
FIND SYMBOL
NAME OF SONG
(MP3 FILE)
SEARCH
ALPHABET
FIND SYMBOL
N E X T
B -- B ANANA . . .
PRESS ONCE
N E X T
ETC...
PRESS ONCE
FIND
14

Finding (Searching) MP3 Songs By Album
- MP3 files (songs) can be organized into folders (directories) when you record them on to a CD-R disc. Each
folder is called an "Album" and you can (for example) organize your albums on a disc so that each album
contains songs by a particular artist, or alternatively, by a different genre or type. You can organize songs
and albums in any way you wish so that you can locate and play back those songs with greater ease and
convenience.
- To search for songs within a particular album, press the Find key twice (2 times) when an MP3 CD is
playing (or stopped).
- The "Find" & "Album" symbols will activate in the display, together with the number "1". This is the
Album Number, as it indicates the number of the folder on the disc.
- Press Next or Back key to advance to the album number (01, 02, 03 ...). The name of each album (the
directory name) will appear in the lower part of the display for each selected Album Number.
EXAMPLE:
- When the desired album name appears on screen, press and hold the Next key for 2 seconds. This will
open the selected album and now you can view (scroll through) all the songs contained inside that album
one by one. You can select the desired song by using the Next key and play it by using the Play key.
FR UITS . . .
NAME OF ALBUM
(FOLDER)
ALBUM NUMBER
01
PRESS ONCE
FIND ALBUM
NAME OF ALBUM
(FOLDER)
FIND ALBUM
N E X T
VE GE TAB LE S . .
02
PRESS ONCE
ETC...
ALBUM
ALBUM
NEXT
THIS MEANS ALBUM FIND MODE
ALBUM NUMBER
15

CARROT... 02
NAME OF FIRST SONG IN
THE SELECTED ALBUM
Press and release repeatedly to scroll through
all the songs contained within the selected album.
VEGETABLES... 02
ALBUM
NUMBER
ALBUM NAME
(WHICH YOU WANT
TO OPEN)
ALBUM
Press and hold for 2 seconds.
NE X T
TOMATO... 09
NAME OF DESIRED SONG IN THE
SELECTED ALBUM
Press the Play key to play the song displayed.
NE X T
- To exit the Find mode, press the Find key repeatedly until the “Find” symbol disappears from the LCD display.
SONG NUMBER ON WHOLE DISC
(BASED ON ALL SONGS ON THAT CD)
ALBUM
THIS MEANS YOU ARE
IN ALBUM FIND MODE
16

USB Flash Drive / SD Card MP3 Playback
Displaying The Song Name (ID3)
- This unit is equipped with a USB socket which can accept and play MP3 files stored on standard USB flash
drives which are for memory storage. This unit is compatible with USB version 1.1 & 2.0.
- This unit is equipped with a SD card slot which can accept and play MP3 files stored on standard SD cards
which are for memory storage.
- The USB and SD card sockets are located on the side of the unit as shown in the picture below.
- To utilize USB drives/SD cards for MP3-playback, insert the USB drive or SD card into the appropriate socket
(as shown below) and press the USB/SD key repeatedly until the display shows “USB read” or “SD read”
(depending on which one you are using).
- Press Next or Back key to skip forward or backwards to select the desired MP3 file on the USB flash drive or
SD card.
- Press the Play key to start the selected song.
Remember to press and hold the Find key for 3 seconds to turn on the Text Display Mode. This enables the
ID3 Tag to display onto the LCD display screen.
Important: Always turn off the unit or change
mode to “CD” or “Radio” before removing a USB
flash drive or SD card to prevent damage to your
USB device or memory card.
Note: Although this product is fully compatible
with USB 1.1 and 2.0, and SD card standard formats,
a small percentage (about 5%) of USB flash drives
and SD cards might not be readable due to those
device manufacturers, not-compliant with the full
(official) USB and SD card standards.
17

Play Modes (CD, CD MP3, USB MP3, SD MP3)
Anti-Skip (Anti-Shock) Function
Using The Audio Line-in Connection (DVD/AUX)
- During anytime of play mode, press Play-Mode key repeatedly to select from the following:
Repeat To repeat current track.
Repeat Album To repeat all songs from currently selected Album (availble for MP3 only).
Repeat All To repeat all tracks from any type of media.
Intro To sample the first 12 seconds of all music using any type of media.
Random To play a random mix of all of the songs on all media types.
- This unit has a built-in digital anti-skip function which prevents CD skipping when the unit is physically
moved or subjected to vibrations when playing songs from a CD media.
- Whenever any MP3 CD is played, the anti-skip memory needs the first 30 seconds to become filled up.
During this time, the anti-shock protection is already active, but is not used to the max. 30-sec. capacity.
- After the first 30 seconds have elapsed, the anti-shock memory is full and the unit now provides anti-skip
protection for 30 seconds of vibration when playing CD-MP3 discs. NOTE: There is no anti-shock
protection when playing a normal audio CD.
- Please note that the anti-skip function only protects against normal vibration or minor movement. Severe
or strong shocks/vibrations to the unit may still cause the unit to skip.
- You can connect the audio output of an external device such as a MP3 player or DVD player to this unit
to listen to the sound of that device through the high-quality amplifier of this music system.
- To connect the external device, please use a standard RCA cable to connect the "Audio Line-out" (or
head phone stereo audio output) of the device (left and right channels) to the"Aux Audio Line-in" RCA
jacks (left and right) on the rear panel of this unit.
- Make sure that the speakers are connected to the main unit.
- Turn on the power of the main unit and the external device (Eg. MP3 or DVD player).
- Press the Aux key on the front panel.
- Start playback of the external device and adjust the volume control of the main unit to the desired level.
18

Connecting An External Powered Subwoofer (Not Included)
Specifications
- This unit has a built-in subwoofer connection which can be connected to any standard powered
subwoofer.
- By connecting to a powered subwoofer, the low frequency (Bass sound) can be strongly enhanced
to provice a much richer and deeper sound to your music.
- To use this facility, simply connect any standard powered sub woofer (easily available from most
music equipment shops) using the RCA jack on the rear panel of the main unit.
- Switch “On” the powered subwoofer.
- Play any music source (CD, Radio, or Aux.) as usual.
- You will immediately notice the deeper sound, which can be further enhanced by switching on
the "super bass" function on The main unit.
- Please note that the speakers should be connected as usual to the main unit, when using a subwoofer.
- Please note that "Passive" (non-powered) subwoofers will not work with this unit.
AC power supply: AC 110V/220V ~ 50/60Hz
AC power consumption: 40W
Remote control unit: 3V (AAA size / UM-4 / LR03 / R03G x PCS)
Battery backup (Main Unit): 3V (AA size / UM3 / LR6 x 2 PCS)
(Batteries not included for both above)
Speaker: 6-way speaker system (2 x Tweeter / 2 x Mid / 2 x Woofer)
Speaker capacity power: 2 x Tweeter: 2” / 8 Ohm / 5W
2 x Mid: 4” / 4 Ohm / 2W
2 x Woofer: 4” / 4 Ohm / 10W
Amplifier maximum power: 10W RMS total
This unit should not be exposed to object that drip or splash of any liquids or filled with
liquids. This unit should not have any foreign object placed on top of it.
The marking is located at rear enclosure of the unit.
The mains plug is used as the diconnect device and it shall remain readily operable. To be
completely disconnected the power input, the mains plug of the apparatus shall be discon-
nected from the mains completely. The mains plug should not be obstructed or should be
easily accessed during intended use.
Under the influence of electrostatic phenomenon, the product may malfunction and may
cause the user to reset the power.
19
