USER’S GUIDE
PORTABLE AIR CONDITIONER
MODEL- APAC120S
Installation, Operation, and Maintenance for your
portable air conditioner
www.avallon.com 1-866-471-7427

Important Safety Information
Improper handling can cause serious damage to the appliance and/or to the user.
This portable air conditioner is not intended for use by children. Children should be supervised to ensure
that they do not play with this product.

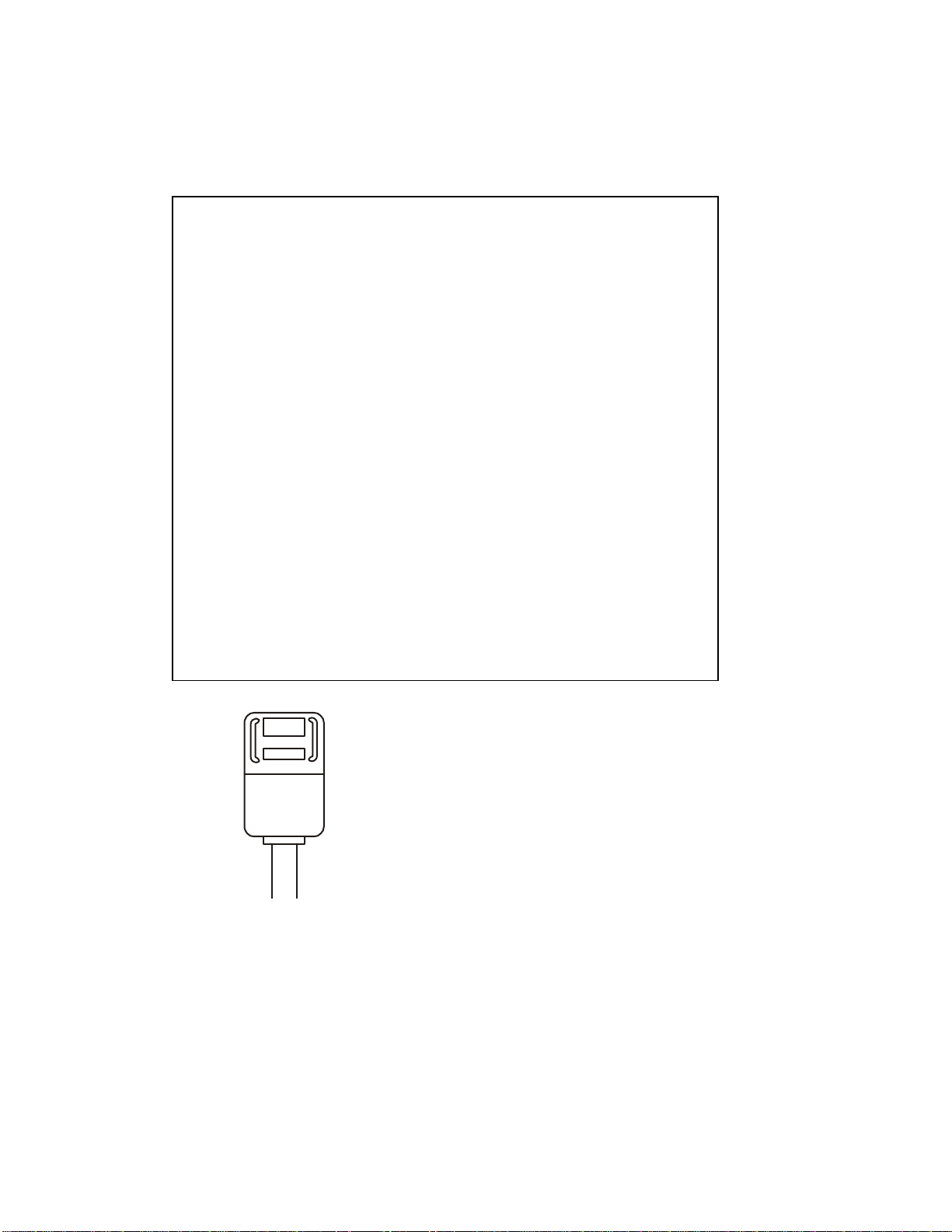

Your portable air conditioner is supplied with a Leakage-Current Detection and
Interruption (LCDI) safety plug. This device provides protection to reduce the risk
of fire due to arcing faults in the power supply cord. Before using your portable
air conditioner, follow the instructions below to ensure that the LCDI plug is
working properly:
1. Plug the power cord to a grounded outlet.
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the
power to the air conditioner. If the plug does not trip and you are able to turn on
the unit, please contact Avallon support.
DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
Press the RESET button to start using your air conditioner.
Do not use the TEST and RESET buttons as an ON/OFF switch.
Electrical Safety
This unit is designed for indoor use only.
Do not use the unit in extremely humid or wet environments.
Do not wet the housing or control panel.
Do not pull the unit by the cord.
Always turn the unit off and unplug it from the socket when cleaning.
Unplug the unit if it is not going to be used for a long period of time.
Do not operate the unit with a damaged plug or a loose socket.
Use only the correct power supply with appropriate amperage.
If the power cord is damaged, it must be replaced by the manufacturer,
a service agent, or qualified technician.
Do not remove any part of the casing unless instructed by an
authorized technician.
General Safety
This portable air conditioner is not intended to be used by children.
Do not allow children to play with the controls or drop any objects into
the air outlets or vents.
Do not place objects or let any person sit on top of the unit.
Only use in the upright position on a flat, level surface and provide at
least 20 inches of clearance from any walls or objects.
Route the power cord carefully to avoid a tripping hazard.
This unit is intended for domestic and light commercial use only. Do not
use the portable air conditioner for industrial use. Any other use may
invalidate the warranty.
RESET
TEST

Avallon Portable Air Conditioner ii
Table of Contents
IMPORTANT SAFETY INFORMATION............................................................................................................... I
TABLE OF CONTENTS...........................................................................................................................................II
INTRODUCTION.......................................................................................................................................................1
PARTS IDENTIFICATION.......................................................................................................................................2
BACK VIEW....................................................................................................................................................................2
FRONT VIEW ..................................................................................................................................................................2
WINDOW KIT INSTALLATION INSTRUCTIONS .............................................................................................3
PREPARATIONS FOR INSTALLING THE WINDOW KIT ........................................................................................................3
WINDOW KIT PARTS LIST:.............................................................................................................................................3
PARTS FOR CONTINUOUS AND MISTING DRAINAGE .......................................................................................................3
INSTALLING THE GRATED ADAPTER ...............................................................................................................................4
INSTALLING THE WINDOW PLATES .................................................................................................................................5
ATTACHING THE DUCT CONNECTORS TO THE EXHAUST HOSE.........................................................................................6
CONNECTING THE DUCT CONNECTOR TO THE UNIT.........................................................................................................7
CONNECTING THE DUCT CONNECTOR TO THE GRATED ADAPTER....................................................................................7
NOTES ABOUT THE EXHAUST HOSE................................................................................................................................8
DRAINAGE OPTIONS ..............................................................................................................................................9
CONTINUOUS DRAIN ......................................................................................................................................................9
MISTING DRAIN .............................................................................................................................................................9
INSTALLING THE BATTERIES.........................................................................................................................................11
REMOTE CONTROL LCD INDICATORS ..........................................................................................................12
OPERATING THE REMOTE CONTROL............................................................................................................13
POWER .........................................................................................................................................................................13
AUTO-RESTART: ..........................................................................................................................................................13
COOLING MODE...........................................................................................................................................................13
DEHUMIDIFYING MODE ...............................................................................................................................................13
HEAT MODE.................................................................................................................................................................13
FAN ONLY MODE.........................................................................................................................................................14
AUTOMATIC MODE ......................................................................................................................................................14
FAN SPEED...................................................................................................................................................................14
CLOCK .........................................................................................................................................................................14
TIMER ..........................................................................................................................................................................15
How to set the unit to automatically turn on ...............................................................................................................15
How to set the unit to automatically turn off...............................................................................................................15
FRONT PANEL LIGHTS AND CONTROLS .......................................................................................................15
FRONT PANEL LIGHTS..................................................................................................................................................15
FRONT PANEL CONTROLS ............................................................................................................................................15
ENERGY SAVING GUIDE .....................................................................................................................................16
MAINTENANCE ......................................................................................................................................................17
CLEANING THE UNIT.....................................................................................................................................................17
CLEANING THE PRE-FILTER ..........................................................................................................................................17
PREPARATION FOR STORAGE........................................................................................................................................17
TROUBLESHOOTING............................................................................................................................................18
TROUBLESHOOTING CONTINUED..................................................................................................................................19
SPECIFICATIONS...................................................................................................................................................20

1
Introduction
Thank you for purchasing your Avallon portable air conditioner. Avallon is dedicated to developing
products that will enhance your lifestyle with superior quality and distinctive features. Please visit
www.avallon.com for more information on your product and other Avallon products.
This manual contains important information regarding the proper installation, use and maintenance of
your portable air conditioner. Following this manual will ensure that your product will work at its peak
performance and efficiency.
Please save the original product packaging in case you need to safely transport your portable air
conditioner.
For Your Records:
Please write down the model number and serial number below for future reference. Both
numbers are located on the ratings label on the back of your unit and are needed to obtain
warranty service. You may also want to staple your receipt to this manual as it is the proof of
your purchase, and is also needed for service under your warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the dealer that sold you the product.
Read and follow this instruction manual carefully to help you install, use and maintain your portable air
conditioner.
Read the troubleshooting section of this manual as it will help you diagnose and solve common issues.
Visit us on the web at http://www.avallon.com for product guides, additional troubleshooting resources
and up-to-date information. If you need service, our friendly customer service representatives are
available via email at [e-mail] or by telephone at 1 [phone].

Avallon Portable Air Conditioner 2
Parts Identification
Back View
Front View
Pre-filter
Air Intake
Air Intake
Exhaust Outlet
Power Cord
Drain Port
Caster
Handle
Drain Pump
Connection
Remote Control
Indicator Light Button
Power Button
CAUTION: Make sure the
drain plug is firmly installed
before using the unit to
prevent leaking.

3
Window Kit Installation Instructions
You must vent your portable air conditioner when running it in
cooling mode or heat mode (certain models). Your unit includes a
window exhaust kit that can be used to vent the unit out a window.
Before you begin, make sure you have all the parts necessary for
installation.
If you have multiple windows, choose one that is near an electrical
outlet that will be able to provide sufficient power to your unit. See
the power requirements listed on the product label printed on the
side, or on the back of your portable air conditioner.
Your window kit can be installed on a horizontal or vertical sliding
window as shown in the following pictures:
Preparations for installing
the window kit
Window Kit Parts List:
Parts for Continuous and
Misting Drainage
4 Duct Connectors
2 Grated Adapters
8 Screws
2 Exhaust Hoses
2 Exhaust Covers
1 Window Kit Plate
with Holes
2 Window Kit Plates
NOTE: You may need to
contact your electrician if
your room’s circuit is not
able to power your unit.
NOTE: There is one duct
connector that includes
an opening for the water
line for use in the misting
drain operation. This
connector must be
installed to the exhaust
outlet on the unit. Please
review pages 9-10 for
more details.
NOTE: Exhaust Covers
may be attached to the
Grated Adapters. You
may need to twist and pull
apart to separate them.
1 Water Line
1 Misting Nozzle

Avallon Portable Air Conditioner 4

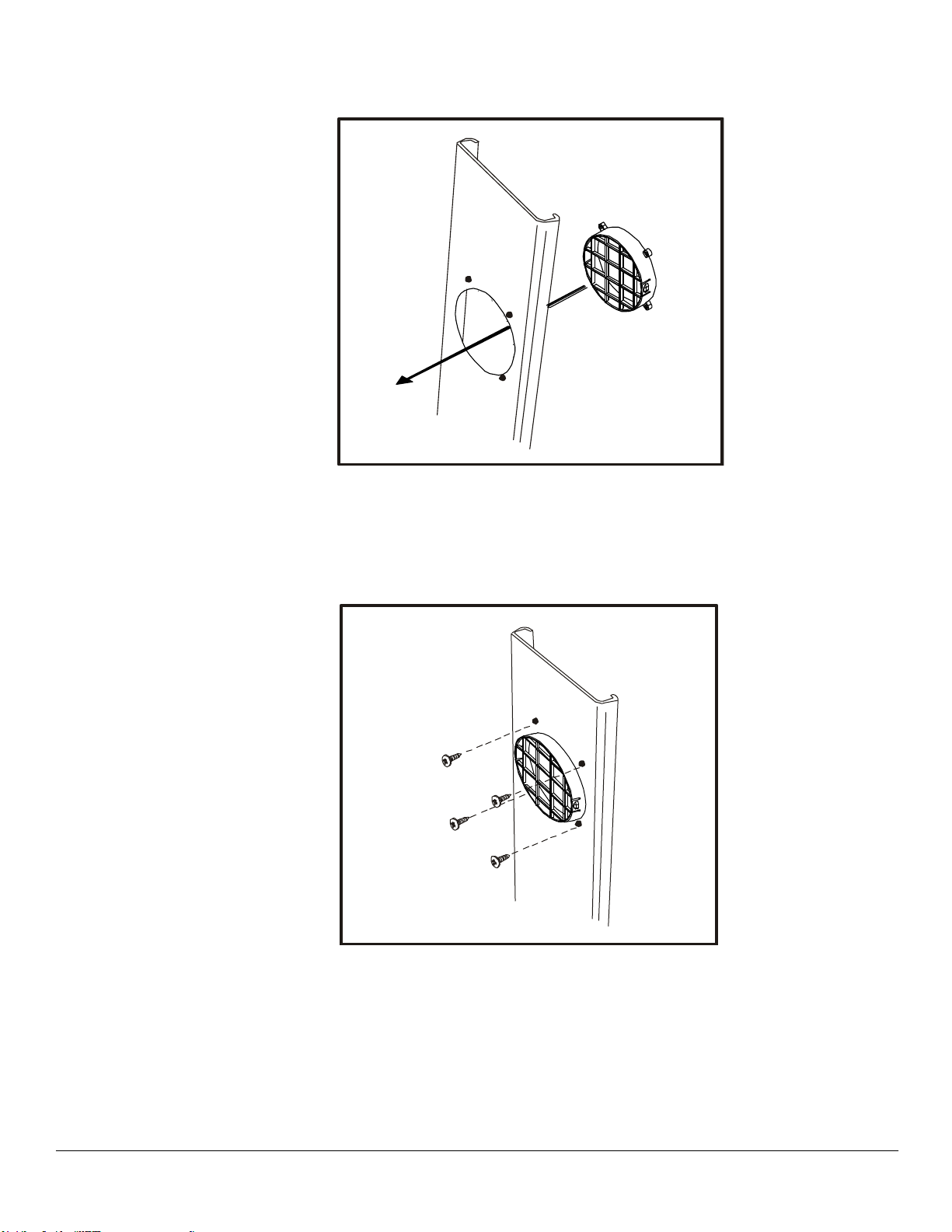

Installing the grated adapter
1. Insert the round grated adapters through the back
grooved side of the window kit plate with holes.
2. Secure the grated adapters by fastening the screws from
flat side of the window kit plate to the holes on the grated
adapter.



5


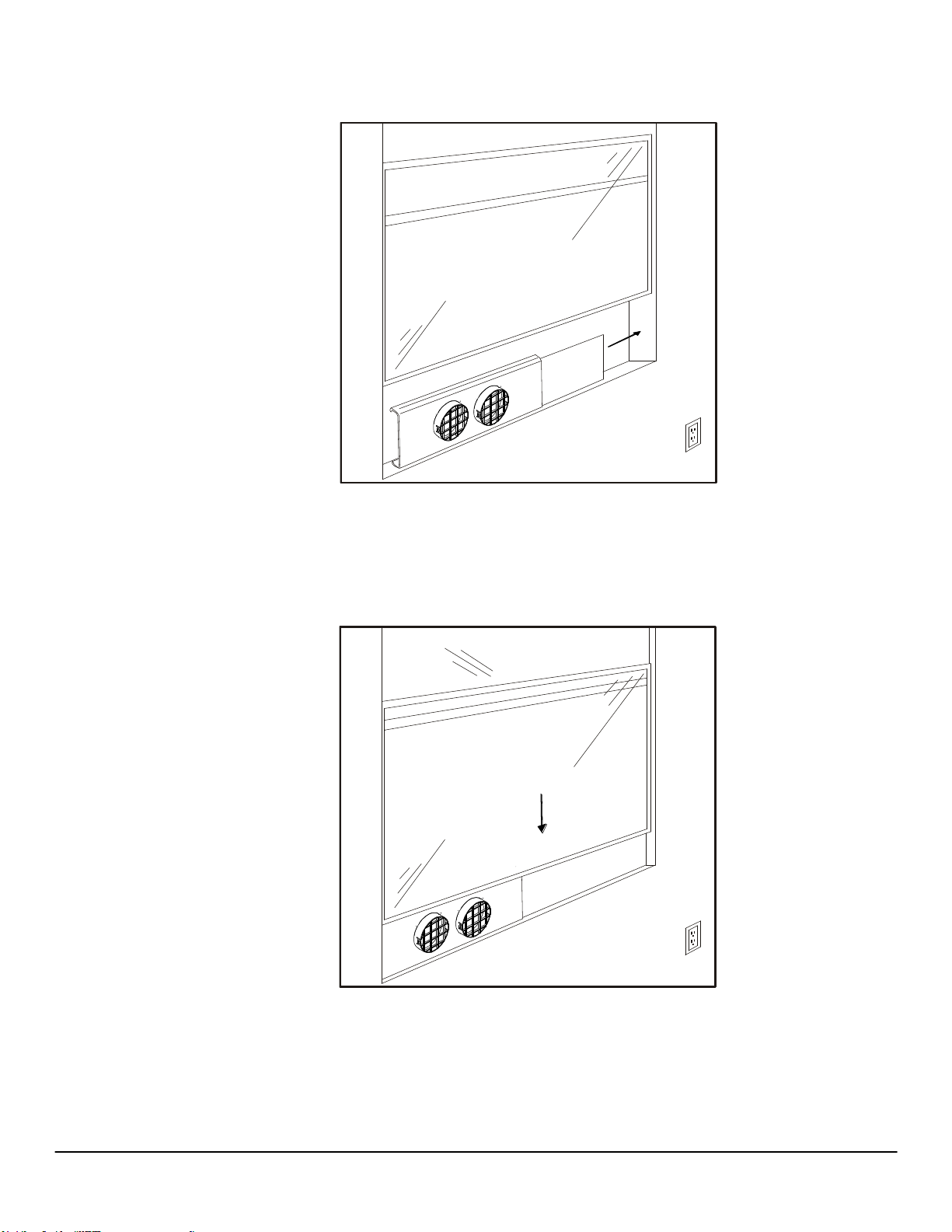

Installing the window plates
3. Open your window and place the window kit with
grooved side facing outward on the window sill. Then, slide
the window kit plate to fit the width of the window. You can
use screws to secure the window kit plate from sliding.
4. Lower the window to secure the window kit in place. You
may need to use duct tape to better secure the window kit.




Avallon Portable Air Conditioner 6
Attaching the duct
connectors to the exhaust
hose
A.
B.
5. Attach the connectors to the hose:
A. Extend the ends of the exhaust hose
B. Thread the duct connector on by turning it clockwise until
it stops.
6. Roll the unit towards the window kit. Leave a space that
is at least 20 inches to the wall.



7
After you have installed the exhaust hose and window kit, you can
plug in your portable air conditioner and start using it.
Connecting the duct
connector to the unit
Connecting the duct
connector to the grated
adapter
7. Align the slots on the duct connector to the tabs and
snap into the back of the unit. In order to use the misting
drain feature you will need to attach the duct connector with
opening for the water line to the exhaust outlet on the unit.
8. Align the slots on the duct connector to the tabs on the
grated adapter and snap in place.




