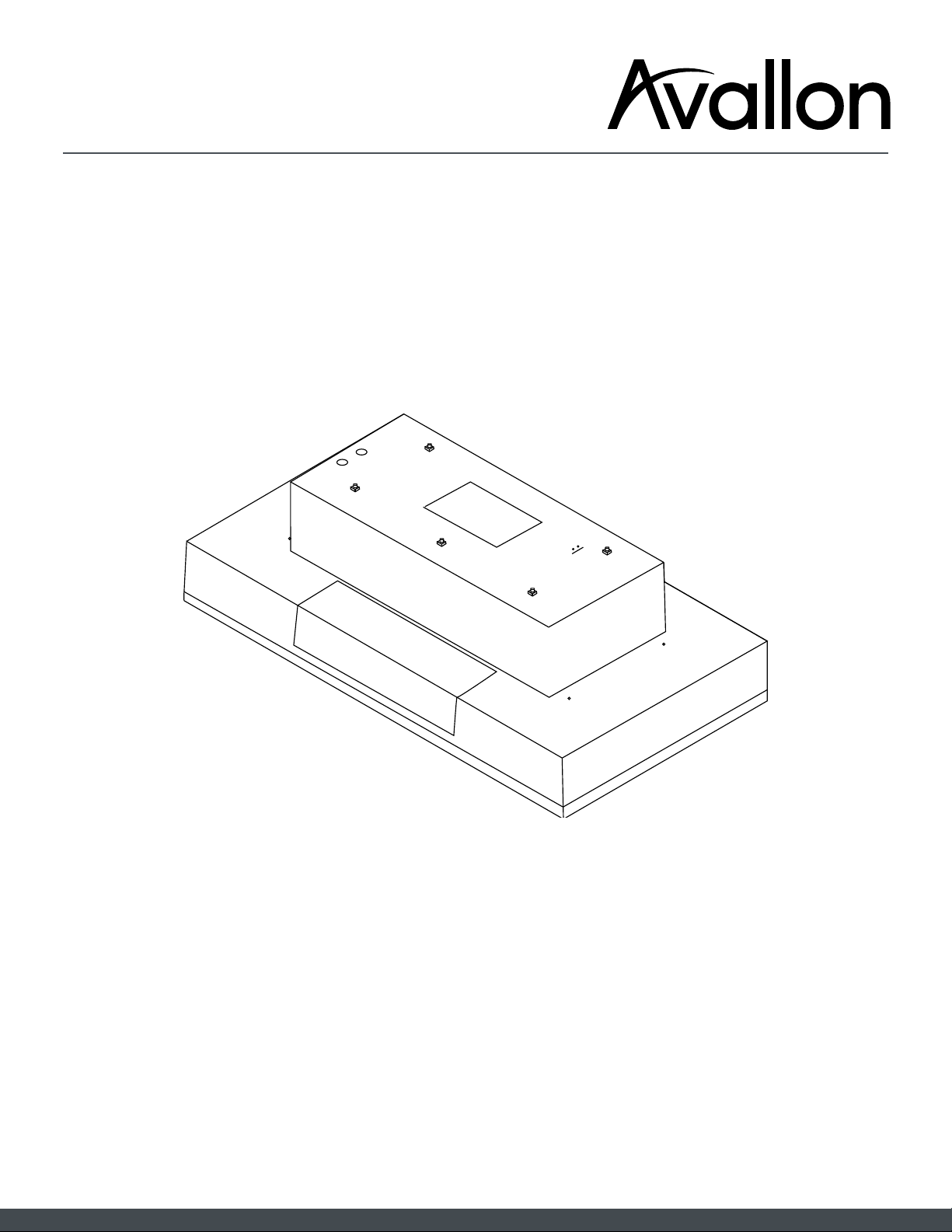

Range Hood Insert
Models: ARHI28PAA, ARHI34PAA, ARHI40PAA, ARHI46PAA
Owner’s Manual, Install Guide, Operation and Maintenance Manual
®
LIB0190686A

AVALLON.COM 2
®
Important Safety Information
Improper handling can cause serious damage to the Avallon range hood and / or injury to the user.
This range hood is designed for domestic indoor use only. Do not use the unit for industrial or
commercial use. Any other use may invalidate the warranty. Please review the rating label located
inside the hood under the baes for electrical and other technical data related to this unit. Please
read and follow the safety information listed below to reduce the risk of fire, electric shock, or injury.
IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
General Safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
•Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer.
•Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS
OR EXPLOSIVE MATERIALS AND VAPOURS.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,DO NOT USE THIS FAN WITH
ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
•Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
•Always turn hood ON when cooking at high heat or when flambeing food (I.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
•Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
•Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:
•Smother flames with a close-fitting lid, cookie sheet, or other metal tray, then turn off the gas
burner or the electric element. Be careful to prevent burns. If the flames do not go out
immediately, evacuate and call the fire department.
•Never pick up a flaming pan - you may be burned.
•Do not use water, including wet dishcloths or towels -a violent steam explosion will result.
•Use an extinguisher ONL
Y if:
–You know you have a class ABC extinguisher, and you already know how to operate it.
–The fire is small and contained in the area where it started.
–The fire department is being called.
–You can fight the fire with your back to an exit.

AVALLON.COM 3
®
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Do not remove safety grilles or filters. They protect hair and extremeties from being caught in
the blowers.
•Wear gloves to remove from packaging. There are sharp edges on the range hood.
•Do not remove protective film from duct covers before installing.
•Ducted fans must always be vented to the outdoor.
Installation Safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
•Installation work and electrical wiring must be done by qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction.
•Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
•When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
•Ducted fans must always be vented to the outdoors.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION: TO REDUCE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR
OUTSIDE - DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS, ATTICS OR
INTO CRAWL SPACES, OR GARAGES.
CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, INSTALL THIS RANGEHOOD
ONLY WITH REMOTE BLOWER MODELS RATED MAXIMUM (7.7 A /926 W) OR INTEGRAL BLOWERS
MANUFACTURED BY (ELICA), MODEL(S) (AKEB00PAA, AKIB00PAA). NOTE: (7.7 A /926 W.)
CAUTION: TO REDUCE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR
OUTSIDE – DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO
ATTICS, CRAWL SPACES, OR GARAGES.
•Always wear work gloves for all installation and maintenance operations.
•If provided with an electrical plug, connect the hood to a receptacle that complies with current
regulations and placed in an accessible position. Where an electrical plug is not provided (direct
connection to electrical network) or the plug will not be in an accessible position after installation,
place an approved bipolar switch in accessible position that provides full disconnection under
overvoltage category III conditions, in accordance with local wiring rules.

AVALLON.COM 4
®
•Before servicing or cleaning the unit, switch power off at the service panel and lock the service
panel, to prevent power from being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning device, such as a tag, to the
service panel.
•This appliance requires a 120 V~, 60 Hz electrical supply and connection to an individual branch
circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2-wire
with ground. Please also refer to the Electrical Diagram on the product.
•Assure that the electrical installation is adequate and in conformance with National Electrical
Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1
and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.
•Check with a qualified electrician if you are not sure the range hood is properly grounded. If
codes permit and a separate ground wire is used, it is recommended that a qualified electrician
determine that the ground path is adequate.
•Do not ground to a gas pipe.
•Do not have a fuse in the neutral or ground circuit.
•The range hood must be connected with copper wire only.
•The range hood should be connected directly to the fused disconnect (Or circuit breaker) box
through metal electrical conduit.
•Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 —
latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91
- latest edition** and all local codes and ordinances.
•A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply
conduit (at the range hood and at the junction box).
Electrical Safety

AVALLON.COM 5
®
Table of Contents
Important Safety Information............................................................................................................................ 2
Introduction........................................................................................................................................................... 5
Parts Identification .............................................................................................................................................. 6
Dimensions ............................................................................................................................................................7
Accessories........................................................................................................................................................... 8
Optional Accessories ................................................................................................................................ 8
Installation Requirements & Preparation....................................................................................................... 9
Installation Requirements......................................................................................................................... 9
Installation Preparation ............................................................................................................................10
Venting Options .........................................................................................................................................10
Determining Insert Height.......................................................................................................................10
Clearances ...................................................................................................................................................11
Installation Steps ................................................................................................................................................12
STEP 1. Prepare to Mount the Hood into Cabinet.............................................................................12
STEP 2. Install the Vent Transition ........................................................................................................14
STEP 3. Prepare to Connect the Electrical Supply ...........................................................................14
STEP 4. Install the Hood into the Cabinet...........................................................................................15
STEP 5. Connect the Electrical Supply ................................................................................................15
STEP 6. Complete Installation................................................................................................................16
Operation ............................................................................................................................................................. 17
Controls................................................................................................................................................................. 17
Recessed Knobs ........................................................................................................................................ 17
Operating the lamps................................................................................................................................. 17
Operating the blower ............................................................................................................................... 17
Auto On Blower.......................................................................................................................................... 17
Cleaning & Maintenance..................................................................................................................................18
Cleaning the Stainless Steel Hood .......................................................................................................18
Cleaning the Filters...................................................................................................................................18
Replacing a LED Lamp .............................................................................................................................19
Product Warranty...............................................................................................................................................20

AVALLON.COM 6
®
Introduction
Thank you for purchasing this range hood insert. We hope that this purchase will be the beginning of a
lasting and rewarding relationship between you and Avallon. We will provide the customer support and
exemplary products necessary to nurture that relationship.
This manual contains important information regarding the proper installation, use, and maintenance
of your range hood insert. Following this manual will ensure that your product will work at its peak
performance and efficiency.
Please save the original product packaging in case you need to safely transport your range hood.
For Your Records:
Please write down the model number and serial number below for future reference. Both numbers
are located inside the insert and are needed to obtain warranty service. You may also want to staple
your receipt to this manual as it is the proof of your purchase, and is also needed for service under
your warranty.
Model Number: ________________________________
Serial Number: ________________________________
Date of Purchase: ______________________________
For a more ecient experience, please do the following before contacting customer service:
• If you received a damaged product, immediately contact the retailer or dealer that sold you
the product.
• Read and follow this instruction manual carefully to help you install, use, and maintain
your refrigerator.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
• Visit us on the web at www.avallon.com to register your product, download product guides, and
access additional troubleshooting resources and up-to-date information.
• If you need warranty service, customer service representatives are available via email at service@
avallon.com.

AVALLON.COM 7
®
Parts Identification
LED Lights
Grease Filter
Blower & Light
Controls Grease Filter
Handle

AVALLON.COM 8
®
Dimensions
MODEL ADIMENSION BDIMENSION
ARHI28PAA 28-1/2”
(724mm)
22”
(559mm)
ARHI34PAA 34-1/2”
(876mm)
22”
(559mm)
ARHI40PAA 40-1/2”
(1030mm)
22”
(559mm)
ARHI46PAA 46-1/2”
(1180mm)
22”
(559mm)
10”
(254mm)
12-7⁄16” (316mm)
5-7⁄16”
(138mm)
6-1⁄2”
(164mm)
10-1⁄8” (257mm)
29-13⁄16” (757mm)
27-9⁄16” (700mm)
A
B
3⁄4”
(19mm)

AVALLON.COM 9
®
Accessories

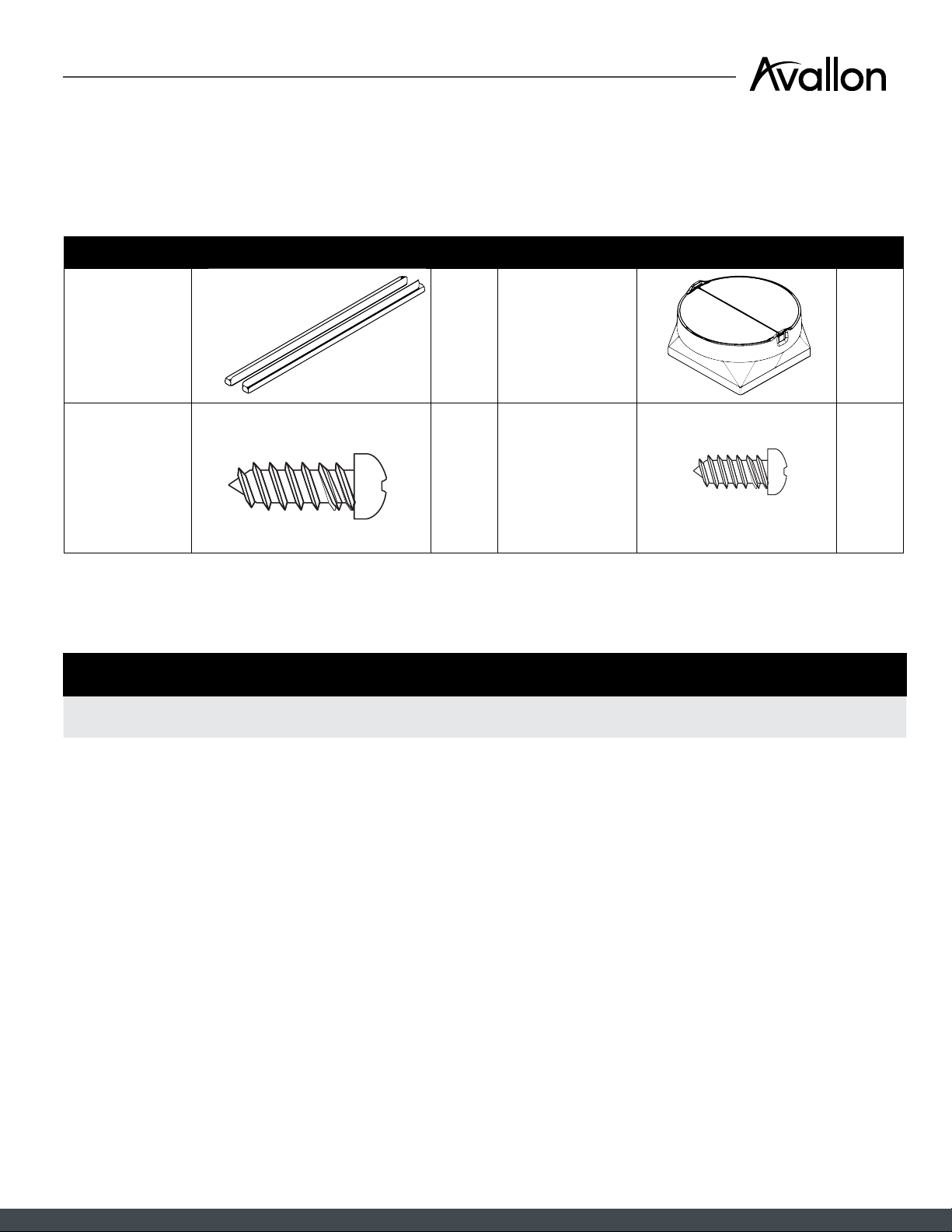

Included Installation Accessories
The Range Hood system comes with the following accessories.
ACCESSORY IMAGE QTY ACCESSORY IMAGE QTY
Side Spacers 2 10” Round Air
Transition 1
5x45mm
Screw 44 x 8mm Screw 10
Optional Accessories
ACCESSORY PART #
CMF REDUCTION BYPASS KIT CFMBK600A/CFMBK1200A
Field Supplied Installation Accessories
The following installaon accessories are required and must be purchased separately.
• Home power supply cable
• 1-1/2” (12.7mm) UL listed or CSA approved strain relief
• Three (3) UL listed wire connectors
• One (1) wall or roof cap
• Metal vent system

AVALLON.COM 10
®
Tools Needed
The following tools are required for installaon.
• Level
• Drill
• Drill bits - 1-1/4” (31.8mm) - 1/8” (3.2mm)
• Pencil
• Wire stripper or utility knife
• Tape measure or ruler
• Pliers
• Caulking gun and weatherproof caulking compound
• Vent clamps
• Jigsaw or keyhole saw
• Metal snips
• Screwdrivers - Flathead -Phillips
Installation Requirements & Preparation
Installation work and electrical wiring must be done by qualified person(s) in accordance with
all applicable codes & standards, including fire-rated construction. See Electrical Safety in the
beginning of this manual.
• At least two people are necessary for installation.
• For the most efficient air flow exhaust, use a straight run or as few elbows as possible.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
• Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
• COLD WEATHER installations should have an additional backdraft damper installed to minimize
backward cold air flow and a nonmetallic thermal break to minimize conduction of outside
temperatures as part of the ductwork. The damper should be on the cold air side of the thermal
break. The break should be as close as possible to where the ducting enters the heated portion of
the house.
• Make up air: Local building codes may require the use of Make-Up Air Systems when using Ducted
Ventilation Systems greater than specified CFM of air movement. The specified CFM varies from
locale to locale. Consult your HVAC professional for specific requirements in your area.
• See “Installation Safety” in the beginning of this manual.
Installation Requirements

AVALLON.COM 11
®
Installation Preparation
• Determine which venting system to use: roof or wall.
It is recommended to install the vent system before the range hood insert.
• Before making cutouts, make sure there is proper clearance within the ceiling or wall for the
exhaust vent.
• Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a
supporting frame must be constructed.
• Screws are provided to secure the insert to most cabinets. However, a qualified technician
must verify suitability of the materials in accordance with the type of wall/ceiling.
• Select a flat surface for assembling the hood insert and place a protective covering over
the surface.
– Use two (2) or more people to lift the hood insert onto the prepared surface.
– Remove the filters. See the “Cleaning the Filters” section.
Venting Options

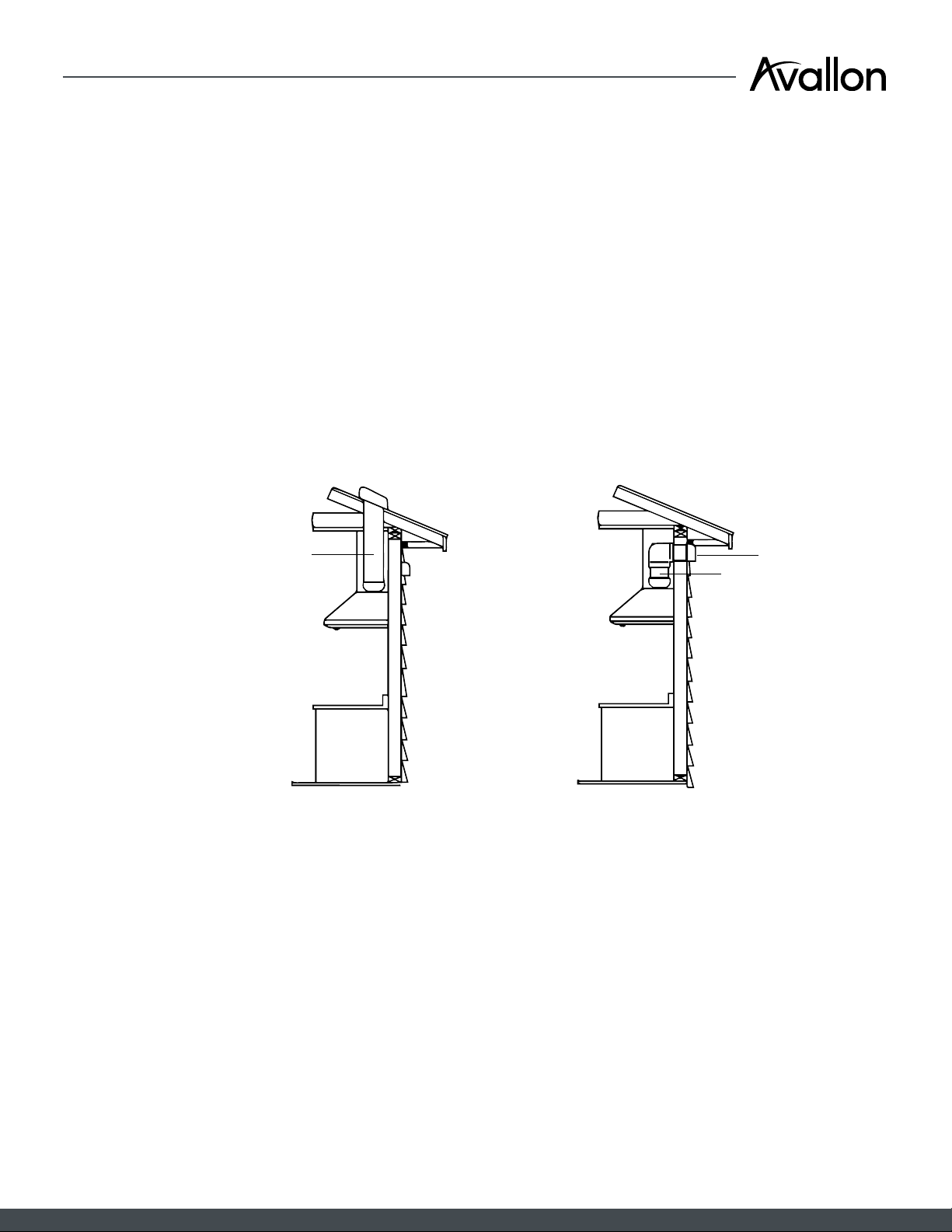

Roof Venting Wall Venting
8” (203mm)
round vent
Roof cap Roof cap or
Side wall cap
w/gravity damper
8” (203mm)
round vent
• For gas cooktop & range installations:
Mount the hood so the bottom is at least 30” (76.2 cm) above the cooking surface.
• For electric/induction cooktop & range installations:
Mount the hood so the bottom is at least 24” (61 cm) above the cooking surface.
There is no maximum mounting height, however, we recomend mounting the hood no greater
than 36” (91.4 cm) above the cooking surface.
For every inch (2.54 cm) above 36” (91.4 cm), fume and moisture capture efficiency diminishes
at an increasing rate and may not deliver an acceptable level of ventilating performance.
Determining Insert Height
Insert installation height above the cooktop is the users preference. The lower the hood is above
the cooktop, the more efficient the capturing of cooking odors, grease, and smoke.

AVALLON.COM 12
®
Clearances
This hood insert has the flexibility to be installed in two different ways, depending on the width
measurement or working area between the left and right cabinetry. Before beginning, it is important to
determine the dimension of this working area and to consider the measurements detailed in the next
table.
Insert
36”
(914mm)
Average
Counter
Height
Min. 24” (610mm)
Max. 36” (914mm)
SEE TABLE (WIDTH)
SEE
TABLE
(DEPTH)
MODEL
WIDTH
WITHOUT
SPACERS
WIDTH
WITH
SPACERS
DEPTH
ARHI28PAA 28-1/2”
(724mm)
30”
(762mm)
22”
(560mm)
ARHI34PAA 34-1/2”
(876mm)
36”
(915mm)
22”
(560mm)
ARHI40PAA 40-1/2”
(1030mm)
42”
(1067mm)
22”
(560mm)
ARHI46PAA 46-1/2”
(1180mm)
48”
(1220mm)
22”
(560mm)
IMPORTANT:
Hood insert cabinet must be capable of supporting 75 lb (34 kg).
Stainless Steel Hood Spacer Installation
• You can elongate 1.5” (3.8 cm) of your range hood
width (¾” [1.9 cm] per side), installing the stainless steel
spacers included with your range hood.
• Unpack the spacers and remove the protective sleeves.
• Put one spacer each, on the right and the left side of the
hood insert.
• Fasten the hood spacers to the hood cabinet using four
(4) 5 x 45mm screws and tighten securely.
• If cabinetry designs reduce the width opening (i.e.
–28.5”, 34.5”, 40.5” or 46.5”) to install the hood, the
spacers are not used.
• If you have a full width opening (i.e. – 30”, 36”, 42” or
48”) to install the hood, you should use the spacers.

AVALLON.COM 13
®
STEP 1. Prepare to Mount the Hood into Cabinet
1. Mark the locations for the four (4) mounting screws on the hood cabinet as shown below.
2. Using a 1/8” (3mm) drill bit, drill four (4) pilot holes.
Centerline
WALL
B
A
C
D
MODEL A B C D
ARHI28PAA 6”
(155mm)
10-1/16”
(256mm)
12-5⁄32”
(309mm)
24-5⁄16”
(618mm)
ARHI34PAA 6”
(155mm)
10-1/16”
(256mm)
14-15⁄16”
(380mm)
29-13⁄16”
(758mm)
ARHI40PAA 6”
(155mm)
10-1/16”
(256mm)
14-15⁄16”
(380mm)
29-13⁄16”
(758mm)
ARHI46PAA 6”
(155mm)
10-1/16”
(256mm)
14-15⁄16”
(380mm)
29-13⁄16”
(758mm)
Four
Pilot
Holes
Four
Screws
Installation Steps
It is recommended to install ductwork before installing the range hood.

AVALLON.COM 14
®
3. Mark the cutout for the rectangular clearance hole for the upper range hood insert motor
housing as shown.
4. Using a jigsaw or keyhole saw, cut out the rectangular clearance hole for the upper range
hood housing.
Upper Range Hood Housing
WALL
B
A
C
D
MODEL A B C D
ARHI28PAA 4-1⁄4”
(108mm)
15-5⁄16”
(389mm)
7-5⁄8”
(195mm)
23-7⁄16”
(595mm)
ARHI34PAA 4-1⁄4”
(108mm)
15-5⁄16”
(389mm)
14-1⁄2”
(368mm)
28-15⁄16”
(735mm)
ARHI40PAA 4-1⁄4”
(108mm)
15-5⁄16”
(389mm)
14-1⁄2”
(368mm)
28-15⁄16”
(735mm)
ARHI46PAA 4-1⁄4”
(108mm)
15-5⁄16”
(389mm)
14-1⁄2”
(368mm)
28-15⁄16”
(735mm)

AVALLON.COM 15
®
STEP 3. Prepare to Connect the Electrical Supply
1. Determine the location where the power supply cable will be run through the wall.
2. Drill a 1-1/4” (32mm) hole at this location.
3. Pull enough power supply cable through the wall to allow for easy connection to the terminal box.
4. Remove the terminal box cover and set aside.
5. Remove the knockout from the top of the vent hood and install a UL listed or CSA approved 1/2”
(13mm) strain relief.
6. Place the hood insert near its mounting position and run the power supply cable through the strain
relief into the terminal box (enough to make connection).
7. Tighten the strain relief screws.
STEP 2. Install the Vent Transition

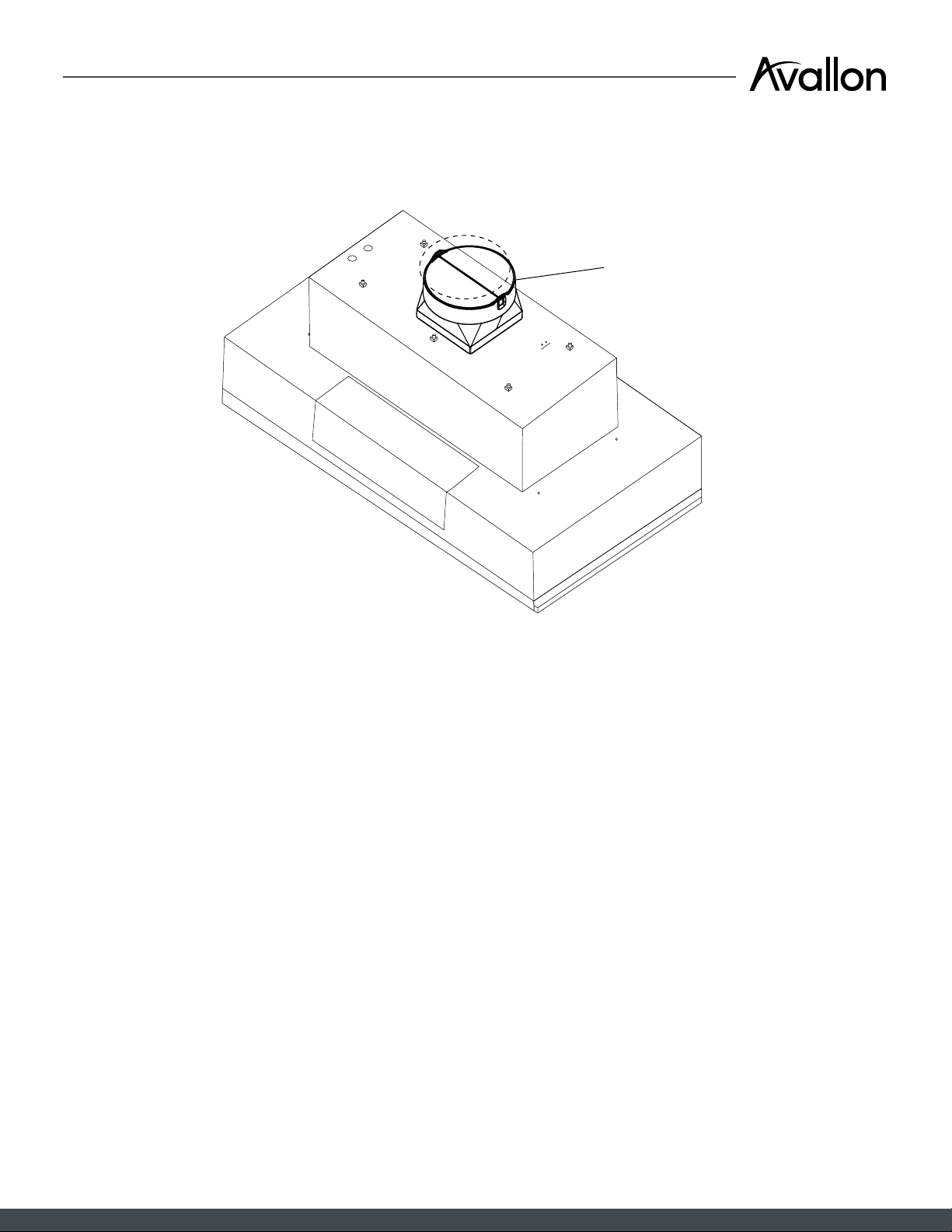

Install the 10” (254mm) square x 10” (254mm) round vent transition with damper to the top side of the
hood insert, using four (4) - 3.5 x 9.5mm screws.
Vent
Transition

AVALLON.COM 16
®
STEP 4. Install the Hood into the Cabinet
1. Using two (2) or more people, lift the hood insert into the hood cabinet.
2. Fasten the hood insert using four 5 x 45mm screws to the hood cabinet and tighten securely.
Four
Screws
STEP 5. Connect the Electrical Supply
1. Disconnect the power.
2. Locate the terminal box inside of the hood insert.
3. Use UL listed wire connectors and connect the black wires together.
4. Use UL listed wire connectors and connect the white wires together.
5. Connect the green (or bare) ground wire from the home power supply to the green/yellow
ground wire in the terminal box using UL listed wire connectors.
6. Install the terminal box cover.
7. Check that all light bulbs are secure in their sockets.
8. Reconnect power.
Terminal
Box Cover
Home
Power
Supply
Strain
Relief

AVALLON.COM 17
®
STEP 6. Complete Installation
1. Install the grease filters. See the “Cleaning the Filters” section.
2. Check the operation of the hood insert blower and lights. See the “Controls” section.

AVALLON.COM 18
®
Operation
The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For
best results, start the hood before cooking and allow it to operate several minutes after the cooking is
complete to clear all smoke and odors from the kitchen.
Controls
Recessed Knobs
You can hide the control knobs by depressing them until they are flush with the hood body. Pressing
the knobs again will lower the knobs and enable the user to operate the lights and blower.
Operating the blower
Operating the lamps
1. Turn the light switch to the “ON” position to turn the range hood lights On.
2. Turn the light switch to the “OFF” position to turn the range hood lights Off.
1. Turn the blower switch to “1” to turn the range hood on.
2. Turn the blower switch to the desired speed position.
3. Turn the blower switch to the “MAX” position to turn the range hood on High.
4. Turn the blower switch to the “OFF” position to turn the range hood blower Off.
Auto On Blower
The range hood is equipped with a sensor to automatically turn on the blower when excessive heat is
detected in the control area. When the blower switch is in the “Off” position, this sensor will turn the
blower to high speed when necessary. When the heat decreases, the blower will turn off.
When the blower switch is in the On position, the heat sensor is not active and the range hood
functions normally.

AVALLON.COM 19
®
Cleaning & Maintenance
Cleaning the Filters
Cleaning the Stainless Steel Hood
Do not use:
• corrosive or abrasive detergents or harsh chemicals like oven cleaners.
• steel wool or abrasive scrubbing pads.
• any product containing chlorine bleach or chloride.
Clean periodically with warm soapy water and a clean cotton or micro fiber cloth. Rub in the direction
of the stainless steel grain. Use a liquid degreaser detergent to remove heavy grease build up.
After cleaning, polish and buff out the stainless steel using a stainless steel polish. Remember to rub in
the direction of the stainless steel grain. Always wipe dry to avoid water marks.
The filters should be cleaned every 30 days, or more often with heavy use.
To remove the filters:

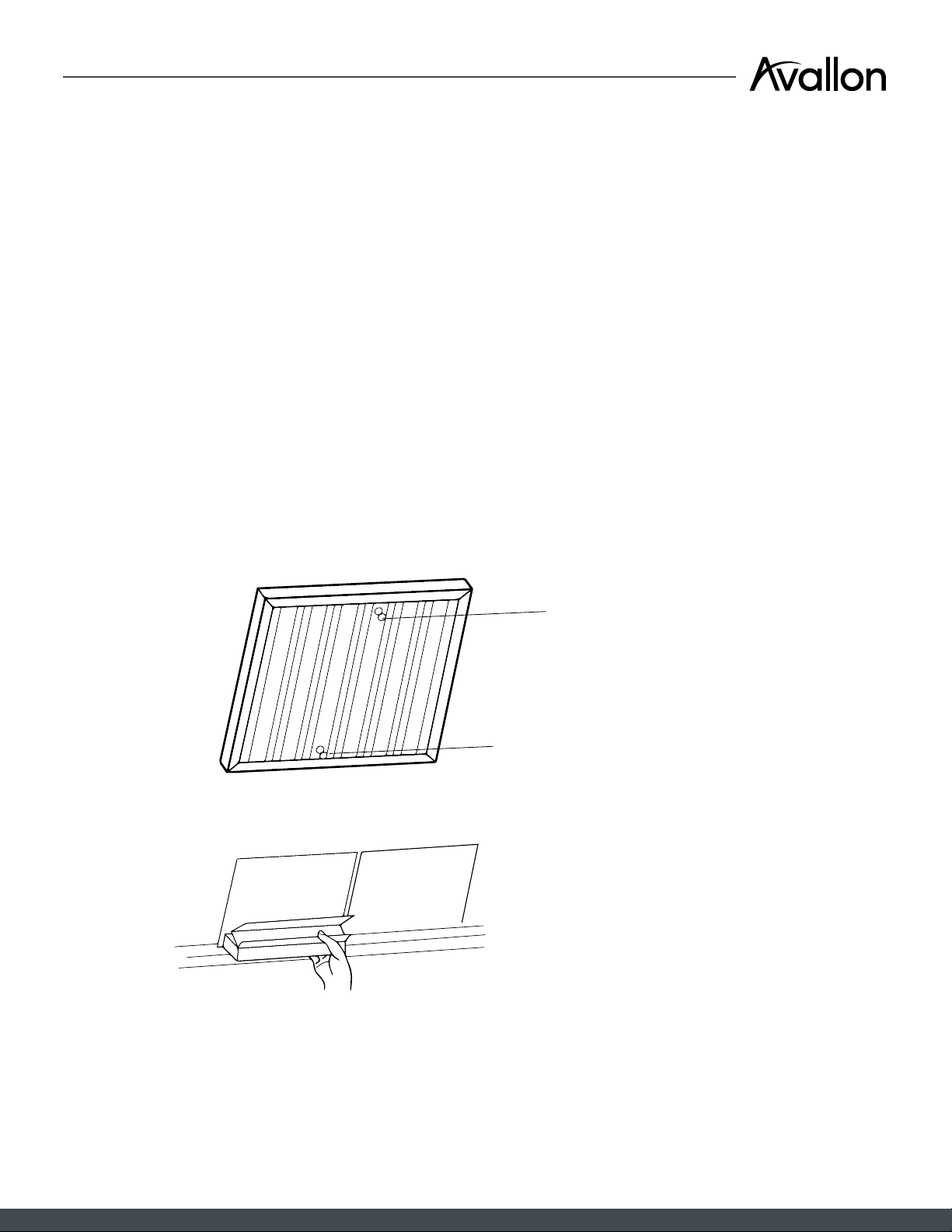

1. Using two hands, grasp the filter handles and pull toward the front.
2. Pull down on the rear handle to remove.
3. Remove grease drip tray.
Rear Handle
Front Handle
4. Wash the metal filters and grease trays in the dishwasher at low heat or soak in hot, soapy water.
5. Dry and replace the grease drip tray.
6. Dry and reinstall the filters by first grasping the filter handles and placing the front edge of the filter
into the hood.
7. Then push up on the back filter handle and set the rear of the filter into the drip tray to secure.

AVALLON.COM 20
®
Replacing a LED Lamp
Turn off the range hood and allow the LED lamp to cool.
To avoid damaging or decreasing the life of the new lamp, do not touch the lamp with bare fingers.
Replace the lamp using tissue or wearing cotton gloves.
If the new lamps do not work, make sure the lamps are inserted correctly before calling service.
To replace a LED lamp:
1. Disconnect the power.
2. Push up on the lens and turn it counterclockwise.
3. Remove the lamp and replace it with a 120-volt, 7.5 W watt maximum LED lamp with a GU10 base.
4. Turn it clockwise to lock it into place.
5. Reconnect the power.
