Avanti CF210G User manual

FREEZER/CONGELADOR
INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES
Model Number/Número de Modelo: CF210G
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 17.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152
www.avantiproducts.com

REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100
days of purchase and receive theseimportant benefits to the following address:
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152 USA
?Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help
you refer to this information in the event of an insurance claim such as fire or theft.
?Promote better products:
We value your input. Your responses will help us develop products designed to best meet your
future needs.
----------------------------------------------------------(detach here)----------------------------------------------------------
Avanti Registration Card
__________________________________ ______________________________________
Name Model # Serial #
__________________________________ ______________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ______________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?Food Loss ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision to purchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other______________________________
?Friend/Relative Recommendation Comments____________________________
?Warranty _____________________________________
?Other_______________________ _____________________________________

HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new freezer properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more help, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the freezer.
Please write these numbers here:
_____________________________________
Date of Purchase
_____________________________________
Model Number
_____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your freezer.
If you received a damaged freezer, immediately
contact the dealer (or builder) that sold you the
freezer.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It lists
causes of minor operating problems that you can
correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased. In
most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA
CAUT
ION:
THIS APPLIANCE IS NOT
DESIGNED FOR THE STORAGE
OF MEDICINE OR OTHER
MEDICAL PRODUCTS.

TABLE OF CONTENTS
Registration Information_______________________________________________ 2
Help Us Help You … __________________________________________________ 4
Parts and Features ___________________________________________________ 6
Important Safety Instructions __________________________________________ 7
Installation Instructions _______________________________________________ 7
Before Using Your Freezer_____________________________________________ 7
Installation of Your Freezer ____________________________________________ 7
Electrical Connection _________________________________________________ 8
Operating Your Freezer________________________________________________ 8
Temperature Control__________________________________________________ 8
Fast Freeze Switch ___________________________________________________ 9
Defrosting Your Freezer _______________________________________________ 9
The Freezer Compartment _____________________________________________ 9
Door Lock __________________________________________________________10
Care and Maintenance _______________________________________________ 10
Cleaning Your Freezer _______________________________________________ 10
Vacation Time_______________________________________________________ 10
Moving Your Freezer_________________________________________________ 10
Energy Saving Tips__________________________________________________ 11
Troubleshooting Guide _____________________________________________ 12,13
Service For Your Freezer _____________________________________________ 14
Your Avanti Products Warranty________________________________________ 15

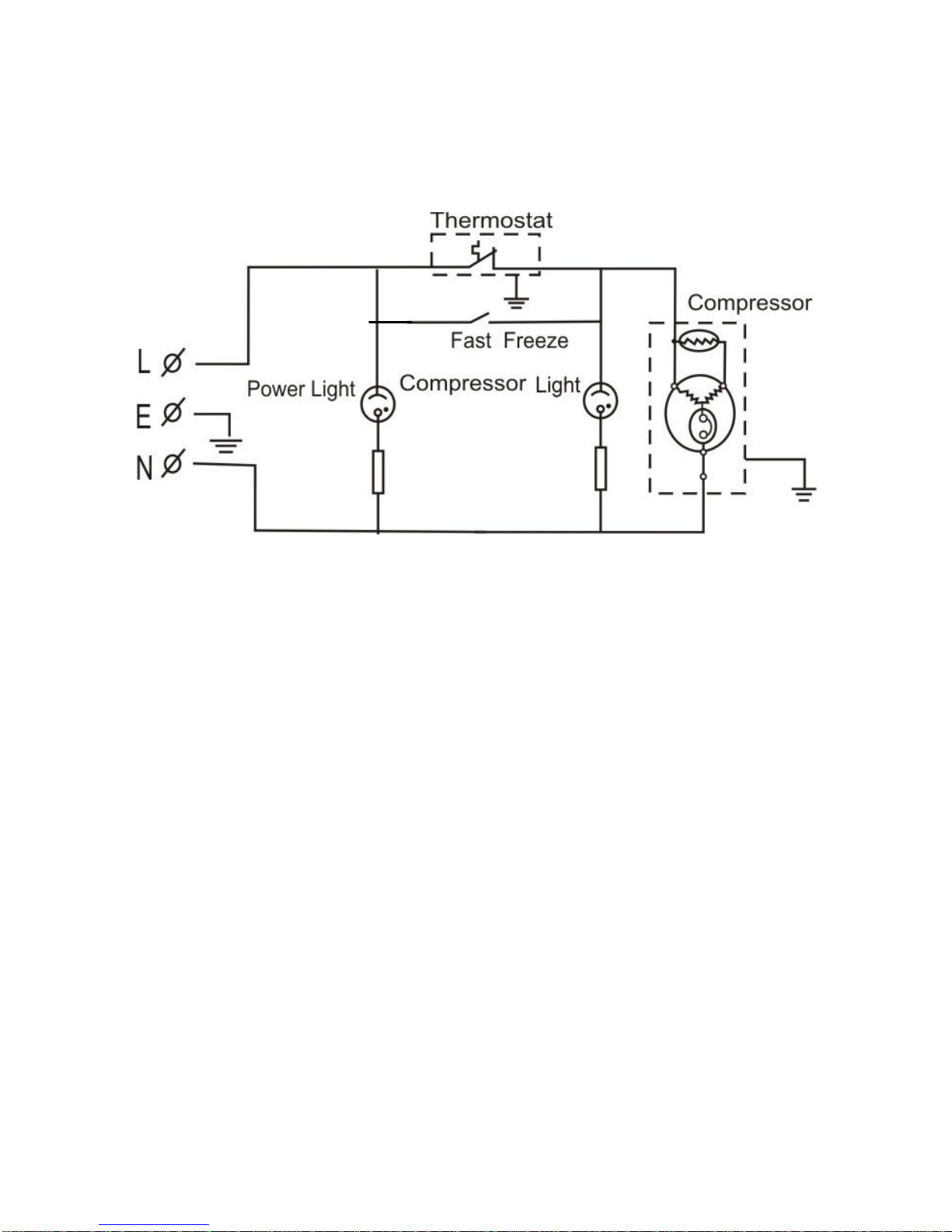

Wiring Diagram ______________________________________________________16
Spanish Section___________________________________________________17-23

PARTS AND FEATURES
1. SLIDING GLASS LIDS
2. DRAIN PLUG
3. ROLLERS
4. FAST FREEZE SWITCH
5. THERMOSTAT CONTROL KNOB
6. COMPRESSOR INDICATOR
7. POWER INDICATOR
8. LID LOCK

IMPORTANT SAFETY INSTRUCTIONS
?WARNING?To reduce the risk of fire, electrical shock,
or injury when using your freezer, follow
these basic precautions:
?Read all instructions before using the freezer.
?Danger or Warning: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous, even if they will “just sit in the garage a
few days.”
?Before you throw away your old freezer: Take off the doors. Leave the shelves in
place so that children may not easily climb inside.
?Never allow children to operate, play with, or crawl inside the appliance.
?Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
?Do not store or use gasoline or any other flammable vapors and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
?Before Using Your Freezer
?Remove the exterior and interior packing.
?Check to be sure you have all of the parts listed below:
?3Storage Baskets
?2 lock keys
?1 Instruction Manual
?1 Plastic Scraper
?Before connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
?Clean the interior surface with lukewarm water using a soft cloth.
?Installation of Your Freezer
?This appliance is designed to be free standing only, and should not be recessed or built-in.
?Place your appliance on a floor that is strong enough to support the appliance when it is fully
loaded. Allow 5 inches of space between the back and sides of the appliance, which allows
the proper air circulation to cool the compressor and condenser.
?Locate the freezer away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the freezer not to perform
properly.
?Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to
form quickly on the evaporator requiring more frequent defrosting of the freezer.
?Plug the appliance into an exclusive properly installed grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.

?After plugging the appliance into a wall outlet, allow the unit to cool down for 2~3 hours
before placing food in the freezer compartment.
?Electrical Connection
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
Use of extension cords is not recommended.
This appliance requires a standard 115/120 Volts A.C.~/60Hz electrical outlet with three-prong ground.
The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental
injury.
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance.
The “POWER” light indicates that the freezer is properly connected to the electrical power. The light
indicates power supply, and will glow even if the temperature control dial is turned to “OFF”, or the
compressor has failed to work and the compartment is not being cooled.
The “COMPRESSOR” light indicates that the compressor is on and running. The compressor should not,
under normal conditions, be running continuously unless the unit is in “Fast Freeze” mode.
OPERATING YOUR FREEZER
?Temperature Control
?Your freezer has one control for regulating the temperature. The temperature control is located on
the lower right hand corner.
?The first time you turn the unit on, switch on the Fast Freeze switch and run for at least 2 hours
before putting frozen foods inside. This will ensure the cabinet is thoroughly chilled before food is
put in.
?Turn off the Fast Freeze switch.
?The range of the temperature control is from position" 1" the warmest to "6" the coldest. Adjust
the temperature control to the setting that best suits your needs. The setting of “4” should be
correct for home or office freezer use.
?To turn the freezer off, turn the temperature control to "OFF".
NOTE:
?Turning the temperature control to "OFF " position stops the cooling cycle but does not shut off
the power to the freezer.
?If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before restarting
?
Warning
?
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized Avanti Products service center.

the unit. If you attempt to restart before this time delay, the freezer will not start.
?Large amounts of food will lower the cooling efficiency of the appliance.
?If you choose to change the thermostat setting, adjust thermostat control by one numerical
increment at a time. Allow several hours for temperature to stabilize between adjustments.
?The Fast Freeze Switch
?The light glows while the Fast Freeze switch is in the ‘ON’ position.
?The switch overrides the thermostat and will make the compressor operate continuously, lowering
the cabinet temperature still further than the thermostat setting.
?This switch is used to freeze unfrozen food in appreciable quantities.
?When loading the freezer, freeze only three pounds of fresh food per cubic foot of freezer space
at one time.
?Distribute packages to be frozen evenly throughout the freezer.
?It is not necessary to adjust the thermostat setting when using the Fast Freeze switch.
?Defrosting Your Freezer
?When? For the most efficient operation and minimum energy consumption, defrost the freezer
when the frost on the freezer walls is excessive or ¼ to ½ inch thick.
?Choose a time when the stock of frozen food is low.
?How?
CAUTION
Do not use boiling water because it may damage the plastic parts. In addition, never use a sharp
or metallic instrument to remove frost as it may damage the cooling coils and will void the
warranty. We recommend using the plastic scraper provided with your unit.
?Remove the frozen food from the freezer and place it in a cooler to protect the food.
?Turn the thermostat knob to “OFF”.
?Unplug the freezer. The Power Supply light should be OFF.
?During the defrost, the ice melts into the cabinet.
?Remove the drain plugon the inside floor of the freezer by screwing out.
?Place a shallow pan outside drain outlet. The defrost water will drain out.
?Check the pan occasionally so the water does not overflow.
?Clean the interior of the freezer.
?Replace the plug on the inside floor.
?Reset the thermostat to desired setting.
?Allow the cabinet to cool for one hour.
?Switch on the Fast Freeze for a minimum of 2 hours.
?Return food to the freezer.
HELPFUL HINT:
Defrosting usually takes a few hours. Leaving the door open will help speed the process. Also,
pouring warm water (not boiling) on the ice/frost will help speed melting. If you must use a
scraper-please use caution -it is very easy to damage the freezer compartment and void your
warranty.
?The Freezer Compartment
?This compartment is designed for the long term storage of frozen food. Storage time is up to
three months.

?The storage life of frozen foods varies and the recommended storage time should not be
exceeded. The instructions regarding the care of frozen foods should be followed when
defrosting the freezer.
?Pre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturer’s instructions for a three star frozen food storage compartment or home freezer.
?Place frozen food into the freezer as quickly as possible after purchase. If there are instructions
on the packet, carefully follow these instructions regarding storage times.
?The freezer door is susceptible to breaking due to excessive ice build up. Be sure to defrost
when the icereaches ¼ to ½ inch thick.
?A storage basket is provided for the organization of odd-shaped items. To reach other packages
in the freezer, just slide the basket to one side, or lift it out.
?Door Lock
Your unit is provided with a lock and key combination. The keys are located inside the plastic bag that
contains the User's Guide. Insert the key into the lock and turn it counterclockwise to unlock the door.
To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the
key and place it in a secure place for safekeeping.
CARE AND MAINTENANCE
?Cleaning Your Freezer
?Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
?Turn the temperature control to "OFF", unplug the freezer, remove the food and storage baskets.
?Wash the inside with a damp warm cloth containing a water and baking soda solution. The
solution should be about 2 tablespoons of baking soda to a quart of water.
?Wash the storage baskets with a mild detergent solution.
?Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
?The outside of the freezer should be cleaned with mild detergent and warm water.
?Dry the interior and exterior with a soft cloth.
?The condenser coils should be vacuumed when they are dusty or dirty.
?It is recommended that the unit be cleaned each time it is defrosted to help keep the unit odor
free and running efficiently.
?Vacation Time
?Remove all the food.
?Unplug the freezer.
?Clean the freezer.
?Leave the door open slightly to avoid possible formation of condensation, mold, or odors.
?Use extreme caution in the case of children. The unit should not be accessible to child’s play.
?Short vacations: Leave the freezer operating during vacations of less than three weeks.
?Long vacations: If the appliance will not be used for several months, remove all food and unplug
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave
the door open slightly: blocking it open if necessary or have the door removed.
?Moving Your Freezer
?Remove all the food.
?Securely tape down all loose items inside your freezer.
?Remove the rollers to prevent damage
?Tape the doors shut.
?Be sure the freezer stays in the upright position during transportation.

?Energy Saving Tips
?The freezer should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
?Let hot foods cool to room temperature before placing in the freezer. Overloading the freezer
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
?Be sure to wrap foods properly, and wipe containers dry before placing them in the freezer. This
cuts down on frost build-up inside the freezer.
?Freezer storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the freezer less efficient.
?Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.

PROBLEMS WITH YOUR FREEZER ?
You can solve many common freezer problems easily, saving you the cost of a possible service call. Try
the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Freezer does not operate. Not plugged in.
The circuit breaker tripped or blown fuse.
The freezer temperature control is set at "OFF".
Compressor turns on and off frequently. The room temperature is hotter than normal.
A large amount of food has been added to the
freezer.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The freezer does not have the correct
clearances.
The freezer has recently been disconnected for a
period of time. Four hours are required for the
freezer to cool down completely.
Temperature inside the freezer is too warm. Temperature control is set too warm. Turn the
control to a cooler setting and allow several hours
for the temperature to stabilize.
Door is kept open too long or is opened too
frequently. Warm air enters the freezer every
time the door is opened. Open the door less
often.
The door is not closed completely.
The door gasket does not seal properly.
A large amount of warm or hot food might have
been stored recently. Wait until the freezer has
had a chance to reach its selected temperature.
The freezer has recently been disconnected for a
period of time. Four hours are required for the
freezer to cool down completely.
Temperature inside the freezer is too cold. Temperature control is set too cold. Turn the
control to a warmer setting (3 or 4) and allow
several hours for the temperature to stabilize.
Fast Freeze switch is turned ON. This causes
continuous running of the compressor and
bypasses the temperature control.
Temperature of external freezer surface is warm. The exterior freezer walls can be as much as
30?F warmer than room temperature. This is
normal while the compressor works to transfer
heat from inside the freezer cabinet.
Popping or cracking sound when compressor
comes on. Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will
level off or disappear as freezer continues to run.
Bubbling or gurgling sound, like water boiling. Refrigerant (used tocool freezer) is circulating
throughout the system. This is normal.

Vibrations. Check to assure that the freezer is not on a level
surface.
Floor is uneven or weak. Freezer rocks on the
floor when it is moved slightly. Be sure floor can
adequately support freezer. Level the freezer by
putting wood or metal shims under part of the
freezer.
The freezer is touching the wall. Re-level the
freezer and move it from the wall.
See “Installation Instructions”
Moisture forms on inside freezer walls. Weather is hot and humid, which increases
internal rate of frost build-up. This is normal.
Door is slightly open.
Door is kept open too long, or is opened too
frequently. Open the door less often.
The door is not sealed properly.
Moisture forms on outside of freezer. Door is slightly open, causing cold air from inside
the freezer to meet warm moist air from outside.
The door will notclose properly. The freezer is not on a level surface.
The gasket is dirty.
The storage basket is out of position.

SERVICE FOR YOUR FREEZER
We are proud of our customer service organization and the network of professional service technicians
that provide service on your Avanti appliances. With the purchase of your Avanti freezer, you can have
the confidence that if you ever need additional information or assistance the Avanti Products Customer
Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323 5029 Whatever your questions are about our products, help is available.
Part Orders
800-220 5570 You may order parts and accessories that will be
delivered directly to your home.
You may order these items by personal check,
money order, Master Card, or Visa.
In-Home Repair Service
800-220 5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenientfor you. Our trained servicers
know your freezer inside and out.

YOUR Avanti Products WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of purchase
by the original owner, Avanti Products
will, at its option, repair or replace any
part of the freezer, which proves to be
defective in material or workmanship
under normal use. During this period
Avanti Products will provide all parts and
labor necessary to correct such defects
free of charge, so long as the appliance
has been installed and operated in
accordance with the written instructions
in this manual. In rental or commercial
use, the warranty period is 90 days. All
Avanti Appliances of 3.5 cubic feet
capacity or less must be brought/sent to
the appliance service shop for repair.
?Content losses of food due to spoilage.
?Incidental or consequential damages.
?Parts and labor costs for the following will
not be considered as warranty:
?Chest freezer lid liners.
?Light bulbs and/or plastic housing.
?Plastic cabinet liners.
?Punctured evaporator that voids the
warranty on the complete sealed system.
?Repairs performed by unauthorized
servicers.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will provide
a replacement compressor free of charge due to
a failure. You are responsible for the service
labor and freight charges. In rental or
commercial use, the limited compressor
warranty is one year and nine months. Cost to
move the appliance to the servicers’ shop and
back to the user's home, as may be required,
are the user's responsibility.
?Service calls that do not involve defects in
material or workmanship such as customer
education, or proper installation.
?Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents, fire,
floods, or actsof God.
?Replacement of house fuses or resetting
circuit breakers.
?Failure of the product if it is used for other
than its intended purpose.
?This warranty does not apply outside the
Continental USA.
WHAT IS NOT COVERED

WIRING DIAGRAM

INSTRUCCIONES EN ESPAÑOL
PRECAUCIÓN
Para reducir el riesgo de incendio, descarga eléctrica, o daño cuando use su
electrodoméstico, siga las siguientes
precauciones.
?Lea todas las instrucciones antes de usar su electrodoméstico.
?Peligro o Precaución: Existe el riesgo que los niños queden atrapados.
?Niños atrapados o sofocamiento no son un problema del pasado. Los electrodomésticos
son peligrosos aún si sólo los deja en el garaje por un par de días.
?Antes de desechar su congelador o refrigerador usado: quítele las puertas. Deje las
repisas en su lugar para evitar que los niños se queden atrapados.
?No permita que los niños manejen, jueguen o entren dentro del electrodoméstico.
?No limpie su electrodoméstico con líquidos inflamables. Los gases pueden ocasionar
fuego o una explosión.
?No guarde ni use gasolina u otros líquidos inflamables cerca de este o de cualquier otro
electrodoméstico. Los vapores pueden ocasionar fuego o explosión.
-Guarde estas instrucciones.-
INSTRUCCIONES PARA LA INSTALACION
?Antes de Usar su Artefacto
?Retire la envoltura interna y externa.
?Verifique que tenga las siguientes partes: 1 canasta de almacenaje, 1 manual de
instrucciones,un separador y 1 espátula de plástico
?Antes de conectar su electrodoméstico a la corriente eléctrica, ubíquelo en una superficie plana
por lo menos por 2 horas. Esto reducirá la posibilidad de malfuncionamiento en el sistema de
enfriamiento por la manipulación durante el transporte.
?Limpie la superficie interior con agua tibia usando un paño suave.
?Instalación de su Congelador
?Ubique su congelador en un piso que sea lo suficientemente fuerte para soportar su peso cuando
estétotalmente lleno o cargado.
?Deje aproximadamente 3 pulgadas de espacio entre la parte trasera y los costados de su
electrodoméstico, así permitirá la circulación de aire necesaria para enfriar el compresor.
?Mantenga su congelador alejado del aire caliente, vapor o líquidos que puedan salpicarlo, ya que la
unidad podría averiarse.
?Los rayos solares directos pueden dañar la capa acrílica, y las fuentes de calor pueden ocasionar un
aumento en el consumo eléctrico. Manténgalo lo más alejado posible del agua para prevenir algún
choque eléctrico. Evite los sitios húmedos y los ambientes extremadamente fríos ya que esto puede
afectar la eficiencia del enfriamiento de su congelador.
?Evite ubicar su congelador en áreas mojadas o muy húmedas. Mucha humedad en el aire puede
causar la formación de escarcha rapidamente y necesitará descongelar su congelador más
frecuentemente.
?Conecte el congelador a un enchufe de pared exclusivo e instale el cable de tierra. Bajo ninguna
razón se debe retirar la tercera punta del enchufe. Cualquier consulta con respecto a la energía y/o
cable de tierra debe ser dirigida a un electricista certificado o autorizado por el Servicio Técnico de
Avanti Products.
?Conexión eléctrica
Este electrodoméstico debe ser conectado a tierra. En el caso que ocurra un corto circuito, la
conexión a tierra reduce el riesgo de recibir un choque eléctrico ya que cuenta con un alambre

para el escape de la corriente eléctrica. Este electrodoméstico está equipado con un enchufe que
consta de tres puntas, la tercera punta es la conexión a tierra. Este enchufe debe ser insertado a
un enchufe de pared que este correctamente instalado con la conexión a tierra.
ADVERTENCIA
?El usoinapropiado del enchufe a tierra puede desencadenar un choque eléctrico. Consulte a
personal autorizado por Avanti Productos si tiene alguna duda sobre las instrucciones o si tiene
alguna consulta si el electrodoméstico está correctamente instalado a la corriente eléctrica y a tierra.
Si el cordón del enchufe del electrodoméstico se encuentra dañado, debe ser reemplazado por el
Servicio Técnico de Avanti Products.
?El cordón del enchufe está equipado con tres puntas que encajan perfectamente en un enchufe de
pared standard para reducir el riesgo de un choque eléctrico.
?Bajo ninguna circunstancia corte o saque la tercera punta del enchufe que le proveemos ya que éste
es para que vaya conectado a tierra.
?No use una extensión.
?La corriente de este electrodoméstico es de 115/120 voltios C.A., tiene una salida eléctrica de 60 hz.
y consta de un enchufe de tres puntas que va conectado al enchufe de pared.
?El cordón del enchufe debe ser asegurado atrás del electrodoméstico y no dejarlo expuesto para
evitar accidentes.
Si la luz verde que indica “POWER” (Encendido) está encendida quiere decir que el congelador está
apropiadamente conectado a la corriente eléctrica. La luz indica que está recibiendo energía eléctrica, y
se iluminará aún cuando Ud. cambie el control de temperatura a “OFF”, ó cuando pare de trabajar el
compresor y el compartimiento no esté enfriando.
Si la luz ambar que indica “Fast Freeze” (Compresor encendido) está encendida quiere decir que el
compresor está funcionando. Bajo condiciones normales, el compresor no debe funcionar
continuamente a menos que la unidad esté en el modo de Congelamiento Rápido.
USANDO SU CONGELADOR
?Control de Temperatura
?Su congelador tiene un control que regula la temperatura. El control de temperatura está ubicado en
la esquina inferior a mano derecha.
?La primera vez que encienda el congelador, use el modo de Congelamiento Rápido (Red) marcado
FAST FREEZE SWITCH (RED), déjelo encendido por lo menos 4 horas antes de colocar alimentos
dentro de su congelador. Esto asegurará que la cabina esté completamente fría antes de colocar los
alimentos.
?Apague el botón de Congelamiento Rápido.
?El control de temperatura va desde lo más caliente “1” hasta lo más frío “6” también tiene “OFF”.
Ajuste el control de temperatura al nivel que usted necesite. El nivel “4” es el más adecuado para
uso en la casa u oficina.
?Para detener el enfriamiento de su congelador, mueva el control de temperatura a la posición “OFF”
NOTA:
?Si gira la temperatura a la posición “OFF” detendrá el ciclo de enfriamiento, esto no significa que
apagará el congelador.
?Si la unidad se desconecta, pierde corriente o se apaga la llave principal, tendrá que esperar 3 a
5 minutos para volver a reiniciar la unidad. Si usted intenta reiniciar antes de este tiempo su
congelador no encenderá.

?El Botón de Congelamiento Rápido (Red) \FAST FREEZE SWITCH (RED)
?Mientras el Botón de Congelamiento Rápido esté encendido, la luz estará encendida
?El Botón de Congelamiento Rápido ignora al termostato y permite que el compresor trabaje
continuamente, bajando la temperatura de la cavidad aún cuando el termostato no esté funcionando.
?Este Botón se usa para congelar alimentos frescos en cantidades grandes.
?Cuando coloque alimentos en su congelador, congele tres libras de alimentos frescos por pie cúbico.
?Distribuya los alimentos para que se congelen de manera uniforme.
?No es necesario ajustar el termostato cuando utiliza el modo de Congelamiento Rápido.
?Descongelando
?Cuando descongelar? Para el mejor funcionamiento y consumo mínimo de energía de
su congelador, descongele cuando las paredes internas estén llenas de escarcha o
tengan un espesor de ¼ a ½ pulgada.
?Escoja un momento cuando no tenga muchos alimentos en el congelador.
?Cómo descongelar? Siguiendo estas indicaciones:
ADVERTENCIA
No use agua hirviendo porque dañará las partes de plástico. Tampoco use puntas o
instrumentos metálicos para retirar la escarcha ya que dañará el espiral de enfriamiento y
cancelará la garantía. Le recomendamos usar la espátula de plástico incluída con esta unidad.
?Retire los alimentos del congelador y colóquelos en una caja térmica para conservarlos y
protegerlos.
?Gire el termostato a la posición “OFF”.
?Desconecte el congelador. La luz indicadora de suministro de energía se apagará (luz
verde apagada).
?Durante el descongelamiento, el hielo se derrite dentro de la cabina.
?Para drenar el líquido retire la tapa de drenaje situada enla pared izquierda.
?Retire la tapa de la pared izquierda.
?Coloque una bandeja afuera de la pared izquierda para que drene.
?Vigile la bandeja de vez en cuando para que no se desborde.
?Limpie el interior de su congelador (vea la Pág. 18 Limpiando su congelador)
?Coloque la tapa de drenaje dentro del congelador y fuera del gabinete.
?Reconfigure el termostato según lo deseado.
?Deje que la cabina se enfríe por una hora, luego coloque los alimentos.
?Encienda el modo de Congelamiento Rápido por lo menos dos horas.
?Coloque los alimentos en el congelador.
INFORMACION ADICIONAL:
El descongelamiento toma pocas horas. Le ayudará, dejar abierta la puerta del congelador para
apresurar el proceso de descongelamiento. Para acelerar el descongelamiento, eche agua
caliente (no hirviendo), al hielo y la escarcha. Tenga mucho cuidado si usa la espátula para
raspar el hielo, si lo hace muy fuerte puede dañar el compartimiento de su congelador y anular la
garantía.
Compartimiento de su Congelador
?Este compartimiento está diseñado para un período largo (3 meses) de almacenamiento
de alimentos congelados.

?El tiempo de almacenamiento de los alimentos congelados varía y se recomienda
almacenar no más del tiempo recomendado. Cuando descongele su congelador deberá
seguir cuidadosamente las instrucciones.
?Alimentos congelados preenvasados comercialmente deben ser almacenados de
acuerdo con las indicaciones de su fabricante.
?Coloque los alimentos congelados dentro de su congelador inmediatamente después de
comprarlos. Si hay indicaciones en el envase, sígalas cuidadosamente considerando el
tiempo de almacenamiento.
?La puerta del congelador puede quebrarse cuando hay mucho hielo. Asegúrese de
descongelarlo cuando el hielo haya excedido de ¼ a ½ pulgada de espesor.
?La canasta de almacenaje está diseñada para organizar toda clase de alimentos. Para
colocar otros paquetes en su congelador, mueva la canasta a un lado o sáquela.
CUIDADO Y MANTENIMIENTO
?Limpiando su Congelador
?Después de instalar su congelador, se le recomiendaque este sea limpiado a fondo.
?Gire el control de temperatura a “0”, desconecte el congelador y retire los alimentos y la canasta de
almacenaje.
?Lave el interior con agua tibia y un trapo suave remojado en una solución de bicarbonato de sodio.
La solución consiste en dos cucharadas de la referida sal en un litro de agua.
?Lave la canasta de almacenaje con un detergente suave.
?Asegúrese que la puerta quede hermeticamente cerrada para que su congelador funcione
eficientemente.
?Las partes externas de su congelador deben ser limpiadas con un detergente suave y agua tibia.
?Seque el interior y el exterior con un paño suave.
?Se recomienda que la unidad sea limpiada en el momento en que se descongela, con la finalidad de
que quede libre de mal olor y operando eficientemente.
?Si usted sale de Vacaciones
?Retire todos los alimentos
?Desconecte su congelador
?Limpie su congelador
?Deje la puerta de su congelador ligeramente abierta para evitar la formación de mal olor,
moho.
?Sea extremadamente cuidadoso si hay niños. El congelador no debe ser accesible a los
niños.
?En el caso de ser un largo tiempo de almacenamiento, la puerta deberá ser sellada con
cinta adhesiva para que no se abra o se deberá retirar la puerta.
?Para mover su Congelador
?Retire los alimentos
?Asegúrese de colocar cinta adhesiva a todo lo que se puede caer dentro de su
congelador.
?Retire las ruedillas para prevenir accidentes.
?Selle las puertas con cinta adhesiva.
?Asegúrese que el congelador se mantenga parado durante el traslado.
?Consejos Para Ahorrar Energía
?Su congelador debe estar ubicado en el área más fría de la habitación, alejado de
electrodomésticos que produzcan calor o conductos de aire caliente y lejos de los rayos
solares.
