Avanti FF992PS User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers / No. de Modelos : FF991W / FF992PS
DELUXE FROST FREE
REFRIGERATOR-FREEZER
REFRIGERADOR-CONGELADOR
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 16.
Avanti has a policy of continuous improvement on its products and reserves the right to change
materials and specifications without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

2
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read and
obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words ” DANGER”, “WARNING” or “CAUTION”.
Danger means that failure to heed this safety
statement may result in severe personal
injury or death.
Warning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
Caution means that failure to heed this
safety statement may result in minor or
moderate personal injury, property or
equipment damage.
All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of
injury, and let you know what can happen if the instructions are not followed.

3
IMPORTANT SAFEGUIDES
Before the refrigerator is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the refrigerator, follow basic precautions,
including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
•It is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
•Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure the power line of the unit
is disconnected.
•Do not connect or disconnect the electric plug when your hands are wet.
•Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
•Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
•Use two or more people to move and install refrigerator. Failure to do so can result in back or other
injury.
•To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F
(32°C). This unit must be installed in an area protected from the element, such as wind, rain, water
spray or drips.
•The refrigerator should not be located next to ovens, grills or other sources of high heat.
•The refrigerator must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
•Do not kink or pinch the power supply cord of refrigerator.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
•All installation must be in accordance with local plumbing code requirements.
•Make certain that the pipes are not pinched or kinked or damaged during installation.
•Check for leaks after connection.
•Never allow children to operate, play with or crawl inside the refrigerator.
•If you use the drainage container, you must set the drain select switch to OFF or the water can
overflow from the drainage container
•Although the unit has been tested at the factory, due to long-term transit and storage, the first batch
of ice cubes must be discarded.
•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
•Do not use this apparatus for anything other than its intended purpose.

4
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new refrigerator-freezer properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
wall of the refrigerator-freezer.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
Serial Number
Use these numbers in any correspondence or
service calls concerning your
refrigerator-freezer.
If you received a damaged refrigerator-freezer,
immediately contact the dealer (or builder) that
sold you the refrigerator-freezer.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
refrigerator-freezer. Explain why you are not
satisfied. In most cases, this will solve the
problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172
CAUTION:
THIS REFRIGERATOR-FREEZER
IS NOT DESIGNED FOR THE
STORAGE OF MEDICINE OR
OTHER MEDICAL PRODUCTS.

5

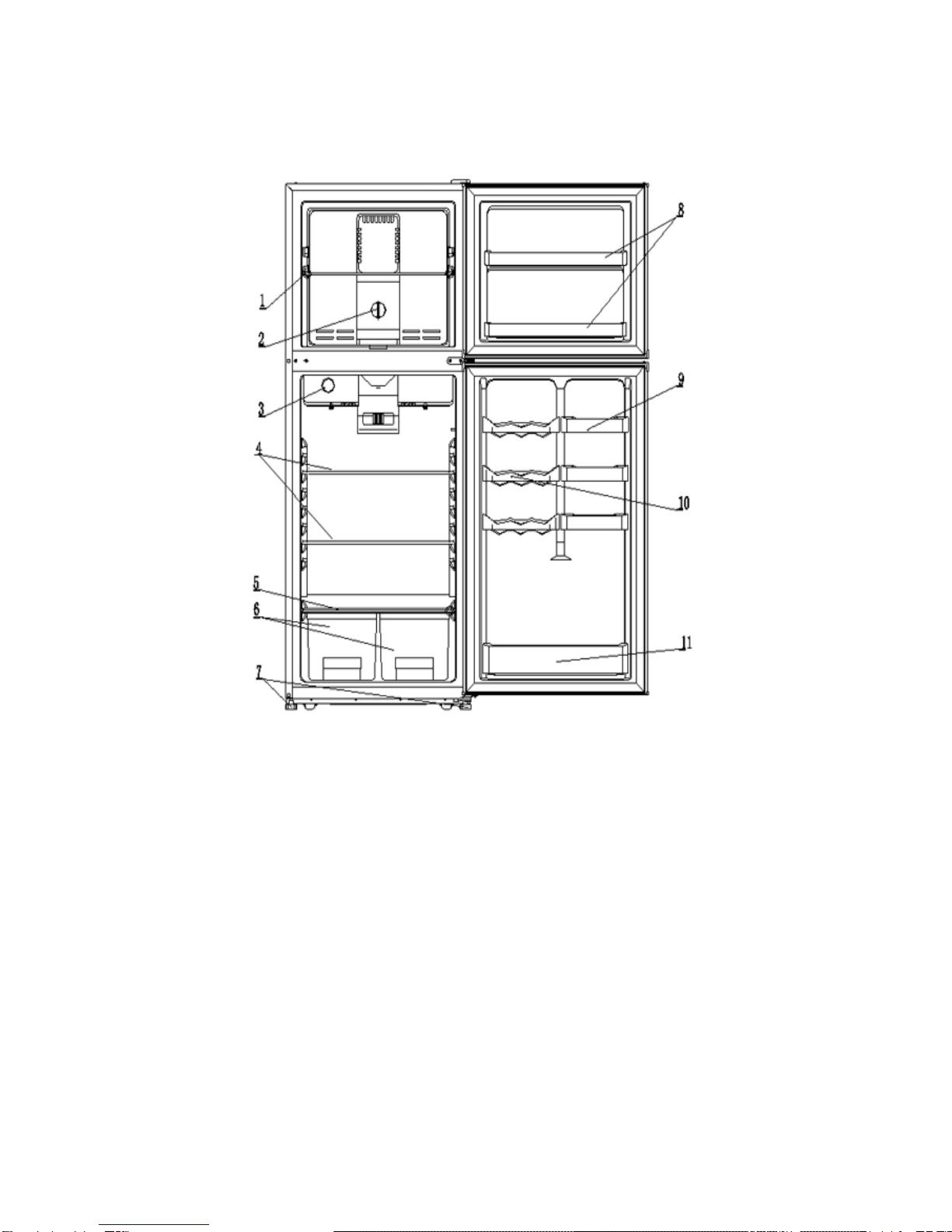

1. FREEZER SHELF
2. FREEZER TEMPERATURE CONTROL SELECTOR
3. REFRIGERATOR TEMPERATURE CONTROL KNOB
4. REFRIGERATOR WIRE SHELVES (FF991W ONLY)
REFRIGERATOR GLASS SHELVES (FF992PS ONLY)
5. CRISPER LID
6. CRISPERS
7. LEVELING LEGS
8. FREEZER DOOR BINS
9. REFRIGERATOR DOOR RACKS
10. CAN DISPENSERS
11. 2-LITER BOTTLE STORAGE
PARTS AND FEATURES

6
TABLE OF CONTENTS
REFRIGERATOR SAFETY 2
IMPORTANT SAFEGUIDES 3
HELP US HELP YOU … 4
PARTS AND FEATURES 5
IMPORTANT SAFETY INSTRUCTIONS 7
INSTALLATION INSTRUCTIONS 7
BEFORE USING YOUR APLIANCE 7
INSTALLATION OF YOUR APPLIANCE 7
ELECTRICAL CONNECTION 8
EXTENSION CORD 8
REVERSING THE DOOR SWING OF YOUR APPLIANCE 8
OPERATING YOUR APPLIANCE 9
TEMPERATURE CONTROL PANELS 9
SETTING THE TEMPERATURE CONTROL 9
USING YOUR ICE CUBE TRAY 9
FREEZING FRESH FOODS 10
CARE AND MAINTENANCE 10
CLEANING YOUR APPLIANCE 10
POWER FAILURE 10
VACATION TIME 10
MOVING YOUR APPLIANCE 10
ENERGY SAVING TIPS 11
REPLACING YOUR LIGHT BULB 11
TROUBLESHOOTING GUIDE 12
SERVICE FOR YOUR APPLIANCE 13
YOUR AVANTI PRODUCTS WARRANTY 14
WIRING DIAGRAM 15
INSTRUCCIONES EN ESPAÑOL 16~20
REGISTRATION INFORMATION 21

7
IMPORTANT SAFETY INSTRUCTIONS
aWARNINGa
To reduce the risk of fire, electrical shock,
or injury when using your refrigerator
-freezer, follow these basic precautions:
•Read all instructions before using the refrigerator-freezer.
•DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerator-freezers are still dangerous. . . even if they will “just sit in the garage a few
days.”
•Before you throw away your old refrigerator-freezer: Take off the doors. Leave
the shelves in place so that children may not easily climb inside.
•Never allow children to operate, play with, or crawl inside the refrigerator-freezer.
•Never clean refrigerator-freezer parts with flammable fluids. The fumes can create a
fire hazard or explosion.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other refrigerator-freezer. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
¾Before Using Your Appliance
•Remove the exterior and interior packing.
•Check to be sure you have all of the following parts:
•1 Ice Cube Tray
•2 Refrigerator Shelves
•2 Freezer Bins
•1 Instruction Manual
•1 piece of door stopper for the reversal of door opening
•2 pieces of hole cover for middle hinge
•Before connecting the unit to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
¾Installation of Your Appliance
•Place your refrigerator-freezer on a floor that is strong enough to support the refrigerator-
freezer when it is fully loaded. To level your refrigerator-freezer, adjust the leveling legs at the
bottom of unit.
•Allow 2 inches of space between the back and sides of the unit, which allows the proper air
circulation to cool the compressor and condenser.
•Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the refrigerator- freezer not
to perform properly.
•Avoid locating the unit in moist areas.
•Plug the unit into an exclusive properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an

8
authorized Avanti Products service center.
¾Electrical Connection
This unit should be properly grounded for your safety. The power cord of this unit is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This unit requires a standard 115/120 Volt AC ~/60Hz electrical outlet with three-prong ground. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the unit and not left exposed or dangling to prevent accidental
injury.
The unit should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also helps prevent
overloading of house wiring circuits, which could result in a fire hazard. Never unplug the unit by pulling
the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either end. When moving the unit, be careful not
to damage the power cord.
¾Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this unit. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10
amperes.
¾Reversing the Door Swing of Your Appliance
This refrigerator-freezer has the capability of the door opening from either the left or right side. The unit
is delivered to you with the door opening from the left side. Should you desire to reverse the opening
direction, please call service for reversal instructions.
aWarninga
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.

9
OPERATING YOUR APPLIANCE
¾Temperature Control Panels
Refrigerator Temperature Control Freezer Temperature Control
¾Setting the Temperature Control
•Your refrigerator has one control for regulating the temperature. The temperature control is located
on the top left hand corner of the refrigerator compartment.
•The first time you turn the unit on, adjust the temperature control knob to “MAX” and run for at least
2 hours before placing foods inside. This will ensure the cabinet is thoroughly chilled before food is
placed. Then return selector to “MED” position.
•The range of the REFRIGERATOR/FREEZER temperature control is from position "MIN" the
warmest to "MAX" the coldest. Adjust the temperature control to the setting that best suits your
needs. The setting of “MED” should be appropriate for home or office refrigerator use.
NOTE:
IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IS TURNED OFF, YOU MUST WAIT 3
TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE
THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START.
TURNING THE REFRIGERATOR TEMPERATURE CONTROL TO “OFF” POSITION STOPS THE
COOLING CYCLE BUT DOES NOT SHUT OFF THE POWER TO THE UNIT.
¾Using Your Ice Cube Tray
•Recommended thermostat setting for ice making is position “MAX”.
•Fill the ice cube tray (two thirds of it) with cold water or with any liquid suitable for
freezing and place the tray on the bottom of the freezer to freeze properly.
•Dry the tray, otherwise it may stick to the bottom of the freezer.
•The best method to get ice cubes out of the tray is to hold the tray under cold tap
water for a second.
•To eject the ice cubes from the tray, place over the ice bucket and twist slightly

10
¾Freezing Fresh Foods
•Proper use of the appliance, adequately packed food, correct temperature and taking into account
hygienic precautions will substantially influence the quality of freezing the food or storing of the
frozen foods.
•This compartment is designed for the long-term storage of frozen food.
•The storage life of frozen foods varies and the recommended storage time should not be exceeded.
•Pre-packed commercially frozen food should be stored in accordance with the frozen foods
manufacturer’s instructions for a three star frozen food storage compartment or home freezer.
•Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on
the packet, carefully follow these instructions regarding storage times.
•Carefully select food you intend to freeze, it should be of adequate quality and suitable for freezing.
•Use correct packaging and wrap it tight.
•The packaging should be airtight and shouldn’t leak since this could cause substantial vitamin loss
and dehydration of foods.
•Foils and bags should be soft enough to tightly wrap around the foods.
•When preparing foods to be frozen, consider sanitary precautions.
•Mark packages with following data: kind and amount of foods and the date of loading.
•It is extremely important that the food is frozen as quickly as possible.
•If the loading amount is too large, the quality of freezing is reduced which affects the quality of
frozen foods.
CARE AND MAINTENANCE
¾Cleaning Your Appliance
•Turn the temperature control to "OFF", unplug the unit, and remove the food and baskets.
•Wash the inside with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to a quart of water.
•Wash the baskets with a mild detergent solution.
•The outside of the unit should be cleaned with mild detergent and warm water.
CAUTION
Failure to unplug the refrigerator-freezer could result in electrical shock or personal injury.
¾Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
refrigerator-freezer if you minimize the number of times the door is opened. If the power is going to be
off for a longer period of time, you need to take the proper steps to protect your food.
¾Vacation Time
Short vacations: Leave the unit operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all food and unplug the
power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly: blocking it open if necessary
¾Moving Your Appliance
•Remove all the food.
•Securely tape down all loose items inside your unit.
•Turn the leveling screws up to the base to avoid damage.
•Tape the door shut.
•Be sure the unit stays in the upright position during transportation.

11
¾Energy Saving Tips
•The unit should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of direct sunlight.
•Let hot foods cool to room temperature before placing them in the unit. Overloading the unit forces
the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the freezer.
•Organize and label food to reduce door openings and extended searches. Remove as many items
as needed at one time, and close the door as soon as possible.
¾Replacing Your Light Bulb
NOTE:
All parts removed must be saved to do the replacement of the light bulb.
Before removing the light bulb, either turn off the appliance or disconnect the electricity leading into
the appliance at the main power supply. Failure to do so could result in electrical shock or personal
injury.
•Unplug the AC power cord from the wall.
•Remove the screw with a Phillips screwdriver.
•Pull down to remove the lamp cover.
•Unscrew the bulb.
•Replace with a 15-watt bulb that is the same shape and size.
•Replace the lamp cover and tighten screw.

12
PROBLEMS WITH YOUR APPLIANCE?
You can solve many common refrigerator-freezer problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling for service.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Unit does not operate. Not plugged in.
The circuit breaker tripped or there is a blown fuse.
The refrigerator-freezer temperature control is set
at "OFF".
Compressor turns on and off frequently. The room temperature is hotter than normal.
A large amount of food has been added to the
refrigerator - freezer.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The refrigerator -freezer does not have the correct
clearances.
Vibrations. Check to assure that the refrigerator - freezer is
level.
The unit seems to make too much noise. The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
refrigerator - freezer.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The unit is not level.
The door will not close properly. The unit is not level.
The door is reversed and not properly installed.
The gasket is dirty.
The baskets are out of position.

13
SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service technicians
that provide service on your Avanti refrigerator - freezer. With the purchase of your Avanti refrigerator -
freezer, you can be confident that if you ever need additional information or assistance, the Avanti
Products Customer Service team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be
delivered directly to your home using personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your refrigerator-freezer inside and out.

14
YOUR AVANTI PRODUCTS
WARRANTY Staple your sales receipt here. Proof of
original purchase date is needed to obtain
service under warranty.
WHAT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of purchase
by the original owner, Avanti Products
will, at its option, repair or replace any
part of the refrigerator - freezer which
proves to be defective in material or
workmanship under normal use.
During this period Avanti Products will
provide all parts and labor necessary to
correct such defects free of charge, so
long as the refrigerator - freezer has
been installed and operated in
accordance with the written
instructions in this manual. In rental or
commercial use, the warranty period is
90 days. All Avanti appliances of 3.5
cubic feet capacity or less must be
brought/sent to the appliance service
shop for repair.
•Losses of food due to spoilage.
•Incidental or consequential damages.
•Parts and labor costs for the following will
not be considered as warranty:
•Evaporator doors, door springs, and/or
frames.
•Inner door panels, door shelves, door rails,
and/or door supports.
•Chest freezer lid liners.
•Vegetable crispers.
•Light bulbs and/or plastic housing.
•Plastic cabinet liners.
•Punctured evaporator that voids the
warranty on the complete sealed system.
LIMITED SECOND THROUGH
FIFTH YEAR WARRANTY
For the second through the fifth year from date
of original purchase, Avanti Products will
provide a replacement compressor free of
charge due to a failure. You are responsible for
the service labor and freight charges. In rental
or commercial use, the limited compressor
warranty is one year and nine months. Cost to
move the refrigerator - freezer to the servicer’s
shop and back to the user's home, as may be
required, is the user's responsibility.
•Repairs performed by unauthorized
servicers.
•Service calls that do not involve defects in
material or workmanship such as customer
education, door reversal, or proper
installation.
•Service calls that are related to external
problems, such as abuse, misuse,
inadequate electrical power, accidents, fire,
floods, or acts of God.
•Replacement of house fuses or resetting
circuit breakers.
•Failure of the product if it is used for other
than its intended purpose.
•This warranty does not apply outside the
Continental U.S.A.
WHAT IS NOT COVERED

15
WIRING DIAGRAM

16
INSTRUCCIONES EN ESPAÑOL
PRECAUCIÓN
Para reducir el riesgo de incendio, descarga
eléctrica, o daño cuando use su
electrodoméstico, siga las siguientes
precauciones.
•Lea todas las instrucciones antes de usar su electrodoméstico.
•Peligro o Precaución: Existe el riesgo que los niños queden atrapados.
•Niños atrapados o sofocamiento no son un problema del pasado. Los electrodomésticos
son peligrosos aún si solo los deja en el garaje por un par de días.
•Antes de desechar su electrodoméstico o refrigerador usado: quítele las puertas. Deje las
repisas en su lugar para evitar que los niños se queden atrapados.
•No permita que los niños manejen, jueguen o entren dentro del electrodoméstico.
•No limpie su electrodoméstico con líquidos inflamables. Los gases pueden ocasionar
fuego o una explosión.
•No guarde ni use gasolina u otros líquidos inflamables cerca de este o de cualquier otro
electrodoméstico. Los vapores pueden ocasionar fuego o explosión.
- Guarde estas instrucciones-
INSTRUCCIONES PARA LA INSTALACIÓN
Antes de usar su equipo
•Retire la envoltura interna y externa.
•Verifique que tenga las siguientes partes: 1 manual de instrucciones y 2 parillas en el refrigerador,
1 parilla en el congelador y una cubetera de hielo.
•2 piezas plásticas para cubrir agujeros (puerta reversible).
•Antes de conectar su electrodoméstico a la corriente eléctrica, ubíquelo en posición vertical sobre
una superficie plana por lo menos por 2 horas. Esto reducirá la posibilidad de malfuncionamiento
en el sistema de enfriamiento por el manipuleo durante el transporte.
•Limpie la superficie interior con agua tibia usando un trapo suave.
Instalación de su electrodoméstico
•Ubique su electrodoméstico en un piso que sea lo suficientemente fuerte para soportar su peso
cuando este totalmente lleno o cargado. Para nivelar el electrodoméstico, ajuste las patas
delanteras.
•Deje aproximadamente 2 pulgadas de espacio entre la parte trasera y los costados de su
electrodoméstico, así permitirá la circulación de aire necesaria para enfriar el compresor.
•Mantenga su electrodoméstico alejado del aire caliente, vapor o líquidos que puedan salpicarlo, ya
que la unidad podría averiarse.
•Los rayos solares directos pueden malograr la capa acrílica, y las fuentes de calor pueden
ocasionar un aumento en el consumo eléctrico. Manténgalo lo más alejado posible del agua para
prevenir algún choque eléctrico. Evite los sitios húmedos y los ambientes extremadamente fríos ya
que esto puede afectar la eficiencia del enfriamiento de su electrodoméstico.
•Evite ubicar su electrodoméstico en áreas mojadas o muy húmedas.
•Conecte el electrodoméstico a un enchufe de pared exclusivo con conexión a tierra. Bajo ninguna
razón se debe retirar la tercera punta del enchufe. Cualquier consulta con respecto a la energía y/o
cable de tierra debe ser dirigida a un electricista certificado o autorizado por el Servicio Técnico de
Avanti Products.

17
Conexión eléctrica
Este electrodoméstico debe ser conectado a tierra. En el caso que ocurra un corto circuito, la
conexión a tierra reduce el riesgo de recibir un choque eléctrico ya que cuenta con un alambre
para el escape de la corriente eléctrica. Este electrodoméstico está equipado con un enchufe
que consta de tres puntas, la tercera punta es la conexión a tierra. Este enchufe debe ser
insertado a un enchufe de pared que este correctamente instalado con la conexión a tierra.
ADVERTENCIA
•El uso inapropiado del enchufe a tierra puede desencadenar un choque eléctrico. Consulte a
personal autorizado por Avanti Products si tiene alguna duda sobre las instrucciones o si tiene
alguna consulta si el electrodoméstico está correctamente instalado a la corriente eléctrica y a
tierra. Si el cordón del enchufe del electrodoméstico se encuentra dañado, debe ser reemplazado
por el Servicio Técnico de Avanti Products.
•El cordón del enchufe está equipado con tres puntas que encajan perfectamente en un enchufe de
pared standard para reducir el riesgo de un choque eléctrico.
•Bajo ninguna circunstancia corte o saque la tercera punta del enchufe que le proveemos ya que
este es para que vaya conectado a tierra.
•No use una extensión.
•La corriente de este electrodoméstico es de 115/120 voltios, tiene una salida eléctrica de 60 hz. y
consta de un enchufe de tres puntas que va conectado al enchufe de pared.
•El cordón del enchufe debe ser asegurado atrás del electrodoméstico y no dejarlo expuesto para
evitar accidentes.
COMO CAMBIAR LA DIRECCION DE APERTURA DE LA PUERTA
En caso de que necesite cambiar el lado de apertura de la puerta, por favor consulte al servicio
pos-venta de su localidad.
ADVERTENCIA
No use agua hirviendo porque dañará las partes de plástico.
•Retire los alimentos del electrodoméstico y colóquelos en una caja térmica para conservarlos y
protegerlos.
Como graduar la temperatura
Para ajustar la temperatura interna de su unidad, ajuste los controles considerando la temperatura
ambiental.
Una vez conectada su unidad, mueva el control de la temperatura hacia la posición “MAX” en el
compartimiento del refrigerador, por 2 horas.
Después muévalo a la posición “MED”.
En el compartimiento del congelador, haga lo mismo.
CONGELADOR REFRIGERADOR

18
Las posiciones en ambos controles funcionan de la siguiente manera:
En el compartimiento del refrigerador,
La posición “MIN” Menos Frío/ La posición “MAX” más Frío
En el compartimiento del congelador,
La posición “MIN” Menos Frío/ La posición “MAX” más Frío
Una vez transcurrida 24 ó 48 horas, Usted deber reajustar los controles en ambos compartimientos
hacia temperaturas apropiadas a sus necesidades.
USO DE LA CUBETERA DE HIELO
•Llene la bandeja de cubitos de hielo con agua hasta el nivel señalado (¾ de la altura) y colóquela
en el espacio designado.
•Asegúrese que la cubetera de guardar los cubitos de hielo esté situada debajo de la bandeja.
•Espere a que se formen los cubitos de hielos.
Nota: Para obtener hielos se recomienda que Ud. espere una hora como minimo en la posición del
congelador en temperatura (6).
CUIDADOS EN LOS PERIODOS DE AUSENCIA
•Para cortos períodos de ausencia (menos de 21 días) el congelador podrá quedar funcionando.
Coloque el botón de control de temperaturas en la posición mínima.
•En períodos de ausencia más largos, se aconseja dejar el refrigerador limpio y desconectado.
•Retire todo lo que tenga adentro del refrigerador y haga el deshielo y la limpieza general. También
retire las cubeteras, limpie bien y séquelas internamente.
•Deje la puerta entreabierta para penetre el aire y así evitar la formación de olores.
Compartimiento de su congelador
•Este compartimiento está diseñado para un período largo (3 meses) de almacenamiento de
alimentos congelados.
•El tiempo de almacenamiento de los alimentos congelados varía y se recomienda almacenarlos
solamente mientras esté vigente la fecha de expiración.
•Alimentos congelados preenvasados comercialmente deben ser almacenados de acuerdo con las
indicaciones de su fabricante.
•Coloque los alimentos congelados dentro de su electrodoméstico inmediatamente después de
comprarlos. Si hay indicaciones en el envase, sígalas cuidadosamente considerando el tiempo de
almacenamiento.
CUIDADO Y MANTENIMIENTO
Limpiando su electrodoméstico
•Gire el control de temperatura a “OFF”, desconecte el electrodoméstico y retire los alimentos.
•Lave el interior con agua tibia y un trapo suave remojado en una solución de Bicarbonato de Sodio.
La solución consiste en 2 cucharadas del referido compuesto químico y un litro de agua.
•Lave la canasta de almacenaje con un detergente suave.
•Las partes externas de su electrodoméstico deben ser limpiadas con un detergente suave y agua
tibia.
ADVERTENCIA
Asegúrese de desconectar el electrodoméstico de la corriente eléctrica. Si no lo hace, puede
ocasionar un choque eléctrico o herirse.

19
Si falla el suministro eléctrico
Usualmente la electricidad regresa en unas pocas horas sin afectar la temperatura de su
electrodoméstico, siempre que la puerta no se abra muy frecuentemente. Si le va a faltar electricidad
por un período de tiempo más largo, usted debe tomar los pasos apropiados para proteger sus
alimentos.
Si usted sale de vacaciones
Retire todos los alimentos si va a estar ausente por un período largo; desconecte y limpie su
electrodoméstico.
Deje la puerta del electrodoméstico ligeramente abierta para evitar la formación de mal olor y moho.
Reempiazando La Bombilla
Antes de cambiar la bombilla, desconecte el refrigerador de la electricidad.
1. Usando un destornillador, remueva los 1 tornillo (Phillips).
2. Hale y desconecte la cubierta plastica.
3. Remueva la bombilla rotándola hacia la izquierda
4. Reemplace la bombilla con una equivalente de 15 vatios.
5. Vuelva a colocar la capa plástica.
Para mover su electrodoméstico
•Retire los alimentos.
•Asegúrese de colocar cinta adhesiva a todo lo que se puede caer dentro de su
electrodoméstico.
•Retire las patas para prevenir que se dañen.
•Selle las puertas con cinta adhesiva.
•Asegúrese que el electrodoméstico se mantenga parado durante el traslado.
Consejos para ahorrar energía
•Su electrodoméstico debe estar ubicado en el área más fría de la habitación, alejado de
electrodomésticos que produzcan calor o conductos de aire caliente y lejos de los rayos
solares.
•Los alimentos calientes deben estar a temperatura ambiental antes de colocarlos en el
electrodoméstico. Si sobrecarga su electrodoméstico forzará al compresor a funcionar más
tiempo del normal. Los alimentos que se congelan lentamente pierden calidad y se malogran.
•Asegúrese de envolver adecuadamente los alimentos y de secar los empaques o
contenedores antes de colocarlos dentro del electrodoméstico. Colocarlos mojados ocasiona
escarcha en el electrodoméstico.
•La canasta de almacenaje de su electrodoméstico no debe ser forrada con papel aluminio,
papel de cera o papel toalla ya que esto interfiere con la circulación del aire frío restando
eficiencia a su electrodoméstico.
•Organice y coloque etiquetas en los envases de los alimentos con la finalidad de encontrar
rápidamente lo que usted está buscando. Retire la mayor cantidad posible de cosas que
necesita a la vez y cierre la puerta del electrodoméstico tan pronto le sea posible.

20
PROBLEMAS CON SU ELECTRODOMESTICO
Usted puede resolver muchos problemas comunes de su electrodoméstico fácilmente, ahorrándole el
gasto de una posible visita del servicio técnico.
Pruebe las siguientes sugerencias para verificar si usted puede resolver el problema antes de llamar al
servicio técnico. GUIA PARA SOLUCIONAR PROBLEMAS
PROBLEMA SOLUCION
Su electrodoméstico no funciona. No está conectado a la corriente eléctrica.
El interruptor saltó o se quemó un fusible.
El control de temperatura está en “OFF”.
El compresor se enciende y se apaga
frecuentemente. La temperatura de la habitación es más caliente de lo normal. Colocó demasiados alimentos descongelados al mismo
tiempo.
La puerta permanece abierta mucho tiempo.
La puerta no quedó completamente cerrada.
El control de temperatura no está funcionando correctamente.
La empaquetadura de la puerta no está sellada
adecuadamente.
El electrodoméstico no tiene el suficiente espacio libre.
Vibración. Asegúrese que el electrodoméstico esté ubicado en un lugar
totalmente plano.
Sonido de burbujeo, goteo, como agua
que hierve o crujidos. Esto es normal. Es el refrigerante (usado para enfriar el electrodoméstico) que está circulando a través del sistema.
La contracción y expansión de las paredes internas puede
ocasionar sonidos como crujidos.
La puerta no cierra completamente. El electrodoméstico no está totalmente nivelado.
La dirección de apertura de la puerta fue invertida pero
instalada incorrectamente.
El sellador de la puerta está sucio.
La canasta de almacenaje está fuera de su sitio obstaculizando
el cierre de la puerta.
