AVE DMV-96 User manual

User guide DMV-96 July 2019

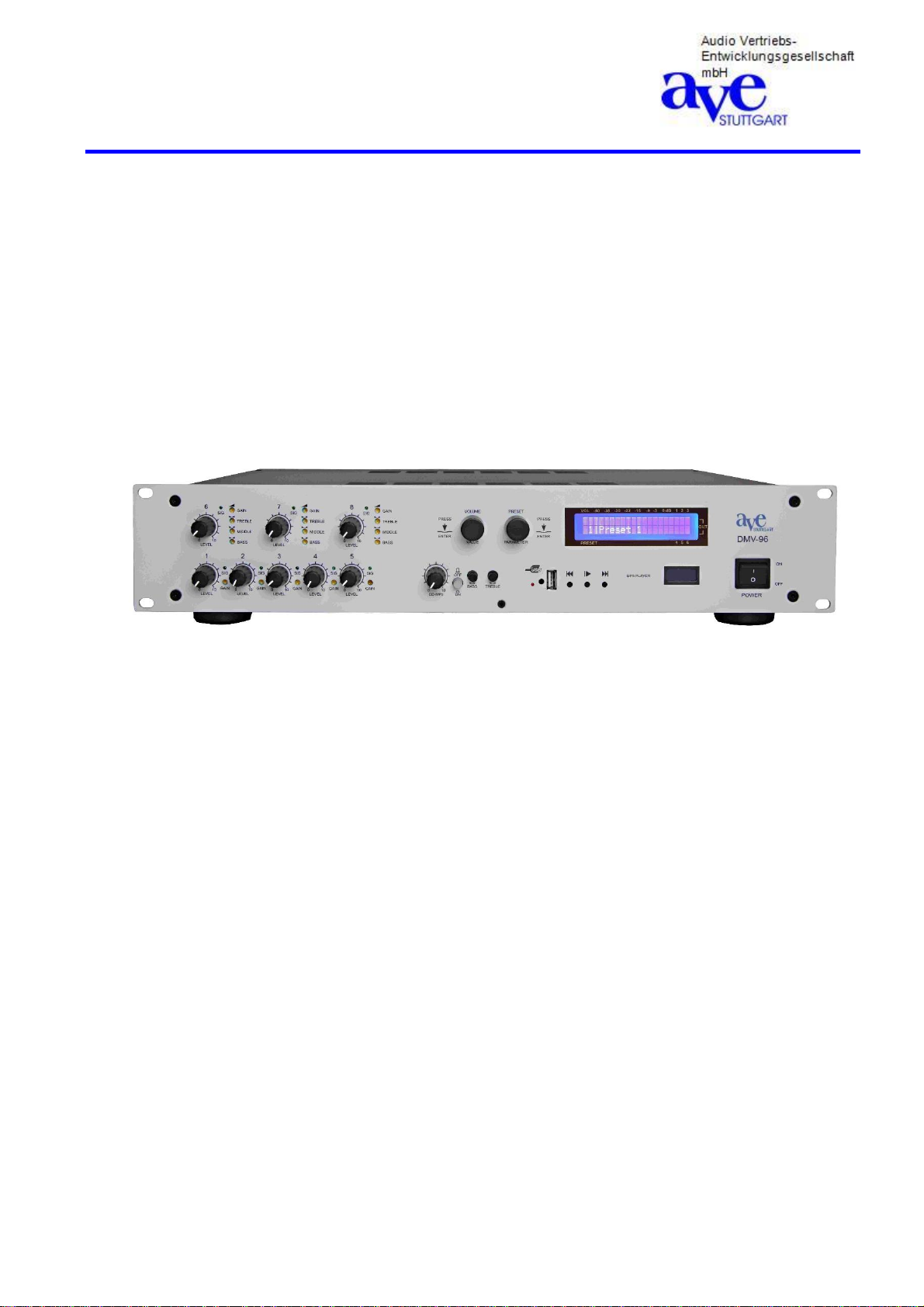

DMV-96
Digital automatic mixing amplifier
with 8 mic/line inputs and 6 outputs
User guide

User guide DMV-96 page 2
Table of contents
Introductions ............................................................................................................................................ 3
Safety instructions ................................................................................................................................... 3
Scope of delivery..................................................................................................................................... 3
Operation of the DMV-96 ........................................................................................................................ 4
Technical specifications .......................................................................................................................... 6
Notice....................................................................................................................................................... 9

User guide DMV-96 page 3
Introduction
Thank you for choosing the 6-channel digital mixer DMV-96 from AVE.
No matter what your requirements are, due to its advanced technical design, it ensures trouble-free use with
sound exposure in a variety of facilities such as churches, courtrooms, government offices, conference rooms,
schools, universities, etc.
The DMV-96 is equipped with its own software and offers users a wide range of practical functions.
Streaming Media Server:
DMV-96 is a live audio streamer..
It records audio from an input/output channel, encodes it and sends it to a streaming server.
DMV-96 can do live streaming, so people can hear your video while it is being recorded.
It can be used to create an internet radio station or a privately running jukebox and many things in between.
It is very versatile in that new formats can be added relatively easily.
DMV-96 supports open standards for communication and interaction.
DMV-96 supports TCP/IP, UDP, RTSP and RTMP streaming protocols.
Safety Instructions
Located inside the unit are hazardous voltages. Do not remove the cover. Internal modifications or
service work should only be conducted by qualified service personnel.
The DMV-96 comes with an approved power cable. At one end of this cable is a three-pronged AC power
connector (IEC plug) and at the other end of a CE-standard-compliant Schuko-plug for connection to a 230 V
/ 50 Hz AC voltage source. Please ensure that this power supply cable is not damaged. Do not use defective
or damaged power cables!
Scope of delivery
Please check immediately upon receipt the package integrity, the contents for completeness and proper
delivery of the unit.
The delivery scope of the unit includes:
- The DMV-96
- Power supply cable
- Cat 5 cable
Please keep the operating instructions in a safe place and make them available to qualified personnel for
making necessary changes to the device.

User guide DMV-96 page 4
Preset
Parameter
IR interface for
remote control
Switch on CD-MP3-Player
Volume control CD-MP3
Operation of the DMV-96
Input Level 1 –5
By tuning the volume control of the 5 digital inputs the volume will be increased or decreased.
Input Level 6 –8
By tuning the volume control of the 3 analog inputs the volume will be increased or decreased. The 3 analog
inputs will be allocated to the 6. Digital input. This also applies for input CD/MP3.
Control of the master volume
By turning the volume/value control the master volume will be increased or decreased.
Select Preset
By turning the preset control the desired preset is selected.
Note
If the protection is activated, the volume and preset selection is adjusted by pressing and then turning.
Display
Volume
Value
Volume control
for 5 digital inputs
LED for signal
GAIN control
Display MP3 Player
Power switch
Rewind, Play, Forward
USB connection
LED USB
Treble
Bass
Control for gain,
treble, middle and bass
Volume control
for 3 analog inputs

User guide DMV-96 page 5

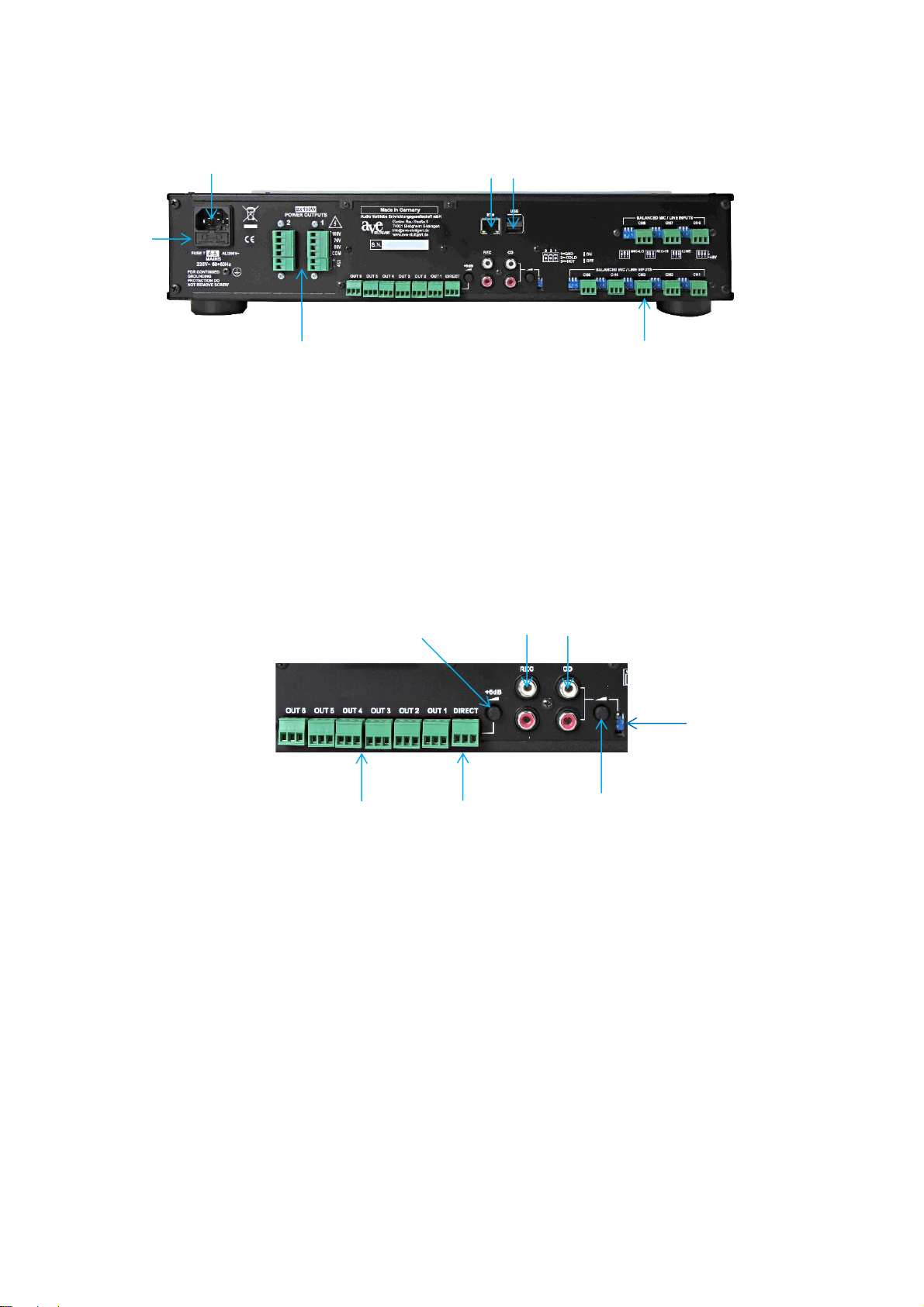

Fuse 6,3 A
Outputs 1-6
DIRECT
output
Input CD
Output Rec
Control +6 dB
.
Power supply
Ethernet connection
USB connection
8 inputs
DIP switch Mic-Lo, Mic-Hi, Line, +48 V
Power outputs
100V-70V-50V-4Ω
DIP switch for
Input sensitivity ON-OUT
Control CD for
input sensitivity

User guide DMV-96 page 6
Technical specifications
Analog inputs
Number of balanced inputs 8 (Phoenix 3,5 mm connector)
Number of unbalanced inputs 1 (RCA connector)
Analog gain (manually adjustable) 0 dB - 30 dB
Nominal sensitivity (balanced input) MIV-HI -58 dBu (1mVrms)
Nominal sensitivity (balanced input) MIV-LO -34 dBu (15mVrms)
Nominal sensitivity (balanced input) MIV-HI -19 dBu (87mVrms)
Phantom power (Activating at DIP-Switch +48 Volt stabilized, very low noise
Balanced input impedance (Phoenix) 5 kΩ @ 1 kHz
Unbalanced input impedance (RCA) 33 kΩ @ 1 kHz
Balanced input CMRR <60 dB @ 1 kHz
On Mic (20 Hz - 20 kHz weighted) Rs =150 Ohm -126 dBV
Frequency response MIC (-3dB) 160 Hz to 20 kHz
Frequency response LINE (-3dB) 40 Hz to 20 kHz
Input protections radio frequency interference (RFI)
transient voltage spikes
external overvoltage
Analog outputs
Number of balanced outputs 6 (Phoenix 3.5 mm connector)
Number of unbalanced outputs 1 (RCA connector)
Dynamik range 120 dB (“A” weighted)
Residual noise of output driver -100 dBu (20 Hz ÷ 20 kHz)
Nominal level (balanced output) 0 dBu (7.75 Vrms)
Maximum level (balanced output) 20 dBu (7.75 Vrms)
Balanced output impedance 140 Ω
Unbalanced output impedance 70 Ω
Output protection short circuits
Overvoltage protection
Analog to digital converter
Bit resolution 24-bit
Converter type sigma delta
sampling frequency (Fs) 48 kHz
Signal to noise ratio (SNR) 104 dB (“A” weighted @ 48 kHz)
Dynamic range 104 dB (-60 dBFS)
Total harmonic distortion (THD) -93 dB (1 kHz, -1 dBFS)
Oversampling factor 512 Fs
Digital Signal Processor
DSP 32-bit / 40-bit, Floating point
150 MHz - 6,6 ns cycling rate
Super Harvard Architecture
900 MFLOPS
1Mbits SRAM, two-channel

User guide DMV-96 page 7
Digital to analog converter
Bit resolution 24-bit
Converter type sigma delta
Sampling frequency (Fs) 48 kHz
Signal to noise ratio (SNR) 112 dB (“A” weighted @ 48 kHz)
Dynamic range 112 dB (-60 dBFS)
Total harmonic distortion (THD) -94 dB (1 kHz, 0 dBFS)
Delay time 0,58 ms
Oversampling factor 512 Fs
Digital Processing
Input
Highpass/lowpass filter Butterworth filter type with adjustable
(anti hum, anti rumble and more ) cutting frequency and selectable slope
12/24/48 dB/Octave
5 parametric equalizuer PEQ Frequency [20 Hz ÷ 20 kHz]
Gain [-15 dB ÷ 15 dB]
Bandwidth [0,01 ÷ 6 oct]
Noise Gate Threshold [-80 dBFS ÷ 0 dBFS]
Hold time [100 ms ÷ 10 s]
Automix function Hold time [100 ms ÷ 5000 ms]
Attenuation [-60 dB ÷ 0 dB]
NOM Gain
(increase post gain
of -3dB for each doubling of opened
automix channels)
Max. opened channels [1 ÷ 6]
Volume control [-100 dB ÷ 10 dB]
Routing Matrix
Matrix size 6 inputs / 6 outputs
Matrix crosspoint level adjusting [-60 dB ÷ 10 dB]
Audio output
Easy adjustment of the sound columns AT-N series and Live SM series
31 bands graphic equalizer Gain [-12 dB ÷ 12 dB]
Dynamic compressor range Threshold [-90 dBFS ÷ 20 dBFS]
Ratio [R=1:1 ÷ R=20:1]
Post Gain [-20 dB ÷ 20 dB]
Attack Time [1 ms ÷ 250 ms]
Release Time [10 ms ÷ 2500 ms]
Limiter Threshold fixed at 0 dBFS
Delay [0 m ÷ 35 m], [0 ms ÷ 100 ms]
Phase control [0°, 180°]
Output level [-100 dB ÷ 10 dB]
Master level [-100 dB ÷ 10 dB]

User guide DMV-96 page 8
Data connections
Rear panel ETHERNET 802.3
Wi-Fi 802.11
USB 2.0
Display
LCD 20 characters x 2 lines
PSU Module
AC range 230 VAC ± 10%
Input frequency 47 Hz to 67 Hz
Power consumption max. 33 W
Analog voltages +48 VDC, ±15 VDC, +5 VDC
Digital voltages +3,3 VDC, +1,2 VDC
Voltage regulators linear type (no switching noise)
Dimensions and weight
Height 84 mm
Width 484 mm
Depth 340 mm + 60 mm connector
Weight 5.6 kg (1x480W)
6.8 kg (2x320W and 2x480W)
12 kg (1x150W and 1x240W)
13.5 kg (2x150W)
Temperature range
Indoor 0°C to 40°C (32°F to 102°F)
Certifications
AES48-2005 grounding scheme
2002/95/EC
CE

User guide DMV-96 page 9
Notice
All AVE mbH design specifications, files, drawings, tables, lists and other documents are being provided “as is”.
AVE mbH makes no warranties, expressed, implied, statutory, or otherwise with respect to the materials and
expressly disclaims all implied warranties of noninfringement, merchantability, and fitness for a particular
purpose.
Information furnished is believed to be accurate and reliable. However, AVE mbH assumes no responsibility for
the consequences of use of such information or for any infringement of patents or other rights of third parties
that may result from its use. No license is granted by implication or otherwise under any patent or patent rights
of AVE mbH. Specifications mentioned in this publication are subject to change without notice. This publication
supersedes and replaces all information previously supplied. AVE mbH products are not authorized for use as
critical components in life support devices or systems without express written approval of AVE mbH
Corporation.
Trademarks
AVE mbH and the AVE logo are trademarks or registered trademarks of AVE mbH in the Germany and other
countries. Other company and product names may be trademarks of the respective companies with which they
are associated.
Copyright
© 2015 AVE mbH. All rights reserved
