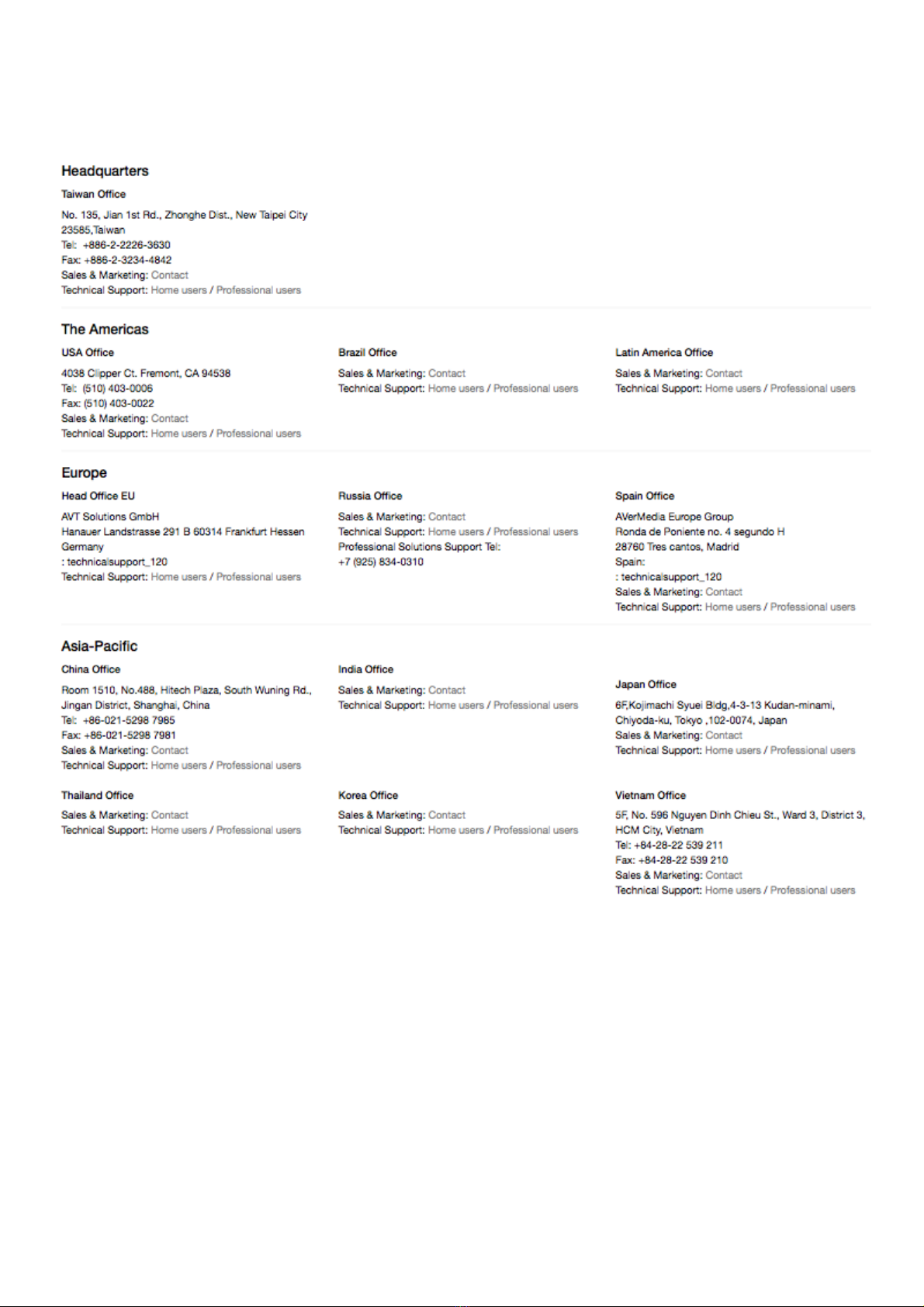

AVerMedia Global Offices
5

Limited Product Warranty
Copyright Notice
AVerMedia provides the one-year product warranty. Should this product, in
AVerMedia's opinion, fail to be in the good working order during the warranty period,
AVerMedia will, at its option, repair or replace it at no charge, provided that the product
has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized
modification or repair.
You may obtain the warranty service by delivering this product to an authorized
AVerMedia business partner or to AVerMedia along with the proof of purchase. Product
returned to AVerMedia must be pre-authorized by AVerMedia with an RMA (Return
Material Authorization) number marked on the outside of the package and sent prepaid,
insured, and packaged for the safe shipment. AVerMedia will return the product by
prepaid shipment service.
The limited product warranty is only valid over the serviceable life of the product. This
is defined as the period during which all components are available. Should the product
prove to be irreparable, AVerMedia reserves the right to substitute an equivalent product if
available or to retract the product warranty if no replacement is available.
The above product warranty is the only warranty authorized by AVerMedia. Under no
circumstances will AVerMedia be liable in any way for any damages, including any lost
profits, lost savings, or other incidental or consequential damages arising out of the use of,
or inability to use, such product.
The information contained in this document is subject to change without notice.
AVerMedia shall not be liable for errors contained herein or for incidental consequential
damages in connection with the furnishing, performance, or use of this material. This
document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent by AVerMedia.
6

Trademark Acknowledgement
ESD Warning
AVerMedia acknowledges all the trademarks, registered trademarks, and/or copyrights
referred to in this document as the property of their respective owners. Not listing all
possible trademarks or copyright acknowledgments does not constitute the lack of
acknowledgment to the rightful owners of the trademarks and copyrights mentioned in this
document.
Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When
handling any circuit board assemblies including AVerMedia AVerAI products, it is highly
recommended that ESD safety precautions can be observed. ESD safe best practices can
include, but are not limited to the following ones.
1. Leave the circuit board in the antistatic package until it is ready to be installed.
2. Use a grounded wrist strap when handling the circuit board. At a minimum, you
need to touch a grounded metal object to dissipate any static charge, which may be
present on you.
3. Avoid handling the circuit board in the carpeted areas.
4. Handle the board by the edges and avoid the contact with the components.
5. Only handle the circuit boards in ESD safe areas, which may include ESD floor and/or
table mats, wrist strap stations, and ESD safe lab coats.
7

1.0 Introduction
1.1 Product Specifications
Product Name
Product Type
Core
Front I/O
AVerMedia AVerAI Box PC EN713-AAE9-1PC is a fully featured Box PC developed for
NVIDIA®Jetson NanoTM module. It is specifically designed to have eight 10/100Mb Ethernet
ports with PoE (PSE, Power Sourcing Equipment) support.
Operating with NVIDIA®Jetson NanoTM module, EN713-AAE9-1PC can process eight channels
of 1080p30 video stream, which makes it the perfect choice in building the high performance AI
edge computing platform for the intelligent video analytics applications.
EN713-AAE9-1PC has the dimensions of 175mm (L) x 190mm (W) x 80mm (H), which can fit to
the commercial and industrial application. And it can operate in the temperature range from 0°C
to 45°C. AVerAI EN713-AAE9-1PC provides not only the access to a great list of latest
interfaces on NanoTM module but also 1x RS-485 interface, 1x micro controller unit (MCU), and
1x RTC battery as the function enrichment.
AVerMedia AVerAI Box PC EN713-AAE9-1PC consists of the carrier board EN713-AAE9-000,
the fanless chassis designed with AVerMedia AVerCooler technology, and NVIDIA®Jetson
NanoTM module. EN713-AAE9-1PC can also accommodate an optional hard disk drive (HDD).
Major Name
EN713-AAE9
Sub-Name
-1PC
Fanless/Fan/Carrier Board
Fanless Box PC
System on Module (SoM)
Fully support NVIDIA® Jetson Nano™
HDMI 2.0 Output
1x HDMI 2.0a/b Type-A supports maximum resolution 3840x2160 at 60Hz
USB 2.0
1x USB 2.0 Micro-B for recovery
USB 3.0
2x USB 3.0 Type-A
10/100/1000 BASE-T
Ethernet
1x GbE RJ-45
8 PoE ports support
(8x 10/100 MbE RJ-45 PSE, Power Sourcing Equipment, IEEE 802.3 AT/AF with
power budget)
Micro SD
N/A
8

Back I/O
Internal PCIe
Sockets
MCU
Power
Environment
Physical
Characteristics
System
SATA Rev. 3.1
1x
Audio
1x Mic-in, 1x Speaker-out
CAN Bus
N/A
RS-485
1x RS-485 Euroblock (3 pins)
Expansion Header
40 pins (2x 20 Header) with 1x 3.3V UART2, 2x SPI, 1x I2S, 2x I2C
Power Button
1x with a RGB tri-color LED
Recovery Button
1x with a RGB tri-color LED
Wi-Fi
IEEE 802.11a/b/g/n/ac dual-band 2x2 MIMO (Optional, by using Wi-Fi
Mini-PCIe card)
Antenna
2x SMAfemale connector (Optional)
M.2 M key 2280
Alternative option: 1x M.2 key B 3042 (for LTE module)
Mini-PCIe
Alternative option: 1x Mini-PCIe Gen2 x 1
(for Wi-Fi/BT card, or capture card: 1x C353 for HDMI 1080p30 / 1x CM313B for
3G-SDI 1080p30 / 1x C351 for composite)
MCU Power Function
Automatically turn on system when the power input is connected
Watch Dog
RTC battery life monitor
Power Input
(Optional) 54V/2Afor PoE (PSE, IEEE 802.3AT/AF with power budget)
(12V/5Ato Jetson Nano)
Operating Temperature
0°C ~ 45°C
Storage Temperature
-20°C ~ 85°C
Relative Humidity
40 °C @ 95%, Non-Condensing
Vibration during
Operation
With Desk/Wall/Din Rail Mount: 3 Grms, IEC 60068-2-64, random vibration, 5 ~
500 Hz, 1 hr/axis
Shock During Operation
30G, IEC60068-2-27, half sine, 11m duration
Dimension
L:175mm x W:190mm x H:80mm (W:220mm with mounting ears)
Weight
2.75Kg
Thermal Solution
AVerCooler technology
Mounting
Desk/Wall/Din Rail Mount
Operating System
Linux for Tegra (L4T)
File system: Ubuntu 16.04, kernel version 4.9
System on Module (SoM)
Fully support NVIDIA® Jetson Nano™
SoM Power Consumption
5W ~ 25W
Temperature Range
-25°C ~ 80°C
Memory
4GB 4ch x 16-bit LPDDR4 | 1600MHz
9

Regulation
1.2 SKU (Part) Numbers and Ordering Information
SKU Number
NanoTM
Module
Fanless
Chassis w/
AVerCooler
Technology
HDD
HDD Cable
Power
Adapter
Power Cord
GPU
Maxwell 128-core
FLOPS (fp16)
512 GFLOPS
CPU Complex
ARM® Cortex® A57 MPCore (Quad-Core) Processor with NEON Technology.
Maximum Operating
Frequency
1.43GHz
Storage
16GB eMMC v5.1
Video Encode
Maximum throughput: 2160p30 (H.265) | 2160p30 (H.264) | 2160p30 (WEBM VP8)
Video Decode
Maximum throughput: 2160p60 (H.265) | 2160p60 (H.264) | 2160p60 (WEBM VP9)
EMC
CE, FCC Class A, KC, VCCI
Safety
CE, KC
EN713-AAE9-1PC
Installed
Installed
N/A
N/A
N/A
N/A
Seagate ST14000VE0008
N/A
N/A
Provided by
order
N/A
N/A
N/A
064ASATA-BV3
N/A
N/A
N/A
Provided by
order
N/A
N/A
041318GOUANL
N/A
N/A
N/A
N/A
Universal
N/A
064APOWERBRX-IPD
(TW version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
064APOWERBR2-IPD
(US version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
064APOWERBRW-IPD
(UK version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
064APOWERBR5-IPD
(EU version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
064APOWERBSL
(JP version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
064APOWERBR4-IPD
(CN version)
N/A
N/A
N/A
N/A
N/A
Provided by
order
10

2.0 Product Overview

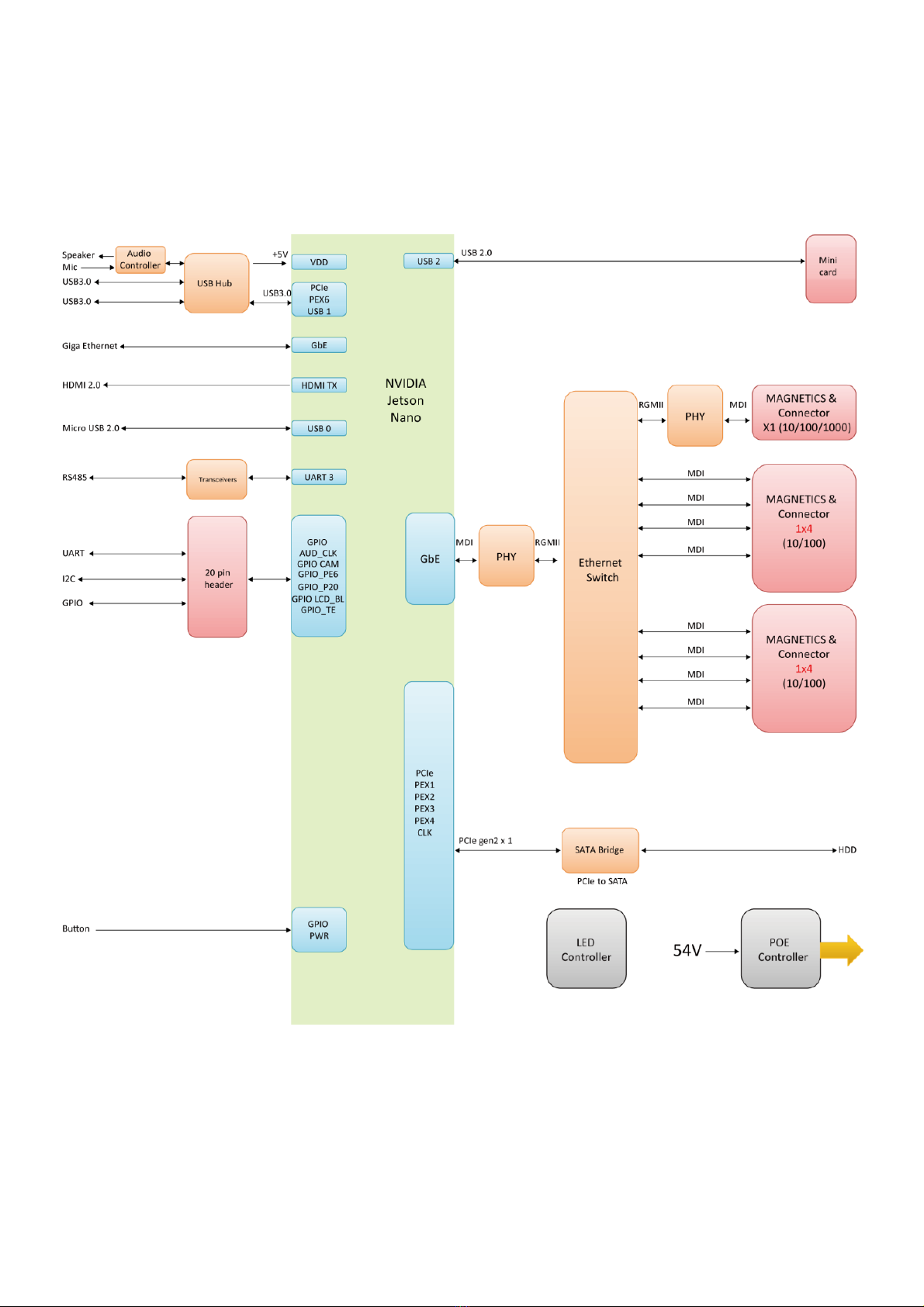

2.1 Block Diagram
11

2.2 Top View of Carrier Board
12

2.3 Bottom View of Carrier Board
13

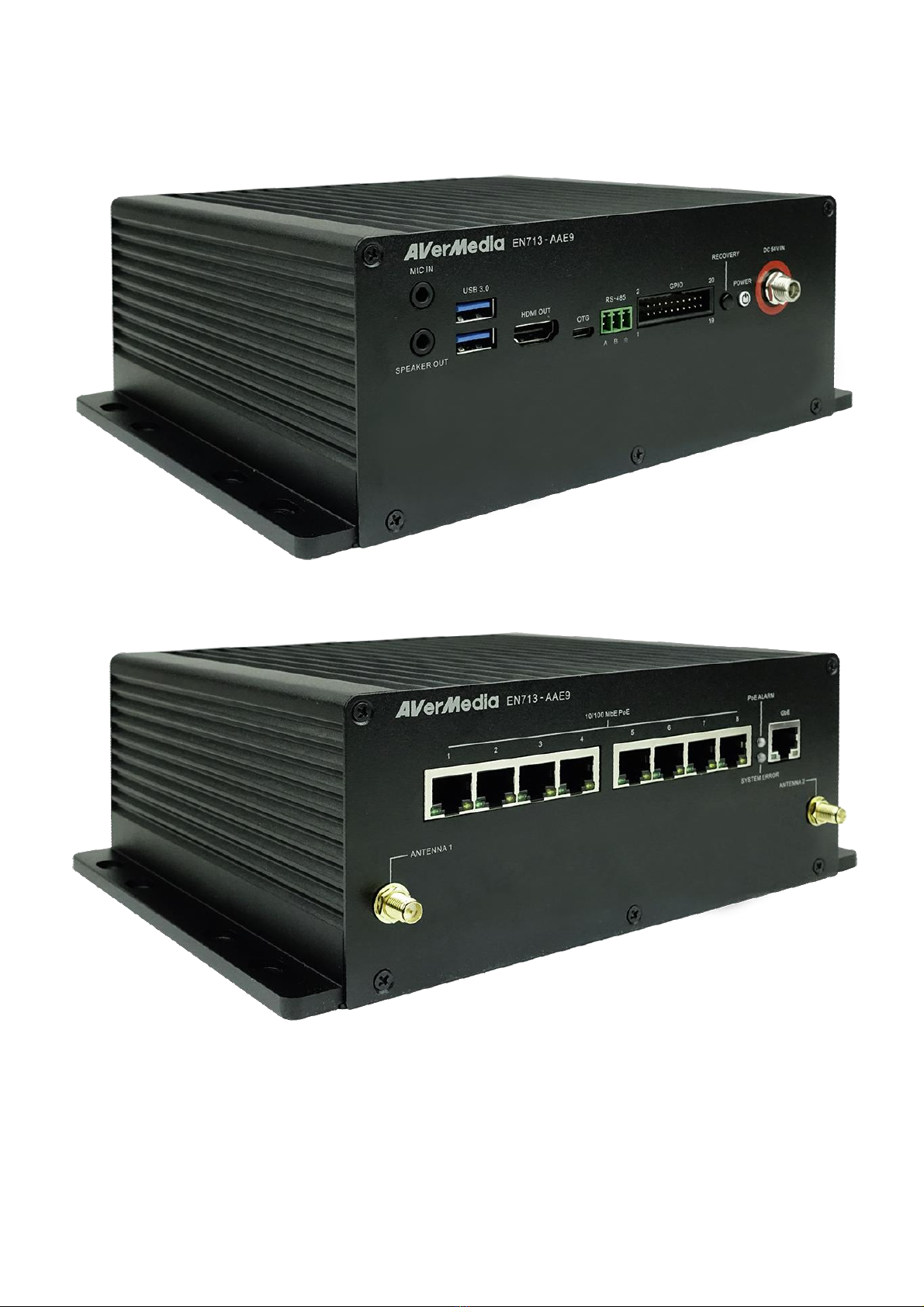

2.4 Front View and Rear View of Box PC
14

2.5 Connector Summary
Designation
Description
2.6 Switch Summary
Designation
Description
J1
RJ45 10/100Mb 4-port Ethernet connector with POE support
J2
RJ45 10/100Mb 4-port Ethernet connector with POE support
J3
RJ45 1Gbsingle-port Ethernet connector
J5
260-pin SODIMM connector for NVIDIA®Jetson NanoTM module
J6
SATA power wafer
J7
Fan wafer
J8
Mic and speaker connector
J9
USB 3.1 Gen 1 2-port connector with 900mA x2
J10
HDMI video output connector
J11
OTG/USB micro-type connector
J12
RS485 connector
J13
54VDC power jack
J14
20-pin header UART console for debug, I2C, GPIO
J16
Mini card connector for USB only
J17
SATA connector
BT1
RTC battery connector
The above listed connectors are located on the carrier board, and most of them are accessible from the front panel and
the rear panel of Box PC EN713-AAE9-1PC, where the names of the associated connectors are printed.
SW8
Recovery button
SW9
Power on button
SW10
4-pin DIP switch with four sets of setting as defined in Section 3.20.
The above listed switches are located on the carrier board. SW8 and SW9 are accessible from the front panel and the
rear panel of Box PC EN713-AAE9-1PC, where the names of Recovery and Power are printed.
15

3.0 Feature Description
3.1 Connector and Switch Locations
16

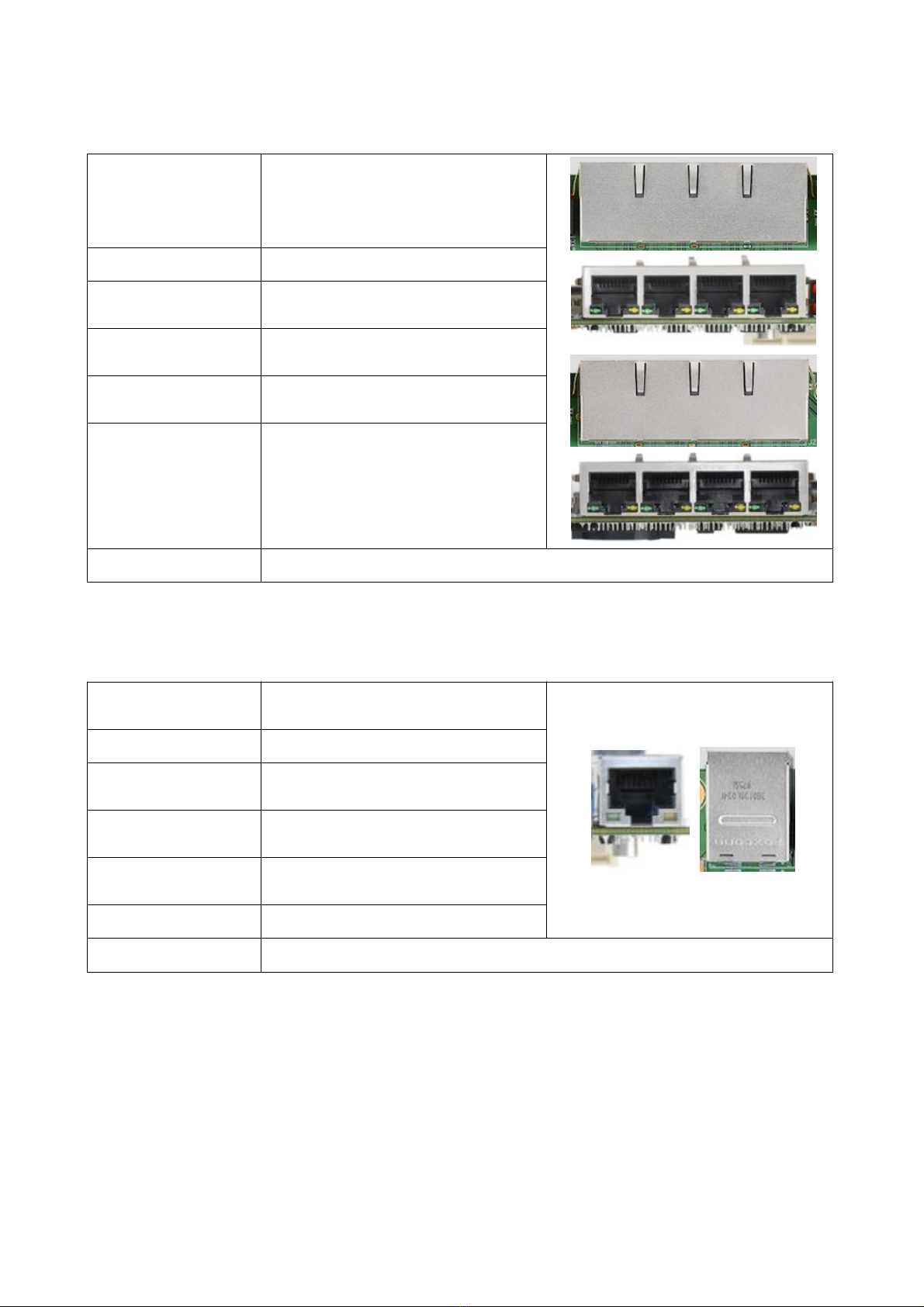

3.2 10/100Mb 4-Port Ethernet Connectors
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.3 1GbSingle-Port Ethernet Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
10/100Mb 4-port Ethernet
connectors, used to connect IP
cameras and/or the network
switches.
J1 and J2
4-pin (12-36) RJ45 with integrated
magnetics for PoE application
CHAMPWAY, CWJ46614AENL
Any standard 10/100Mb Ethernet
mating connector can be applicable.
Comply with Ethernet standards.
POE support is enabled on J1 and J2.
1Gb single-port Ethernet connector,
used to connect to the host system.
J3
8-pin RJ45 with integrated
magnetics
FOXCONN, JFM38013-0L03-4F-
BX3
Any standard 1Gb Ethernet mating
connector can be applicable.
Comply with Ethernet standards.
None
17

3.4 260-Pin SODIMM Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.5 SATA Power Wafer and SATA Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
Used to mount with and connect to
NVIDIA®Jetson NanoTM module.
J5
260-pin SODIMM connector
FOXCONN, ASAA826-EASB0-7H
SODDR4 9.2 standard
Please refer to NVIDIA Jetson
Nano System-on-Module datasheet
for the pinout details.
None
3.5mm surveillance hard drive
J6 (on the left) and J17 (on the
right)
SATA HDD power (on the left) and
signal (on the right) connector
J6:
PINREX, 753-81-04TW00
J7:
FOXCONN, LE18077-Z54B-4H
4-pin wafer and SATA 3.0
connector
J6:
Pin Number Description
1 5V Power
2 GND
3 GND
4 12V Power
J7: Please refer to SATA 3.0
standard
None
18

3.6 Fan Wafer
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.7 Mic and Speaker Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.8 USB 3.1 Gen 1 2-Port Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
Fan power and control wafer
J7
1*4 pin wafer with 1.25 mm pitch
Joint Tech,
A1250WV-04PNLNT1N00B
Joint Tech,
A1250 series housing
Pin Number
Description
1
GND
2
5V Power
3
TACH from fan
to module
4
PWM from
module to fan
None
Mic and speaker jack
J8
3.5 mm miniature jack
JKCR, PJD-035-87HAB
2 or 3 conductors type plug
Mic input (on the top) and speaker
output (on the bottom)
None
USB 3.1 Gen 1 device connector
J9
2-port USB Type-A female
connector
CHAMPWAY,
CU3B-AFR15U-096H
Any USB standard Type-A interface
cable or device.
Please refer to USB 3.1 Gen 1
standard.
Support 900mA x2
19

3.9 HDMI Video Output Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.10 OTG/USB Micro-Type Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
3.11 RS485 Connector
Function
Location
Type Description
Manufacturer and
Part Number
Mating Connector
Pinout
Remarks
HDMI Type-ATX connector
J10
HDMI Type-Afemale connector
Compupack, ACNHM220028-001
Any HDMI standard Type-A
interface cable or device.
Please refer to HDMI standard.
None
OTG programming recovery
J11
USB Micro-type female connector
Fullglory, FG-MCB-111440
Any USB standard Micro-type
interface cable or device.
Please refer to USB Micro-type
standard.
None
RS485 interface from Jetson Nano
module UART control
J12
3-pin terminal block
DECA, ME030-38103T
Combination with the plug terminal
block from DECA
Pin Number Description
1 GND
2 B
3 A
20
