AVID LABS AVERE 4UV User manual

Unique lighting solutions.


1
Unique lighting solutions.
Table 0f Contents
Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������2
Product Description ������������������������������������������������������������������������������������������������������������������������������������������������2
Safety Information��������������������������������������������������������������������������������������������������������������������������������������������3-10
Safety Symbols�������������������������������������������������������������������������������������������������������������������������������������������������������������3
General Advice��������������������������������������������������������������������������������������������������������������������������������������������������������������4
Protection from Radiation and Eye Injury�����������������������������������������������������������������������������������������������5
Protection from Electric Shock����������������������������������������������������������������������������������������������������������������������� 6
Dimming Versions�������������������������������������������������������������������������������������������������������������������������������������������������������7
Protection from Fire ������������������������������������������������������������������������������������������������������������������������������������������������� 8
Protection from Injury And Damage ���������������������������������������������������������������������������������������������������������� 9
Environmental Advice�������������������������������������������������������������������������������������������������������������������������������������������10
Functional Advice�����������������������������������������������������������������������������������������������������������������������������������������������������10

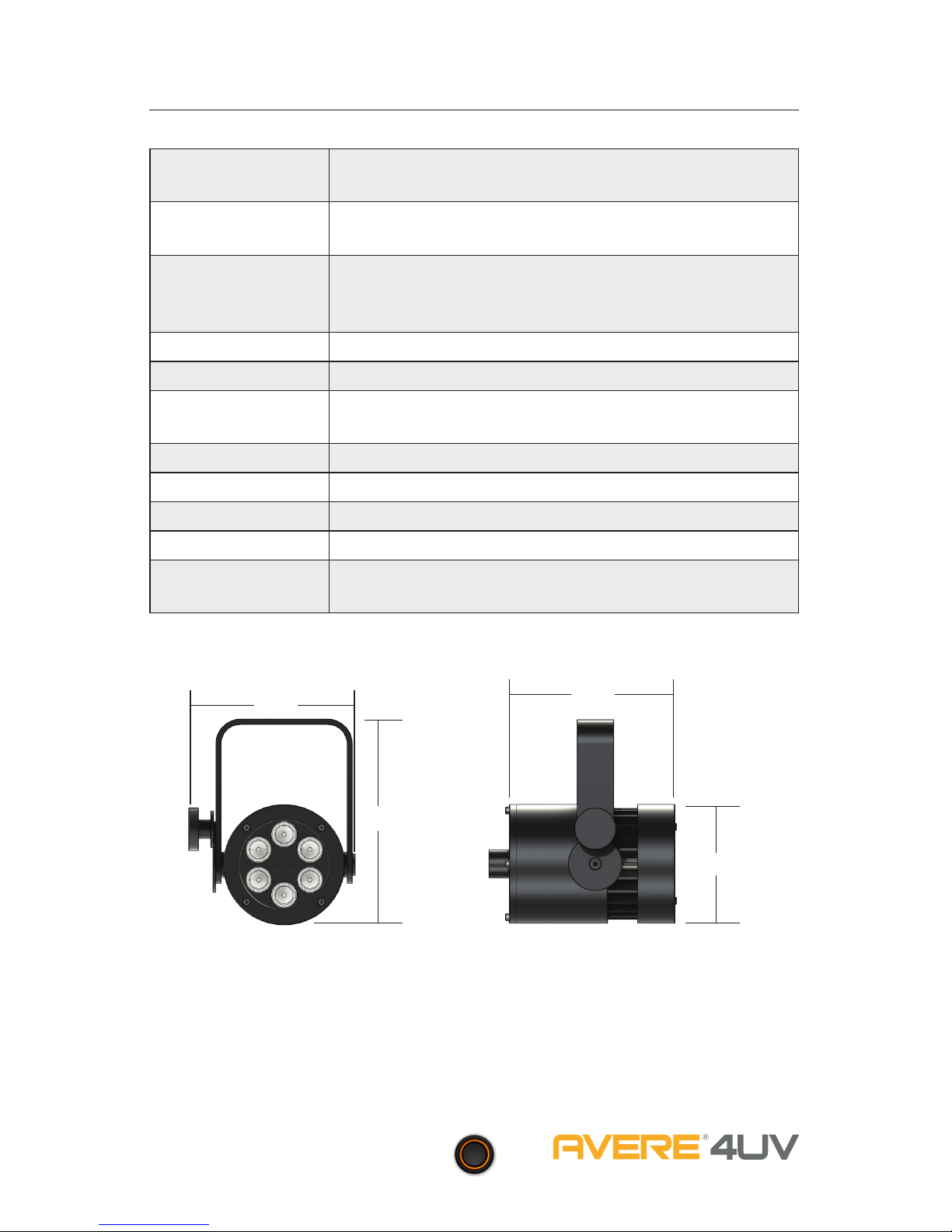

Technical Information�����������������������������������������������������������������������������������������������������������������������������������������11
Secure Mounting����������������������������������������������������������������������������������������������������������������������������������������������12-13
AC Power Connection����������������������������������������������������������������������������������������������������������������������������������������� 14
Maintenance ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 15
Warranty �������������������������������������������������������������������������������������������������������������������������������������������������������������������������16

2
Unique lighting solutions.
Introduction
Product Description
Congratulations on the purchase of your new AVERE®4UV xture.
Our company’s name is especially apt. We truly are avid designers, engineers and
machinists – innovators constantly striving to create the best products possible
with the utmost appreciation for clean design and solid execution.
The AVERE
®
4UV
xture is proudly built it the U.S.A. from machined
aircraft-grade aluminum. Simplicity of use, exibility, build quality and overall
functionality make us condent you have made the right choice in LED xtures.
Our lighting experts and engineers will consult with you on ways to use our
standard products or design custom solutions. Let our team help you create the
design you envisioned. Together we can make great things.
Joel Nichols, Owner/CEO
AVID Labs, LLC
The AVERE
®
4UV xture is a dimmable UV LED xture that is IP65, UL Outdoor
Rated. It is designed for ease of use and future compatibility, including front board
replacement. The xture is designed for Indoor and outdoor use in architainment,
theatrical, commercial, retail, residential and architectural environments.
WARNING
UV light
hazard.
Avoid looking directly at light.
365nm

3
Unique lighting solutions.
Safety Information
The following symbols are used in this document:
WARNING! Read manual before installation, operation or servicing.
MISE EN GARDE ! Lire le manuel avant l’installation, de fonctionnement
ou de réparer.
WARNING! Safety hazard. Risk of injury or death.
MISE EN GARDE ! Danger pour la sécurité. Risque de blessure
ou de mort.
WARNING! Hazardous voltage. Risk of severe or fatal electric shock.
MISE EN GARDE ! Tension dangereuse.
Risque d’électrocution grave,
voire mortelle.
WARNING! Shock hazard. Equipment must be properly grounded.
MISE EN GARDE ! Risque d’électrocution.
Équipement doit être
correctement mise à la terre.
WARNING! Hot surface. Risk
of skin burn or skin irritation.
MISE EN GARDE ! Surface chaude. Risque de brûlures ou d’irritation
de la peau.
WARNING! Fire hazard.
MISE EN GARDE ! Risque d’incendie.
WARNING! LED light emission. Risk of eye injury.
MISE EN GARDE ! Émission de lumière
LED. Risque de blessure aux yeux.
WARNING! UV Radiation hazard.
MISE EN GARDE ! Danger d'irradiation UV.

Safety Information
GENERAL ADVICE
1. Read this manual completely before using the product.
2. Keep this manual with your records for future reference.
3. Follow all instructions printed in this manual, otherwise warranty
may become void.
4. Follow all printed security advice on the device.
5. The manufacturer takes no responsibility for injury or damage
caused by not following the safety precautions and instructions
printed within this manual and on the device.
6. Handle the unit with care. Dropping or heavy vibration may damage
the unit mechanically and/or electrically.
4
Unique lighting solutions.

5
Unique lighting solutions.
Safety Information
PROTECTION FROM RADIATION AND EYE INJURY
1. Warning: This xture emits Ultraviolet Radiation (UV) at a primary
wavelength of 365nm, the radiation emitted is not in the visible
spectrum and can cause skin cancer, retinal burns and damage
to the eye.
Mise en garde : Cet appareil émet des rayonnements ultraviolets (UV)
à une longueur d'onde primaire de 365nm, le rayonnement émis
n'est pas dans le spectre visible et peut causer le cancer de la peau,
des brûlures rétiniennes et des dommages à la cataracte de le œil.
2. To avoid eye injury, do not look into the beam. The radiation emitted
is not in the visual spectrum. The user should assume the unit is live
unless it is disconnected from the mains.
Pour éviter les blessures aux yeux, ne regardez pas le faisceau.
Le rayonnement émis n'est pas dans le spectre visible. L'utilisateur
doit utiliser que l'appareil est sous tension, sauf s'il est débranché
du secteur.
3. Do not view the beam directly with optical instruments such as
magniers, telescopes, binoculars or similar optical instruments
that may concentrate the light/radiation output.
Ne pas regarder le faisceau directement avec des instruments
optiques tels que loupes, télescopes, jumelles ou instruments
d’optique similaires qui peuvent concentrer le ux lumineux.
4. Ensure no one is accidentally exposed to the light beam from 4 ft.
S'assurer que personne n'est exposé accidentellement à faisceau
lumineux de 4 pi.
5. Limit exposure to UV light and cover skin when working around
the product.
Limiter l'exposition aux rayons UV et couvrir la peau lorsque vous
travaillez autour du produit.
6. RG-1: Caution: UV emitted from this lamp. Minimize exposure.
Skin or eye irritation.
RG-1: Mise en garde: UV émise par cette lampe. Minimiser
l'exposition. Irritation cutanée ou oculaire.

6
Unique lighting solutions.
Safety Information
PROTECTION FROM ELECTRIC SHOCK
1. Only connect this unit to a mains socket outlet with a protective
earth connection, ground-fault (earth-fault) and overload protection.
Ne branchez cet appareil sur une prise de courant avec une prise
de terre protectrice, défaut à la terre (défaut à la terre) et protection
contre les surcharges.
2. When removing the AC power cord from an AC power outlet, grip the
plug. Never pull on the cable only.
Pour retirer le cordon d’alimentation dans une prise secteur, saisir la
che. Ne tirez jamais sur le câble seulement.
3. Disconnect the unit from AC power before cleaning. Use smooth and
dry cloth only.
Débranchez l’appareil de l’alimentation secteur avant de le nettoyer.
Utilisez un chiffon doux et sec.
4.
Do not submerge the unit in liquid. Suitable for dry or damp locations.
Ne pas immerger l’appareil dans un liquide.
Convient pour les endroits secs ou humides.
5. Choose the position of the AC cord according to the lowest risk of
damage by foot trafc or crushing, such as from rolling equipment.
Choisir la position du cordon AC selon le plus faible risque de
dommages causés par la circulation à pied ou d’écrasement,
à partir de matériel laminage.
6.
Do not open the unit for service. The warranty will be void in any case
of unauthorized service by the user or other unauthorized persons.
Ne pas ouvrir la unité pour réparation. La garantie sera annulée
en cas de réparation non autorisée par l’utilisateur ou d’autres
personnes non autorisées.

7
Unique lighting solutions.
Safety Information
PROTECTION FROM FIRE
1. Do not place the unit near sources of heat (e.g. powerful ampliers,
fog machines).
Ne pas placer l’appareil près de sources de chaleur (par ex.
puissants amplicateurs, machines à fumée).
2. Allow at least 6" (15cm) between this unit and other devices or walls
to allow for proper cooling.
Laissez au moins 6" (15cm) entre cet appareil et autres dispositifs
ou les murs pour permettre un refroidissement adéquat.
3. Allow sufcient air convection in the unit’s environment to
avoid overheating. Make sure air convection slots are not blocked.
Do not operate this unit in environmental temperatures exceeding
105°F (40°C).
Laisser la convection d’air sufsante dans l’environnement de
l’appareil pour éviter une surchauffe. Assurez-vous que les fentes
à convection air ne sont pas bloqués. N’utilisez pas cet appareil
à des températures ambiantes dépassant 40 ºC (105 ºF).
4.
Keep the unit at least 30" (76cm) away from any ammable materials.
Maintenez l’appareil au moins 30" (76cm) de tout matériau inammable.
5. To avoid overloading power, check the total maximum power of your
AC wall outlet. The unit is marked on the back with requirements.
Pour éviter une surcharge de puissance, vérier la puissance totale
maximale de votre prise murale. L'unité est marquée sur le dos avec
les exigences.

8
Unique lighting solutions.
Safety Information
DIMMING VERSIONS
The dimmable version of the AVERE®4UV uses ELV line voltage
dimmers. The xture can also be used with a straight plug in.
The unit is s not designed for use with trailing edge TRIAC dimmers.
We can not guarantee smooth dimming performance with
TRIAC systems.
La version dimmable de l'AVERE®4UV utilise ELV tension de
ligne gradateurs. L'appareil peut également être utilisé avec une
che droite. L'appareil est s pas conçu pour être utilisé avec le
bord arrière gradateurs TRIAC. Nous ne pouvons pas garantir la
performance de gradation uide avec les systèmes de TRIAC.
WARNING! Not Applicable to Dimming units used Internationally:
The standard unit supply is auto-switching. The xture is designed
for 85-264V and 47-63Hz with non-standard cord and plug.
ATTENTION: Non applicable aux unités de gradateurs utilisés au
niveau international: Le alimentation en unité standard est la
ommutation automatique. Le dispositif est conçu pour 85-264V
et 47-63Hz avec cordon et che non standard.
WARNING! The unit is not UL Listed for international installations.
ATTENTION: L'appareil n'UL pour les installations internationales.

9
Unique lighting solutions.
Safety Information
PROTECTION FROM INJURY AND DAMAGE
1. Never use any accessories or modications not authorized by the
manufacturer of this unit.
Ne jamais utiliser des accessoires ou des modications
non autorisées par le fabricant de cet appareil.
2. Choose a location for operation where the unit is protected from
vibration and where a xed mounting position is provided. In case of
overhead mounting, follow applicable rigging rules and regulations
for rigging safety, including the use of an approved safety cable.
Choisissez un emplacement pour l’opération où l’appareil est
protégé des vibrations et où une position de montage xe est fournie.
En cas de surcharge-montage, suivez le gréement applicable règles
et règlements pour le gréement de sécurité, y compris l’utilisation
d’un câble de sécurité approuvé.
3. The unit must be mounted from the bracket using a suitable
C-clamp. The unit must NOT be suspended from the power cord.
L’appareil doit être monté du support à l’aide d’une pince en
C appropriée. L’appareil ne pas être monté du cordon
d’alimentation.
4. If liquids are spilled into the unit, immediately disconnect power
and return the unit to the manufacturer for service.
Si aucun liquide inltre l’unité, immédiatement débrancher
l’alimentation et renvoyez-le à le fabricant pour le service.
5. This unit has no user serviceable parts. If service is required return
the unit to the manufacturer for service.
Cet appareil n’a aucune pièce réparable par l’utilisateur. Si le service
il faut retourner l’appareil à le fabricant pour le service.
6. The light source contained in this luminaire shall only be replaced by
the manufacturer or his service agent or a similar qualied person.
La source de lumière contenues dans ce luminaire ne doit être
remplacé par le fabricant ou son agent de service ou une personne
qualiée.
7.
According to EN60598, the AVERE 4UV is a Class 1, IP65 luminaire
.
Selon EN60598, l'AVERE 4UV est de classe 1, IP65 luminaire.

ENVIRONMENTAL ADVICE
It is highly recommended that North American users follow
environmentally safe disposal/recycling practices.
10
Unique lighting solutions.
Safety Information
FUNCTIONAL ADVICE
The unit's power supply complies with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or experienced radio/TV technician for help.
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

11
Unique lighting solutions.
Technical Information
Total Max Output mW Standard: 4000mW (Min) – 5000mW (Max) – No Lens
Dimmable: 5000mW (Min) – 6000mW (Max) – No Lens
Drive Engine Standard: 5 x 2.8W 365nm High Efcacy UV LEDs
Dimmable: 6 x 2.8W 365nm High Efcacy UV LEDs
Optics 15˚ – UV Resistant Polycarbonate
22˚ – UV Resistant Polycarbonate
35˚ – UV Resistant Polycarbonate
IP Rating IP65
Mains Input 120V ~ 60Hz
Power Consumption Standard: <18.5W
Dimmable: 21W
Power Cord 6' – 300V SJEOW Outdoor Cable – 5-15 NEMA Plug*
Dimensions WxDxH 6.83" x 4.90" x 8.39" (174mm x 124mm x 213mm)
Mounting Hole 17⁄32"
Weight 5.9lbs (2.7kgs)
UL Listed
U.S.A. and Canada
E-File E471675
Standard Version Only (non-dimmable)
International: Available with non-standard plug, cord and auto-switching 85-264V
(47 ~ 63Hz). The unit is not UL Listed for international installations.
* Plug not outdoor rated.
Weight: 5.9 lbs.
6.83"
8.39"
6.76"
4.90"

12
Unique lighting solutions.
Secure Mounting
The AVERE®4UV xture should be mounted using the mounting hole in the yoke.
A suitable mounting clamp (sold separately) should be used.
• Use the yoke supplied.
Utiliser le joug fourni.
• The unit should be installed out of reach of people and outside of areas
where persons may walk by or be seated.
L’appareil doit être installé de rejoindre des gens et en dehors des zones où
les personnes peuvent marcher ou s’assis.
• Make sure that the installation area can hold a minimum point load of 5 times
the unit’s weight.
Assurez-vous que la surface de l’installation peut supporter une charge de
point minimum de poids de l’unité 5 fois.
• In xed installations, attach the unit with self-locking screws/nuts to the
mounting point.
En installations xes, de xer l’unité avec des vis/écrous auto-bloquants sur
le point d’ancrage.
• When mounting the unit to truss, be sure to secure an appropriately rated
clamp to the yoke through the mounting hole.
Lors du montage de l’unité à poutre en treillis, veillez à garantir une pince
de calibre approprié à l’arcade à travers le trou de montage.
HANGING/RIGGING, CEILING MOUNTED OPERATION
RISK OF INJURY: Overhead mounting requires extensive experience,
including, among others, calculating working load limits, good
knowledge of the installation material being used, and periodic safety
inspection of all installation material and the unit. If you lack such
qualications, do not attempt the installation yourself. Improper installation can
result in injury. Be sure to complete all rigging and installation procedures before
applying power to the unit.
RISQUE DE BLESSURES: frais généraux installation requiert une grande
expérience, y compris, entre autres, calcul des limites de charge de travail,
la bonne connaissance du matériel installation utilisé et inspection périodique
sur la sécurité de tous les matériels d’installation et de l’unité. Si vous n’avez
pas ces qualications, ne tentez pas l’installation vous-même. Une installation
incorrecte peut causer des blessures. N’oubliez pas de remplir toutes les
procédures de montage et d’installation avant la mise sous tension de l’appareil.

13
Unique lighting solutions.
Secure Mounting
• Check the at head M6 socket cap screws that attach the yoke to the xture to
ensure they are not loose.
Vériez le bouchon de prise M6 tête plate vis que pour attacher le joug sur
le montage pour s’assurer qu’ils ne sont pas lâches.
• Always use a certied safety cable suitable for the weight of the unit. This
secondary safety attachment should be installed in a way that no part of the
unit can drop and cause injury or damage if the main attachment fails.
Toujours utiliser un câble de sécurité certié adapté au poids de l’appareil.
Cet accessoire de sécurité secondaire doit être installé de façon qu’aucune
partie de l’unité peut tomber et blesser ou endommager si la xation
principale échoue.
• Never stand directly below the device when mounting, removing, or servicing
the xture.
Ne vous tenez pas directement sous l’appareil lors du montage, retrait ou
entretien de l’appareil.
• The installation should be inspected every 6 months or more frequently
if deemed necessary. Inspection should be performed by a skilled person
to ensure safety.
L’installation devrait être inspecté tous les 6 mois ou plus fréquemment s’il
le juge nécessaire. Inspection doit être effectuée par une personne
compétente pour assurer la sécurité.
• Comply with the cooling requirements of the unit. The unit will self-regulate,
however, for optimum performance a cool air supply is preferred.
Conformer aux exigences de refroidissement de l’unité. L’appareil
a s’autoréguler, cependant, pour des performances optimales,
n approvisionnement en air frais est préférable.
• Suitable for dry or damp locations.
Convient pour les endroits secs ou humides.
• Ensure all knobs are fully tightened.
Veiller à ce que tous les boutons sont bien serrés.

14
Unique lighting solutions.
AC Power Connection
The AVERE®4UV xture can be used on 85V - 264V supplies with nonstandard
plug and cord. Standard version (non-dimmable) only. UL Listed on 120V 60Hz in
North America only.
RISK OF FIRE / SAFETY RISK
The xture requires an AC power source with sufcient power
carriage and correct grounding to ensure safe operation. The AC
power source must be equipped with a circuit breaker. Make sure
to only use compliant AC supply lines. The standard xture is NOT
line dimmable and must NOT be used be used with dimmer packs. If line
dimming is required, use the line dimmable version of the unit.
Le dispositif nécessite une source d'alimentation secteur avec chariot de
puissance sufsante et correcte mise à la terre pour assurer un fonctionnement
en toute sécurité. La source d'alimentation en courant alternatif doit être équipé
d'un disjoncteur. Assurez-vous d'utiliser uniquement des lignes d'alimentation
en courant alternatif conforme. La xation standard est pas la ligne dimmable
et ne doit pas être utilisé être utilisé avec gradateurs. Si la ligne de gradation
est nécessaire, utiliser la ligne version dimmable de l'unité.

15
Unique lighting solutions.
Maintenance
This device does not need regular maintenance. If the unit fails to operate, return
the unit to the manufacturer for service. There are no user serviceable parts inside.
Cet appareil ne nécessite pas d’entretien régulier. Il l’appareil ne fonctionne
pas, renvoyez-le à le fabricant pour le service. Il n’y a aucune pièce réparable
par l’utilisateur à l’intérieur.

16
Unique lighting solutions.
Warranty
Items are covered for defects in materials and workmanship for two years,
including repair parts and repair labor on defective item, from date of the
manufacturer invoice. The warranty covers freight for 30 days after initial purchase.
The manufacturer does not cover any other loss resulting from product failure.
Products being returned for warranty repair must display the original serial number.
Removal of the serial number voids the product’s limited warranty.
WARNING
UV light
hazard.
Avoid looking directly at light.
365nm


4121 Fourier Road • Fort Wayne, IN 46818
260.969.9225
AVIDLabs.com
© Copyright 2016 AVID Labs, LLC
11/16
WARNING
UV light
hazard.
Avoid looking directly at light.
365nm
Table of contents
Other AVID LABS Dj Equipment manuals
Popular Dj Equipment manuals by other brands

Coemar
Coemar iProfile Flex instruction manual

Showlite
Showlite SPS-121 instruction manual

Chauvet Professional
Chauvet Professional Ovation ETD-40WW Quick reference guide

Foneric
Foneric LS1 Quick start guides

Martin
Martin MAC III Quadray Module Installation and control guide

Tempest
Tempest Tornado Marine G4 user manual
