Avidsen 114256 User manual

BACKUP BATTERY
12V NiMh
Ref.114256
www.avidsen.com
V1
12V
COMPATIBLE WITH
Ref. 114159 Ref. 114459 Ref. 114457 Ref. 114460
Ref. 114153

TABLE OF CONTENTS
EN 2
A - SAFETY
INSTRUCTIONS
1 - OPERATING PRECAUTIONS 04
2 - WARNING 04
3 - MAINTENANCE AND CLEANING 04
4 - RECYCLING 04
B - PRODUCT
DESCRIPTION
1 - KIT CONTENTS 05
C - INSTALLATION
1 - INSTALLING THE BACKUP BATTERY 05
D - FAQ
E - TECHNICAL
AND LEGAL
INFORMATION
1 - TECHNICAL CHARACTERISTICS 06
2 - WARRANTY 07
3 - HELP AND ADVICE 07
4 - DECLARATION OF CONFORMITY 07

EN 4
1 - OPERATING PRECAUTIONS
• Read this entire manual before starting the
installation.
• Do not allow children to operate the product.
• Be careful to check the connection polarity of
each item before installation
• Do not use the solar kit in conjunction with a
backup battery
• Disconnect from the mains before connecting
wires
2 - WARNING
This product has been designed solely to power
a gate motor drive. Any other use of the device is
not covered by the warranty or technical support.
Avidsen cannot be held liable for any use that does
not comply with the instructions in this manual and
causes damage. Children should be supervised to
make sure that they do not play with the device.
3 - MAINTENANCE AND CLEANING
• The battery does not require any special
maintenance. You can clean the exterior of
the battery. If doing so, do not use abrasive
substances, substances containing alcohol,
thinners or other ammable substances.
• Do not spray any products directly onto the unit.
4 - RECYCLING
The battery is recyclable, none of the items should
be left outdoors or thrown into a household bin.
INFORMATION ON ENVIRONMENTAL
PROTECTION
The consumer is required by law to
recycle all used batteries and
accumulators.
Disposing of them in household waste
is strictly forbidden.
Batteries/accumulators containing harmful
substances are marked with symbols (shown
opposite) which indicate that it is forbidden
to discard them in the household waste. The
corresponding heavy metal designations are
as follows: Cd = cadmium, Hg = mercury, Pb =
lead. These used batteries/accumulators can
be disposed of at local waste treatment centres
(centres for sorting recyclable materials), which
are required to accept them. Keep batteries, button
cells and accumulators out of reach of children.
Store them in a safe place that is not accessible
to children. They could be swallowed by children
or pets. Risk of death! In the event that a battery is
swallowed, immediately contact a doctor or go to
A&E! Never short-circuit the batteries, and do not
burn them as they may explode!
Pour en savoir plus :
www.quefairedemesdechets.fr
A - SAFETY INSTRUCTIONS

EN5
B - PRODUCT DESCRIPTION

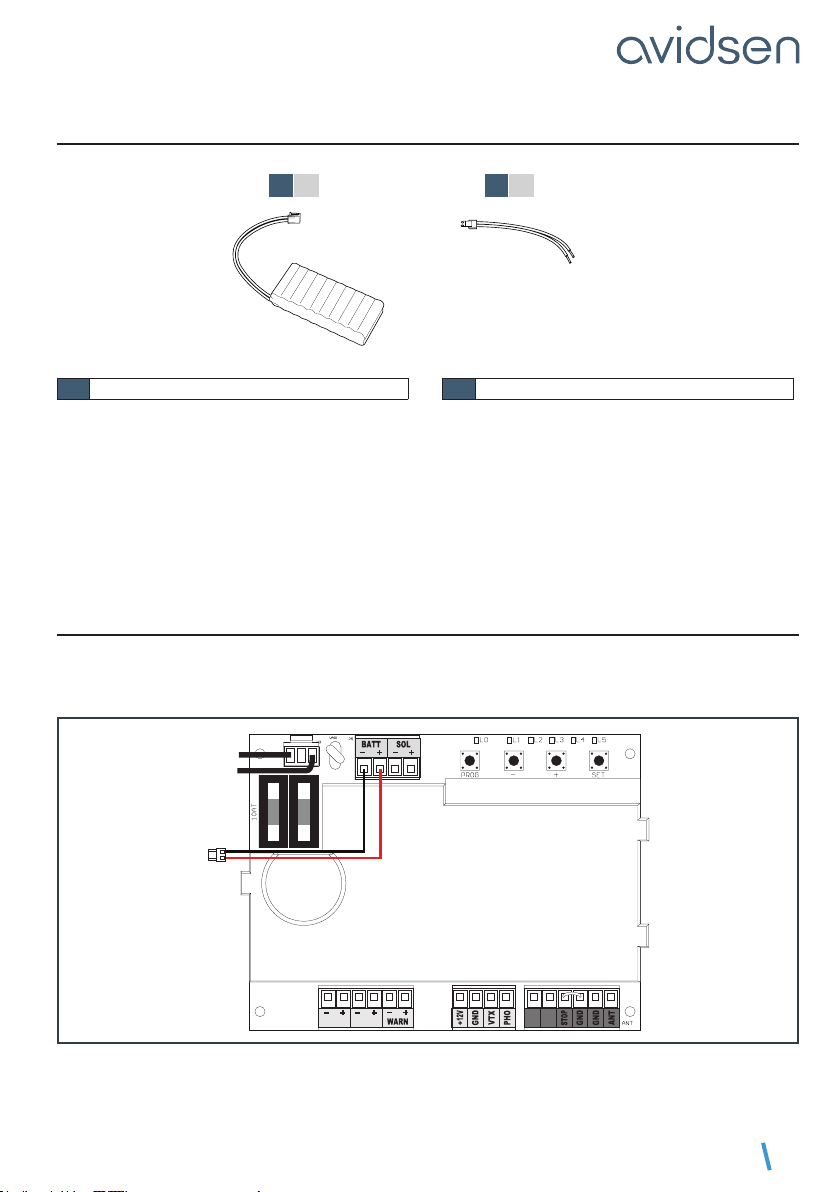

1 - KIT CONTENTS
C - INSTALLATION
This battery is compatible with Avidsen 12V telescopic gate motor drives as well as motor drives for
Avidsen 24V sliding gates.
1 - INSTALLING THE BACKUP BATTERY
• Cut off the 230V power supply (safety switch to the OFF position)
• Connect the cables with the connector on the electronic card, making sure to properly match the + and -
terminals and using the red and black cables (red on the + terminal and black on the - terminal).
0 0
% %
1x1 2x1
1One battery 2One connection cable

EN 6
C - INSTALLATION
• Connect the battery to this same connector.
0 0
% %
• Put the 230V power supply back on (safety switch to the ON position).
• The battery will load in 24 hours approximately. Beyond this time, test the gate’s operation (1 opening +
1 closing) after having switched the motor drive off (safety switch in the OFF position).
• After this test, reconnect the power supply (safety switch to the ON position). The battery will take over
if the power is cut.
D - FAQ
Symptoms Possible causes Solutions
The LEDs on the circuit board
light up faintly and the gate
doesn’t open
Batteries discharged Connect to the mains power to
recharge the battery
The circuit board reboots when
movement is attempted or an
L1L2 or L1L3 error code is
displayed
Batteries discharged Connect to the mains power to
recharge the battery
E - TECHNICAL AND LEGAL INFORMATION
1 - TECHNICAL CHARACTERISTICS
NiMh battery comprising 20x 1.2V/0.8A cells
Pack voltage 12 V

EN7
E - TECHNICAL AND LEGAL INFORMATION
Cooling 1600 mA
Dimensions 105x45x20mm
Operating temperature -20°C to +45°C
2 - WARRANTY
This product is under warranty for 2 years from the date of purchase. Proof of purchase must be retained
for the duration of the warranty period.
The warranty does not cover damage caused by impacts, moisture or accidents.
This battery is designed to power a motorised gate. Any other use will not be covered by any warranty.
3 - HELP AND SUGGESTIONS
• If, despite the care we have taken in designing our products and drafting these instructions, you do
encounter difculties when installing your product or you have any questions, we strongly recommend
that you contact one of our specialists who will be glad to help.
• If you encounter operating problems during the installation or a few days afterwards, it is essential for
you to be in front of your installation when contacting us, so that one of our technicians can diagnose the
source of the problem, as it will probably be the result of a setting that is incorrect or an installation that
is not to specication. If the problem is caused by the product itself, the technician will give you an RMA
number so that you can return the unit to the shop. Without this RMA number, the shop may refuse to
exchange your product. Need advice for the installation or start-up of your product?
Contact our customer service technicians on:
0,35 € / min
0 892 701 369
Monday to Friday, 9pm to 12pm, and 2pm to 6pm.
Avidsen undertakes to keep a stock of spare parts for this product throughout the contractual warranty
period.
4 - DECLARATION OF CONFORMITY
I, Alexandre Chaverot, CEO, declare, under my sole responsibility that the abovementioned product
complies with the EU Battery Directive 2006/66/EC. Its conformity has been assessed pursuant to the
applicable standards in force:
• EN 62133
Signed in Tours on 15 December 2020 by Alexandre Chaverot, CEO
