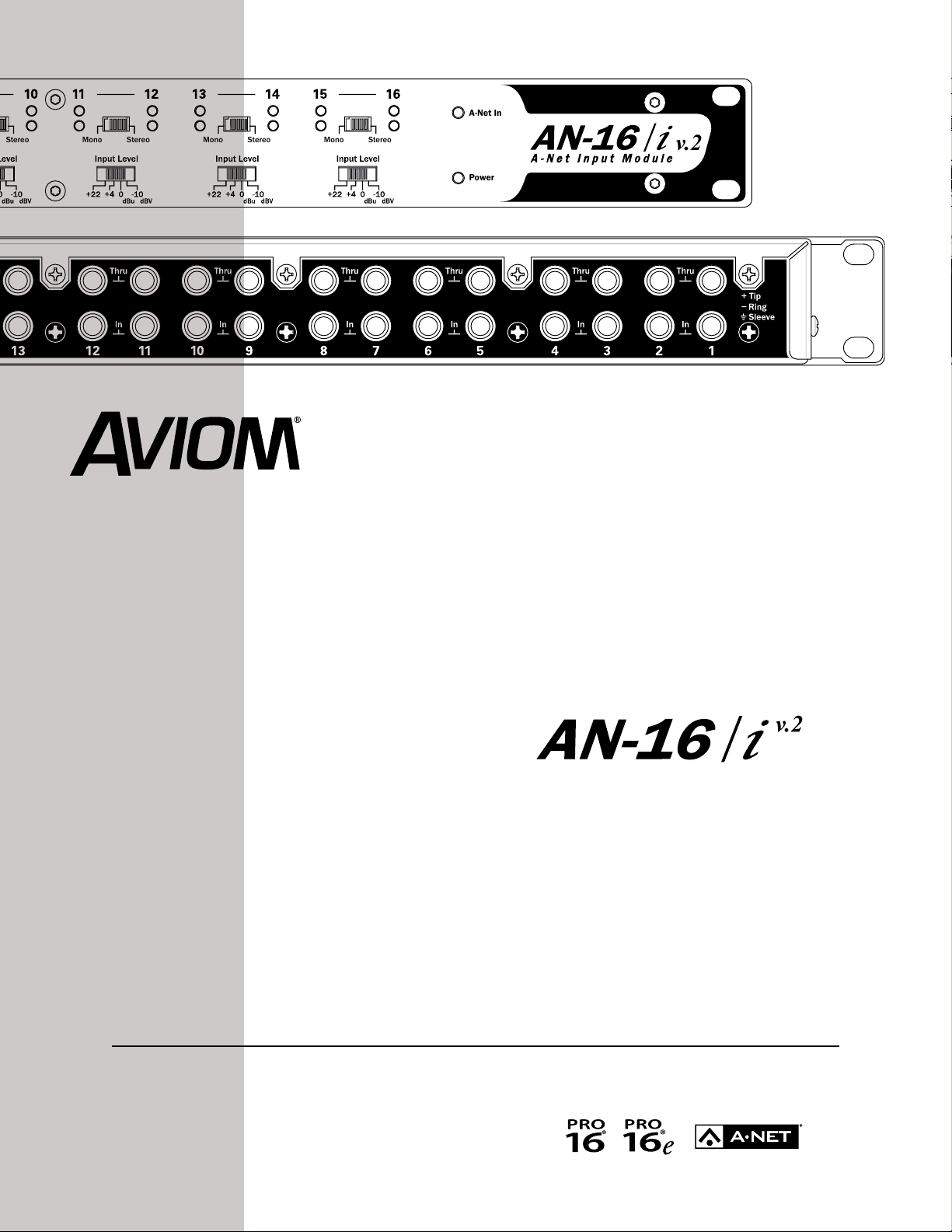

Aviom AN-16/i v.2 User manual

Input Module
9310 1026 0001F rev 1.00
© 2013 Aviom, Inc.
User Guide
A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo

i i
READ THIS FIRST
Important Safety Instructions
Read these instructions.1.
Keep these instructions.2.
Heed all warnings.3.
Follow all instructions.4.
Do not use this apparatus near water.5.
Clean only with a dry cloth.6.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.7.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus8.
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has9.
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or third prong are provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience10.
receptacles, and the point where they exit the apparatus.
Only use attachments/accessories specified by the manufacturer.11.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with12.
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.13.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been14.
damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
No on/off power switches are included in the system. The external power supply should be used to15.
control power to an Aviom device. This power supply should remain readily operable.
The solid line over dashed line symbol (16. ) indicates that the input voltage must be a DC
voltage.
The box within a box symbol (17. ) indicates that the external power supply is double insulated.

iii
TO REDUCE THE DANGER OF ELECTRICAL SHOCK DO NOT REMOVE COVERS.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
To reduce the risk of fire or electrical shock, do not expose this product to rain or other types of moisture.
To avoid the hazard of electrical shock, do not handle the power cord with wet hands.
Replace fuse with same type and rating.
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
Risque de choc électrique – ne pas ouvrir. Pour réduire le risque de feu ou de choc électrique, ne pas exposer cet équipement
à la pluie ou la moisissure. Pour réduire le risque de choc électrique, ne pas retirer le couvercle. Pièces non remplaçables par
l’utilisateur. Confier la réparation à une personne qualifiée. Attention – utiliser seulement un fusible de rechange de même type.
Cet appareil est conforme à la section 15 de la norme FCC. Son fonctionnement est soumis aux conditions suivantes : (1) cet
équipement ne doit pas causer des interférences nocives, et (2) cet équipement doit accepter toute interférence captée incluant les
interférences pouvant causer des opérations indésirables.
Cet appareil numérique de Classe B est conforme à la norme NMB-003 du Canada.
WARNING!
! !
CAUTION:
Using any audio system at high volume levels can cause•
permanent damage to your hearing.
Set your system volume as low as possible.•
Avoid prolonged exposure to excessive sound pressure levels.•
IMPORTANT:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the•
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC
authority to operate the equipment.

i v
Trademarks
Aviom, A-Net, the A-Net icon, Pro16, Pro16e, Pro64, AllFrame, m-control, and Virtual Data
Cable are trademarks of Aviom, Inc.
All other trademarks are the property of their respective owners.
©2013 Aviom, Inc. All rights reserved.
Information is subject to change without notice.
Notice of Rights
All rights reserved. No part of this document may be reproduced or transmitted in any form or by any
means—electronic, mechanical, photocopy, recording, or otherwise—without written permission of
Aviom, Inc.
Certifications
EMC: EN55103-1:2009
EN 55103-2: 2009
EN 55022:2006 / CISPR 22:1997
CAN/CSA-CEI/IEC CISPR 22:02
FCC 47 CFR, Part 15
Safety: UL 60065, 7th Edition, Rev.: 09/21/2012;
CAN/CSAC22.2 No. 60065:03 (R2012)
ETL/cETL Listed and RoHS Compliant
Pb
Pb-Free

v
Aviom, Inc. Limited Warranty
Aviom, Inc. warrants this product against defects in materials and workmanship for a period of one year
from the date of the original retail purchase.
This warranty does not apply if the equipment has been damaged due to misuse, abuse, accident, or
problems with electrical power. The warranty also does not apply if the product has been opened or
modified in any way; if the product serial number has been damaged, modified, or removed; or if the
original Quality Assurance label has been damaged, modified, or removed.
If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service
will be performed on any product returned without prior authorization. Aviom, Inc. will, at its option, repair
or replace the product at no charge to you. The product must be returned during the warranty period,
with transportation charges prepaid to Aviom, Inc., 1157 Phoenixville Pike, Suite 201, West Chester, PA
19380. You must use the product’s original packing materials for shipment. Shipments should be insured
for the value of the product. Include your name, address, phone number, description of the problem, and
copy of the original bill of sale with the shipment. The Return Authorization number should be written on
the outside of the box.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). AVIOM’S RESPONSIBILITY FOR
MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH
IN THIS LIMITED WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE. NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD.
AVIOM, INC. DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY
DOCUMENT. AVIOM, INC.’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF
ANY DEFECTIVE PRODUCT, AND SHALL IN NO EVENT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND.
SOME STATES DO NOT ALLOW EXCLUSIONS OR LIMITATION OF IMPLIED WARRANTIES OR LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

v i
Warranty Information
Please record the following information for future reference:
Your Authorized Aviom Dealer:
Name:
Address:
Phone:
Serial Numbers of Your Aviom Products:
Date of Purchase:
Your Authorized Aviom Dealer is your primary source for service and support. The information recorded
above will be helpful in communicating with your Authorized Aviom Dealer should you need to contact
Aviom Customer Service. If you have any questions concerning the use of this unit, please contact your
Authorized Aviom Dealer first. For additional technical support, or to find the name of the nearest
Authorized Aviom Repair Station, check the Aviom web site at www.aviom.com.
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom
service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom
warranty is void.
This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. This
document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form without prior written consent from Aviom, Inc.
The software and/or firmware contained within Aviom products is copyrighted and all rights are reserved
by Aviom, Inc.
Although every effort has been made to ensure the accuracy of the text and illustrations in this manual, no
guarantee is made or implied as to the accuracy of the information contained within.

v i i
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Table of Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . ii
Certications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Aviom, Inc. Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . v
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . vi
AN-16/i v.2 Input Module . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Conventions Used in This Document . . . . . . . . . . . . . . . . . . . 2
AN-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Using Personal Mixers . . . . . . . . . . . . . . . . . . . . . . . 2
Cat-5 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
A-Net Distributors . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About A-Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pro16 Products . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pro64 Products . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About Category 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cat-5 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Line Conditioning. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing in an Equipment Rack . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Maintenance Information . . . . . . . . . . . . . . . . . 8

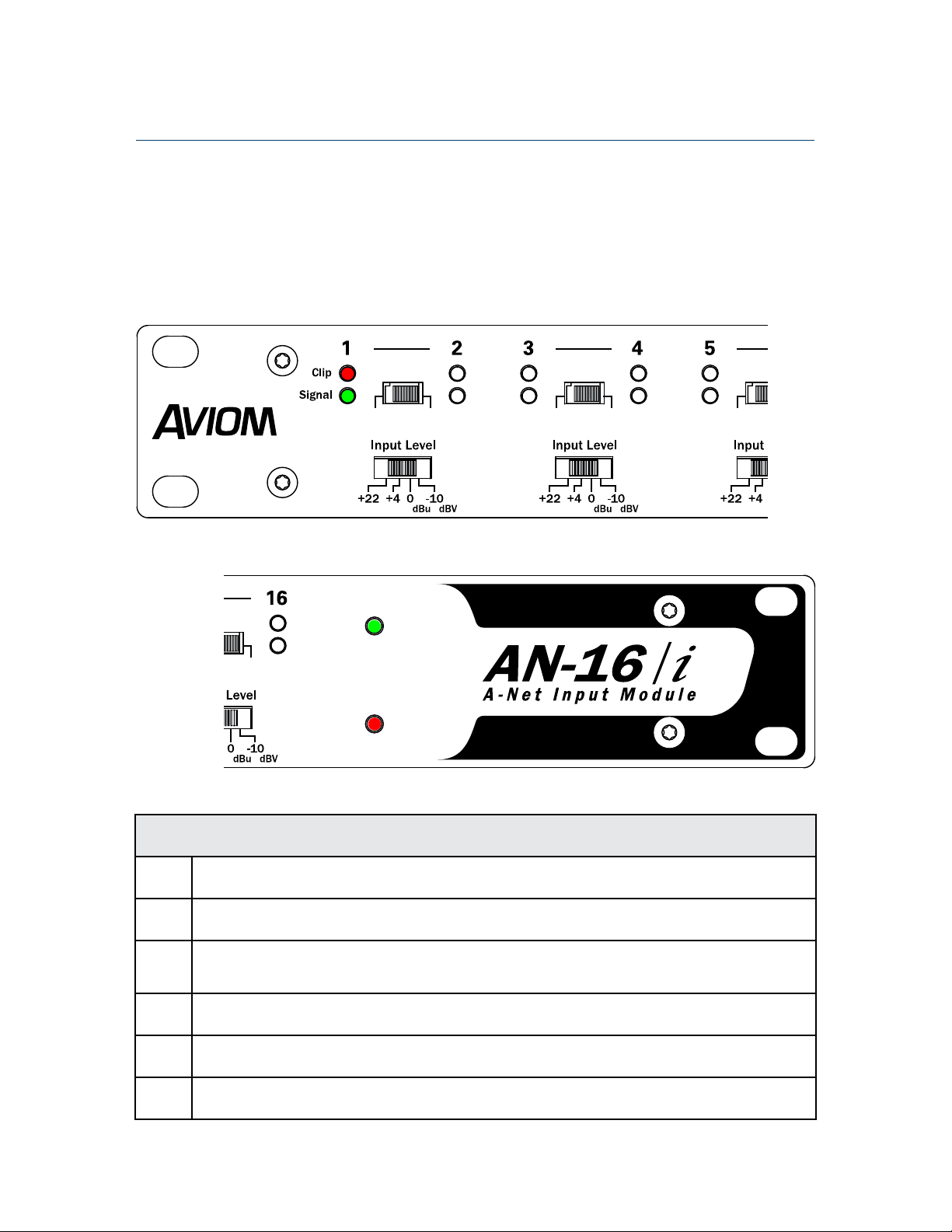

AN-16/i v.2 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AN-16/i v.2 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 10
AN-16/i v.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Channel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Input Level Switch . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mono/Stereo Link Switch . . . . . . . . . . . . . . . . . . . . . . 13
Using Stereo Links . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power and A-Net LEDs . . . . . . . . . . . . . . . . . . . . . . . 14
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . 15
A-Net Connections . . . . . . . . . . . . . . . . . . . . . . . . . 15
A-Net In . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A-Net Out . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Slot Range Switch . . . . . . . . . . . . . . . . . . . . . . . . . 16
Channel Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . 17
Channel Thru Jacks. . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connections on the AN-16/i v.2 Rear Panel . . . . . . . . . . . . . . . . 18
Connecting a Mixing Console to the AN-16/i v.2 . . . . . . . . . . . . . 19
Direct Output . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

v i i i
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Insert Send/Return Points . . . . . . . . . . . . . . . . . . . . . 19
TRS Inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Discrete Insert Send and Return Jacks. . . . . . . . . . . . . . . . 21
Adding Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
A-Net Audio Without the Effect . . . . . . . . . . . . . . . . 22
A-Net Audio With the Effect . . . . . . . . . . . . . . . . . . 22
Submixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Stereo Submix . . . . . . . . . . . . . . . . . . . . . . . . 23
Aux Sends (Effects Sends) . . . . . . . . . . . . . . . . . . . 24
Line-level Devices . . . . . . . . . . . . . . . . . . . . . . . . . 25
Conguring Monitor Systems . . . . . . . . . . . . . . . . . . . . . . 26
Pro16 Personal Mixing Systems . . . . . . . . . . . . . . . . . . . . . 26
Rear Panel Setup . . . . . . . . . . . . . . . . . . . . . . . . . 26
Daisy Chain Personal Mixing System Connections . . . . . . . . . . 27
Using an A-Net Distributor . . . . . . . . . . . . . . . . . . . . . 28
Multi-Zone 16-Channel Monitor Systems . . . . . . . . . . . . . . . . 30
Higher Channel Count Personal Mixing Systems . . . . . . . . . . . . . 31
Channel Mapping on the A360 . . . . . . . . . . . . . . . . . . 32
Stereo Input Channels . . . . . . . . . . . . . . . . . . . . . . . 32
How Stereo Links Work . . . . . . . . . . . . . . . . . . . . . . . 33
Beyond the Default Channel Mapping . . . . . . . . . . . . . 34
Rear Panel Setup for Pro16e Systems . . . . . . . . . . . . . . . . . . 35
32-Channel Example. . . . . . . . . . . . . . . . . . . . . . 35
64-Channel Example . . . . . . . . . . . . . . . . . . . . . 36
Using Legacy Input Hardware . . . . . . . . . . . . . . . . . . . . . . 37
Digital Snakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Basic Digital Snake Conguration . . . . . . . . . . . . . . . . . . . . 38
System Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Digital Snake - 16 x 16 . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Setup On Stage . . . . . . . . . . . . . . . . . . . . . . . . 40
Setup at Front-of-House (FOH) . . . . . . . . . . . . . . . . . 41
Digital Snake - 32 x 16 . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Digital Snake - 48 x 16 . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adding Audio Outputs - Splits . . . . . . . . . . . . . . . . . . . . . . 44
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cat-5 Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
T568A . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
T568B . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . 54

1
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
AN-16/i v.2 Input Module
Thank you for purchasing the Aviom AN-16/i v.2 Input Module. This User Guide is designed
to familiarize you with your new product’s features and to have your Pro16® or Pro16e™ system
up and running as quickly as possible.
A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Features
The AN-16/i v.2 is part of Aviom’s Pro16® Series of products; it can be combined with Pro16 and Pro16e
devices to create personal mixing systems, digital snakes, and audio distribution systems for applications
in live performance, broadcast, and recording.
The AN-16/i v.2 Input Module’s main features include:
Sixteen balanced line-level 1/4-inch TRS jacks for audio input connections•
Sixteen balanced 1/4-inch TRS jacks for audio Thru connections•
High quality A-to-D conversion at 48kHz, 24-bit•
Adjustable input level switches per channel pair•
Eight stereo channel Link switches•
Signal and Peak LEDs on each channel•
•A-Net® In and A-Net Out jacks
4-position•Slot Range switch for Pro16e applications

2
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Conventions Used in This Document
AN-Series
The AN-16/i v.2 Input Module, original AN-16/i Input Module, AN-16/i-M Mic Input Module, and AN-16/o
Output Module are referred to generically as the AN-Series of products.
When describing audio network configurations, the AN-16/i-M Mic Input Module and most Pro16 console
interface cards can be substituted anywhere the AN-16/i is used.
Using Personal Mixers
It is possible to create an audio distribution and personal monitor system using any combination of Aviom
AN-Series and Personal Mixer products, including the A360, A-16II, and A-16R.
When referring to the use of the Personal Mixers in a system in general, the term Personal Mixer is used to
describe a case where an A360 Personal Mixer, A-16II Personal Mixer, or a A-16R Rack-mount Personal Mixer
(with/without the optional A-16CS Control Surface) can be used.
Cat-5 Cables
In most cases unshielded (UTP) Cat-5e, Cat-6, and Cat-6e cables can be interchanged. When speaking
about interconnections between components in a system, the term Cat-5 is used generically to indicate
the use of any of the applicable cable types.
A-Net Distributors
The A-16D and A-16D Pro A-Net Distributors are referred to generically as A-Net Distributors. Both are
used to copy an A-Net digital signal and split it into multiple copies so that devices may be connected in
parallel.

3
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Package Contents
The AN-16/i v.2 Input Module box includes:
AN-16/i v.2 Input Module•
DC Power supply for the AN-16/i v.2•
Documentation•
Options for your system include:
Cat-5e/Cat-6 UTP interconnect cables•
•AN-16SBR System Bridge
Aviom Personal Mixer products such as the•A360 Personal Mixer, A-16II Personal Mixer, or
A-16R Rack-mount Personal Mixer for creating a monitoring system
Pro16 output devices such as the•AN-16/o Output Module or AV-P2 Output Module
A-16D and/or•A-16D Pro A-Net Distributors
Also included with the system is a Warranty Registration, found within this User Guide. Be sure to fill out the
form and return it to Aviom, Inc. via mail or fax as soon as possible. Warranty info may also be submitted
on the Aviom website, www.Aviom.com.
About A-Net
A-Net® is a proprietary high-speed data transmission protocol developed by Aviom, capable of sending
and receiving high-quality digital audio using readily available Cat-5 cables.
A-Net is based on the physical layer of Ethernet, a Local Area Network (or LAN) technology. This provides
A-Net with a mature and robust base on which to build. However, it is important to note that A-Net devices
are not compatible with Ethernet devices.
Some of the benefits of using A-Net to transmit digital audio are:
Virtually no latency; analog in to analog out is always less than one millisecond•
No ground loops•
Easy cabling using readily available components•
An unlimited number of A-Net devices can be used in a system•
Ease in spanning long distances between system components•
There are two versions of Pro16 A-Net: the original Pro16 A-Net signal carries sixteen channels of digital
data while the enhanced Pro16e® version of A-Net is capable of carrying up to 64 channels of digital audio
data. Like standard Pro16 A-Net, Pro16e is a point-to-point digital audio protocol.
Pro16e A-Net data is intended for use with the A360 Personal Mixer which can take advantage of the higher
network channel count that Pro16e provides.

4
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Compatibility
The AN-16/i v.2 Input Module is compatible with Pro16, Pro16e, and Pro64 A-Net devices as detailed
below.
Pro16 Products
The following Pro16 and Pro16e products may be connected to the AN-16/i v.2 A-Ne t Ou t :
A360 Personal Mixer•
A-16II Personal Mixer•
A-16R Rack-mount Personal Mixer•
A-16D A-Net Distributor•
A-16D Pro A-Net Distributor•
AN-16/o Output Module•
•AV-P2 Output Module
Another AN-16/i v.2 Input Module•
PNo t e : The AN-16/i v.2 Input Module’s Pro16e A-Net Out is not compatible with the original A-16
Personal Mixer, discontinued in 2004. Some A-16R Personal Mixers produced prior to the
release of the Y1 A-Net Card are also not compatible.
The A-Ne t Ou t from the following Pro16 devices may be connected to the AN-16/i v.2 Input Module’s
A-Ne t INport:
AN-16/i v.2 Input Module•
AN-16/i Input Module•
AN-16/i-M Mic Input Module•
•AV-M8 Mic Input Module
•Aviom16/o-Y1 A-Net Card for Yamaha® devices
A-16D and A-16D Pro A-Net Distributors•
Third-Party Pro16 A-Net•console cards
Pro64 Products
Adding the ASI A-Net Systems Interface to a Pro64® digital snake or audio network allows Pro64 channels
to be translated into Pro16 data. The ASI separates the 64-channel Pro64 stream into up to four 16-channel
Pro16 outputs, depending on the Pro64 sample rate being used. Any of the four Pro16 A-Net outputs from
the ASI may be connected to the A-Net In on the AN-16/i v.2.

5
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
About Category 5
The term Category 5 (also referred to as Cat-5) is broadly used to describe a type of high performance
network cabling used for data transmission purposes to connect computer networks and other devices.
A standard patch cable consists of four twisted pairs of copper wire terminated by RJ45 male connectors.
The cable assembly is used to provide connectivity between any two Cat-5 female RJ45 jacks.
A variation of the cable, called Category 5e (or Cat-5e), has largely replaced Cat-5 in the field; it uses additional
twists in the cable’s wire pairs to reduce interference in high-speed network applications. Additional
wire pair variations are found in Cat-6 and Cat-6e cables, typically used with gigabit networking devices.
Use Unshielded Twisted Pair (UTP) cables for all A-Net applications.
RJ45 Jack Cat-5e Cable
PNO t e :While the Cat-5e cables and connectors used on your Aviom products look like typical
computer Ethernet network connections, do not connect computers, routers, or other home
and business networking equipment to your Aviom products.
Cat-5 Cables
Any standard Category 5e (Cat-5e) UTP cable may be used with your Aviom products. If you need a longer
cable for a particular application, any computer store should be able to supply you with an appropriate
cable. A qualified technician should be able to build custom cables to any length.
For fixed or permanent installations, you have the option of running Cat-5 cables inside walls and
terminating them with readily available wall panel connectors that include the RJ45 jack. (Solid wire is
recommended for permanent installations.)
In addition to standard Category 5e cables, Category 6 (Cat-6) cables can also be used.
PNo t e : When purchasing Category 5e cables, be sure to buy only standard Cat-5e UTP cables,
not those sold as crossover cables. A crossover cable is used for file transfer between two
computers and is not compatible with your Aviom equipment.

6
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Cable Lengths
For Pro16 applications—connecting one Pro16 device to another—the Cat-5e cables used with your Aviom
products may be up to 500 feet (approximately 150 meters) in length between devices. For example,
connecting an AN-16/i-M Mic Input Module to an AN-16/o Output Module is a Pro16-to-Pro16 connection.
Pro16 A-Net Out Pro16 A-Net In
Total Pro16 A-Net cable length: 500 feet (150 meters)
Passive
Coupler
Passive
Coupler
Pro16e A-Net Out Pro16 or
Pro16e A-Net In
Total Pro16e A-Net cable length: 400 feet (122 meters)
Passive
Coupler
Passive
Coupler
When using Pro16e—such as the A-Net Out from an AN-16/i v.2 to any other Pro16 or Pro16e device—Cat-5e
cables may be up to 400 feet (approximately 122 meters) in length between compatible devices due to the
larger amount of data being transmitted to accommodate Pro16e’s higher channel count.
Pro16 A-Net Out Pro16 A-Net In
Total Pro16 A-Net cable length: 500 feet (150 meters)
Passive
Coupler
Passive
Coupler
Pro16e A-Net Out Pro16 or
Pro16e A-Net In
Total Pro16e A-Net cable length: 400 feet (122 meters)
Passive
Coupler
Passive
Coupler
The maximum cable length specification applies to the total cable length between an A-Ne t Ou t port on
one device and the A-Ne t INport on the next A-Net capable device in your system.
Your cable length performance will be affected by a number of factors including the quality of the cables
used, and the number of passive devices such as cable couplers or passive wall panel interconnections in
use.
Stranded or solid Cat-5e cable may be used; stranded cable is easier to deploy on a stage while solid
core cable provides slightly better maximum distance performance. Solid core wire is typically used in
permanent instillations in walls and across ceilings.
When using the optional AN-16SBR System Bridge with Pro16 and Pro16e devices, the cable length
specification applies to the total cable length between the two active A-Net devices being connected
with the passive AN-16SBR System Bridge, plus all cables. This is also true when using an inline coupler to
extend cable lengths.
Pre-made cables in a variety of lengths and colors are available at most computer outlets. Cables may be
extended by using a simple passive device called an inline coupler to add length to existing cables (as long
as you do not exceed the specified maximum cable length). If you need a longer cable on occasion, this is
a simple solution. Note that the maximum cable length performance can be compromised by using inline
couplers or other passive connection devices.

7
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
AC Line Conditioning
Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line
voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic
equipment.
To minimize the chance of damage to your equipment from sudden changes in the AC line voltage, you
may want to plug your equipment into a power source that has surge and spike protection. Power outlet
strips are available with built-in surge protection circuits that may help protect your equipment.
Other options for protection of your equipment include the use of an AC line conditioner or a battery
backup system (sometimes referred to as an uninterruptible power supply, or UPS).
Power Supplies
Your Aviom product uses a DC power supply that has a two-prong power cord. The prongs on the power
supply are identical, meaning that there is no need to orient the plug in a specific direction in the power
outlet. Some products with two-prong power cords have polarized plugs that can only be inserted into an
electrical outlet one way.
The power supply that is shipped with your Aviom product is a universal switching type. It is capable of
working with voltages from 90 to 240 volts AC. This means that a separate power supply is not needed to
use the products with the AC power systems found in most countries. You should always use the power
supply that shipped with your product. When travelling, you may need plug adapters to use the power
supply with the AC outlet plug shape variations in use throughout the world.
Should you need to replace the power supply that came with your product, we recommend using only a
power supply that meets the following specifications.
Type Switching
Input Voltage 90-240
volts
50/60Hz
30VA
Output 24Vdc 0.5A
Polarity Outer = negative;
Inner = positive
Plug Size 2 mm
Note that polarity of the plug found on the DC power supply needs to match that of the original power
supply that came with your Aviom equipment. Aviom products use a center positive power supply. The
outer contact is negative, the inner contact is positive.
+
Power Supply Polarity

8
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
Installing in an Equipment Rack
The AN-16/i v.2 Input Module is designed to be installed in a standard 19-inch audio equipment rack. This
design is both for easy transportation of the unit and for protection. Each unit takes up one standard rack
space (19 inches wide by 1.75 inches high).
The rack ears on each side of the device are designed to support the weight of the AN-16/i v.2 without
additional hardware. Each rack ear contains holes for two screws per side. Always support the unit with all
four screws.
To rack mount the AN-16/i v.2, position it in the equipment rack at the desired location. Use standard rack-
mounting screws (10-32 size) to attach the unit to your rack hardware. Tighten all four screws firmly, but
avoid overtightening.
You may want to use non-metallic washers between the rack-mounting screws and the device’s finished
surface to avoid marring the painted finish on your Aviom products.
Always allow adequate ventilation for devices mounted in equipment racks. Avoid placing your Pro16
product directly above or below other rack-mounted devices that produce high levels of heat, such as
power amps.
Cleaning and Maintenance Information
The exterior of your Aviom products should be cleaned with a dry, soft, lint-free cloth. For tougher dirt,
you can use a cloth slightly dampened with water or with a mild detergent.
When cleaning your Aviom products, never spray cleaners directly onto the product surfaces. Instead,
spray a small amount of the cleaning solution onto a clean cloth first. Then use the dampened cloth to
clean the product.
PNo t e : Never use solvents or abrasive cleaners on the finished surfaces of your Aviom products.

AN-16/i v.2 Front Panel
Use the following diagrams to become familiar with the components of the front and rear
panels of the AN-16/i v.2 Input Module.
Function
1 Clip LED, red – Lights when the audio signal is 3dB below full scale (0dB)
2 Signal Present LED, green – Lights to show that an audio signal is present on a channel
3 Stereo Link Switch – In the left position, each channel is mono; in the right position, the
channels are linked as a stereo pair
4 Input Level Switch – Selects one of four available operating levels; selectable for each
channel pair
5 A-Net In LED, green – Indicates that the AN-16/i v.2 is receiving a valid A-Net signal from
another Pro16 device
6Power LED, red – Indicates that the AN-16/i v.2 is powered on


A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo




A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
9
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e

AN-16/i v.2 Rear Panel
Function
1 Slot Range Switch – Sets the network Slot Range that the unit will transmit its inputs in
2 DC Power Jack – Connect the DC power supply here
3 A-Net In Jack – Connect the A-Net Out of another Pro16 or Pro16e device here
4 A-Net Out Jack – Connects to the A-Net In of a Pro16 or Pro16e A-Net compatible device
5 Analog Audio Input – TRS balanced 1/4-inch jack accepts any balanced/unbalanced
line-level audio signal
6Thru Jack – A copy of the balanced/unbalanced analog audio from the Audio In jack


   
10
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e

11
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
AN-16/i v.2 Features
This section explains the basic layout of your new Aviom Pro16 product and its functions.
A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
The front panel of the AN-16/i v.2 contains the channel information, Mono/Stereo link switches, Signal Present LEDs,
Clip LEDs, A-Net In and Power indicators, and the Input Level switches.
Channel LEDs
The numbered Channels on the AN-16/i v.2 front panel correspond to the sixteen line-level analog audio
inputs on its rear panel. They are grouped together in pairs—Channels 1 and 2, Channels 3 and 4, etc.
Each channel contains two LEDs, one showing that there is an audio signal present, and another used to
indicate that the input to a channel is causing audio clipping. Signal and Clip LEDs appear directly beneath
the channel numbers.
The lower LED, marked SI g N A l , will light as long as an audio signal of at least -40dB is present on the
channel. It provides an easy way to confirm that audio is indeed passing into the AN-16/i v.2 and being
converted to A-Net.
The upper LED is marked Cl I p . It will light if a signal reaches a point that is within 3dB of full scale (0dB).
In general, you want to operate the system so that the Clip LED lights only occasionally (the transients of
percussive sources will typically peak for a few milliseconds, for example). If the LED is on constantly, you
should either lower the level of the source audio coming into the AN-16/i v.2 or try different Input Level
settings.
Input Level Switch
The AN-16/i v.2 has been designed to accept a wide range of professional and semi-professional audio
levels. There are four Input Level gain settings available. Changes to the input level on the AN-16/i v.2 front
panel affect a pair of channels at a time.
The four levels are +22dBu, +4dBu, 0dBu, and -10dBV. To select the proper Input Level setting, choose
the Input Level position that most closely matches the maximum output level of the audio gear being
connected to the AN-16/i v.2 rear panel TRS jacks.

12
AN -16/iv.2 iN p u t Mo d u l e user Gu i d e
As a general guideline, try the +22dB setting for the output of professional mixing consoles; use the -10dBV
setting for devices such as consumer MP3 devices and CD/DVD players.
A-Net In
Power
v.2
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
Mono Stereo
The AN-16/i v.2 has four input level options per channel pair.
To maximize the signal-to-noise ratio when setting up your Aviom products it is important to understand
how the input and output settings on these products interact. Proper calibration and gain staging with all
devices in an audio system is essential. The AN-16/i v.2 Input Module has four input gain range settings:
+22dBu, +4dBu, 0dBu, and -10dBV, accommodating a wide range of input signal sources. Choose the
setting that allows maximum input signal level without clipping.
The AN-16/i v.2 has a maximum input level of +22dBu. Signal levels above +22dBu will clip the input stage
of the device and cause digital distortion.
The selected input gain setting on the AN-16/i v.2 front panel changes the headroom available for the input
signal, but remember that the maximum input level will always be +22dBu regardless of the selection. See
the table below.
AN-16/i v.2 Input
Level Setting Clip Point
-10dBV +4dBV
0dBu +14 dBu
+4dBu +18dBu
+22dBu +22dBu
With the input gain switch set to 0dBu, for example, input signals ranging from -∞ to +14dBu in level can
be used without clipping. A +14dBu signal level will be transmitted to all line-level output modules as a
full-code signal. Signals above +14dBu will clip the input stage of the AN-16/i v.2, and that clipped audio
data will be sent downstream to all Pro16 output modules and Personal Mixers. There are two options if
a signal level above +14dBu needs to be connected to the AN-16/i v.2 input: attenuate (lower) the output
level of the device feeding the AN-16/i v.2 channel input to eliminate clipping, or choose another input
setting. In this situation using the +4dBu setting provides more headroom, allowing a maximum signal
level of +18dBu to be used.
Check the specifications of your audio gear if you are unsure about its maximum output level. Although
you won’t harm the AN-16/i v.2 or your audio devices by using an incorrect level setting, you do want to
avoid distorting the audio that passes through the system.
