Avision FB1000N User manual

Color Image Scanner
FB1000N
User’s Manual
Regulatory model: BF-1309B
manual-en-250-0840-E-FB1000-v100
Avision Inc.

User’s Manual
ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows, Windows XP, Windows Vista, Windows 7 and Windows
8 are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
IBM, IBM PC are registered trademarks of International Business
Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language,
in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual, or otherwise, without the prior written
permission of Avision Inc.
Material scanned by this product may be protected by
government laws and other regulations such as copyright laws,
the customer is solely responsible for complying with all such
laws and regulations.
Warranty
The information contained in this document is subject to change
without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.

User’s Manual
iii
FCC Statement:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

User’s Manual
iv
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU
Directives:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Restriction of the use of certain hazardous substances (RoHS)
Directive 2011/65/EU
CE compliance of this product is valid if powered with the correct
CE-marked AC adapter provide by Avision.
This product satisfies the Class B limits of EN55022, EN55024,
safety requirements of EN 60950 and ROHS requirements of
EN50581.
*This machine is certified as Class 1 LED product. This means
that this machine does not produce hazardous laser radiation.

User’s Manual
v
Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that the
product can not be disposed of with your other household waste.
Instead it should be sent to appropriate facilities for recovery
and recycling in an effort to protect human health and the
environment. Fore more information about where you can drop
off your waste equipment for recycling, please contact your local
city office, your household waste disposal service or the shop
where you purchased the product.
System Requirements
CPU:
Intel®Core™ 2 Duo or higher
Memory:
32 bit: 1 GB
64 bit: 2 GB
Optical Drive:
DVD-ROM Drive
USB Port:
USB port 2.0 (compatible with USB 1.1)
Compatible
Operating
System:
Microsoft Windows XP(SP3), Windows Vista,
Windows 7, Windows 8.x (32-bit/64-bit)

User’s Manual
vi
Table of Contents
1. Installing the Scanner...................................... 1-1
1.1 Preinstallation Information.................................. 1-1
1.2 Checking the Package Contents ........................... 1-1
1.3 Installation ....................................................... 1-2
1.3.1 Installing the scanner driver .................... 1-2
1.3.2 Connecting to computer .......................... 1-3
2. Completing Your First Scan.............................. 2-1
2.1 Placing Your Original .......................................... 2-1
3.2 Verifying Your Scanner Installation ...................... 2-2
3.3 A Glance of the Scanner Properties Dialog Box ...... 2-6
3. Using the Scanner Properties Dialog Box ......... 3-1
3.1 Buttons on the Scanner Properties Dialog Box ....... 3-2
3.2 Showing or Hiding Tabs ...................................... 3-4
3.3 The Image Tab .................................................. 3-6
3.3.1 The Image Selection Box ......................... 3-7
3.3.2 Other Image Options ............................ 3-11
3.3.3 Scanning color images .......................... 3-25
3.3.4 Scanning grayscale images .................... 3-25
3.3.5 Scanning B&W images .......................... 3-25
3.3.6 Editing Profiles ..................................... 3-26
3.4 The Compression Tab....................................... 3-29
3.5 The Color Dropout Tab ..................................... 3-31
3.5.1 Color Dropout Selection......................... 3-31
3.5.2 Other Color Dropout Options .................. 3-39
3.6 The Paper Tab ................................................. 3-41
3.6.1 Cropping ............................................. 3-42
3.6.2 Other Paper Selection ........................... 3-48
3.7 The Multi-Feed Detection Tab ............................ 3-55
3.8 The Preview Tab .............................................. 3-59
3.9 The Enhancement Tab...................................... 3-60
3.10 The Rotation Tab ........................................ 3-67

User’s Manual
vii
3.11 The Separation Tab .................................... 3-73
3.12 The Setting Tab.......................................... 3-77
3.13 The Imprinter Tab ...................................... 3-80
3.14 The Information Tab ................................... 3-84
4. Maintaining Your Scanner ................................ 4-1
4.1 Cleaning the Glass ............................................. 4-1
4.2 Frequently Asked Questions................................. 4-2
4.3 Technical Service ............................................... 4-3
5. Specifications .................................................. 5-1
Index .......................................................................... a

User’s Manual
1-1
1. Installing the Scanner
1.1 Preinstallation Information
Keep the scanner out of direct sunlight. Direct exposure to
the sun or excessive heat may cause damage to the unit.
Do not install the scanner in a humid or dusty place.
Place the scanner securely on an even, flat surface. Tilted
or uneven surfaces may cause mechanical problems.
1.2 Checking the Package Contents
Gently open your box and check the package contents. If there
is anything missing or damaged, please call your dealer.
1. Scanner main unit
2. USB cable
3. Software CD/Quick guide
Note:
1. Please keep all the packing material in case you may have
to return the scanner for repair.
2. To access more service supports, visit www.avision.com to
register your Avision’s product.
1
3
2

User’s Manual
1-2
1.3 Installation
NOTE:
1. To ensure your computer can identify the USB scanner,
please install scanner driver first before connecting the
scanner to your computer.
2. The scanner driver contains TWAIN driver. After the
installation of scanner driver is completed, this scanner
allows you to scan via a TWAIN user interface. Start your
TWAIN-compatible image editing software application to
select a TWAIN.
1.3.1 Installing the scanner driver
1. Place the supplied CD-ROM onto your CD-ROM drive.
2. The software installation graphic appears. If not, run
“setup.exe”.
3. Click Install Scanner Driver to install the scanner driver
on your computer.

User’s Manual
1-3
1.3.2 Connecting to computer
1. Connect the square end of the USB cable to the USB port of
your scanner. Connect the rectangle end to the USB port
of your computer.
2. The computer should detect a new USB device and prompt a
“New Hardware Found” message.
3. Follow the instructions on the screen to complete the
installation.
4. By following the on-screen instructions, click the Next button
to continue. When the certification screen appears, click
Continue Anyway to complete the installation.
5. When the Finish dialog is prompted, click the Finish button.

User’s Manual
2-1
2. Completing Your First Scan

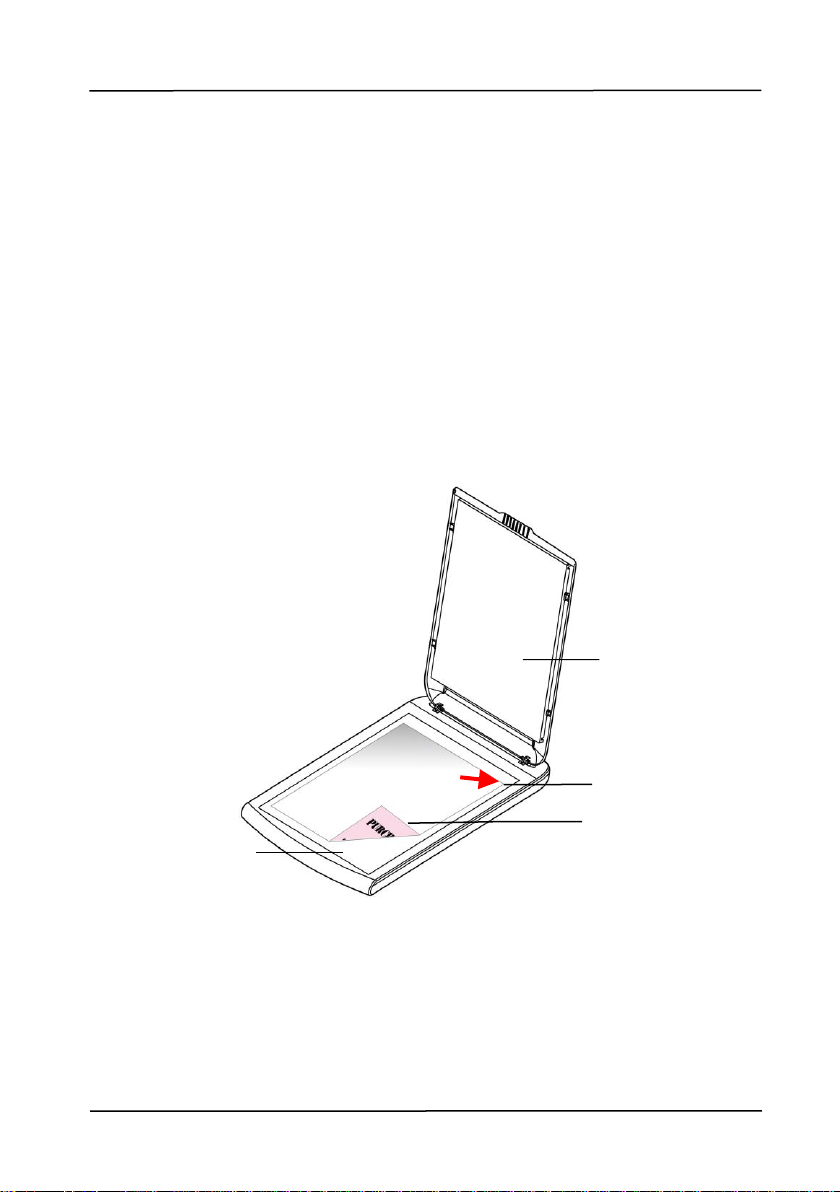

2.1 Placing Your Original
1. Open document cover.
2. Place your document with your text FACE DOWN on the
glass.
3. Make sure the upper left corner of your original near the
home position as marked in the scanner.
1. Document Cover
2. Home Position
3. Document
4. Glass
2
4
1
3

User’s Manual
2-2
3.2 Verifying Your Scanner Installation
To verify if your scanner installation is correct, Avision provides
you a useful test program called Avision Capture Tool. With this
tool, you can perform simple scans and view the captured
images. In addition, it helps you complete your scan at a rated
speed.
The following procedure describes how to verify your scanner
installation. If the installation is not correct, please review the
preceding section to check if the cable connection and scanner
driver have been successfully installed.
Before you begin, be sure the scanner is on.

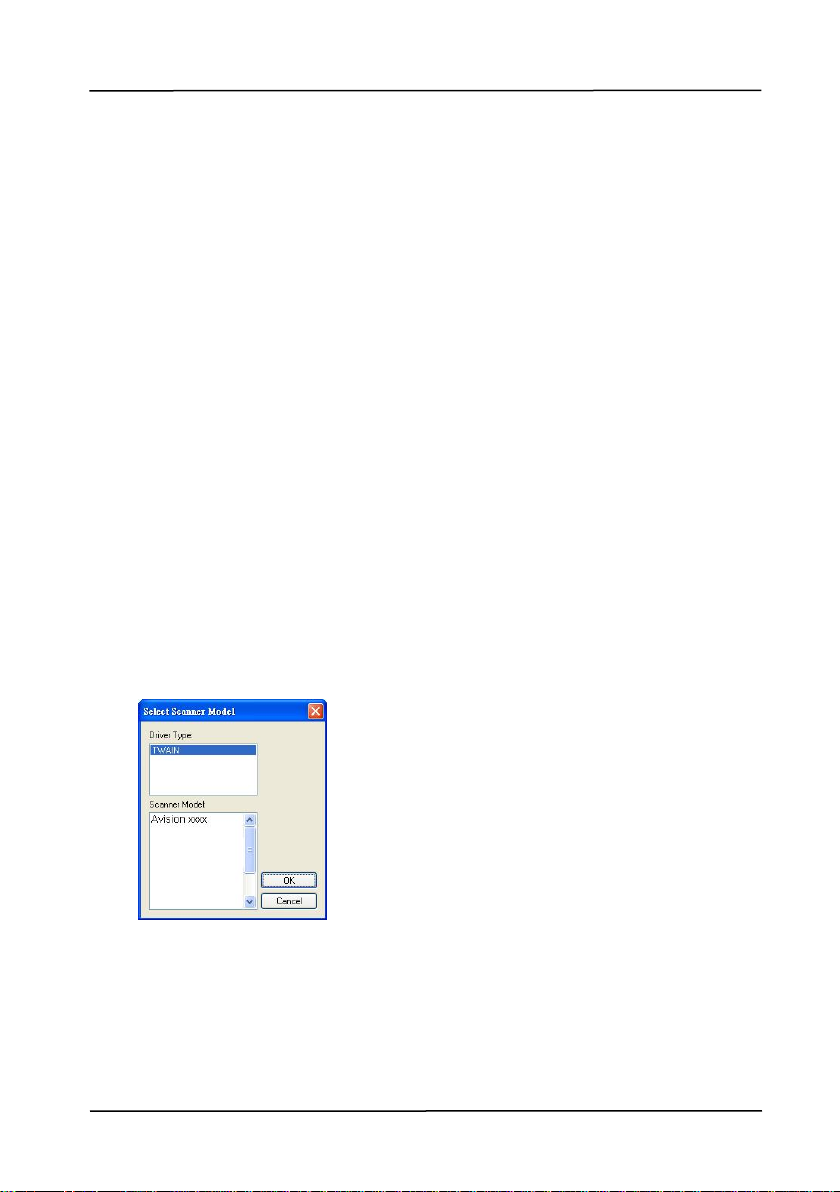

1. Select Start>Programs>Avision xxx Scanner>Avision
Capture Tool. The Select Scanner Model dialog box will be
displayed.
2. Select your driver type and scanner model and click OK.
The following Avision Capture Tool dialog box will be
displayed.

User’s Manual
2-3
3. Choose your desired file format from the File Format drop
down list box. (Default is JPEG, other choice includes TIFF,
MTIFF, PDF, MPDF, GIF, and BMP.) The supported file
formats vary depending on your scanner model.
4. Type your desired folder name and file name in the File Path
box. (Default is C:\Documents and Settings\User Name\My
Documents\My Scan\Image.)
Note: If you do not wish to save the scanned image,
deselect the Save button since default is Save Enable. In this
case, the thumbnail view will be disabled. And therefore,
after viewing all the scanned images, only the last one will
remain on the screen.
5. Click the Setup button ( ) or choose Setup from the
File menu to prompt the Scanner Properties dialog box.
Setup
Actual
Size
Fit
Page
Scan
File Format
Save File Path

User’s Manual
2-4
6. From the Image Selection Box, choose your desired image
type for your scanned image. (Default is Front B&W) If
you have a duplex scanner, choose Front and Rear to scan
both sides of your document.
7. Click OK to quit the Scanner Properties dialog box. (To
learn more details about the Scanner Properties dialog box,
please see the subsequent chapter, Using the Scanner
Properties Dialog Box.)
8. Place your document face down on the document glass or
face up in the auto document feeder.
9. In the Scan Validation dialog box, click the Scan button
( ) or choose Scan from the File menu.
10. The document will be scanned and displayed in the Scan
Validation screen. After the scanned images have been
displayed, your scanner installation verification is completed.
Selection
Box

User’s Manual
2-5
11. You can view the scanned image in Fit Page ( ) or Actual
Size (100%) button ( ) from the Viewing toolbars at the
right side.
12. Click the Close box or Quit from the File menu to exit the
Scan Validation Tool.
Fit Page View
Thumbnail View

User’s Manual
2-6
3.3 A Glance of the Scanner Properties Dialog Box
1. Tab Options
Choice: Image, Compression, Color Dropout,
Paper, Multi-Feed Detection, Preview, Options,
Settings, Information.
2. Image
Selection Box
Choose your image type and the side of
document you wish to scan. Options vary
based on type of scanner.
3. Brightness
Adjust the brightness level from –100 to +100.
4. Contrast
Adjust the contrast level from –100 to +100.
5. Resolution
Determine the quality of the scanned image.
The industry standard is 200 dpi.
6. Invert
Reverse the color of your scanned image.
7. Scan Source
Choice: Auto Document Feeder, Flatbed,
Flatbed (Book), Automatic (varies due to
different scanner model)
8. Defaults
Reset all values on the tabs to the factory
default settings.
3
4
5
6
7
1
2
8

User’s Manual
3-1
3. Using the Scanner
Properties Dialog Box
The Scanner Properties dialog box allows you to configure the
scanner’s settings. It consists of several tabbed windows each of
which will be described in this chapter.
Note: In this chapter, all options are available based on a duplex
(double-side) scanner. If you have purchased a simplex
(single-side) scanner, all options are available for single sided
only.
The Scanner Properties dialog box

User’s Manual
3-2
3.1 Buttons on the Scanner Properties Dialog Box
The buttons on the Scanner Properties dialog box
Buttons
Description
Defaults
Click the Defaults button, the factory default
settings will be shown on each tab.
Cancel
Click the Cancel button to leave the Scanner
Properties dialog box.
