Avitech Pacific DA-204 User manual

User Manual
Pacific DA-204
12G/6G/3G/HD/SD-SDI Reclocking Distribution Amplifier
Revision 1.0.0, (Oct, 2015)

User Manual
ii
ABOUT THIS MANUAL
This manual contains information about using the Avitech Pacific DA-204 reclocking distribution amplifier. There are
three chapters in this manual:
 Getting Started introduces the features, specifications as well as external components of the Pacific DA-204.
 Hardware Configuration discusses the steps to install/remove modular cards of the Pacific DA-204.
 System Setup and DIP Switch Configuration covers signal routings of the Pacific DA-204 via DIP switches.
The following conventions are used to distinguish elements of text throughout this manual.
provides additional hints or information that require special attention.
Any name of a menu, command, icon or button on the screen is shown in a bold typeset. For example: On the Start
menu select Settings.
To assist us in making improvements to this user manual, we welcome any comments and constructive criticism.
Please send all such – in writing to: [e-mail].
WARNING
Do not attempt to disassemble the Pacific extender module(s). Doing so may void the warranty. There are no
serviceable parts inside. Please refer all servicing to qualified personnel.
TRADEMARKS
All brand and product names are trademarks or registered trademarks of their respective companies.
COPYRIGHT
The information in this manual is subject to change without prior notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical for any purpose, without the
express written permission of Avitech International Corporation. Avitech International Corporation may have
patents, patent applications, trademarks, copyrights or other intellectual property rights covering the subject matter
in this document. Except as expressly written by Avitech International Corporation, the furnishing of this document
does not provide any license to patents, trademarks, copyrights or other intellectual property of Avitech International
Corporation or any of its affiliates.
TECHNICAL SUPPORT
For any questions regarding the information provided in this guide, call our technical support help line at
425-885-3863, or our toll free help line at 1-877-AVI-TECH, or email us also at [e-mail]

iii
Contents
About This Manual..........................................................................................................................ii
Technical Support ..........................................................................................................................ii
Warranty..........................................................................................................................................iv
Limitation of Liability ....................................................................................................................iv
Extended Warranty Options.........................................................................................................iv
Services and Repairs Outside the Warranty Period................................................................iv
Regulatory Information.................................................................................................................iv
Federal Communications Commission (FCC) Statement.......................................................iv
European Union CE Marking and Compliance Notices ..........................................................iv
Australia and New Zealand C-Tick Marking and Compliance Notice ...................................iv
1. Getting Started ............................................................................................................1
1.1 Package Contents.................................................................................................................. 1
1.2 Product Features.................................................................................................................... 2
1.3 Specifications ......................................................................................................................... 3
1.4. Connections to the Pacific DA-204 ..................................................................................... 4
2. Hardware Configuration..............................................................................................6
2.1 Installing a New Card on Blank Slot ................................................................................... 6
2.2 Removing a Previously Installed Card ............................................................................... 7
3. System Setup and DIP Switch Configuration ............................................................8

iv
Warranty
Avitech International Corporation (herein after referred to as “Avitech”)
warrants to the original purchaser of the products manufactured in its
facility (the “Product”), that these products will be free from defects in
material and workmanship for a period of 1 year or 15 months from the
date of shipment of the Product to the purchaser. There is a 3 month
grace period between shipping and installation.
If the Product proves to be defective during the 1 year warranty period,
the purchaser’s exclusive remedy and Avitech’s sole obligation under
this warranty is expressly limited, at Avitech’s sole option, to:
(a) repairing the defective Product without charge for parts and labor;
or (b) providing a replacement in exchange for the defective Product;
or (c) if after a reasonable time is unable to correct the defect or
provide a replacement Product in good working order, then the
purchaser shall be entitled to recover damages subject to the limitation
of liability set forth below.
Limitation of Liability
Avitech’s liability under this warranty shall not exceed the purchase
price paid for the defective product. In no event shall Avitech be liable
for any incidental, special, or consequential damages, including
without limitation, loss of profits for any breach of this warranty.
If Avitech replaces the defective Product with a replacement Product
as provided under the terms of this Warranty, in no event will the term
of the warranty on the replacement Product exceed the number of
months remaining on the warranty covering the defective Product.
Equipment manufactured by other suppliers and supplied by Avitech
carries the respective manufacturer’s warranty. Avitech assumes no
warranty responsibility either expressed or implied for equipment
manufactured by others and supplied by Avitech.
This Warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty of merchantability or
fitness for a particular purpose, all of which are expressly disclaimed.
This Hardware Warranty shall not apply to any defect, failure, or
damage: (a) caused by improper use of the Product or inadequate
maintenance and care of the Product; (b) resulting from attempts by
other than Avitech representatives to install, repair, or service the
Product; (c) caused by installation of the Product in a hostile operating
environment or connection of the Product to incompatible equipment;
or (d) caused by the modification of the Product or integration with
other products when the effect of such modification or integration
increases the time or difficulties of servicing the Product.
Any Product which fails under conditions other than those specifically
covered by the Hardware Warranty, will be repaired at the price of
parts and labor in effect at the time of repair. Such repairs are
warranted for a period of 90 days from date of reshipment to customer.
Extended Warranty Options
Avitech offers OPTIONAL Extended Warranty plans that provide
continuous coverage for the Product after the expiration of the
Warranty Period. Contact an Avitech sales representative for details
on the options that are available for the Avitech equipment.
Services and Repairs Outside the Warranty Period
Avitech makes its best offer to repair a product that is outside the
warranty period, provided the product has not reached its end of life
(EOL). The minimum charge for such repair excluding shipping and
handling is $200 (US dollars).
AVITECH INTERNATIONAL CORPORATION
● 15377 NE 90th Street Redmond, WA 98052 USA
● TOLL FREE 1 877 AVITECH
● PHONE [phone]
● FAX [phone]
● [e-mail]
● http://avitechvideo.com
Regulatory Information
Marking labels located on exterior of device indicate regulations that
the model complies with. Please check the marking labels on device
and refer to the corresponding statements in this chapter. Some
notices apply to specific models only.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense. Properly
shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Avitech is not responsible for any radio or
television interference caused by using other than recommended
cables and connectors or by unauthorized changes or m odifications to
this equipment. Unauthorized changes or modifications could void the
user's authority to operate the equipment. Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
European Union CE Marking and Compliance Notices
Statements of Compliance
English
This product follows the provisions of the European Directive
1999/5/EC.
Dansk (Danish)
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Nederlands (Dutch)
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Suomi (Finnish)
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
Français (French)
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
Deutsch (German)
Dieses Produkt entspricht den Bestimmungen der Europäischen
Richtlinie 1999/5/EC.
Ελληνικά (Greek)
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Íslenska (Icelandic)
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italiano (Italian)
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norsk (Norwegian)
Dette produktet er i henhold til bestemmelsene i det europeiske
direktivet 1999/5/EC.
Português (Portuguese)
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Español (Spanish)
Este producto cumple con las normas del Directivo Europeo
1999/5/EC.
Svenska (Swedish)
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Australia and New Zealand C-Tick Marking and
Compliance Notice
Statement of Compliance
This product complies with Australia and New Zealand's standards for
radio interference.

1
1. Getting Started
The Avitech Pacific DA-204 is a high-performance, multi-rate SDI distribution amplifier. Featuring
automatic input format detection, built-in cable equalizer, reclocker and low-jitter cable driver, both the
modular and standalone Pacific DA-204 offer flexible and reliable signal distribution over long cable
runs. It is capable of handling distribution of SD, HD, 3G, 6G, as well as 12G-SDI signals for 4K
applications. The Pacific DA-204 delivers a simple, robust and future-proofing solution and can be easily
integrated with Avitech multiviewers, video wall processors, as well as a variety of existing AV systems.
This chapter introduces the features, specifications, as well as the external components of Avitech
Pacific DA-204.
1.1 Package Contents
For the modular 1RU Pacific DA-204, the following standard items are included in the shipping package:
Avitech Pacific DA-204 Utility Disc (user manual)
12V DC Power Adapter (optional)
Ears with screws
(already installed on Pacific DA-204 upon
order for assembly onto rackmount)
Table 1-1 Package Contents (Pacific DA-204)

2
For the standalone Pacific DA-204, the following standard items are included in the shipping package:
Avitech Pacific DA-204 (standalone) Utility Disc (user manual)
12V DC Power Adapter (optional)
Table 1-2 Package Contents (standalone Pacific DA-204)
1.2 Product Features
The Pacific DA-204 is a modular card-based, reclocking distribution amplifier designed for high-end
broadcast and production applications. Its 1RU rackmount chassis is capable of housing up to 8
independent cards for multi-rate SDI signal distribution over long distances. All cards are
hot-swappable, supporting easy card replacement or expansion with minimized system downtime and
operation interruptions.
Offering two types of distribution amplifier cards (12Gbps and 3Gbps Card) that can be freely mixed in
the chassis, the Pacific DA-204 automatically senses up to 12G and 3G-SDI source signals with
multi-channel embedded audio. Each card features lossless 1x4 or two sets of 1x2 signal distribution
that can be easily configured via individual DIP switch. Automatically detecting input signal absence, the
Pacific DA-204 manages to reroute and switch to the backup source upon signal loss (less than 60
milliseconds to detect and complete signal rerouting). Incorporating adaptive cable equalizer, reclocker
and low-jitter cable driver, the Pacific DA-204 ensures long cable runs while maintaining signal integrity
for high-resolution videos with up to 4K clarity.
Alternatively, the standalone Pacific DA-204 (12Gs / 3Gs) are designed to meet applications with
small-scale signal distribution requirements. Utilizing the same routing flexibility, input signal presence
detection, as well as 12G/6G/3G/HD/SD-SDI compatibility, the standalone Pacific DA-204 delivers a
signal distribution solution with optimized space-usage, simple installation and low power consumption.

3
1.3 Specifications
Input
SDI IN
(BNC connector)
Automatic sensing
 12G / 6G / 3G / HD / SD-SDI (SMPTE 424M / 292M / 259M)
 12Gbps Card / 12Gs supports data rates up to 11.88 Gbps
(12G-SDI)
 3Gbps Card / 3Gs supports data rates up to 2.97 Gbps
(3G-SDI)
 2 × BNC per card / standalone Pacific DA-204
Output
SDI OUT
(BNC connector)
Follows SDI input (non-configurable)
 12G / 6G / 3G / HD / SD-SDI
 12Gbps Card / 12Gs supports data rates up to 11.88 Gbps
(12G-SDI)
 3Gbps Card / 3Gs supports data rates up to 2.97 Gbps
(3G-SDI)
 4 × BNC per card / standalone Pacific DA-204
Others
Cable Equalization
1694a coax cable
 12Gbps Card / 12Gs
 12G-SDI, 60m
 6G-SDI, 100m
 3G-SDI, 220m
 HD-SDI, 265m
 SD-SDI, 530m
 3Gbps Card / 3Gs
 3G-SDI, 100m
 HD-SDI, 200m
 SD-SDI, 400m
Power
Power consumption:
 Max. 24 Watt (1RU)
 Max. 3 Watt (standalone)
Power supply:
 100-240V AC / 12V 2.5A DC power adapter (1RU); dual redundant
 100-240V AC /12V 2.5A DC power adapter (standalone)
Dimensions
(LxWxH) /
Weight
Dimensions:
 6.30 x 17.28 x 1.75 in (16.01 x 43.90 x 4.44 cm) for 1RU model
 4.70 x 5.00 x 1.36 in (11.93 x 12.70 x 3.46 cm) for standalone
model
Weight:
 5.69 lb (2.59 Kg) for 1RU model
 1.18 lb (0.534 Kg) and 1.13 lb (0.512 Kg) for 12Gs and 3Gs
respectively
Environment /
Safety
Temperature:
 Operation: 0  C (32  F) to 40  C (104  F)
 Storage: –10  C (14  F) to 50  C (122  F)
Humidity: 0 % to 80 % relative, non-condensing
Safety: FCC/CE/C-Tick/Class B
Table 1-3 Specifications

4
1.4. Connections to the Pacific DA-204

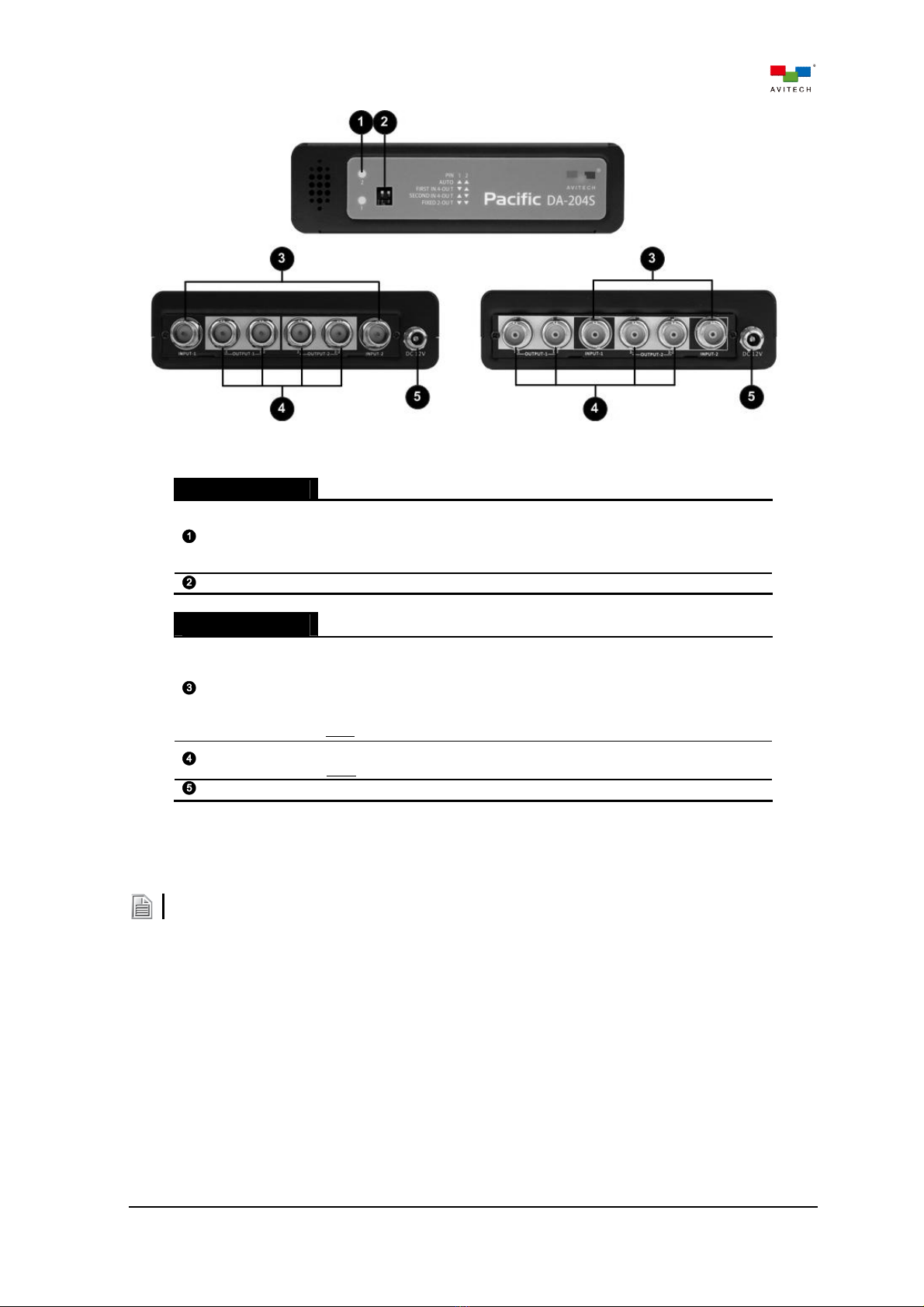

Figure 1-1 Pacific DA-204 (1RU) Components: 12Gbps Card (right) and 3Gbps Card (left)
Front Panel
Indicators
 1 / 2
 Glows amber when in standby mode (no signal is present at
INPUT-1/2).
 Glows green when signal is present at INPUT-1/2.
DIP Switches Sets the signal routing configuration.
Rear Panel
INPUT (BNC)
 12Gbps Card
Connects to 12G/6G/3G/HD/SD-SDI video source signal.
 3Gbps Card
Connects to 3G/HD/SD-SDI video source signal.
Note: SDI video input supports up to 16-channel embedded audio.
OUTPUT (BNC) Connects to SDI monitors or downstream equipment.
Note: SDI video output supports up to 16-channel embedded audio.
Power (12V DC) Connects to 12V DC power supply (dual redundant).
Table 1-4 Pacific DA-204 (1RU) Component Description

5
Figure 1-2 Pacific DA-204 (standalone) Components: 12Gs (left) and 3Gs (right)
Front Panel
Indicators
 1 / 2
 Glows amber when in standby mode (no signal is present at
INPUT-1/2).
 Glows green when signal is present at INPUT-1/2.
DIP Switches Sets the signal routing configuration.
Rear Panel
INPUT (BNC)
 Pacific DA-204 12Gs
Connects to 12G/6G/3G/HD/SD-SDI video source signal.
 Pacific DA-204 3Gs
Connects to 3G/HD/SD-SDI video source signal.
Note: SDI video input supports up to 16-channel embedded audio.
OUTPUT (BNC) Connects to SDI monitors or downstream equipment.
Note: SDI video output supports up to 16-channel embedded audio.
Power (12V DC) Connects to 12V DC power supply.
Table 1-5 Pacific DA-204 (standalone) Component Description
Pacific DA-204 12Gs and 3Gs use the same front panel.

6
2. Hardware Configuration
This chapter discusses the process of installing and removing a card of the 1RU Pacific DA-204.
2.1 Installing a New Card on Blank Slot
The Pacific DA-204 1RU chassis accepts the following cards:
 12Gbps Card
 3Gbps Card
To install a card on a blank slot, perform the following steps:

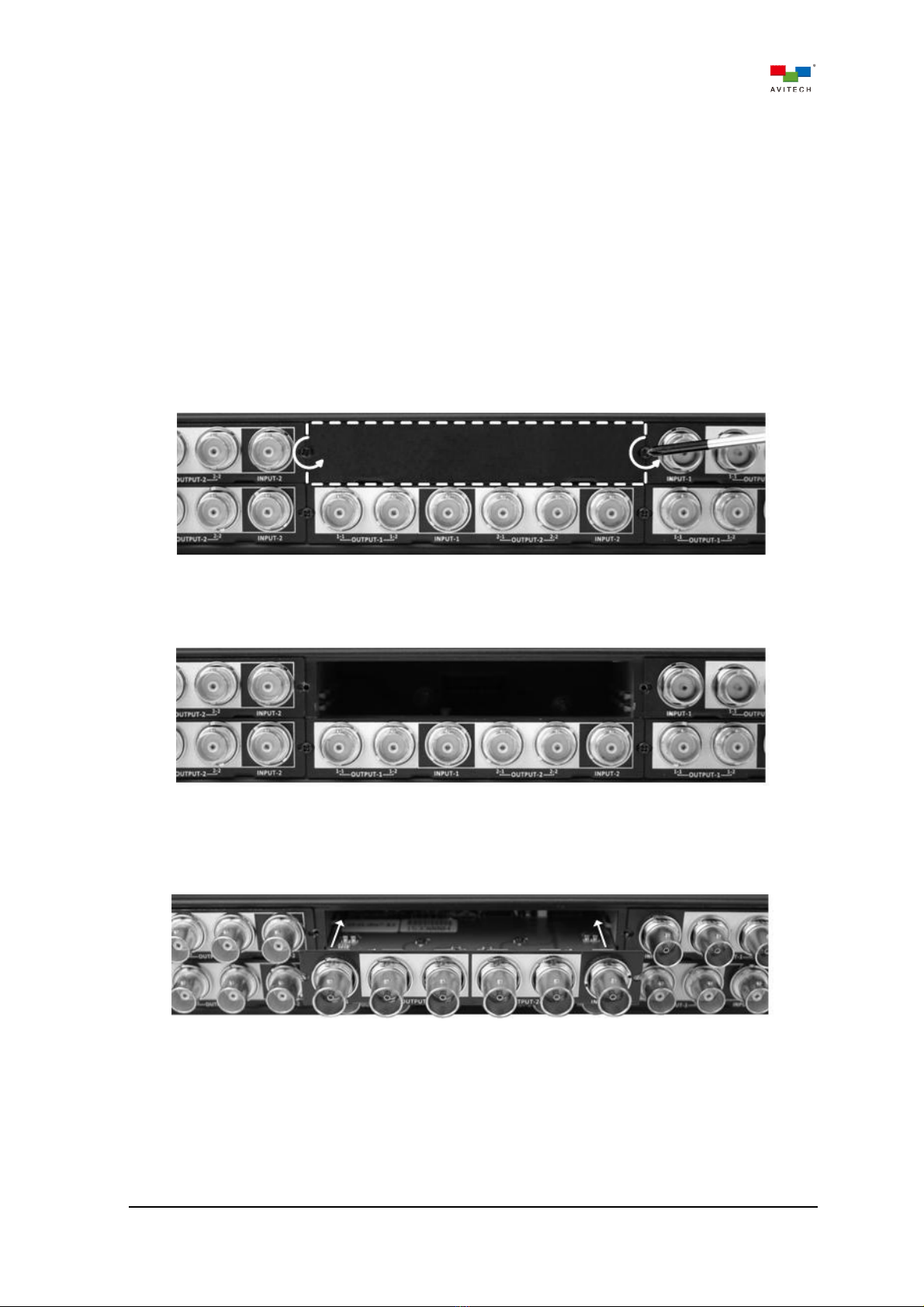

Step 1. Remove the two screws securing the back plate.
Figure 2-1 Remove the Two Plate Screws
Step 2. Remove the back plate.
Figure 2-2 Remove the Back Plate
Step 3. Align both sides of the card to the rails of the slot, and then slide the card all the way into the
chassis.
Figure 2-3 Align the New Card to the Rail on Both Sides

7
Step 4. Secure the screws on both sides to fix the newly installed card to the chassis.
Figure 2-4 Secure the Card Screws on Both Sides
2.2 Removing a Previously Installed Card
To remove or replace an installed card, perform the following steps:

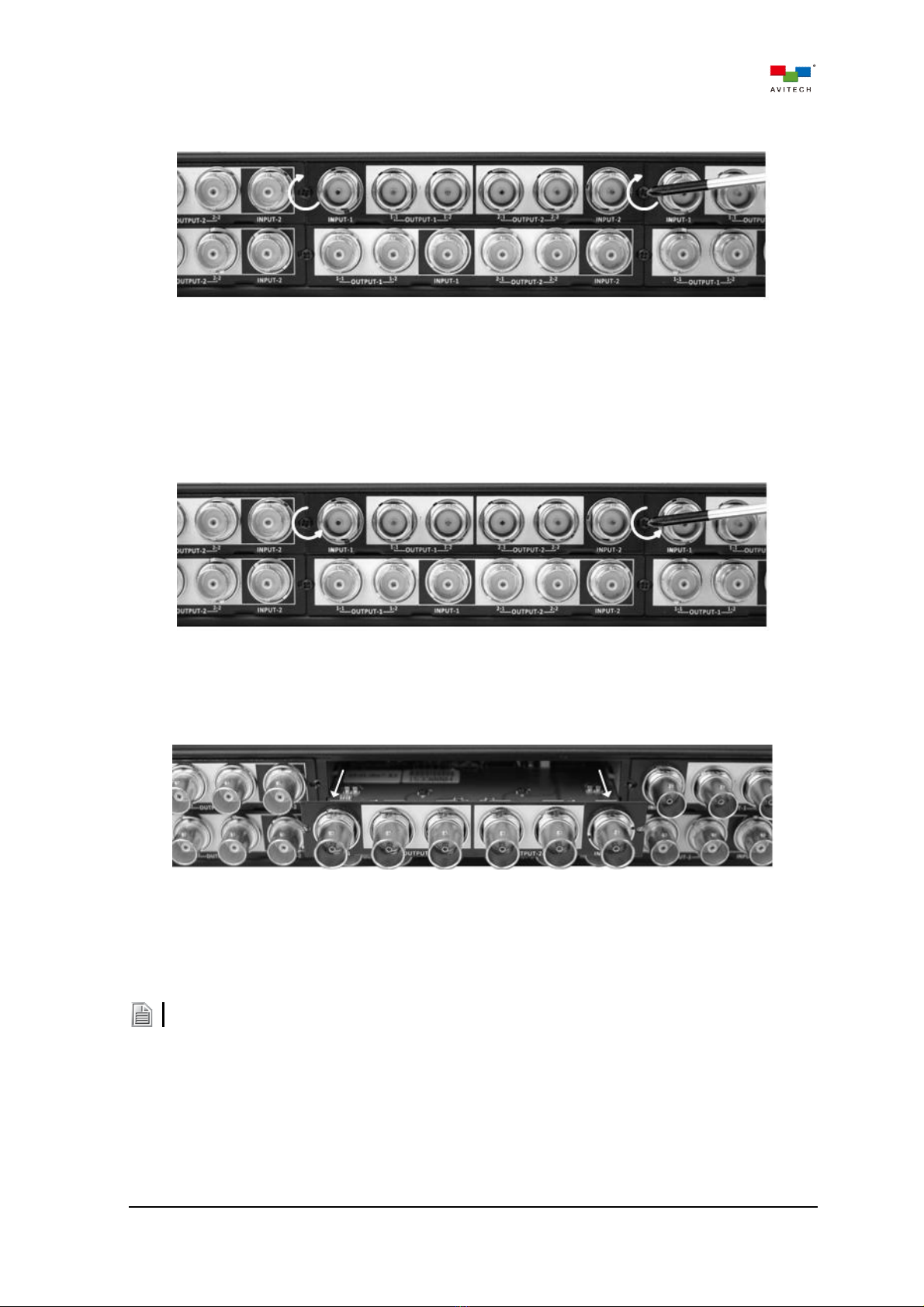

Step 1. Remove the two screws securing the card to be removed from the chassis.
Figure 2-5 Remove the Two Card Screws
Step 2. Pull the card to be removed away from the chassis.
Figure 2-6 Remove the Modular Card
Step 3. Install another card (or a back plate cover) to the chassis and secure both screws.
All cards are hot-swappable and can be installed or removed without powering down the Pacific DA-204.

8
3. System Setup and DIP Switch Configuration
This chapter covers the steps of setting up the Pacific DA-204, as well as its four routing modes
configured through the front panel DIP switches.
To set up the Pacific DA-204, perform the following steps:
Step 1. Connect video source device(s) to the target BNC input connector(s).
Step 2. Connect outputs to SDI monitors or downstream equipment.
Step 3. Set the DIP switch on the front panel to alter signal routings (each DIP switch corresponds to
one card paired with the same numeric label). Refer to the following DIP switch settings to
configure signal routings:

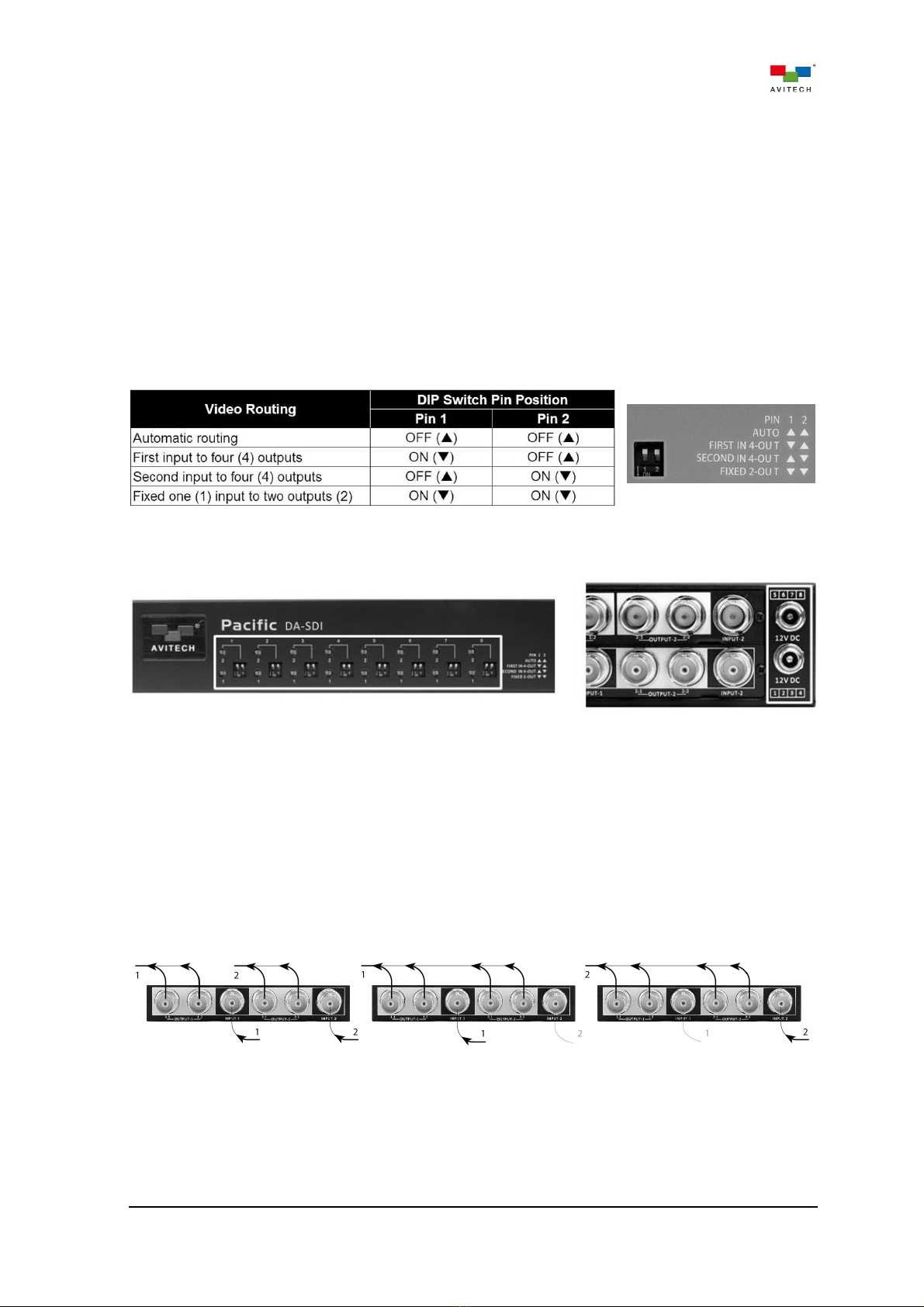

Figure 3-1 Pacific DA-204 Front Panel DIP Switch Setting
Figure 3-2 Pacific DA-204 Front Panel: 8 DIP Switches Correspond to 8 Cards

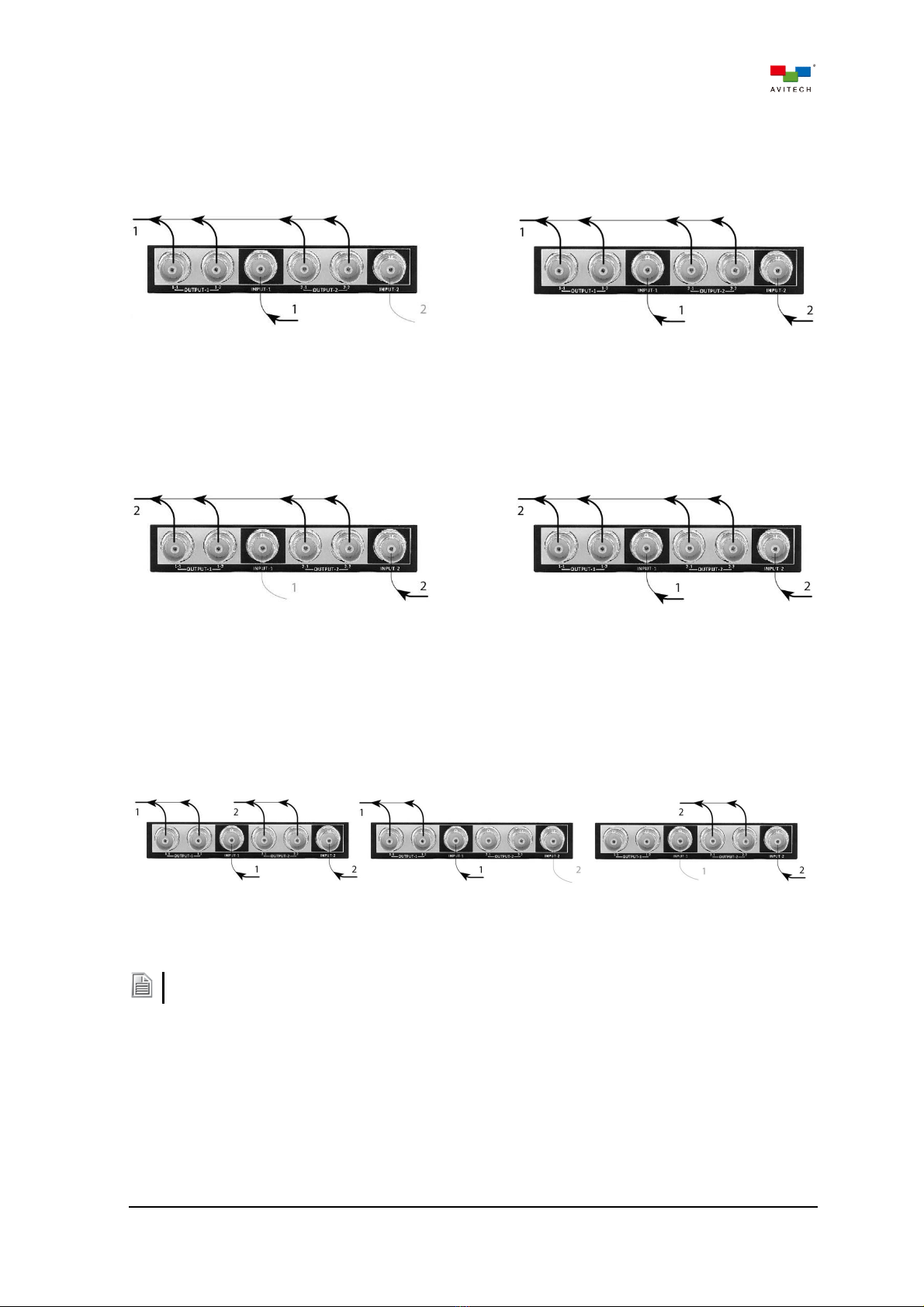

1. AUTO signal routing (1-to-4 or two sets of 1-to-2 signal distribution) –
 If input signals are detected at both INPUT-1 and INPUT-2 ports, INPUT-1 signal will output to
OUTPUT-1 (1-1 & 1-2) ports while INPUT-2 signal will output to OUTPUT-2 (2-1 & 2-2) ports.
 If an input signal is detected at either INPUT-1 or INPUT-2 port, the signal will output to
OUTPUT-1 (1-1 & 1-2) and OUTPUT-2 (2-1 & 2-2) ports.
 If loss of signal occurs at either INPUT-1 or INPUT-2 port, the Pacific DA-204 automatically
senses signal absence and reroutes the available input signal to OUTPUT-1 (1-1 & 1-2) and
OUTPUT-2 (2-1 & 2-2) ports.

Figure 3-3 Pacific DA-204 DIP Switch Setting (AUTO)

9
2. FIRST IN 4-OUT signal routing (1-to-4 signal distribution) –
 INPUT-1 signal, if detected, will output to OUTPUT-1 (1-1 & 1-2) and OUTPUT-2 (2-1 & 2-2)
ports regardless of signal presence at INPUT-2 port.
Figure 3-4 Pacific DA-204 DIP Switch Setting (FIRST IN 4-OUT)
3. SECOND IN 4-OUT signal routing (1-to-4 signal distribution) –
 INPUT-2 signal, if detected, will output to OUTPUT-1 (1-1 & 1-2) and OUTPUT-2 (2-1 & 2-2)
ports regardless of signal presence at INPUT-1 port.
Figure 3-5 Pacific DA-204 DIP Switch Setting (SECOND IN 4-OUT)
4. FIXED 2-OUT signal routing (two sets of 1-to-2 signal distribution) –
 INPUT-1 signal, if detected, will output to OUTPUT-1 (1-1 & 1-2) ports regardless of signal
presence at INPUT-2 port.
 Likewise, INPUT-2 signal, if detected, will output to OUTPUT-2 (2-1 & 2-2) ports regardless of
signal presence at INPUT-1 port.
Figure 3-6 Pacific DA-204 DIP Switch Setting (FIXED 2-OUT)
Both 12Gbps and 3Gbps Cards of the 1RU Pacific DA-204 as well as the standalone Pacific DA-204 (12Gs
and 3Gs) utilize the same DIP switch settings for video routing configurations.
