Avtex W150TCI User manual

TFT-LCD TV
READ CAREFULLY
BEFORE OPERATION
USER MANUAL
W150TCI
W150TCI

Before connecting the AC power cord to the DC adapter outlet ,make sure the
voltage designation of the LCD TV corresponds to the local electrical supply .
If you are unsure of your power supply , ask your local power company .
Never insert anythingmetallic into thecabinet openings ofthe LCD TV;
otherwise may causethe danger ofelectric shock.
To avoid electric shock, never touch the inside of the LCD TV / adapter.
Only a qualified technician should open the case of the LCD TV/adapter.
Never use your LCD TV/adapter when the power cord has been damaged .
Make sure thereis nothing restingon the powercord, and keepthe cord
away from places where people can trip over it .
Be sure to hold the plug, not the cord when disconnecting the adapter from
an electric socket.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
TO PREVENT ELECTRICAL SHOCK.
DO NOT REMOVE THIS COVER. NO
USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates
dangerous voltage
inside the product that
presents a risk of electric
shock or personal injury.
This symbol indicates
important instructions
accompanying the
product.
Please read thismanual carefully before using this product.
IMPORTANT SAFETY INSTRUCTIONS
Openings in the LCD TV/adapter cabinet are provided for ventilation.
To prevent overheating, these openings should not be blocked or covered.
Also, avoid usingthe LCD TV on abed ,sofa ,rug,or other soft surface. As
this, may block the ventilation openings in the bottom of the cabinet. If you
put the LCD TV in a bookcase or some other airless space, be sure to provide
adequate ventilation.
Do not exposethe LCD TV to extreme temperature conditions or to extreme
humidity conditions.
The apparatus shouldnot be exposedto dripping orsplashing and noobjects
filled with liquids,such as vases,should be placedon the apparatus.

Do not clean the front with keton-type materials (e.g.Acetone ),ethyl alcohol,
toluene, ethy lacid, methyl, or chloride-these may damage the panel.
Locate your DCadapter near aneasily accessibleAC outlet.
If your LCD TV does not operate normally in particular, if there are any
unusual sounds or smells coming from it unplug it immediately and
contact an authorized dealer or service center.
High temperature cancause problems. Don t use your LCD TV in direct
sunlight, and keep it away from heaters, stoves, fireplaces, and other
sources of heat.
'
Unplug the DCadapter when itis going tobe left unusedfor a long time .
To reduce the risk of fire or electric shock, and annoying interference, use the
recommended accessories only.
If the LCD TV is broken, donot try to repair ityourself. Contact qualifiedservice
personnel.
Unplug your DC adapter from the AC outlet before any service.
Be sure the service technician uses authorized replacement parts or their equi-
valents. Unauthorized partsmay cause fire,electrical shock, orother hazards.
Following any serviceor repair,be sure theservice technician performssafety
checks to certify that your TFT-LCD TV is in a safe operating order.
The apparatus withCLASS I constructionshall be connectedto a MAINS
socket outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS

CONTENT
AV SCART SETUPand
Video setting menu 17
EXTERNAL EQUIPMENT
Connecting diagram 4
LET'S START
Changing source operation 8
REMOTE CONTROL HANDSET
Remote buttons 5Battery installation 7
PANELBUTTON FUNCTIONS
Panel control 23
Rear panel
INSTALLATION
Normal installation 1
TELETEXT FUNCTION
Teletext function 16
TV MENU SETUP
Picture Sound
TV setup OSD setup
9
11
12 14
Function 15
VGA SETUP
Picture Sound
Monitor setup OSD setup
18
20
19
21
Function 22
DISPLAY MODE
33
Display mode
SPECIFICATIONS
Specifications 32
TROUBLE SHOOTING
Display troubleshooting Sound and TV troubleshooting 31
31
DVB FUNCTION SETUP
General setup 23
Advanced setting
Channel manage
27
25
Electronic program guide 28
System info 28 Program information 29
MHEG5 30

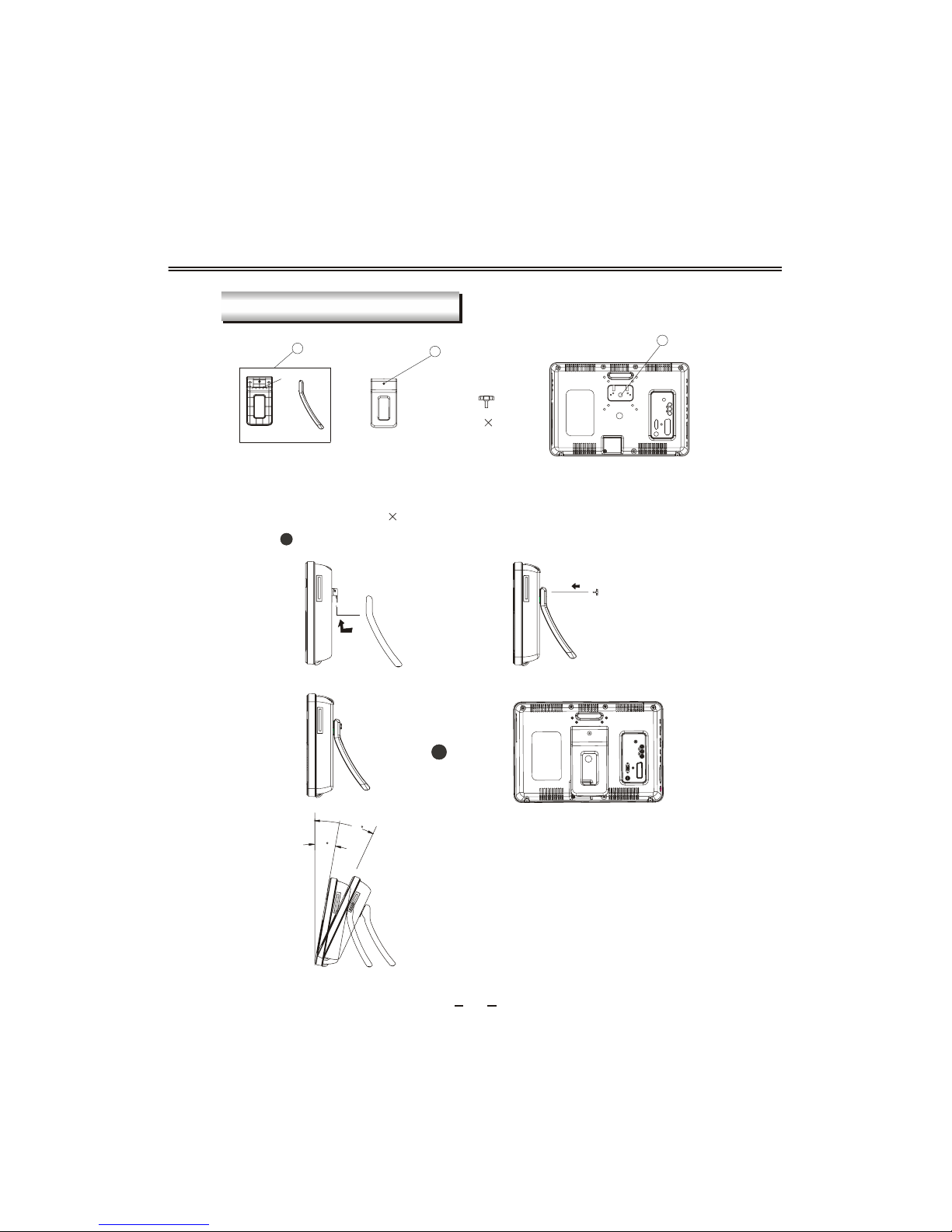

1, Hook thetache (labeledA)of the kickstand onto theplate (labeled C).
2, Tightenthe screws (M4 10) through the ostium (labeled B).
3, Figure shows the finished installation. The kickstand can rotate 15 -degree.
Kickstand
Ostium
1
1
INSTALLATION
NORMAL INSTALLATION
AB
M4 10
Screw 1pcs
C
Hook
Rear viewing ofLCD TV
1
10
10
25
25

2

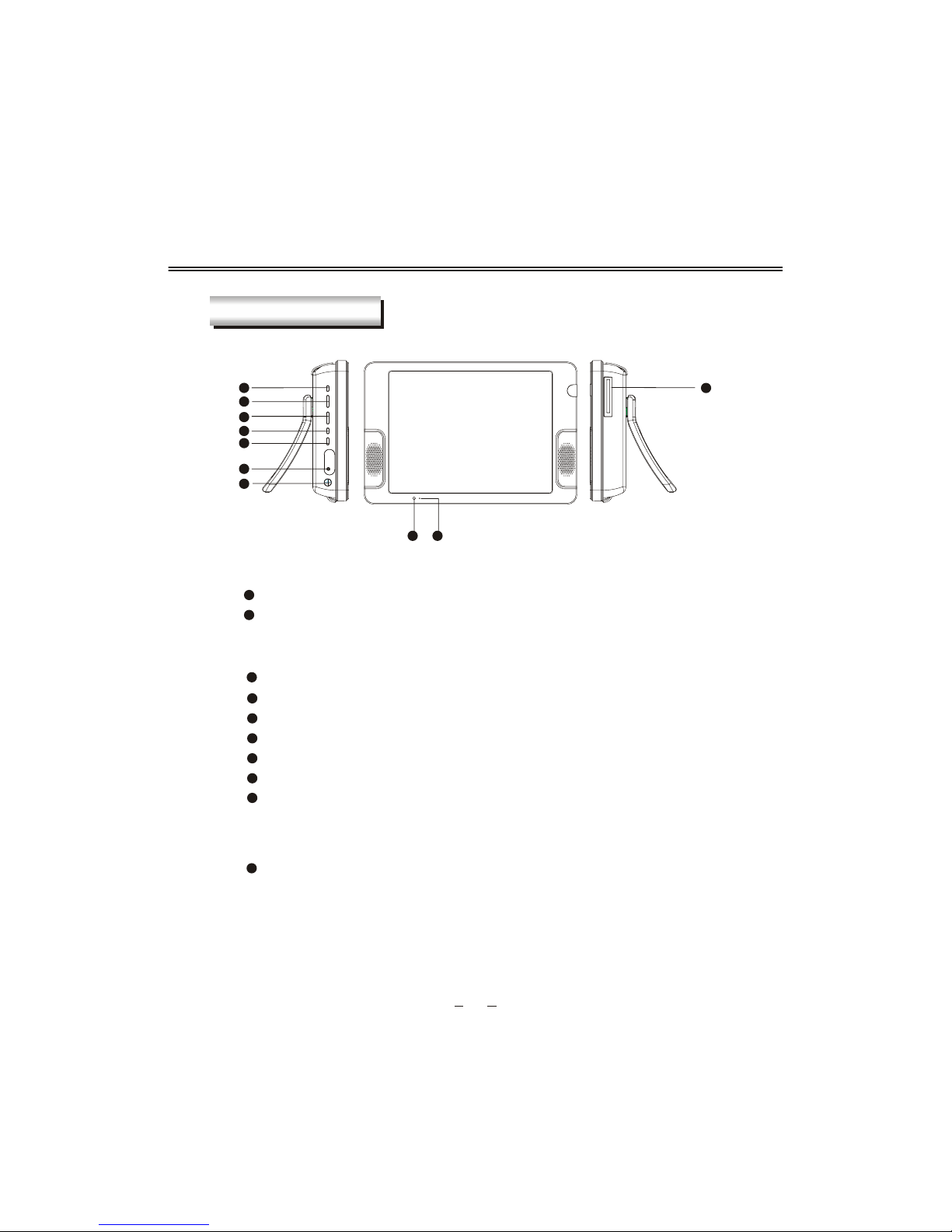

PANEL BUTTON FUNCTIONS
Indicator( )Indicator is redwhen in standbymode, green whenworking normally.
1IR sensor window
2
Front panel
CH+/- (Increase or decreasechannel number)
6
5
VOL+/-(Increase or decrease volume)
SOURCE (Enter to exitsource menu)
7
4
SETUP (Enter or exit setup menu)
STANDBY (Toswitch between standbymode and power-onmode)
8
Left panel
9
Headphone jack
Right panel
PANEL CONTROL
3
POWER(Turns on or off the power supply).
1 2
10
10
3
4
5
6
7
8
9
PCMCIA CARD(Slots for externalConditional Access(CA)-modules).

PANEL BUTTON FUNCTIONS
3

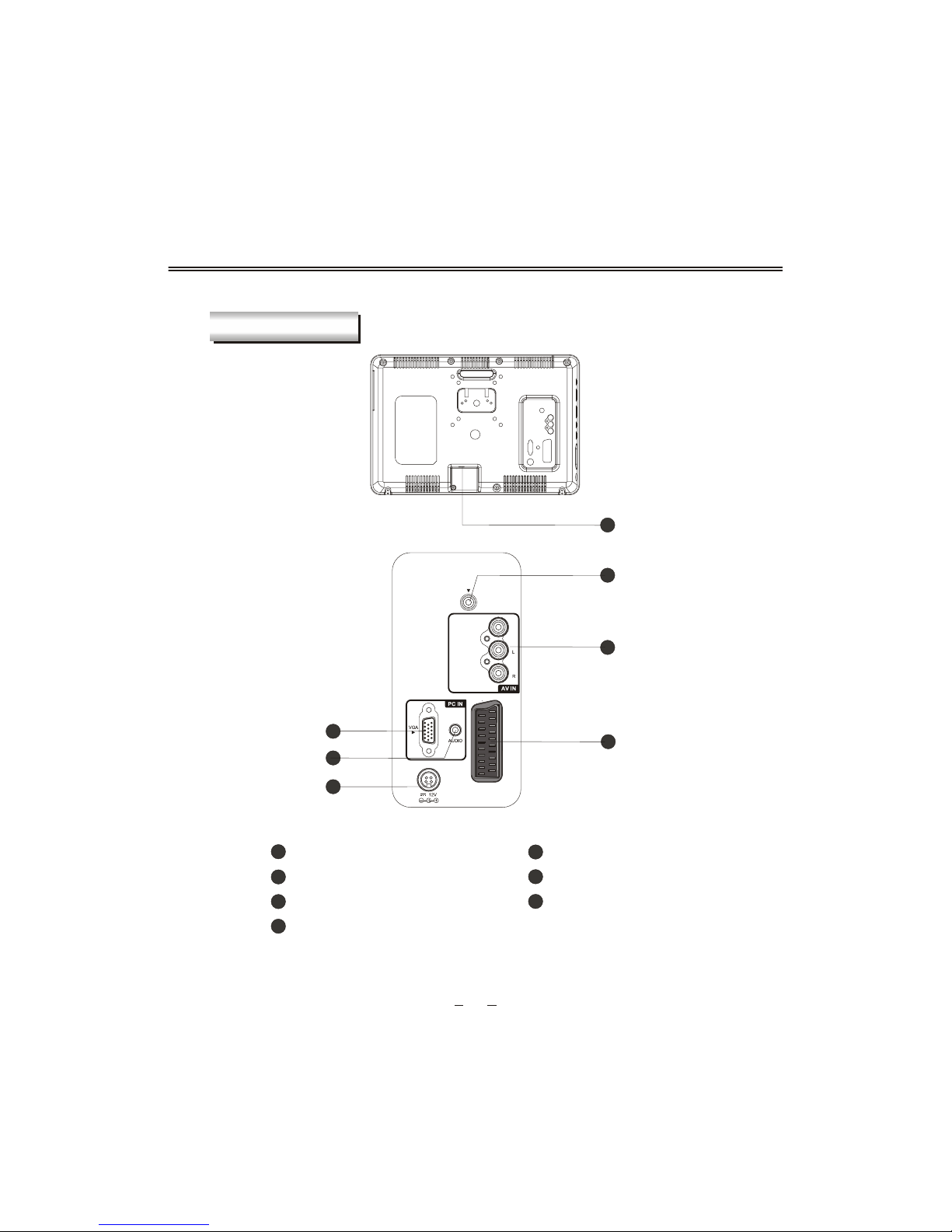

REAR PANEL
2
SCART input terminal
5
12V DC input terminal
1
2
4
5
6
Coaxial digital audiooutput
7
PC audio input
4
7
R input terminal
F
SCART
COAXIAL
VIDEO
1
3
VGA input terminal
3
Composite video/audio input
6

SCART
COAXIAL
VIDEO
DVD or VCR player
RL
EXTERNAL EQUIPMENT
NOTE
CONNECTING DIAGRAM
You should connect the interconnecting cables BEFORE plugging in the power cord.
Power amplifier (with coaxial digital audio in)
R cable
F
4

REMOTE CONTROLLER
5

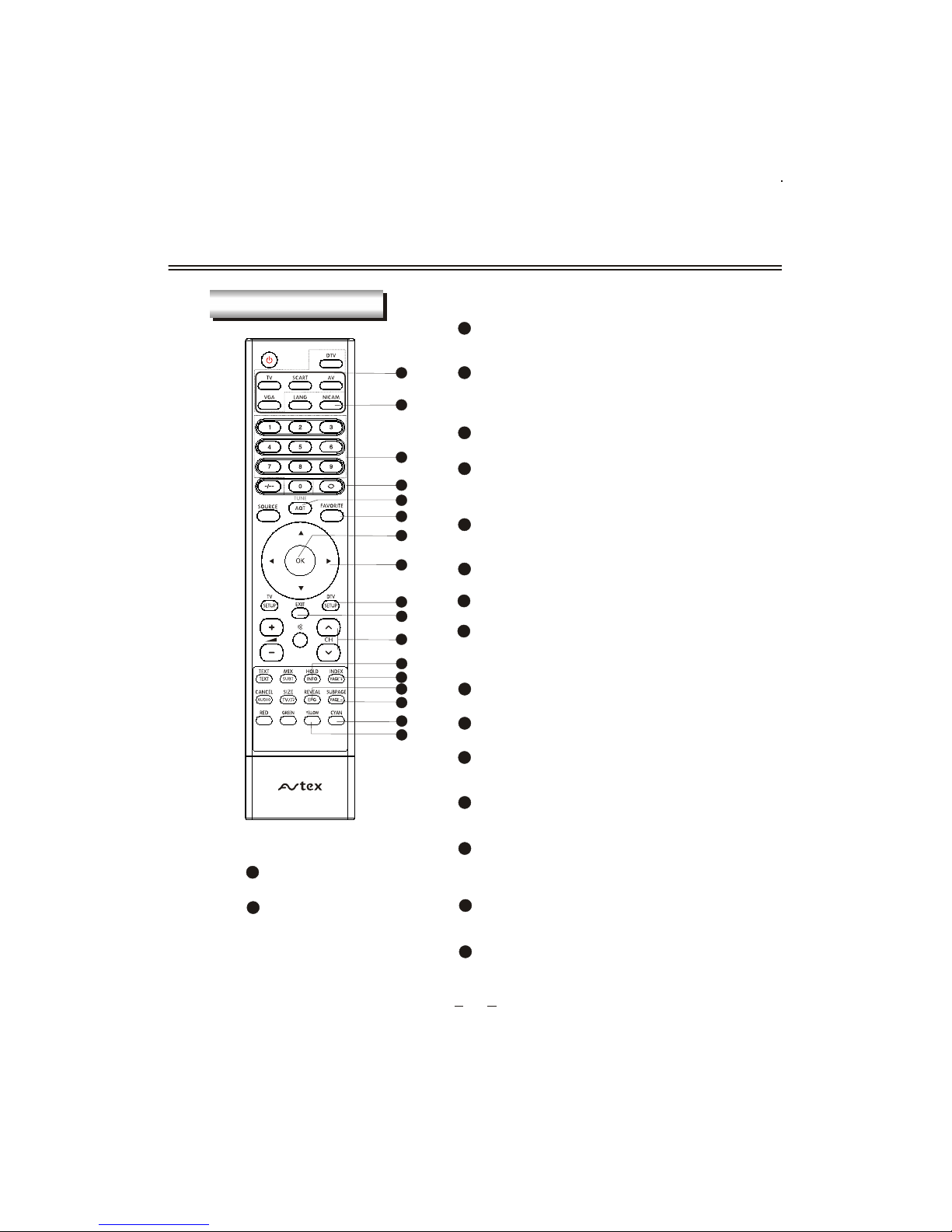

REMOTE BUTTONS
Direct source buttons
1
Select signal sourcedirectly: DTV, TV, SCART,
AV, VGA.
Number button
3
Toselect program number.
OK button
7
Toconfirm the selections.
15 SUBPAGE/PAGE-
Todisplay the subpageof the teletextin TV/
browse the previouspage of favoritein DTV.
14 REVEAL/EPG
Display the hiddenteletext information
/ in DTV.Todisplay the programguide
16 CYAN
CYAN button.
DTV SETUP
9
Enter or exitsetup menu.
NICAM
Switch in NICAM,A2and mono channel(It is
effective in TV signal inputwith NICAM orA2
function).
2
5
Long press (morethan 3 seconds)the button
to start autoscan in TV/DTV.
TUNE/AQT
11 CHANNEL+/-
Toincrease or decreaseprogram number in
TV/DTV.
8Left/Right cursor(menu adjustment)
Tomove leftward/ rightwardor adjust the
selected item inthe menu, oradjust sound
volume (invalid inDTV).
INDEX/PAGE+
Todisplay main contentpage when playingthe
teletext in TV/browse the next page of favorite
table in DTV.
13
17 YELLOW
YELLOW button.
4RETURN
Toexchange channel betweenthe previous
program and thecurrent program inTV and
DTV.
6FAVORITE
Display your favoritechannel list inDTV.
EXIT
10
Toexit current menuexcept MUTE menu.
1
2
3
5
7
12
9
11
13
15
16
4
6
8
10
14
17
12 HOLD/INFO
Tostop teletext oncurrent page/To display the
language and soundtrack in DTV.

6
REMOTE CONTROLLER
SOURCE
Toselect input source:TV,DTV, AV, SCART,
VGA.
21
UP/DOWN cursor
Toselect upward/downward inthe menu or
change the channelin TV/DTV.
22
Todisplay TV and teletext inthe simultaneously
/Selects the subtitlelanguage in DTV.
MIX/SUBT
26
Volume +/-
25
Toincrease or decreasesound volume.
RED button.
RED
30
TEXT/TEXT
27
Toenable or disablethe function ofteletext.
GREEN
Green button.
31
TV SETUP
Todisplay system menu.
23
STANDBY
18
Toswitch between standbymode and power-
on mode.
20 TWO-DIGIT NUMBER BUTTON
Toswitch between oneor two-digit program
number.
MUTE
Sound mute switch.
24
CANCEL/AUDIO
Tocancel teletext inTV/To change theaudio
language and soundtrack in DTV.
28
SIZE/TV/
Tomagnify teletext page/To switch between
TV and Radiomodes in DTV.
29
21
22
25
24
26
31
30
28
29
27
18
20
23
19
LANG
19
Toswitch the outputlanguage in DTV.

7

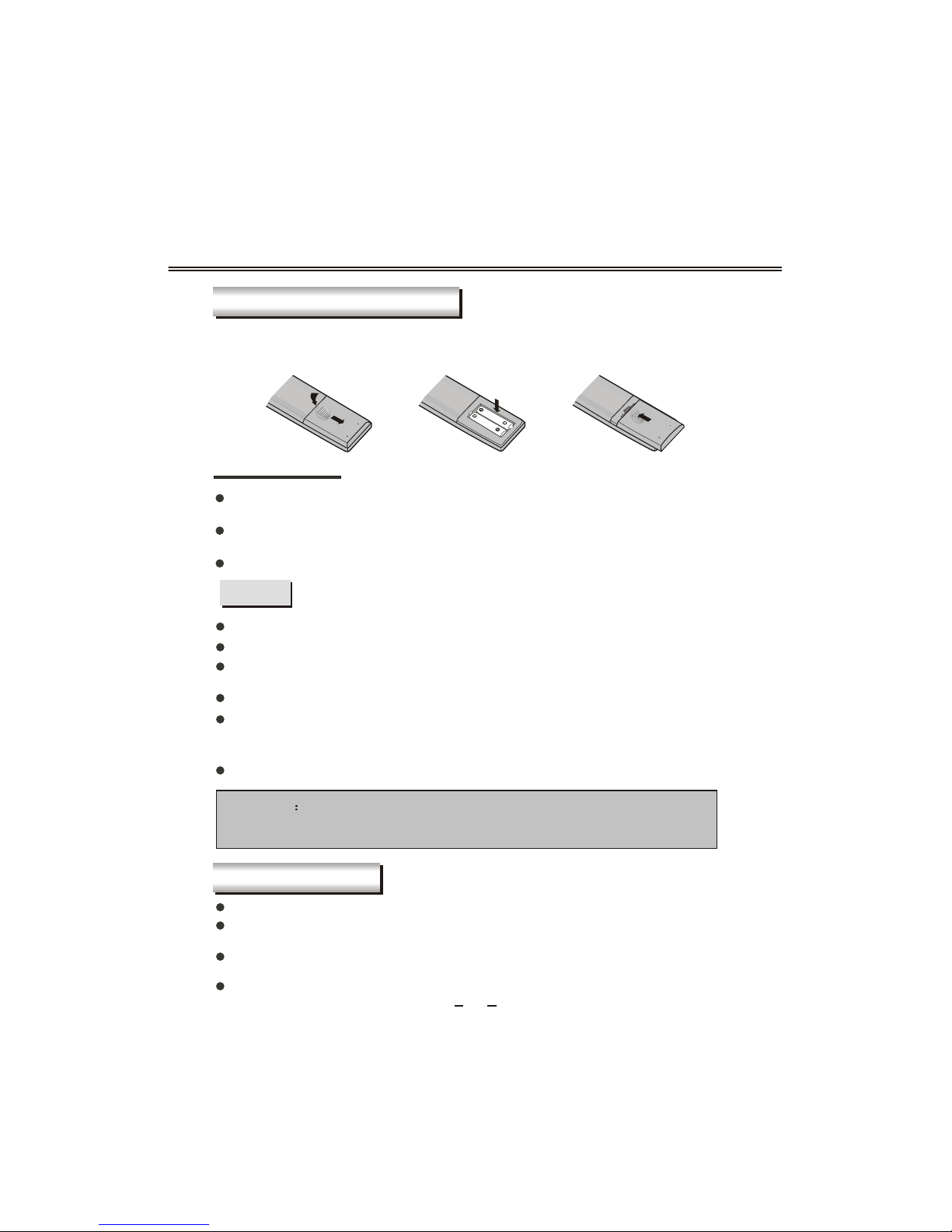

REMOTE CONTROLLER
Remove the batterycover. Insert two SUM-4(AAA) batteriesmatching the -/+polarities of
the battery tothe -/+ marksinside the battery compartment, as in the following figure:
BATTERYLIFE
Generally speaking, the battery may beused for oneyear, butthe battery life is also
related to the usage times andremote controller operation.
If the remotecontroller is stillnot operating whenvery near to the remote sensor window,
please replace thebattery.
Please use SUM-4(AAA) battery.
NOTES
Never use rechargeablebattery.
Never charge, short-circuit, disassemble and heatthe battery, or throw it into fire.
Pay attention not to fall orknock the remotecontroller, whichmay cause damage or
function failure to it.
Do not use new and oldbattery together.
If electrolyte splashes into body, please clean it with water.
CAUTION
Please put thebattery in aplace children cannotaccess. If swallowed by accident,
please contact yourlocal doctor immediately.
BATTERY INSTALLATION
When not usingthe remote controllerfor a long time, please take out the batteriesto avoid
liquid leakage. Beforereplacing new batteries,please clean the electrolyte in the remote
controller.
Please confirm whether the accessories containthe power adapter.
Please make sure to use poweradapter within thespecification range, otherwiseit will
cause damage.
POWER SUPPLY
Use the car adapter in theaccessories, connect oneend to thesocket in you car, the
other to the DC socket inthe TV.
The input voltage of thecar adapter should be 12Volts.

LET'S START
You can change theinput source byusing the sourceMenu. Press [SOURCE] button or
[SOURCE] key toshow the menuas follows:
The current sourceitem is highlighted.Press [ ] button on the remote control or[ CH+
/CH- ] keyto select thesource you want, Press [ ] button, [VOL+/VOL-] keyor [OK]
button to confirmyour choice .
CHANGE SOURCE OPERATION
ANALOGUE TV
DIGITAL TV
AV
SCART
VGA
8
STANDBY
After thisunit is wellfixed on thedesk or on the wall, and the cords arewell connected
for input andoutput, what youshould do next is:
Firstly, connect the adapter to the LCD TV,and turn onthe power switch then the unit will go
into standby mode,you can seethe indicator turnred.
Secondly, press [STANDBY] key onthe left sideof the LCDTV or [STANDBY] button on the
remote control tomake the unitswitch into working mode, and you will see theindicator turns
green. Now youcan enjoy allexciting features ofthe whole new product.
INDICATOR
STANDBY
Power switch

Item

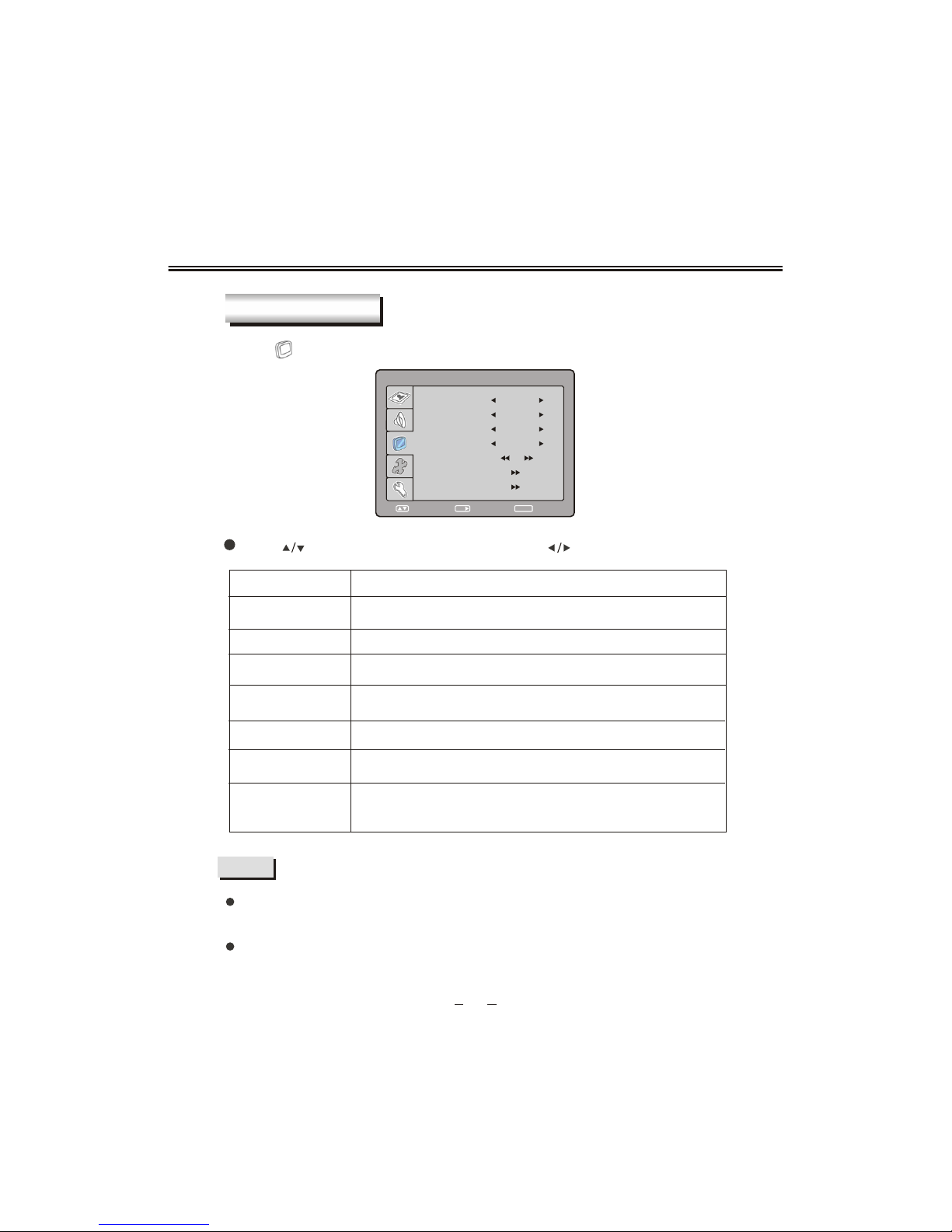

BRIGHTNESS Toadjust brightness.
CONTRAST Toadjust contrast.
SATURATION Toadjust color saturation.

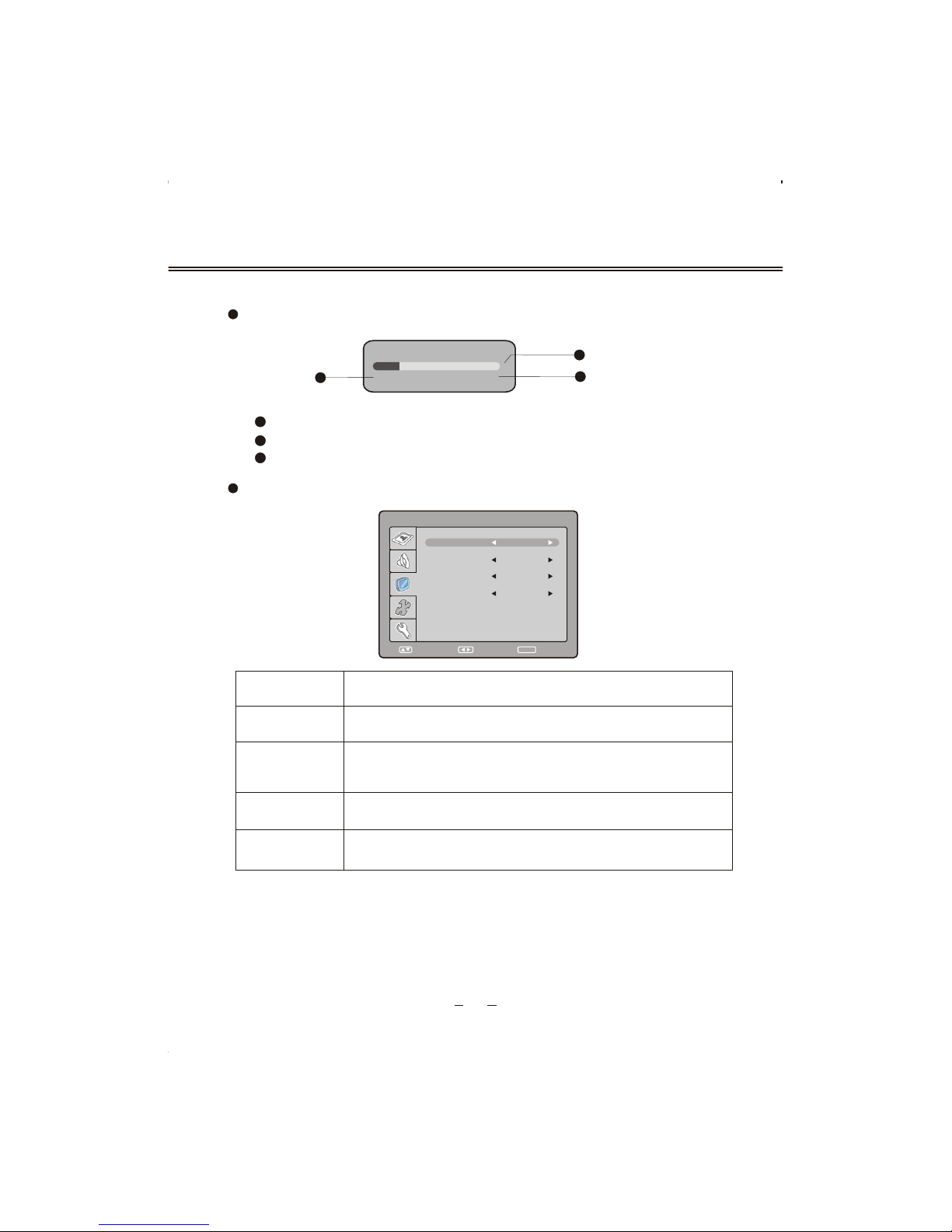

This product canstore up to 100-channel programs (0 99).
In TV, press [SETUP]button and thesetup menu will show as follows:
Pressing [ ]button on theremote control,
you can selectsetup menu sections(setup
menu consists of
.
Press [ ]or [OK] buttonto enter this menu section.
" PICTURE ", " SOUND" ,
" TV SETUP ", " OSD SETUP"," FUNCTION ")
Press [ ]button on theremote control to select
the item, andthen press [ ] button toadjust
parameters. Press [SETUP]button to returnto
main menu sections.
Select " "and menu willshow as follows:
Press [ ]button to selectdifferent items and
[ ] buttonto adjust them.
TV MENU SETUP
Description
TINT Toadjust picture tint,only valid inN 3.58/N 4.43/PAL60 .
9
PICTURE Can be changedbetween : "USER ", "STANDARD ", "DYNAMIC "
and "SOFT ".
SHARPNESS
COLOR TEMP.
Toadjust picture sharpness.
Select color temperaturemode : "NORMAL ", " WARM "and "COOL ".
SELECT RETURN
SETUP
ENTER
OK
PICTURE MODE USER
SATURATION 50
CONTRAST 40
BRIGHTNESS 50
TINT 50
COLOR TEMP. NORMAL
SHARPNESS 50
SELECT RETURN
SETUP
ADJUST
SATURATION 50
CONTRAST 40
BRIGHTNESS 50
TINT 50
COLOR TEMP. NORMAL
SHARPNESS 50
PICTURE MODE USER

TV MENU SETUP
10
NOTE
Select "BRIGHTNESS " toadjust it, thesub item willshow as follows :
press [ ]button to adjustthe value ofbrightness.
BRIGHTNESS
50
CONTRAST , TINT , SHARPNESS , SATURATION are as the same.
If you haveadjusted the upperitems not at USER mode, the adjustedvalue
will automatically overlaythe USER mode parameters.
""""" "" "
""
""

Item
BALANCE
TREBLE
Toadjust balance ofleft and rightsound channels.
To adjust bass.
To adjust treble.
Select " "and menu will showas follows:
TV MENU SETUP
BASS
Description
SOUND MODE Can be changed between USER , , FILM ." " "MUSIC" " " and "NEWS"
11
SOUND
Press [ ]button to selectdifferent items and press [ ] button to adjust them. The
following are thedescriptions of thesound item.
NICAM
Nicam/A2 function isonly valid inTV while current program comingwith Nicam/A2 signal.
If you canreceive Nicam/A2 signal,you can operate as follows to enjoy that.
You can select Nicamstereo, mono channelor bilingual throughNICAM button or in the
upper menu. IfNicam/A2 signal istoo weak, it will switch into mono channel automatically.
NOTES
Select NICAM mode(please refer tothe notes).
SOUND
SELECT RETURN
SETUP
ENTER
OK
50
BALANCE
SOUND MODE USER
50
BASS
50
TREBLE
NICAM MONO

TV MENU SETUP
12
Press [ ]button to selectdifferent items and press [ ] button to adjust them.
Item
CHANNEL Tochange the channelnumber.
CHANNEL EDIT
FINE TUNING Adjust the channelfrequency accurately tomake the sound
and picture effect better.
MANUAL SEARCH
Only scan programof current channel.
Description
AUTO SEARCH
Scan all programsand store themautomatically.
Select " "and TV setup menu will show as follows:
TV SETUP
NOTES
Enter its submenu and use thecorrelative functions ofthe
channels. Please referto the nextpage.
COLOR SYSTEM
SOUND SYSTEM
Can be changedbetween: "AUTO ", "PAL " and " SECAM ".
Can be changedbetween: "AUTO", "BG ", " I " ,"DK " and" L ".
Which COLOR SYSTEM mode and SOUND SYSTEM mode to useis related tothe
local TV broadcasting system.
""""
If the local system isSECAM L, the sound systemmust be selected as L, or else the search
result is bad.
TV SETUP
SELECT RETURN
SETUP
ENTER
OK
CHANNEL 1
COLOR SYSTEM AUTO
SOUND SYSTEM AUTO
FINE TUNING 40.00MHZ
MANUAL SEARCH
AUTO SEARCH
CHANNEL EDIT

Item
CHANNEL
Description
SKIP
SWAP
SAVE
Toselect current channelhere.
Toselect "YES "or "NO ", you can select "YES " to make current
channel unaccessible while using [CH+/-] buttonto browse chann-
els (but youcan access itin the TV SETUP menu or thismenu).
Select or directlyinput the channelnumber you wantto swap with
current channel.
Press the [OK]button to confirmthe swap operation.
13
TV MENU SETUP
Select "CHANNEL EDIT " , the menuwill show as follows:
AUTO SEARCH
112.25MHZ
VHF L
Select "AUTO SEARCH " , the searching menu will show asfollows:
3
1
2
3
The number ofprograms have beenfound.
The current searchingfrequency Band, 3Bands in total:"VHF L" ,"VHF H"," UHF".
The current searchingfrequency.
2
1
SELECT RETURN
SETUP
ADJUST
CHANNEL EDIT
SKIP
SWAP
SAVE
5
CHANNEL
NO
?
__
2
PRESS SETUP TO EXIT

TV MENU SETUP
Select " "item and OSDSETUP menu will showas follows:
14
OSD SETUP
You can adjust therelative parameters ofOSD itself here.
Description
LANGUAGE
OSD H-POSITON
TRANSPARENCY
Set OSD language.
Press [ ]button to selectdifferent items and press [ ] button to adjust them.
Item
OSD DURATION
Toadjust OSD verticalposition.
Toadjust the mainmenu display durationtime.
Toadjust OSD horizontalposition.
SELECT RETURN
SETUP
ENTER
OSD SETUP
LANGUAGE ENGLISH
OSD H-POSITION
OSD V-POSITION
OSD DURATION
TRANSPARENCY
OK
50
50
25
25
OSD V-POSITON
Toadjust transparency ofOSD.

Select " "item and FUNCTIONmenu will showas follows:
FUNCTION
Description
ASPECT RATIO
Press [ ]button to selectdifferent items and press [ ] button to adjust them.
Item
TV MENU SETUP
15
SELECT RETURN
SETUP
ENTER
FUNCTION
ASPECT RATIO FULL
NOISE REDUCE MID
SLEEP OFF
OK
RESET
NOISE REDUCE
SLEEP Toset the sleeptime.
RESET Toreset all parametersto default.
Toswitch the videoformat between "FULL","ZOOM",
" NORMAL" and"LETTERBOX".
Toreduce the noiseof the image.

16
Most TV stations provide cost-free teletext information, including the latest news,
weather information, TV program list and stock information, etc.
You just input the needed teletext pageaccording to theteletext content.
TELETEXT FUNCTION
TELETEXT DISPLAY
Select the channelwith teletext signal;
Press [TEXT] button;
Select the correspondingpage according tothe colorized buttons on the remote control;
Press [TEXT] againand TV screen will display.
PAGE SELECTION
You can input 3digital numbers toenter the pageyou want to watch through number
buttons. If theinputted number isinvalid, you need to input correct 3 digital numbers
again after youfinished inputting this3 digital numbers.
You can select toturn pages forwardor backward through[CH+/-] button.
NOTE: Press [CANCEL]button to cancelteletext.
MIX MODE
This function maylet you enjoyTV and teletext information atthe same time.
When a certainteletext page displays,press [MIX] button, TV and teletext information
will display onscreen at thesame time.
Press [MIX] buttonagain and onlyteletext image displays.
In mix mode,the disturbance lineson teletext characters are easy to appear, soyou
are not recommendedto select thismode.
LOCK
You can press [HOLD] button to lock teletext page. Press this button again to cancel locking.
INDEX
Pressing [INDEX] buttonto display contentpage.
Enter a certainteletext page throughinputting number buttons.
Press [REVEAL] buttonto display thehidden teletext information. Press this button again
to cancel teletextinformation displaying.
DISPLAYMODE
COLORIZED BUTTONS (RED, YELLOW, GREEN, CYAN)
Select the correspondingteletext page throughcolorized buttons.
When teletext pageshows, you maydouble zoom into display this teletext page;
Press [SIZE] buttonto zoom inthe upper halfpart of teletext page;
Press [SIZE] buttonagain to enterthe under halfpart of teletext page;
Press this buttonfor the thirdtime to returnto original display mode.
ZOOM IN TELETEXT
User could press[SUBPAGE] button to select to the subpage of teletext.
SUBPAGE
