Avtex W195TS User manual

Model:
W195TS
W215TS
W249TS

CONTENTS
General Safety 4
Installation 8
Controls and Connections 10
Remote Control 12
Initial Setup 14
Smart Home 16
USB Media 19
Menu
Picture 21
Sound 22
Programme 23
Connection 24
General 25
Accessibility 26
Support 27
FAQs 28

Power cord
AVTEX TV
12 Volt DC lead
3

4

Instruction
This equipment has been designed and manufactured
to meet international safety standards but, like any
electrical equipment, care must be taken if you are to
obtain the best results and safety is to be assured.
DO read the operating instructions before you
attempt to use the equipment.
DO ensure that all electrical connections (including
the mains plug, extension leads and interconnections
between the pieces of equipment) are properly made
and in accordance with the manufacturer’s
instructions. Switch off and withdraw the mains plug
before making or changing connections.
DO consult your dealer if you are ever in doubt about
the installation, operation or safety of your
equipment.
DO route the mains lead so that it is not likely to be
walked on, crushed, chafed, or subject to excessive
wear and tear or heat.
DON’T remove any fixed cover as this may expose
dangerous voltages.
DON’T obstruct the ventilation openings of the
equipment with items such as newspaper,
tablecloths, curtains, etc. Overheating will cause
damage and shorten the life of the equipment.
DON’T allow electrical equipment to be exposed to
dripping or splashing, or objects filled with liquids.
DON’T place hot object or naked fame sources such
as lighted candles or night-lights on, or close to
equipment. High temperatures can melt plastic and
lead to fires.
DON’T use makeshift stands and NEVER fix legs with
wood screws-to ensure complete safety always fit the
manufacturer’s approved stand or legs with the
fixings provided according to the instructions.
DON’T use equipment so that you are distracted from
the requirements of traffic safety.
DON’T listen to headphones at high volume, as such
use can permanently damage your hearing.
DON’T leave equipment switched on when it is
unattended unless it is specifically stated that it is
designed for unattended operation or has a stand-by
mode. Switch off by unplugging the equipment and
make sure that your family know how to do this.
Special arrangements may need to be made for infirm
or handi-capped people.
DON’T continue to operate the equipment if you are
in any doubt about it working normally, or if it is
damaged in any way-switch off, withdraw the mains
plug and consult your dealer.
ABOVE ALL ,
- NEVER let anyone especially children push anything
into holes, slots or any other opening in the
equipment - this could result in a fatal electrical
shock;
- NEVER guess or take chances with electrical
equipment of any kind. It is better to be safe than sorry !
5

6

Safety warnings
7
• Read all the instrucons arefully before using the unit
and keep them for future reference.
• Retain the manual. If you pass the unit onto a third
party make sure to include this manual.
Check that the voltage marked on the rang label
matches your mains voltage.
Damage
• Inspect the unit for damage afer unpacking.
• Do not connue o operate the unit if you are in any
doubt about it working normally, or if it is damaged in
any way -switch off, withdraw the mains plug and
consult your dealer.
Locaon of Unit
• The unit must be placed on a flat stable surface and
should not be subjected to vibraons.
• Do not place the unit on sloped or unstable surfaces as
the unit may fall off or p er.
• The mains socket must be located near the unit and
should be easily accessible.
Temperature
• Avoid extreme degrees of temperature, either hot or
cold. Place the unit well away from heat sources, such
as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of
heat.
Naked Flames
• Never place any type of candle or naked flame on the
top of or near the unit.
Moisture
• To reduce the risk of fire, electric shock or product
damage, do not expose this unit to rain, moisture,
dripping or splashing. No objects filled with liquids,
should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious
damages. Switch it o ffat the mains immediately.
Withdraw the mains plug and consult your dealer.
Venl aon
• To prevent the risk of electric shock or fire hazard due
to overhean , ensure that curtains and other
materials do not obstruct the venl aonents.
• Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space.
Ensure the unit is well venl ted.
Safety
• Always disconnect the unit from the mains supply
before connecn /discconnecng other
devices or moving the unit.
• Unplug the unit from the mains socket before a
lightning storm.
Mains Cable
• Make sure the unit or the unit stand is not resng on
top of the mains cable, as the weight of the unit may
damage the cable and create a safety hazard.
Interference
• Do not place the unit on or near appliances which may
cause electromagnec i terference. If you
do, it may adversely affect the operaang peormance
of the unit, and cause a distorted picture or sound.
Note
For use only when vehicle is Staonar.
Use in a vehicle

8

Front, side and above views
7
34
5
6
9
1 Standby LED
2 Remote control sensor
3 SOURCE
4 SETUP
5 VOL+/-
6 /OK
7 CH+/-
Enter or exit setup menu
Increases / Decreases the volume
TV standby mode
Increases / Decreases the channel number
Accesses the SOURCE menu

1234678910
12V/24V
PCMCIA HDMI1 AV IN
511
1 PCMCIA CARD SLOTS FOR EXTERNAL CONDITIONAL ACCESS(CA)-MODULES.
2 HDMI1/HDMI2(ARC) IN SOCKET. REFER TO HDMI PAGE
3 HEADPHONE OUTPUT TERMINAL
4 AV INPUT
5 12V/24V DC INPUT TERMINAL
6 RJ45 INTERNET INPUT
7 USB2
8 USB1
9 OPTICAL AUDIO OUT
10 LNB S/S2
11 RF INPUT TERMINAL(AERIAL)
TERMINAL
10
HDMI2
(ARC)
Rear view
RJ45 USB2 USB1 OPTICAL RF
LNB
(S/S2)

REMOTE CONTROL
11

12

INITIAL SETUP
Source Selection
Press ( ) button to display the input source list.
Press button to select the input source you want to watch, then press the ( )
button to enter the input source. HDMI input source needs to be selected in Home Dashboard.
Note: Before watching please make sure all necessary cables and devices are connected.
13

INITIAL SETUP (CONT.)

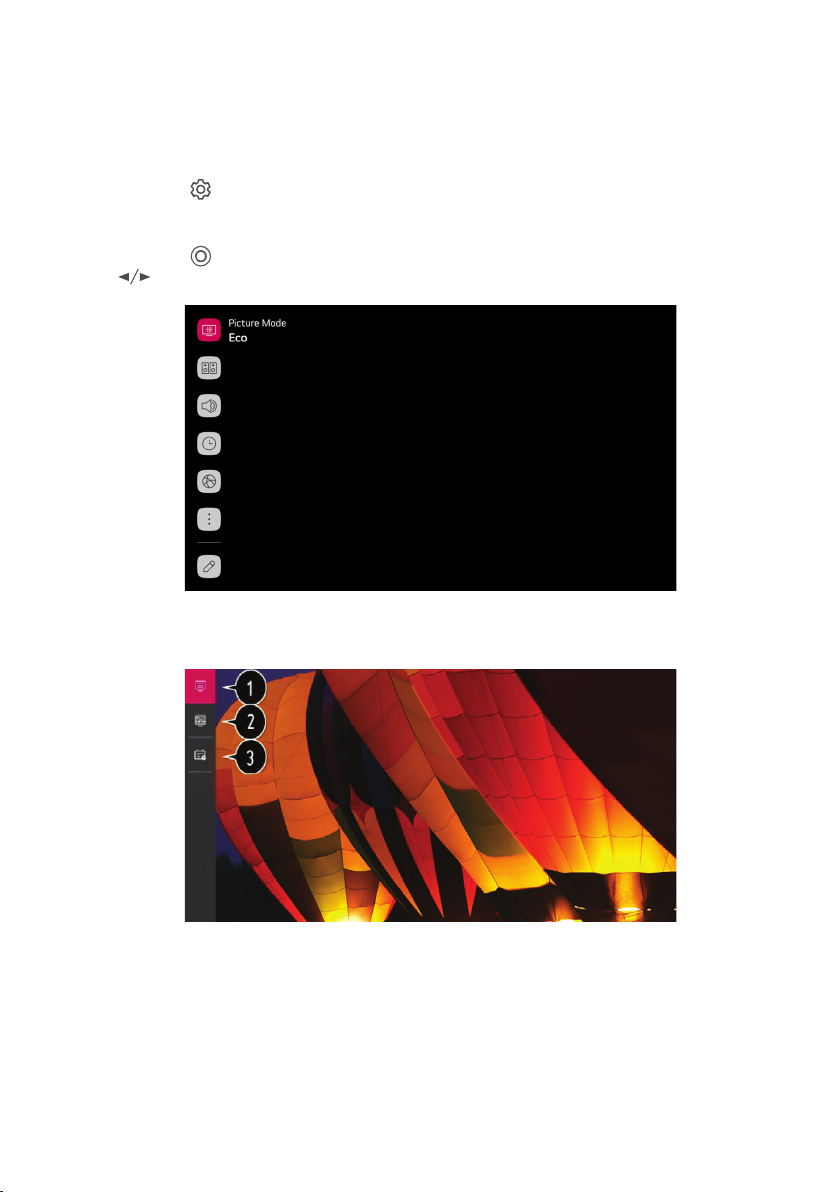

Quick Settings
Press the ( ) button on the remote control, the screen will display a quick setting menu,
such as picture mode, sound mode, sleep timer, etc.
You can add/delete the quick setting items or change their order. After entering each item,
press the ( ) button on the remote control to go to the corresponding menu. Press
button to select the option.
Using Live Menu
You can use the relevant features with ease when watching TV broadcasts. Press the LIST
button on the remote control.
1. Programmes: View a list of broadcast content that is currently being broadcast.
2. Guide: You can view programmes and the schedule of each programmes.
3. TV Scheduler: You can enter the time and date of a programme to schedule watching or
recording it at the set time.
14

SMART HOME
Home Tutorial
Using the home feature of the webOS TV
You can open the home screen by pressing the HOME button on your remote control.
Manage Home
Manage webOS TV Home.
You can view a list of all apps installed on your TV, change their positions, or delete them.
You can perform the operations you want according to the prompt information on the TV
screen.
1. Enter the search menu. Search for a variety of content and information using the desired
search terms. Need to make sure the network connection is normal
2. Move To The Home Dashboard.
3. Move to the TV input you used recently.
4. Move to the recently used app.
5. Move to the the APP store.
6. Move to the Browser.
7. Move to the Picture and video playback menu.
8. Move to the Music playback menu.
9. Move to the Edit menu.
10. Move to the Settings menu.
1 2 3 4 5
6
78910
15

SMART HOME (CONT.)
1. Select the app you want to edit, and press and hold the ( ) button on the remote
control. This will activate the app edit mode.
2. To move the app to your desired position, go to the position and press the ( )
button. To delete an app, select the “X” icon above the app. You can move and delete as many
apps as you wish before exiting the edit mode. You can also move apps with the buttons
on your remote control.
3. After the editing is done, press the “X” at the top right to exit the App Edit mode.
The default TV app cannot be edited.
Launching Apps through QUICK ACCESS
Press and hold a number button on the remote control to open an app or to activate an external
input registered to the button.
Setting QUICK ACCESS
1. Launch the app or select the programme or input you wish to assign.
2. Press and hold the number button (1~9) you want to register.
3. When the registration pop-up window appears, select Yes.
If you press and hold a number button that has already been registered, the registered
function will be performed.
To see the items that can be registered, select a number that has not been registered in the
QUICK ACCESS edit mode.
If you are in a mode where QUICK ACCESS cannot run, no action will be performed.
If you delete a registered app, QUICK ACCESS will be deregistered as well.
16

SMART HOME (CONT.)
Home Dashboard
You can select or control a device connected to the TV. Press the ( ) button on the remote
control and select Home Dashboard.
You can perform the operations you want according to the prompt information on the TV
screen.
1. Check and select the smart device connected with the LG ThinQ app.
2. Play sound from a smart device connected via Bluetooth.
3. Check and select the external device connected through the external input port or network.
4. The currently selected output speaker is displayed, and you can navigate to the output
speaker settings screen.
5. View and select the connected storage device.
6. Check and control the device connected via the Home IoT.
7. Easily control your device by presetting the desired operations.
8. Sign In : You can log in/out to and from the LG ThinQ account you created on mobile.
Edit: You can edit the name of the device connected to Inputs or Home IoT Devices or
configure the related settings.
9. Refreshes the device list.
10. Exit the Home Dashboard.
AV
17

USB MEDIA
USB Media Player
Connect a USB storage device to the USB port on the TV to enjoy the content files stored on
the USB storage device on your TV.
Support format: jpeg, jpg, jpe, png and bmp for photo,mp3, wav, ogg, wma, flac for music, asf,
avi, mp4, 3gp, mkv, ts, mpg, vob for video.
Using Photo Player
Selecting Photo & Video app and press ( ) button to enter the menu. You can view your
saved photos.Press Arrow buttons to select the file you want to watch in the file selecting
menu, then press ( ) button to start playing. When playing media, press the ( ) button
to display and operate file details.
Picture&V ideo
18

Playing Video
Selecting Photo & Video app and press ( ) button to enter the menu. You can view your
saved videos.Press Arrow buttons to select the file you want to watch in the file selecting
menu, then press ( ) button to start playing. When playing media, press the ( ) button
to display and operate file details.
Playing Music
Selecting Music app press ( ) button to enter the menu. You can listen your saved music.
Press Arrow buttons to select the file you want to listen to music in the file selecting menu,
then press ( ) button to start playing. When playing media, press the ( ) button to
display and operate file details.
USB MEDIA (CONT.)
19

Picture Menu
Select All settings in settings menu, press ( ) button to enter the submenu.
Press buttons to select Picture in the submenu, it will highlight the option, then press
button to enter menu.
Press button to select the option and press ( ) button to enter the submenu.
Picture Mode Settings
Select a video mode that matches the viewing environment, or specify settings for a video
mode, such as contrast, color and more.
Aspect Ratio Settings
View the original screen as it is or set the screen size and aspect ratio.
Energy Saving
Energy saving modes to limit power consumption. Adjust screen brightness to reduce energy
consumption.
If you use Energy Saving function, brightness of your TV will be aected.
Additional Settings
Set additional picture settings. Include Eye Comfort Mode, HDMI Ultra HD Deep Color and
Instant Game Response.
MENU
20
