Avue AVL240SDI User manual

AVL240SDI
24” TFT LCD MONITOR
USER MANUAL

2
TABLE OF CONTENTS
Table of contents........................................................................................................2
Warning......................................................................................................................3
Precautions................................................................................................................3
About this user manual...............................................................................................5
Items included in package..........................................................................................5
1. IR Remote control.................................................................................................6
2. LCD Monitor Mounting Guide ...............................................................................9
3. Monitor controls ..................................................................................................10
4. Connections........................................................................................................11
5. Monitor Settings via OSD Menu..........................................................................11
5.1Picture......................................................................................................12
5.2Sound.......................................................................................................12
5.3OSD Setup...............................................................................................13
5.4Advance...................................................................................................13
5.5PIP ...........................................................................................................14
5.6PC............................................................................................................14
5.7Geometry .................................................................................................15
5.8PC Timing ................................................................................................15
6. Special features..................................................................................................15
7. Technical specifications......................................................................................16
8. Appendices.........................................................................................................17

3
WARNINGS:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
EXPLANATION OF GRAPHICAL SYMBOLS
Danger: This symbol is intended to alert the user to the presence of
un-insulated "dangerous voltage" within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to
a person.
Warning: This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Precautions:
Safety
Should any liquid or solid object fall into the cabinet, unplug the unit and have it check
by qualified personnel before operating it any further.
Unplug the unit from the wall outlet if it is not going to be used for several days or more.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
Allow adequate air circulation to prevent internal heat built-up. Do not place the unit on
surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the
ventilations holes.

4
Installation
Do not install the unit in an extremely hot or humid place or in a place subject to
excessive dust or mechanical vibration.
The unit is not designed to be waterproof. Exposure to rain or water may damage the
unit.
Cleaning
Clean the unit with slightly damp soft cloth. Use a mild household detergent. Never use
strong solvents such as thinner or benzene as they might damage the finish of the unit.
Retain the original carton and packing materials for safe transport of this unit in the
future.
Safety Precautions:
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.
This device complies with Part 15 FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including
interference that may cause undesired operation.

5
About this User Manual
This manual aims at assisting the user on how to operate the monitors described in this
manual.
This manual is subject to rigid quality control. However, no guarantee can be given that
mistakes are not present. We reserve the right to make changes to the manual without
prior notice.
Before operating the appliance, please read this manual carefully and retain it for further
reference. Verify that all appliance items are included in the delivery. Should items be
missing, do not operate the appliance and contact your local dealer.
Never attempt to repair the appliance yourself. This should only be done by qualified
service personnel.
Improper handling of the appliance will invalidate the warranty.
Items included in package
1x LCD Monitor
1x Power supply unit 12V DC
1x Power cord
1x VGA cable
1x Audio cable
1x IR remote control
1x User manual

6
1. IR remote control
(1) Power
Press this button to turn the monitor
on/off.
(2) Zoom
Press this button to toggle between the
different picture formats:
Full/Zoom/Subtitle/Regular/Panorama
(3) Mute
Press this button to disable the sound.
Press this button again to turn the sound
on again.
(4) Freeze
Press this button to freeze the picture.
Press this button again to disable the
freeze picture and to re-establish the
normal picture.
(5) PC/HD, AV1/AV2, SV
You can select the appropriate signal
source directly (PC = VGA).
(6) Item
Hot key for OSD adjustments of volume, contrast, brightness, hue, saturation,
sharpness, and Red Green Blue.
(7) Source
To switch the video inputs (or sub picture source in pip mode), please use the IR
remote control included in the delivery This button is also used as “Enter” and
“Select” function in the OSD menu and to confirm your selected settings in the
OSD menu.
(8) OK / Menu
Press this button to call-up the OSD menu. This button is also used as “Exit“.
Note: The menu button is also used to return to the previous menu.
(9) Select ▲/▼
Directional buttons up/down.
(10) Display
Press this button to call-up screen information such as resolution, signal source,
etc.
(11) Picture
Press this button to toggle between the different picture modes: User, Standard,
Movie, Vivid.
(12) PIP
Press this button to select the picture-in-picture function. Define the size of the
sub picture: Small, Medium, Large, POP Full, POP 4:3, OFF.

7
(13) Swap
When in PIP mode, press the swap button to switch the main picture and the sub
picture. The swap button is only active if you have defined a sub-picture before.
(14) Position
When in PIP mode, press the position button to define the position of the sub-
picture: Either in one of the four screen corners or centered.
(15) ID
Can be control several monitors are installed in the same area.
In ID mode, press ID key, then input setting number (01-99), to unlock “ID”
function.
(16) 0-9
For ID setting number used.

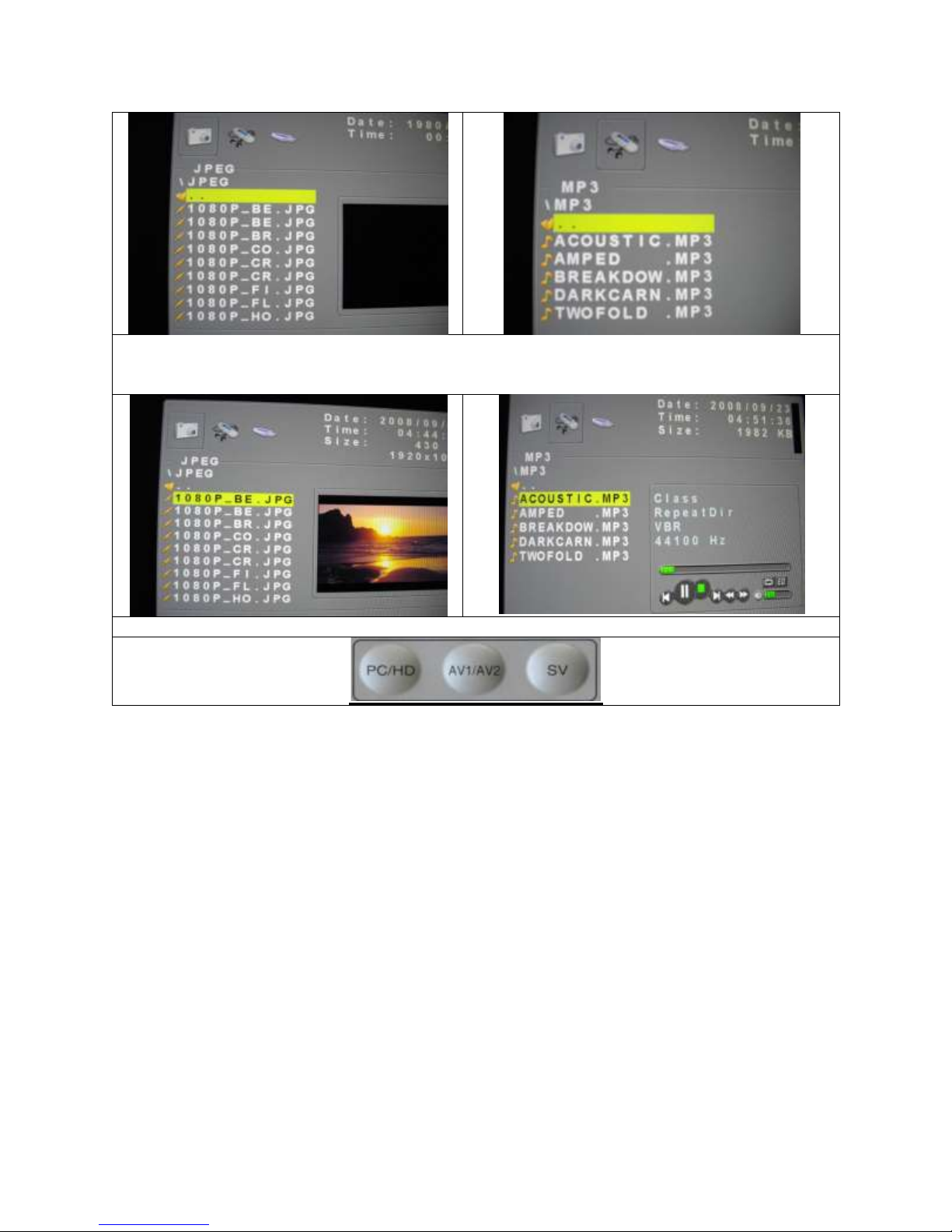

(17) USB/Right/Left/Catalog:
(17.1) Press “USB” Key into the JPEG
Menu.
(17.2) Press “MENU”Key into the USB Main
menu
(17.3) Press “Left” or “Right” key to select the JPEG/MP3/DRIVE function.
(17.4) Press “Up/Down” Key to select play file.
(17.5) Press “Right” Key to see file listing

8
(17.6) Press “Up/Down” Key to select the play file and press Right key to play.
Press “Menu” to stop play. Then press “Catalog” return the menu.
Press “Menu” into the USB Main menu.
(17.7) Press “PC/HD”, “AV1/AV2” or “SV”to exit the USB function.

9
2. LCD Monitor Mounting Guide
A. Desktop
Adjust the viewing angle of LCD to fit most comfortable monitoring status.
B. Wall mount
Free your space with wall mount design.
Please follow the fix-hole size in back panel to install the LCD to the wall.
C. VESA Bracket

10
3. Monitor controls
(1) Power
Turn the monitor on/off. LED: Green Monitor on LED: Red: Standby mode (no
input signal)
(2./3.) Adjust Up / Down ▲/▼
Increase or decrease the values in the OSD menu: Up: Increase the values.
Down: Decrease the values.
(4) Item/Select
Hot key for OSD adjustments of volume, contrast, brightness, hue, saturation,
sharpness, and Red, Green, Blue.
(5) Menu/Function
Press this button to call-up the OSD menu. This button is also used as “Exit“.
(6) Source
To switch the video inputs, (or sub picture source in pip mode) This button is also
used as “Enter” and “Select” function in the OSD menu and to confirm your
selected settings in the OSD menu.
KEY Lock Function:
Into key lock mode:
Push “Menu” and “Item” after the LED flashes, OSD of screen will show
“Key Lock”.
Into key unlock mode:
Push again after the LED flashes, OSD of screen will show “Key Unlock”.

11
4. Connections
NOTE:
Connections of Audio
Audio 1
Audio 2
PC Audio
AV1
X
AV2
X
S-Video
X
PC
X
DVI
X
SLM-2610N,SLM-3200N,SLM-4200N 5. Monitor Setting via OSD Menu
Various monitor settings can be made using the OSD menu (On Screen Display). Press
the Menu/OK button to call-up the OSD main menu. Here you can make adjustments to
the following items:
•Picture
•Sound
•OSD Setup
•Advance
•PIP
•PC (at PC input signal)
Geometry (at PC input signal)
Use the ▲/▼ buttons to toggle between the different items.
Press the Source button to select the appropriate item.

12
5.1 Picture
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Contrast
Use the ▲▼ buttons to increase/decrease the screen
contrast.
Brightness
Use the ▲▼ buttons to increase/decrease the screen
brightness.
Hue
Use the ▲▼ buttons to increase/decrease the hue.
Saturation
Use the ▲▼ buttons to increase/decrease the saturation.
Sharpness
Use the ▲▼ buttons to increase/decrease the sharpness.
Color Temp.
Use the source buttons to select the color temperature:
Normal, Warm, Cool, User.
DNR
(Noise Reduction)
Use the source buttons to select the level of noise reduction:
Off, Low, Medium, High.
DLC
Use the source buttons to change the Black Level Extension
on/off.
5.2 Sound
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Volume
Use the ▲▼ buttons to adjust the volume.
Mute
Use the source buttons to change the Mute on/off.
Sound Mode
Use the source buttons to adjust the effect: User, Standard,
Movie, Vivid.
Bass
Use the ▲▼ buttons to adjust the bass.(for R/L Audio in use)
Treble
Use the ▲▼ buttons to adjust the treble. (for R/L Audio in use)
Balance
Use the ▲▼ buttons to adjust the balance. (for R/L Audio in use)

13
5.3 OSD Setup
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Language
Use the source buttons to select the language.
Set ID
Can be control several monitors are installed in the same area.
Use the source buttons to into the function. Then use up/down key
to select you setting the number (01~99), then press menu to
exit.osd. Press IR remote control “ID” key again to confirm the
SET ID function.
Gamma
Use the source buttons to set the gamma values.(0,1,2)
Freeze
Use the source buttons to freeze the picture. Press this button
again to disable the freeze picture and to re-establish the normal
picture.
OSD Time
Use the ▲▼ buttons to setting the OSD menu display time.
OSD Halftone
Use the ▲▼ buttons to setting the OSD menu display time.
Recall
Press the source button to restore the factory settings.
Obiter (Anti
blur)
Use the source buttons to on/off the screen saver. (Screen
protector: Anti blur)
Version
Firmware Version
5.4 Advance
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Scale
Use the source buttons to select the picture size:
Full/Zoom/Subtitle/Regular/ /Panorama.
Scan Size
Use the source buttons to select the real image size:
Normal/Native
H Position
Use the ▲▼ buttons to position the picture horizontally.
V Position
Use the ▲▼ buttons to position the picture vertically.

14
5.5 PIP
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Multi
Window
Use source button to select the picture-in-picture function: PIP, POP
Full, POP 4:3 Off.
Sub Source
Use source button to select the source of the PIP sub-picture.
Size
Use source button to set the size of the sub-picture: Small, Medium,
Large.
Position
Use source button to define the position of the sub-picture. Note: This
function is only active if you have previously defined a sub picture.
Border
Color
Use source button to select the sub-picture background color: Black
/Blue.
Sound
Source
Use source button to select the sound source: Main/Sub.
Swap
Use source button to swap the main picture and the sub picture. Note:
This function is only active if you have previously defined a sub picture.
5.6 PC
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
Contrast
Use the ▲▼ buttons to increase/decrease the screen contrast.
Brightness
Use the ▲▼ buttons to increase/decrease the screen brightness.
Color Temp
Use the source buttons to select the color temperature: Normal,
Warm, Cool, sRGB, User.
Scale
Use the source buttons to select the picture size: Normal/Center
Auto Adjust
Use the source buttons to Adjust the best image.

15
5.7 Geometry
Use the ▲▼ buttons to select adjusts item, and press source button to confirm. Then
use the ▲▼ buttons to increase/decrease the values, or use “source” button to change
the values. Press the menu button to return to the previous menu item.
Item
Description
H Position
Use the ▲▼ buttons to position the picture horizontally.
V Position
Use the ▲▼ buttons to position the picture vertically.
Clock
Use the ▲▼ buttons to Adjust image distortion appearing as
vertical or “noise” on the screen.
Phase
Use the ▲▼ buttons to Adjust image distortion appearing as
horizontal or “noise” on the screen.
5.8 PC Timing
Mode
Resolution
1
800 x 600 @ 60
2
800 x 600 @ 72
3
800 x 600 @ 75
4
1024 x 768 @ 60
5
1280 x 1024 @ 60
6
1360 x 768 @ 60
7
1440 x 900 @ 60
8
1920 x 1080 @ 60
6. Special Features
•Special Video Processor.
•3G-SDI IN/OUT
•PIP Control Function (Only PC/Video).[Video/Video option]
•Screen protector (Anti-blur /Image auto move).
•NTSC/PAL Auto Switch.
•3D De-interlace Technology.
•3D Comb Filter Technology.
•Automatic Color Control and Color Killer.
•Luminance transient improvement(LTI),Chrominance transient improvement(CTI)
•Directional zoom engine.
•Video out support auto termination (75 Ohms).
•Build-in 2W speaker,
•Support IR remote controller.
•VESA standard bracket 75/100mm

16
7. Technical specifications
Monitor model
AVL240SDI
System
PAL / NTSC
LCD panel
24“
Visible area (mm)
531.3 x 298.8
Picture format
16:9
Max. resolution
1920x1080
Pixel dot pitch (mm)
0.276.7 x0.276 .7
Colors
16.7M
Brightness
250 cd/m² [LED]
Contrast
1000:1
Response time(Tr/Tf)
3.5/1.5 ms
View angle (U/D/L/R)
80/80/85/85
Video input/output
2x / 2x Composite (BNC) ; 1x /1x SDI
S-Video input
1x 4 Pin Mini Dim
Full HD input
1x Full HD (A Type)
Audio input/output
2x / 2x (RCA)
PC input
1x VGA input (D-Sub 15 pin)
1x Audio input
1x DVI-D input
Speaker
1x built-in speaker (2 watt)
SDI standards
3G-SDI[SMPTE 424M]
HD-SDI[SMPTM 292M]
SD-SDI[SMPTE 259M]
SDI Video support
[3G] 1080P50/60(4:2:2)
[HD]720P@50/60Hz,1080i@50/60Hz
1080p25/30Hz
[SD]NTSC/60Hz,PAL/50Hz
SDI Video bandwidth
2.97Gpbs&2.975/1.001Gpbs
SDI Cable Transmission
3G-SDI[100Meter],HD-SDI[200Meter],SD-SDI[300Meter]
_(5C2V orRG6Cable)
3D Comb Filter
Yes
3D De-Interlace function
Yes
Picture-in-Picture (PIP)
Yes (video/PC)
OSD setting
Yes
Power input
AC 100-240V 50/60Hz, Adapter DC 12V/5A
Power consumption
Approx. 24watt
Dimensions (WxHxD) mm
575.9 x 347.8 x 74.1
Weight
5.7kg
Operating temperature
0° to 40° C
Subject to technical changes without prior notice. Error expected.

17
APPENDICES
TROUBLESHOOTING
The tables provided below include some problems that the user may encounter while
using the display and the corresponding solutions. Please refer to the contents of this
section prior to contacting service personnel.
Problem
Possible Causes
Solutions
No
1. Is the power cable
connected to the
unit?
2. Is the unit turned
on?
3. Is the signal cable
connected to the
unit?
4. Is the unit in power
saving mode?
1. Make sure the power cable has been properly
connected to the unit.
2. Turn on the unit.
3. Make sure the signal cable has been properly
connected to the unit.
4. Press any key on computer keyboard.
Strange
color
1. Is the signal cable
connected to the
unit?
1. Make sure the signal cable has been properly
connected to the unit.
distortion
1. Is the signal cable
connected to the
unit?
2. Is the video input
signal within the
unit's specified
frequency range?
1. Make sure the signal cable has been properly
connected to the unit.
2. Make sure the input signal is within the unit's
specified frequency range.
is too
dim
1. Have the unit's
brightness and
contrast settings
been set to the
lowest level?
1. Adjust brightness and contrast
Only
sound
but no
1. Is the connection
of the input signal
correct?
1. Check connection of input signal.
2. Make sure the signal cable has been properly
connected.
Only
but no
sound
1. Is the signal cable
connected to the
unit?
2. Has the volume
been set to the min
level?
3. Is the audio cable
connected to the
unit?
1. Make sure the signal cable has been properly
connected to the unit.
2. Adjust the volume to an appropriate setting.
3. Make sure the audio cable has been properly
connected to the unit.

18
Please contact the customer service center of your local dealer if you have any
questions regarding the unit after reading the information provided above.
THANK YOU FOR CHOOSING AVUE
PRODUCTS. 
