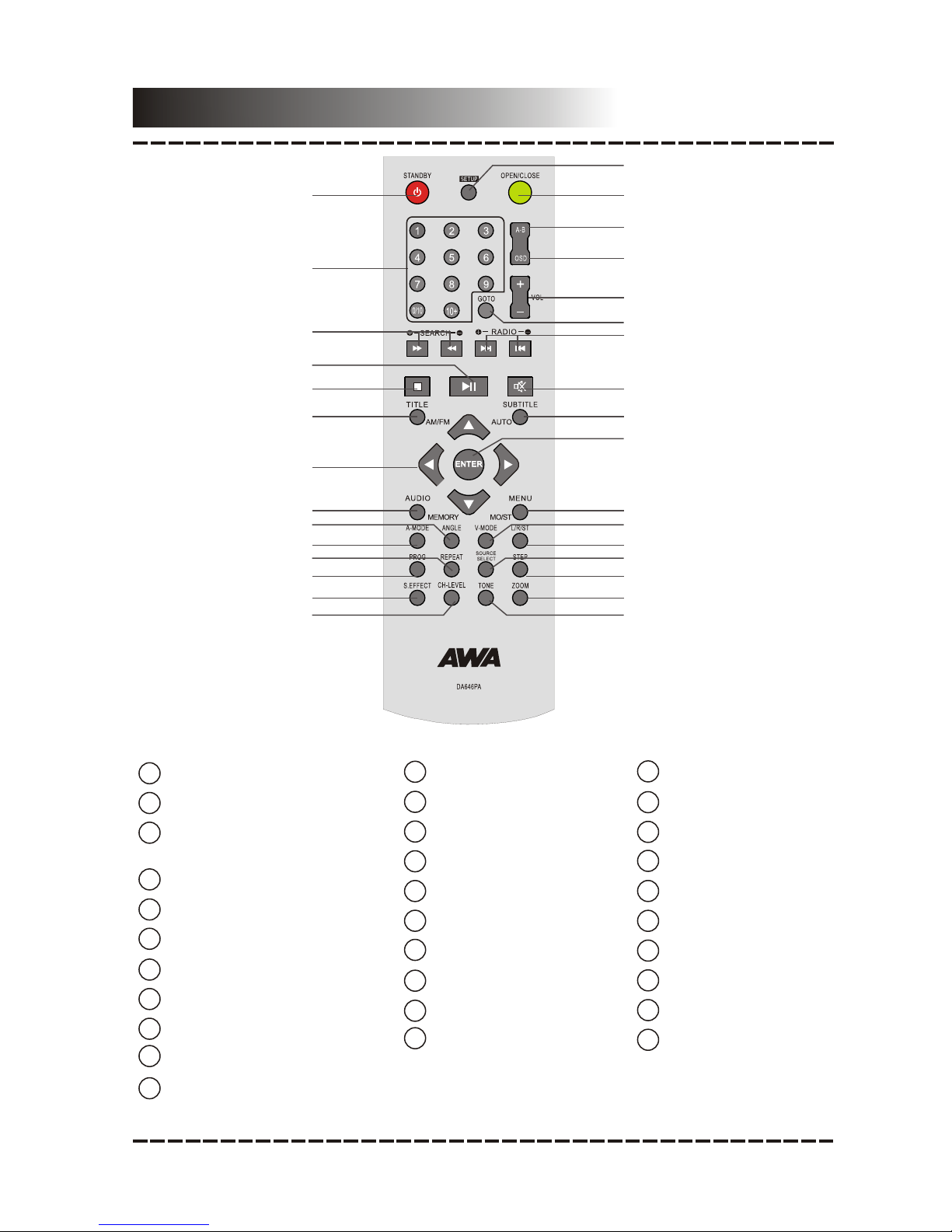

Remote Control.......................................................................13-14
Play........................................................................................15-19
Troubleshooting...........................................................................20
Specification...............................................................................21
Contents
-1-

Thank you for purchasing our product. Please read this manual
carefully before connection and operation. Please keep this manual
for future reference.
This DVD player is a new generation home player which can produce
high quality video and audio for your continued enjoyment.
Built in Dolby Digital, LPCM, MPEG etc. digital audio decoder
HiFi, 96kHz/24bit audio digital processor
COAXIAL digital audio output
Compatible with DVD/VCD/CD/MP3/JPEG/ PICTURE
CD/MPEG4 etc.
AM/FM stereo tuning system
High quality amplifier
Features
-2-

To reduce the risk of electric shock or fire, do not open the
cover. Refer service to qualified service personnel.
This mark indicates this unit belongs to class 1 laser product.
The laser beam may produce radiation harm to the directly
touching human body.
IMPORTANT NOTES
Please read through the manual carefully before connection and
operation.
Do not open the cover or touch any internal components.
Turnoff the power when the unit is not being used. (Unplug the
power cord if the unit is not used for a long time)
Plug,as the disconnected device entirely with power source ,should
keep in easy-to-operation in daily life.
Don't expose this unit to direct sunlight. Keep away from any
heating sources.
Don't expose this unit to rain or moisture.
Place the unit on a horizontal level. Keep the unit ventilated. Don't
block the heat hole. Overheating may cause malfunction.
Clean the cabinet with soft cloth. Detergent or alcohol is not
recommended as it may damage the unit.
This book is only a guide for user’s operation.
The apparatus shall not be exposed to dripping or splashing and
that no object filled with liquids, such as vases, shall be placed on
the apparatus.
For Your Attention
The lightning flash is intended to alert the user to the presence
of dangerous voltage within the product's enclosure, and
touching the internal components may result in a risk of electric
shock to persons.
The exclamatory mark is intended to alert the user to the
presence of important operating instructions.
CLASS 1
LASER PRODUCT
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTIONCAUTION
-3-

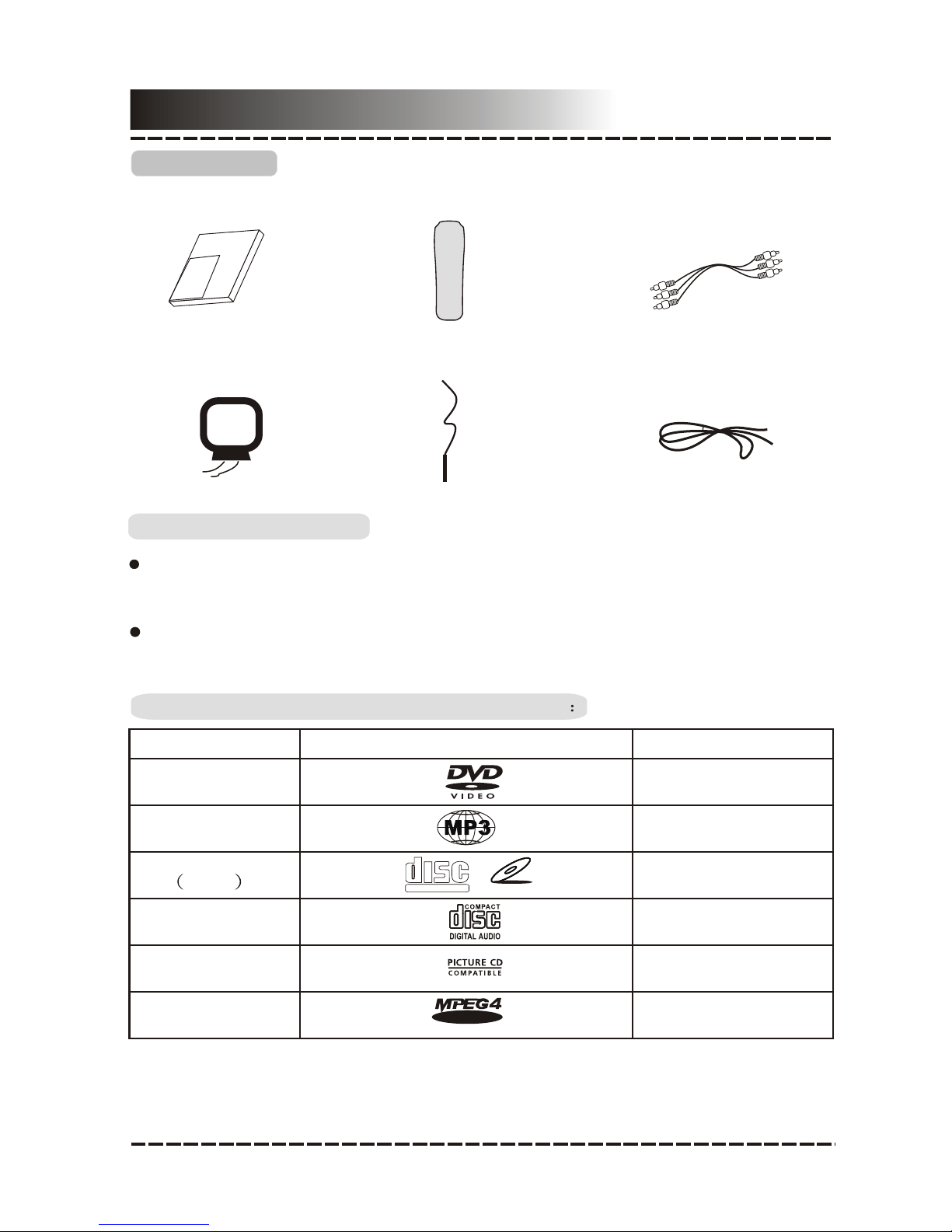

Accessories
Accessories
AM Antenna Speaker Connect Cable
FM Antenna
Remote Controller Operation
Insert the batteries into the cell box. Points the remote controller at
the remote sensor within 8 meters and with 30-degree of its left or
right side.
Take the batteries out of the controller when it is not being used for
a long time.
A/V Cable
Remote Controller
User Manual
User manual
Remote control
This unit can play the following types of discs
-4-
Symbol Contents
Audio + Video
DVD
Disc types
Audio + Video
Audio
Audio
MP3
Video-CD
VCD
CD-DA
COMPACT
DIGITAL VIDEO
VIDEO CD
JPEG Photo CD
Picture CD
Audio + Video
MPEG-4
V I D E O

++
--
COAXIAL
S-VIDEO R1 R2
L1
R1 Cr/Pr
VIDEO
L1 L2 YCb/Pb FM 75ohm -ANTENNA-AM LOOP
--
++
SWSW CENCEN SRSR SLSL FRFR FLFL
444448
SPEAKERS OUT
LINE1 IN 2CH AUDIO OUT DIGITALAUDIOVIDEO
COMPONENT VIDEO OUT
POWER
ON OFF
LINE2 IN HEADPHONE
Panel
-5-

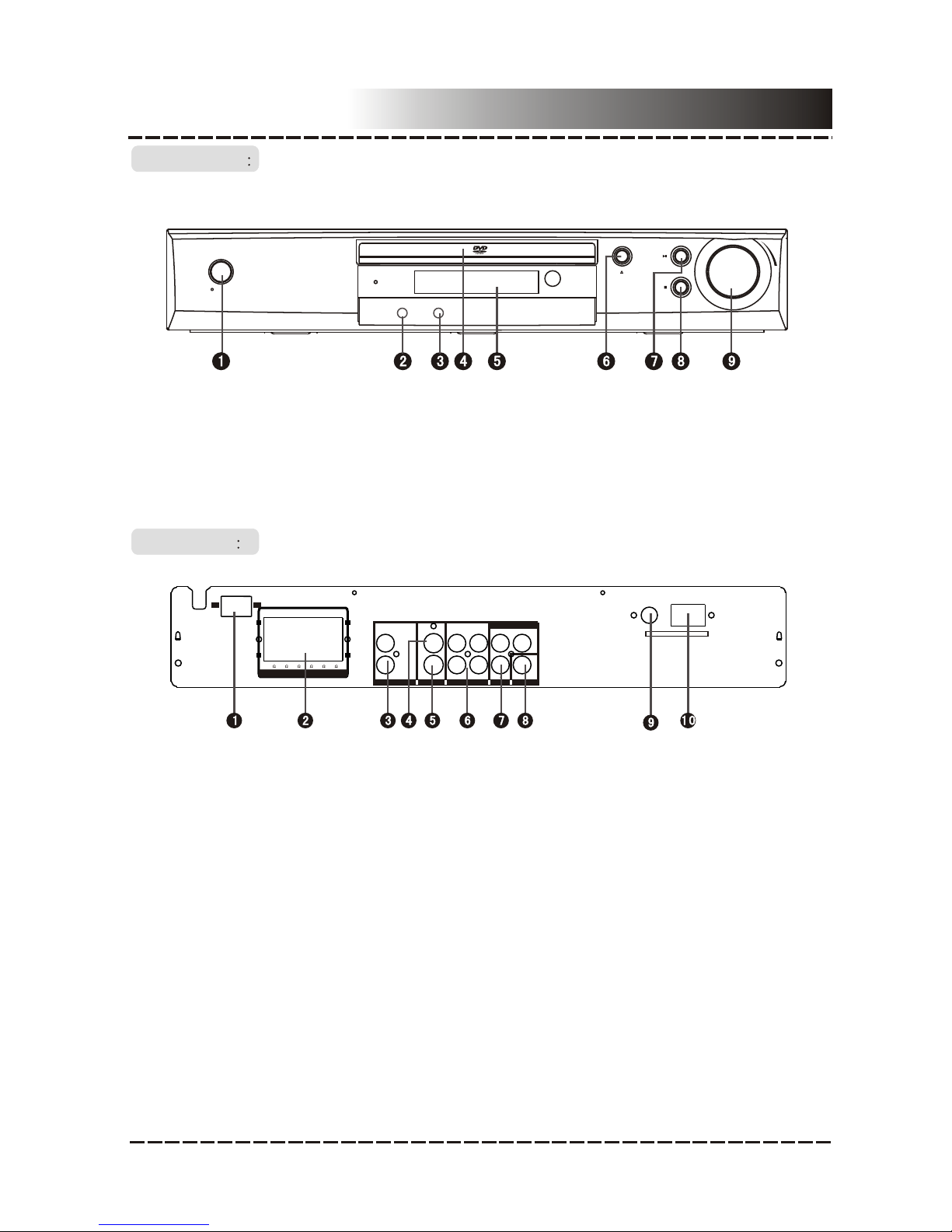

FRONT PANEL
REAR PANEL
1. POWER SWITCH
2. SPEAKER OUTPUT TERMINALS
3. LINE1 INPUT
4. VIDEO OUTPUT
5. S-VIDEO OUTPUT
6. L/R AUDIO OUTPUT
7. COMPONENT VIDEO OUTPUT TERMINAL
8. COAXIAL DIGITAL OUTPUT
9. FM ANTENNAJACK
10. AM ANTENNAJACK
1. Standby Button
2. Line2 Input
3. Headphone Jack
4. Disc Door
5. Display Screen
6. Open/Close Button
STANDBY
VOLUME
7. Play/Pause
8. Stop Button
9. VolumeKnob
Button

++
----
++
SWSW CENCEN SRSR SLSL FRFR FLFL
444448
SPEAKERS OUT
Connection
-6-

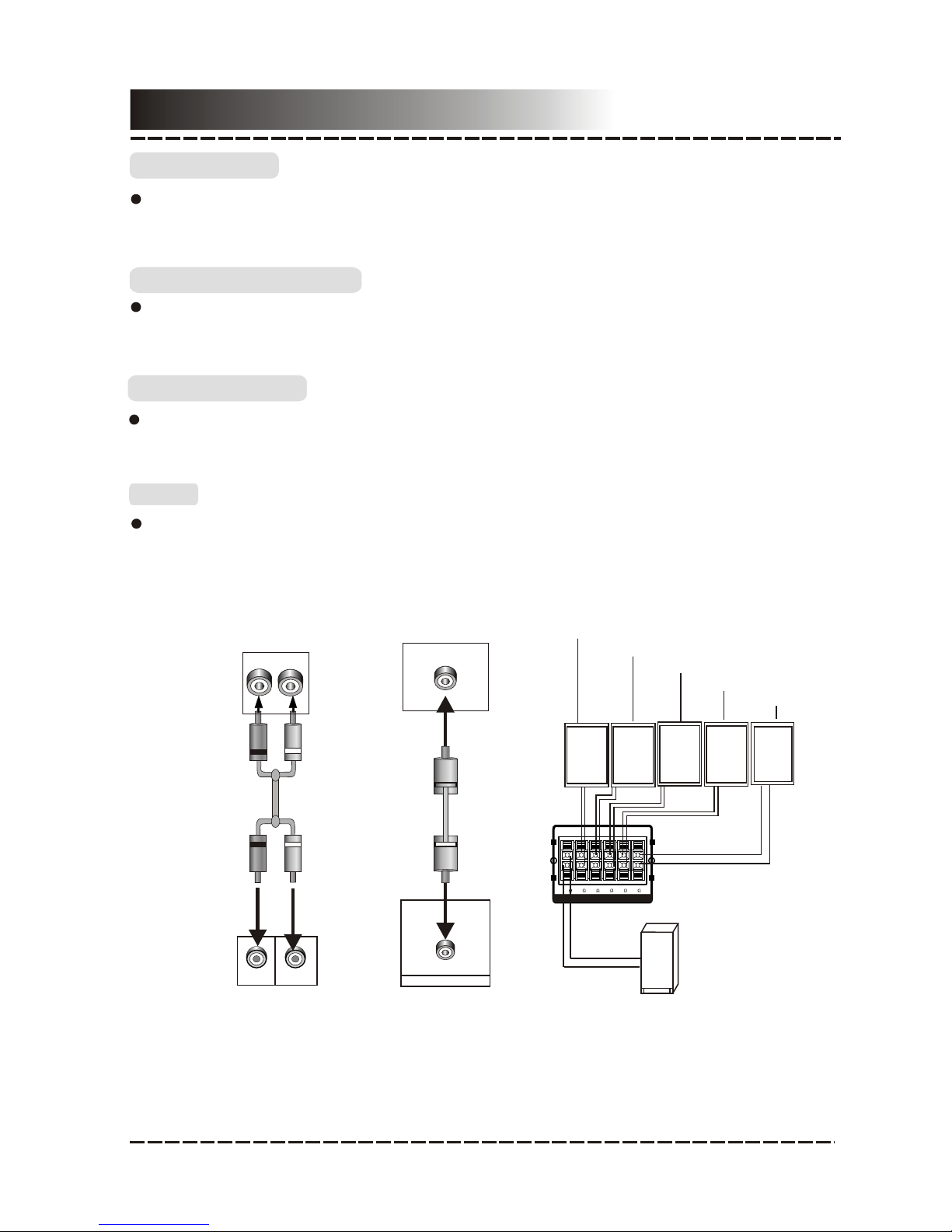

audioUse a pair of cable (red for right /white for left) to connect the stereo
audio output terminal of this unit to the other stereo audio input terminal.
Note:
The physical connection should come with audio output setup of this unit.
Please refer toAudio Setup in System Setup.
Coaxial Digital Audio
specifiedUse the coaxial cable to connect the coaxial output terminal of this
unit to the coaxial input terminal of power amplifier.
Stereo Audio
Speaker Output
Use the speaker cable to connectthe speaker output of this unit to
the s .
terminals
peakers' corresponding terminals
DIGITAL AUDIO
COAXIAL
RL
Analog Audio Output
++
----
++
SWSW CENCEN SRSR SLSL FRFR FLFL
444448
SPEAKERS OUT
Connection
-6-
audioUse a pair of cable (red for right /white for left) to connect the stereo
audio output terminal of this unit to the other stereo audio input terminal.
Note:
The physical connection should come with audio output setup of this unit.
Please refer toAudio Setup in System Setup.
Coaxial Digital Audio
specifiedUse the coaxial cable to connect the coaxial output terminal of this
unit to the coaxial input terminal of power amplifier.
Stereo Audio
Speaker Output
Use the speaker cable to connect the speaker output of this unit to
the s .
terminals
peakers' corresponding terminals
DIGITAL AUDIO
COAXIAL
RL
Analog Audio Output
++
----
++
SWSW CENCEN SRSR SLSL FRFR FLFL
444448
SPEAKERS OUT
Connection
-6-
audioUse a pair of cable (red for right /white for left) to connect the stereo
audio output terminal of this unit to the other stereo audio input terminal.
Note:
The physical connection should come with audio output setup of this unit.
Please refer toAudio Setup in System Setup.
Coaxial Digital Audio
specifiedUse the coaxial cable to connect the coaxial output terminal of this
unit to the coaxial input terminal of power amplifier.
Stereo Audio
Speaker Output
Use the speaker cable to connect the speaker output of this unit to
the s .
terminals
peakers' corresponding terminals
DIGITAL AUDIO
COAXIAL
RL
Analog Audio Output
R
Digital Audio Output
Other Audio Input
Digital Audio Input
L
COAXIAL
FLSPEAKER
SUBWOOFER
FR SPEAKER
SL SPEAKER
SR SPEAKER
CENTER SPEAKER
Speaker Output

Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
YCr/PrCb/Pb
Component Video
Output
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
YCr/PrCb/Pb
Component Video
Output
VIDEO
S-VIDEO
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
YCr/PrCb/Pb
Component Video
Output
VIDEO
S-VIDEO
Connection
S-Video
Note:
The following availablevideo output for this unit .
Usethe AVcable (yellow terminal)to connect composite video output terminal
of this unit to the TV/monitor video input terminal.
Usethe S-videocable to connect the s-video output terminal of this unit to the
TV/monitor S-video input terminal.
Use -core AVcable to connect the component output terminals of this unit to
3
the corresponding TV/monitor input terminals.
Component Video (Y, Cb/Pb, Cr/Pr)
Composite Video
Y
Cb/Pb
Cr/Pr
Component Input
YCr/PrCb/Pb
Component Video
Output
VIDEO
S-VIDEO
VIDEO
S-VIDEO
Video and
S-Video Output
Real connection depends on the TV/monitor input terminal.
Don't use the all connections at the same time, otherwise the picture will be
affected.
Only the physical connection conforms to the video setting can it produce
the normal picture (please refer to the Video Setup in System Setup).
-7-

Press [SETUP] key for the screen to show the setup page. In setup mode,
press [SETUP] key again to quit the setup page. Press direction key to the
desired item, andpress [ENTER] to confirm.
(1) Some setup items are concerning the present modes. The items in gray
can't be set up.
(2) The setup is memorizedand will bekept after thepower has beenturned off.
MENU OPERATION:
System Setup
TV Display:
4:3 PANSCAN: When the unit connects to the normal TV set, the wide-
screen image showson the fullscreen, but some part is cut off.
4:3 LETTERBOX: When the unit connects to the normal TV set, the wide-
screen image shows and black bars appear on the top and bottom of screen.
16:9: Use this itemwhen the unitis connected with the wide screen TV set.
Wide-Squeeze: Use this item when the unit is connected to the wide-screen
TV set.
ANGLE MARK:
It will show the ANGLE mark when playing DVD disc with multi-angle view if
selection is ON.
OSD LANG:
Select on-screen display language.
CLOSED CAPTIONS:
This function doesn't work when the disc is without captions. If the caption is
OFF, press [SUBTITLE] key on the remote controller to turn the captions on.
SCREEN SAVER:
If the SCREEN SAVER is set ON and the unit is switched on without a disc
playing for several minutes, a moving picture appears on the screen and the
unit will go to standby mode after 20 minutes. You can press the [STANDBY]
key on the remote controller to activate.
LAST MEMORY:
When this function is ON, the unit can memorize the time elapsed from the
last time you played the disc. When playing next time, it will resume playing
from the memorized time.
GENERAL SETUP PAGE
-8-
AUDIO SETUP PAGE
ANALOG AUDIO SETUP:
DOWNMIX:
LT/RT: The audio out is Left and Right channel formatting even if the original
sound is 5.1CH format.

System Setup
-9-
STEREO: The audio out format is stereo even if the original sound is 5.1CH
format.
3D SURROUND: The audio out is virtual surround sounds
5.1CH: Turn off DOWNMIX function. If playing 5.1CH discs or the unit is
connected with 5.1 channel amplifier, this item should be selected.
DIGITAL AUDIO SETUP PAGE
DIGITAL OUTPUT:
SPDIF OFF: No digital output(coaxial off), only analog audio output.
ALL: If this item is selected, you can set up RAW.
PCM ONLY: The digital audiosignal output will be in PCM format.
LPCM OUT :
When DIGITAL OUTPUT is set to PCM ONLY, this item is available.
Select PCM frequencyat 48kHz or96kHz.
Note: Some amplifiers don't support 96kHz sampling which will effect the
coaxial output.
FRONT, CENTER, REAR and SUB-WOOFER SPEAKER:
If your speaker system includes the above speakers, you can set these
items according thereal speaker status.
DIALOG: The DIALOG mode is available, and you can press up and down
direction key to adjust it. (In the DOWNMIX mode, LT/RT or STEREO is
selected.)
D.R.C:The D.R.C can control data record. You can chose AUTO, ON and
OFF in this mode.
DUAL MONO:
Stereo: Set audiooutput to thestereo output.
L-mono: Set audio output to the mono-left channel.
R-mono: Set audio output to the mono-right channel.
Mix-mono: Set audio output to the mix-mono channel.
DYNAMIC:
Select this to reduce the overall volume and still keep defined audio sound.
You can press up and down direction key to adjust it.
DOLBY DIGITAL SETUP

System Setup
-10-
CHANNEL DELAY PAGE:
If the above setup dissatisfy you, you can set the speaker distances in the
real conditions. Press up/down direction key to select the speaker, and
press left/right direction key to adjust the distance.
EQUALIZER:
In this item you can set sound mode, bass boost, super bass and treble
boost. You can select one according to your preference and the disc
content.
3D PROCESSING:
In PROLOGIC ON mode, the reverb mode setup is available.
HDCD SETUP:
You can select the digital filter at off,1x and 2x.

-11-
System Setup
VIDEO SETUP PAGE
COLOR SETTING SETUP:
COLOR SETTING includes: SHARPNESS, BRIGHTNESS, CONTRAST,
GAMMA, HUE, SATURATION and LUMA DELAY .
Adjust each item in the Color Setting to get the suitable color output of the
TV screen.
SHARPNESS: There are three optional output modes:
HIGH\MEDIUM\LOW.
BRIGHTNESS: Use the left/right direction key to move the scroll and adjust
the brightness.
CONTRAST: Use the left/right direction key to move the scroll and adjust
the contrast.
GAMMA: There are fouroptional output modes:
HIGH\MEDIUM\LOW\NONE.
HUE: Use the left/right direction key to move the scroll and adjust the hue.
SATURATION : Use the left/right direction key to move the scroll and adjust
the saturation.
LUMA DELAY: In this item you can choose 0T or 1T .
Note::
If the video setting differs with the physical connection, the TV set may not
have picture. In this case, you can RESET the machine, then keep pressing
key [V_MODE] until the picture returns again.
COMPONENT VIDEO:
OFF: Set video output to the composite.
YUV: Set video output in analog component video format when connecting
to Y/U/V terminals.
P-YUV: Set progressive YUV signals. Connection same as YUV.

System Setup
-12-
PREFERENCE PAGE
TV TYPE :
This unit is suitable for all kinds of TV systems. You can select one of the
PAL, MULTI or NTSC.
PAL : Set the output at PALsystem.
MULTI: The TV system is auto switched according to the disc system.
NTSC: Set the output at NTSC system.
NOTE: If a wrong selection is made, the viewing image will be very poor. In
such case, you are supposed to change the option in this item to fix the error.
PBC: There are 2 optional output modes: ON/OFF. If the PBC is set on,
when playing VCD, return to the main menu. If the PBC is set off, when
playing VCD, return to the main sequence.
AUDIO, SUBTITLE and DISC MENU LANGUAGE PAGE:
These are the initial settings by your preference. If a setting is supported by
disc content, it will work. Otherwise the disc default value works. These
settings can be changed respectively by pressing key [AUDIO] and
[SUBTITLE] when playing.
PARENTAL:
The control level is for parents to control the content and protect children
from violence and erotism. The level of the disc is higher than the setting
level and can not be played .
DEFAULT:
Reset to the initial factory setting.
PASSWORD PAGE:
Change the password. The initial factory password is 136900. You can set
your own password. If you forget your own password, you can use 136900
as general password to decode.

Remote control
Install the batteries into the remote control. Point the remote control at the
remote sensor on the front panel. The remote control works within about 8
metres from the sensor and within an angle of about 30 degrees from the left
and right side.
Take out of the batteries when it is not being used for a long time.
Don't expose thesensor in directsunlight.
Not e:
Do not mixthe old andnew batteries ordifferent types of batteries.
Weak batteries can leak and severely damage the remote control.
Remote Control Operation
Battery Installation
2
3
1Remove the battery
compartment cover on the
back of the remote control.
Insert two AAA/1.5V batteries
into the battery compartment
following the indications(+, -)
inside the compartment.
Replace the cover.
-13-

Remote control
-14-
ÉùµÀ
È·ÈÏ
ѡʱ
ÇúÇú
¿ìÍË ¿ì½ø
Çú
1
2
3
5
4
6
7
8
10
9
12
11
13
14
16
20
21
22
23
24
25
27
26
29
28
30
31
15
17
18
19
OSD
18
19
GOTO
MUTE
SUBTITLE(AUTO)
ENTER
STEP
ZOOM
V-MODE
SOURCE SELECT
TONE
L/R/ST
20
NEXT/PREVIOUS
(RADIO)
VOLUME+/-
31
30
29
28
27
26
25
24
23
22
21
MENU(MO/ST)
4
STOP
5
TITLE(AM/FM)
6
DIRECTION KEY
8
A-MODE
7
AUDIO(MEMORY)
9
ANGLE
10
11
S.EFFECT
12
REPEAT
13
CH-LEVEL
14
SETUP
15
OPEN/CLOSE
16
A-B
17
PLAY/PAUSE
PROG
1STANDBY
2NUMBERS
3FAST FORWARD
/BACKWARD(SEARCH)

Play
Eject or load the disc tray
OPEN/CLOSE
Stand by/working mode switch
STANDBY
The digit keyscan be usedto input thecorresponding numbers.
After the unit loading a VCD1.1 or CD disc, the digit keys can be
used to select a track directly. Press [10+] and then another digit
key to select the tracks whose number are more than 10.
Press [GOTO] to select title time, chapter time or track time to play.
You can use digital key input the GOTO time.
GOTO
When playing the disc, press[ ]button once to pause. Press[ ]button
again to return to normal play.
Press[ ]button, no sound will give out. Press[ ]again, MUTE OFF
will display and the sound will resume.
Press this button for quick forward search.
Press this button for quick rewind search.
Press [VOLUME+] to adjust volume up.
Press [VOLUME-] to adjust volume down.
VOLUME
When playing DVD disc, press it to the previous chapter.
When playing VCD or CD disc, press it tothe previous track.
When playing DVD disc, press it to the next chapter.
When playing VCD and CD disc, press it to the next track.
Note: When playingMp3 disc, you must select thesong by up or
down direction key, then press[ENTER] to play. If you press left
direction key, the system will return tosuperior root directory.
Return to the top menu when playing DVD disc.
TITLE
When playing the disc with multi-subtitle, press [SUBTITLE]
continually to select the desired sub-title.
SUBTITLE
Select the desiredaudio channel whenplaying DVD disc.
AUDIO
-15-

Play
-16-
Audio output switch.
A-MODE
V-MODE Video output mode switch (if losing pictures or picture is abnormal,
keep switching untilyou reach aclear picture.)
SOURCE
SELECT
Source switch amongDVD/TUNER(AM/FM)/LINE1/LINE2
MENU Return to theprevious menu whenplaying DVD disc.
When playing VCD2.0 disc, it works as PBC. Press [MENU] button
to switch PBC ON and PBC OFF. under PBC ON mode, the disc
menu will show. You can select a program in the menu. Under PBC
OFF mode, the menu will not appear, press digital key to select the
track directly. VCD1.1, CD-DA and Mp3 have no PBC menu.
CH-LEVEL Press this keyto select achannel then press [VOLUME+/-] to adjust
its level.
TONE
Press [TONE], then press [VOLUME+/-] to control bass and treble.
ANGLE When playing the disc with multi-angle, it's convenient to change the
view angle.
PROGRAM
When playing MP3 disc, NO program function! Press [PROGRAM]
button once to enter directory-play mode, you can select program to
play in the current directory, and press [PROGRAM] again to enter
file-list mode, you can select program to play in the file list of whole
disc .
If the disc is with 2 or more tracks, chapters or titles, set up the
playing order as your preference. Press this button to enter program
menu.
Press digital key to input the number of the track, title or chapter. If
the programmed tracks are over ten, press [NEXT] to go on
programming. (Maximum 20programable items)
Use the direction key to move the cursor to the START. Press
[ENTER] to start PROGRAM play.
Press the [OSD] button, the relative information of the disc will
display on the TV screen.
OSD
S.EFFECT
Press [S.EFFECT] button to obtain different sound effect. CD
playing is more proper to obtain better sound effect. You had better
close S.EFFECT when playing disc with Dolby 5.1 channel in order
to obtain real5.1 effect.

-17-
L/R/ST When playing VCD or CD disc with multi-channel, press [L/R/ST]
button to selectleft channel/right channel/stereo/mixaudio output.
When playing DVD, VCD or CD disc, press [ ]button once, the unit
will memorize the previous ending point. Press[ ]button to go on
the play. Press[ ]button for the second time to stop the play and
end memory.
When playing DVD, VCD or SVCD disc, press [STEP] once, the
picture changes to next frame. Press [ ] to resume normal play.
STEP
Play
When playing DVD, VCD disc, press [ZOOM] to zoom in or zoom out
the picture.
In zoom in mode, press direction key to move the picture for viewing.
The picture can not be moved in zoom out mode.
ZOOM
Press [REPEAT] button to repeat a title, chapter, track or the whole
disc.
When playing DVD disc, press [REPEAT] button continually, the turn
is chapter repeat,title repeat andall repeat.
When playing VCD or CD disc, the turn is track repeat andall repeat.
When playing MP3 disc, the turn is single repeat, repeat one, repeat
folder and folder.
REPEAT
When playing DVD, VCD, CD disc, press [A-B] button to repeat a
certain contents.
Press [A-B] key on the start point (A) and the ending point (B) to
select the repeatpart.
Press [A-B] the third time, cancel A-B repeat and return to normal
play.
A-B
Press it onceto enter setupmenu, press itagain to exit.
SETUP
Press it to confirm a selected item.
ENTER

Play
-18-
[ ]: to enter picture preview mode; [ ]: to view previous picture; [ ]: to
view next picture; [ ]: to play picture; [ ]: to rotate 90-degree
anticlockwise; [ ]: to rotate 90-degree clockwise; [ZOOM]: change zoom
mode; [ ]: to zoom in the picture; [ ]: to zoom out the picture; [ / / / ]:
pan in zoommode . SelectCONTINUE to exit.
This unit has two groups of extra audio input terminals, i.e. LINE1 and
LINE2 input. You can input the analogue stereo audio signals from extra
devices such as VCD, CD, VCR, MP3 player, etc through the extra audio
input terminals.
After the connectionshave been correctly made, press [SOURCE SELECT]
to switch to the corresponding signal source to enjoy the audio from the
connected extra device.
LINE INPUT OPERATION:
When playing a MP3 disc, there is a menu screen on TV, press the [ ]or[ ]
button to shiftthe cursor toselect the trackor folder,and press the[ENTER]
button to play the selected track or folder (it needs to enter the sub-folder to
select the track and press the [ENTER] button to play for some MP3 discs).
Also use thedigit buttons inthe remote controllerto select the track.
There are two play modes for MP3 disc: folder and file play, the default
mode is the folder play; press [PROG] button to switch the mode.
PLAYMP3:
Press [ ] key, 12 small pictures will show on the TV screen.
Press [ ]/[ ]/[ ]/[ ] key to select the desired picture.
PLAYPICTURE CD DISC
Press [ ]/[ ]/[ ]/[ ] key to select Slide Show, then press [ENTER] to play
randomly.
Press [ ]/[ ]/[ ]/[ ] key to select Menu, then press [ENTER] to enter Remote
Controller Function menu.
Remote Controller Function menu as follows:

Play
-19-
AM/FM
Mono/Stereo switch in FM mode.
MO/ST
After having selected a station and tuned a new frequency, press
[MEMORY] to save the frequency.
MEMORY
Automatic searching and presetting in FM/AM tuner mode.
AUTO
Skip forward a station.
RADIO+
Searching with frequency up.
SEARCH+
Searching with frequency down.
SEARCH-
Skip backward astation.
RADIO-
AM/FM switch.
Press the digital button to choose a preset station, you must input
two digital key to select a station. For example, if you select 02
station, you must press[0] and [2] .
if you selectthe 15 station,you must press [1] and[ 5].
Tuner Operation:
Under Tuner mode, you can press [A_MODE] to change the stereo
input to 5.1CH output. At the same time, [VOLUME+/-], [CH_LEVEL],
[MUTE],[TONE] and [S.EFFECT] buttons are available, please refer
to the PLAY chapter for details.
