Instruction Manual
Dishwasher
D3602DW

Compartment A:
For each wash cycle.
Compartment B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
T urn on the water tap and press the Start/Pause button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,
as the dishes and utensils are still hot and more susceptible to break.
They also could dry better.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Close the door
( See the section entitledЎOperation instructionЎ)
ЈPress the program button until the selected program lights up.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
WARNING!
If the appliance was switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher from the beginning.
Switch on the appliance
Press the Power switch button to switch on the appliance, Open the door.
1.Press the start/pause button to stop the machine.
2.Open the door.
3.Add the forgotten dishes.
4.Close the door, then press the start/pause button, the dishwasher will
start running again after 10 seconds.
Quick Operation Guide
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button ,then press the program button more than 3 seconds to cancel the
running programme. .
3. Select a new programme.
4. Restart the dishwasher.
When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power button.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.
AB
C

NOTE:
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Read this Manual
Before Calling for Service
Keep it for reference in future.
If you can not solve the problems by yourself,
please ask for the help from professional technicians.
Dishwasher Features .....................................3-1
4) Prior to using for the first time............................4
5) Loading the Dishwasher Basket.........................7
Attention before or after loading the Dishwasher
Baskets...........................................................7
Caring for the Dishwasher..................... ...........12.
B. Detergent ....................................................5
Loading the Basket............................................8
Cutlery Basket.................................................8
6) Starting a washing programme...........................9
Change the Programme.............. .................10....
At the end of the Wash Cycle.............................10
8) Installation instruction.....................................13
Water Connection.................................. ........14.
About Power Connection........................ ........14.
Connection of Drain Hoses..................... ........15.
Start of dishwasher............................. .. .......16.. ..
Before calling for service........................... ......17.
Error codes.................................... ...............18.
Technical information.............................. ......19..
1) Safety Information...........................................1
2) Disposal.........................................................2
3) Operation Instruction.......................................3
Control Panel.................................................3-1

1-1
When using your dishwasher,
follow the precautions listed below:
WARNING!
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earth ed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.

1-2

2

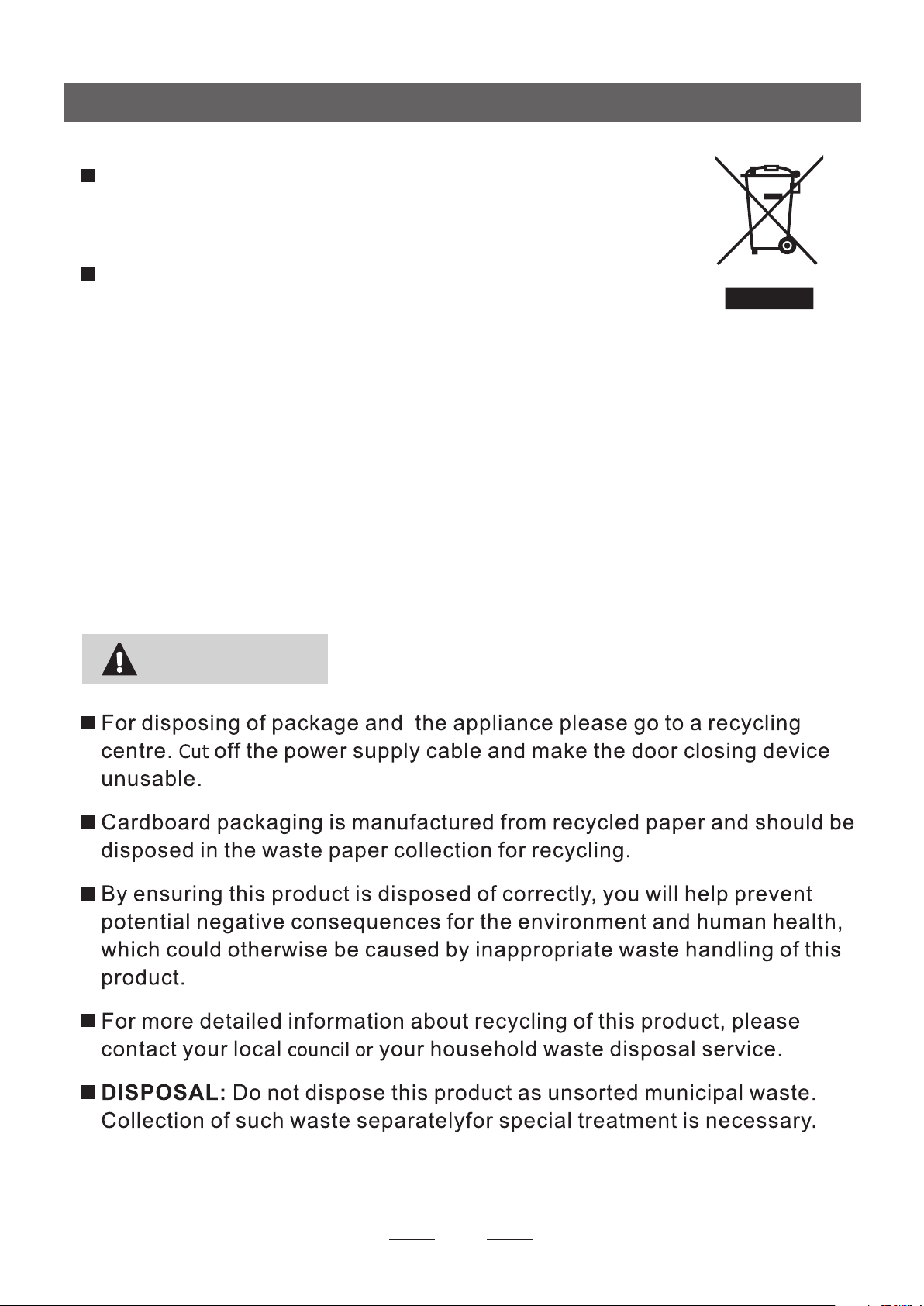

2.Disposal
This appliance's packaging materials are recyclable.
Dispose of the packaging into a suitable waste collection
container to recycle it.
It is prohibited to dispose of this appliance as household
waste.Correct Disposal of this product: this symbol on the
product or in its packing indicates that this product may not be treated as
household waste. Instead, it should be taken to the appropriate waste
collection point for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by the inappropriate waste handling of
this product.For more detailed information about the recycling of this
product, please contact your local council your household waste disposal
service, or the shop where you purchased the product.
WARNING!

3.Operation Instruction
3-1

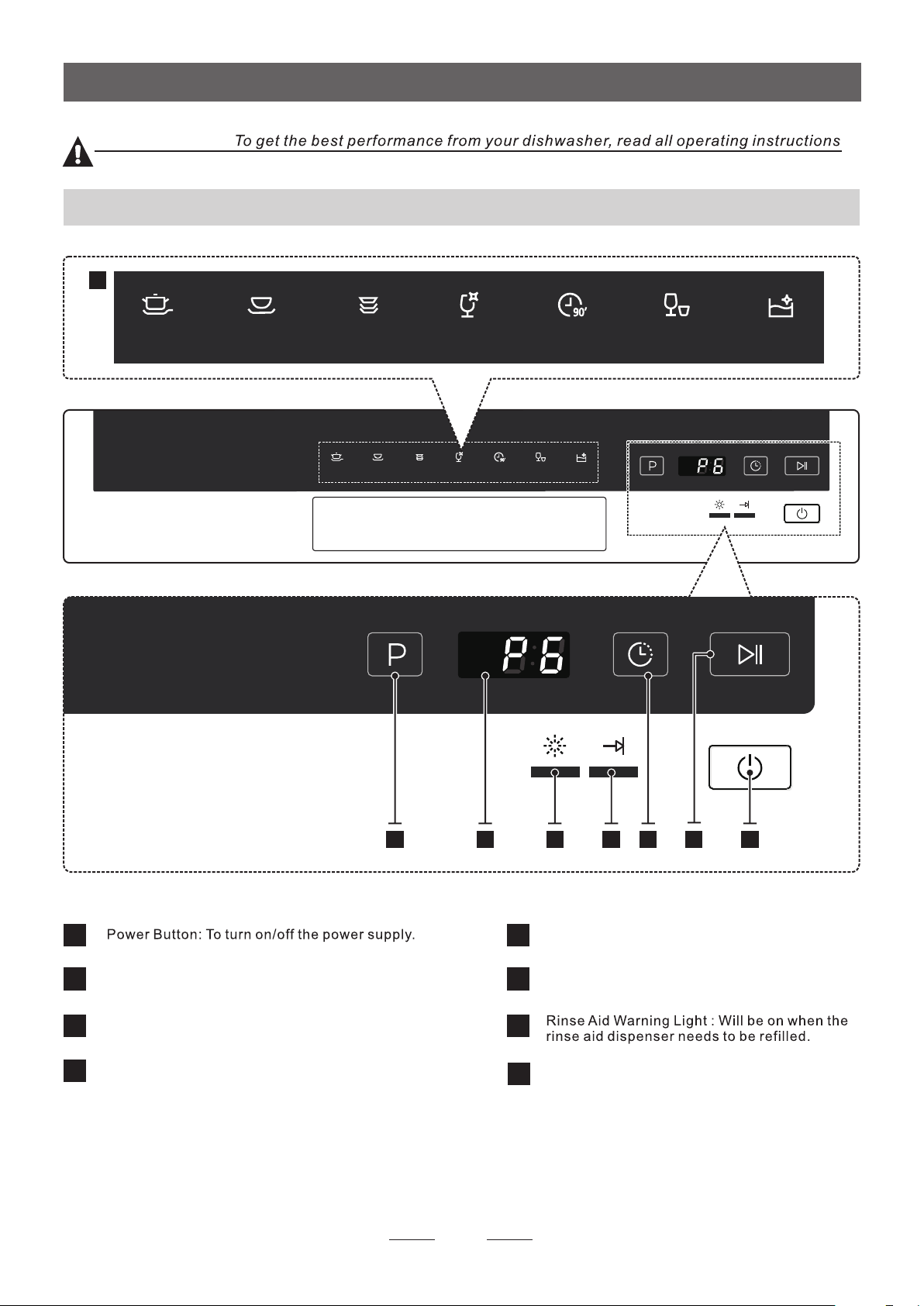

Control Panel
before using it for the first time.
IMPORTANT
5
1
2
3
4
6
7
Washing Program Selector: Press the button
to select wash cycles.
Program list
Delay Button : Press the button to delay.
Display screen: To show the reminding time
and the state(running state, delay time etc )
Start/Pause Button: Press this button to start
or pause the dishwasher.
8Program ending indicator : Will be on when
the washing has been finished.
P1 P2 P3 P4 P5 P6 P7P1
P1 P2 P3 P4 P5 P6 P7P1
3
2 6 7 8 4 5 1

3-2
Dishwasher Features
Back View
Filter assembly Detergent Dispenser
Cup Shelf
Cutlery Basket
Inlet pipe connector
Drain pipe
connector
Basket
15
6
7
8
9
3
24
Front view
9
7
1
2
3
4
5
6
8

C (Rinse-Aid indicator)
12 3

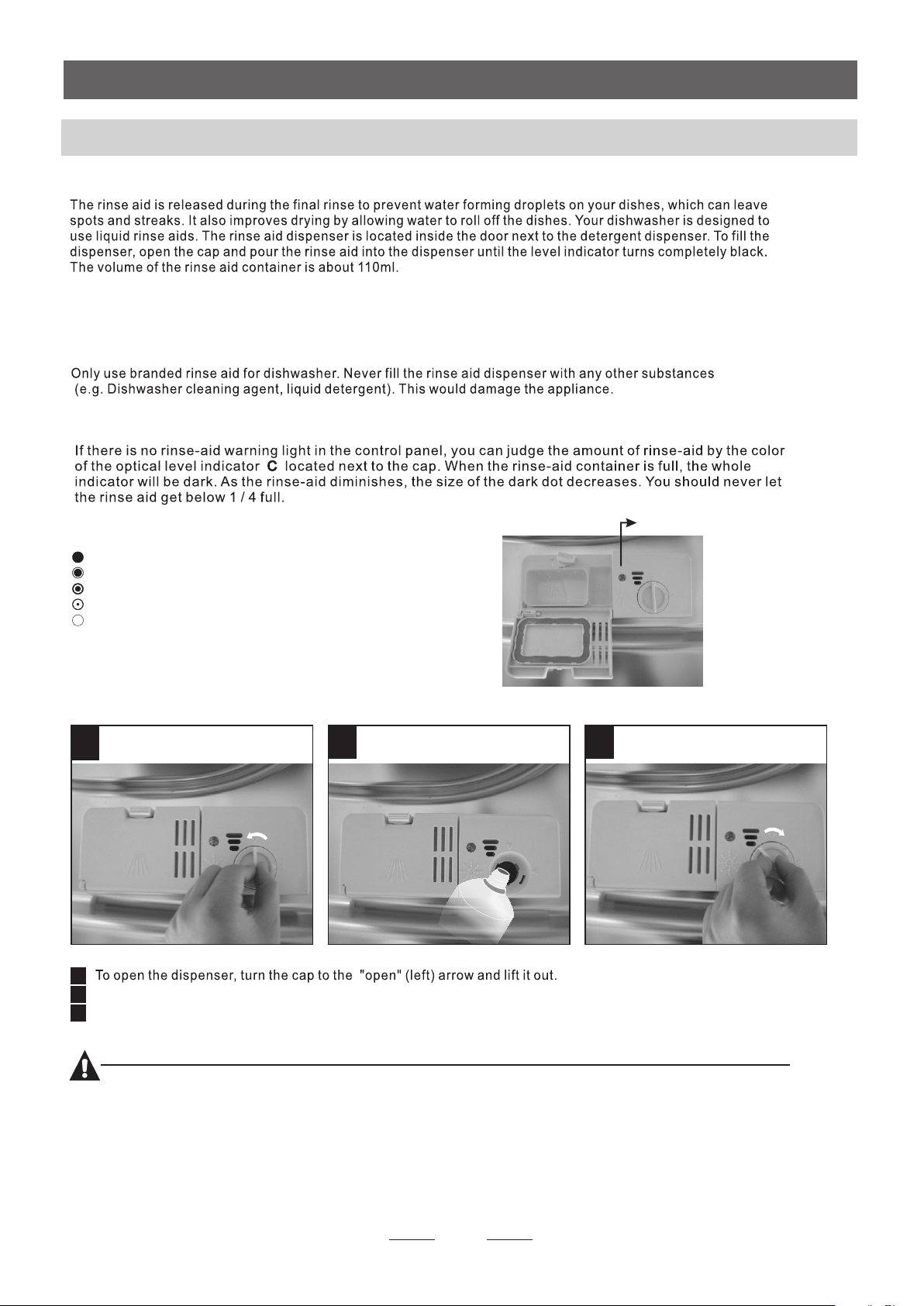

A. Rinse Aid Dispenser
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free help the drying.
4
4.Prior to using for the first time
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excessive foaming
NOTE:
" "
Attention!
How to fill the Rinse Aid Dispenser

Adjusting Rinse Aid Dispenser
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
5
NOTE:
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
B. Detergent
MAX
Based on their chemical composition, detergents can be split in two basic types:
detergent tablets cannot dissolve and develop their full cleaning power during short
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
conventional dishwasher. Generally, only one tablespoon of detergent is needed for
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
Normally new pulverised detergent do not have phosphate,thus the water softener function of
phosphate is not given. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
removed completely. In this case please choose a program with higher temperature.
The use of Normal washing program in combination with concentrated detergent reduces pollution and is
good for your dishes.

6
Adding detergent to dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: push the latch to open.
NOTE:
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels, as
illustrated on right:
Location of main wash cycle detergent.
Location of pre-wash cycle detergent.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
A
B
Fill in detergent dispenser
Please observe the manufacturer's recommendations on the detergent packaging.
NOTE:
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Proper Use of Detergent
WARNING!
1 2
Push latch to open
A B
BA

7
5.Loading the Dishwasher Baskets
Suitability of use in the dishwasher
Cutlery with wooden, horn china or
mother-of-pearl handles.
Plastic items that are not heat resistant.
Older cutlery with glued parts that is not
temperature resistant.
Bonded cutlery items or dishes.
Pewter or copper items.
Crystal glass .
Steel items subject to rusting
Wooden platters.
Items made from synthetic fibres.
Some types of glasses can become
dull after a large number of washes.
Silver and aluminium parts have a
tendency to discolour during washing.
Glazed patterns may fade if machine
washed frequently.
Not suitable for use Limited suitability
Recommendation
Dishes and items of cutlery must not lie inside one another, or cover each other.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
reasonable energy consumption.
Load hollow items such as cups, glasses, pans etc, with the opening facing downwards so that
water cannot collect in the container or a deep base.
NOTE:
Attention before or after loading the Dishwasher Baskets

Position the dishes and cookware so that they do not get moved by the spray of water.
Loading the Basket
8
1
6
3
7
4
5
2
IN
Saucers
2
3
Glasses
1
Cups
5
Dinner plates
6
Soup plates
Dessert dishes
4
7
Tea spoons
5
Soup spoons
2Forks
1
Knives
4
3
Dessert spoons
Cutlery should be placed into the cutlery basket with handles at the bottom.
Cutlery Basket
IN
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
WARNING!
For personal safety and a top quality clean, make sure place the silverware in the basket as follows:
They do not nest together.
Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up.
Cutlery basket

6.Starting a washing programme
9
NOTE:
Turning On the Appliance
1. Draw out the basket(see the section entitled "Loading the Dishwasher basket").
2. Pour in the detergent (see the section entitled "Detergent and Rinse Aid").
3. Insert the plug into the socket. The power supply is 220-240
VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
4. Make sure that the water supply is turned on to full pressure.
5.Press the program button, the wash program will be changed as following direction:
Normal->Glass->90 min->Rapid->Self-Cleaning->Intensive->Heavy;
If a program is selected, the corresponding light will be on. Then press the
Start/Pause button, the dishwasher begins to start.
When you press the Start/Pause button to pause during washing,
the program light will stop blinking and the dishwasher will sound
every minute unless you press the Start/Pause button to start.
Wash Cycle Table
Means: need to fill rinse aid into the Rinse-Aid Dispenser.
( )
NOTE:
*AS/NZS 2007.1 : This program is the test cycle. The information for comparability test
in accordance with AS/NZS 2007.1, as follows:
Capacity: 6 setting
Rinse aid setting: 6
Open the door slightly 50mm to assist in drying of the dishes after every wash
Starting a wash cycle
Detergent
pre/main
Cycle Selection
Information
Program
Running
time(min) Energy
(Kwh)
Water
(l)
Description
of Cycle
Rinse
Aid
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
For heaviest soiled crockery,
and normally soiled pots、
pans、dishes etc with dried
on soiling.
A shorter wash for lightly soiled
loads and quick wash.
For lightly soiled crockery
and glass.
Intensive
90 min
Rapid
Heavy
(* AS/NZS 2007. 1)
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,
such as glasses, crystal and
fine china.
Glass
5
(1or2 pieces)
/17.5g
5
(1or2 pieces)
/17.5g
5/17.5
(1 pieces)
g
Pre-wash(50℃)
Wash (55℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash (60℃)
Rinse
Rinse (70℃)
Drying
Pre-wash
Wash (47℃)
Rinse
Rinse(50℃)
Drying
Wash (40℃)
Rinse
Rinse
120
135
140
30
0.65
0.45
0.85
0.32
9.7
7.8
7.4
5.8
Wash(65℃)
Rinse(70℃)
Drying
90 7 0.65
22.5g
(1 pieces)
15g
22.5
(1 pieces)
g
wash(45℃)
Rinse
Rinse(60℃)
Drying
70 0.45 6
15g
Self-Cleaning
This program provides an
effective cleaning of the
dishwasher itself
Wash (70℃)
Rinse
Rinse (65℃)
Drying
80 0.48 5
Normal

10
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Change the Program
Forget to Add a Dish?
, the machine will keep on working after 10 seconds.
If you open the door during washing, the machine will pause. When you close the door
NOTE:
At the end of the Wash Cycle
Add forgotten dishes.
Close the door.
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Premise:
runs Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. In this
case, the detergent dispenser must be refilled (see the section entitled
"Detergent " ).
Press Start/Pause Button, then press the Program button more than three seconds the machine
will be in stand by state ,then you can change the program to the desired cycle setting (see
the section entitled " Starting a wash program ).
You can modify the washing program, If the dishwasher just
for a short time.
Press the start/pause button.
Press the start/pause button, the dishwasher will run
after 10 seconds.
WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.

7.Maintenance and Cleaning
The filter prevent larger remnants of food or other objects from getting inside the pump.
and a micro filter (fine filter).
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
Main filter A
Larger items, such as pieces of bone or glass, that could block
caught by this filter, gently squeeze the tap on the top of this
filter and lift it out.
Coarse filterC
prevents it from being redeposited on the dishes during a cycle.
Fine filter B
Filtering System
Filter assembly
WARNING!
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
the filter system will be installed.
If you follow step1 to step 3, the filter system will be removed; you follow from Step 3 to Step 1,
NOTE:

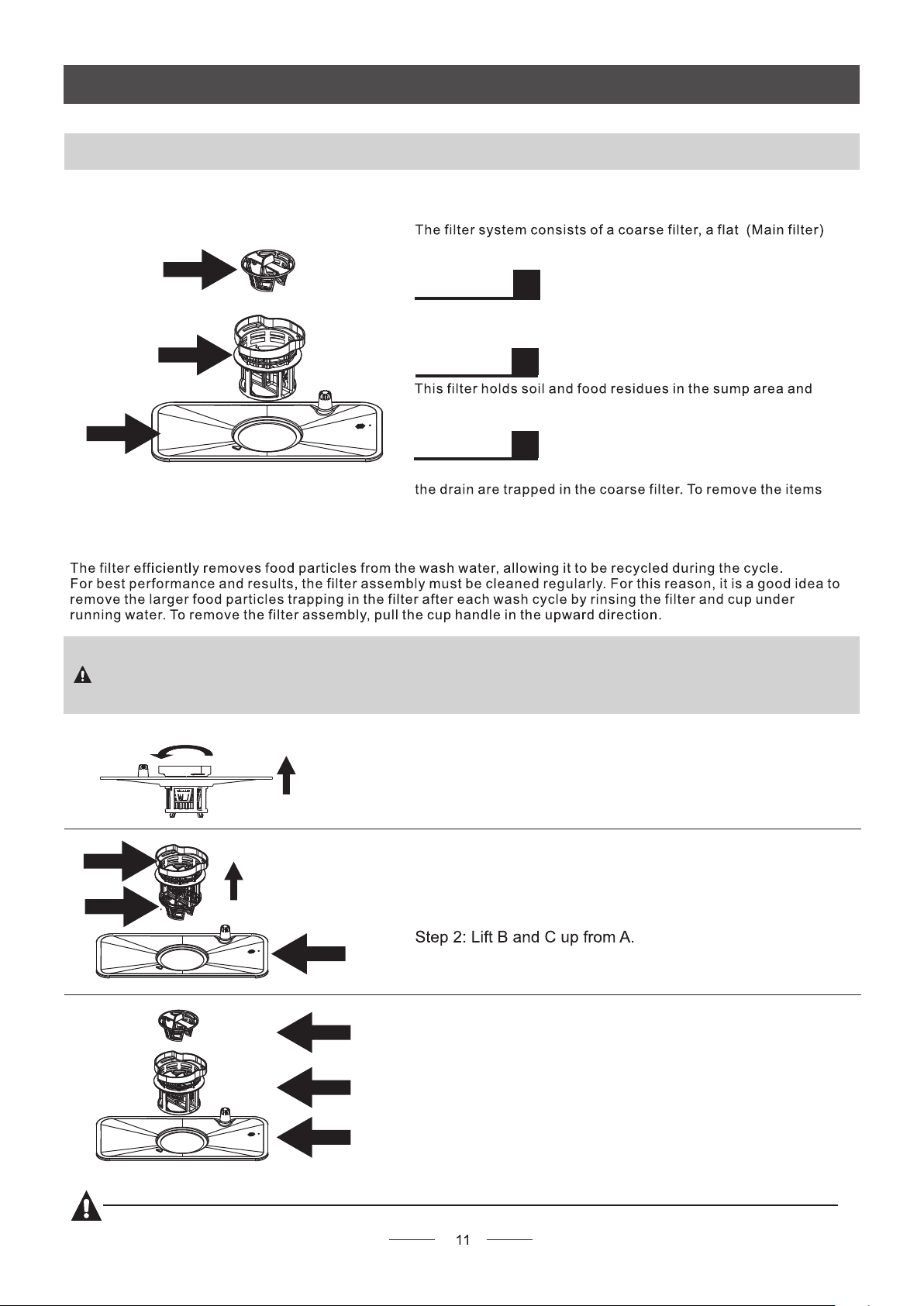

Step 1: Contrarotate the filter assembly(A,B and C),
then lift it all up.
Open
C
B
A
A
B
C
A
B
C
Step 3: Separate B and C.

For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
3. Drain water from the inlet pipe and water valve(Use a pan to catch the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
If a likelihood of freezing please take the following measures on dishwasher in winter. E fter washing cycles,
please operate as followsЈ
ach time a
Caring for the Dishwasher
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system.Remove any food remnants and
clean the filters under running water.
Remarks：
Cleaning The Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.
The entire filter assembly should be cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of dishwasher could be decreased.
WARNING!
NOTE:
WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or abrasive paper towel should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
n
n
12
NOTE:
If your dishwasher cannot work because of the ice, please contact authorised service persons.

How to Keep Your Dishwasher in Shape
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
8.Installation instruction
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water with a little
vinegar, or a cleaning product made specifically for
dishwashers.
After Every Wash
Remove the Plug
Seals
When not in use for an extended period of time
13
The installation of the pipes
and electrical equipments
should be done by qualified
professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power
before installing dishwasher.
Failure to do so can result in
death or electrical shock.
Attention:
The installation position of dishwasher should be near the existing water inlet tap and
drain outlet and power socket.
One side of the cabinet sink should be chosen to facilitate the connection of the
dishwasher drain hose.
Installation preparation
Cleaning the Spray Arms

14
Electrical Requirements
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Electrical Connection
Insure proper ground
exists before use
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Positioning the Appliance
and drain hoses that can be positioned to the right or the left to facilitate proper installation.
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place. If the water pipes are new or have not been used for
an extended period of time, let the water run to make sure that the water is clear and
free of impurities. If this precaution is not taken, there is a risk that the water inlet can
get blocked and damage the appliance.
Please note: If the supplied hose connection does not fit your tap, please contact your
local plumbingsupply center where adapters are available for purchase.
please close the hydrant after using.
WARNING!
Water Connection
About Power Connection
WARNING!
For personal safety:
Do not use an extension cord or an adapter plug
with this appliance.
Do not under any circumstance, cut or remove the earthing connection from
the power cord.
n
n
