Axis AX1824S User manual

12WARRANTY
YEAR
AX1824S
60cm (23.6”) 12/24V FULL HD LED
DVD/SMART TV
PANEL
- Display Size: 60cm (23.6”)
- Full High Definition LED TV
- Aspect Ratio: 16:9
- Resolution: 1920 x 1080
- Brightness: 250cd/m2
- Contrast: 1000:1
- Viewing Angle: 176(H) x 176(V)
POWER
- Input: 9-36V DC / 4A Max
- AC Adapter: 240V 50Hz/60Hz
- Stand-by Power Consumption: 0.5W
CABINET
- Conformal Coated Circuit Board
- Size (without base): 551 x 48 x 328mm
- Size (with base): 551 x 176 x 357mm
- Enhanced Strength VESA Mounting
- Net weight: 3.9 kg (without stand & packaging)
MULTIMEDIA & FEATURES
- TIMESHIFT: Pause, Rewind & Fast-Forward
Live TV (using PVR)
- USB Reader
- PVR (Personal Video Recorder)
- EPG (Electronic Program Guide)
DVD/CD PLAYER
- Built-In DVD Player
- Supports DVD/VCD/CD/MP3/DIVX/JPEG
- Supports DVD±R/DVD±RW/CD-R/RW
INPUTS
- RF / Antenna Input: 1
- AV: 1
- YPbPr: 1
- HDMI: 2
- VGA: 1
- USB: 3 (2 Smart)
- PC Audio: 1
- DVD Combo (normal DVD)
- Ethernet: 1
TUNER
- DVB-T Digital HD Tuner
- Analogue Tuner
- DTV Video System: MPEG-2MP@ML, H.264,
MPEG-4 (Video Codes)
- DTV Sound System: MPEG-1 Layer 1/2,
- ATV Video System: PAL / SECAM
- ATV Sound System: BG, DK, I, L/L’ / NICAM / A2
INCLUDED
- Remote Control
- Removable Desktop Stand
- 240V AC Adaptor
- Cig Lead Car Power Adaptor
- RCA Adaptor
- YPbPr Adaptor
SYSTEM
- MPEG-4 Video System
- OSD: Multi-languages
- Number of Channels: 99
- Comb Filter: 3D
- Teletext: ATV/1000 Pages
- Speakers: 2 x 3W Stereo
SMART TV
- Operating System: Android
- Built-In WiFi
- Downloadable Apps via Google Play Store
- Included Apps: Google Chrome/Play Store,
Browser, Netflix, Stan, YouTube, Movie Player,
Freeview FV, ABC iview, Plus7, 9Now, Tenplay,
SBS On Demand
OPTIONAL: Select from Axis Range of
VESA 100 TV Mounting Brackets
OUTPUTS
- Headphone: 1
- Coaxial: 1
(Digital Output to AV Receiver)
- RCA Audio: 1
INSTRUCTION MANUAL

2
CONTENTS
TV Operation
Select Input Source ............................................................................................3
Initial Installation .................................................................................................4
Main Menu Operation .........................................................................................6
Picture Menu ......................................................................................................13
Sound Menu .......................................................................................................15
Time Menu ..........................................................................................................16
Lock Menu ..........................................................................................................18
Hotel Mode .........................................................................................................20
Setup Menu ........................................................................................................21
Screen Menu ......................................................................................................25
Media Operation
Media Operation ..................................................................................................26
Photo Menu .........................................................................................................27
Music Menu .........................................................................................................28
Movie Menu .........................................................................................................29
Text Menu ............................................................................................................30
Android OS
Install Wizard .......................................................................................................31
Main Launcher .....................................................................................................34
Network Settings .............................................................................................36
Display Settings ...............................................................................................37
Advanced Settings ...........................................................................................38
Other Settings..................................................................................................39
Install New Apps ..............................................................................................40
Delete Apps .....................................................................................................41
Browser ...........................................................................................................42
DVD .........................................................................................................................43
Notes.......................................................................................................................45
Warranty Card ........................................................................................................48

3
SELECT INPUT SOURCE
Press INPUT button to display the input source list,
PresVźŸ button to select the desired input source you want to,
Press ENTER button to enter the input source,
Press EXIT button to quit.

4
Initial Installation
Connect a RF cable to the TV’s input called “RF-In”.
Select Language
PresVŻŹEutton to select the language to be used for menus and message.
Select Country
P
Select Tune Type
Press
Press ENTER to continue.
ress  button to highlight country menu.
PresVŻŹE
ŻŹEXWWRQWRVHOHFW'LJLWDO797XQLQJ$QDORJXH797XQLQJRU%RWK
utton to select. Press ENTER to continue.

5
Auto Tuning
ATV: Press MENU and then left arrow button to skip ATV tuning.
DTV: Press MENU and then left arrow button to skip DTV tuning.

6
Press MENU button to display the main menu.
PresVŻŹEutton to select CHANNEL.
Channel Menu
1. Press ź  Ÿ button to select the option to adjust in the CHANNEL menu.
2. Press ENTER button to adjust.
3. After finishing your adjustment, Press ENTER b utton to save and return to the previous menu.
Auto Tuning
PresVźŸEutton to select Auto Tuning, then press ENTER / ŹEutton to enter.

Main Menu Operation
In DVT Source:

7
ATV Manual Tuning
Current CH
Set the channel number.
Color System
Select the color system
Sound System
S
(Available System: DK, L, BG, I
elect the Sound system
Fine-Tune
Adjust the frequency of the channel.
(Available System: AUTO,PAL , SECAM )
Search
Start searching channel.

8
DVT Manual Tuning
PresVźŸEutton to select Manual Tuning, then press ENTEREutton to enter suE-menu.
PresVŻŹEutton to select channel, then press ENTEREutton to search program.
DTV
Program Edit
PresVźŸE
źŸ
utton to select Program Edit, then press ENTEREutton to enter suE-menu.


 


The three colored key is the shortcut for programming
the channel.
First press to highlight the channel to select, then:
Press the Eutton to delete the program in the list.
Press the Eutton to move the channel.
Press the Eutton to skip the selected channel.
Press
FAV Eutton to add or remove the channel to your favorite list.
(Your TV set will skip the channel automatically when using
CH+- to view the channels.)
Red
Yellow
Blue

9
Schedule List
PresVźŸEutton to select Schedule List, then press ENTEREutton to enter suE-menu.
NOTE: If a program conflicts with a scheduled program,
it will produce a warning message.
Signal Information
P
NOTE: If quality is low:
• Make sure that power leads are away from the RF Antenna Lead
• Use RG6 Quad RF Antenna Lead
ress Eutton to select Signal Information, press the ENTER Eutton to see the detailed information
aEout the signal. Only availaEle when there is signal reception in DTV.
Press the Eutton to enter the
interfacHEelow.
YELLOW
źŸ
Press EXWWRQWRVHOHFWRSWLRQ
źŸ
Press to make and adjustment.
źŸ
Press ENTER to confirm.

10

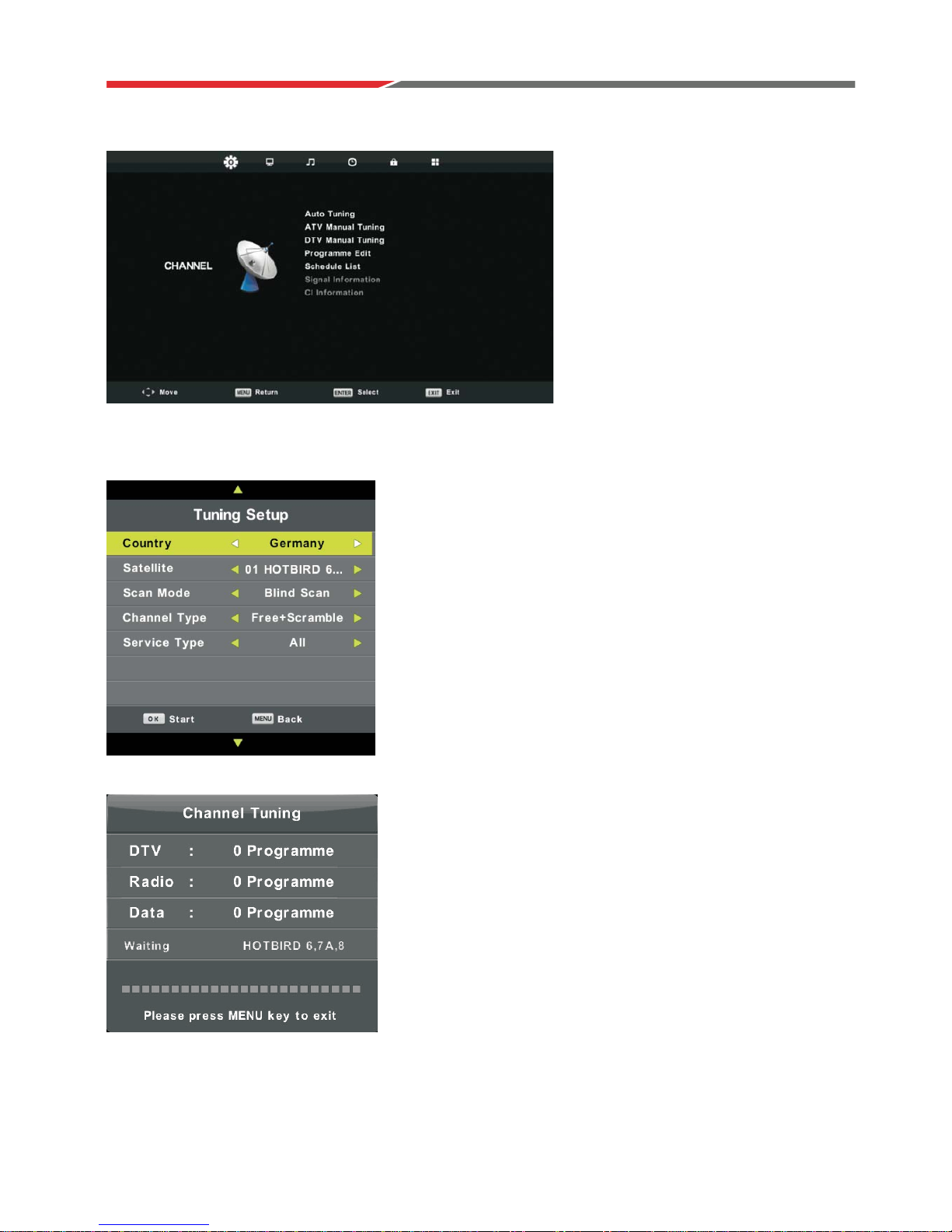

The CHANNEL List in Satellite Source
Auto Tuning
Press button to select Auto Tuning, then press ENTER / ŹEutton to enter.
Press MENU button to open the main menu.
Highlight “Channel” using navigation buttons and press OK to enter.
Then highlight “Auto Tuning” and press OK to enter.
Country: Select your country.
Satellite: Select an available satellite.
Scan Mode: Select your scan mode.
Channel Type: Select a channel type.
Service Type: Select a service type.
źŸ

11
Press MENU button to open the main menu.
Highlight “Channel” using navigation buttons and press OK to enter.
Then highlight “Dish Setup” and press OK to enter.
Press LEFT/RIGHT navigation button to highlight Left, Middle or Right
column.
Press EXIT button to return.
DISH SETUP (not available in some countries)
Press / button to select Dish Setup.then press ENTER /ŹEutton to enter.
A. When the “Satellite” column is highlighted:
(1)Press button to enter Add menu.
Satellite Name
Press RIGHT navigation button to enter rename page.
Use navigation buttons to enter a new name.
Longitude Direction
Press LEFT/RIGHT navigation button to select desired option.
Longitude Angle
Press LEFT/RIGHT navigation button to move the cursor and
press number buttons on remote control to input desired value.
Band
Press LEFT/RIGHT navigation button to select desired option.
(2)Press button on remote control to enter Edit menu.
The operations of Edit menu are the same as Add menu.
(3)Press button on remote control to enter Scan menu.
Press UP/DOWN navigation button to highlight the desired item.
Press RIGHT navigation button to select desired Scan Mode,
Channel Type and Service Type.
YELLOW
GREEN
BLUE
(4)Press button to delete. RED
B. When the “Transponder” (Middle) column is highlighted:
(1)Press button on remote control to enter Add menu.
Frequency
Press LEFT/RIGHT navigation button to move the cursor and press
number buttons on remote control to input desired value.
Symbol (ks/s)
YELLOW
Press LEFT/RIGHT navigation button to move the cursor and press
number buttons on remote control to input desired value.
Polarity
Press LEFT/RIGHT navigation button to select desired option
(2)Press button on remote control to enter Edit menu
The operations of Edit menu are the same with Add menu.
(3)Press button on remote control to enter Scan menu.
Press UP/DOWN navigation button to highlight the desired item.
Press LEFT/RIGHT navigation button to select desired Scan Mode,
Channel Type and Service Type.
GREEN
BLUE
Press button to switch satellite and Transponder. EPG
źŸ

12
10
C. When the “Ku_ASTRA...” (Right) column is highlighted”
LNB (Low Noise Block) Type
Press LEFT/RIGHT navigation button to enter submenu. Then use UP/DOWN navigation button to select
desired option.
LNB Power
Press LEFT/RIGHT navigation button to select desired option.
22 kHz
Press LEFT/RIGHT navigation button to select desired option.
Toneburst
Press LEFT/RIGHT navigation button to select desired option.
DisEqc1.0 (Digital Satellite Equipment Control)
Press LEFT/RIGHT navigation button to select desired option.
DisEqc1.1
Press LEFT/RIGHT navigation button to select desired option.
Motor
Press LEFT/RIGHT navigation button to select desired option.
The CHANNEL List in ATV Source
A
ATV Mode as in DTV Mode (see pages 4-6).
uto Tuning/ATV Manual Tuning /DTV Manual Tuning/Programme edit menus operate the same way in

13
Picture Mode
Press button to select Picture Mode, then press OK button to enter sub-menu.
You can change the value of contrast, brightness, color, sharpness and tint.
TIP: You can press PMODE button to change the Picture Mode directly, without entering the menu.
Contrast/ Brightness/ Color/ Tin t / S h ar p n es s
Press button to select option, then presVŻŹEutton to adjust.
Contrast Adjust the white levels.
Brightness Adjust the black levels.
Color Adjust the saturation of the color.
Tint Use in compensating color change with transmission in NTSC format.
Sharpness Adjust the detail of the picture.
Press MENU button to display the main menu.
Press Ż / Ź button to select PICTURE in the main menu.
1. Press button to select PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.
źŸ
źŸ
źŸ
Personal Mode

14

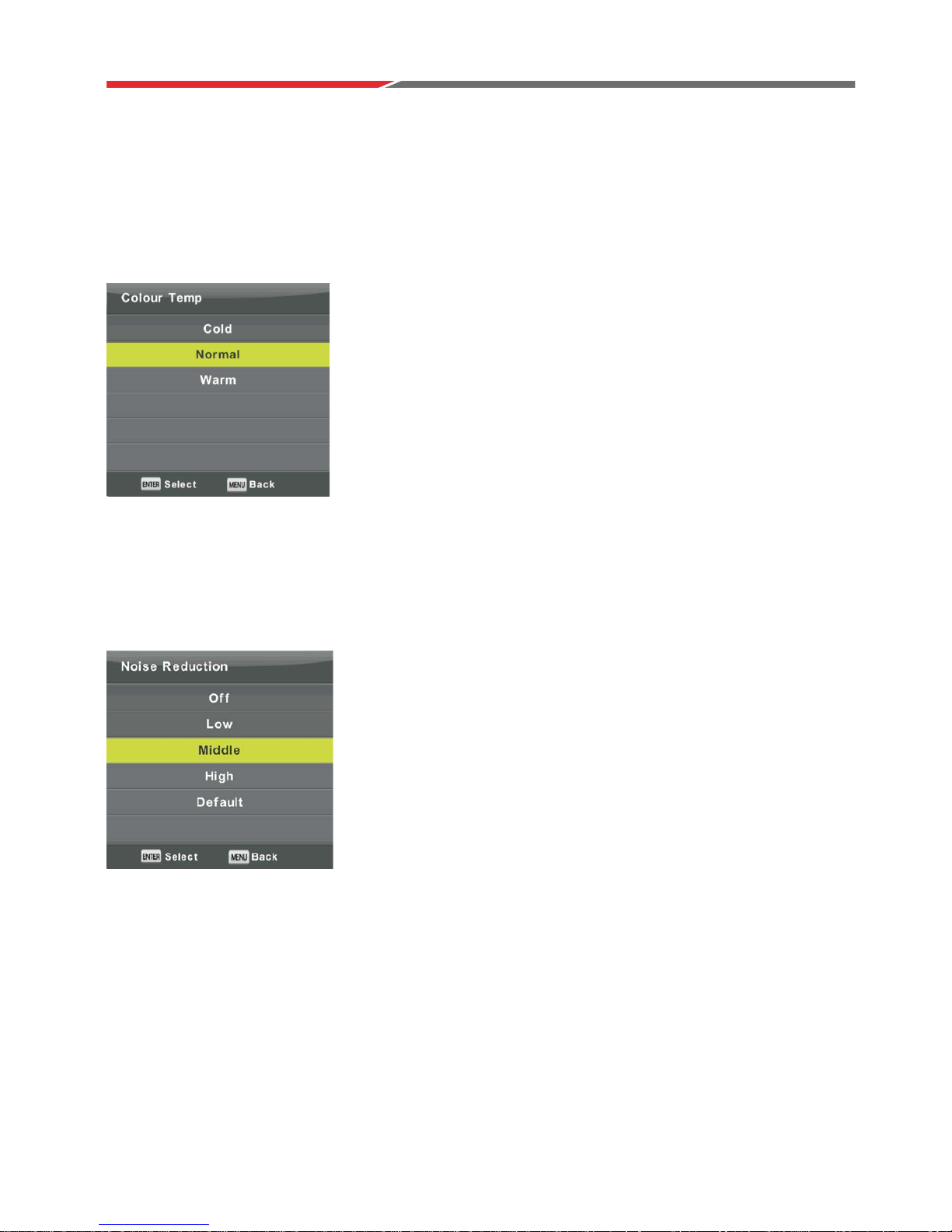

Colour Temp
Press button to select Colour
Press button to select. Press OK button to confirm.
Noise Reduction
To filter out and reduce the image noise and improve picture quality.
Press button to select Noise Reduction. Then press OK button to enter sub-menu.
Change the overall color cast of the picture.
Off Select to turn off video noise detection.
Low Detect and reduce low video noise.
Middle Detect and reduce moderate video noise.
High Detect and reduce excessive video noise.
Default Set as Default.
źŸ
źŸ
Temperature, then press OK button to enter Sub-Menu.
źŸ
Cold Increase the blue tone.
Normal No change in tone.
Warm Increase the red tone.

15
S
elect Back Ad
j
us
t
B
T
alance
es utt elec tes utt djust
alu e l as ecan be changed u e s a de
S a es SMODE utt e t t a u d
Auto Volume level
es utt elec Aut lu eel ees utt elec
SPDIF Mode
es utt elec de ees utt elec Aut
NOTE:
Balance: This item can adjust the volume of each speaker.
Auto Volume: This item is used for automatically reducing the difference between each program’s volume.
es MENU utt sla a e u
es utt elec SOUND a e u
ess utt t adjust t e SOUND
P
e u
ess Enter utt t adjust
A te s adjust e t ess Enter utt t sa e a d etu t t e e us e u
Sound Mode
es utt elec ude
t e es Enter utt te u e u
ess utt elect
Sta da duce ala ce u l e ts
us ese e a u d us ca a s
ace e l as c u e e ce
S t a ce cal ts
e s a elec ust ctu ett s
Note e l as l a la lUser de. Adjust them as desired.
AD Switch
es utt elec Atc ees utt elec
o directly c .

16
Press MENU button to display the main menu.
PresVŻŹEutton to select TIME in the main menu.
1. Press ź  Ÿ
ź  Ÿ
button t o adjust in the TIME menu.
2. Press ENTER button to adjust.
3. After finishing a djustment, Press ENTER button to save and return to the previous menu.
Sleep Timer
Time Zone
PresVźŸEutton to select Sleep Timer, then press ENTER button
to enter sub-menu.
PresVźŸbutton to select.
(Available options are:Off,15min,30min,45min,60min,90min,
120min,240min).
Press button to select Time Zone, then press ENTER button to enter sub-menu.
Press ŻŹEutton to select time zone.
ź  Ÿ

17
OSD Timer
Auto Standby
PresVźŸEutton to select Auto StandEy, then press EnterEutton to
enter suE-menu.
PresVźŸEutton to select.
Tips: Using the remote control resets the timer.
PresVźŸEutton to select OSD Menu Time-Out,
then press EnterEutton to enter suE-menu.
Pres utton to select.
VźŸE

18
System Lock

Press MENU button to display the main menu.
PresVŻŹEutton to select Lock in the main menu.
1. Press button to a djust t he LOCK menu.
2. Press EEnntteerrŻ  Ź button to adjust.
3. After finishing your adjustment, Press MMEENNUU button to return back to the previous menu.
Press button to select System Lock.
then press Enter button.
please call the service centre.
Defaultpasswordis0000. If forgotten,
Set Password
Press button to select Set Password,
then press Enter button to enter sub-menu to set new password.

19
Key Lock
Press button to select Key Lock, then presVŻŹEutton to select Off or On.
When Key Lock is on, you can’t use the Key panel buttons on the back of the TV.
Channel Lock
Press button to select Channel Lock,
then press Enter button to enter sub-menu to select.
Press button to lock or unlock the channel.Green
Parental Guidance
Press button to select Parental Guidance,
t
the appropriate rating.
hen press Enter button to enter sub-menu to sele
ct

20
Hotel Mode
1. Press button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.
Hotel Mode
Press button to select Hotel Mode, then presVŻŹEutton to select on or off.
Source Lock
Press button to select Source Locke, then press Enter button to enter sub-menu to select.
Default Source
Press button to select Default Source, then press Enter button to enter sub-menu to select.
Default Prog
Press button to select Default Prog, then presVŻŹEutton to adjust.
It is available when the default source is TV.
Max Volume
Press button to select Max Volume, then presVŻŹEutton to adjust.
Import Database
Import parameter of AudioChannelLockSetup from a USB drive. Insert USB drive,
choose “Import Database” and press enter to import
Export Database xport
Clear Lock
Press button to select Clear Lock, then press Enter button to clear the setting you have done before.
.
Export Database
Export parameters of AudioChannelLockSetup to a USB drive. Insert USB disk,
choose “ ” and press Enter to E .
