Axis car audio AX1519 User manual

LED TV - 12 VOLT
with Built-in DVD Player
Model: AX-1519
AX-1522
AX-1524

2
Contents
Important safety instructions 4
Usage conditions and restrictions 4
Electrical safety, power cord and plug 5
Position 5
Cleaning and maintenance 5
Accessories 7
Connections and functions 8
Remote control 9
Wall mounting instructions 13
Basic installation 14
First time setup 17
Installing The Batteries 18
Using the Remote Control 18

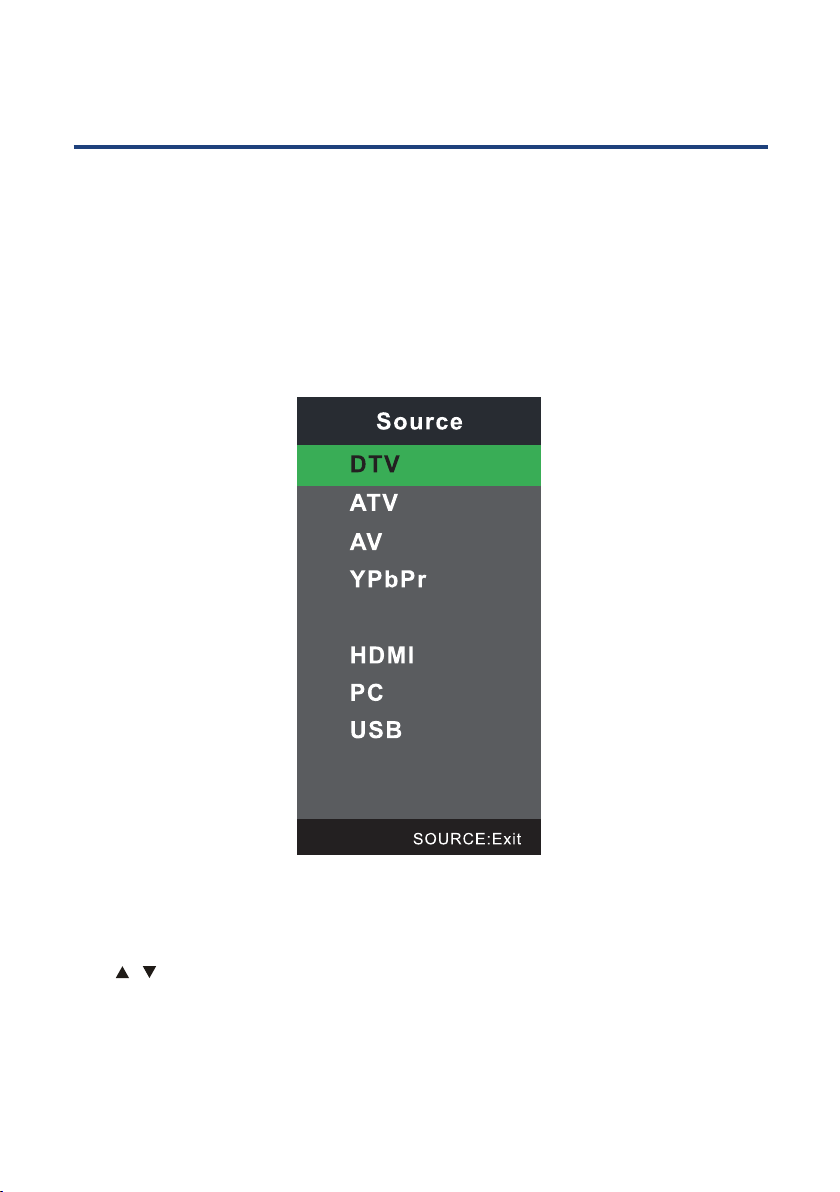

Selecting an Input Source 19
Operating The Menus 20
Picture Menu 20
Sound Menu 23
Channel Menu 26
Lock Menu 31
33
34
36
36
36
36
37
38
39
39
40
Hotel Mode
Setup Menu
PVR and Time Shift Operation
PVR Setting
First Time Setup
Reset
USB Device Setup
Timeshift
Instant Recording
Time Recorder
Playlist

2
Contents
Important safety instructions 4
Usage conditions and restrictions 4
Electrical safety, power cord and plug 5
Position 5
Cleaning and maintenance 5
Accessories 7
Connections and functions 8
Remote control 9
Wall mounting instructions 13
Basic installation 14
First time setup 17
Installing The Batteries 18
Using the Remote Control 18
Selecting an Input Source 19
Operating The Menus 20
Picture Menu 20
Sound Menu 23
Channel Menu 26
Lock Menu 31
33
34
36
36
36
36
37
38
39
39
40
Hotel Mode
Setup Menu
PVR and Time Shift Operation
PVR Setting
First Time Setup
Reset
USB Device Setup
Timeshift
Instant Recording
Time Recorder
Playlist
3
Contents
USB Multimedia Playback Format 46
DVD Function 48
System setup 48
Audio setup 49
Preference page 50
FAQs 51
EPG (Electronic Program Guide) 41
ATV / HDMI / AV / YPbPr / PC 42
Multi Media Menu Operation 43
Photo 43
Music 44
Movie 44
Text 45
MODEL AX-1519 AX-1522 AX-1524
Panel System 18.5”/21.5”/24” LED panel with Built-in DVD Player
Display Resolution 1366x768
Television System PAL/SECAM
Inputs/Outputs
HDMI input 1
PC 640x480/60Hz 800x600/60Hz 1024x768/60Hz
1366x768/60Hz 1920x1080/60Hz
Audio (AV/PC) R/L 200mVrms (max3.0vp-p) 20K RCA
Audio R/L 200mVrms (max3.0vp-p) 20K
Video Video 1.0 Vp-p 75
Audio L/R R/L 200mVmrs (max3.0Vp-p) 20K
Speaker consumption L/R 2x3W
Voltage DC12V 3A
Power consumption 26W 36W32W
Mobile Mounting 100 x 100 VESA
Specifications

4
Important Safety Instructions
Please r
along with the warranty card, purchase receipt and carton. The safety precautions enclosed
Usage conditions and restrictions
To prevent any injuries, the following safety precautions should be observed in the
installation, use, servicing and maintenance of equipment. Before operating this equipment,
please read this manual completely, and keep it nearby for future reference.
Take notice of all the warnings.
Do not use this TV near water.
ry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other TV’s
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the TV.
Only use the attachments/acc
Use only with a wall bracket, stand, tripod or table specified by the manufacturer, or sold
with the TV.
Unplug this TV during lightning storms or when unused for long periods of time.
The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Young children should be supervised to ensure they do not play with the appliance.
Refer all servicing t
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the TV, the TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
NOTE: The TV must not be e
liquids, such as vases, shall be placed on the TV.

4
Important Safety Instructions
Please r
along with the warranty card, purchase receipt and carton. The safety precautions enclosed
Usage conditions and restrictions
To prevent any injuries, the following safety precautions should be observed in the
installation, use, servicing and maintenance of equipment. Before operating this equipment,
please read this manual completely, and keep it nearby for future reference.
Take notice of all the warnings.
Do not use this TV near water.
ry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other TV’s
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the TV.
Only use the attachments/acc
Use only with a wall bracket, stand, tripod or table specified by the manufacturer, or sold
with the TV.
Unplug this TV during lightning storms or when unused for long periods of time.
The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Young children should be supervised to ensure they do not play with the appliance.
Refer all servicing t
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the TV, the TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
NOTE: The TV must not be e
liquids, such as vases, shall be placed on the TV.
5
Important Safety Instructions
Position
hazardous due to falling. Many injuries, particularly to children, can be avoided by taking
simple precautions such as:
Securely attaching the TV toawall bracket.
Only using furniture that can safely support the television.
Ensuring the television is not overhanging the edge of the supporting furniture.
Educating children about the dangers of climbing on furniture to reach the TV controls.
Not standing the TV on cloth or other materials placed between the television and
supporting furniture.
Not placing the television on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the television to a suitable support.
When deciding on where to put the TV set, make sure the place is:
Well ventilated.
Away from damp and cold.
Protected from overheating and away from direct sunlight.
Away from moisture drips or splashes.
Protected from excessive dust.
e such as a bookcase or similar unit.
, such as vases, on top of the TV set.
ces, such as lighted candles, on top of the TV set.
Cleaning and maintenance
Dust the TV set by wiping the screen and cabinet with a soft, clean cloth.
Do not apply excessive force to the screen when cleaning.
Do not clean the screen with chemical cleaners as this may damage the LED screen surface.
Electrical safety, power cord and plug
Before installing this TV set, make sure your outlet voltage corresponds to the voltage
stated on the appliance rating label.
To reduce the r
Do not overload the power cord or power outlet.
Do not let the cord hang over the edge of a table or counter, or touch any hot surface.
Do not allow anything to rest on or roll over the power cord and signal cable.
Protect the power cord and signal cable from being trampled.
Do not expose the power cord and signal cable to moisture.

6
Important Safety Instructions
tDo not dismantle this product by yourself, as this may cause damage. There are no user-
serviceable parts contained in the TV set.
tIf your TV set has been damaged, contact the after sales support line for advice or take
it to a local service centre or for inspection or repair. No liability can be accepted for any
damage caused by non-compliance with these instructions or any other improper use or
mishandling of appliance.
tDo not apply excessive force to the screen when cleaning.
tDo not clean the screen with chemical cleaners as this may damage the LED
screen surface.
TV with Class 1 construction shall be connected to a main socket outlet with a protective
earthing connection.
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR AN ELECTRIC SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTIONS: tTo reduce the risk of electric shock, do not perform any servicing other than
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the documentation accompanying this unit.
CAUTION: TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

6
Important Safety Instructions
tDo not dismantle this product by yourself, as this may cause damage. There are no user-
serviceable parts contained in the TV set.
tIf your TV set has been damaged, contact the after sales support line for advice or take
it to a local service centre or for inspection or repair. No liability can be accepted for any
damage caused by non-compliance with these instructions or any other improper use or
mishandling of appliance.
tDo not apply excessive force to the screen when cleaning.
tDo not clean the screen with chemical cleaners as this may damage the LED
screen surface.
TV with Class 1 construction shall be connected to a main socket outlet with a protective
earthing connection.
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR AN ELECTRIC SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTIONS: tTo reduce the risk of electric shock, do not perform any servicing other than
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the documentation accompanying this unit.
CAUTION: TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
HDMI cabel
Two AAA Batteries
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT

8
Connections and functions
Front View
Back View & Control Connection
1. Press“STANDBY” button to turn standby
2. Press“SOURCE” to select the input source.
3. Press“MENU” to bring up the main menu
on the screen.
4. Press“CH+” or“CH-” to scan through channels.
5. Press‘‘ VOL+”or“VOL-”to increase or decrease
the volume.
8. POWER INDICATOR: Shows red in standby mode,
shows blue when your TV is switched on.
8
6. Press “ ” button to play/pause the program in DVD mode.
7. Press “ ” button to eject the program in DVD mode.

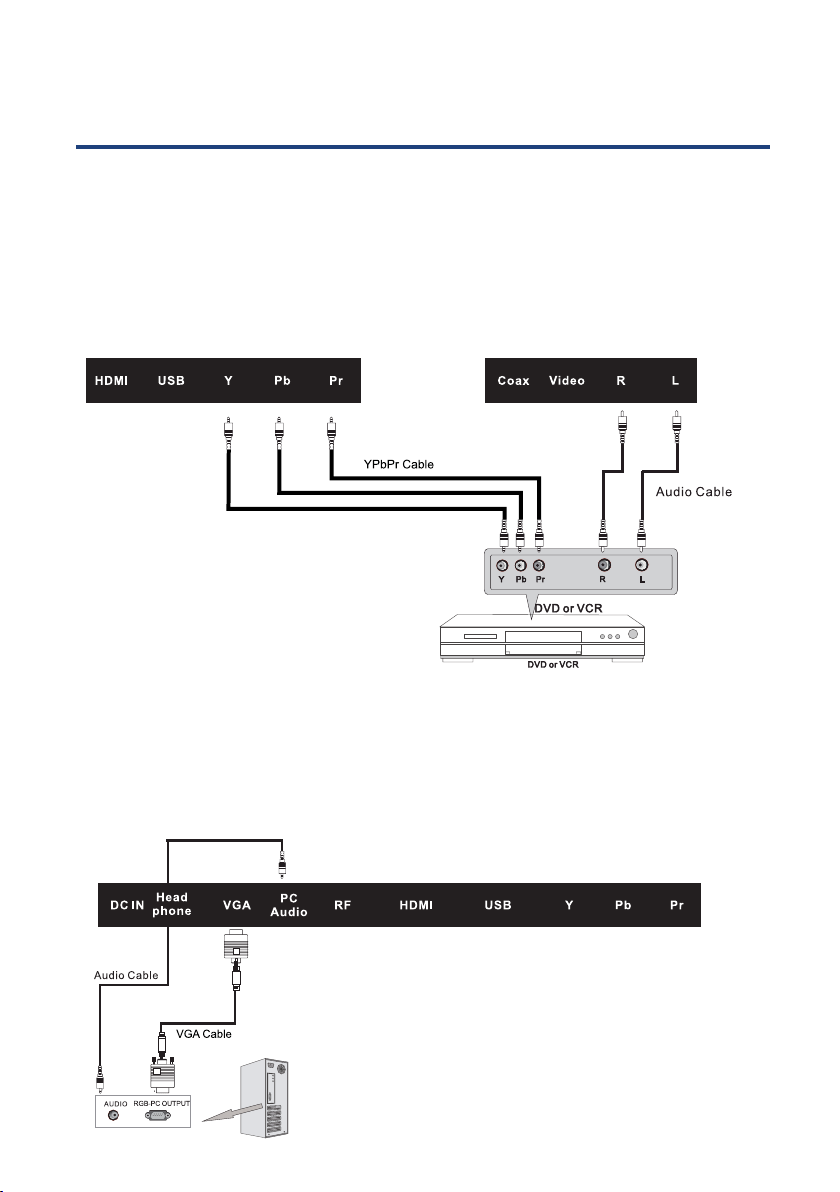

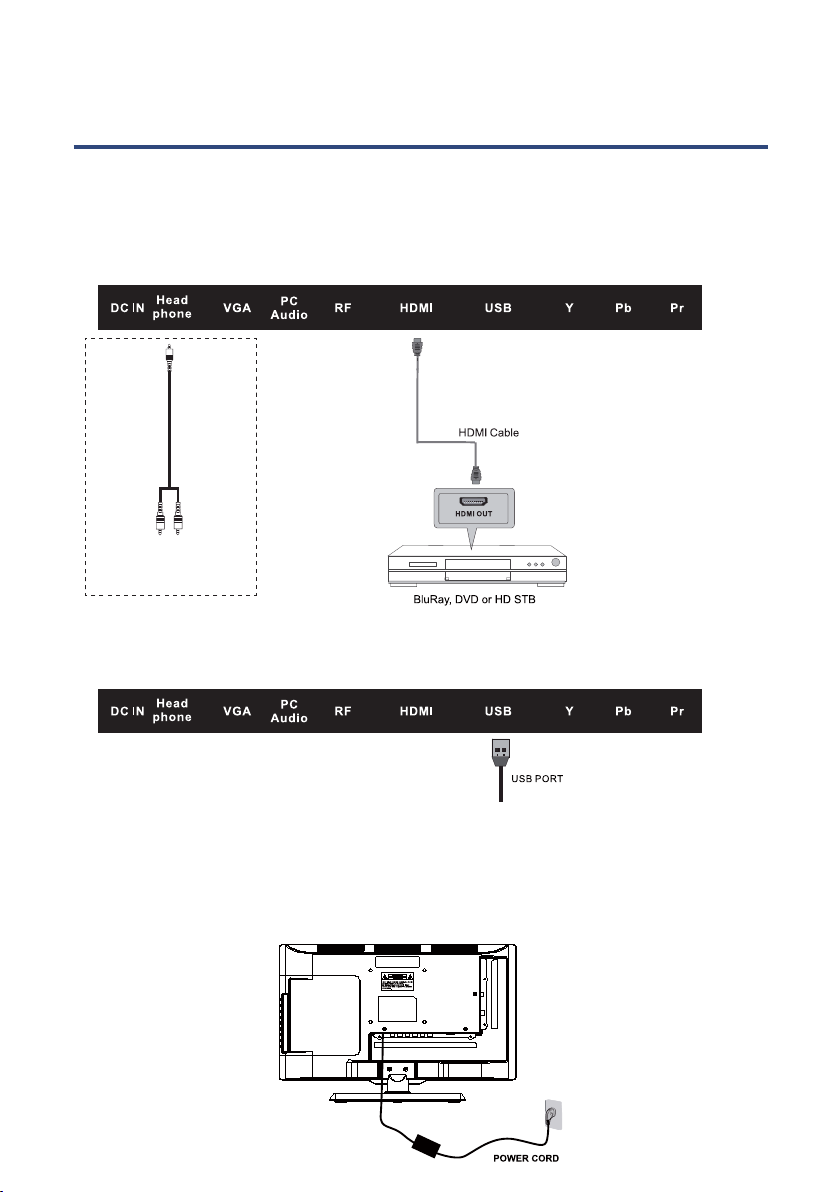

1. DC IN: power input
2. HEADPHONE: Connect the earphone
3. VGA: Connect the PC-RGB output jack of PC
4. PC AUDIO: Connect the Audio output jack of PC
5. RF: Connect the antenna
6. HDMI: Connect the HDMI output jack of DVD
9. Coax: Connect the SPDIF receiver
10. Video: Connect the VIDEO output jack of DVD
7. USB: Connect to portable USB device
8. YPbPr(Component) output jack of DVD
DC Head
Phone VGA PC Audio RF HDMI USB Y Pb Pr
COAX Video RL
11. R/L: Connect the R/L audio output jack of DVD

8
Connections and functions
Front View
Back View & Control Connection
1. Press“STANDBY” button to turn standby
2. Press“SOURCE” to select the input source.
3. Press“MENU” to bring up the main menu
on the screen.
4. Press“CH+” or “CH-”to scan through channels.
5. Press‘‘ VOL+”or“VOL-”to increase or decrease
the volume.
8. POWER INDICATOR: Shows red in standby mode,
shows blue when your TV is switched on.
8
6. Press “ ” button to play/pause the program in DVD mode.
7. Press “ ” button to eject the program in DVD mode.
1. DC IN: power input
2. HEADPHONE: Connect the earphone
3. VGA: Connect the PC-RGB output jack of PC
4. PC AUDIO: Connect the Audio output jack of PC
5. RF: Connect the antenna
6. HDMI: Connect the HDMI output jack of DVD
9. Coax: Connect the SPDIF receiver
10. Video: Connect the VIDEO output jack of DVD
7. USB: Connect to portable USB device
8. YPbPr(Component) output jack of DVD
DC Head
Phone VGA PC Audio RF HDMI USB Y Pb Pr
COAX Video RL
11. R/L: Connect the R/L audio output jack of DVD
9
Remote ControlRemote Control
STANDBY:
SOURCE: Press to cycle through the input source.
PMODE: Select picture mode.
SMODE: Select sound mode.
AUDIO:
SLEEP: Sets the TV sleep time.
MUTE: Press to mute the sound. Press again or press V+ to
un-mute the TV.
0-9: TV channel number select.
: Return to the previous channel viewed.
FAV: Display your favourite channel list.
MENU: Brings up the main menu to the screen.
EXIT: Press to close the on-screen display.
/ / / /OK : Allows you to move, select and setup
the OSD options.
VOL+/- : Volume up/down.
CH+/-: Channel up/down.
ASPECT: To chang the aspect of your TV.
TV MODE
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT
DISPLAY: Press to display the source and channel’s information.

10
Remote Control
NUMBER BUTTONS: Press 0-9 to select a teletext page.
TEXT: Press to switch between TV and Teletext mode.
CLOUR BUTTONS: Select 4 preferred teletext pages.
HOLD: Freeze the current page.
REVEAL: Reveal or hide the hidden words.
SIZE: Change the picture size.
SUBTITLE: Displays subtitles.
INDEX: Request index page when index is valid.
* Teletext or Austext is no longer available, nor is
there any plan for a replacement teletext service
in Australia. For more information, please visit
the websites of the Australian channel providers.
However, one teletext option, “closed captions”, is
still working on most Australian television channels.
This service allows you to activate subtitles while
watching normal television programs that provide it.
TELETEXT MODE*
SUBPAGE: To go to the teletext subpage.
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT

10
Remote Control
NUMBER BUTTONS: Press 0-9 to select a teletext page.
TEXT: Press to switch between TV and Teletext mode.
CLOUR BUTTONS: Select 4 preferred teletext pages.
HOLD: Freeze the current page.
REVEAL: Reveal or hide the hidden words.
SIZE: Change the picture size.
SUBTITLE: Displays subtitles.
INDEX: Request index page when index is valid.
* Teletext or Austext is no longer available, nor is
there any plan for a replacement teletext service
in Australia. For more information, please visit
the websites of the Australian channel providers.
However, one teletext option, “closed captions”, is
still working on most Australian television channels.
This service allows you to activate subtitles while
watching normal television programs that provide it.
TELETEXT MODE*
SUBPAGE: To go to the teletext subpage.
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT
11
Remote Control
NUMBER BUTTONS: Press 0-9 to select a teletext page.
FAV: Display your favourite channel list.
MENU: Brings up the main menu to the screen.
DISPLAY: Press to display the source and channel
information.
/ / / /OK: Allows you to move, select and setup
the OSD options.
CH+/-: Channel up/down.
CLOUR BUTTONS: Used in a few sub menus.
SUBTITLE: Displays subtitles.
: PLAY/PAUSE in TIMESHIFT and MEDIA mode.
: Stop in MEDIA mode or exit the REC or TIMESHIFT
mode.
/ : Fast backward and forward in MEDIA mode.
/ : Jump to previous and the next track in MEDIA
mode.
SIZE: Change the picture format.
EPG: Launched the EPG (Electronic Program Guide).
TV/RADIO: Select TV or RADIO modes.
DTV MODE
REC: Recode the program in DTV mode.
INDEX : To enter the PVR Settings menu directly.
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT

12
Remote Control
: Press to eject the disk
NUMBER BUTTONS: Press 0-9 to select a teletext page.
DISPLAY: Press to display the DVD information of DVD.
D. SETUP: Used for selecting programs. It may also be
used to execute commands.
/ / / /OK: Allows you to move, select and setup
the OSD options.
GOTO: Press to access the GOTO menu.
A-B: This button enables you to repeat a selected section
from the disc.
REPEAT: Press REPEAT to cycle through the repeat play
options.
SUBTITLE: Display subtitles.
TITLE: When DVD is playing, brings up the Title Menu.
ZOOM: In play state, press ZOOM, the player will zoom in
the picture once.
D.MENU: DVD disc menu. Access to menu
AUDIO: AUDIO selection buttons in DVD mode.
TIMESHIFT: Press to select timeshift function.
: PLAY/PAUSE in DVD mode.
: DVD Stop
/ : Fast backward and forward key
/ : Jump to previous and the next track/chapter.
DVD MODE
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT

12
Remote Control
: Press to eject the disk
NUMBER BUTTONS: Press 0-9 to select a teletext page.
DISPLAY: Press to display the DVD information of DVD.
D. SETUP: Used for selecting programs. It may also be
used to execute commands.
/ / / /OK: Allows you to move, select and setup
the OSD options.
GOTO: Press to access the GOTO menu.
A-B: This button enables you to repeat a selected section
from the disc.
REPEAT: Press REPEAT to cycle through the repeat play
options.
SUBTITLE: Display subtitles.
TITLE: When DVD is playing, brings up the Title Menu.
ZOOM: In play state, press ZOOM, the player will zoom in
the picture once.
D.MENU: DVD disc menu. Access to menu
AUDIO: AUDIO selection buttons in DVD mode.
TIMESHIFT: Press to select timeshift function.
: PLAY/PAUSE in DVD mode.
: DVD Stop
/ : Fast backward and forward key
/ : Jump to previous and the next track/chapter.
DVD MODE
AUDIO
SUBTITLE
HOLD
SIZE
TEXT
REC
INDEX
SUBPAGE
TIMESHIFT
RAVEAL
MIX
EPG
TV/RADIO
DISPLAY
FAV
STANDBY MUTE
PROGRAM 10 10+
GOTO
A-B
ANGLE
REPEAT
ZOOM
ASPECT
D.SETUP D.MENU TITLE EJECT
13
Wall Mounting Instructions(AX-1519)
Attach the stand
Remove the stand (For Mobile Installation)
To remove the stand, remove the screws in the circled area and the neck will
100mm x 100mm using screw size M4
(not supplied), length of screw should
not exceed 8 mm.
Please note: the 8 mm length of s crew
refers to how deep the screw can go
inside the mounting holes. When you
are buying screws, you should add the
original 8 mm to the thickness of your
mounting plate in order to get the total
screw length.
The screws in the package are for securing the TV stand only. If you are
on bracket support and wall support.
To attach the stand lay the TV down on a non-abrasive surface,then place the
TV stand on the neck of TV and insert the screws in the circled area.

14
Basic Installation
Antenna Connection (Home Installation)
AV Connection
To ensure good picture and sound, a TV antenna system needs to be connected. The
antenna system as shown can be sourced from TV equipment stores, which will provide
service for the correct installation and connection. After installation, insert the 75-OHM
antenna plug into the antenna jack (RF) as shown.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks in the
set using an AV Cable (Yellow [video], White and Red [left & right audio]). Select the AV
input source using the SOURCE button on the remote control.
AV C a b l e
TV

14
Basic Installation
Antenna Connection (Home Installation)
AV Connection
To ensure good picture and sound, a TV antenna system needs to be connected. The
antenna system as shown can be sourced from TV equipment stores, which will provide
service for the correct installation and connection. After installation, insert the 75-OHM
antenna plug into the antenna jack (RF) as shown.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks in the
set using an AV Cable (Yellow [video], White and Red [left & right audio]). Select the AV
input source using the SOURCE button on the remote control.
AV C a b l e
TV
15
Component (YPbPr) Connection
VGA (PC) Connection
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture
quality is improved compared to connecting a regular VCR to the AV input. Connect the
Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jack colours: Y is green, Pb is blue, Pr is red, Audio left is white and Audio right
is red, Select Component input source using the SOURCE button on the remote control.
Connect the VGA output of the PC to the VGA jack on the set. Connect the AUDIO
output of the PC to the PC AUDIO jack on the set. Select the PC input source using the
SOURCE button on the remote control.

16
HDMI Connection
MEDIA (USB) Connection
Power Cord Connection
HDMI is a digital connection for sending both Video & Sound signals
through the one cable. HDMI supports 1080p Video and Multi-channel
Digital Audio. Select HDMI input source using the SOURCE button on
the remote control
Connect portable USB storage device for use with PVR function. Select USB
input source using the SOURCE or MEDIA buttons on the remote control.
- Connect the power cord and AC adaptor correctly as shown.
- Press the STANDBY switch of your TV to switch the unit on. The power
indicator on the front panel lights up in blue.
Adaptor
Optional 3.5mm stereo
plug to RCA cable adaptor
for audio AUX-OUT

16
HDMI Connection
MEDIA (USB) Connection
Power Cord Connection
HDMI is a digital connection for sending both Video & Sound signals
through the one cable. HDMI supports 1080p Video and Multi-channel
Digital Audio. Select HDMI input source using the SOURCE button on
the remote control
Connect portable USB storage device for use with PVR function. Select USB
input source using the SOURCE or MEDIA buttons on the remote control.
- Connect the power cord and AC adaptor correctly as shown.
- Press the STANDBY switch of your TV to switch the unit on. The power
indicator on the front panel lights up in blue.
Adaptor
Optional 3.5mm stereo
plug to RCA cable adaptor
for audio AUX-OUT
17
FirstTimeSetup
will be displayed on the screen.
-
- Use the buttons to select the Language and then use the
button to select the Country.
- Use the buttons to select the Country and then use the
button to select the Auto Scan.
- Use the buttons to select the Scan type and then use the
button to select the START and press OK button to start searching for
the programs in your area. This may take a few minutes.
DTV+ATV

18
Installing the batteries
1. Open the cover at the back of the remote control unit completely.
2. Insert two 1.5V AAA batteries, ensuring the polarity (+ / -) of the batteries is correctly
aligned and the batteries are properly inserted to power the remote control.
3. Replace the battery cover.
Precautions when using batteries
Do not use old and new batteries together.
together.
Note that there are chargeable and non-chargeable batteries. Do not attempt to
charge non-chargeable batteries.
Remove the batteries from the remote control if you do not intend to use the unit
for a long time.
When disposing used batteries, follow any guidelines for recycling and disposal of
batteries that apply in your local area.
The remote control should be operated within 5 metres and 30° to the left or the
right of the IR receiver at the front of the LED TV.
Using the remote control
+
+
-
-

18
Installing the batteries
1. Open the cover at the back of the remote control unit completely.
2. Insert two 1.5V AAA batteries, ensuring the polarity (+ / -) of the batteries is correctly
aligned and the batteries are properly inserted to power the remote control.
3. Replace the battery cover.
Precautions when using batteries
Do not use old and new batteries together.
together.
Note that there are chargeable and non-chargeable batteries. Do not attempt to
charge non-chargeable batteries.
Remove the batteries from the remote control if you do not intend to use the unit
for a long time.
When disposing used batteries, follow any guidelines for recycling and disposal of
batteries that apply in your local area.
The remote control should be operated within 5 metres and 30° to the left or the
right of the IR receiver at the front of the LED TV.
Using the remote control
+
+
-
-
You can select an input signal source by pressing the SOURCE button on the your
remote control or control panel of your TV. The on screen display menu shows the
diagram below on the screen, and you can either press the SOURCE button on the
control panel or the arrows buttons on your remote control to choose an input signal
source.
Choose from the following input sources if you have your audio and video devices
connected to your TV.
19
Selecting Input Source
Basic Operation
Press SOURCE button on the remote control to display the input source list.
Press / button to select the input source you want to watch.
Press OK button to enter the input source.
Press EXIT button to quit.
DVD

20
Operating the Menus
Picture Menu
Press MENU button to display the main menu.
Press / button to select PICTURE in the main menu, it will highligh ration
1. Press / button to select the option that you want to adjust in the PICTURE menu.
2. Press / button to adjust.
3. Aft your adjustment, Press MENU button to return back to the previous
menu.
Picture Mode
Press / button to select Picture Mode, then press OK button to enter sub-menu.
Press / button to select. (Available Picture mode: Dynamic, Standard,Mild,Personal).
You can change the value of contrast, brightness, color and sharpness when the picture is
in Personal mode. TIPS: You can press PMODE button on the remote control to change the
Picture Mode directly.
Brightness
Press / button to select Brightness,then press OK button to enter sub-menu. Press /
button to adjust.
Contrast
Press / button to select Contrast,then press OK button to enter sub-menu. Press /
button to adjust.
Full
