Axis GTV Series User manual

2YEAR WARRANTY
audioxtra.com.au
12/24V
LED DVD/TV
with Google TV
AX1922GTV
22” (56cm)
Bluetooth FULL HD
AX1924GTV
24” (60cm)
Bluetooth FULL HD
AX1932GTV
32” (81cm)
Bluetooth HD
12-24V MULTIVOLT
JAPAN QUALITY

2
CONTENTS
TV Operation
Remote Control .........................................................................................................................................................................3
Initial Installation........................................................................................................................................................................4
Main Menu Operation ...........................................................................................................................................................5
Channel Menu ...........................................................................................................................................................................5
Picture Menu ..............................................................................................................................................................................7
Sound Menu ...............................................................................................................................................................................8
Bluetooth ......................................................................................................................................................................................9
Time Menu ...............................................................................................................................................................................11
Option Menu ...........................................................................................................................................................................12
HDMI CEC .................................................................................................................................................................................13
Lock Menu ...............................................................................................................................................................................14

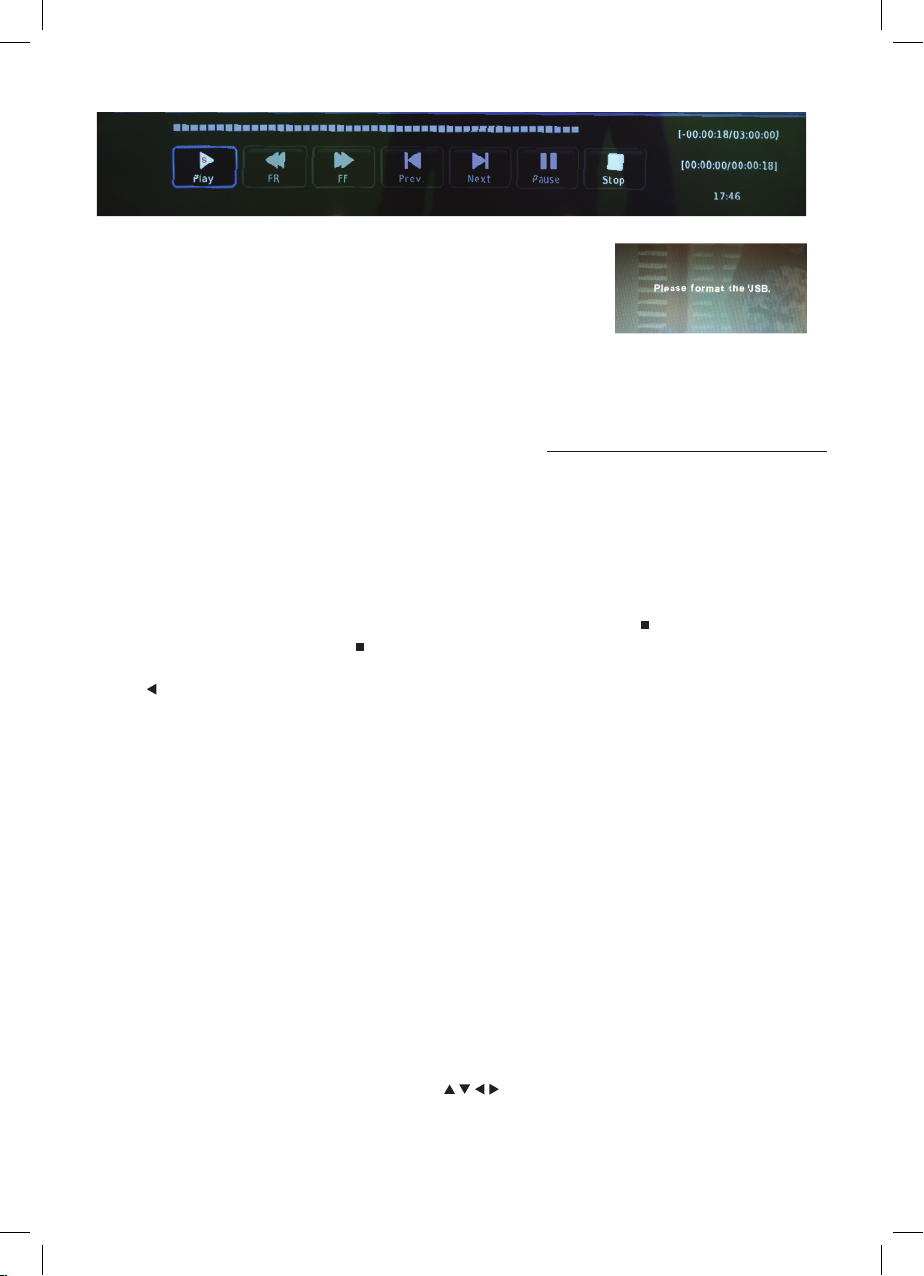

PVR ...............................................................................................................................................................................................15
Media Operation
Media Operation ...................................................................................................................................................................16
Photo Menu ..............................................................................................................................................................................17
Music Menu .............................................................................................................................................................................18

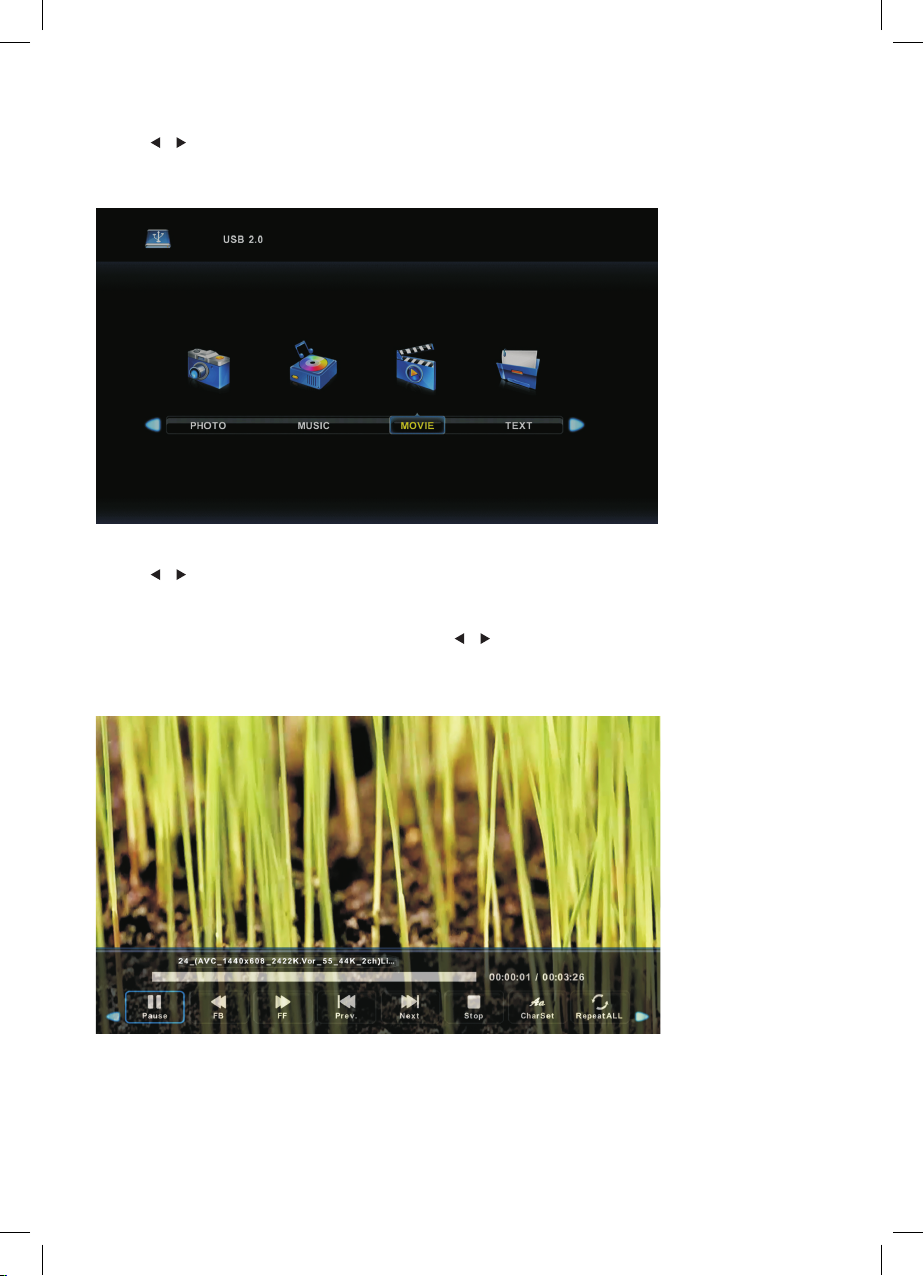

Movie Menu .............................................................................................................................................................................19

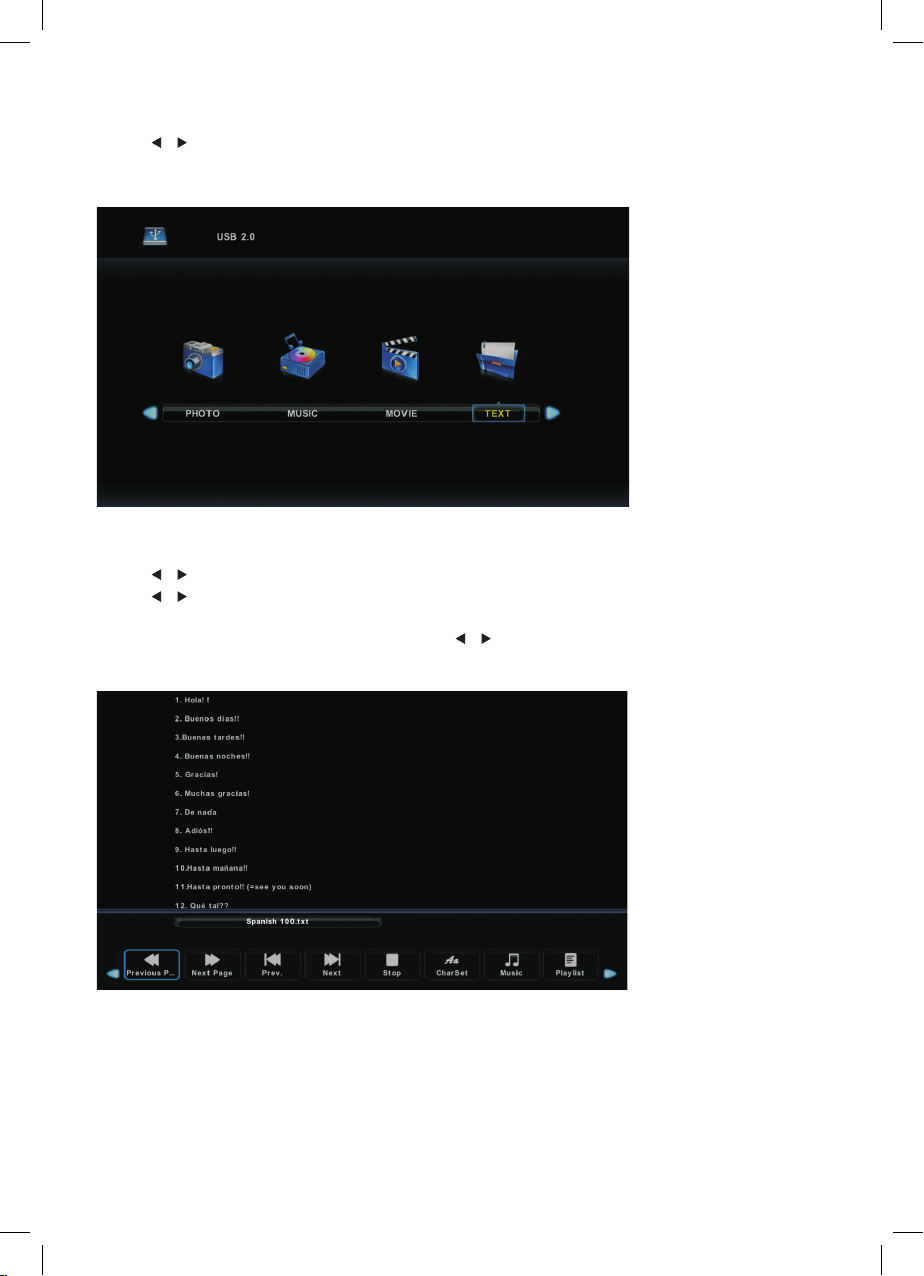

Text Menu .................................................................................................................................................................................20
DVD Operation
DVD Operation .......................................................................................................................................................................21
GOOGLE TV Setup
Google TV .................................................................................................................................................................................23
Chromecast Voice Remote Functions ......................................................................................................................25
Specifications
Specifications .........................................................................................................................................................................26

3

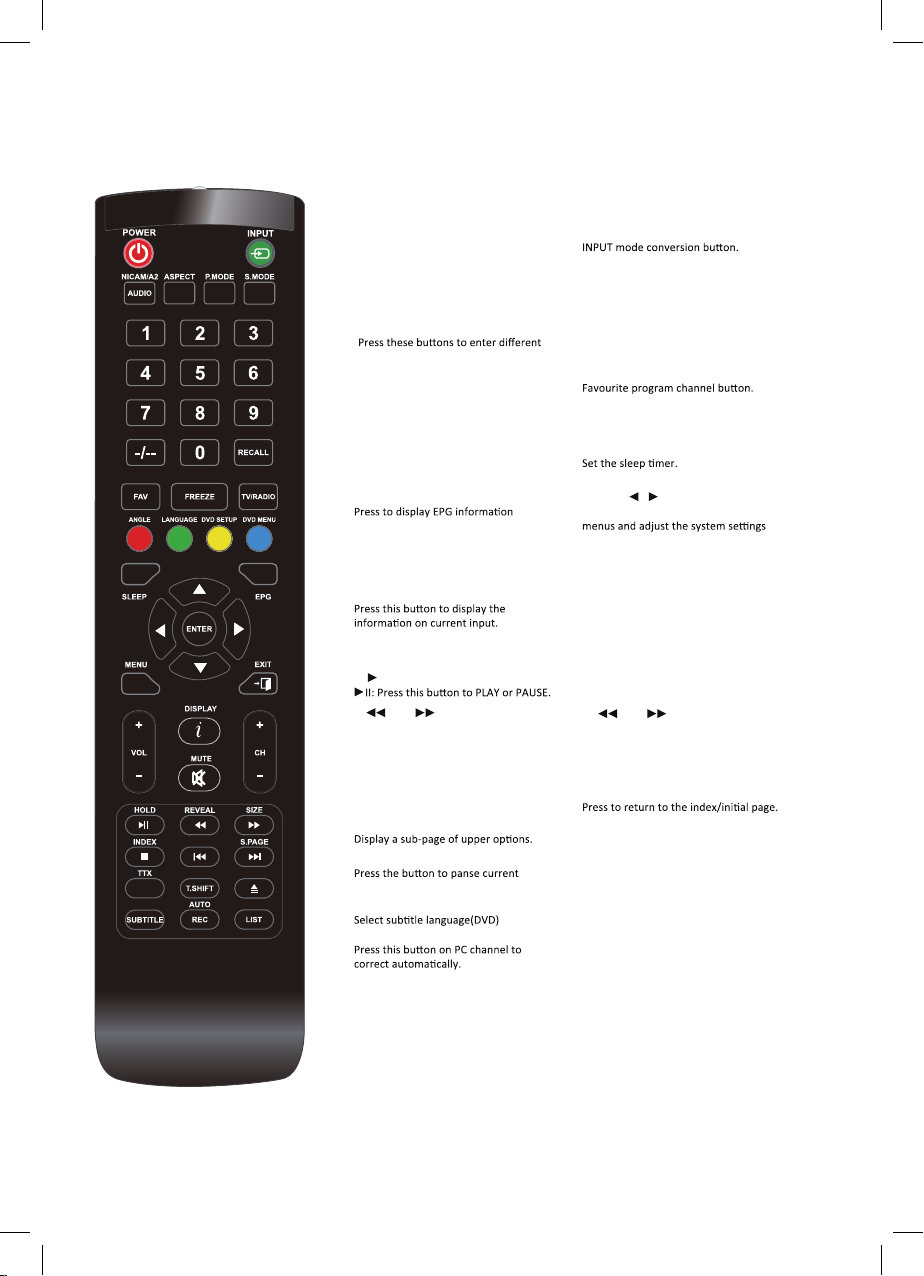

REMOTE CONTROL
【POWER】
Turns the TV on (standby)and off.
【NICAM/A】
TV Nicam/A2 select.
【ASPECT】
Select different size.
【PMODE】
Select the different picture mode directly.
【SMODE】
Select the different sound mode directly.
【RECALL】
Switch back and front between the current
and previous channels.
【FAV】
【FREEZE】
To freeze current picture.
【TV/RADIO】
Press to switch between DTV and radio programs.
【DISPLAY】 【MUTE】
Switches the sound on or off.
【VOL+/VOL-】
Adjust the volume.
【CH+/CH-】
Change the channel.
【II】 【■ 】
Stop the disc.
【 】【 】
Play fast backward/forward.(MEDIA/DVD)
【I 】【 I】
Play previous/next media file.(MEDIA/DVD)
【HOLD】
HOLD On or Offthe current page display in
Teletext mode.
【REVEAL】
Reveal or Hide the hidden words.
【SIZE】
Change the size of display in Teletext mode.
【INDEX】
【S.PAGE】 【TTX】
Press to turn the teletext On and Off.
【T.SHIFT】
DTV program and start recording.
【AUDIO】
Select Audio mode.
【SUBTITLE】 【REC】
Press to record the program immediately.
【AUTO】 【PVR】
PVR List.
【MENU】
Display the OSD menu(on screen display).
【EXIT】
Press EXIT to exit menu of sub menu.
【EPG】
(Electronic Program Guide).
【▲ /▼/ / /OK】
Allow you to navigate the on-screen
to your preference.
【RED,GREEN,YELLOW,CYAN】
Used to select the corresponding coloured
items on the screen during DTV mode.
【SLEEP】
【NUMBER(0-9)】
channels.
【-/--】
Press to change the channel bit.
【INPUT】
REPEAT
A-B

4
INITIAL INSTALLATION
External Connection

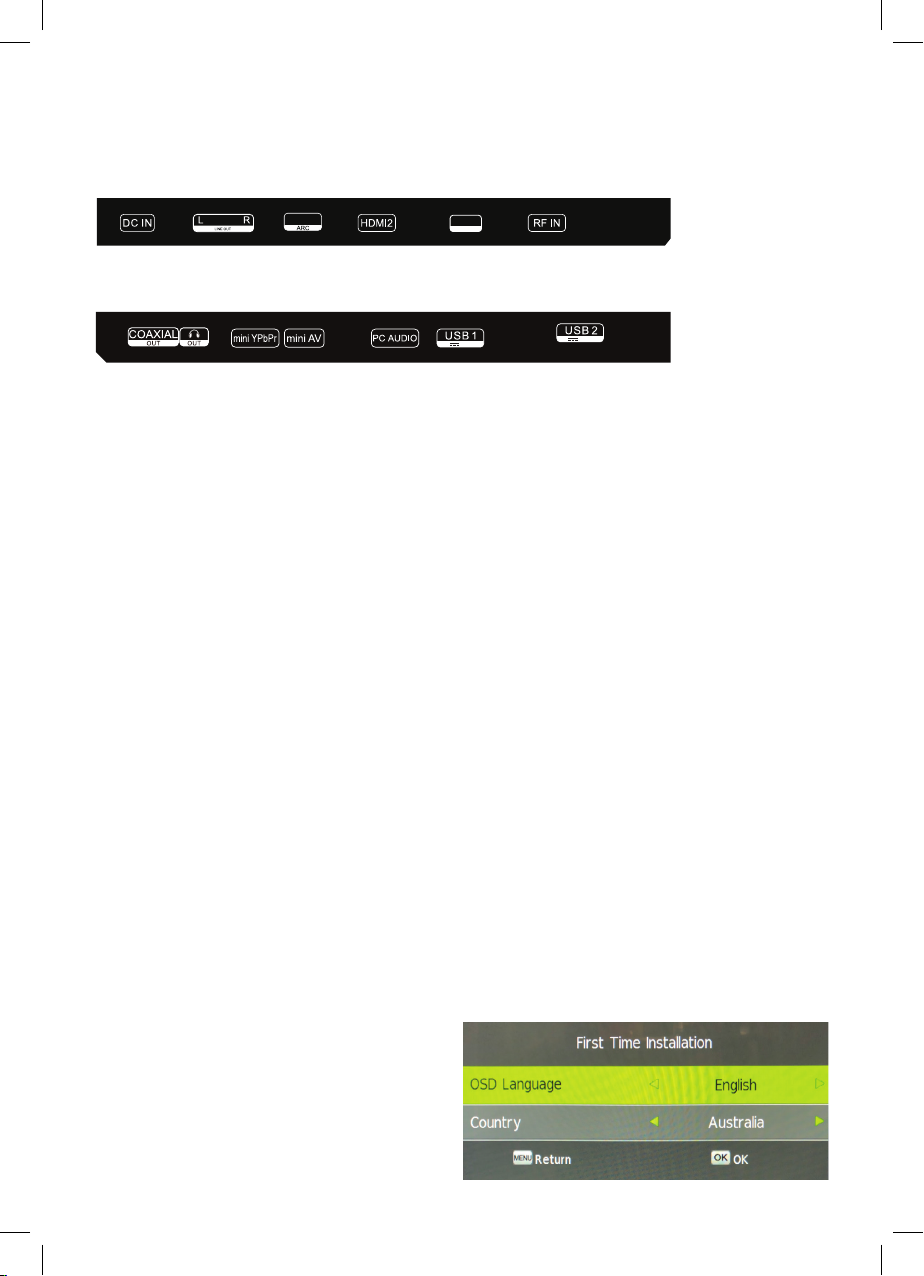

1. Bottom Panel
2. Side Panel
POWER: Connect to the mains adaptor.
AUDIO: Audio output for external devices such as Head Units, amplifiers etc.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX: Digital output to AV receiver.
HEADPHONE: Connect it to your headphone or other equipment.
Mini YPbPr: Connect it to the YPbPr video output terminal of DVD with the converter cable.
Mini AV: Connect it to the audio & video output terminal of DVD with the converter cable.
(Audio terminals are shared with YPbPr)
PC Audio: Connect it to the audio output terminal of PC.
USB: Connect to USB device for multimedia and PVR.
Firstly connect an RF Antenna cable from the TV’s RF output to the TV Antenna socket.
When you Reset the TV from the Setup menu, you will be presented with a number of dialogue
boxes that will guide you through the TV tuning process.
First Time Installation Menu
Selection 1: Language - English - select
ENTER on the remote:
Note: this is the menu language setting.
Selection 2: Country - Australia.
Please select a different country if applicable.
Selection 3: Environment: On. There is no
need to adjust this setting.
Press Source on the remote, then use the arrow keys to select your desired source. Press ENTER
on the remote to select the source.
Firstly connect an RF Antenna cable from the TV’s RF output to the TV Antenna socket.
presented with a number of dialogue When you Reset the TV from the Setup menu, you will be
boxes that will guide you through the TV tuning process.
First Time Installation Menu
Selection 1: Language - English - select ENTER on the remote. Note this is the menu language
setting.
Selection 2: Country: Australia. Please select a different country if applicable.
Selection 3: Environment: On. There is no need to adjust this setting.
3
TV Operation
Select Input Source
Initial Installation
5V 500mA 5V 1500mA
Google TV Power
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
POWER: Connect to the mains adaptor.
AUDIO: Audio output for external devices such as Head Units,amplifiers etc.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
Coax: Digital output to AV receiver.
PC audio: Connect it to the audio output terminal of PC.
Mini AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
Mini YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.
USB: Connect to USB device for multimedia and PVR.
Connect it to your headphone or other audio equipment.
:
External Connection
5V 500mA
VGA
PC IN
HDMI1

5
MAIN MENU OPERATION
Press the Menu button on the remote to select the Main Menu.
From there, you can use the / buttons to select between the following sub-menus:
- Channel

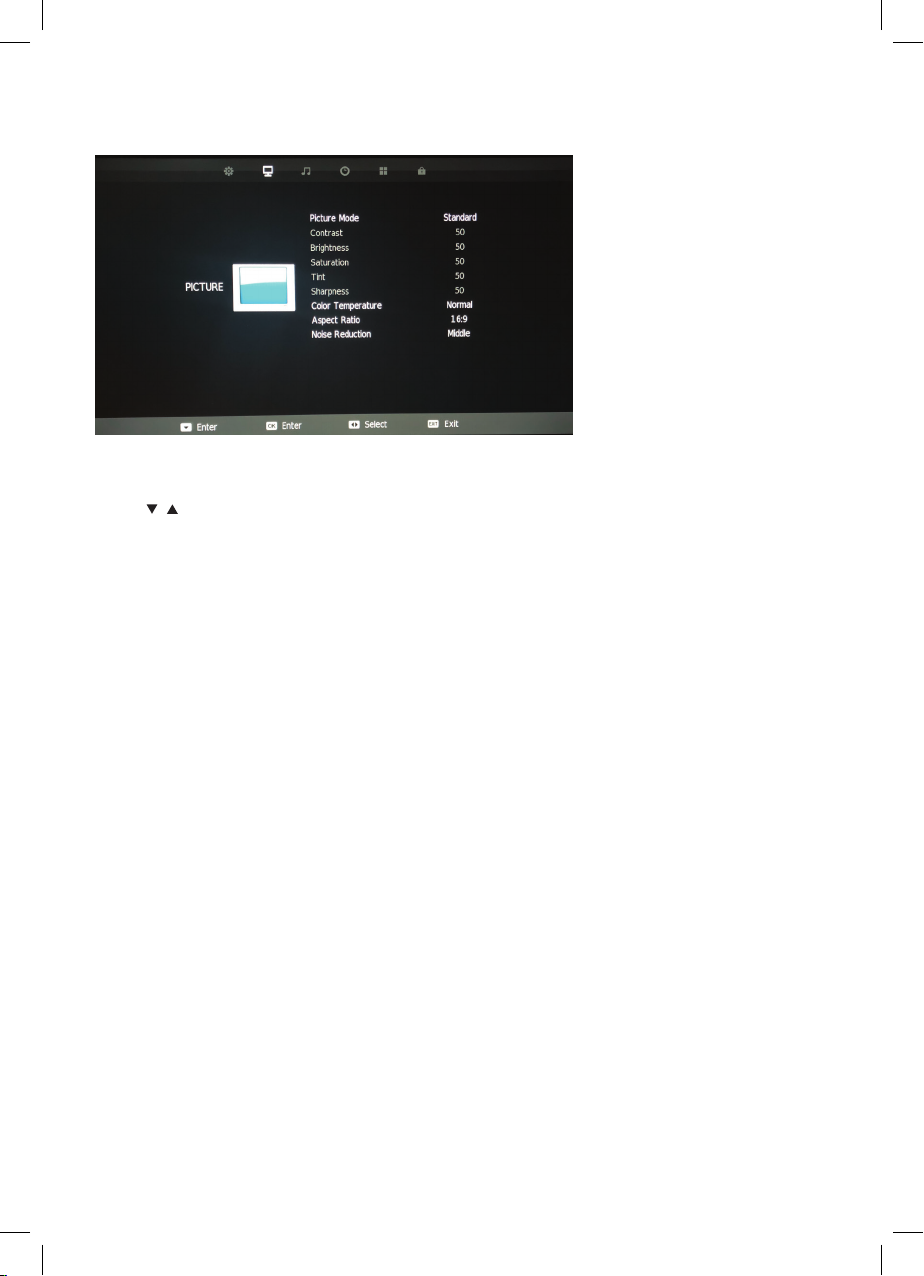

- Picture

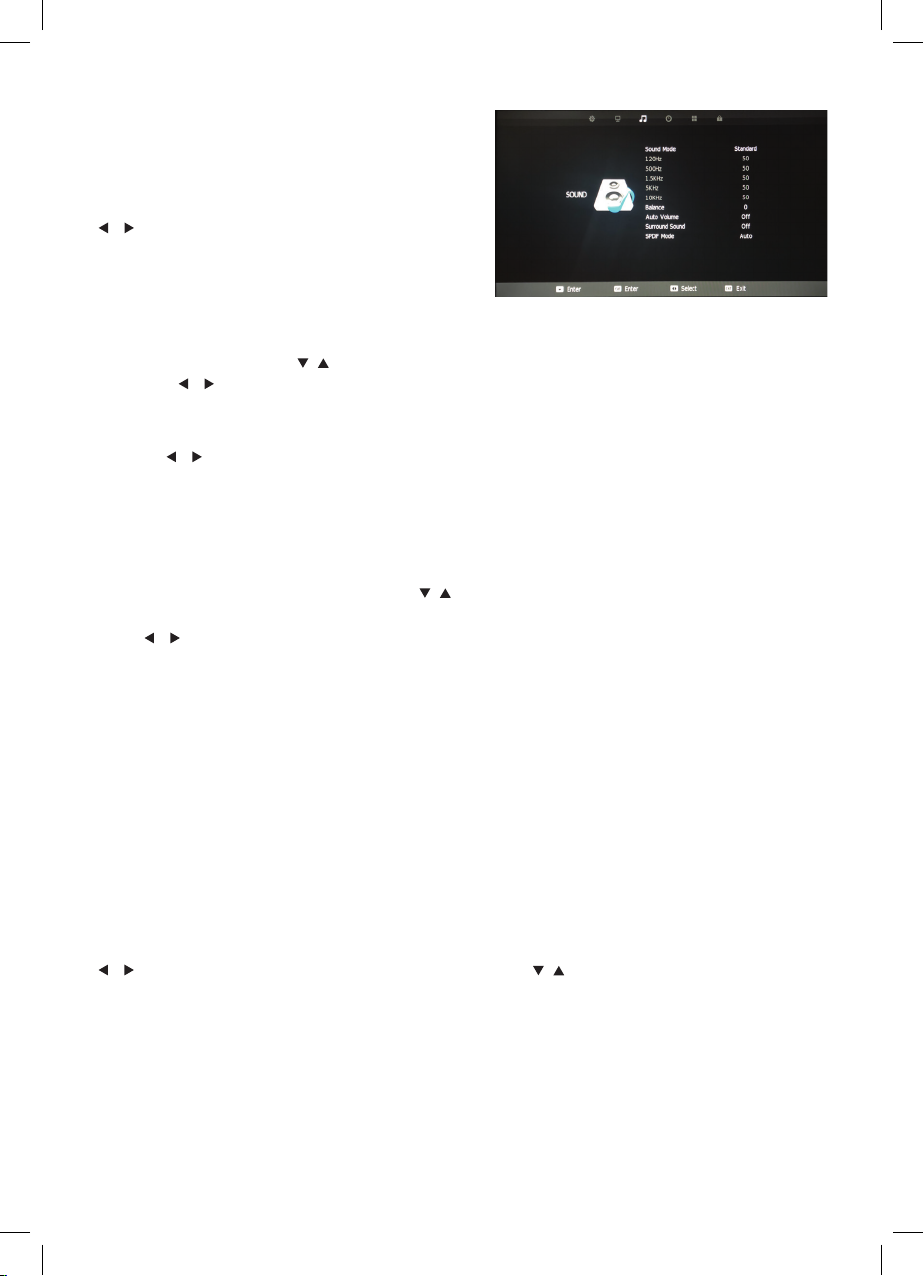

- Sound

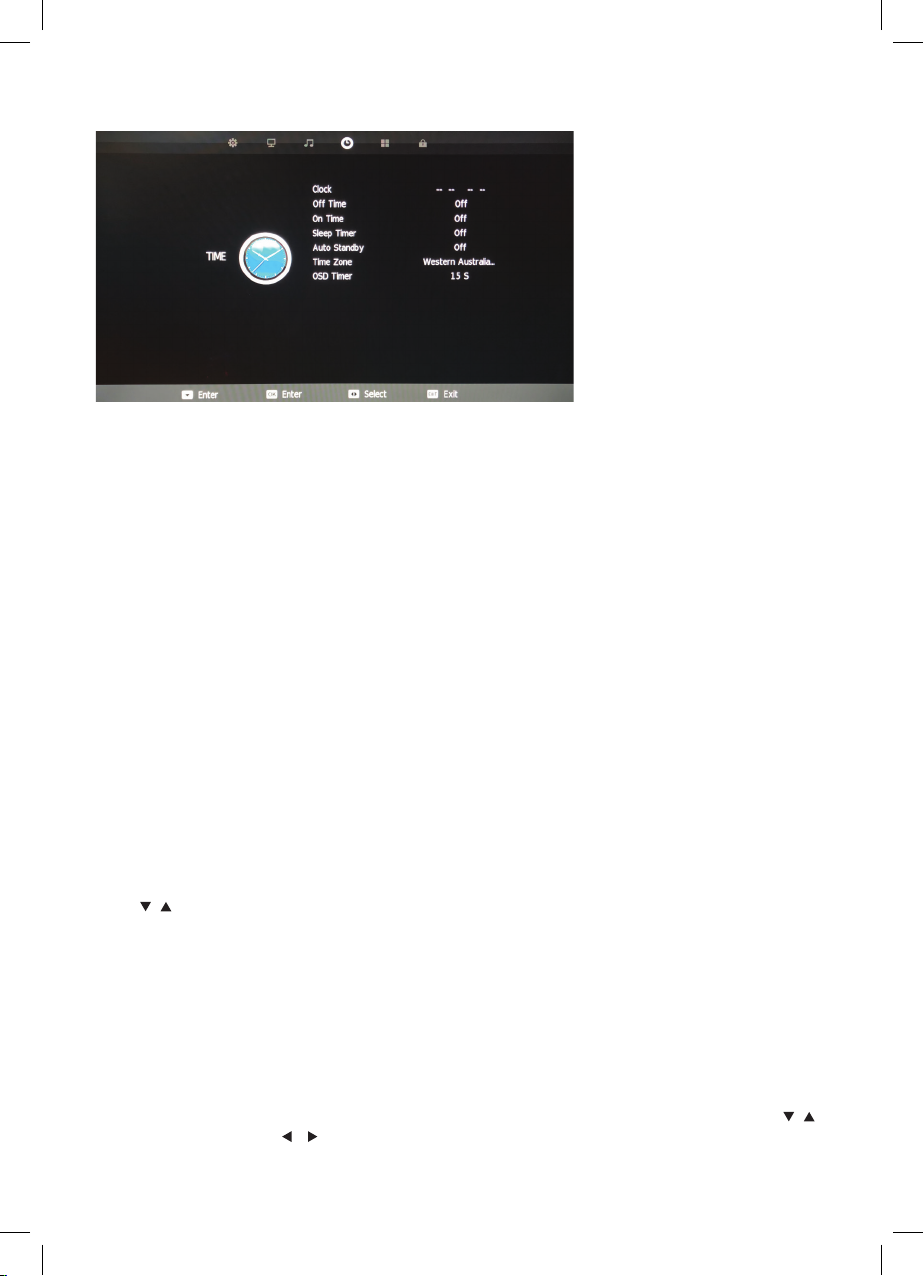

- Time

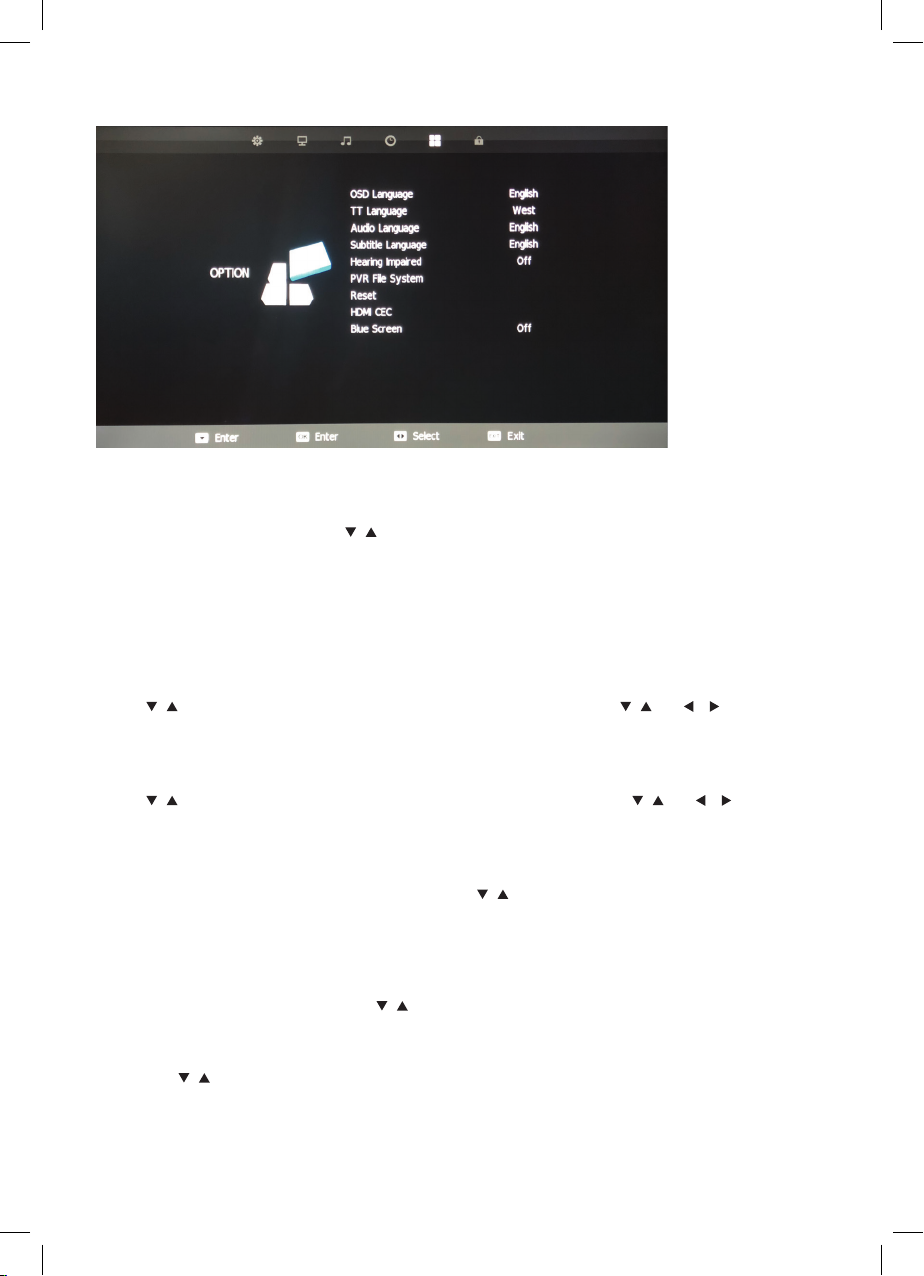

- Option
- Lock
Once you select a sub-menu, use the / buttons to select an option in the sub-menu.
CHANNEL MENU
Auto Tuning
The auto tuning interface will be displayed.
DVB-T Manual Tuning
Press / button to select DVB-T Manual Tuning, then press ENTER button to enter
sub-menu.
Press / button to select channel, the press ENTER button to search program.
Auto Tuning
Press the ▼/▲buttons to select Auto Tuning. After pressing the ENTER
ENTER
ENTER
DVB-T
DVB-T
button, the auto tuning
interface will be displayed.
Press the Menu button on the remote to select the Main Menu. From there, you can use the /
buttons to select between the following sub-menus:
- Channel
- Picture
- Sound
- Time
- Option
- Lock
Once you select a sub-menu, use the / buttons to select an option in the sub-menu.
4
Main Menu Operation
Channel Menu
.
Auto Tuning
Press the ▼/▲buttons to select Auto Tuning. After pressing the ENTER
ENTER
ENTER
DVB-T
DVB-T
button, the auto tuning
interface will be displayed.
Press the Menu button on the remote to select the Main Menu. From there, you can use the /
buttons to select between the following sub-menus:
- Channel
- Picture
- Sound
- Time
- Option
- Lock
Once you select a sub-menu, use the / buttons to select an option in the sub-menu.
4
Main Menu Operation
Channel Menu
.
Auto Tuning
Press the ▼/▲buttons to select Auto Tuning. After pressing the ENTER
ENTER
ENTER
DVB-T
DVB-T
button, the auto tuning
interface will be displayed.
Press the Menu button on the remote to select the Main Menu. From there, you can use the /
buttons to select between the following sub-menus:
- Channel
- Picture
- Sound
- Time
- Option
- Lock
Once you select a sub-menu, use the / buttons to select an option in the sub-menu.
4
Main Menu Operation
Channel Menu
.
