AYA AG930AHZ User manual

MICROWAVE OVEN
MODEL:AG930AHZ(900W 220 V 6 0Hz)
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE UNIT，READTHE SAFETY PRECAUTIONS IN THIS
MANUAL

SAFETY PRECAUTIONS
This device is to be serviced only by properly qualified service personnel.
Consult the service manual for proper service procedures to assure continued safety operation and for precautions to
be taken to avoid possible exposure to excessive microwave energy.
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
A) Do not operate or allow the oven to be operated with the door open.
B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other
microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)
seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and
latches, (5) evidence of dropping or abuse.
C) Before turning on microwave power for any service test or inspection within the microwave generating
compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,
integrity, and connections.
D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
E) A microwave leakage check should be performed on each oven prior to release to the owner.
CAUTION
MICROWAVE RADIATION
DO NOT BECOME EXPOSED TO RADIATION FROM THE MICROWAVE GENERATOR
OR OTHER PARTS CONDUCTING MICROWAVE ENERGY.

TABLE OF CONTENTS
（page）
SAFETY PRECAUTIONS---------------------------------------------------------Inside front cover
CAUTIONS------------------------------------------------------------------------------------------------1-1
THE HEATING PRINCIPLE OF MICROWAVE--------------------------------------------------2-1
INSTALLATIONS----------------------------------------------------------------------------------------3-1
OPERATING INSTRUCTIONS----------------------------------------------------------------------4-1
SCHEMATIC DIAGRAM--------------------------------------------------------------------------4-1
CIRCUIT DESCRIPTION-------------------------------------------------------------------------4-2
SERVICE INFORMATION-----------------------------------------------------------------------------5-1
TOOLS AND MEASURING INSTRUMENTS------------------------------------------------5-1
MICROWAVE LEAKAGE TEST----------------------------------------------------------------5-2
MEASUREMENT OF MICROWAVE POWER OUTPUT---------------------------------5-3
TROUBLE SHOOTING PROCEDURES------------------------------------------------------5-4
COMMON BREAKDOWN AND MEANS OF REPAIRING-------------------------------5-8
IMPORTANTTHINGSTODOPRIORTOCRITICALPARTSERVICING-------------------------5-9
SAFETY CHECKS AND TESTS AFTER SERVING--------------------------------------5-10
EXPLODED VIEW---------------------------------------------------------------------------------------6-1
REPLACEMENT PARTS LIST-----------------------------------------------------------------------6-1

CAUTIONS
• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVER TOUCH any oven components or wiring during
operation.
• BEFORE TOUCHING any parts of the oven, always
remove the power plug from the outlet.
• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
• Remove your watches whenever working close to or
replacing the Magnetron.
• DO NOT touch any parts of the control panel circuit. A
resulting static electric discharge may damage this
P.C.B.
• NEVER operate the oven with no load.
• NEVER injure the door seal and front plate of the oven
cavity.
• NEVER put iron tools on the magnetron.
• NEVER put anything into the latch hole and the
interlock switches area.`
Unlike other appliances, the microwave oven
is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
• Proper operation of the microwave oven
requires that
the magnetron be assembled to the waveguide
and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is
properly
installed around the dome of the tube
whenever
installing the magnetron.
THE OVEN IS TO BE SERVICED
ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
1-1

THE HEATING PRINCIPLE OF MICROWAVE
Microwave is one kind of radio wave whose wave length is very short, frequency is very high. Therefore, it is called ultrahigh
frequency electromagnetic wave. Microwave can heat food mainly result in the mutual affect of the food in the microwave field and
microwave field itself.
Under the affect of microwave field, the thermal effect mechanism produced from the mutual affect of the microwave and the food
includes two aspects: One is Dielectric loss of polar molecule, the other is conductive loss of ion.
Usually, food is constitute of organism (plant and animal).The organism is formed by all kinds of polar water molecule, polar
protein molecule, and all sorts of salt ion. The center of gravity of the positive and negative charge in the molecule is not coincide.
In normal condition, the molecule is in irregular order due to its thermal action, thus the food do not appear polarity (FIG.1-
1a).Under the action of outer electric field, the positive end of the polar molecule trend to the negative electric field, the negative
end of polar molecule trend to the positive electric field, and somewhat arrange in order through the direction of the electric
field(FIG.1-1c).This phenomenon usually be called “TORQUE POLARITY”. When the outer electric field apply for the opposite
polarity, the polar molecule then arrange an opposite direction order accordingly (FIG.1-1b).If the direction of the outer electric field
changed repeatedly, the polar molecule would repeatedly sway accordingly. During the swaying, it understands that the polar
molecule would produce heat due to somewhat similar friction among them.
When the electric field is applied for ultrahigh frequent microwave field from the outside, its direction would change tens billion
times per second, so do the molecule. This kind of molecule swaying producing similar frictional heat from the interference and
block of the action strength among the molecule, and changed to microscopic microwave heating. Microwave heating not only
concerned the nature of the matter itself, but also closely connected with the electric field strength and frequency. When the
frequency is low, the molecule swaying rate and the acute degree of the mutual friction among the molecule is low, and would
produce much heat. When the frequency is too high, as the swing of the polar molecule is with rotating inertia, it made the swing
do not in line with the changing rhythm of the electric field because of the friction drag, thus, actually lowed the polar molecule
swaying speed. The friction dragging degree is concerning about the magneto electric wave frequency, polar molecule shape, and
the matter’s sticky degree. To different matter’s molecule, there are different special frequency zone. Those ado absorb microwave
energy from these zone are most capable to turn microwave energy to heat energy.
Apart from the above said action, there is another action which is electric ion under the action of microwave field, act fiercely
accompanied with the acceleration of electric field. The positive ion transfer to the negative polarity of the field while the negative
ion do opposite. Accompanying with the changing electric field, the electric ion changing accordingly. During the transferring, heat
produced with the crash among the ion. This kind of action take the main effect to those microwave heating of high salt molecule.
No matter it is the polar molecule swaying or the ion transferring, they both are turning the microwave energy which the heating
matter got from the microwave field to hear energy. From the analysis of theory, we can draw such a conclusion that the power
which a unit of volume matter absorbed from the microwave field as the following formula:
Pa=K·E· F·Er·tgδ
Pa Stands for the power the heated matter absorbed from the microwave field.
K Stands for a constant
E Stand for microwave field strength
F Stands for the microwave frequency.
Er Stands for relative dielectric constant of the heated matter.
tgδStands for loss angle tangent of the heated matter
2-1

INSTALLATIONS
INSTALLING
1. Empty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.
2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)
3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.
4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.
5. Use microwave oven in an ambient temperature
less than 104°F(40°C).

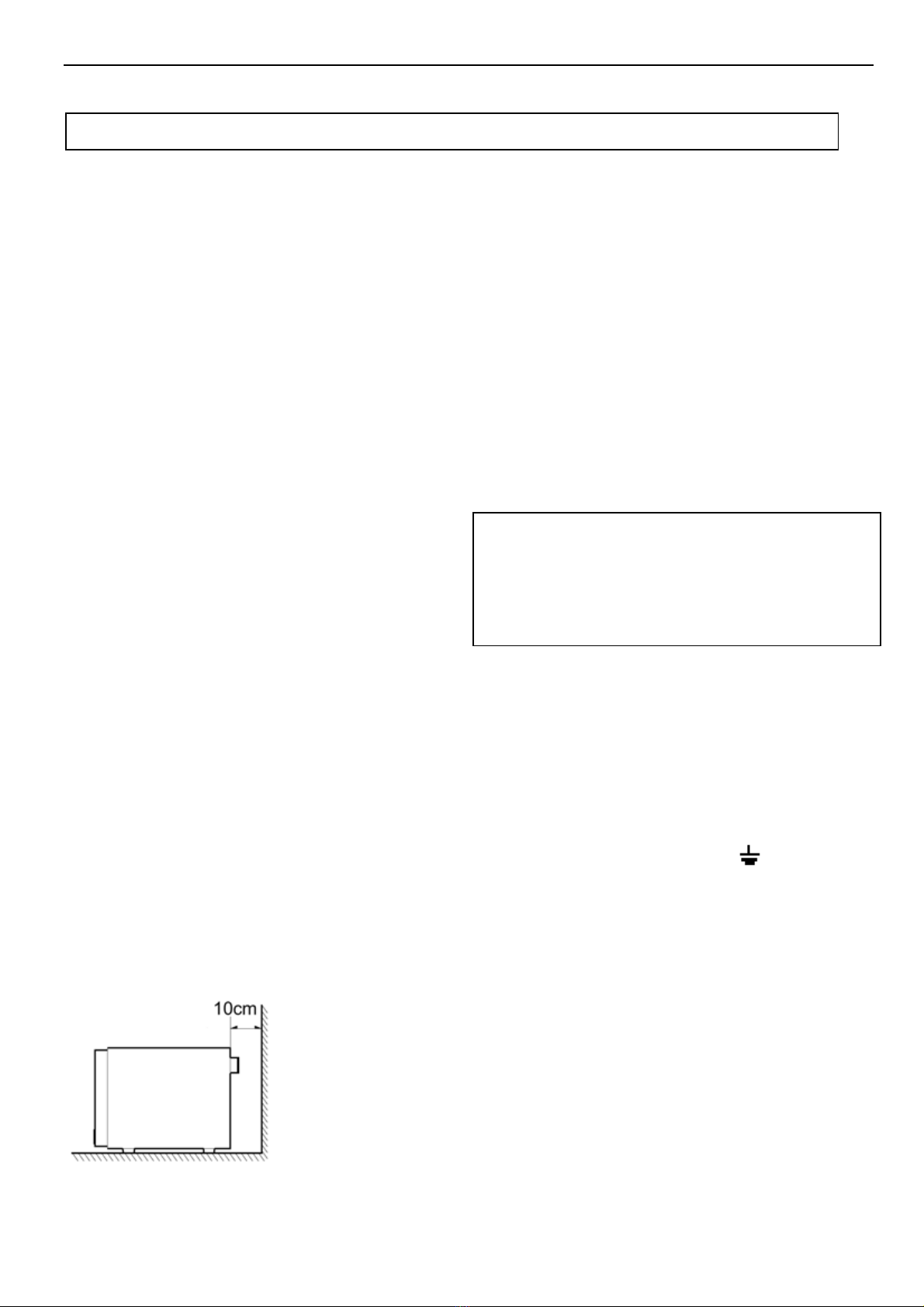

6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.
7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUTER, etc., to prevent
interference.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY
EARTHING INSTRUCTIONS
This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing
WARNING-
THIS APPLIANCE
MUST BE EARTHED
IMPORTANT
The wires in this mains lead are colored in
accordance with the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.
The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbol () or
colored green or green-and-yellow.
The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
N or colored black.
The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter L or colored red.
3-1

AG930

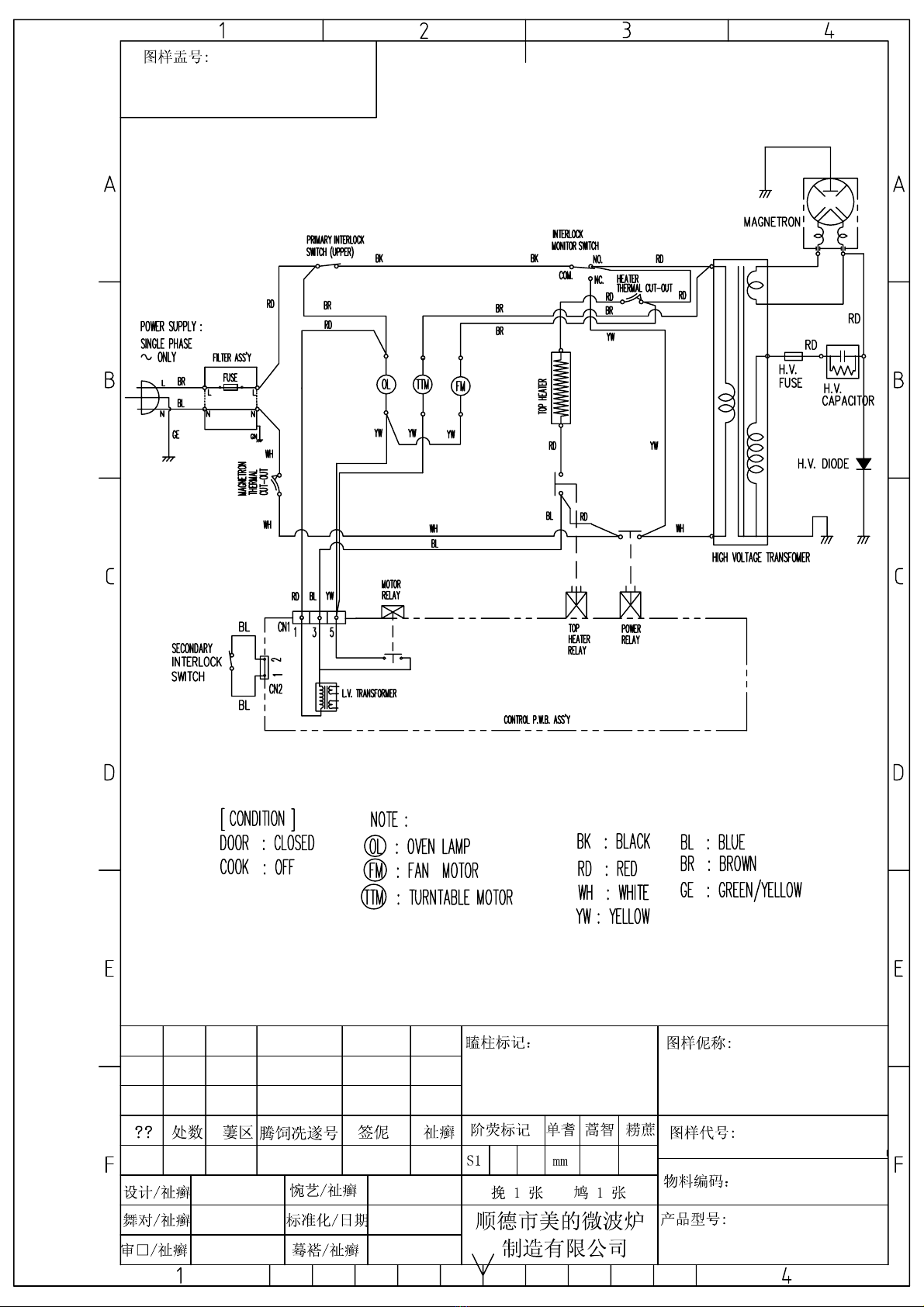

CIRCUIT DESCRIPTION

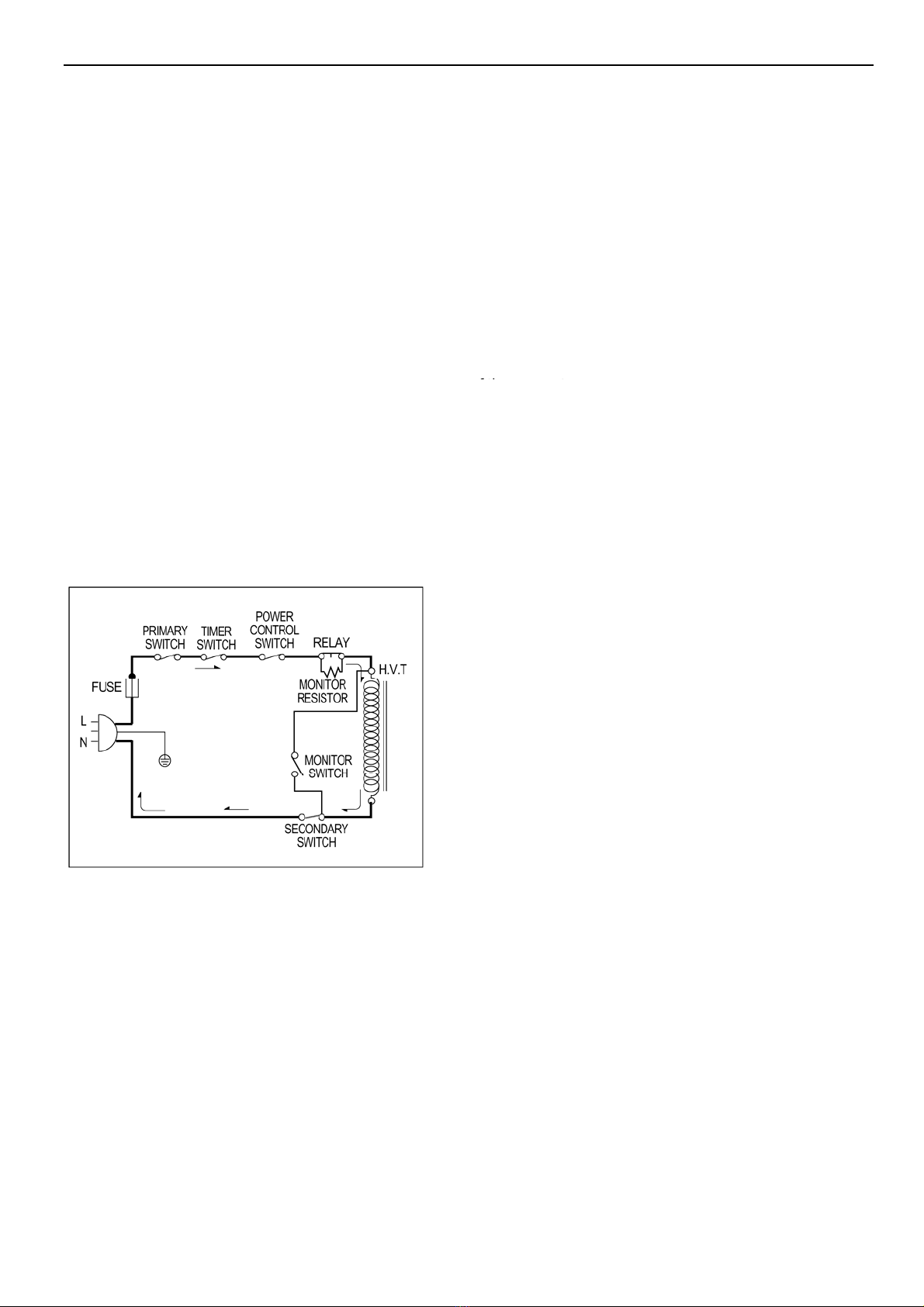

As the door is closed, the contactofMONITOR
SWITCH opens. This switch creates the short circuit to
blow fuse during operation under abnormal condition.
(ie, should the contacts of primary and secondary
switch fail to open the circuit)
• The latches are secured by latch board. The oven light
turns on while the oven is in operation.
WHEN MICROWAVE POWER LEVEL
AND COOKING TIME SET
• The contacts of the timer switch changes to ON
position when the timer knob is rotated.
(While power control knob is set )
• The contacts of primary and secondary switch close
the circuit.
• Input Volts AC. is applied to the high voltage
transformer through V.P.C.
• Turntable rotates.
• The fan motor rotates and cools the magnetron by
blowing the air (coming from the intake holes on the
baseplate) over the magnetron.
• The air is also directed into the oven to exhaust the
vapor in the oven through the upper plate.
• Timer starts rotating.
• 3.2 volts AC is generated from the filament winding of
the high voltage transformer. This 3.2 volts is applied
to the magnetron to heat the magnetron filament
through two noise-preventing choke coils.
A high voltage of approximately 2100 volts AC is
generated in the secondary of the high voltage
transformer which is increased by the action of the
diode and charging of the high voltage capacitor.
The negative DC voltage is then applied to the filament
of the magnetron
WHEN THE DOOR IS OPENED DURING
COOKING
• Both primary switch and secondary switch open to cut
off the primary winding voltage to the high voltage
transformer to stop microwave oscillation.
• Timer, turntable and fan motor stop.
• As the door is opened, if the contact of primary switch
fail to open, the fuse opens due to the large current
surge caused by the monitor switch activation which in
turn stops magnetron,oscillation.
4-2

SERVICE INFORMATION
TOOLS AND MEASURING INSTRUMENTS
NECESSARY TOOLS
Tools normally used for TV servicing are sufficient.
Standard tools are listed below.
• Diagonal pliers
• Long nose pliers
• Phillips screwdriver
• Flat blade screwdriver
• Wrench (size 5mm)
• Nutdriver (size 5mm)
• Adjustable wrench
• Soldering iron
• Solder
• Vinyl insulation tape
• Polishing cloth
MICROWAVE LEAKAGE TEST
CAUTIONS
• Be sure to check microwave leakage prior to
servicing the oven if the oven is operative prior to
servicing.
• The service personnel should inform the
manufacture importer, or assembler of any certified
oven unit found to have a microwave emission
level in excess of 5 mW/cm2and should repair any
unit found to have excessive emission levels at no cost
to the owner and should ascertain the cause of the
excessive leakage. The service personnel should
instruct the owner not to use the unit until the oven has
been brought into compliance.
• If the oven operates with the door open, the service
personnel should:
- Tell the user not to operate the oven.
- Contact the manufacturer.
• The service personnel should check all surface and
vent openings for microwave leakage.
• Check for microwave leakage after every servicing. The
power density of the microwave radiation leakage
emitted by the microwave oven should not exceed
5 mW/cm2. Always start measuring of an unknown field
to assure safety for operating personnel from radiation
leakage.
NECESSARY MEASURING
INSTRUMENTS
• TESTER(VOLTS-DC, AC., Ohmmeter)
• Microwave survey meter
- Holaday HI-1710(A)
- Narda 8100
8200
• Inch scale
• 600 cc non conductive material beaker (glass or
plastic), inside diameter: approx. 8.5 cm(31/2 in.)
• Cylindrical and made of borosilicate glass vessel.
max. thickness: 3 mm
outside diameter: approx. 190mm
height: approx. 90mm
• Glass thermometer: 100°C or 212°F (1 deg scale)
MEASURING MICROWAVE ENERGY
LEAKAGE
• Pour 275±15 cc of 20±5°C(68±9°F) water in a
beaker
which is graduated to 600 cc, and place the beaker
on the center of the turntable.
• Set the energy leakage monitor to 2,450 MHz and
use it following the manufacturer's recommended
test procedure to assure correct result.
• When measuring the leakage, always use the 2-
inch (5 cm) spacer supplied with the probe.
• Operate the oven at its maximum output.
• Measure the microwave radiation using and
electromagnetic radiation monitor by holding the
probe perpendicular to the surface being measured
Move probe along shaded area
Probe scanning speed: Less than 2.5 cm/sec
5-1

MEASUREMENT WITH OUTER CASE
REMOVED
• When you replace the magnetron, measure for
microwave energy leakage before the outer case is
installed and after all necessary components are
replaced or adjusted.
Special care should be taken in measuring the
following parts.
- Around the magnetron
- The waveguide
MEASUREMENT WITH A FULLY
ASSEMBLED OVEN
• After all components, including the outer case, are fully
assembled, measure for microwave energy leakage
around the door viewing window, the exhaust opening,
and air inlet openings.
• Microwave energy leakage must not exceed the values
prescribed below.
NOTE: Leakage with the outer case removed less than
3 mW/cm2. Leakage for a fully assembled
oven (Before the latch switch (primary) is
interrupted) with the door in a slightly opened
position-less than 1 mW/cm2
NOTES WHEN MEASURING
• Do not exceed meter full scale deflection.
• The test probe must be removed no faster than
1 inch/sec (2.5 cm/sec) along the shaded area,
otherwise a false reading may result.
• The test probe must be held with the grip portion of
the
handle.
A false reading may result if the operator's hand is
between the handle and the probe.
• When testing near a corner of the door, keep the
probe
perpendicular to the surface making sure the probe
horizontally along the oven surface, this may possibly
cause probe damage.
RECORD KEEPING AND NOTIFICATION
A
FTER MEASUREMENT
• After adjustment and repair of any microwave energy
interruption or microwave energy blocking device,
record the measured values for future reference. Also
enter the information on the service invoice.
• The microwave energy leakage should not be more
than 1.0 mW/cm2. after determining that all parts are in
good condition, functioning properly and genuine
replacement parts which are listed in this manual have
been used.
• At least once a year, have the electromagnetic energy
leakage monitor checked for calibration by its
WARNING : AVOID CONTACTING ANY
HIGH VOLTAGE PARTS
(Magnetron, H.V. Transformer,
H.V. Capacitor, H.V. Cable Ass’y,
H.V. Fuse)
5-2

MEASUREMENT OF MICROWAVE POWER OUTPUT

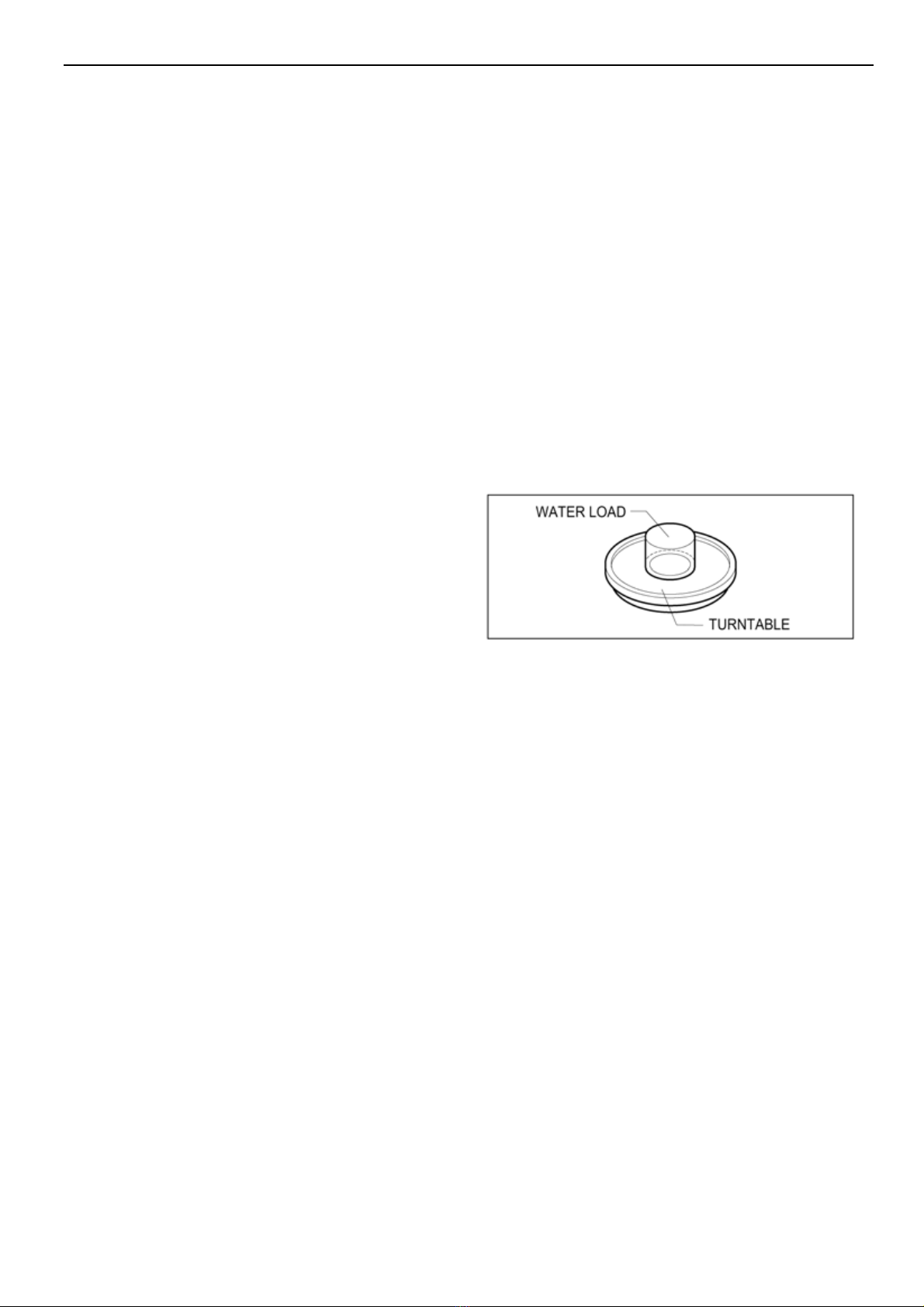

• Microwave power output measurement is made with
the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with
a load of (1000±5) g of potable water.
• The water is contained in a cylindrical borosilicate glass
vessel having a maximum material thickness of 3 mm
and an outside diameter of approximately 190mm.
• The oven and the empty vessel are at ambient
temperature prior to the start of the test.
• The initial temperature (T1) of the water is (10±2)°C It
is measured immediately before the water is added to
the vessel. After addition of the water to the vessel,
the load is immediately placed on the center of the
turntable which is in the lowest position and the
microwave power switched on.
• The time T for the temperature of the water to rise by a
value . T of (10±2)°K is measured, where T is the time
in seconds and .T is the temperature rise. The initial
and final water temperatures are selected so that the
maximum difference between the final water
temperature and the ambient temperature is 2°K.
• The microwave power output P in watts is
calculated
approximately from the following formula :
P=4187 x (△T)/T
is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 3 sec)
• The water is stirred to equalize temperature
throughout
the vessel, prior to measuring the final water
temperature.
• Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.
5-3

TROUBLE SHOOTING PROCEDURES
Before overhauling a microwave oven, you should judge the breakdown and the cause correctly, then you can repair it with
corresponding ways. The overhauling must be proceed in order, any hasty conclusion is not recommendable, otherwise
overworking would be done when repair. The microwave oven may occur compound breakdown due to all kinds of different
reasons, thus, when overhaul, they all should be taken into consideration. Special attention must be given to the microwave
leakage and the electric insulation when examine because they may do harmful to the repairing staff.
Ⅰ.MEANS OF THE BREAKDOWN EXAMINING
How to examine a microwave oven with breakdown? A better means which demonstrated in practical operating are through
inspecting and listening. On the basis of large amounts of perceptual knowledge, you can judge and analysis the breakdown
quickly and correctly.
1. Inspection.
Inspect whether the oven shape is disordered and where is the disordered position, if any. It is normal if the outer case
disordered a little, but abnormal if the oven, the door disordered, the door hook broken, the door crooked, or there are too
much looseness between the door and the oven after the door is closed.
2. Listening.
Listening to the voice of the oven operating and the noise of the fan after it conducted. Minor “wen wen” noise, cycling “kala”
noise and “shishi” noise should be consider as normal. But it is abnormal if the following noise occurred:
(1) Sound “wenwen” noise.
(2) Long time “shishi” noise.
(3) Strike voice like “pipa pipa”.
Ⅱ.SPOT EXAMINING STEPS OF THE MICROWAVE OVEN.
1. Examine the microwave insulating resistance.
Measure the insulating resistance with a multi meter or a mega ohmmeter. The value should not less than 2 mega ohm.
Otherwise, part examination should be taken at once. Such as checking whether the motor, the thermal cutout, the
transformer or the capacitor are electricity leaking.
2. Examination of the resistance value of the microwave oven.
Close the door, set the time (the oven is at operating condition but the power plug haven’t been plugged in), measure the two
feet(L-N)of the power plug with Rx1 grade of a multimeter, the resistance value should be about 22 ohm.
If open circuit occurred, then you must check whether the 10 A fuse is broken、the primary winding of the transformer is open
circuit、the thermal cutout is open circuit or not, you must check whether the interlock device is put through or all the plugs
are connected well. If short circuit occurred, you should check whether the primary winding of the power transformer is short-
circuited or part short-circuited.
3. Examination of microwave leakage
Measure the microwave leakage with a microwave leakage Measure. Place a graduate of 275ml water at the middle of the
glass tray of the oven (FIG.5-1). Close the door, power set high, time set to 3 minutes, press the starting button to operate the
oven. After rectified the microwave leakage measure, measure around the door crack, those hole position of the window and
the air vent at four sides of the oven with the probe of the measure. When measure, the moving speed of the probe should
not exceed 2.5cm per second, and the measuring direction should be the same with the outing direction of the microwave
leakage (FIG.5-2).
When measuring, the ultimate value of microwave leakage of all the measured position should not exceed 1.0 mili watt/cm2,
or should be considered as abnormal.
275ml
FIG.5-1
Glass tray
FIG.5-2
5-4

4. Examine when the oven at operating, but the food can’t be heated
Pull out the power plug, take off the outer case, discharge the capacitor, measure the resistance value of the primary winding and
the secondary winding of the transformer with a multi meter (FIG.5-3 and FIG.5-4). The resistance value of the primary winding
should be about 2.2 ohm, the secondary winding should be about 130 ohm, otherwise, it indicates the transformer has broken,
and should be replaced by a new one.
If the transformer is normal, then the high voltage capacitor should be checked. Pull out the connecting plug of the capacitor,
and measure it with Rx1 grade of a multi meter, the two rod of the multi meter connect the two polarity of the capacitor. When
they just connected, the reading of the multi meter should be zero, then enlarge to nine mega ohm slowly. Change the rod to
different polarity, the reading repeat from zero to 9 mega ohm (FIG.5-5),it means the capacitor is normal. If the indicator of the
multi meter can’t point out from zero to 9 mega ohm, it indicates the high voltage capacitor has broken, and should be
replaced by a new one.
If it is normal between the two pole of the capacitor, then the insulation between the capacitor pole and the cabinet (FIG.5-6)
should be checked.
If the resistance value between the capacitor pole and the cabinet is “∞”,the capacitor is normal. Then check the earth of the
magnetron’s two filament to see whether they are short-circuited (FIG.5-7).If they are short-circuited and the filament strikes
the shell of the magnetron, it indicates the magnetron has broken, and should be replaced by a new, same model one.
If there is no problem with the magnetron, check the high voltage diode then. Measure the diode with Rx10k grade of a multi

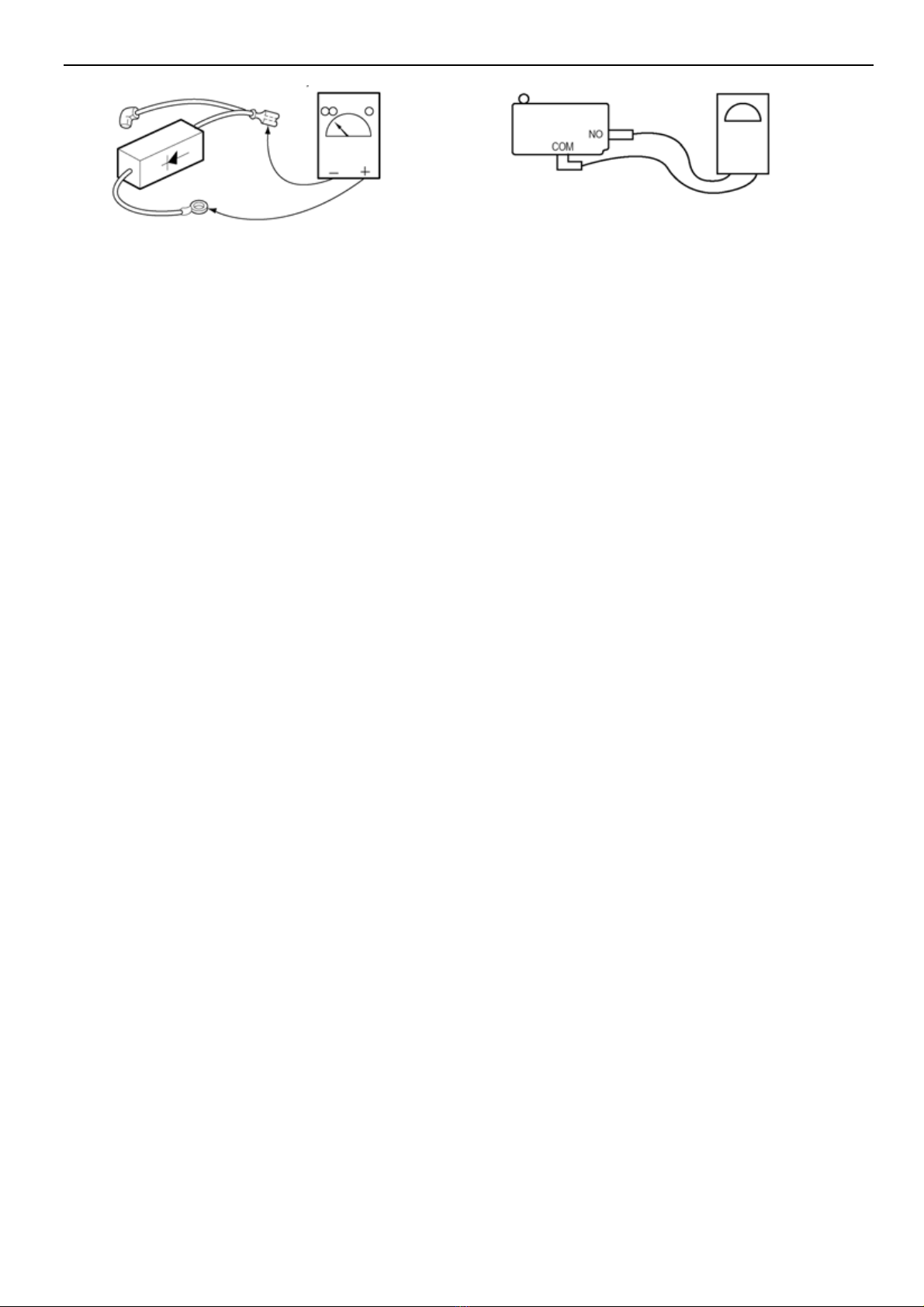

meter, the “-” rod end of the multi meter connect the cathode of diode, the “+ “ rod end of the multi meter connect the anode of
the diode(FIG.5-8).The multi meter reading should be about 150 thousand ohm. Then change the rod to different
electrode(FIG.5-9), the reading should be “∞”.If the reading is very small, and near to short circuit, it indicates the high
voltage diode has been punctured, and should be replaced by a new one.
If high voltage diode is also normal, then test the pilot switch(FIG.5-10). Pull out the two plugs of the switch, Measure it with
the Rx1 grade of a multi meter, the two rod connect the plug of the switch, the resistance value should be “∞”.Then press
down the pilot switch with a screwdriver, if the reading of the multi meter pointed to zero, it indicates the pilot switch has
broken, and should replace it with a new, same model one.
FIG.5-7
5-5
FIG5-6 FIG5-5
FIG.5-8

Ⅲ.REPAIRING METHOD OF SEVERAL BREAKDOWN
1. Repair when there occurred large amounts microwave leakage. There are many factors, which may cause microwave leaking.
Following mentioned may be the main cause of microwave leakage:
(1) The door deformed, the hinge loosed or damaged that caused the door can not close tightly.
(2) The door pressing cover or the embed piece damaged or come off.
(3) Obvious damage or uneven of the oven.
(4) There are filth between the door and the oven.
(5) The door and the oven are serious loosed after the door closed.
(6) The crack of the door shielding net cover.
Before repairing, check whether the above listed point are existed, if not, you can start the microwave oven. Place a
graduate of about 275ml water at the middle of the glass tray, close the door, time set at 3 minutes, power at high,
makes the oven operating in normal. Rectify the microwave leakage measure, measure the amount of the microwave
leakage around the oven with its probe. If there are places which the leakage exceed the standard requirement, then
repair them accordingly. If the leakage amount exceed 1.0 mW/cm2at the left door crack, then pull out the power plug,
take down the outer case, adjust the screws of the hinge to less the gap between the door and the oven. Then measure
again, the leakage amount should less than 1.0 mW/cm2. Generally, it should be controlled below 0.8 mill watt/cm2with
some allowance.
If the leakage occurred at the right door crack, adjust the screws that fix the interlock holder and the hook. If the leakage
is on the larger side at the right-above of the oven, then adjust the upper screw. Loosen out the screw, push the door
close to the oven to hook the door hook with the plastic parts, then tighten the screw again. If the leakage is larger at
the right-below, then adjust the lower screw. Loosen the screw, push the door close to the oven to hook the door hook
with the switch holder tightly, then tighten the screw again, and open and close the door repeatedly to check whether the
door can operate flexibly, whether the hook and the switch are in their normal position. If it is not in position, then adjust
the door hook and the switch holder the loose between the door and the oven, then measure the leakage with
microwave leakage measure again.
If there still exist microwave leakage, measure near the magnetron with the probe of the microwave leakage measure. If
the leakage is larger, the oven should be turned off and check whether the 2 or 4 screws which fix the magnetron have
been loosed, if loosed, twist them tightly with socket wrench. If the screws are fixedly, then the magnetron should be
take down to check the copper filament weaved washer of the magnetron has been placed well or whether the wave
guide housing coupling has been oxidized or have lacquer on it. If do have, scrape the oxidized layer or the lacquer off,
when fix the magnetron, the copper filament weaved washer must be placed well, the screws must be twist tightly. Then
turn on the oven and measure again until it complies with the requirement. If the microwave leakage is larger at those
hole position of the window board, the oven should be turned off to inspect whether there are crack among them. If
several holes formed a crack, it would enlarge the microwave leakage. If that is the case, it indicates the door has
broken, and should be replaced with a new door.
5-6
FIG.5-9
FIG5.10

2. Means of repair when the oven can heat, but the turntable glass can’t move
Firstly, check whether the turntable holder is placed correctly. If it is correct, then pull out the power plug and take down the
turntable combination, measure the resistance value of the turntable motor with Rx1k grade of a multi meter If it is open-
circuited, it indicates the turntable motor has broken, and should be replaced by a new, same model one. If the resistance
value is between 15-22k,it indicates the turntable motor is normal, then check the connecting shaft weave. If the plastic that
the shaft insert in has broken, a new shaft weave should replace it.
3. Repair when the oven can heat, but the lamp is not on.
Pull out the power plug, take down the outer case and discharge the capacitor.
Pull out the two terminal plugs of the lamp, measure the two plugs of the lamp with the Rx100 grade of a multi meter. If it is
open-circuited, it indicates the lamp has broken, and should be replaced by a same model one.
4. Means of repair when the oven stop working after several minutes operating
The phenomenon indicated the thermal cutout is playing its protective role, and you should check whether the fan is working
in normal. Turn off the oven, pull out the power plug, take down the outer case, discharge the capacitor, then turn the fan with
hand to see whether it is moving flexibly. If not, it indicates that the oil bearing of the fan motor has run off the oil, and should
take down the fan combination to repair the motor. Loosen the two screws which fix the bearing out the shaft and the bearing,
and rinse them with kerosene (ATTENTION: The bearing can only be wiped with a silk which moistened with kerosene rather
than be washed in the kerosene because there are felt on it. If the felt are soaked with kerosene, then the engine oil can not
be sucked up.).After the bearing being cleaned, the felt should be refueled fully with engine oil(for when the oven is operating,
the engine oil empty into the oil bearing slowly).Fix the bearing cover with two screws, turn the fan around till it can move
flexibly. Than install them to the oven, and plug in the two terminal plugs.
If the fan can move flexibly, then the winding of the fan motor should be examined. Measure the winding with Rx100 grade of
a multi meter, if it is open-circuited, it indicates the winding of the fan motor has broken, and should be replaced by a new,
same model one.
5-7

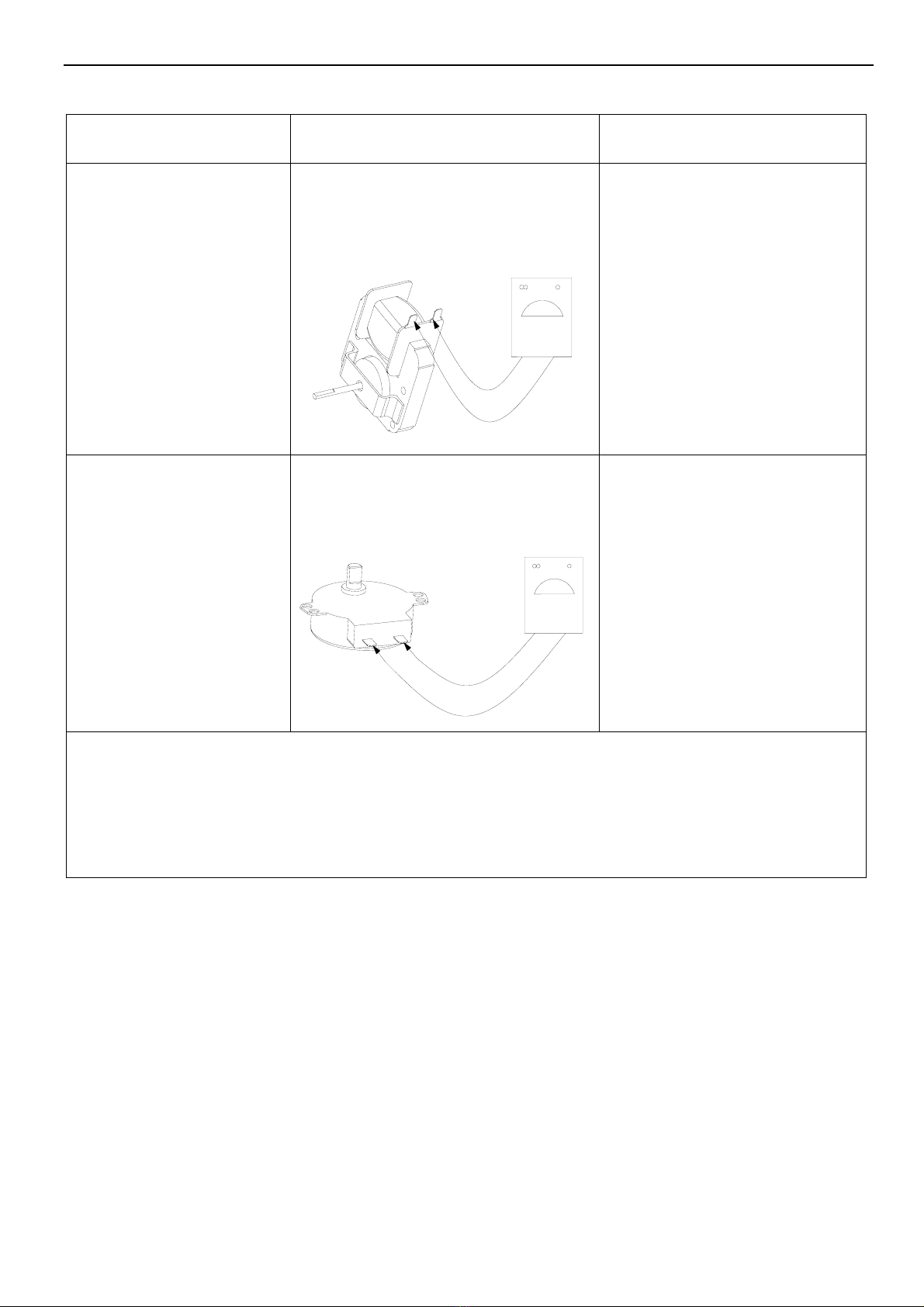

MOTOR TEST PROCEDURE
COMPONENTS TEST PROCEDURE RESULTS
Fan Motor
(Wire leads removed)
Measure the resistance.
(Ohm-meter scale:R×100)
Normal:Approx. 47Ω
Abnormal:∞or Several Ω
Turntable Motor
(Wire leads removed)
Measure the resistance.
(Ohm-meter scale:R×1000)
Normal:Approx. 3.2kΩ
Abnormal:∞or Several Ω
NOTE:
 A MICROWAVE LEAKGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS
SERVICED FOR ANY REASON.
 MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.
 WHEN REMOVING THE WIRE LEADS FROM THE PARTS,BE SURE TO GRASP THE
CONNECTOR ,NOT THE WIRES.
5-8

COMMON BREAKDOWN AND MEANS OF REPAIRING
PHENOMENON CAUSE REPAIRING MEANS
1.When starting the
oven, the lamp is not on,
the turntable tray can’t
rotate and the food can’t
be heated
1. fuse broken
2. The primary and secondary winding of the
transformer are short-circuited.
3. The earthing or the polarity of the capacitor is
punctured.
4. The pilot switch can’t cut off.
5. The interlock switch hasn’t closed.
6. The power plug and the socket are not in good
connection.
7. The door hook broken.
1. Change a new fuse.
2. Change a new
transformer.
3. Change a new capacitor.
4. Change a new pilot
switch.
5. Change a new interlock
switch.
6. Adjust the connection or
replace it by a new one.
7. Change a new book.
2.When starting the
oven, the lamp is on, the
turntable rotating, the fan
cycling but the food can’t
be heated.
1. The primary and secondary winding, the
filament of the transformer are open-circuited.
2. The magnetron filament is open-circuited, the
magnetic steel of the magnetron broken or the
magnetron is air leaking.
3. Time and power distributor broken..
4. The plugs of the magnetron of the capacitor
loosed.
1. Change a new
transformer.
2. Change the magnetron.
3. Change the time power
distributor or the micro-
switch.
4. Fix them.
3.The food can be
heated, but the lamp is
not on.
1. The lamp broken.
2. The plug fall off. 1. Change a new lamp 2. Insert the plug again
4.The food can be
heated but the turntable
tray is not rotating.
1. The turntable motor broken
2. The plug fall off
3. Connecting shaft weave broken
1. Change the turntable
motor
2. Insert the plug securely
3. Change the weave
5.The oven can heat
within 2-3 minutes, but
can not heat from the
fourth minutes.
1. The winding of the fan motor in open-circuited.
2. The fan falls off
3. The plug of the fan motor falls off
4. The turntable shaft is griped with the motor
bearing.
5. The cooling vent blocked
1. Change the fan motor
2. Change the fan
3. Insert the plug
4. Overhauling them
5. Repairing it
6.When starting the
oven, it can’t heat, and
with “wenwen” noise
The high voltage diode was punctured Change a new diode
7.The oven can heat,but
with sound “shishi” noise The iron core of the transformer loosed Change a new transformer
8.Large amount of
microwave leakage 1. The door deformed 2. The door metal net cracked
3. The gap of the door crack is too large
4. The welding point of the oven fall off
5. The screws which fix the magnetron loosed
6. The wave guide connection oxidized
7. The magnetron copper filament washer is too
thin cause the wave guide opening not in good
earth.
1. Mend the door
2. Change the door
3. Adjust the gap
4. Change the oven
5. Tighten the screws
6. Scrape the oxidized and
tighten the screws
7. Thick the copper filament
washer
9.The door can’t open 1. After long time using, the wear and the rust-
eaten enlarged the gap of the door shaft and
the shaft hole, thus cause the door crooked.
2. The door hook broken
1. Adjust the hinge to rectify
the position of the door.
2. Change the hook
10.The door release
button fall off Wore aged after long time operating Overhaul it or renew it
11.Electricity leaking The earthing insulation resistances of all the
motors or the transformer are less than 2 mega
ohm.
Test where is the leaking
place, then repair it or
change those damaged
components.
5-9

IMPORTANT THINGS TO DO PRIOR TO CRITICAL PART
SERVICING
The following instructions are CRITICAL to the owner’s safety. Be sure to follow all the instructions. Contact the
manufacturer of distributor if you have any question.
1.1 If the oven is operative prior to servicing a Microwave Leakage Test (Microwave Emission Check) should be
performed prior to servicing the oven.
1.2 in the event that any microwave oven found to have microwave emission level in excess of 1 mW/cm2.The
following procedures should be followed:
a. Inform the distributor, importer, or manufacture the finding. Record it in the logbooks well.
b. Repair the unit at no cost to the owner.
c. Investigate the oven and ascertain the cause of the excessive leakage.
d. Hold the oven in your facility and instruct the owner not to use the unit until the oven has been brought into
compliance.
1.3 In the event that the oven operates with the door open. The following procedures should be followed:
a. Tell the user not to operate the oven.
b. Hold the oven in your facility until it is investigated and repaired.
c. Contact the manufacturer immediately.
2. Interlock Assembly Replacement and Adjustment
2.1 If you suspect defective primary, secondary or monitor interlock switches, use your ohmmeter(digital or analog
type the check the electrical continuity.
2.2 Make sure the power cord is pulled out and the high-voltage capacitor is discharged before the electrical
continuity check.
2.3 Set the ohmmeter to “Low Resistance” range and connect both leads (alligator clips) to the switch terminals.
2.4 Open the door and notice the meter reading. The primary or secondary interlock switch should show an “infinite”
resistance when the door is open. Replace it when it is defective. The monitor interlock should show a “zero or
near zero” resistance when the door is open. When the door is closed, the readings will be opposite.
2.5 If the oven has been received inoperative due to the failure of the monitored safety(primary and/or secondary)
interlock(s),you should replace all of the monitored safety interlock switched and the monitor switch.
3. Door and Hinge Replacement and Adjustment
3.1 Pull the power cord from the outlet. Check the door for warped or damaged areas. Check the hinges for broken
or worn areas. Check other areas such as cracked from glass, broken door latched, worn/cracked viewing
screen and etc.
3.2 After determining the door assembly should be replaced, check the parts list for the correct part number. All oven
door components must be ordered directly from the manufacturer or its authorized distributor.
4. Magnetron Replacement
4.1 Check for the presence of the wire mesh gasket before installation.
4.2 Conduct a Microwave Leakage Test at the magnetron area prior to installing the top cover.
5-10

SAFETY CHECKS AND TESTS AFTER SERVING
Constructional Checks
If mechanical or electrical(electronic) parts have been replaced be sure to follow the following steps.
1.1 Check for correct wiring, adequate mechanical decrements of parts, and firm connectors.
1.2 Check for adequate grounding.
1.3 Check the following items before turning the oven ON.
1) Proper door closing, seal/choke surfaces, and hinges.
2) No outer case damage.
3) Proper interlock and monitor operations.
Insulation Resistance Test
If the low voltage power supply has been repaired, use a 500 V Mega ohmmeter to measure the resistance between the
primary(Line and Neutral)of the power plug and operator accessible metal parts. The resistance should be no less than 2 Mega
Ohms. Repair the oven again when necessary.
5-11
