Azio AWU212N User manual

802.11n
   WirelessUSBAdapter

MODEL:AWU212N










UserManual

802.11n Wireless USB Adapter
1
Copyright Statement
is the registered trademark of AZiO Corporation. All the products
and product names mentioned herein are the trademarks or registered
trademarks of their respective holders. Copyright of the whole product as
integration, including its accessories and software, belongs to AZiO Corporation.
Without the permission of AZiO Corporation, any individual or party is not allowed
to copy, plagiarize, imitate or translate into other languages.
All the photos and product specifications mentioned in this manual are for
reference only. As upgrade of software and hardware progresses, there will be
changes. And if there are changes, AZiO is not responsible for informing in
advance. If you would like to know more about our product information, please
visit our website at www.aziocorp.com.

802.11n Wireless USB Adapter
2
Table of Content
Chapter 1 Introduction…………………...........……………………………………2
1.1 Welcome……………………….......…….....……….…………………………2
1.2 Product Feature…………………………………………………………………2
1.3 Content of Package………....…….…………………….……………………2
1.4 Before You Begin…...........……….…………………….……………………3
Chapter 2 Installation…………………………..……………………………………4
2.1 Software Installation…………...…….....……….…………………………4
2.2 Hardware Installation………………………………………………………6
Chapter 3 Configuration………………………………………………………..……7
3.1 General…….………………………………………………………..……7
3.2 Profile…….………………………………………………………..……7
3.2.1 Add/Edit…….……………………………………………………..……7
3.2.2 Remove...………………………………………………………………9
3.3.3 Duplicate…………………………………………………………..…...9
3.3.4 Set Default………………………………………………………..…...10
3.3 Available Network……………………………………………………..……10
3.4 Status….........................……………………………………………..……11
3.5 Statistics……………..……….……..............………………………………12
3.6 WPS Setting………………...................…..……………..………………12
3.6.1
Pin Input Config (PIN) ...……………………………………………13
3.6.2
Push Button Config (PBC) ……………………………………..……15
Chapter 4 Product Specifications…………..........…………………………….16

802.11n Wireless USB Adapter
3
Chapter 1 Introduction
1.1 Welcome
Thank you for purchasing the AZiO AWU212N 802.11n wireless USB adapter. The
AWU212N adapter connects you with IEEE802.11n networks at receiving rates of
up to 300Mbps. By using reflection signals, 802.11n's “Multiple In, Multiple Out”
(MIMO) technology increases range and reduces “dead spots” in the wireless
coveragearea.
WPS (Wi-Fi Protected Setup) simplifies the security setup process and
management of Wi-Fi networks. The AWU212N also supports WMM for
Multimedia Applications with Quality of Service in Wi-Fi Networks.
1.2 Product Feature
Complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards
Supports USB 2.0 standards
Provides 300Mbps receiving rate and 150Mbps sending rate
Supports 20MHz/40MHz frequency width
Auto-detects andchangesthenetwork transmission rate
Provides two work modes: Infrastructure and Ad-Hoc
Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 802.1x
security authentication standard
WPS (Wi-Fi Protected Setup) simplifies security setup and management of
Wi-Fi networks
Supports WMM for Multimedia Applications with Quality of Service in
Wi-Fi® Networks
1.3 Contents of Package
One AWU212N
One Installation CD w/User Manual
One Quick Installation Guide
Contact your local authorized reseller or the store purchased from for any items
damaged and/or missing.
1.4 Before You Begin
You must have the following:
A laptop computer/desktop PC with an available USB 2.0 slot
Minimum 300MHz processor and 32MB memory
Windows 2000, XP*, Vista*, 7* (*32 or 64 bits)
A CD-ROM Drive
802.11b/g/n Access Point (for infrastructure Mode) or another 802.11b/g/n
wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode)

802.11n Wireless USB Adapter
4
Chapter 2 Installation
2.1 Software Installation
NOTE: Snap-shot screens of the following installation procedure are based on Windows
XP. Installation procedures are similar for other windows operating systems.
1. Insert Installation CD to your
CD-ROM drive. B
r owse the CD and
double-click
setup.exe in Driver
folder to execute it. The wizard will
run and install all necessary files to
your computer automatically.
2. Click Next to continue after selecting
setup language.
3. Click Install to start the installation.

802.11n Wireless USB Adapter
5
4. During the installation, the following
dialogue may appear. Click Continue
Anyway to continue.
5. Click Finish to complete the software
installation.
Now your computer will restart automatically.

802.11n Wireless USB Adapter
6
2.2 Hardware Installation
LED Indicator:
Status Description
ON Indicates a valid connection
Flashing Indicates transferring or receiving data
Installation:
1. Power on your PC. Let the operating system boot up completely and log in as
necessary.
2. Insert AWU212N into a USB slot
of your computer.
3. Select install the software
automatically
(Recommended) when Found
New Hardware window
appears.
The software and hardware installation for AWU212N is now complete.

802.11n Wireless USB Adapter
7
Chapter 3 Configuration
There are two ways to run REALTEK 11n USB Wireless LAN Utility as follows:
1. Click Start →Programs →REALTEK 11n USB Wireless LAN Utility →
REALTEK 11n USB Wireless LAN Utility to run the utility. Or…
2. Double click REALTEK 11n USB Wireless LAN Utility icon to run the
utility.
3.1 General
The General tab shows detail information about the current connection.
3.2 Profile
Profiles can keep your favorite wireless setting among your home, office, and
other public hotspot. You may save multiple profiles and activate the one of your
preference.

802.11n Wireless USB Adapter
8
3.2.1 Add/Edit
Profile Name: Specify a name for the profile
SSID: Name of intended wireless network.
Network Type:
 Infrastructure: A wireless Router and/or Access Point is required.
 Ad-hoc: Peer-to-Peer network, no base station required.
Check the checkbox to activate Ad-hoc mode.
 Channel: Channel of the connected wireless network.
 Authentication: Select from Open System, Shared Key, WPA-PSK,
WPA2-PSK, WPA 802.1x, WPA2 802.1x, WEP 802.1x, WPA CCKM and WPA2
CCKM.
 Encryption: Select from WEP, TKIP, AES, and Disable

802.11n Wireless USB Adapter
9

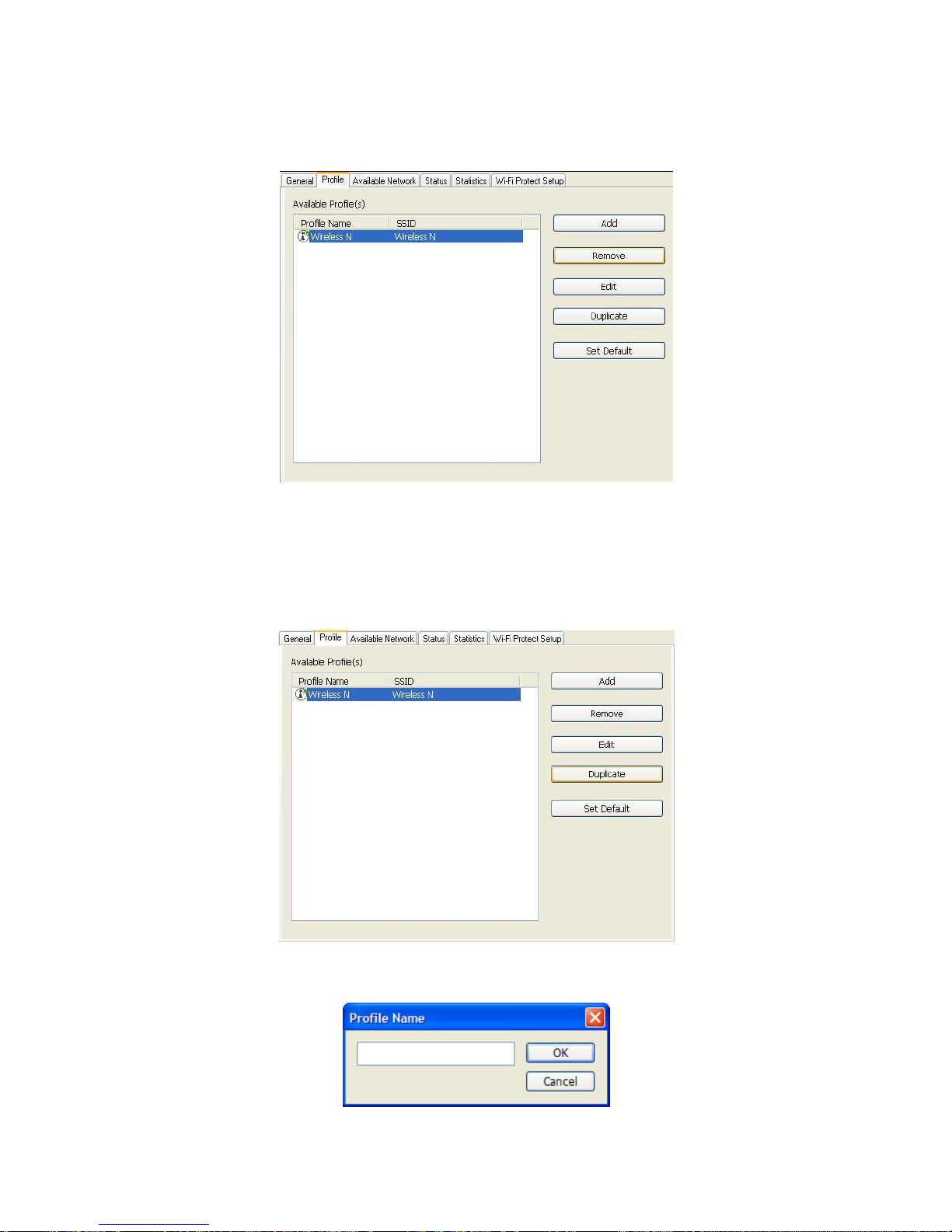

3.2.2 Remove
Select a profile and click Remove button to delete.
3.2.3 Duplicate
Select a profile which you want to copy and then click Duplicate.
Input the new profile name when Profile Name window appears.

802.11n Wireless USB Adapter
10

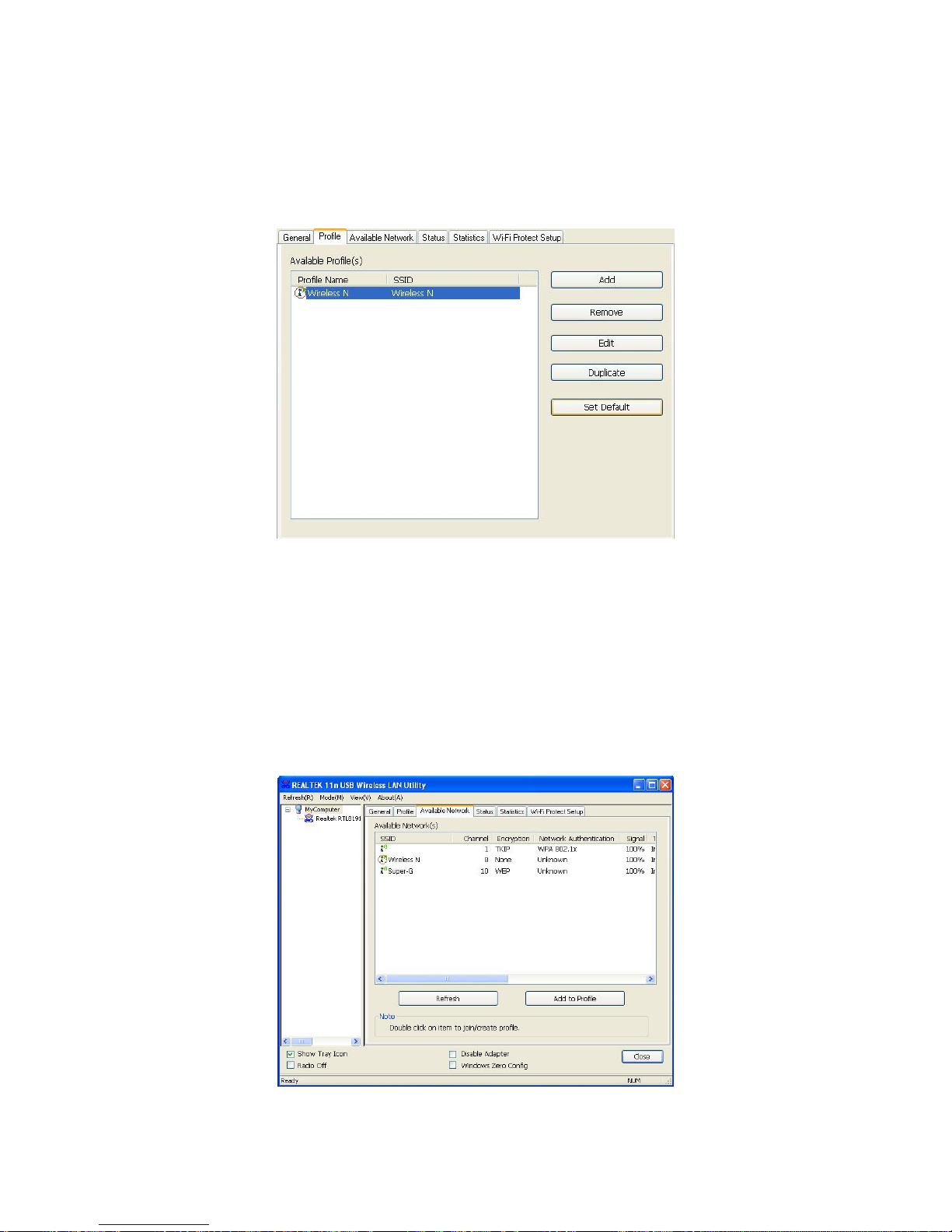

3.2.4 Set Default
Select a profile and click the Set Default button to make it the default profile for
automatic connection.
3.3 Available Network
Under Available Network tab, the information from all surrounding wireless
networks from the last scan will be displayed.
Click
Refresh to update and refresh.

802.11n Wireless USB Adapter
11
Double-click the network you want to connect.
Modify the profile information as needed.
3.4 Status
The Status tab displays the detailed information of the current connection.

802.11n Wireless USB Adapter
12

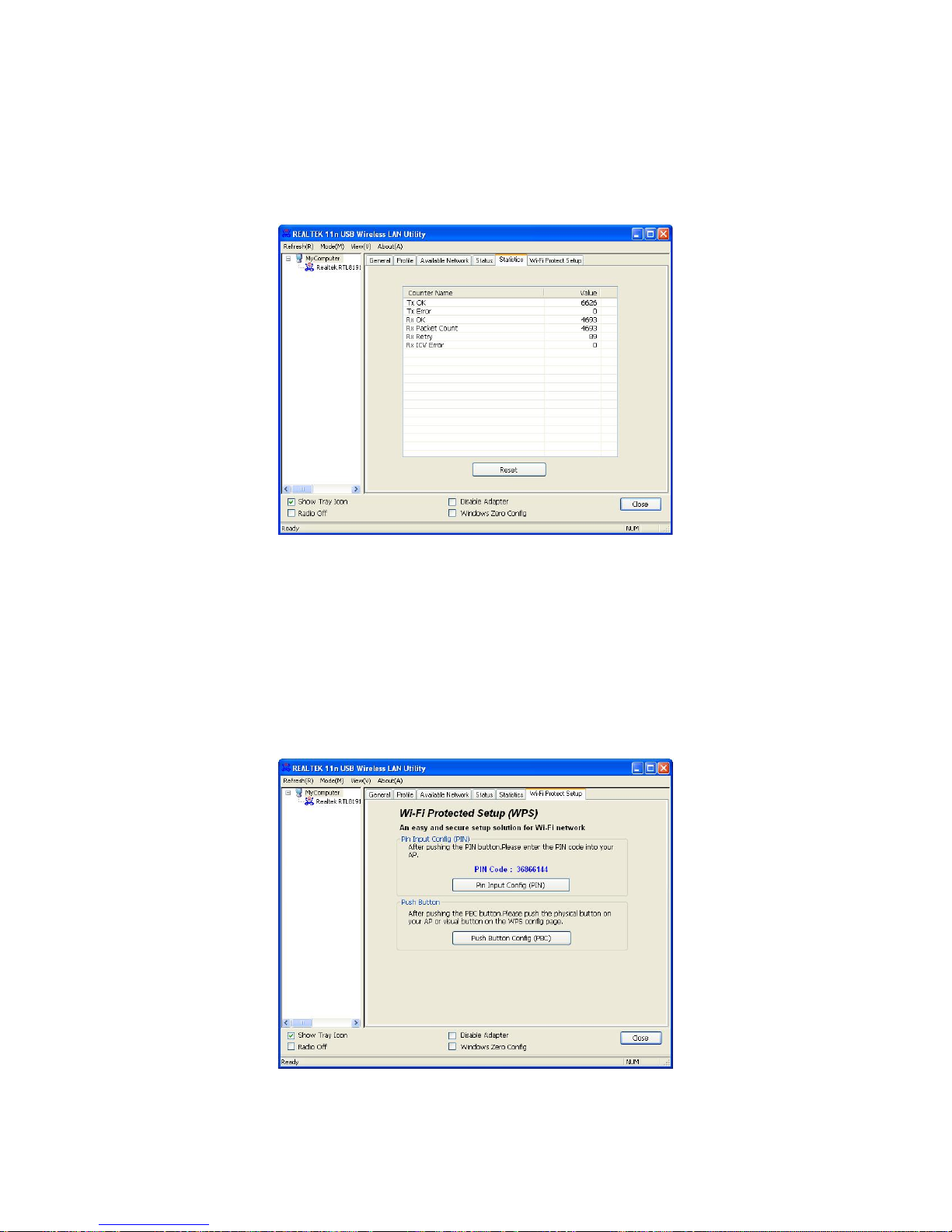

3.5 Statistics
The Statistics tab displays the detail counter information based on 802.11 MIB
counters. This page translates that MIB counters into a format easier for user to
understand.
Reset: to renew the statistics.
3.6 Wi-Fi Protected Setup
Wi-Fi Protected Setup tab supports the configuration setup using PIN
configuration method or PBC configuration method.
WPS simplify the security setup and management of Wi-Fi networks.

802.11n Wireless USB Adapter
13

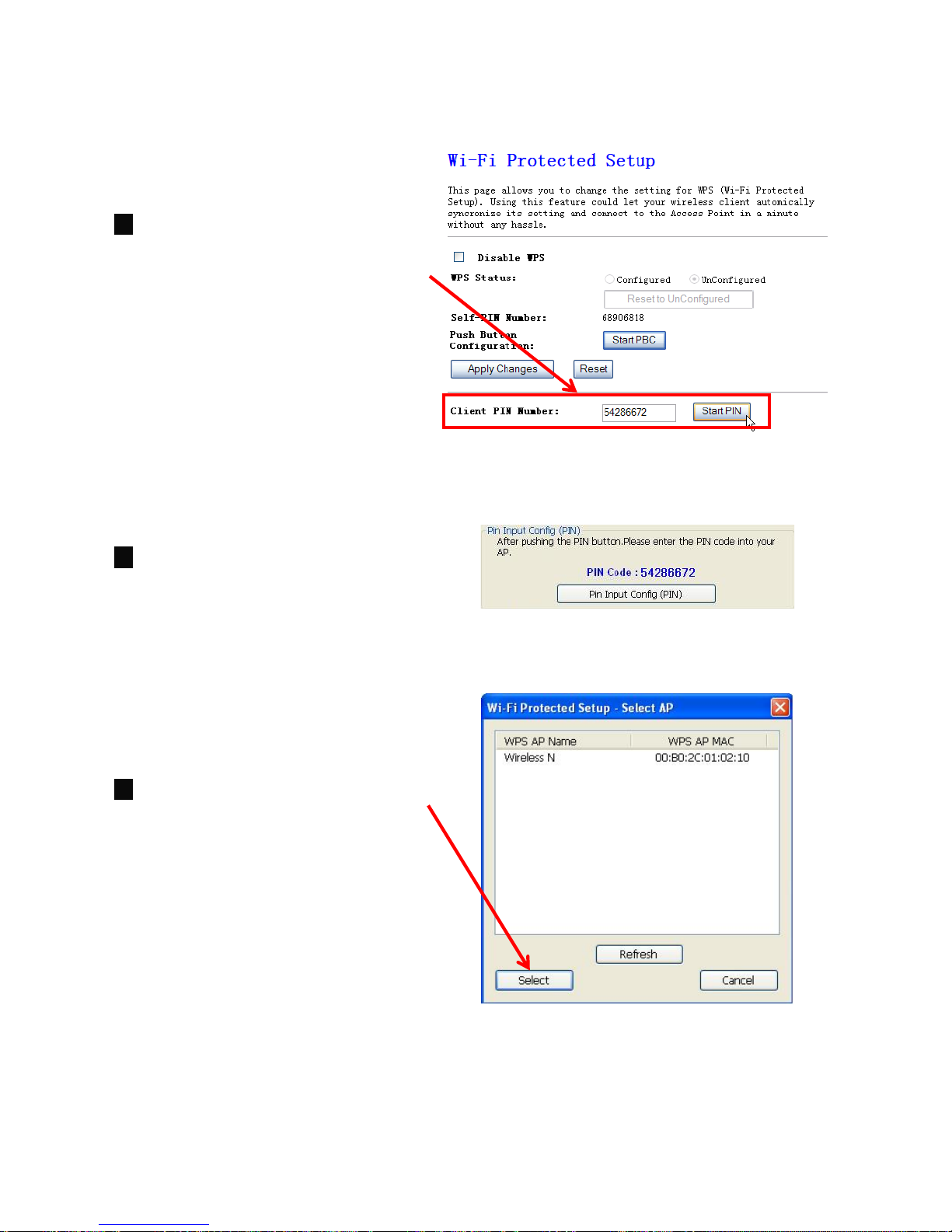

3.6.1 Pin Input Config (PIN)
1. Input AWU212N’s PIN Code into
AP and click Start PIN on the
AP-Router WPS config page
Note: AP operating page may vary
but similar from different brands.
2. Click Pin Input Config (PIN)
under AWU212N Wi-Fi Protect
Setup tab
3. Select one WPS AP you want to
connect and click Select.

802.11n Wireless USB Adapter
14
4. Wait until PIN method window
appears, the secure connection
between AP and AWU212N will
be established automatically.

802.11n Wireless USB Adapter
15
3.6.2 Push Button Config (PBC)
1. Click Push Button Config
(PBC) under AWU212N Wi-Fi
Protected Setup tab.
2. Click Start PBC on the
AP-Router WPS config page or
push the WPS button on your
AP.
Note: AP operating page may
vary but similar from different
brands.
3. Wait until PBC method
window appear, the secure
connection between AP and
AWU212N will be established
automatically.
Note:
If there is more than one AP on PBC mode, there will be session overlap. Please use PIN
Input Config (PIN) or wait for awhile and push the button again.

802.11n Wireless USB Adapter
16
Chapter 4 Product Specifications
Specifications:
Chipset Realtek RTL8191SU
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface USB 2.0
OS Windows 2000/ XP*/ Vista*/ 7* (*32 or 64 bits)
Frequency Range 2.412GHz~2.4835GHz
Modulation Method CCK , O FDM
speed
11b 11 Mbps/9 Mbps/6 Mbps/5.5 Mbps/2 Mbps/
1 Mbps
11g 54 Mbps/48 Mbps/36 Mbps /24 Mbps/
18 Mbps/12 Mbps/11 Mbps/9 Mbps/6 Mbps
11n 300Mbps ~ 270Mbps
Output Power 11b 18dBm 11g 15dBm
11n 13dBm
Security 64/128-bit WEP, WPA/WPA2, 802.1x
Antenna type printed antenna
Channels 11 Channels (USA, Canada)
13 Channels (Europe)
14 Channels (Japan)
Transmit distance Indoors : up to 300
feet
Outdoors : up to 600 feet
Operating Temperature 0ºC ~ 50ºC
Storage Temperature -40ºC~70ºC
Operating Humidity 10%~ 90% RH Non-condensing
Storage Humidity 5% ~ 90% RH Non-condensing
LED Link/Activity
Dimension(L x W x H) 60mm x 24mm x 8.5mm
Weight 7.7g

802.11n Wireless USB Adapter
17
Service & Warranty
Service
If you need assistance with the product, please visit our website at
www.aziocorp.com for frequently asked questions and troubleshooting tips.
Otherwise, please contact our dedicated customer care team.
There are several ways to reach us:
By Phone: (866) 468‐1198
By eMail: [email protected]
On Live Help: http://www.aziocorp.com/support/helpdesk.htm
Warranty
Limited 1 Year Warranty
AZiO Corporation warrants this product against defect in material or
workmanship for 1 year from the date of purchase. If this product proves to be
defective, contact AZiO Corporation’s customer care for repair or replacement of
your unit. Return requests cannot be process without the proof of original date of
purchase. This warranty applies only to the original purchase of the product and
is not transferable. This warranty does not cover any incompatibilities due to the
user’s computer, hardware, software or related system configuration in which the
product interfaces. The warranty does not cover any damage caused by
negligence, abuse, or non‐authorized modifications. To the maximum extent
permitted by applicable law, in no event shall AZiO Corporation, its affiliates, or
its dealers be liable for any special, incidental, indirect or consequential damages
whatsoever regardless of cause or form of action.
