Aztec Original User manual

USER GUIDE
Aztec Original
Aztec Extreme
Aztec O!-Set

Safety Instructions
Positioning
Please ensure that you have positioned your umbrella
according to the installation instructions that are supplied
upon supply of your ground fixing. If you are using portable
bases please ensure they are also correctly positioned so as
to avoid any obstructions that can cause damage to your
umbrella.
Electrical Supply
If you have chosen an umbrella that has heat and light then
you will almost certainly require a 32amp supply on a c type
breaker. We recommend you contact a qualified electrician
so that they can advise you on the best course of action to
prepare for your umbrella. Your umbrella will have 3 or 5
cables coming out from the base of the mast and these
must be connected with a waterproof connector.
Installation
Once you are happy with the positioning and you have the
electrics in place, you are now ready to stand up your
umbrella. This should be done by two or three competent
persons depending on the size of the umbrella by slowly
raising it up. Our extreme models are generally built on site
due to their size and weight.

General Information
Weather
If severe weather is forecasted we recommend that you close
your umbrella and correctly strap it up using an Aztec wrap
strap only. If you have your umbrella on a portable base
extra care must be taken.
Please note that any damage caused by wind or snow is not
covered under your warranty.
Cleaning
The frame can be cleared using a damp cloth and dried with
a dry cloth if required. The fabric can also be cleaned by
using a soft brush to remove any surface dirty and then
gently washed with a light soap and water solution and then
washed o!thouroughly.
Umbrella maintenance
Care should be taken to regularly inspect your umbrella and
check for any loose fixings or any issues with the arms or
crank mechanism. If you have any questions please notify us
as soon as possible. It is worth noting that umbrellas are not
a replacement for solid outdoor shelters and should be open
and closed regularly to ensure the moving parts are kept
moving and lubricated.

General Information
Warranty
The warranty is go the original buyer and is not
transferable. The warranty is for 2 years from the date of
delivery. The warranty covers all fixings, arms, gearbox and
mast. Any wind damage or vandalism is not covered under
your warranty.
The manufacturer is not responsible for any additional costs
incurred as a result of any defects found on the umbrella.
We also do not cover any modifications made to the
umbrellas post delivery.
Umbrellas with Heat & Light
If your umbrella has our integrated infrared heat and LED
lights, you will need to ensure you have correctly followed
our 'Installation Guidelines' correctly. Please always ensure
the umbrella supply is isolated if any works are to be carried
out.
You must always ensure that the heaters are turned o!and
cooled down before closing them and shutting the umbrella.
The lighting kit is attached to the underside of the corner
arms as standard and are terminated inside the electrical
distribution hub.

Unpacking your umbrella
Please inspect all items for damage before use. If there is
any sign of damage or marks, please contact your supplier
within 48 hours of delivery. Do not use sharp objects when
unpacking your umbrella.
What should be included:
Depending on which accessories you have ordered you may
have some or all of the below:
- Umbrella mast with or without an electrical hub
- 8-12 Arms
- Crank Handle to open and close the umbrella
- Fabric membrane
- Heating kit and or lighting kit
- Cover bag if ordered
- Top Hat with fixings
General Information
Opening your umbrella
- Remove your cover bag if you have one
- Remove your Aztec wrap strap
- Ensure the area is clear and then use your crank
handle to open the umbrella until you hit resistance
- Remove the crank handle
If your umbrella does not open upon the first turn of the
handle, gently ease the arms outwards and then continue
with the crank handle.

Closing your umbrella
- Insert the crank handle and slowly turn the handle
until the umbrella is in the closed position.
- Pull out the fabric (unfurl) from between the closed
arms and wrap fabric around the umbrella.
- Secure the fabric with your wrap strap.
- If applicable place the cover bag over the umbrella.
If you intend to keep your umbrella closed for a
period of time you should ensure the fabric is dry
and the power supply is isolated.
General Information
Other points to note...
We recommend that your umbrella is operated by an adult.
If you have any opening or closing issues contact your
supplier as soon as possible.
Always ensure you have permission to install an umbrella.
Do not position your umbrella near a naked flame.
Umbrellas not installed on in-ground sleeves are not
covered under our recommended wind speeds.
Coastal locations should make use of cover bags when the
umbrella is in the closed position.
You should regularly check your umbrella over to ensure
that is stays in peak perforance.

Your umbrella

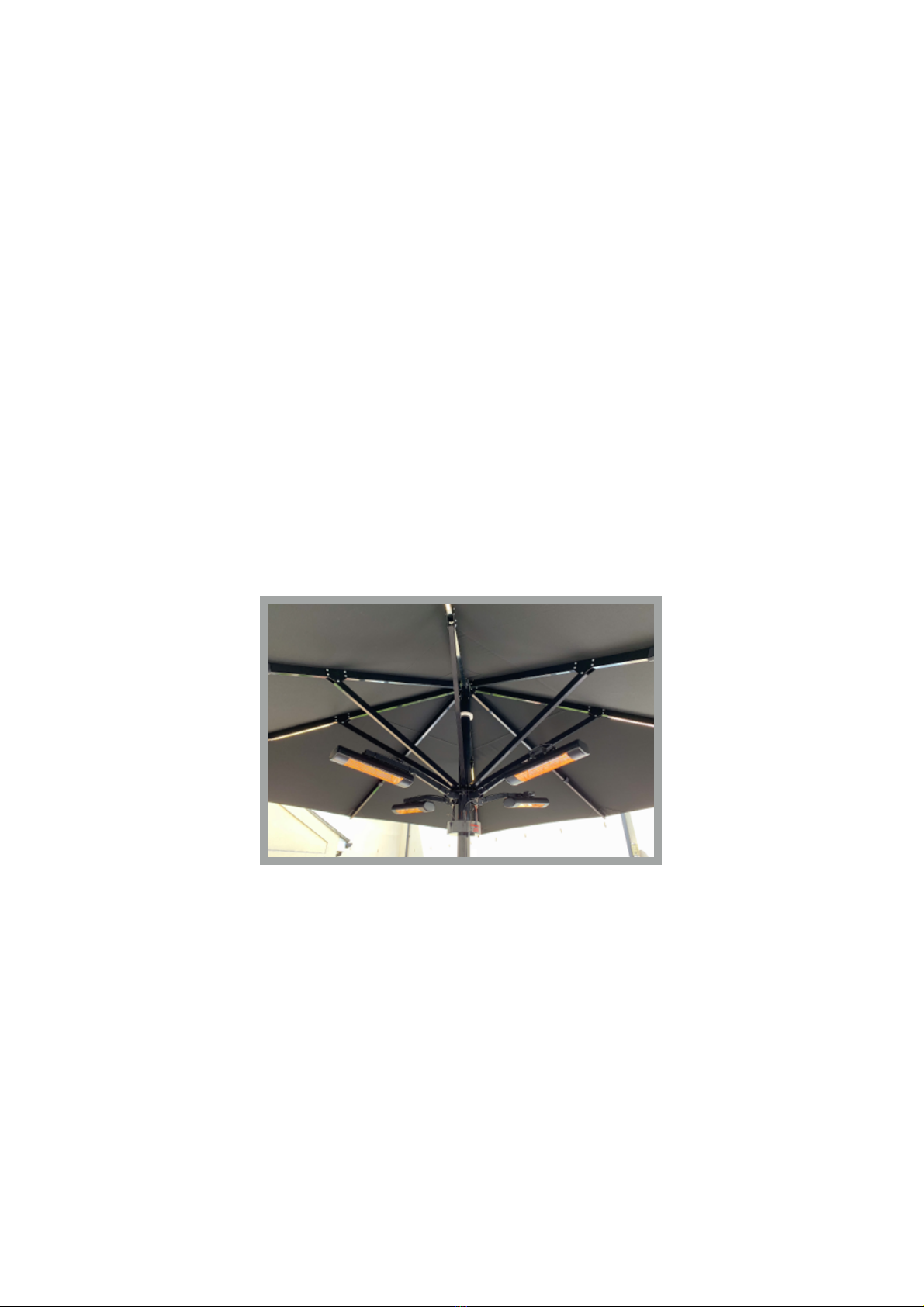

LED Lighting
The lighting consists of 4 LED strips encased in solid
casing, attached to the underside of the corner arms.
As standard the LEDs are available in cool white, but
we can supply warm white if required.
Heating
The heating kit consists of 4 x 1kw or 1.5kw heaters
attached to the underside of the lower fixing ring, via fold
down arms which can be folded down to rest on the moast
of your umbrella. Each heater has a weatherproof connector
that attaches to the electrical distribution hub.
Distribution hub
This is where all of the control gear for your umbrella is
located as well as your push for heat timer button which
regulates the length of time the heaters come on for. The
hub must not be exposed to excessive water.
Arm Brackets
Acrylic Membrane

Connecting your
umbrella...

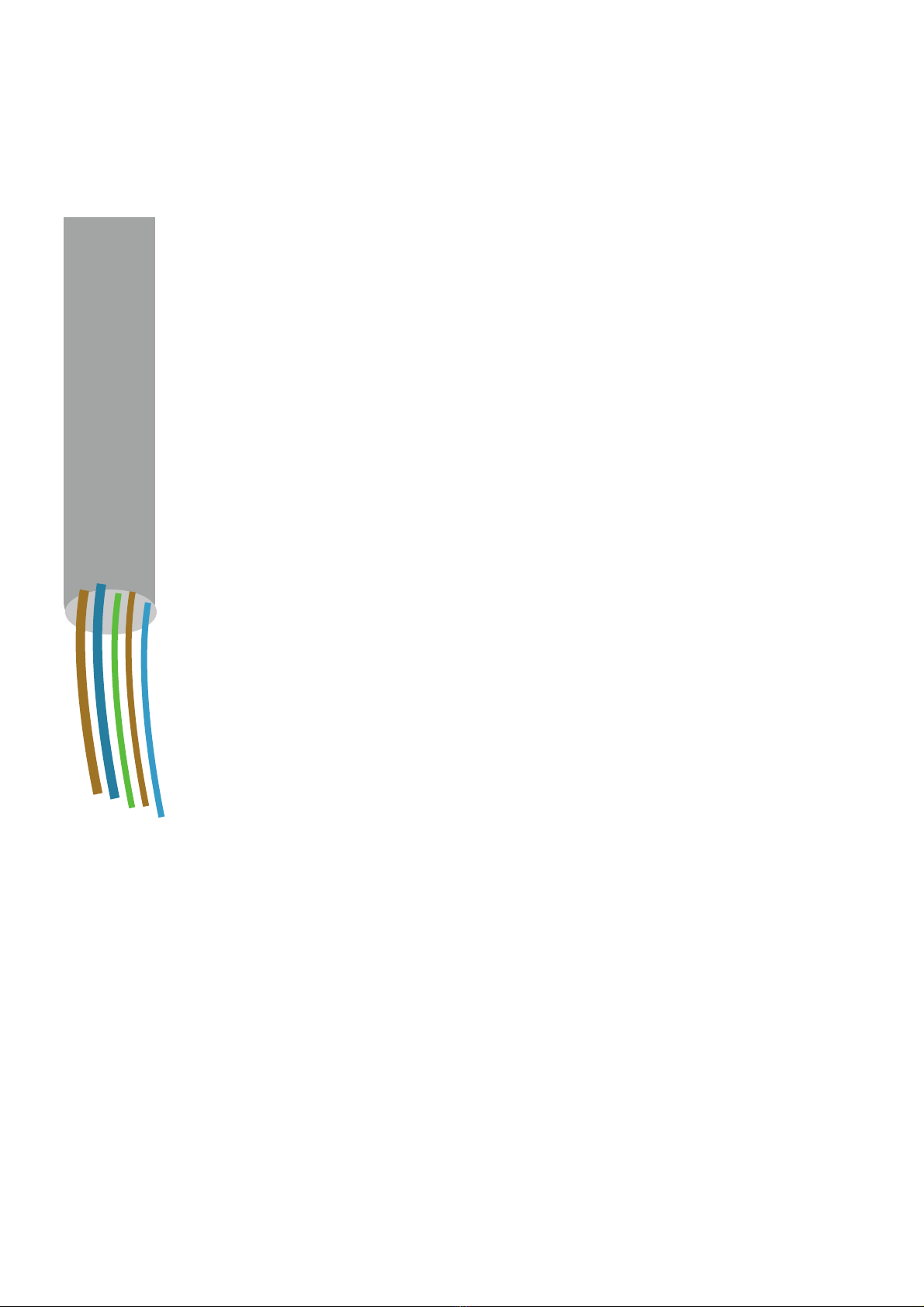

Cabling
Your umbrella will be wired with either 3 or 5
cables depending on what kit you have chosen.
Thick Brown (heaters)
Thick Blue (heaters)
Earth
Thin Brown (lighting)
Thin Blue (lighting)
The umbrella cables should be connected to the
feed from the building via a suitable waterproof
connector and this connection should be done by
a competant fitter.
Each umbrella should also have a rotary isolator
fitted so that the umbrella can be easilly isolated
if required.
Heaters on fold down arms
This arm allows the heater to be mounted to the centre
plate of the umbrella and with a simple lift and twist
action the heater can be lowered to the centre pole
enabling the parasol to be shut without the need to
remove the heaters. Available in white and black only.
Usually 2 or 4 of these arms and heaters are used per
parasol.

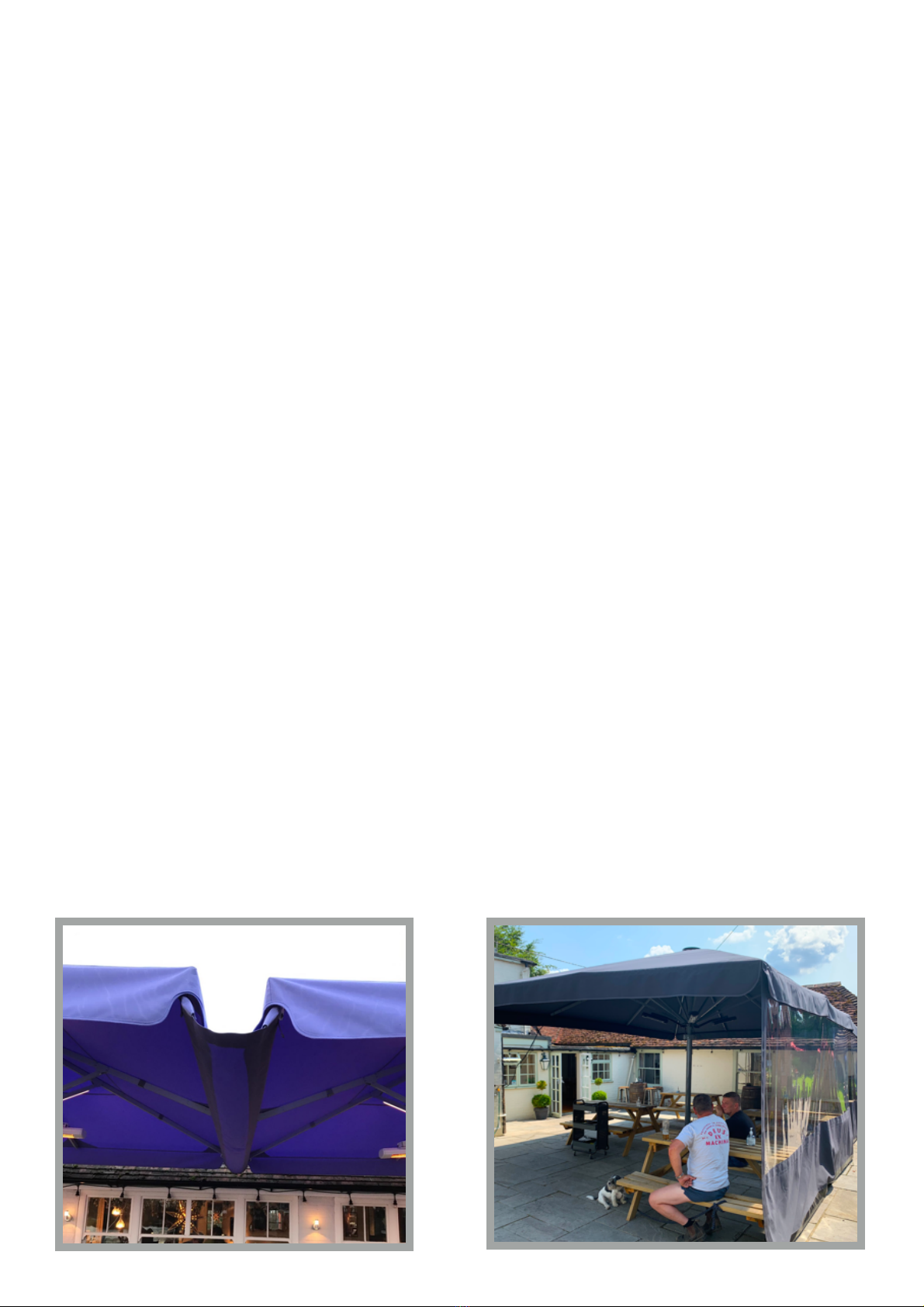

Other Accessories
Side Curtains & Guttering
Generally these will be attached via our unique lock and
latch velcro and this is only available on umbrellas with
vlances. Once the umbrella is in the open position you
simple attached one side of the curtain to the inside of the
vaances and slowly mo along the valance until the entire
length is attached. The bottom of your curtain will have
several eyelets for you to secure down with.
When removing the curtains, care should be taken not to
drag the fabric on the floor and they should be folded up
and stored in a dry location.
Curtains should not be used on windy days.
Guttering
These are connected in the same way curtains are attached.
Gutters are generally tappered to allow rain to run o!in one
direction.

Please feel free to contact your
supplier if you have any questions.
