Bad Boy MZ MAGNUM Guide

ZERO-TURN MOWER
OWNER’S, SERVICE & PARTS MANUAL
For additional information, please see us at
www.badboymowers.com
Bad Boy, Inc.
102 Industrial Drive
Batesville, Arkansas 72501
[phone]
©2013 11-12
MZ MAGNUM MODEL

TABLE OF CONTENTS
Basic Information ........................................................................................... Section 1 (pages 3, 4)
Bad Boy Safety Guidelines ............................................................................. Section 2 (pages 5, 6)
Operation ....................................................................................................... Section 3 (pages 6, 7)
Maintenance ........................................................................................................ Section 4 (page 7)
Storage and Transportation ................................................................................. Section 5 (page 8)
Troubleshooting and FAQ ............................................................................... Section 6 (pages 8–9)
Controls ............................................................................................................. Section 7 (pages 9)
Moving Inoperable Mower ................................................................................ Section 8 (page 10)
Blade Maintenance and Cutting Tips .............................................................Section 9 (page 10–11)
Greasing Bearings ........................................................................................... Section 10 (pages 11)
How to choose the right blade ..............................................................................................Page 12
Mowing Tips ........................................................................................................................ Page 20
SERVICE SECTION BEGINS ON PAGE 13
PARTS SECTION BEGINS ON PAGE 21
LIMITED WARRANTY PAGE 42
PAGE 2

This manual applies to the following equipment:
Bad Boy MZ MAGNUM Series
MZ Magnum 48˝ 726cc Kawasaki
MZ Magnum 54˝ 726cc Kawasaki
MZ Magnum 54˝ 27 hp Briggs
COMMONLY USED ITEMS AND PART NUMBERS
48˝ MZ Blade Hi-Lift Fusion Gator Blade Wave Blade
038-4826-00 038-4821-00 038-4825-00
54˝ MZ Blade Hi-Lift Fusion Gator Blade Wave Blade
038-0005-00 038-0003-00 038-5220-00
48˝ MZ Deck Belt 041-6027-00
54˝ MZ Deck Belt 041-4022-00
MZ Pump Belt 041-6400-00
Oil Filter Briggs 27 hp Kawasaki Engine
063-2004-00 063-2004-00
Air Filter Briggs 27 hp Kawasaki Engine
063-4026-00 063-2097-00
Motor Oil 10w30 (2 quarts)
Hydro Oil 20w50
(not serviceable)
PAGE 3

SECTION 1: BASIC INFORMATION
Congratulations on the purchase of your new Bad Boy Mower! The purpose of this manual is to assist
operators in maintaining and operating their machine. The information and instructions in this manual can
help you attain years of performance from your new Bad Boy. Also, check out our website to learn more
about the Bad Boy family.
1.1 All Bad Boy engines use 10W30 engine oil. Conventional or Synthetic may be used.
1.2 All Bad Boy hydraulic systems use 20W50 engine oil. Conventional or Synthetic may be used.
1.3 All Bad Boy Mowers use hi-temp multi-purpose grease. NLGI No. 2 for the grease fittings.
1.4 MZ models have 12 psi in both front and rear tires.
1.5 Most Briggs, Kohler, Kawasaki, and Vanguard engines hold two (2) quarts of motor oil.
Warranty Registration
The Warranty Registration form must be completed and signed to validate your warranty. As the new
equipment owner, you are expected to see that the form is completed and forwarded to Bad Boy, Inc.,
at time of delivery. Warranty is non transferable.
Model/Serial Number
Your MZ model serial numbers are found on the SIN plate underneath seat. The serial numbers are
necessary on the warranty registration form. Also, these numbers can assist you in the ordering of new
parts when replacements become necessary.
Parts/Service
Only Bad Boy replacement parts are to be used on your mower.
Replacement parts are available through your local Bad Boy Mower Dealer. Remember to always provide
the following information when ordering parts:
1. Correct part number
2. Correct serial number
All warranty repair and service must be handled through your authorized Bad Boy Mowers dealer. To
locate the nearest dealer, go to our website and click on Locate a Dealer.
PAGE 4

SECTION 2: MOWER SAFETY GUIDELINES
Never allow untrained people to operate this machine. It is the owner’s responsibility to get training and
see to it that anyone who has permission to use your machine receives the proper training.
Do not mow around people. The factory discharge chute is designed to deflect debris downward, but it
could be possible for debris to be thrown in a way that can cause damage to people or property.
Seek additional training when possible to learn more about safety techniques and practices.
SAFETY PRECAUTIONS
2.2 Always remain seated while operating machine.
2.3 Always maintain a safe distance from people and pets while mowing.
2.4 Always disengage blades, place steering controls in neutral, engage parking brake, and remove
ignition key when leaving operators seat.
2.5 Always operate machine in daylight or with adequate working lights.
2.6 Be alert of surroundings. Watch for rocks, stumps, and mounds or depressions while mowing.
2.7 Always wear eye protection while mowing and servicing.
2.8 Always wear ear protection, such as earplugs, while mowing.
2.9 If you strike something with the mower turn the blades and mower off, engage the parking
brake, and inspect the machine for damage before resuming.
2.10 Be aware of low hanging limbs or objects that could potentially be hazardous while mowing.
2.11 Never operate a poorly maintained machine.
2.12 Never carry passengers.
2.13 Always buckle seat belt, if provided one.
2.14 Never attempt high speed maneuvering, especially around people or property.
2.15 Never put hands or feet under the machine while ignition is on.
2.16 Never refuel machine when engine is running.
2.17 Never leave key in ignition, especially around children.
2.18 Never run engine in enclosed area.
2.19 Do not touch hot parts of machine.
2.20 Do not remove deck wheels.
2.21 Conditions that can affect traction resulting in the loss of control of machine: Wet terrain, Hills
or extreme angles, Depressions in the ground, Mounds of dirt, Extremely dry grass, Soil type
(gravel, sand, clay), Tire pressure
2.22 Be aware of what is located at the bottom of slopes. For example, Rocks, Water, Cliffs, Roads
and Highways
PAGE 5

2.23 Safety warning decals are located on the mower and should always be observed and followed.
2.24 Never operate the mower with the discharge chute open.
2.25 Prevent Fires—Remove grass and debris from engine compartment and muffler area, before
and after operating machine, especially after mowing or mulching in dry conditions.
2.26 Do not store machine near open flame or source of ignition, such as a water heater or
furnace.
2.27 Do not attempt to mount a tire without the proper equipment and experience to perform the
job.
2.28 Always maintain the correct tire pressure. Do not inflate the tires above the recommended
pressure. Never weld or heat a wheel and tire assembly. The heat can cause an increase in air
pressure resulting in a tire explosion. Welding can structurally weaken or deform the wheel.
2.29 Never operate machine in a closed area where dangerous carbon monoxide fumes can collect.
2.30 Let engine cool before storing!!!
2.31 Park machine on level ground. Never allow untrained personnel to service machine.
Understand service procedure before doing work.
SECTION 3: MOWER OPERATION
Never operate the machine with faulty equipment. Always be alert of sudden changes
in landscape, as the mower will react differently on slopes or embankments than it will
on flat surfaces. Never operate the mower with the discharge chute open. Do not cross
terrain, other than grass, with blades turning. This could cause damage to property or
bystanders.
3.1 Place parking brake in up position
3.2 Drive arms must be in the “open” position. While sitting on the machine, each arm is
positioned away from the operator, to the right and left. Drive arms will lock into place and
must be in this position to start machine.
3.3 Put PTO switch in the OFF position.
3.4 If your machine has been equipped with a ROPS (Roll Over Protection System) then you
must fasten seatbelt.
3.5 If machine has not been started recently, engage the choke.
3.6 Make sure nothing is under or around machine.
3.7 Place key in ignition and turn.
3.8 Once machine is started, disengage the choke.
3.9 Increase RPM by sliding the throttle to fast position, toward the rabbit.
3.10 Owners must become familiar with the controls before operating a zero-turn radius vehicle.
PAGE 6

3.11 Start slowly and build your skill level. Have ample practice before using the machine at full
capabilities.
3.12 Be comfortable with machine before engaging blades. Know what each component controls
before using machine.
3.13 Your mower will perform differently on an incline /decline. Be cautious, slow down, and do
not make any sudden jerking movements with control arms. The machine could lose traction
on a decline or tip backwards on an incline.
3.14 Once you become comfortable with your Bad Boy Mower you will notice your overall mowing
time will decrease.
Avoid operating your mower on side hills of over 5 degrees, inclines of over 10 degrees,
and declines of over 15 degrees.
SECTION 4: MOWER MAINTENANCE
**Check each and provide maintenance when needed.
DAILY
4.1 Check Engine Oil
4.2 Check Engine Air Filter
4.3 Tire Pressure
4.4 Inspect Blades
Within FIRST five hours of usage, change engine oil and filter
EVERY 30 HOURS OF USAGE
4.5 Grease Machine
EVERY 50 HOURS OF USAGE
4.6 Change Engine Oil and Filters
Check filters once a year if under 50 hours
Check air and fuel filters more often in dry, dusty conditions
PAGE 7

SECTION 5: MOWER STORAGE & TRANSPORTATION
5.1 Keep machine from collecting debris by storing in a covered area while not in use.
5.2 Fuel can harm your machine if left for more than 30 days without changing, especially if the
fuel contains ethanol. Never use fuel with more than 10% ethanol by volume. E-15 is not
permitted.
5.3 Disconnect the negative battery cable when machine will be stored for more than 30 days.
5.4 Always secure machine properly when transporting machine.
5.5 Do not load machine on trailer with blades engaged.
5.6 Do not use ramps to load the machine.
5.7 Make sure Parking Brake is in “up” position.
5.8 In wet conditions tires may spin while loading / unloading. If necessary, wait for dry
conditions before loading / unloading.
5.9 Make sure mode of transportation is suitable to bear the weight of mower.
5.10 Deck height should be set at maximum before attempting to load.
5.11 Secure mower with at least two straps capable of securing weight of mower.
SECTION 6: TROUBLESHOOTING
6.1 Q: How should I prepare my Bad Boy Mower for the off season?
6.1 A: When preparing for any down period of 90 days or more, the most important thing is
proper fuel preparation. Use a fuel stabilizer in your final tank of fuel or run dry. Choke and
repeatedly crank engine until it will not start. This will decrease the potential for varnish or
gum deposits forming in your system.
6.2 Q: How do I prevent an uneven cutting pattern and increase the quality of cut?
6.2 A: Check tire pressure, check blade sharpness (replace blades or sharpen at least once
per year or when needed), make sure blades are tightened properly, check spring and belt
tension, check the underside of the deck to ensure the mower deck is free of grass build-up
and debris, make sure your machine is at full throttle, and vary your mowing pattern each
time you cut your grass.
6.3 Q: What should I do if my mower won’t start?
6.3 A: Check battery charge and connection (grounds), check your fuel (make sure fuel is less
than 30 days old and contains no water), make sure your spark plug is in good condition
and spark plug wire is attached, and make sure air filter is clean (a dirty filter makes it more
difficult for the engine to draw air). Check for broken wires or bad connections.
PAGE 8

6.4 Q: What should I do if the blades won’t engage?
6.4 A: Make sure the safety switch is plugged in on the bottom of seat. Check the underside of
the PTO engager to ensure the plug is secure at switch.
6.5 Q: What type of fuel is recommended for my mower?
6.5 A: We recommend that you use a name brand fuel to ensure quality. Use fuel with an octane
rating near 87. Higher octane fuels offer no benefit. Only fuels with an ethanol content of
10% or less may be used. E-15 is not permitted.
6.6 Q: Do you offer touch-up paint for your mowers?
6.6 A: Touch-up paint is available. Contact your local dealer for more information.
SECTION 7: CONTROLS
7.1 Ignition Switch—Bad Boy Mowers have a three position ignition switch: off, run, and start.
With key inserted, rotate it clockwise to START position and release key when engine starts,
and switch will automatically return to he RUN position.
7.2 Throttle Control—A cable is connected to the engine throttle for controlling engine speed.
Move lever forward to increase engine rpm, move lever backward to decrease engine rpm.
7.3 Choke Control—Some MZ Magnums use the Choke-O-Matic system. in this case, the choke
and throttle controls are operated by the same lever. With the lever pushed full forward, this
will apply the choke. Pulling the lever back slightly will disengage the choke and will give the
engine wide open throttle. DO NOT OPERATE WITH THE CHOKE APPLIED.
7.4 Control Levers—(Not Shown) These levers control the mower’s speed, direction, and
neutral lock. These levers are used to steer, accelerate, decelerate and change direction.
7.5 Blade Engage Switch—This switch engages the blades. Pull the switch up to engage the
blades and push the switch down to disengage the blades.
7.2 7.17.57.3
PAGE 9

SECTION 8: MOVING INOPERABLE MOWER
8.1 If it is necessary to move mower when the engine is inoperable, the hydraulic drive pumps
are equipped with bypass valves. Refer to service manual section for bypass valve location.
8.2 Do not tow machine. Use a winch to load on a trailer for transporting.
8.3 ATTENTION: RETURN BYPASS VALVES TO OPERATING POSITION BEFORE RUNNING
MOWER FOLLOWING REPAIRS.
8.4 Your Bad Boy Mower Weighs: MZ MAGNUM SERIES: 585—620 lbs
*** Weights fluctuate with the addition of accessories.
8.5 As you can see by the weights of the machines, you shouldn’t ever try to push or pull a Bad
Boy Mower by hand. This could cause serious bodily injury.
8.6 Hopefully, you’ll never need to use this section of the manual. However, if you do, use
extreme caution when moving machine!
SECTION 9: MOWER BLADE MAINTENANCE

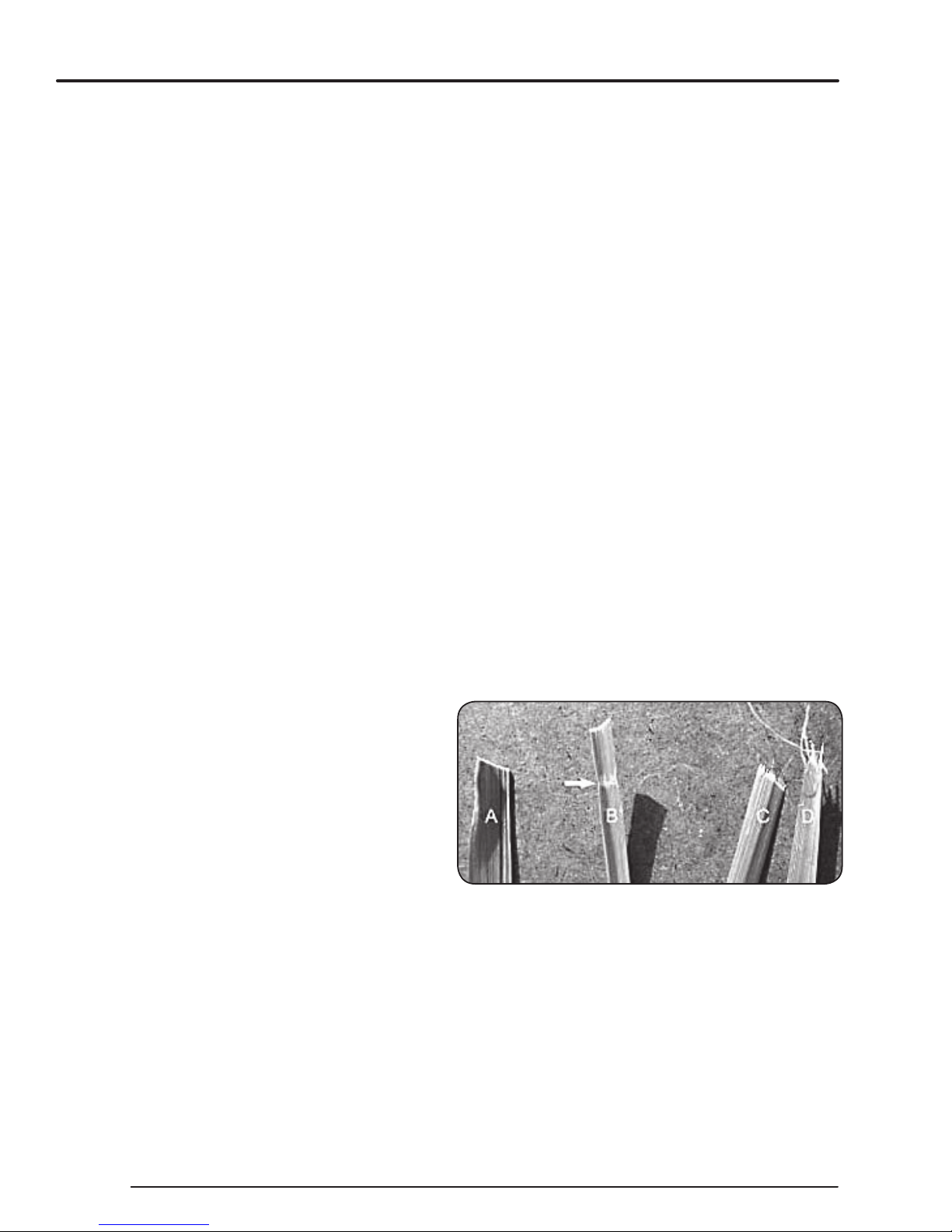

9.1 Check mower blades after each use. This is essential for maintaining well-groomed turf. Keep
the blades sharp. If a dull blade is used for cutting, the grass will tear rather than cut. This
could damage the grass leaving a brown frayed top on the grass within a few hours. A dull
blade will also require more power from the engine.
9.2 NEVER attempt to straighten a bent blade by heating. NEVER attempt to weld a cracked
blade. The blades can break and cause serious injury or death.
9.3 NEVER work with blades while engine is running or deck clutch is engaged.
9.4 ALWAYS place deck clutch in DISENGAGE position while performing maintenance.
9.5 Use blocks when you MUST work under mower.
9.6 ALWAYS wear thick gloves when handling blades.
9.7 ALWAYS check for blade damage if mower strikes rock, branch, or other objects that could
potentially damage the blade. (REMEMBER: NEVER CHECK BLADE WHILE ENGINE IS ON!
NEVER CHECK BLADES WHILE BLADES ARE ENGAGED!)
PAGE 10
