RHINO 1958 User manual

© 2006Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
1958
SERVIS BOOM ARM MOWER
Rev01-14 Part No.

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. FillouttheWarranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2010 Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to
the basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct
part number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked
and are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

LIMITED WARRANTY
1. LIMITED WARRANTIES
1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal
purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”)
that the goods purchased are free from defects in material or workmanship.
1.02.Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be
defective under normal use and service due to defects in material or workmanship.
1.03.This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use,
   negligence, alteration, modication, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or
lubricants, or which has served its normal life. This limited warranty does not apply to any part of any internal
   combustion engine, or expendable items such as blades, shields, guards, or pneumatic tires except as specically found
in your Operator’s Manual.
1.04.Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any
nature on behalf of Manufacturer.
2. REMEDIES AND PROCEDURES.
2.01.This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer
within 30 days of purchase.
2.02.Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the
goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the
claim is based.
2.03.Purchaser is responsible for returning the goods in question to the Dealer.
 2.04.If after examining the goods and/or parts in question, Manufacturer nds them to be defective under normal use and
service due to defects in material or workmanship, Manufacturer will:
(a) Repair or replace the defective goods or part(s) or
(b) Reimburse Purchaser for the cost of the part(s) and reasonable labor charges (as determined by Manufacturer)
if Purchaser paid for the repair and/or replacement prior to the nal determination of applicability of the warranty
by Manufacturer.
The choice of remedy shall belong to Manufacturer.
2.05.Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and
for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the trans-
portation cost for the goods or part(s) from the Dealer to the designated factory.
3. LIMITATION OF LIABILITY.
3.01.MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES
WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
3.02.MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR
USE OF THE GOODS.
3.03.EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO
PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE
CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLUDING, BUT NOT
LIMITED TO, ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES RESULTING FROM
THE USE OR OPERATION OF THE GOODS OR ANY BREACH OF THIS WARRANTY. NOT WITHSTANDING THE
ABOVE LIMITATIONS AND WARRANTIES, MANUFACTURER’S LIABILITY HEREUNDER FOR DAMAGES
INCURRED BY PURCHASER OR OTHERS SHALL NOT EXCEED THE PRICE OF THE GOODS.
3.04.NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER
THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS
OCCURRED.
4. MISCELLANEOUS.
4.01.Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County,
Texas.
4.02.Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall
be deemed to be a waiver of any other term.
4.03.If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the
invalidity of such provision shall not invalidate any other provisions herein.
 4.04.Applicable law may provide rights and benets to purchaser in addition to those provided herein.
KEEP FOR YOUR RECORDS
ATTENTION: Purchaser should ll in the blanks below for his reference when buying repair parts and/or for proper machine
identication when applying for warranty.
Servis-Rhino Implement Model _______________________________ Serial Number ________________________________
Date Purchased ___________________________________________ Dealer ______________________________________
ATTENTION:
READ YOUR OPERATOR'S MANUAL
SERVIS-RHINO
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
RHINO®

CONTENTS
Page No
Schedule No
Schedule Description
2
74.803.04
FILTER ASSY
4
76.150.01
KIT
6
76.382.23
TANK ASSEMBLY RH
8
76.420.10
ARM FLOAT KIT
10
76.458.02
LINKAGE KIT
12
76.467.04
PTO/GEARBOX ASSY
14
76.474.13
PUMP ASSY
16
77.104.17
FIRST RAM
18
77.111.04
SLEW RAM ASSY
20
77.113.09
RAM ASSY COWL
22
77.114.18
SECOND RAM ASSY
24
77.117.09
ACCUMULATOR SLEWASSY
26
77.120.13
REAR GUARD ASSY
28
77.134.06
LED LIGHT KIT RH
30
77.138.01
DECALS ENG 8852
32
77.143.22
SHIPPING PACK
34
77.182.06
COWL BRACKET ASSY
36
77.300.02
CABLE ASSY - ARMS RH
38
77.300.08
CDSR CABLE ASSY 3M
40
77.301.12
KINGPOST ASSEMBLY RH
42
77.353.05
ARM - FIRST RH
44
77.354.05
ARM - SECOND RH
46
77.443.20
MAINFRAME ASSY RH
48
77.470.27
DSR PUMP CIRCUIT
50
77.471.08
CONTROL VALVE ASSY
52
47745.01
VALVE
56
77.474.27
HOSE SERV KIT
58
77.754.02
CABLE RCC KIT RH
* optional component

Page 2 of 59
74.803.04 A - FILTER ASSY

Page 3 of 59
74.803.04 A - FILTER ASSY
Ref
Part No
Description
Qty
1
212.013
FILTER ASSY 100 L
1
1
8401095
ELEMENT
0
2
05.290.07
SEAL
1
3
05.264.02
SETSCREW
2
4
05.282.01
SP.WASHER
2
5
08.955.25
ADAPTER
2

Page 4 of 59
76.150.01 A - KIT

Page 5 of 59
76.150.01 A - KIT
Ref
Part No
Description
Qty
0
06.023.01
HOSE TIE
3
1
41585.01
SPRING
12
2
41755.01
MESH
1
3
41745.01
HOOK
8
4
42076.01
FOAM
2
5
41586.01
HOOK
6
6
41755.02
MESH
1
7
41587.01
GUARD HOOK
6

Page 6 of 59

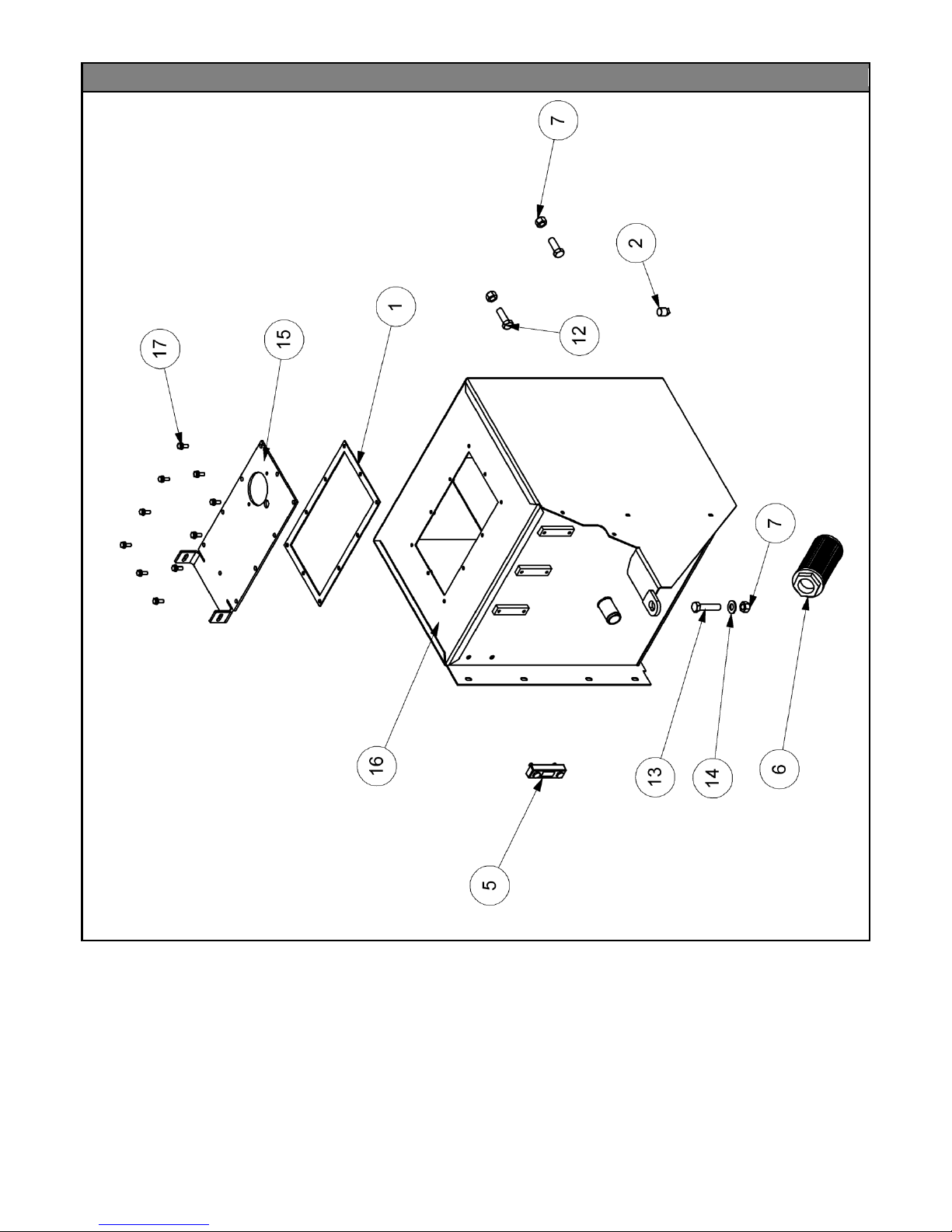

76.382.23 D - TANK ASSEMBLY RH

Page 7 of 59
76.382.23 D - TANK ASSEMBLY RH
Ref
Part No
Description
Qty
1
08.605.01
GASKET
1
2
05.495.01
PLUG
0
5
08.921.01
FLUID LEVEL GAUGE
1
6
8401047
ELEMENT
1
7
05.287.04
NUT
3
8
05.282.01
SP.WASHER
1
9
9293054
BOLT
5
11
05.264.36
SETSCREW
1
12
05.264.37
SETSCREW
1
13
05.264.40
SETSCREW
1
14
05.281.04
WASHER
1
15
48028.22
FILTER PLATE RH
1
16
42112.18
TANK - OIL RH
1
17
05.839.49
SETSCREW
10

Page 8 of 59

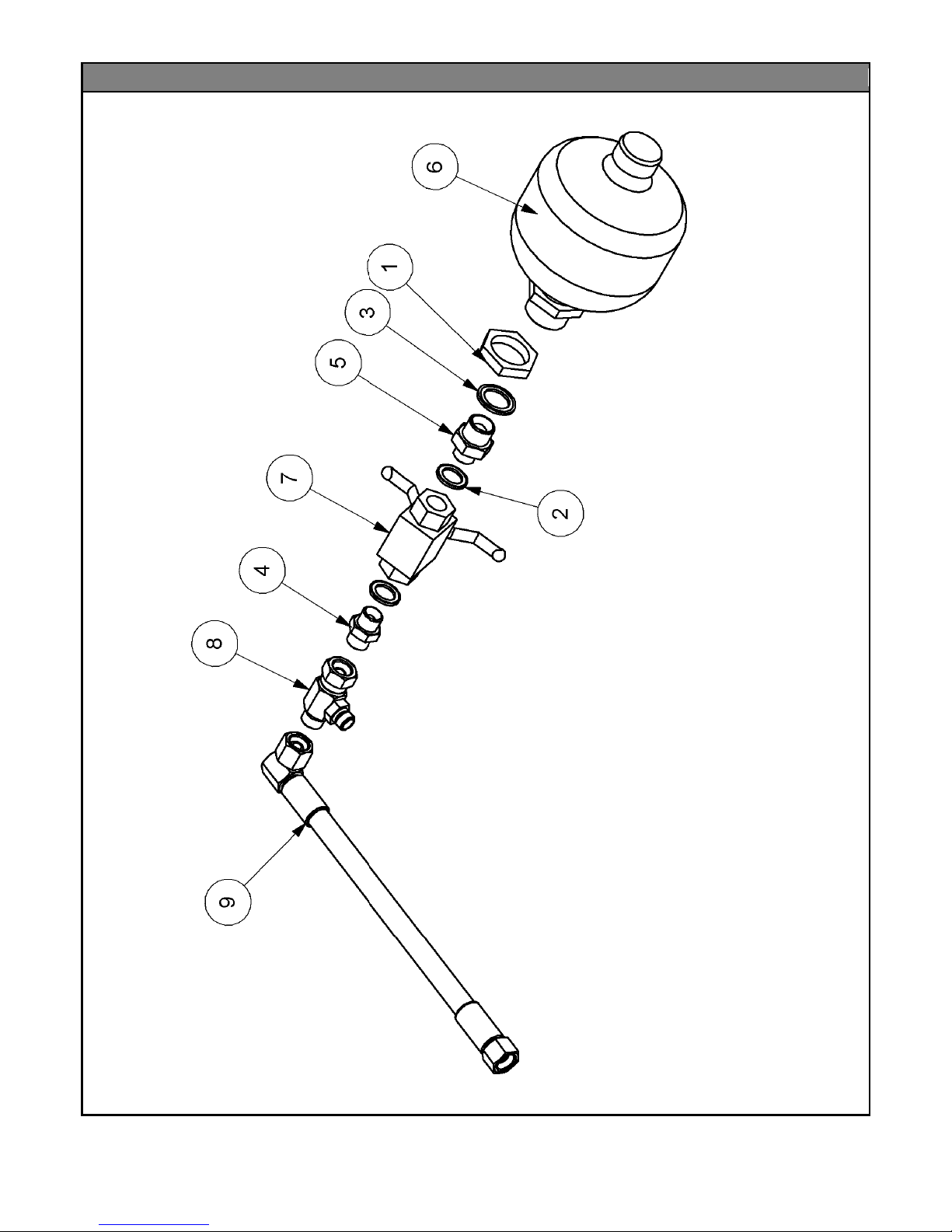

76.420.10 A - ARM FLOAT KIT

Page 9 of 59
76.420.10 A - ARM FLOAT KIT
Ref
Part No
Description
Qty
1
8126035
NUT
1
2
05.290.01
SEAL
2
3
05.290.05
SEAL
1
4
05.124.01
ADAPTER
1
5
05.123.01
ADAPTOR
1
6
41451.02
ACCUMULATOR
1
7
08.200.01
VALVE
1
8
04.056.32
ADAPTOR TEE
1
9
08.958.23
HOSE ASSEMBLY
1

Page 10 of 59

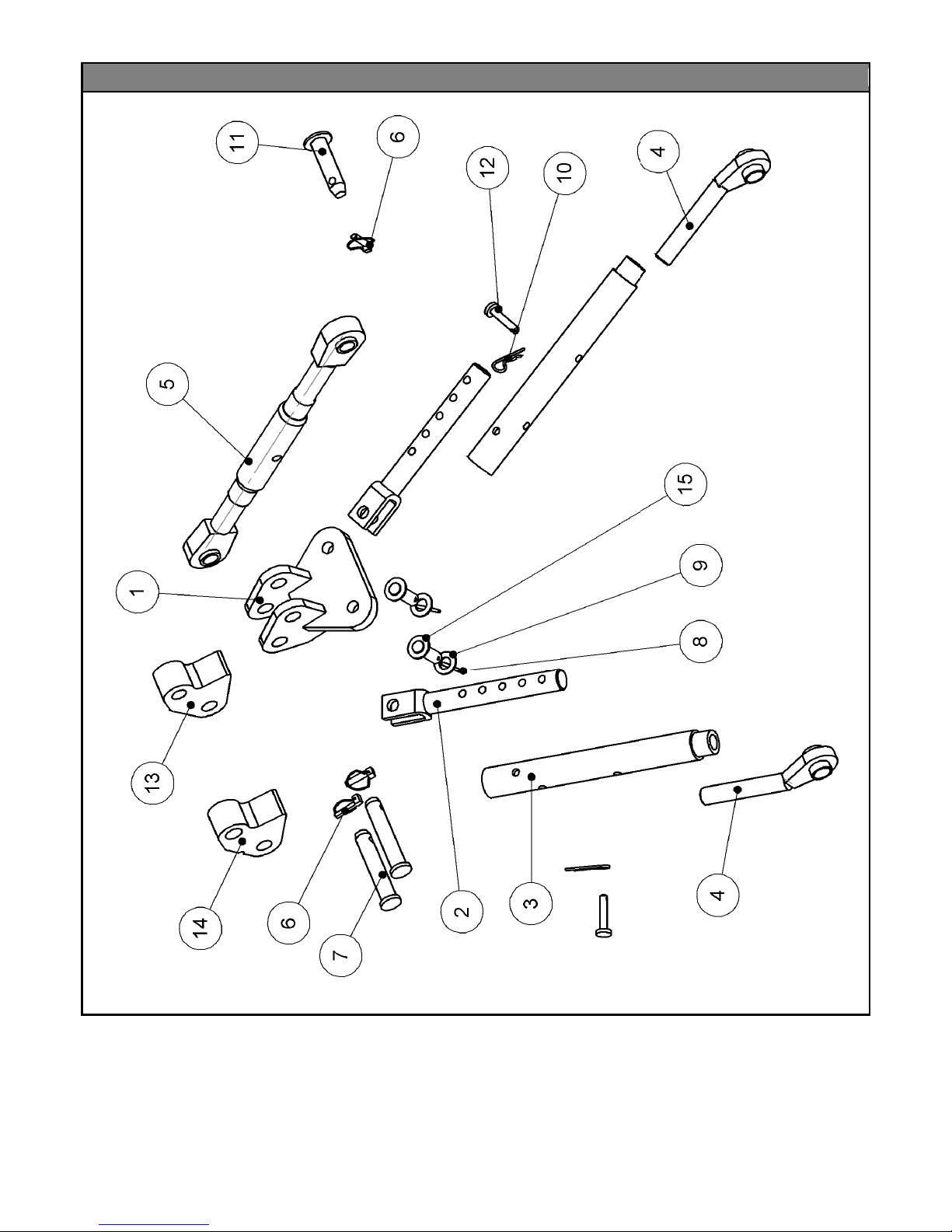

76.458.02 A - LINKAGE KIT

Page 11 of 59
76.458.02 A - LINKAGE KIT
Ref
Part No
Description
Qty
0
46438.01
LINKAGE KIT
1
46438.01 - LINKAGE KIT
Ref
Part No
Description
Qty
0
75.224.21
POLY BAG
1
0
PL1790
FITTING INST
1
1
42276.01
BRACKET
1
2
42317.01
ROD
2
3
42316.01
TUBE OUTER
2
4
07.731.01
BALL JOINT
2
5
07.584.02
TOP LINK
1
6
00.372.01
LINCH PIN
3
7
03.873.01
PIN
2
8
05.201.11
SPIROL PIN
2
9
05.281.05
WASHER
2
10
05.964.01
SPRING CLIP
2
11
42250.01
PIN
1
12
42315.01
PIN
2
13
43367.01
PLATE 50MM
1
14
43368.01
PLATE
1
15
03.652.12
PIN
2

Page 12 of 59

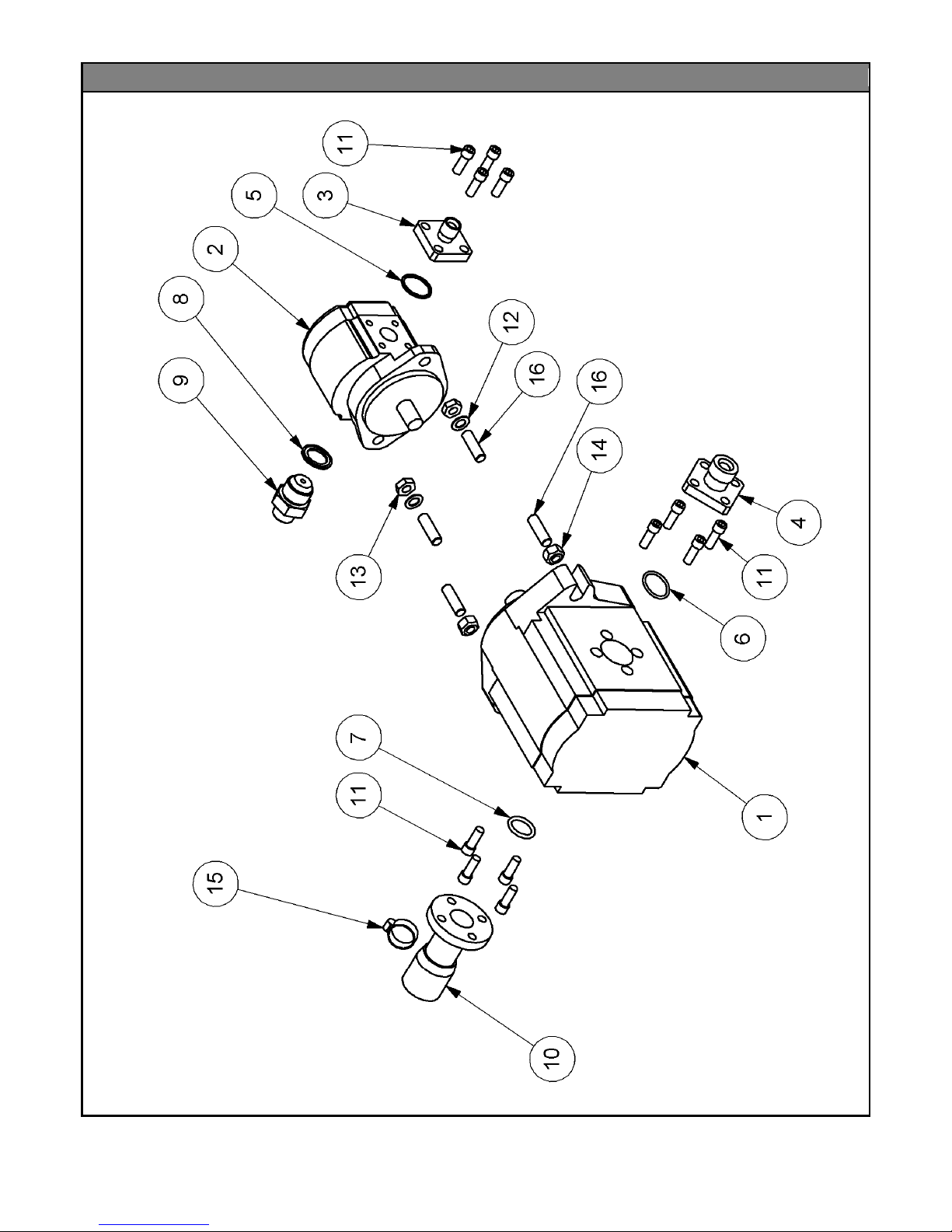

76.467.04 B - PTO/GEARBOX ASSY

Page 13 of 59
76.467.04 B - PTO/GEARBOX ASSY
Ref
Part No
Description
Qty
0
06.023.01
HOSE TIE
5
0
41623.31
CROSS JOURNAL SET
0
0
41623.33
GUARD
0
0
47497.25
SEAL KIT
0
1
04.282.74
STUD
3
2
05.968.03
NUT
3
3
47497.01
70 LITRE GEARBOX
1
4
08.548.04
PTO CUP PLASTIC
1
5
46707.17
SPACER PLATE
1
6
47591.01
SPECIAL STUD
4
7
05.282.01
SP.WASHER
2
8
05.839.03
SETSCREW
2
9
41623.02
PTO SHAFT
1
10
05.287.02
NUT
2
11
9133005
NUT
2
12
05.283.02
WASHER
2
13
05.281.01
WASHER
2
14
47492.37
PLATE 10
1
15
05.264.24
SETSCREW
4
16
05.287.03
NUT
4

Page 14 of 59
76.474.13 - PUMP ASSY
