Bafo USB 2.0 User manual

User’s Manual
USB 2.0 Slim DVD & CD-R/RW
BF-2123
Notice:
If you have any problem with this product, please do not open it or try to fix it by
yourself. The warranty void if the seal is broken.

USB 2.0 Slim DVD & CD-R/RW User’s Manual1
CONTENTS
1. Introduction-------------------------------------------------------------2
2. Package Content-----------------------------------------------------2
3. Product Features-----------------------------------------------------2
4. System Requirements----------------------------------------------2
5. Part Name and Functions----------------------------------------3
6. Driver Installation----------------------------------------------------4
6.1 Windows®98 installation--------------------------------------------------------4
6.2 Windows®98 un-installation---------------------------------------------------7
6.3 Windows®ME installation------------------------------------------------------8
6.4 Windows®2000 installation----------------------------------------------------9
6.5 Windows®XP installation----------------------------------------------------10
6.6 MAC installation-----------------------------------------------------------------12
7. FAQ-------------------------------------------------------------------------13
8. Disclaimer--------------------------------------------------------------13
9. FCC Statement-------------------------------------------------------14
10.Technical Support------------------------------------------------14

USB 2.0 Slim DVD & CD-R/RW User’s Manual2
1. Introduction
This USB2.0 Slim DVD & CD-R/RW provides aneasy way to carry and flexible
interface solution.
This device supports USB 2.0 standard compliance interface, whichenables people
to easily connect to Desktop PC or Notebook or Mac machine without opening
case.
2. Package Content
Hardware:
<USB 2.0 Slim DVD & CD-R/RW
<Power adapter (DC-5V)
<USB 2.0 A-B cable
<A Blank CD-RW disk
<Warranty Card
<Carry Bag
Software:
<Driver software
<DVD player software
<CD Recording Software
<User’s Manual
Quick User’s Guide (Multi-Language):
3. Product Features
<USB specification revision 2.0 compliant
<Portable CD-R/RW, easy way to backup files and share data
<Easy way to use CD Recording software to make a CD
<CD-R/RW Drive feature
1) WRITE: 16-Speed(CD-R) /12-Speed(CD-RW)
2) READ:24X speed CD-ROM /8X speed DVD-ROM
4. System Requirements
PC
<IBM PC 486DX4-100 MHz or higher or compatible system
<Available USB port t
<CD-ROM drive
<Windows®98SE, Windows®ME, Windows®2000,Windows®XP
MAC
<Power PC G3, G4, or I-Mac
<Available USB port
<CD-ROM drive
<Mac OS 8.6 or higher

USB 2.0 Slim DVD & CD-R/RW User’s Manual3
5. Part Name and Functions
5.1 Back Panel
5.2 Front Panel
5.2.1 Busy LED: When read or write, BusyLED will blink on. Please do not turn
off PC power when Busy LED been blinking turn on.
5.2.2 Emergency Eject: If you cannot use Eject Button to let the CD-Tray out
when there is a media in CD-Tray. Please use tip of any object to press this
hole and force the CD-Tray jump out.
5.2.3 Eject Button: OPEN/CLOSE CD-Tray.
Power Jack
USB Jack
Headphone Jack
CD-Tray
Busy LED
Emergency Eject
Eject Button

USB 2.0 Slim DVD & CD-R/RW User’s Manual4
6. Driver Installation
6.1 Windows®98 Installation
6.1.1 Connect the USB port of USB 2.0 Slim DVD & CD-R/RW to USB port of PC
with a USB cable.
6.1.2 The “Add New Hardware Wizard” dialog box appears as below, clicks on
“Next” to continue.
6.1.3 Chose “Search for the best driver for your device (Recommended)” then
click “Next”
6.1.4 Select “Specify a location” and type D:\DRIVER\BF-2123\WINDOWS (D:
represents CD-ROM) in the dialog box, then click “Next”

USB 2.0 Slim DVD & CD-R/RW User’s Manual5
6.1.5 Windows®will search the driver for this device. Make sure the driver that
Windows®found is “D:\DRIVER\BF-2123\WINDOWS\TPP300.INF”,then
click “Next”.
6.1.6 Click “Finish” to complete the installation procedure of“BAFO USB Storage
Adapter”.
6.1.7 After Windows®installed all the driver, you have to check “My
Computer”-“Control Panel”-“System”-”Device Manager” to make sure
the driver has already installed. Then, in the “Disk Drives” it will show a
“MATSHITA UJDA340”(This model number will vary with different
drive),in the “Hard disk controllers” it will show a “BAFO Storage
Adapter Bridge Module”, and in the “Universal Serial Bus controller” it
will show a new item of “BAFO USB Storage Adapter ”

USB 2.0 Slim DVD & CD-R/RW User’s Manual6

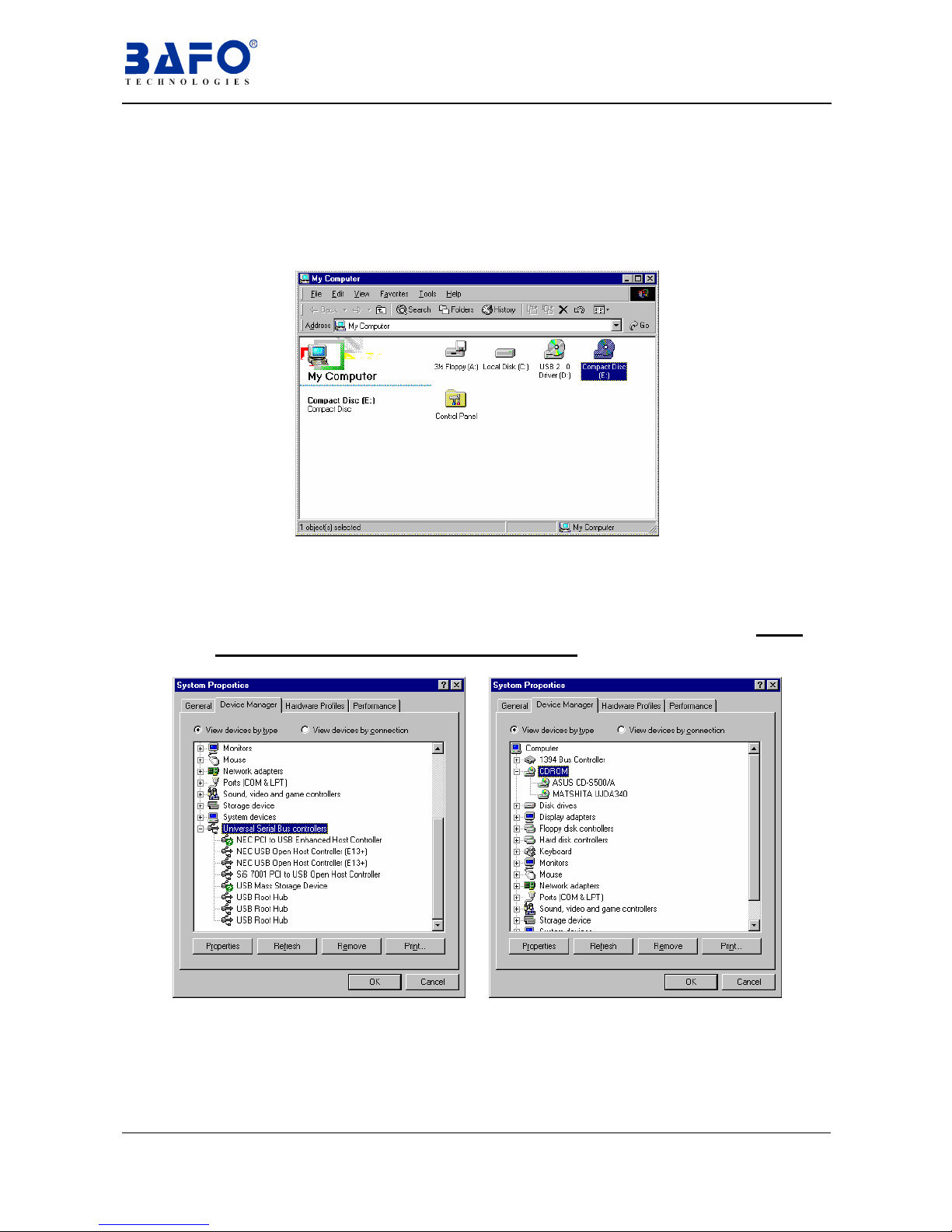

6.1.8 Double click on “My Computer” icon on the desktop, if the driver has
already installed and can work properly, you can see a new CD-ROM icon
and named “E:” appears on the Desktop.
.

USB 2.0 Slim DVD & CD-R/RW User’s Manual7
6.2 Windows®98 un-installation

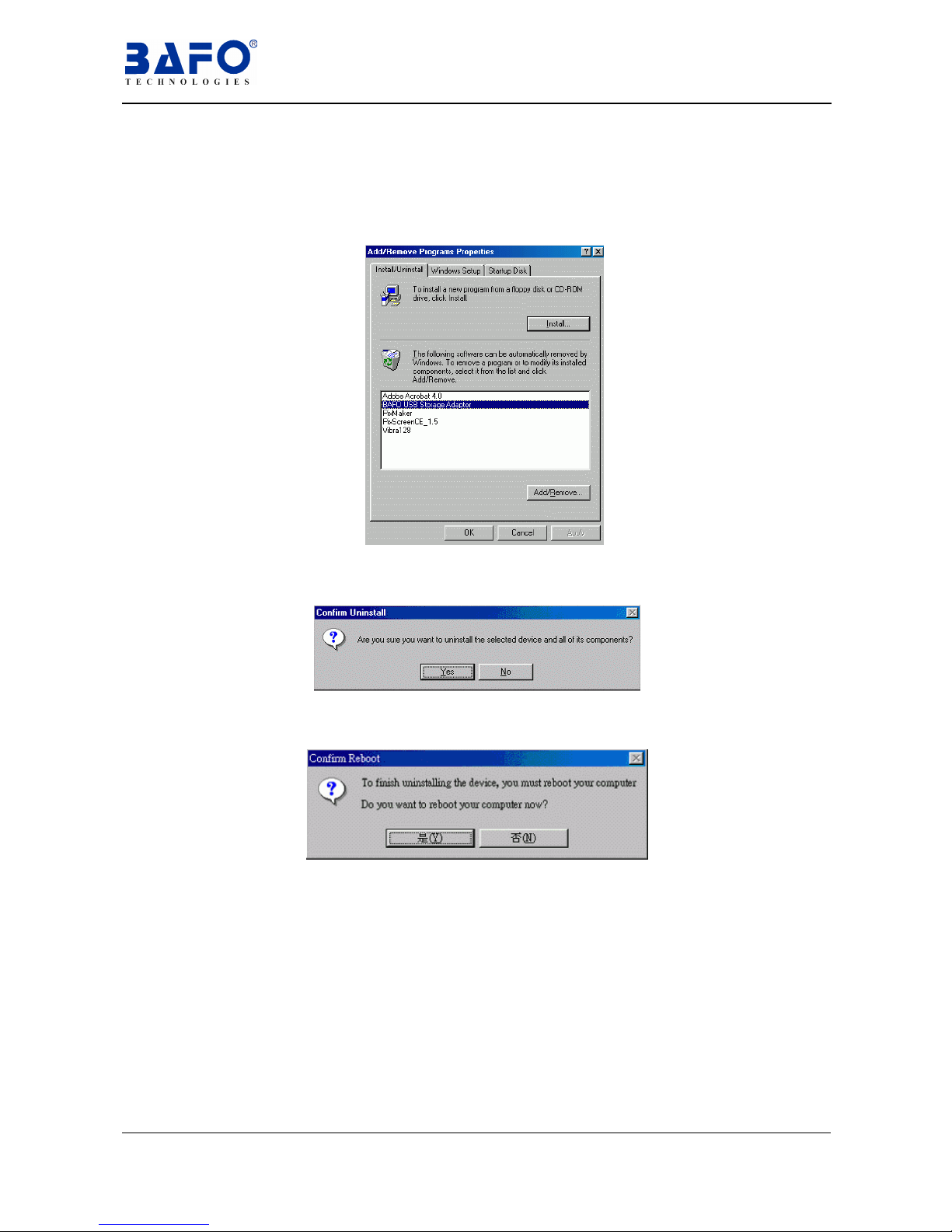

6.2.1 Click on “Control Panel”-“Add/Remove Programs”the display as below will
show. Select “BAFO USB Storage Adapter”and click on“Remove”to
un-install it. Click “OK”to continue.
6.2.2 Click “Yes” to confirm un-install.
6.2.3Click on “Yes” to restart computer and complete uninstall procedure.

USB 2.0 Slim DVD & CD-R/RW User’s Manual8
6.3 Windows®ME installation
It doesn’t need to install any driver at Windows®ME
6.3.1 Connect the USB port of USB 2.0 Slim DVD & CD-R/RW to PC’s USB port via
USB cable. System will auto detect the device then load driver and create a
new CD-ROM icon named “Compact Disc (E:)” appears on the Desktop.
.
6.3.2After Windows®installed the driver, you have to check the“System”-”Device
Manager”and make sure the driver has already installed, in the“Universal
Serial Bus controller” itshould has a new item of “USB Mass Storage
Device”and in the“CDROM”there will have “MATSHITA UJDA340”(This
model number will vary with different drive).

USB 2.0 Slim DVD & CD-R/RW User’s Manual9
6.4 Windows®2000 installation
It doesn’t need install any at Windows®2000
6.4.1 Connect USB port of USB 2.0 Slim DVD & CD-R/RWto USB port of PC with
a USB cable. System will auto detect the device then load driver and create
a new CD-ROM icon named “Compact Disc (E:)” appears on the Desktop.
6.4.2 After Windows®installed the driver, you have to check the “System”-”Device
Manager”and make sure the driver has already installed, in the“Universal
Serial Bus controller” itshould has a new item of “USB Mass Storage
Device”and in the“DVD/CD-ROM drivers”there will have“MATSHITA
UJDA340”(This model number will vary with different drive).
