USER’S MANUAL
USB-IDE 3.5”HDD ENCLOSURE
BF-2001

USB-IDE 3.5”HDD Enclosure User’s Manual 1
CONTENT
1. Introduction-----------------------------------------------------------------------------------2
2. Package Content---------------------------------------------------------------------------2
3. Product Features---------------------------------------------------------------------------2
4. System Requirements-------------------------------------------------------------------2
5. Hard Disk Installation--------------------------------------------------------------------3
6. Driver Installation--------------------------------------------------------------------------4
6.1 Windows®98 Driver Installation---------------------------------------------4
6.2 Windows®98 Driver Un-Installation----------------------------------------7
6.3 Troubleshooting------------------------------------------------------------------8
6.4 Windows®ME Driver Installation--------------------------------------------9
6.5 Windows®ME Driver Un-Installation-------------------------------------12
6.6 Troubleshooting-----------------------------------------------------------------13
6.7 Windows®2000 Driver Installation----------------------------------------14
6.8 Windows®2000 Driver Un-Installation-----------------------------------18
6.9 Troubleshooting-----------------------------------------------------------------19
6.10 Windows®XP Driver Installation-------------------------------------------20
6.11 Windows®XP Driver Un-Installation--------------------------------------24
6.12 Troubleshooting-----------------------------------------------------------------25
6.13 MAC Driver Installation-------------------------------------------------------26
6.14 MAC Driver Un-Installation--------------------------------------------------29
6.15 Troubleshooting-----------------------------------------------------------------29
7. Disclaimer-----------------------------------------------------------------------------------31
8. FCC Statement----------------------------------------------------------------------------31
9. Technical Support-----------------------------------------------------------------------31

USB-IDE 3.5”HDD Enclosure User’s Manual 2
1. Introduction
Congratulations on your purchase of the USB to IDE 3.5”hard disk enclosure. This
USB IDE 3.5”hard disk enclosure integrated circuit provides a high-speed bridge the
Universal Serial Bus (USB) and IDE 3.5” hard disk. The user want to be able to
customize the chip and show their identity through the external serial EEPROM
support.
2. Package Content
Hardware:
§USB IDE 3.5”Hard disk enclosure
§Power supply
§USB A-B cable
Software:
§Driver software on CD
§User’s Manual
3. Product Features
§USB specification revision 1.1 compliant
§Portable 3.5”hard disk, easy way to backup files.
§512 Bytes unified data buffer dynamically allocated for upstream and
downstream data transfer: Up to 900 KB/sec
§SupportATAPI-4 compatible 3.5”hard disks.
4. System Requirements
PC
§IBM PC 486DX4-100 MHz or higher or compatible system
§Available USB port
§CD-ROM drive
§Windows®98, Windows®ME, Windows®2000 and Windows®XP
MAC
§Power PC G3, G4, or I-Mac
§Available USB port
§CD-ROM drive
§Mac OS 8.6through 9.X

USB-IDE 3.5”HDD Enclosure User’s Manual 3
5. Hard disk Installation
Follow the figures below to install hard disk.
5.1Open the USB Hard disk enclosure (Figure 1 ~ 3)
Figure 1 Figure 2
5.2Assemble the 3.5” hard disk. (Figure 4~ 6)
Figure 3 Figure 4
Figure 5 Figure 6
5.3Close the hard disk enclosure. (Figure 7 ~ 9 )

USB-IDE 3.5”HDD Enclosure User’s Manual 4
Figure 7 Figure 8
Figure 9 Figure 10

USB-IDE 3.5”HDD Enclosure User’s Manual 5
6. Driver Installation
6.1 Windows®98 Driver Installation
Follow the steps below to install driver of theUSB-IDE 3.5”HDD Enclosure:
6.1.1 Power on the computers that you want to connectUSB-IDE 3.5”HDD
Enclosure and make sure that the USB port is enabled and working
properly.
6.1.2 Plug in the USB-IDE 3.5”HDD Enclosure into the USB port, Windows®want
to detect an unknown device and run the “Add New Hardware Wizard” to
assist you in setting up the new device.
6.1.3 Insert the driver of USB-IDE 3.5”HDD Enclosure into CD-ROM drive; click
“Next” to continue.
6.1.4 Select “Search for the best driver for your device” and click “Next”

USB-IDE 3.5”HDD Enclosure User’s Manual 6
6.1.5 Select Specify a location and type“D:\Driver\BF-2000 & BF-2001
\Windows” (D: represents CD-ROM) in the dialogue, then click “NEXT”
6.1.6 Windows®want to detect the driver (SCIWPL.inf) and show the“USB IDE
Bridge” Click “NEXT” to continue until installation is complete.
6.1.7 Click “Finish” to complete the setup process.

USB-IDE 3.5”HDD Enclosure User’s Manual 7
6.1.8 After Windows®installed all the driver, you have tocheck “My
Computer”-“Control Panel”-“System”-”Device Manager” to make sure
the driver has already installed. Then, in the “Disk Drives” it will show a
new Disk drive(This model number want to vary with different Hard
Disk),in the“SCSI controller” it want to show a “USB-IDE Bridge
Controller”, andin the “Universal Serial Bus controller” it want to show
a new item of “USB-IDE Bridge”

USB-IDE 3.5”HDD Enclosure User’s Manual 8
6.1.9You can find 3.5 inch hard disk on“My Computer “. (IF the hard disk does
not have FDISK and FORMAT,it could not be found.)

USB-IDE 3.5”HDD Enclosure User’s Manual 9
6.2 Windows®98 Driver Un-Installation
Follow the steps below to remove theUSB-IDE 3.5”HDD Enclosure from Windows
system:
6.2.1 Run the “D:\Driver\BF-2000 & BF-2001\Windows\Uninstall.exe” to
uninstall the driver
6.2.2 Click “OK” to continue.
6.2.3 Then you have to reboot your computer.

USB-IDE 3.5”HDD Enclosure User’s Manual 10
6.3 Troubleshooting
If you have successfully installed the driver, but can’t see the new hard disk on“My
Computer “, please check the following points.

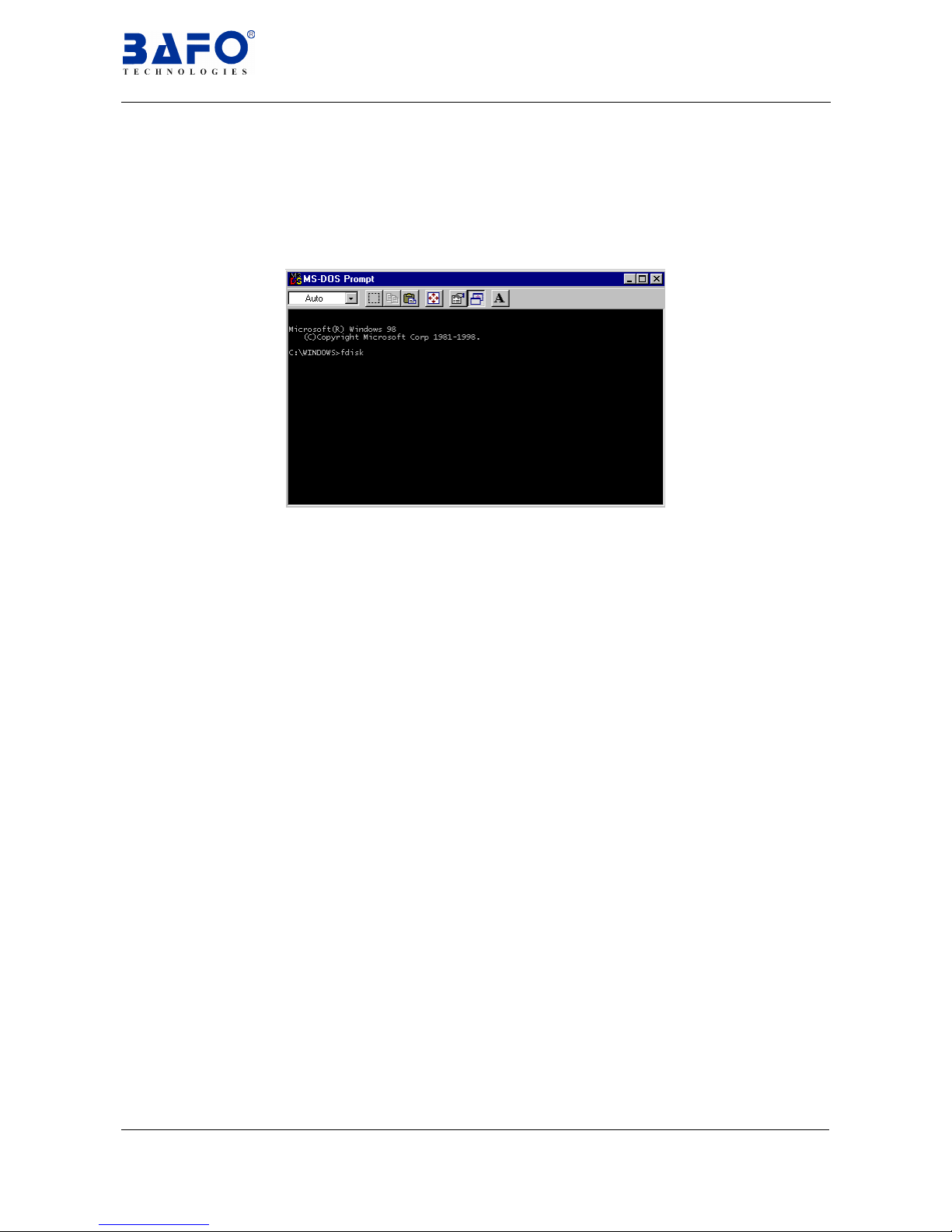

6.3.1 Go to the “MS-DOS Prompt “, FDISK and FORMATthe hard disk.(Please
refer MS-DOS instruction)

USB-IDE 3.5”HDD Enclosure User’s Manual 11
6.4 Windows®ME Driver Installation
6.4.1 Power on your computer and make sure that the USB port is enabled and
working properly.

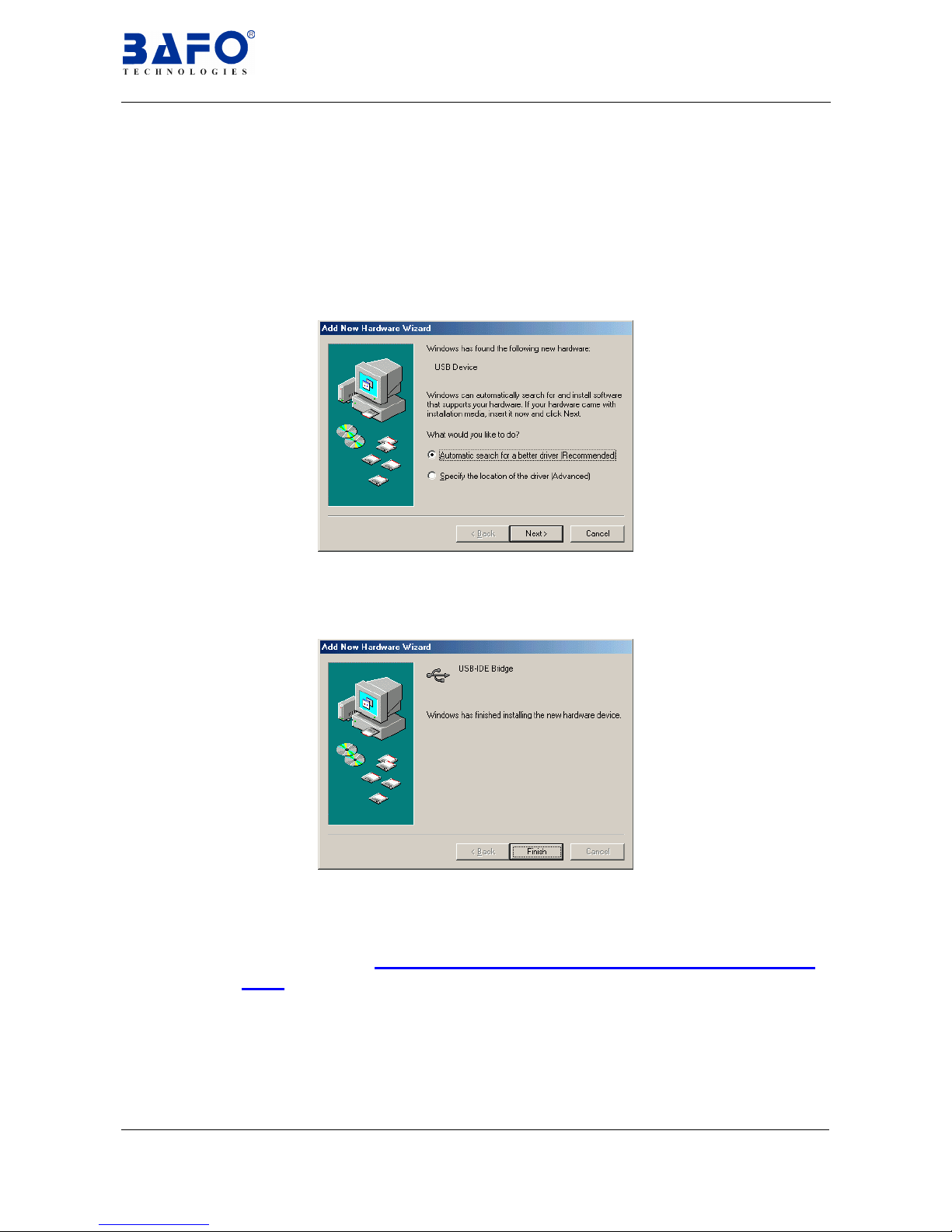

6.4.2 Insert the USB-IDE 3.5”HDD Enclosure software driver into the CD-ROM
drive and Plug in theUSB-IDE 3.5”HDD Enclosure into the USB port,
select the Automatic search for a better driver (recommended), and
then click “Next” to continue.
6.4.3 Windows®want to detect the driver(SCIWPL.INF) and show the “USB IDE
Bridge”.
6.4.4 Click “Finish” to complete the setup process.
6.4.5 After Windows®installed all the driver, you have to check “My
Computer”-“Control Panel”-“System”-”Device Manager” to make sure
the driver has already installed. Then, in the “Disk Drives” it want to show
anew Disk drive (This model number want to vary with different Hard
Disk),in the“SCSI controller” it want to show a “USB-IDE Bridge
Controller”, andin the “Universal Serial Bus controller” it want to show
a new item of “USB-IDE Bridge”

USB-IDE 3.5”HDD Enclosure User’s Manual 12
6.4.6 You can find 3.5-inch hard disk on“My Computer “. (IF the hard disk
does not have FDISK andFORMAT,it could not be found.)

USB-IDE 3.5”HDD Enclosure User’s Manual 13
6.5 Windows®ME Driver Un-Installation
Follow the steps below to remove theUSB-IDE 3.5”HDD Enclosure from Windows
system:
6.5.1 Run the “D:\Driver\BF-2000 & BF-2001\Windows\Uninstall.exe” to
uninstall the driver
6.5.2 Click “OK” to continue.
6.5.3 Then you have to reboot your computer.

USB-IDE 3.5”HDD Enclosure User’s Manual 14
6.6 Troubleshooting
If you have successfully installed the driver, but can’t see the new hard disk on“My
Computer “, please check the following points.
6.6.1 Go to the “MS-DOS Prompt “, FDISK and FORMATthe hard disk.(Please
refer MS-DOS instruction)

USB-IDE 3.5”HDD Enclosure User’s Manual 15
6.7 Windows®2000 Driver Installation
Follow the steps below to install Windows®2000 driver of theUSB-IDE 3.5”HDD
Enclosure:
6.7.1 Power on the computers that you want to connect USB-IDE 3.5”HDD
Enclosure and make sure that the USB port is enabled and working
properly.

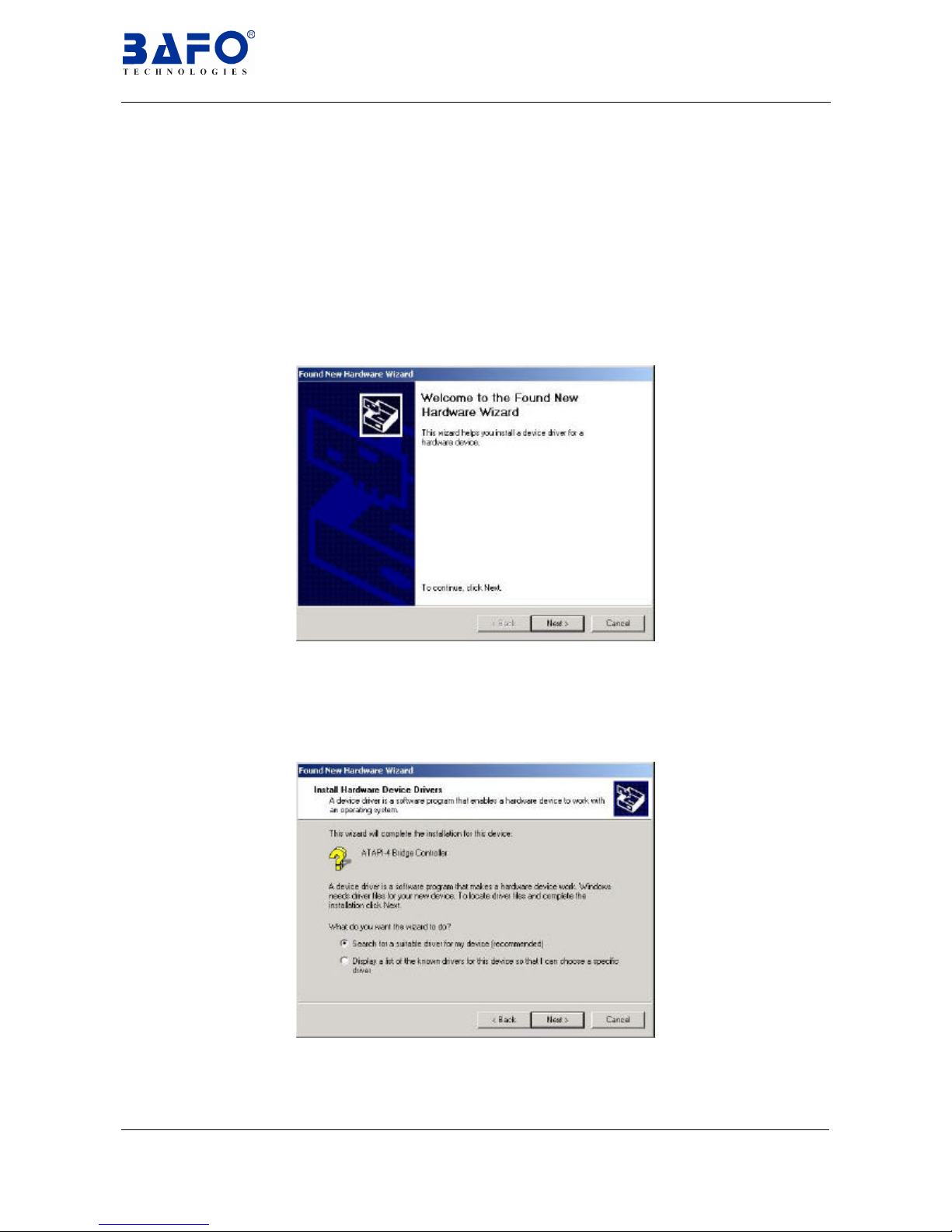

6.7.2 Plug on the DC POWER in theUSB-IDE 3.5”HDD Enclosure and plug into
the USB port. Windows®want to detect an unknown device and run the
“Found New Hardware Wizard”. To assist you in setting up the new
device.
6.7.3 Insert the driver of USB-IDE 3.5”HDD Enclosure into CD-ROM drive, click
“Next” “to continue
6.7.4 Select the “Search for a suitable driver for my device (recommend)”
and click “Next”.

USB-IDE 3.5”HDD Enclosure User’s Manual 16

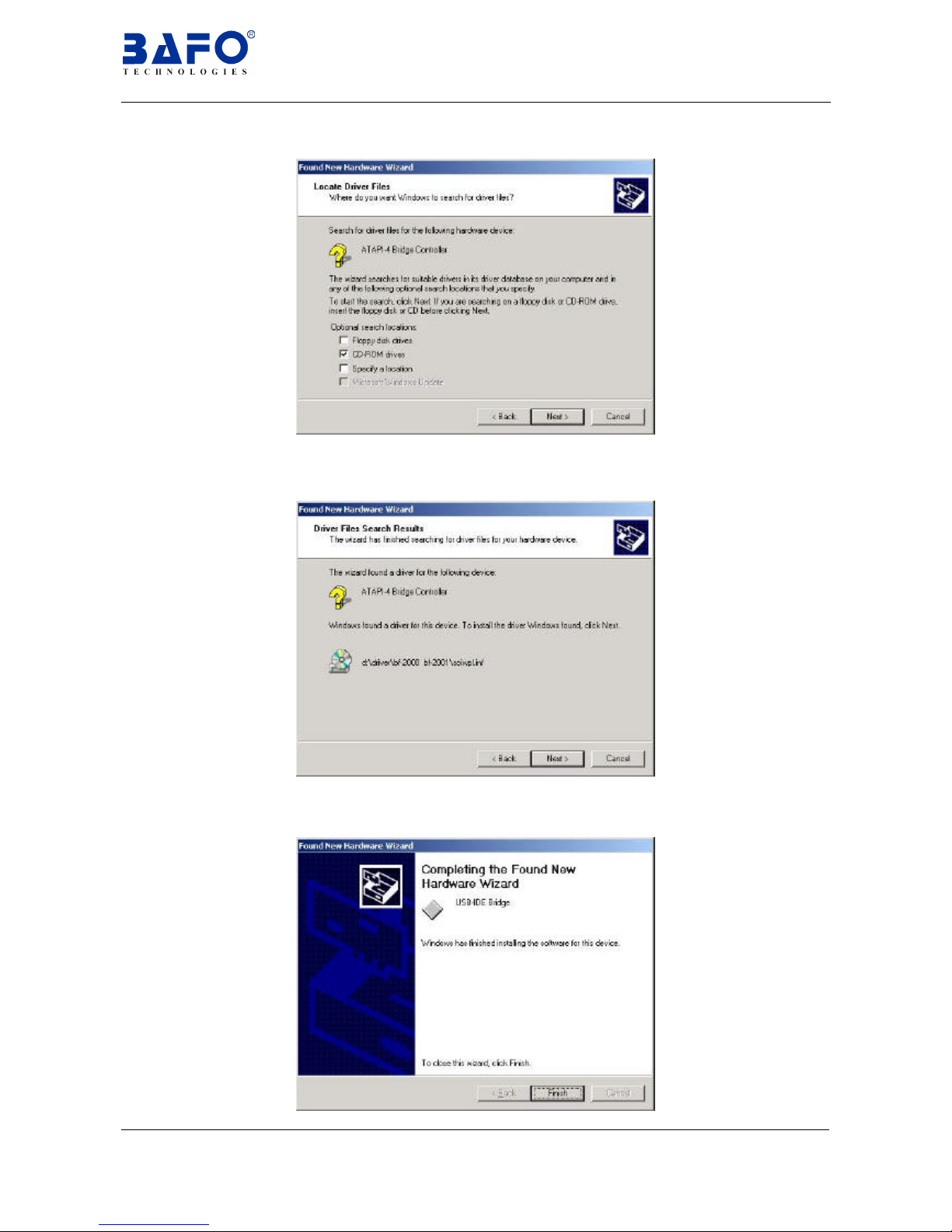

6.7.5 Select “CD-ROM drives”then click “Next”.
6.7.6 Windows®want to detect the driver(SCIWPL.INF) and show the “USB IDE
Bridge”.
6.7.7 Click “Finish” while installation is complete.

USB-IDE 3.5”HDD Enclosure User’s Manual 17

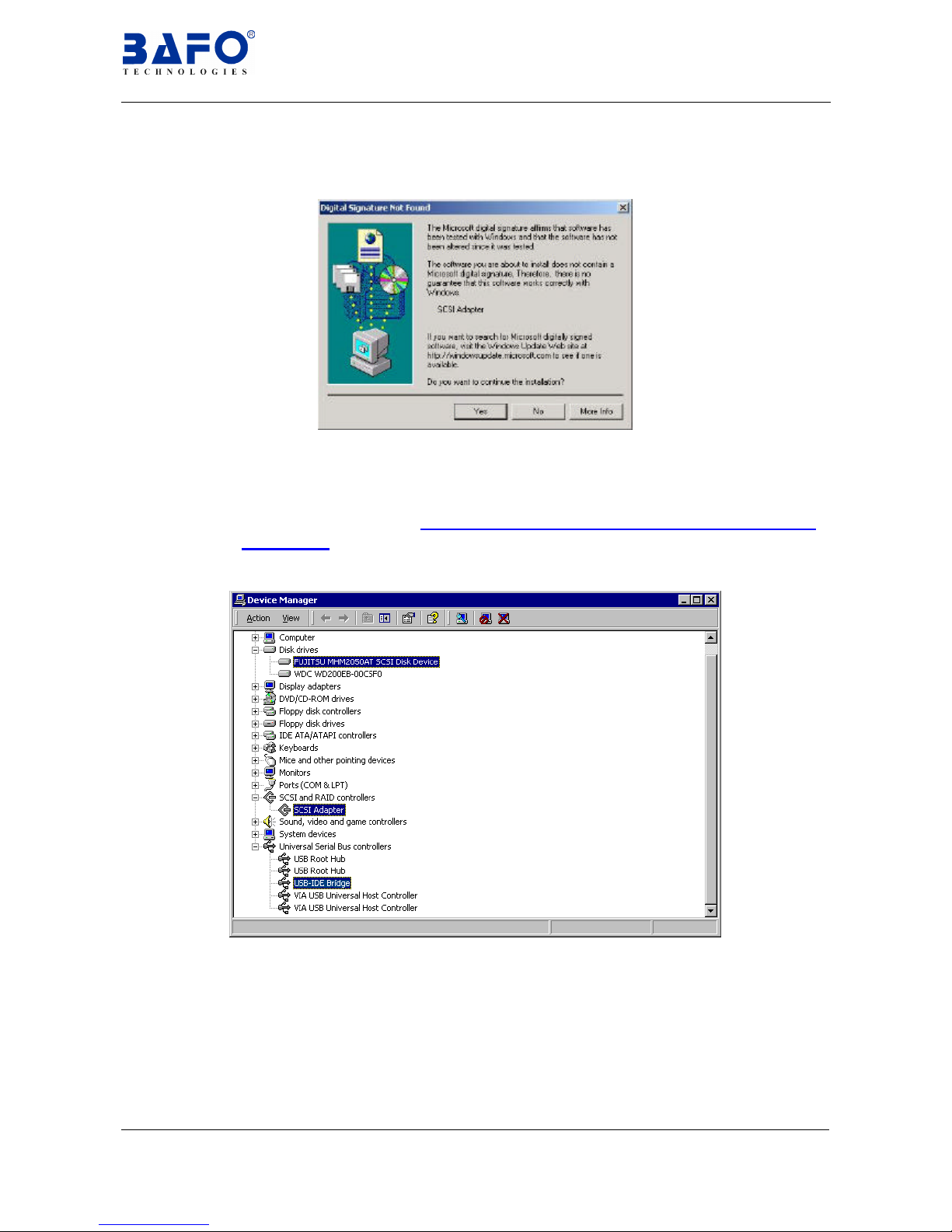

6.7.8 After finish installation it wants to appear “SCSI Adapter” and “Digital
Signature Not Found” you should choose “YES” to make the SCSI
Adapter working correctly.
6.7.9 After Windows®installed all the driver, you have to check “My
Computer”-“Control Panel”-“System”-”Hardware”-”Device Manager”
to make sure the driver has already installed, in the “Disk Drives” it want to
show a new Disk drive (This model number want to vary with different
Hard Disk), a “SCSI Adapter” under the SCSI and RAIDcontroller and a
USB-IDE Bridge under the “Universal Serial Bus controller”.

USB-IDE 3.5”HDD Enclosure User’s Manual 18

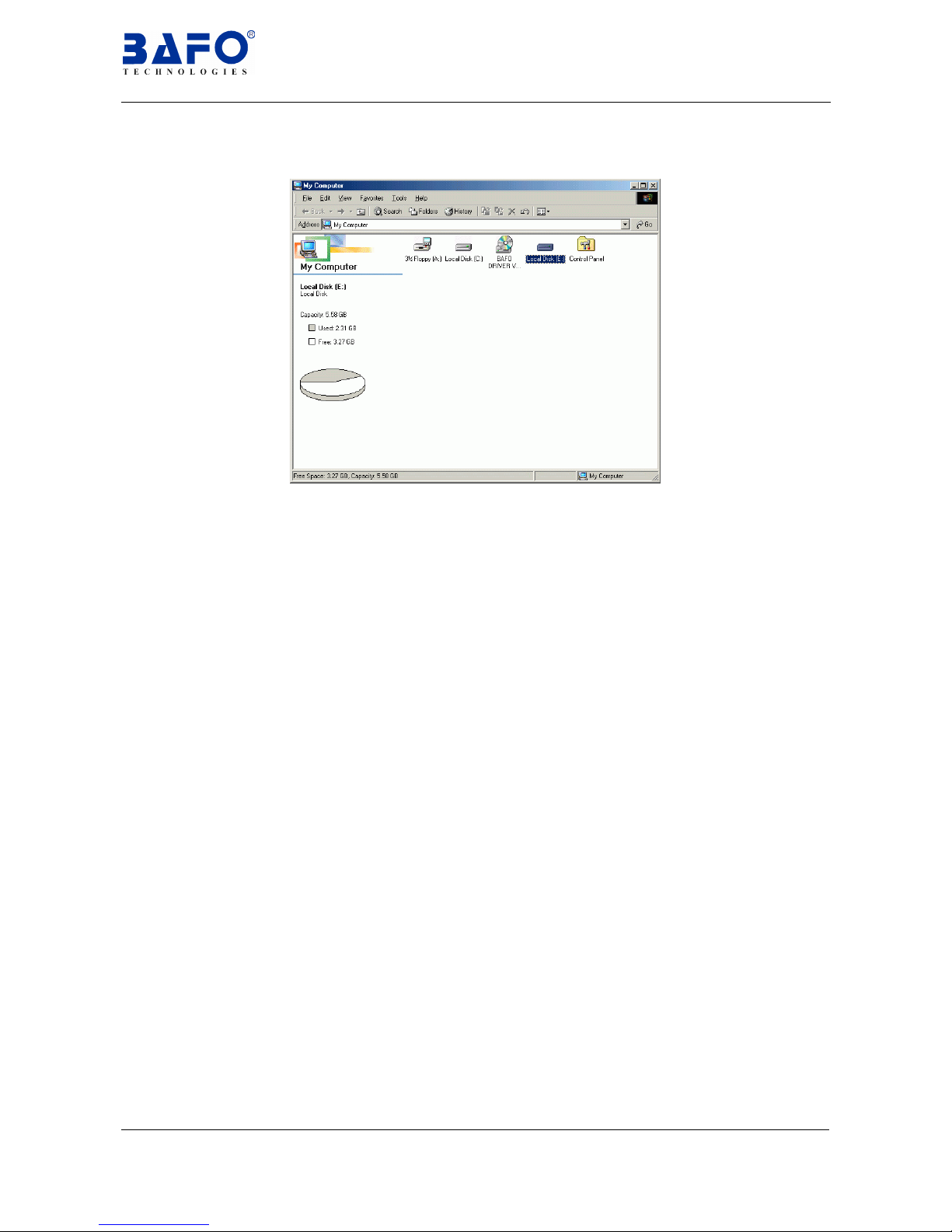

6.7.10 You can find 3.5 inchHard disk on “My Computer “. (IF the hard disk
do not have FDISK andFORMAT,it could not be found.)

USB-IDE 3.5”HDD Enclosure User’s Manual 19
6.8 Windows®2000 Driver Un-Installation
Follow the steps below to remove theUSB-IDE 3.5”HDD Enclosure from Windows
system:
6.8.1 Run the “D:\Driver\BF-2000 & BF-2001\Windows\Uninstall.exe” to
uninstall the driver
6.8.2 Click “OK” to continue.
6.8.3 Then you have to reboot your computer.
