BALAY 3VT543XD - annexe 1 User manual

Fill with rinse aid
Fill with detergent
Select programme

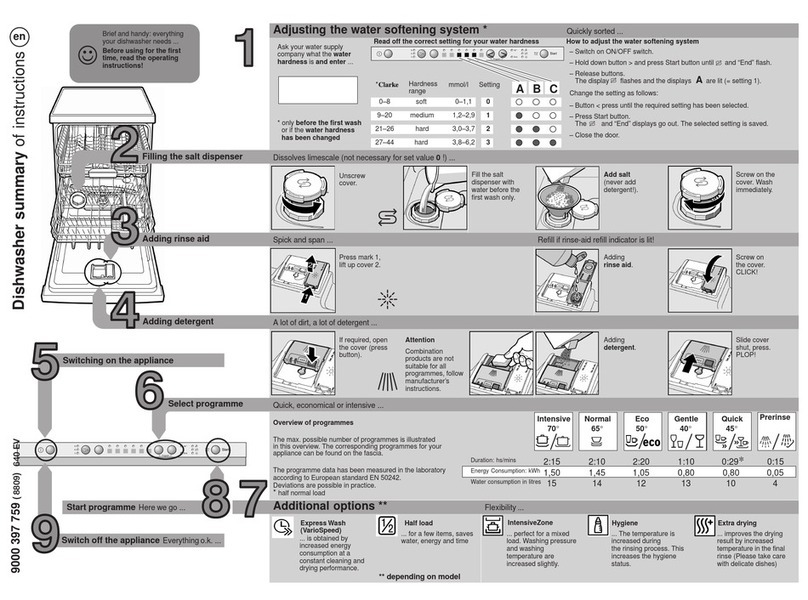

Summary of instructions for dishwasher
Brief and handy:
everything your dishwasher
needs...
Before using for the first
time, read the installation
and operating instructions!
Fill with special salt
Switch on appliance
Press On/Off switch, running time of the
chosen programme appears
When the display shows 0(end of programme),
press On/Off switch
Switch off the appliance Everything O.K...
9000 219 395   
en Set the water softening system * Quickly sorted ...
Find out the water hard-
ness at your water utility
company and enter
* only before using the dish-
washer for the first time or
if the water hardness
changes
Read off the setting ... and then set
– Hold down programme button Band switch on the main
switch, then release the buttons. The display of button B
and the number 4set by the factory flash.
– Each time button Bis depressed, the setting increases by
one; if 7has been reached, the display jumps back to 0.
– Switch off the main switch. The selected setting has been
stored in the appliance.
Reset
ABC
Dissolves limescale (not required for set value 0!)
Unscrew
the lid. Only before using
the dishwasher
for the first time
pour approx. 1 l /
2 pt water into the
salt opening.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never deter-
gent!)
Screw on the
lid. Switch on
dishwasher
immediately.
Everything is sparkling clean ... Refill whenever level indicator is light!
Press mark 1,
lift up lid 2. Pour in rinse aid.Close the lid. CLICK!
Very dirty dishes, a lot of detergent ...
If required, open
the lid (press the
pin).
Warning,
combination
products are not
suitable for all
programmes,
follow manufac-
turer’s instructions.
Pour in
detergent.Push the lid shut, press.
PLOP!
Quick, economical or intensive ...
Programme overview
This overview lists the max. possible number of
programmes. The programmes supplied with your
appliance are indicated on the fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
120
1,30
15
12
140
0,80
11
–
70
0,70
13
10
30
0,70
10
–
20
0,10
4
–
80-130
0,85-1,20
10-16
–
45_50_70_55_/65_40_
Duration in minutes
Electricity consumption in kWh
Water consumption in litres
with Aquasensor
AutoIntensive Eco Quick Prerinse Gentle
Additional programmes ** Flexibility ...
h.
Time selection
...switches on as soon as
you press the time
selection button:
Alters the programme
start in hourly steps
Saving time
(VarioSpeed)
... is obtained by
increased energy
consumption at
a constant cleaning and
drying performance.
Half load
... for a few items, saves
water, energy and time
** some models

Maintenance and care For perfect rinsing results ... Cleaning the waste-water pump *
Strainers ...
Check, if
required, clean
Rotate filter
cylinder, remove
filter system ...
rinse under
flowing water ... Insert ... Screw in filter system NOTE MARK!
* With some models
–Ladle out water and remove filters
–Unscrew cover (Torx T20)
– Check area of fan impeller for foreign objects
– Screw in cover and insert filters
Spray arms ...
Remove
blockages/deposits
Pull lower arm
upwards ... Unscrew upper arm ... Clean spray nozzles under flowing water
(perhaps with
toothpick) ...
Insert lower arm ...
Screw in upper arm
Rectifying minor faults yourself ... ... as it is worth doing it yourself!
Fault Possible causes
Appliance is not running /
stops
Check water supply
Display lights up
Supply fitting not open
Supply hose kinked
Supply fitting jammed or calcified
Open supply fitting.
Install supply hose without kinks.
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 9 l/min. when
water supply is open.
If the flow rate is less, replace the
supply fitting.
Remedial action
Plastic / utensils
discoloured Too little detergent
Discoloration caused by food colourings
(tomato sauce)
Follow manufacturer’s instructions
(detergent).
Discoloration is harmless; subsequent
rinse cycles will cause it to fade.
Residual water
in the appliance Waste water pump blocked
The programme has not yet ended Clean waste-water pump (see above). Switch on appliance and close or
terminate programme (see Terminating
the programme).
Rust on the cutlery Cutlery not rust-resistant
Hard knife blades are more susceptible
Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts
in the appliance.
Fault Possible causes Remedial
action
Stains and streaks
Milky film on the utensils
(removable)
Rinse-aid dosage too high / too low
Glasses not dishwasher-proof.
Streaks: reduce dosage.
Water or limescale stains: increase
dosage.
Use dishwasher-proof glasses.
Use a detergent suitable for glasses.
More information can be found in the operating instructions
Milky film, glasses
cloudy / dull
(not removable)
Water softening system incorrectly set;
No salt Correctly set water softening system. Refill with salt.
Utensils are not clean
Sand or gritty residue
on the utensils
Utensils are situated close together
or one above the other
Too little detergent
Unsuitable programme selected
Spray arm nozzles blocked
Filters dirty, not seated firmly
Spray arms blocked
Separate the utensils, prevent contact
points.
Follow manufacturer’s instructions
(detergent).
Select a more intensive programme.
Clean the spray arms (see above).
Clean the filters (see above).
Arrange the utensils so that the spray
arms can rotate freely.
Stopping the programme ... Loading the dishwasher correctly ...
Press and hold the two
reset buttons simultaneously for
approximately 3 seconds while
the programme is running
(RESET)
”0” appears
The programme will stop
after 1 minute
Switch off the appliance. Arrange dishwasher-proof utensils (having removed any ash, wax, grease, ink, sticky labels; remove,
large remnants of jam, dairy products and food) according to the operating instructions and check that
the spray arms can rotate freely.
