INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS

2
Content:
1. General requirements .....................................................................................2
2. Important information.....................................................................................2
3. Delivery and unpacking ...................................................................................3
4. Pellet stove components .................................................................................. 4
5. Safety requirements.........................................................................................7
5.1. User requirements............................................................................................ 7
5.2. Responsibility of the installer ...........................................................................7
6. Installation of the pellet stove.........................................................................7
6.1. General requirements........................................................................................7
6.2. Smoke exhaust system.......................................................................................7
6.3. Combustion air supply.......................................................................................9
6.4. Connecting the pellet stove to the power supply...............................................9
7. Operation of the pellet stove ......................................................................... 10
7.1. General requirements......................................................................................10
7.2. Safe ignition of the stove..................................................................................10
7.3. Turning on the stove for the first time.............................................................11
8. Warranty conditions............................................................................................... 11
9. Cleaning and maintenance of the pellet stove ............................................11
10. Example scheme for connecting the stove to the water heating system
installation……………………………………………………………………………………..…….13
11. Pellet quality requirements.........................................................................14
12. Information regarding dismantling and destruction of the stove...........14
1. General requirements
This stove is designed and manufactured according to standard:
EN 14785:2006
When purchasing the pellet stove, be sure to read this manual.
This instruction has been prepared in accordance with the laws and regulations for
safety in the installation and operation of pellet stoves.
Failure to follow the instructions in this manual may result in damage and undesired
consequences for which the manufacturer is not responsible.
Errors or incorrect settings could cause hazardous and/or incorrect working
conditions.
2. Important information
The purpose of this instruction is to enable the user to take
all the necessary measures and prepare all the equipment to ensure safe and correct operation
and use of the pellet stove.
1. The pellet stove is designed to emit heat when burning pressed wood
pellets and to heat rooms by spatial heat flow and heat released from heated
water.
2. Use only fuel recommended by the stove manufacturer. Pressed wood pellets
class A1 with a diameter of 6 –8 mm.
3. This appliance must not be used for waste incineration.
4. For the correct operation of the stove and the electronic equipment
connected to it and to prevent accidents, it is necessary to follow the
instructions mentioned in this manual.

3
5. Do not use water to clean the stove. Water can get inside the stove and damage
the electronics.
6. Do not open the combustion chamber door during operation of the pellet
stove. Fire hazard.
7. The user is fully responsible for the correct operation of the product, which
relieves the manufacturer of responsibility for all his actions or inactions.
8. Any intervention or replacement that is made by unauthorized person or
using non-original spare parts for the stove can be risky for the user and
exempts the manufacturer from any responsibility.
9. Most surfaces of the stove are extremely hot (door, handle, glass, flue, etc.).
Do not touch these parts before you have put on specifically appropriate
protective equipment, such as temperature-resistant gloves or tools.
10. Children should not touch the stove or play with it while it is working.
11. Do not lit the stove with the door open or the glass broken.
12. The stove must be electrically connected to a system equipped with a
working zero conductor.
13. Switch off the stove in case of damage or malfunction.
14. Unburned pellets collected in the burner after each failed ignition attempt
must be removed before starting again.
15. Install the stove according to all fire safety requirements.
16. If a fire occurs in the flue or chimney, turn off the stove, unplug the power
cord, and never open the door. Call to the fire department.
17. Do not ignite the stove with flammable materials (alcohol or liquid fuel) if
the ignition system fails.
18. Periodically check and clean the flue outlet of the stove (the connection to
the flue pipe).
19. Always keep the hopper lid closed.
20. Keep this instruction and refer to it when necessary.
3. Delivery and unpacking
The pellet stove is delivered on a pallet, well packed in a box.Unpack carefully.
Inspect the stove for visible defects or damage.
Check the door glass.
Open the pellet hopper of the stove and check if there are inserted:
•Installation and operating instructions;
•Power cable;
•Warranty card.
Read all documentation carefully and do not throw it away.
In the event of a detected defect, damage or missing items during delivery, contact your
seller.

4
4. Pellet stove components
The pellet stove consists of the following components:

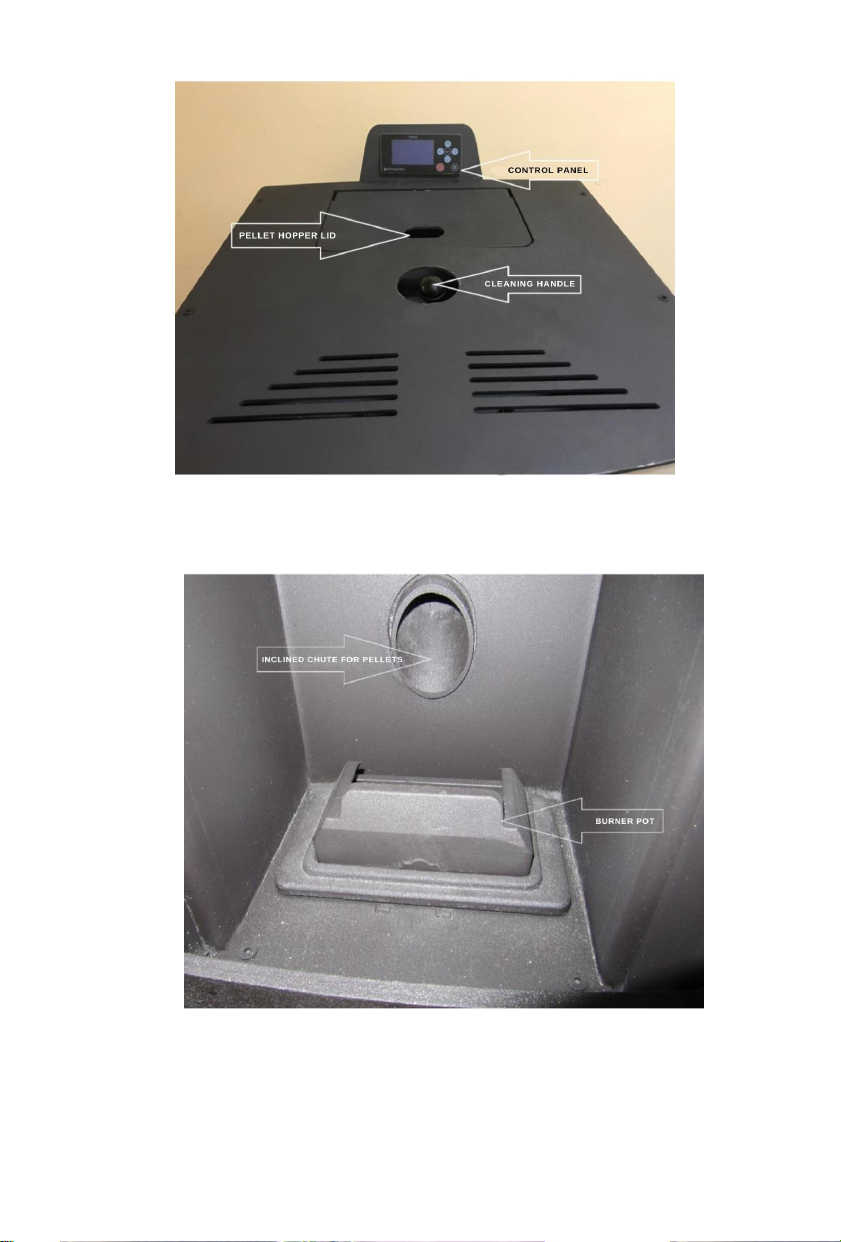

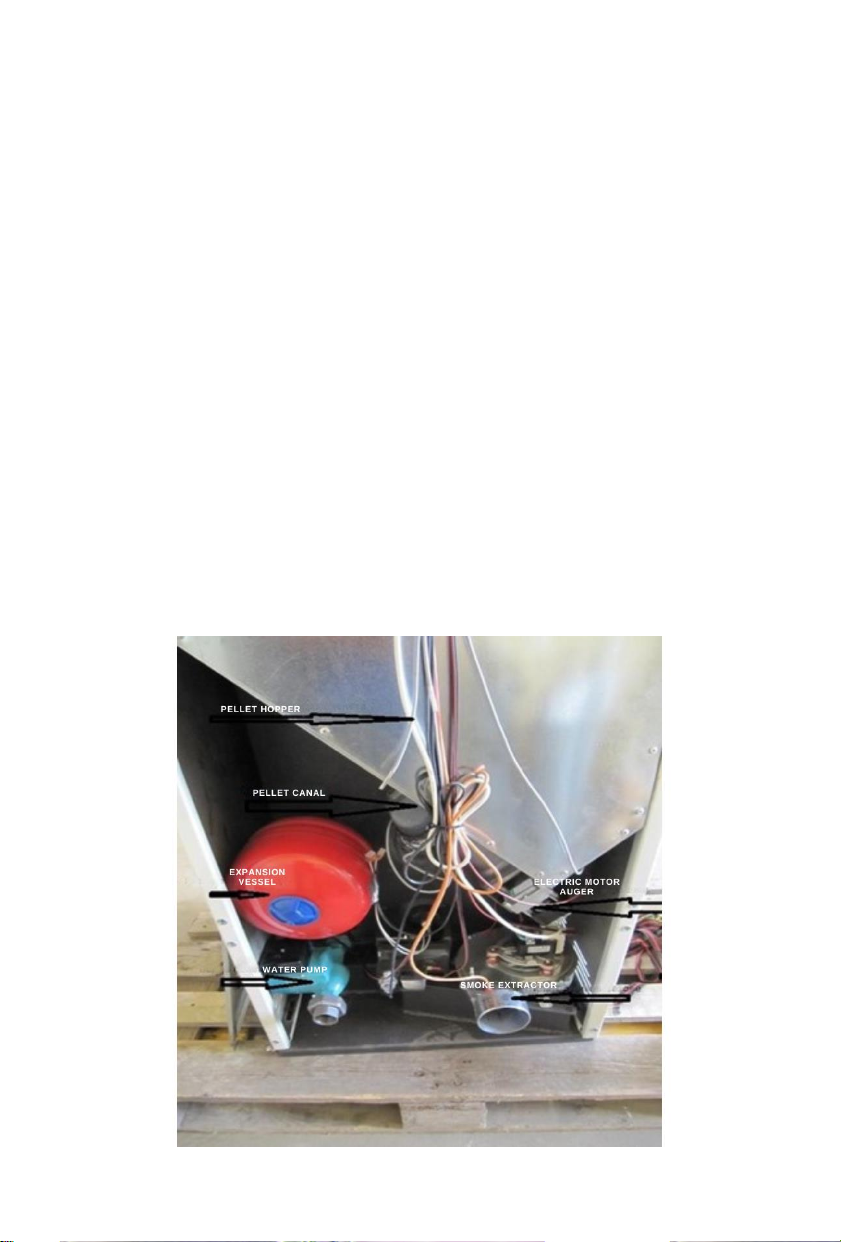

-combustion chamber –fig. 3;

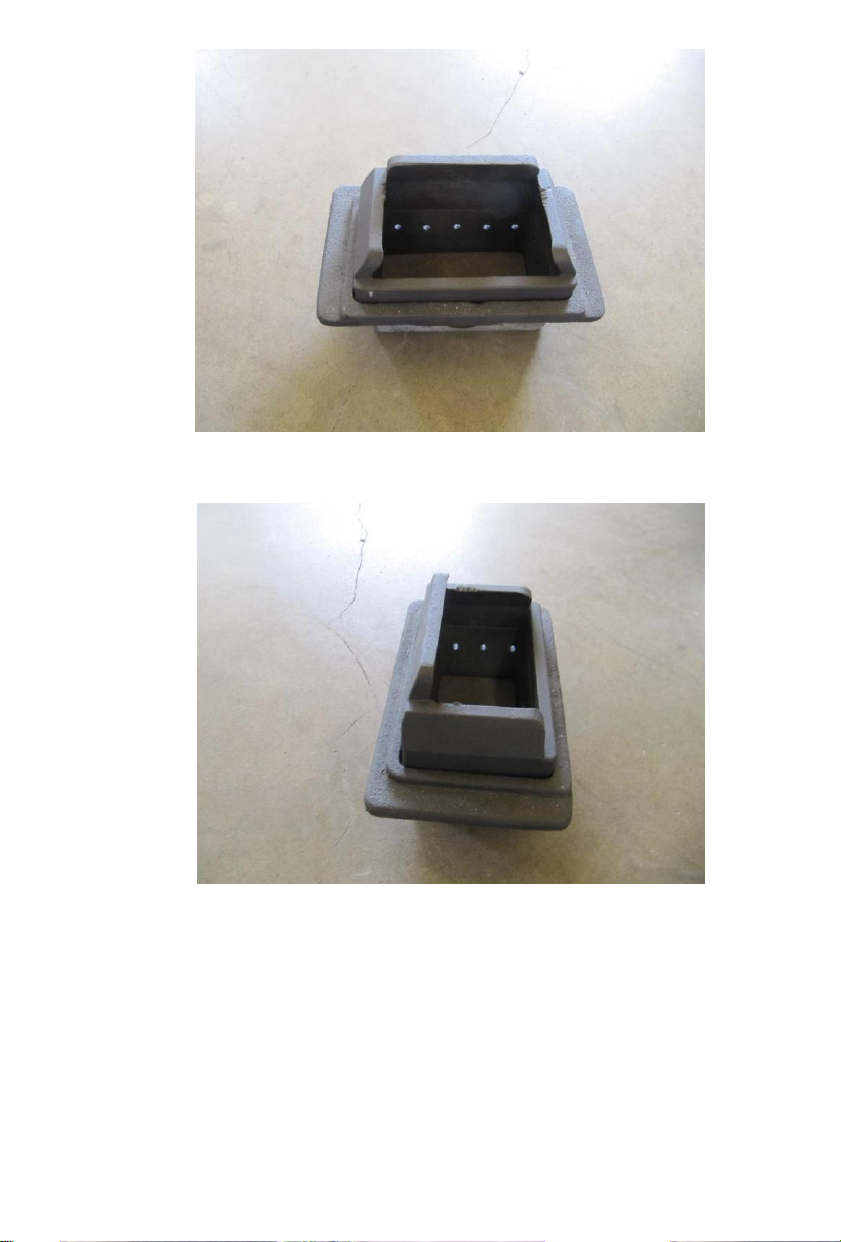

-pot - place where the pellets burn –fig. 4 and fig. 5;
-water heater;
-pellet hopper –pellets for burning are filled into it –fig. 1 and fig.2;
-auger for pellets (screw auger)–delivers pellets from the hopper to the inclined
channel and from there to the pot for combustion –fig. 1;
-electric gear motor: drives the pellet auger (screw auger)–fig. 1;
- electric lighter: for initial ignition of the pellets in the pot;
-smoke extractor: ensures removal of flue gases from the combustion chamber to the
flue and sucks in air for combustion fig. 1,
- pressure switch: reports the underpressure in the exhaust tract;
-limiting thermostat (STB): in the event of a failure in the controller or the sensor
for measuring the temperature of the hot water, to turn off the supply of pellets;
-thermal limiter mounted on the inclined chute for feeding pellets into the
combustion chamber: shuts down the pellet auger in case of backfire or if the inclined
chute temperature is exceeded.
-light detector: Opto-sensor for monitoring the light intensity of the flame
determining the presence of combustion.
-electronic controller with control panel: monitors and manages the
combustion process as well as ensures the operation of the provided protections-
fig.1
Fig. 1

5
Fig.2
Fig.3

6
Fig. 4 Burner pot
Fig. 5 Burner pot

7
5. Safety Requirements
5.1 User requirements
The user must:
•be an adult (over 18) and responsible person;
•to have certain technical knowledge necessary for the operation, maintenance and
cleaning of the pellet stove.
5.2 Responsibility of the installer
The installer must follow the manufacturer's requirements:
•the installation and adjustment of the stove is in accordance with local legislation and
the instructions given in this manual for
operation and maintenance;
•must check if there is enough air for combustion in the room or in the room
where the pellet stove is installed. It is recommended that a periodic check be
made to ensure that combustion air is reaching the combustion chamber of the
stove;
•to check that the connecting flue pipes and the chimney comply with the
manufacturer's instructions;
•to adjust the pellet stove according to the type of pellets used,
•when the installation and adjustment of the pellet stove are finished, it must be put into
trial operation for no less than 30 minutes to test all the flue seals and the water
installation;
•to check the exhaust gas emissions after the installation and adjustment
of the pellet stove;
•to instruct the user how to adjust, operate and clean the pellet stove.
6Installation of the pellet stove
6.1 General requirements
After all the necessary checks are completed, the installer proceeds with the installation of
the pellet stove.
•Check the minimum volume of the room where the stove will be installed (not
less than 45 m3);
•The space around the stove must be made of fire-resistant material;
•The minimum distance from flammable materials should not be less than 300 mm. If
the floor is made of flammable material, the stove must be insulated with non-flammable
ceramic material.
Observe the following distances:
- on the side - 300 mm,
- rare - 300 mm,
- front - 800 mm.
- floor –the fireplace must be placed on a non-combustible floor.
The manufacturer is not responsible for consequences caused by not
following the instructions.
6.2. Smoke exhaust system
The correct assembly and connection of the flue gas exhaust system is extremely
important for the trouble-free operation of the pellet stove.
The pellet stove works constantly with pressure in the flue.
It is forbidden to vent flue gases directly from the pellet stove through the wall into
the atmosphere.

8
It is mandatory to install a flue to remove flue gases at a height safe for human health
and to be equipped with wind protection.
The flue must be used only by the pellet stove and no other appliances must be connected
to it.
Flue gases are released from the combustion chamber of the pellet stove to the
atmosphere through an opening with a diameter of Ø 80 mm, located in its rear part.
If the outlet of the pellet stove is connected to a metal flue, it must have a vertical part with a
length of not less than 2.5 m, equipped with wind protection device. The pipe system must be
airtight insulated with materials resistant to high temperatures (heat-resistant silicone).
Classic masonry chimneys can be used to vent the smoke. If the pellet fireplace is
connected to a brick chimney, it must be well built and plastered (no cracks).
All parts of the flue must be freely accessible for inspection.
In the lower part of the flue there must be an inspection opening, allowing
opening and cleaning.
It is forbidden to install regulating flaps in the smoke outlet (valves that can prevent the
removal of smoke, respectively make it difficult to draft).

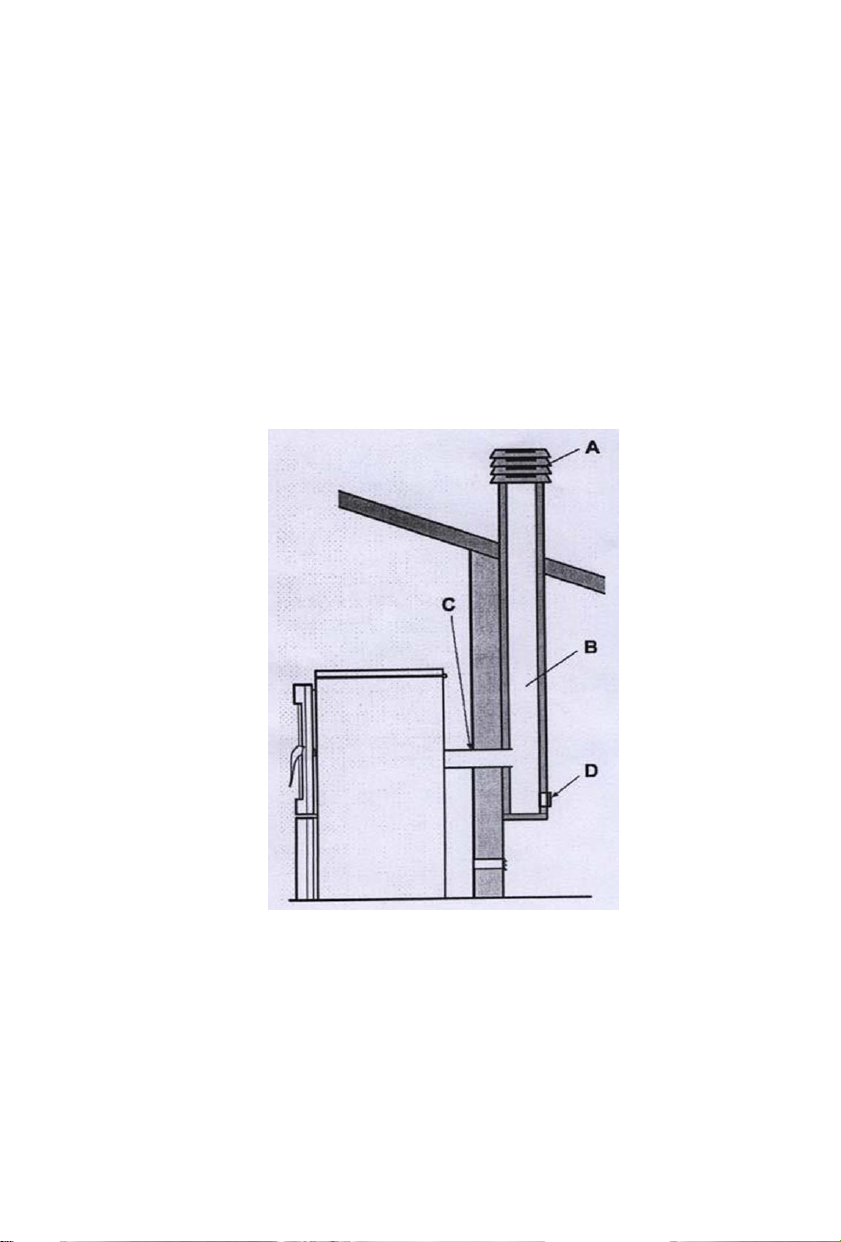

Fig. 6
A) Wind protection cowl
B) Maximum chimney diameter 150 mm, maximum height 4-5 m
C) Gasket
D) Control opening for cleaning

9

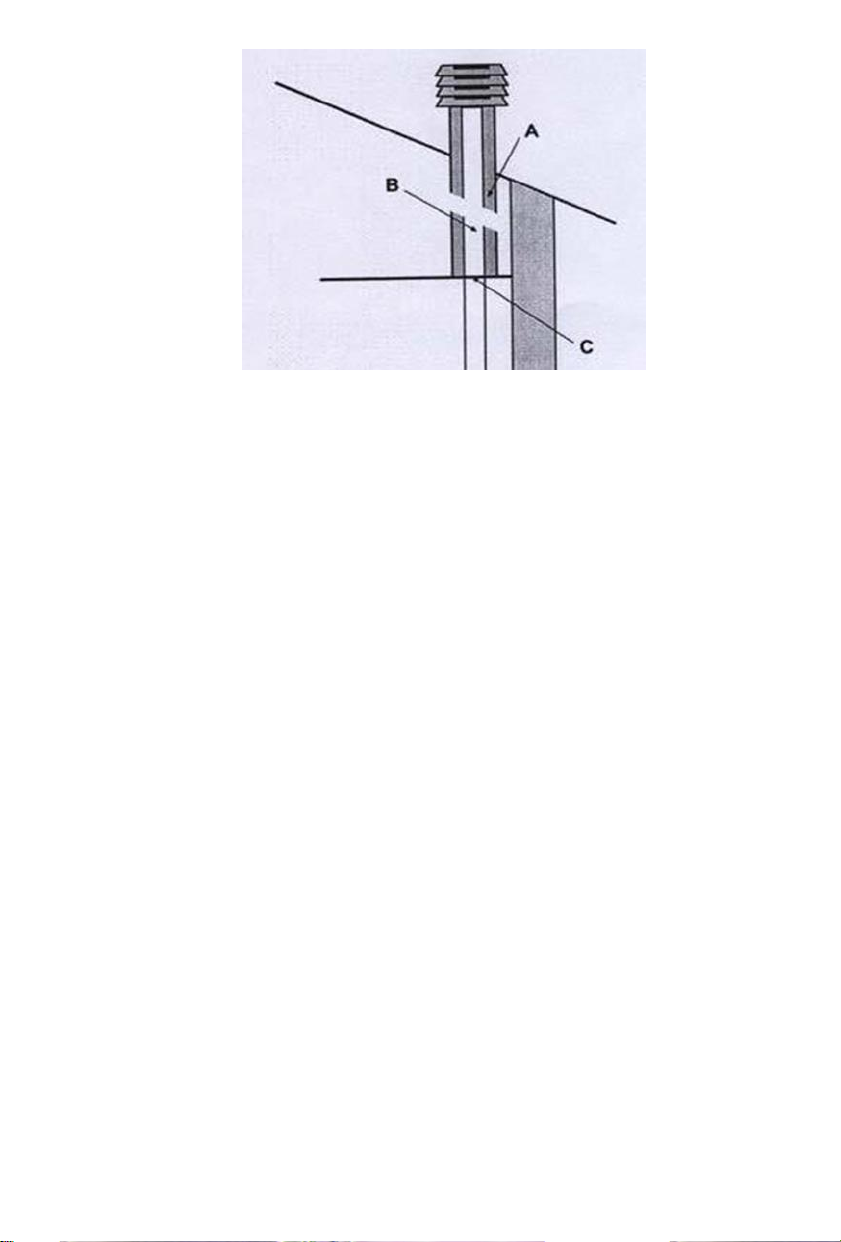

Fig.7
А) Mineral wool
B) Steel pipes
C) Barrier plate
Avoid contact with combustible material (such as wooden beams) and in all cases it will
be necessary to isolate them from the metal flue with fireproof materials (see figure 7).
ATTENTION! Do not connect the exhaust gas system of the pellet stove to a chimney to
which another stove, boiler or aspiration system is already connected.
6.3. Combustion air supply
The air needed to burn the pellets is taken from the room where the pellet stove is
installed. It is sucked from the smoke fan through a pipe with a diameter of Ø 43 mm.
If there is another heating appliance in the room, the necessary amount of air
must be provided for the proper functioning of all appliances.
6.4. Connecting the pellet stove to the power supply
The pellet stove works with a supply voltage of 230 V / 50 Hz and therefore it must
be connected to an electrical supply.
Before connecting the pellet stove to electricity, make sure that:
•the characteristics of the electrical network correspond to the data or
specification given on the nameplate of the stove.
•The power cord must be kept away from hot places and must not come into contact
with sharp edges that could injure it.
•When the stove is installed in the appropriate place, the two-position switch and the
socket must be easily accessible.
•Check that the connection is properly grounded.
•If the stove is not used for a long time, you must disconnect it from the electrical
network. Place the switch in the OFF position, position (0).
•In case of damage or malfunction, turn off the engine or the switch in the OFF position (0)
and contact an authorized service center.

10
•Do not operate the pellet stove if one of the safety devices is damaged,
malfunctioning or not working.
•Do not turn off the power by pulling the plug while the stove is operating.
This can jeopardize the proper functioning of the pellet stove.
Fig.8
7Operation of the pellet stove
7.1 General requirements
After you have made sure that the stove is installed correctly, you can
set all parameters and perform the first ignition. In most cases, the pellet stove is set by
the manufacturer, but the installer must check these settings and make adjustments for
the pellets the user is using..
The setting can be done through the control panel or over the Internet using the
appropriate software.
7. 2. Safe ignition of the pellet stove
-Never use gasoline or other flammable liquids to light the stove if it is not ignited by
the electric lighter. Keep these liquids away from the stove while it is operating.
-Do not open the door to clean the glass while the stove is operating.

11
Clean the glass only when the stove is cold, using cotton cloth or paper towels and glass
cleaner.
-Make sure the ashtray is placed correctly and that the door is fully closed.
-With the vacuum cleaner, remove the ash from the ash niche only when it has completely
cooled down.
-Do not use abrasive cleaners for the surface of the stove.
7.3. Turning on the stove for the first time
-Make sure all cables are connected correctly.
-Turn on the stove.
You have bought a quality appliance. Enjoy your home while creating good thermal comfort and
coziness.
8.Warranty Terms
The duration of the warranty is 24 months from the date of sale. The warranty is considered void
under the following conditions:
Incorrect connection;
Repair and/or modification attempts by the customer;
Visible damage to the exterior and/or interior of the product;
Damage caused by lightning storms and/or electric shocks;
Use in unacceptable conditions / temperature and humidity /;
The removal of factory defects during the warranty period does not lead to its extension. In case
of malfunction, the product should be sent to the seller.
9.Cleaning and maintenance of the pellet stove
It is recommended that the burner pot, ashtray and ashtray niche be cleaned after each use,
every day.
The burner pot can be cleaned during operation of the pellet stove by a cleaning mechanism that
is controlled by the controller.
Using a vacuum cleaner for stoves makes cleaning the pellet stove easier. The vacuum cleaner
must have a filter to prevent dust from entering the room or the room where it is located.
Before you start cleaning, the following precautions should be taken:
Unplug the stove from the mains.
Before working, make sure that the stove and ashes are cooled.
The sealing strip on the underside of the burner pot must be in place and must not be damaged
(Fig. 10).
Chimneys should be cleaned twice a year and before each heating season. The chimney should
be checked and cleaned every year, preferably at the beginning of the heating season.
Smoke fan –to be checked and cleaned every six months.
Perform general cleaning at the beginning and end of the heating season.
The purpose of this special maintenance is to ensure proper and efficient operation of the pellet
stove.
In the event of a flue or chimney fire, get everyone out
the room, turn off the power using the main switch and remove the plug from the wall (the plug
should always be easily accessible), and immediately call the fire brigade.

12
Fig. 9
Fig.10

13
10. Example scheme for connecting the stove to the water-heating
installation
Fig. 31
1Pellet boiler stove
2Hot water pipe
3Return water pipe
4Zone valve/fit as required /
5Radiators
The pellet stove is equipped by the manufacturer with a water pump and expansion tank,
as well as with a deaerator.
The installer must install a safety valve in the water-heating installation according to the
maximum working pressure of the water indicated by the manufacturer. It should also
install a 1/2ʺ tap to drain the installation.

14
11. Pellet quality requirements
ATTENTION! The pellet stove has been tested only with wood pellets with a diameter of 6 –8
mm, class EN plus A1, acc. EN ISO 17225-2:2014. The manufacturer accepts no responsibility
if you use fuel other than that recommended by the manufacturer.
This pellet stove is made to use pressed wood (pellets).
There are many products of this type on the market, it is important to choose pellets that
have the lowest ash content and are not too wet (always ask for a pellet test certificate
from the supplier).
The correct functioning of the pellet stove depends on the type and quality of the
pellets.
When the pellets are of low quality, the stove must be cleaned frequently.
Benefits of using pellets:
-Allow easy loading.
-Better regulation of fuel quantity.
-The small size of the pellets allows the precise supply of the fuel.
-They allow air supply to achieve optimal combustion efficiency.
The high combustion efficiency is also determined by the low moisture content in
pellets (constantly below 10% compared to 20% to 30% moisture content of sawn wood).
-Pellet bags can be stored in a small area in a dry garage, basement, utility room or
shed.
Pellets should be stored in a dry place that is not too cold. Cold and wet pellets reduce the
thermal power of the fuel and require additional cleaning of the combustion chamber .
Pellets should not be stored near the pellet stove - at least 2 meters away from it. Do not
crush them.
The manufacturer of the stove is not responsible for the use of wood pellets with poor
quality, nor for the poor performance of the pellet stove due to such fuel.
12. Information relating to dismantling and destruction of the stove
Dismantling, disposal and destruction of old, used stoves is the responsibility of the owner.
The owner of the stove must comply with all legal regulations of his country and the
European Union regarding safety and environmental protection.
The dismantling and storage of materials from the stove can be entrusted to a third party
authorized to collect and dispose of these materials
