Barco Galaxy WARP 10 HB User manual

Barco Galaxy WARP™ 10 HB
Owner’s Manual
R9040330
R5976698/00
05/04/2004

Barco nv Simulation Products
600 Bellbrook Ave, Xenia OH 45385
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Visit us at the web: www.eis.barco.com
Barco nv Simulation Products
Noordlaan 5, B-8520 Kuurne
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Visit us at the web: www.barco.com
PrintedinBelgium

Copyright ©
All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or
stored in a retrieval system without the prior written consent of Barco.
Changes
Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war-
ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the
program(s) described in this publication at any time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the information in this
publication; these changes are incorporated in new editions of this publication.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders.
All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for
the products or their manufactures.
Guarantee and Compensation
Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser
must immediately inspect all delivered goods for damage incurred during transport, as well as for material and manufacturing faults Barco
must be informed immediately in writing of any complaints.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning,
at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement
at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a
reduction in the purchase price or cancellation of the contract. All other claims, in particular those relating to compensation for direct or
indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component
of the system or independent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of Barco.
If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly,
in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are
system failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as
well as normal maintenance are not subject to the guarantee provided by Barco either.
The environmental conditions as well as the servicing and maintenance regulations specified in the this manual must be complied with by
the customer.
Federal Communications Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area may
cause harmful interference, in which case the user will be responsible for correcting any interference.

Table of contents
TABLE OF CONTENTS
1. SafetyInstructions.................................................................................................. 5
1.1 Warnings............................................................................................................................... 5
1.2 Restricted Access Location........................................................................................................... 5
1.3 FCC statement ........................................................................................................................ 6
1.4 Note.................................................................................................................................... 6
2. Packaging andDimensions .......................................................................................7
2.1 Box Content ........................................................................................................................... 7
2.2 Lens Packaging . . . .................................................................................................................... 7

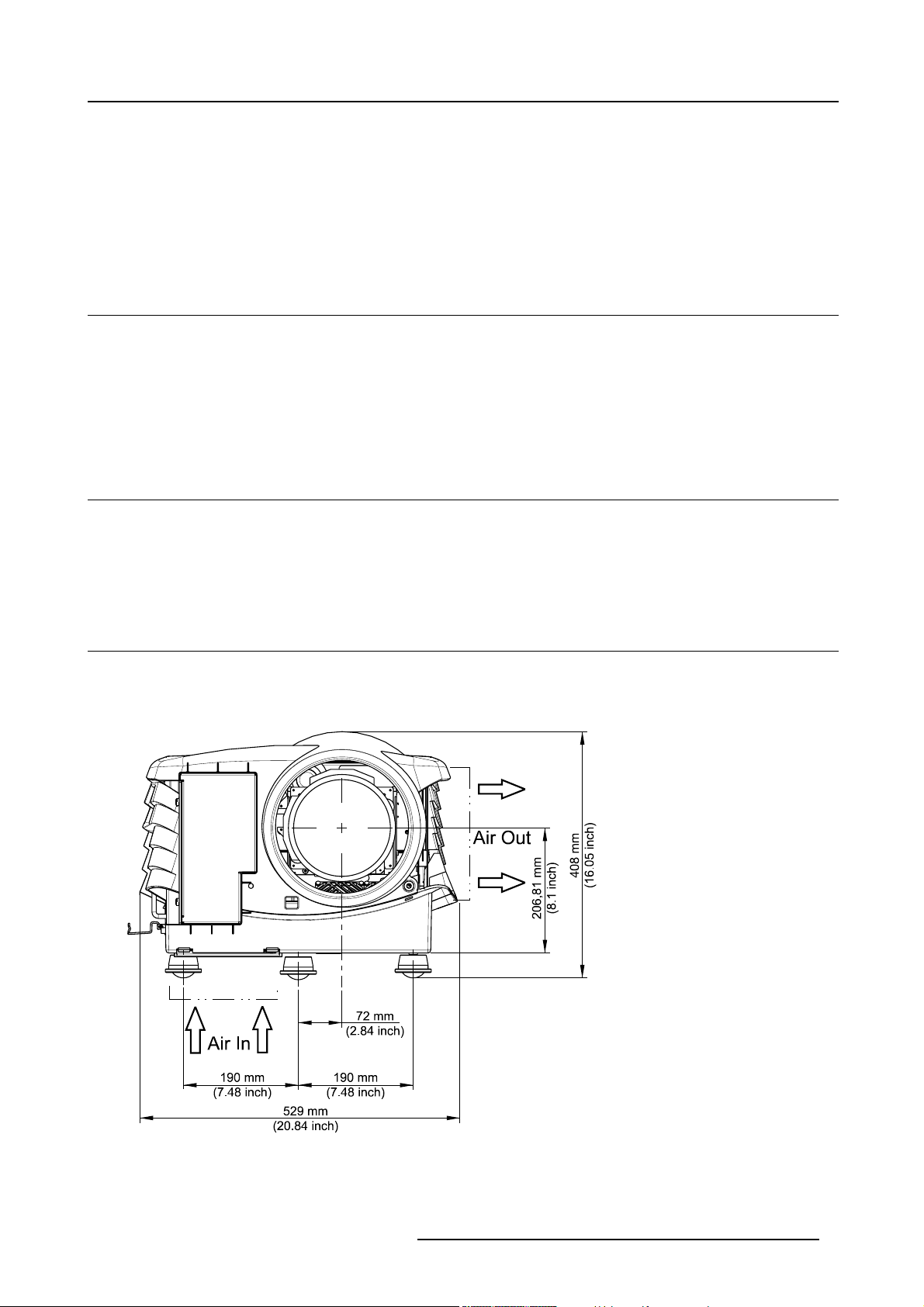

2.3 Dimensions............................................................................................................................ 7
3. InstallationGuidelines..............................................................................................9
3.1 General . ............................................................................................................................... 9
3.2 Restricted Access Location.......................................................................................................... 10

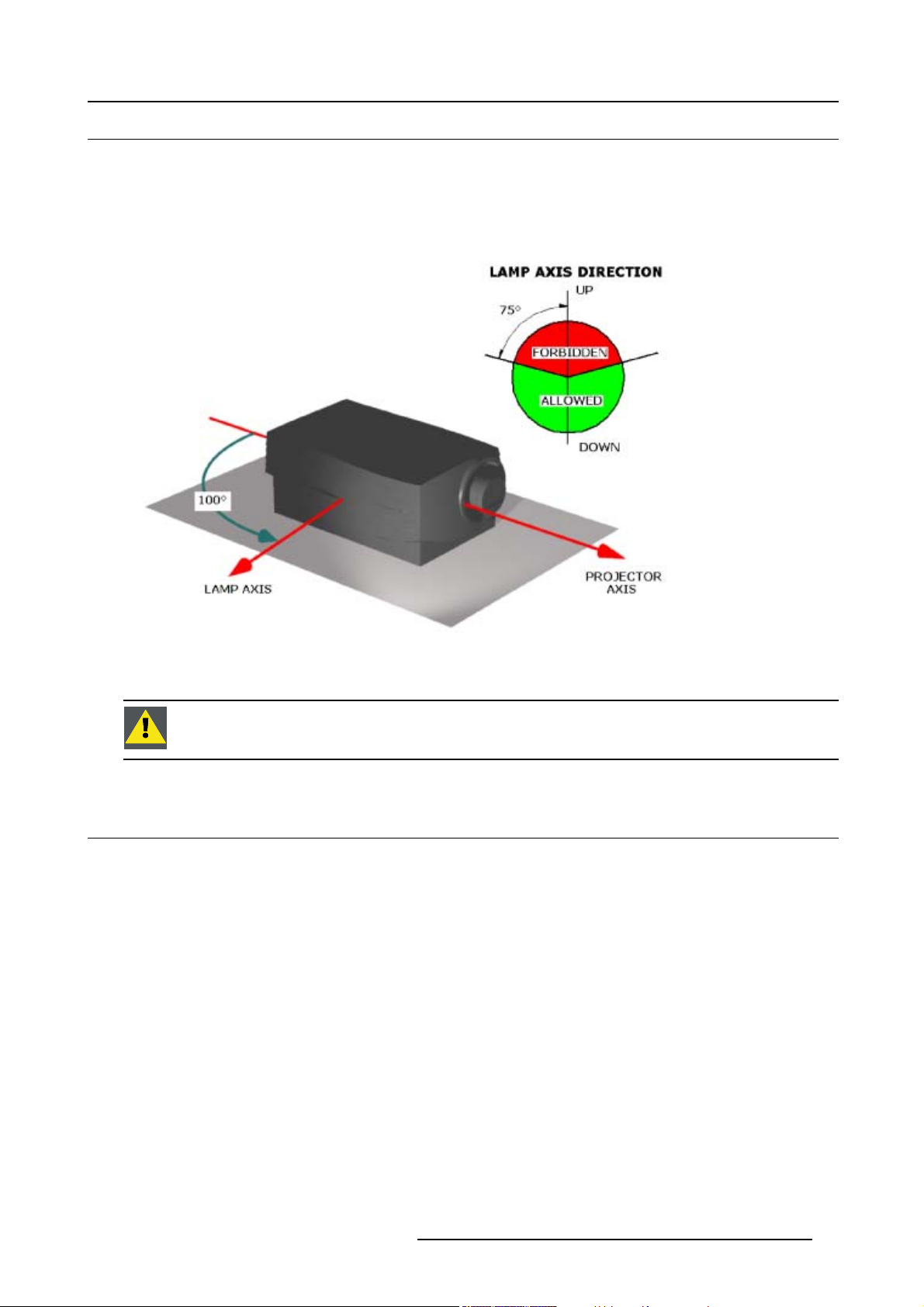

3.3 Projector Position .................................................................................................................... 11

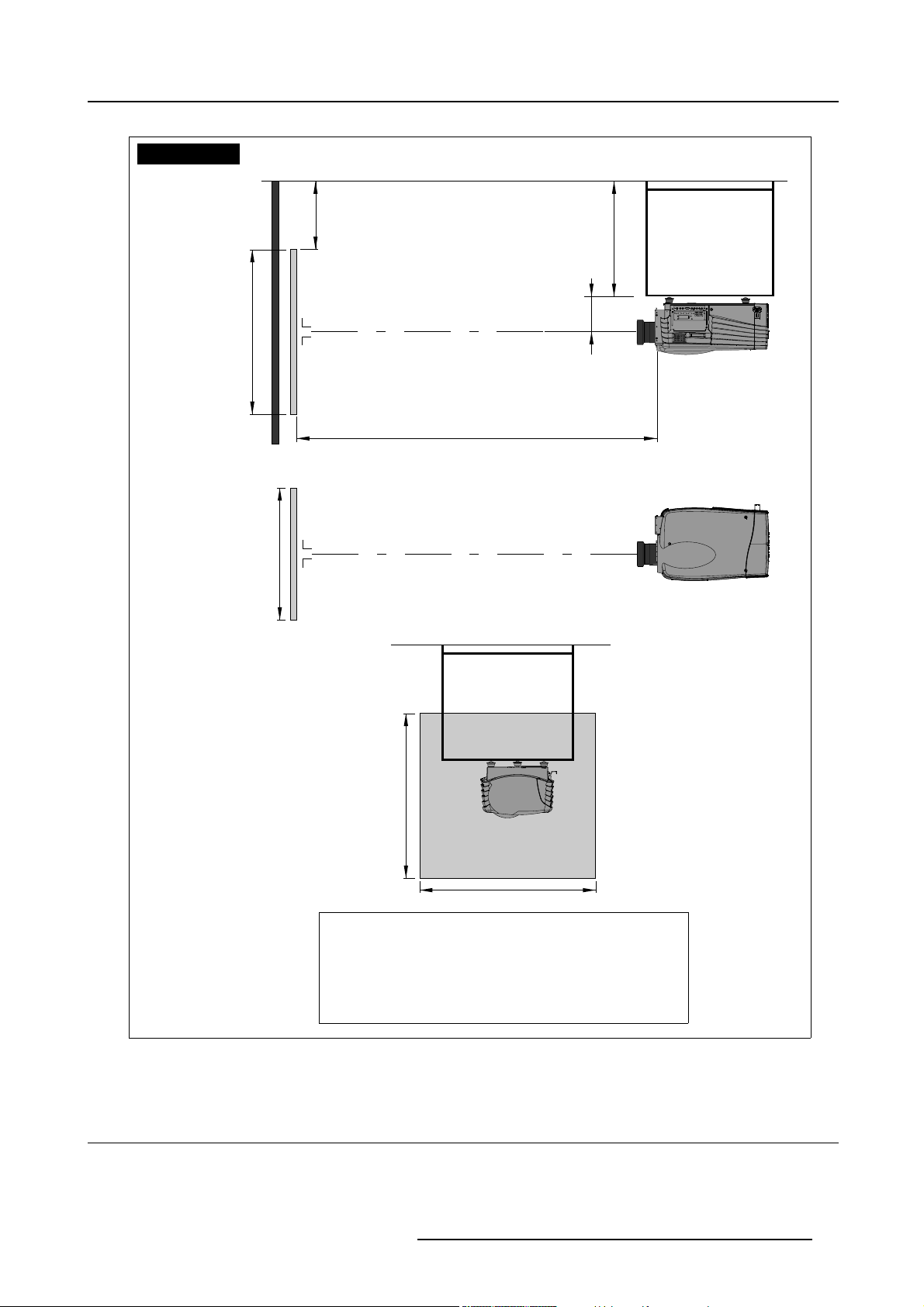

3.4 Configuration ......................................................................................................................... 11

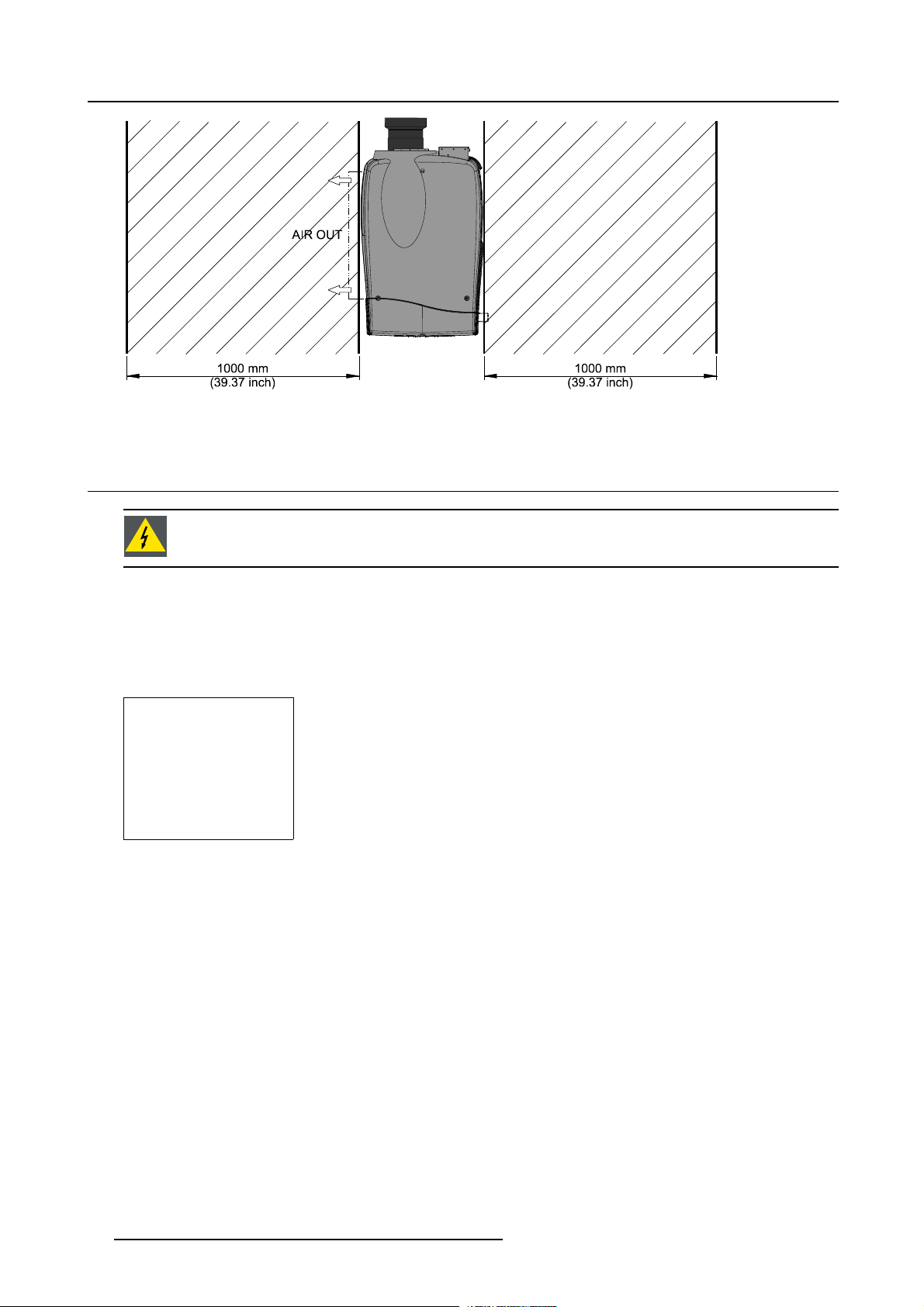

3.5 Safety Area around the projector....................................................................................................13

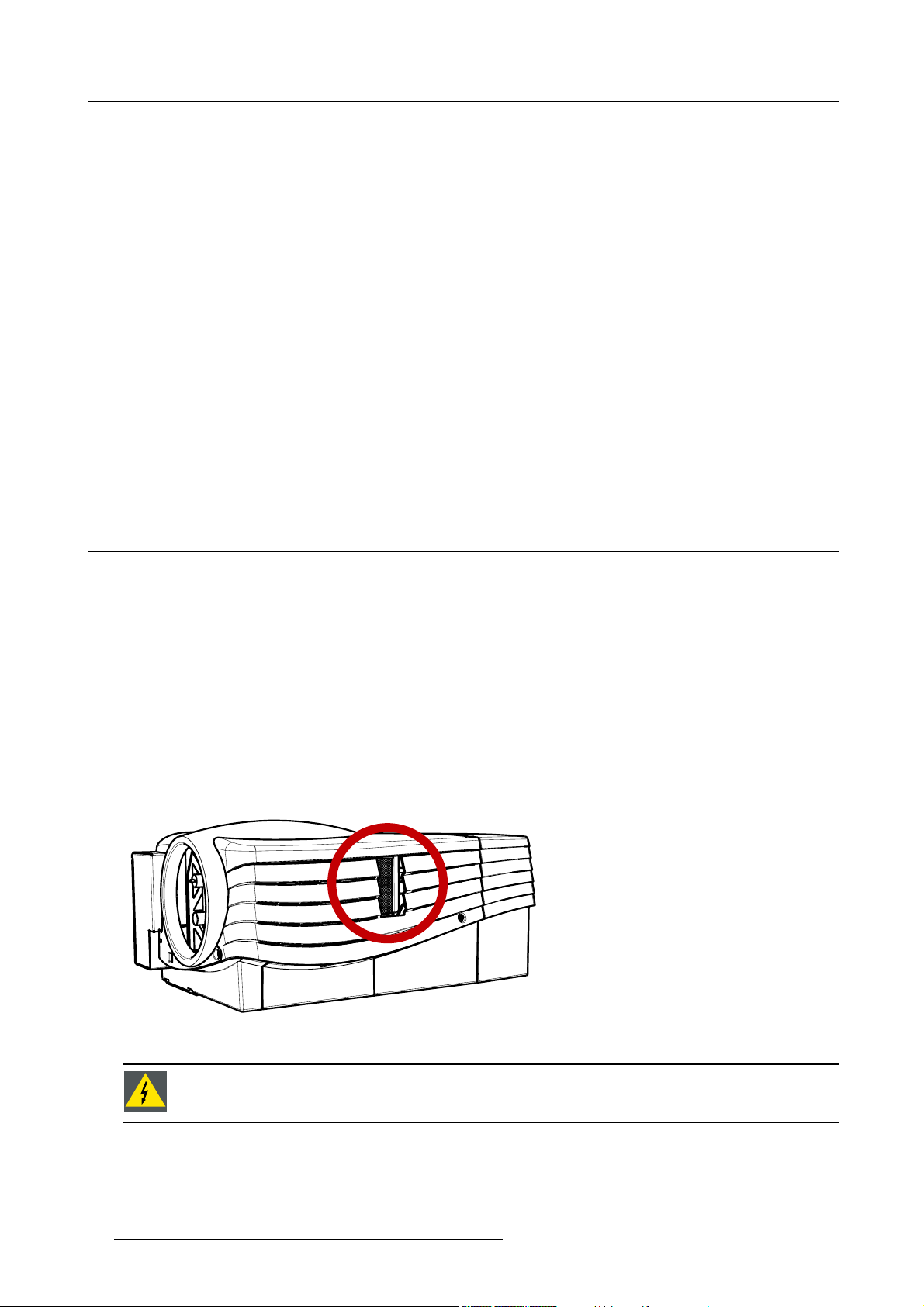

3.6 Re-adjusting the lamp position in the lamp casing..................................................................................14
3.7 Lenses . . ..............................................................................................................................16
3.7.1 Lenses . . . . . . ...................................................................................................................16
3.7.2 Lens selection . . ...............................................................................................................16
3.7.3 Lens formulas. . . ...............................................................................................................16
3.7.4 Lens Installation ...............................................................................................................17
3.7.5 Cleaning the lens . . . ...........................................................................................................17
3.8 Battery Installation in the RCU.......................................................................................................18
4. Connections.........................................................................................................19
4.1 Power connection . ...................................................................................................................19
4.2 Switching On .........................................................................................................................19
4.3 Switching to standby . . ...............................................................................................................20
4.4 Switching off.......................................................................................................................... 20
4.5 Input Connections . ...................................................................................................................21
4.5.1 Input Facilities . . ...............................................................................................................21
4.5.2 Input 1..........................................................................................................................21
4.5.3 Input 2..........................................................................................................................22
4.5.4 Inputs via RCVDS05...........................................................................................................23
4.6 Communication Connections . . . . ....................................................................................................23
4.6.1 Linked System .................................................................................................................23
4.6.2 RS232 (RS422) connection . . . ................................................................................................27
4.6.3 Communication with peripherals..............................................................................................27
4.7 Stereo Connections ..................................................................................................................27
4.7.1 Single Channel Stereo Connections . . . . . .....................................................................................27
4.7.1.1 Left/Right Phasing Module (Input 3). . . .................................................................................27
4.7.2 Multi-Channel Stereo Connections............................................................................................28
4.7.2.1 Stereo Set Up...........................................................................................................28
4.7.2.2 Single CADWall Configuration..........................................................................................29
4.7.2.3 Multiple CADWall (Showroom Installation).............................................................................30
5. GettingStarted......................................................................................................33
5.1 RCU & Local keypad.................................................................................................................33
5.2 Terminology overview ................................................................................................................33
5.3 Operating the projector...............................................................................................................35
5.3.1 Switching On...................................................................................................................35
5.3.2 Switching to standby...........................................................................................................36
5.3.3 Switching off ...................................................................................................................36
5.3.4 Temperature error DMD.......................................................................................................36
5.4 Quick Set Up Adjustments...........................................................................................................36
5.4.1 Quick Lens Adjustment . . . . ....................................................................................................36
5.4.2 Quick OSD Color Change . ....................................................................................................37
5.5 Using the RCU .......................................................................................................................38
5.6 Controlling the Projector .............................................................................................................42
5.6.1 Common Address .............................................................................................................42
5.6.2 Projector Address..............................................................................................................42
5.6.3 RCU Address .................................................................................................................. 42
5.6.4 Input Selection . . ...............................................................................................................43
5.6.5 Picture Controls................................................................................................................43
5.6.6 Menus on Local LCD Display . ................................................................................................44
6. Random Access ....................................................................................................45
6.1 Random Access Overview...........................................................................................................45
6.2 Starting Up Random Access......................................................................................................... 46
6.3 File Service...........................................................................................................................47
6.3.1 File annotation . . ...............................................................................................................47
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 1

Table of contents
6.3.2 Possible file manipulations....................................................................................................48
6.3.3 Starting Up File Service .......................................................................................................48
6.3.4 Load File . . . . ...................................................................................................................48
6.3.5 Edit WARP1....................................................................................................................49
6.3.6 Edit WARP2....................................................................................................................50
6.3.7 Changing the settings . . . . . ....................................................................................................50
6.3.8 Correct value...................................................................................................................51
6.3.9 Edit WARP2 File...............................................................................................................53
6.3.10 Rename File ...................................................................................................................53
6.3.11 Copy File....................................................................................................................... 54
6.3.12 Delete File .....................................................................................................................55
6.3.13 File Options....................................................................................................................56
6.4 Picture Tuning........................................................................................................................57
6.4.1 Starting Up Picture Tuning ....................................................................................................57
6.4.2 Gamma ........................................................................................................................57
6.4.3 Input Balance 1 . ...............................................................................................................58
6.4.4 Input Balance 2 . ...............................................................................................................61
6.4.5 Windowing .....................................................................................................................61
6.4.5.1 Starting Up Windowing .................................................................................................62
6.4.5.2 Blanking (Windowing)...................................................................................................62
6.4.5.3 Shift (Windowing) . . . ....................................................................................................64
6.4.5.4 Size (Windowing) .......................................................................................................65
6.4.5.5 Geo Soft Edge ..........................................................................................................66
6.5 Geometry.............................................................................................................................66
6.5.1 Introduction ....................................................................................................................67
6.5.2 Starting Up Geometry .........................................................................................................67
6.5.3 Geometry file annotation . . ....................................................................................................67
6.5.4 Setting up a new Geometry file ...............................................................................................67
6.5.5 Possible Geometry file manipulations ........................................................................................68
6.5.6 Load . . ..........................................................................................................................68
6.5.7 Edit.............................................................................................................................69
6.5.7.1 Introduction. . . ...........................................................................................................70
6.5.7.2 Start up..................................................................................................................71
6.5.7.3 Coarse...................................................................................................................71
6.5.7.3.1 Start up............................................................................................................71
6.5.7.3.2 Corner selection ..................................................................................................71
6.5.7.3.3 Corner adjustment ................................................................................................72
6.5.7.3.4 Side Bow selection................................................................................................74
6.5.7.3.5 Bow shaped pre-distortion set up . . . .............................................................................76
6.5.7.3.6 Coarse linearity adjustment using Side Bows ...................................................................76
6.5.7.3.7 Center selection...................................................................................................78
6.5.7.3.8 Center adjustment ................................................................................................78
6.5.7.4 Linearity adjustment ....................................................................................................79
6.5.7.4.1 Start up............................................................................................................79
6.5.7.4.2 Horizontal or Vertical Linearity selection .........................................................................80
6.5.7.4.3 Horizontal Linearity adjustment ..................................................................................80
6.5.7.4.4 Vertical Linearity adjustment .....................................................................................82
6.5.7.5 Fine...................................................................................................................... 83
6.5.7.5.1 Start up............................................................................................................84
6.5.7.5.2 Horizontal or Vertical Linearity selection .........................................................................84
6.5.7.5.3 Fine Horizontal or Vertical Linearity adjustment . . . ..............................................................85
6.5.7.5.4 Bow Linearity selection ...........................................................................................86
6.5.7.5.5 Bow Linearity adjustment.........................................................................................87
6.5.7.5.6 Quadrant selection................................................................................................88
6.5.7.5.7 Quadrant adjustment . ............................................................................................89
6.5.7.5.8 Local selection ....................................................................................................90
6.5.7.5.9 Local adjustment..................................................................................................91
6.5.7.6 Shift...................................................................................................................... 92
6.5.7.7 Transport Delay ......................................................................................................... 92
6.5.7.8 Blanking .................................................................................................................94
6.5.7.8.1 Blanking Start up..................................................................................................94
6.5.7.8.2 Blanking Active On................................................................................................95
6.5.7.8.3 Blanking Shape Start up . . . . ......................................................................................95
6.5.7.8.4 Blanking Shape selections . . .....................................................................................95
6.5.7.8.5 Blanking adjustment ..............................................................................................96
6.5.7.9 Electronic Soft Edge (Optional).........................................................................................97
6.5.7.9.1 Introduction. . . . ....................................................................................................97
6.5.7.9.2 Preparations . . ....................................................................................................98
6.5.7.9.3 Soft Edge Start up ................................................................................................99
6.5.7.9.4 Soft Edge Active On ..............................................................................................99
6.5.7.9.5 Soft Edge Shape Start up . . . .....................................................................................99
6.5.7.9.6 Soft Edge Shape selections . ....................................................................................100
6.5.7.9.7 Basic Soft Edge Shape Set up .. ................................................................................101
6.5.7.9.8 Soft Edge Width Start up ........................................................................................103
6.5.7.9.9 Soft Edge Width selections......................................................................................103
6.5.7.9.10 Basic Soft Edge Width Set up...................................................................................104
2R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

Table of contents
6.5.7.10 Reset ...................................................................................................................106
6.5.7.10.1 Start up...........................................................................................................106
6.5.7.10.2 Coarse Reset ....................................................................................................106
6.5.7.10.3 Linearity Reset ...................................................................................................107
6.5.7.10.4 Reset Fine .......................................................................................................107
6.5.7.10.5 Reset Blanking/Soft Edge .......................................................................................107
6.5.7.10.6 Reset All..........................................................................................................108
6.5.8 Rename . . . . . ..................................................................................................................109
6.5.9 Copy ..........................................................................................................................110
6.5.10 Delete .........................................................................................................................110
6.6 Stereo Options ......................................................................................................................111
6.6.1 Starting Up Stereo Options...................................................................................................111
6.6.2 Stereo Phase .................................................................................................................111
6.6.3 Invert Stereo..................................................................................................................112
6.6.4 Master Channel . ..............................................................................................................113
6.6.5 Stereo Mode..................................................................................................................114
6.6.6 Dark Time.....................................................................................................................114
6.6.7 Forced Asynchronous ........................................................................................................117
7. InstallationMode................................................................................................. 119
7.1 Installation Mode Overview .........................................................................................................119
7.2 Starting Up Installation..............................................................................................................120
7.3 Input Slots . . .........................................................................................................................120
7.4 No Signal . . . .........................................................................................................................121
7.4.1 Starting Up No Signal . . . . . ...................................................................................................121
7.4.2 Changing the Background Color . . ...........................................................................................121
7.4.3 Changing the Shutdown Setting . ............................................................................................122
7.4.4 Changing the Shutdown Time Setting . . .....................................................................................122
7.5 Lens Adjustment . . ..................................................................................................................123
7.5.1 Starting Up Lens Adjustment. . ...............................................................................................123
7.5.2 Lens Zoom/Focus Adjustment ...............................................................................................123
7.5.3 Lens Shift Adjustment . . . . . ...................................................................................................124
7.6 Changing the Menu Position........................................................................................................124
7.7 800–Peripheral . . . . ..................................................................................................................125
7.7.1 Starting Up 800–Peripheral . . . ...............................................................................................125
7.7.2 Defining the Communication Protocol of the RCVDS05 ....................................................................125
7.7.3 COM800 Protocol.............................................................................................................126
7.8 Configuration ........................................................................................................................126
7.9 OSD Color...........................................................................................................................127
7.10 Internal Patterns.....................................................................................................................127
8. Service Mode...................................................................................................... 129
8.1 Service Mode Overview.............................................................................................................129
8.2 Build-up..............................................................................................................................129
8.3 Starting Up Service..................................................................................................................130
8.4 Identification Screen . . ..............................................................................................................130
8.5 Change Password...................................................................................................................131
8.6 Change Projector Address..........................................................................................................131
8.6.1 Starting Up Change Projector Address . . ....................................................................................132
8.6.2 Changing the Projector Address .............................................................................................132
8.6.3 Changing the Common Address . . ...........................................................................................133
8.7 Change Baudrate PC ...............................................................................................................133
8.8 Lamp Menu..........................................................................................................................134
8.8.1 Starting Up the Lamp Menu..................................................................................................134
8.8.2 Constant Light Output (CLO).................................................................................................135
8.8.3 Lamp Mode ...................................................................................................................136
8.9 Barco Logo ..........................................................................................................................136
8.9.1 Starting Up Barco Logo . . . ...................................................................................................136
8.9.2 Barco Logo Status . . ..........................................................................................................137
8.9.3 Barco Logo Background. . . ...................................................................................................137
8.9.4 Shift Barco Logo ..............................................................................................................138
8.9.5 Hot Key .......................................................................................................................138
8.10 Preset Input Balance 1..............................................................................................................138
8.11 Preset Input Balance 2..............................................................................................................139
8.12 Electronic Convergence.............................................................................................................139
8.13 Diagnosis . . . .........................................................................................................................140
8.13.1 Starting Up Diagnosis . . . . . ...................................................................................................140
8.13.2 I2C Diagnosis .................................................................................................................141
8.13.3 Formatter Diagnosis ..........................................................................................................141
8.13.4 SMPS Diagnosis..............................................................................................................142
8.14 DynaColor™.........................................................................................................................142
A.StandardSource Files........................................................................................... 145
A.1 Table overview ......................................................................................................................145
Index.................................................................................................................... 147
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 3

Table of contents
4R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

1. Safety Instructions
1. SAFETY INSTRUCTIONS
1.1 Warnings
To prevent personnel injury
The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to
BARCO.
To prevent injuries and physical damage, always read this manual and all labels on the system before connecting to the wall outlet,
or adjusting the projector.
To prevent injuries, take note of the weight of the projector. Minimum 4 persons are needed to carry the projector.
NEVER look into the lens ! Due to the high luminance damage to the eye can happen.
Before attempting to remove the projector’s cover, you must turn off the projector and disconnect from the wall outlet.
When performing set up work at a ceiling mounted projector, to prevent injury caused by falling objects or the system, set out a keep
out area.
Consult a professional structural engineer prior to suspending the ceiling mount from a structure not intended for that use. Always
ensure the working load limit of the structure supporting the projector.
The power input at the projector side is considered as the disconnect device. When mentioned to switch of the projector, to access
some parts inside, always disconnect the power cord at the projector side.
To prevent projector damage
If the Air Filters are not regularly replaced, the air flow inside the projector could be disrupted, causing overheating. Overheating
may lead to the projector shutting down during operation.
In order to ensure that correct airflow is maintained, and that the projector complies with Electromagnetic Compatibility requirements,
it should always be operated with all of it’s covers in place.
Ensure that nothing can be spilled on, or dropped inside the projector. If this does happen, switch off and unplug the mains supply
immediately. Do not operate the projector again until it has been checked by qualified service personnel.
The projector must always be mounted in a manner which ensures free flow of air into its air inlets and unimpeded evacuation of the
hot air exhausted from its cooling system. Heat sensitive materials should not be placed in the path of the exhausted air.
Special care should be used when DLP projectors are used in the same room as performant laser equipment. Direct or indirect
hitting of a laser beam on to the lens can severely damage the Digital Mirror Devices (TM) in which case there is a loss of warranty
To prevent battery explosion
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
1.2 Restricted Access Location
Installation in a Restricted Access Location
The Barco Galaxy WARP™ 10 HB can only be installed in a Restricted Access Location.
What is a Restricted Access Location (Definition)?
Definition of a Restricted Access Location:
A location for equipment where both of the following paragraphs apply:
• Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the reasons for the restriction
applied to the location and about the precautions that shall be taken.
• Access is through the use of the TOOL or lock and key, or other means of security, and is controlled by the authority responsible
for the location.
What are the Reasons for the Applied Restriction?
The Air Outlet Grill on the side of the Projector can reach high temperatures due to the High Light Output Range of the lamp.
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 5

1. Safety Instructions
Image 1-1
The Air Outlet Grill on the side of the Projector can reach high temperatures
WARNING:Do not touch this Air Outlet Grill when the projector is switched on, respect a cool down period
of 10 minutes before touching this Grill, when switching off the projector!
1.3 FCC statement
Federal Communication Commission (FCC Statement)
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area may cause harmful interference, in which case the user will be responsible for correcting any interference.
1.4 Note
Definitions
Definition Qualified service technicians or Qualified technicians : Persons having appropriate technical training and experience nec-
essary to be aware of hazards to which they are exposed in performing a task and of measures to minimize the danger to themselves
or other persons.
Extra Safety manual
Read also safety instructions in separate manual (R5976125).
6R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

2. Packaging and Dimensions
2. PACKAGING AND DIMENSIONS
This chapter handles about the way the projector is packed and gives an overview of the dimensions.
• Box Content
• Lens Packaging
• Dimensions
2.1 Box Content
Content
• 1 projector Barco Galaxy WARP™ 10 HB (weight ± 56 kg or 123.5 lbs without lens)
• 1 Remote Control Unit (RCU) + 2 Batteries 1,5V)
• 1 European and 1 American Power Cable
• 1 Owner’s Manual
2.2 Lens Packaging
Way of Packaging
Lenses are supplied as an individual item.
They are packed in a carton.
2.3 Dimensions
Dimensions
The dimensions of the projector are given in mm and inch (25,4mm = 1 inch).
Image 2-1
Front View Dimensions
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 7

2. Packaging and Dimensions
Image 2-2
Left View Dimensions
Image 2-3
Top View Dimensions
8R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

3. Installation Guidelines
3. INSTALLATION GUIDELINES
Overview
• General
• Restricted Access Location
• Projector Position
• Configuration
• Safety Area around the projector
• Re-adjusting the lamp position in the lamp casing
• Lenses
• Battery Installation in the RCU
The engines are non sealed versions.
3.1 General
WARNING:Before installing the projector, read first the safety instructions.
Ambient Temperature Conditions.
Careful consideration of things such as image size, ambient light level, projector placement and type of screen to use are critical to
the optimum use of the projection system.
Max. ambient temperature : 35°C or 95 °F
Min. ambient temperature : 10 °C or 50 °F
The projector will not operate if ambient air temperature falls outside this range (10°C- 35°C or 50°F-95°F).
Storage temperature: -35°C to +65°C (-31°F to 149°F)
Humidity Conditions
Storage: 0 to 98 % RH Non-condensing
Operation: 0 to 95 % RH Non-condensing
CAUTION:Harmful Environmental Contamination Precaution
Environment
Do not install the projection system in a site near heat sources such as radiators or air ducts, or in a place subject to direct sunlight,
excessive dust or humidity. Be aware that room heat rises to the ceiling; check that temperature near the installation site is not
excessive.
Environment condition check
A projector must always be mounted in a manner which ensures the free flow of clean air into the projectors ventilation inlets. For
installations in environments where the projector is subject to airborne contaminants such as that produced by smoke machines or
similar (these deposit a thin layer of greasy residue upon the projectors internal optics and imaging electronic surfaces, degrading
performance), then it is highly advisable and desirable to have this contamination removed prior to it reaching the projectors clean
air supply. Devices or structures to extract or shield contaminated air well away from the projector are a prerequisite, if this is not a
feasible solution then measures to relocate the projector to a clean air environment should be considered.
Only ever use the manufacturer’s recommended cleaning kit which has been specifically designed for cleaning optical parts, never
use industrial strength cleaners on the projector’s optics as these will degrade optical coatings and damage sensitive optoelectronics
components. Failure to take suitable precautions to protect the projector from the effects of persistent and prolonged air contam-
inants will culminate in extensive and irreversible ingrained optical damage. At this stage cleaning of the internal optical units will
be non-effective and impracticable. Damage of this nature is under no circumstances covered under the manufacturer’s warranty
and may deem the warranty null and void. In such a case the client shall be held solely responsible for all costs incurred during any
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 9

3. Installation Guidelines
repair. It is the clients responsibility to ensure at all times that the projector is protected from the harmful effects of hostile airborne
particles in the environment of the projector. The manufacturer reserves the right to refuse repair if a projector has been subject to
wantful neglect, abandon or improper use.
Special Care for Laser Beams
Special care should be used when DLP projectors are used in the same room as performant laser equipment. Direct or indirect hitting
of a laser beam on to the lens can severely damage the Digital MicroMirror Devices™ in which case there is a loss of warranty
Which screen type ?
There are two major categories of screens used for projection equipment. Those used for front projected images and those for rear
projection applications.
Screens are rated by how much light they reflect (or transmit in the case of rear projection systems) given a determined amount
of light projected toward them. The ‘GAIN’ of a screen is the term used. Front and rear screens are both rated in terms of gain.
The gain of screens range from a white matte screen with a gain of 1 (x1) to a brushed aluminized screen with a gain of 10 (x10)
or more. The choice between higher and lower gain screens is largely a matter of personal preference and another consideration
called the Viewing angle. In considering the type of screen to choose, determine where the viewers will be located and go for the
highest gain screen possible. A high gain screen will provide a brighter picture but reduce the viewing angle. For more information
about screens, contact your local screen supplier.
What image size? How big should the image be?
The projector is designed for projecting an image size : min 1.00m (3.3ft) to max 15 m (49.2ft) (depending on the ambient light
conditions), with an aspect ratio of 4 to 3.
3.2 Restricted Access Location
Installation in a Restricted Access Location
The Barco Galaxy WARP™ 10 HB can only be installed in a Restricted Access Location.
What is a Restricted Access Location (Definition)?
Definition of a Restricted Access Location:
A location for equipment where both of the following paragraphs apply:
• Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the reasons for the restriction
applied to the location and about the precautions that shall be taken.
• Access is through the use of the TOOL or lock and key, or other means of security, and is controlled by the authority responsible
for the location.
What are the Reasons for the Applied Restriction?
The Air Outlet Grill on the side of the Projector can reach high temperatures due to the High Light Output Range of the lamp.
Image 3-1
The Air Outlet Grill on the side of the Projector can reach high temperatures
WARNING:Do not touch this Air Outlet Grill when the projector is switched on, respect a cool down period
of 10 minutes before touching this Grill, when switching off the projector!
10 R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

3. Installation Guidelines
3.3 Projector Position
Projector Position Guidelines
The lamp axis, as it is drawn on this picture, can be oriented according to the specifications:
• pointed in any downward direction
• up to 15° in an upward position.
Image 3-2
Projector position
CAUTION:Never use the projector when turned with the inputs downwards.
3.4 Configuration
Which configuration can be used?
The projector can be installed to project images in four different configurations.
• Front / Table
• Front / Ceiling
• Rear / Table
• Rear / Ceiling
Positioning the projector
The Projector should be installed perpendicular with the screen on a distance PD and water leveled in both directions. The mounting
positions in following images are shown for a nominal lens position.
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 11

3. Installation Guidelines
Projector
Projector
PD
Optical axis projection lens
Optical axis projection lens
Floor
Side view
Top view
Back view
Screen
Screen
B
SH
SW
SH
SW
Floor
Front Table
CD=SH/2+B-A
A
Definitions on the abbreviation on the drawings:
A = Correction value.
B = Distance between floor and bottom of the screen.
CD = Total distance between projector and floor.
SW = Screen Width.
SH = Screen Height (Image height).
PD = Projector Distance, distance between screen and projector.
Image 3-3
Front Table Configuration
12 R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

3. Installation Guidelines
Projector
Projector
PD
Optical axis projection lens
Optical axis projection lens
Ceiling
Side view
Bottom view
Back view
Screen
Screen
B
SH
SW
SH
SW
Ceiling
Front Ceiling
CD=SH/2+B-A
A
Definitions on the abbreviation on the drawings:
A = Correction value.
B = Distance between ceiling and top of the screen.
CD = Total distance between projector and ceiling.
SW = Screen Width.
SH = Screen Height (Image height).
PD = Projector Distance, distance between screen and projector.
Image 3-4
Front Ceiling Configuration
3.5 Safety Area around the projector
Safety Area
Make sure the projector is located so that the air inlets and outlets for the cooling system are not obstructed. Leave a safety area A
of about 1 meter on the left and the right side of the projector.
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 13

3. Installation Guidelines
Image 3-5
Safety Area
3.6 Re-adjusting the lamp position in the lamp casing
WARNING:As the projector has to be opened, this procedure has to be performed by qualified service tech-
nician.
Why
With higher run times, the light output of the lamp will decrease, which results in a lower light output on the screen. This light output
decrease can be compensated by readjusting the position of the lamp.
A suggestion dialog box will be displayed when the projector is restarted after 100 hours and 250 hours. Once ENTER is pressed
when that box is open, this box will not be displayed again till the next alert point is reached.
Suggestion
Lamp runtime is
105 hours
It is advisable to
adjust the Z-axis
of the lamp to
obtain maximum
light output
(see owners manual)
<ENTER> to confirm
Menu 3-1
The user can now adjust the Z-axis by following the next procedure.
How to readjust.
1. On the side of the inputs, turn the retaining bolt a quarter counter clockwise.
2. Flip the cover to the left side and take off. (image 3-6)
3. Start up the adjustment mode and select Service. (menu 3-2)
4. Select Lamp. The Z-axis indication (lamp menu in service mode) will be helpful while turning screw B . (menu 3-3)
5. Loosen the nut A (image 3-7)on the back of the lamp casing (nutdriver 10).
14 R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004

3. Installation Guidelines
6. Adjust the screw B (image 3-7)with an Allen key by turning a little clockwise until the maximum light output is reached (the maxi-
mum value of the Z-AXIS indication on the lamp menu).
7. Fasten the nut on the back of the lamp casing to secure this position (nutdriver 10).
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Select with ↑or ↓
then <ENTER>
<EXIT> to return
Menu 3-2
SERVICE
IDENTIFICATION
CHANGE PASSWORD
CHANGE LANGUAGE
CHANGE PROJ. ADDRESS
SERIAL COMMUNICATION
NETWORK
LAMP
DIMMING
MORE...
Select with ↑or ↓
then <ENTER>
<EXIT> to return
Menu 3-3
LAMP
Constant Light output [OFF]
Using [RS port]
Mode [NORMAL]
Serial number : R101111
Article number : R9840xxx
Run time : 10 hours
Remaining run time : 490
hours
Number of strikes : 10
Z_AXIS : 100
Select with ↑or ↓
then <ENTER>
<EXIT> to return.
Menu 3-4
Image 3-6
Lamp adjustment access
A
Image 3-7
R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004 15

3. Installation Guidelines
CAUTION:Never turn the other screws ! These are factory aligned.
3.7 Lenses
Overview
• Lenses
• Lens selection
• Lens formulas
• Lens Installation
• Cleaning the lens
3.7.1 Lenses
Available lenses
TLD(1.6–2.0:1) R9840670
TLD(2.0–2.8:1) R9840680
TLD(2.8–5.0:1) R9840690
TLD(1.2:1) R9840770
TLD(0.8:1) R9840900
TLD(5.0–8.0:1) R9840910
3.7.2 Lens selection
How to select ?
1. Determine the required screen width.
2. Determine the approximate position of the projector in the projection room with regard to the screen and measure the projector-
screen distance (PD).
3. Use the lens formulas to find the best corresponding PD with regard to the measured projector-screen distance for the required
screen width.
3.7.3 Lens formulas
Formulas
Metric formulas (meter) Inch formulas (inch)
TLD(0.8:1) PD=0.84xSW-0.05 PD=0.84SW-1.97
TLD(1.2:1) PD=1.20xSW-0.01 PD=1.20xSW-0.39
TLD(1.6–2.0:1) PDmin=1.59xSW-0.09
PDmax=2.00xSW-0.13
PDmin=1.59xSW-3.54
PDmax=2.00xSW-5.12
TLD(2.0–2.8:1) PDmin=2.00xSW-0.17
PDmax=2.84xSW-0.24
PDmin=2.00xSW-6.69
PDmax=2.84xSW-9.45
TLD(2.8–5.0:1) PDmin=2.80xSW-0.16
PDmax=5.10xSW-0.38
PDmin=2.80xSW-6.30
PDmax=5.10xSW-14.96
TLD(5.0–8.0:1) PDmin=4.90xSW-0.01
PDmax=8.16xSW-0.29
PDmin=4.90xSW-0.39
PDmax=8.16xSW-11.42
16 R5976698 BARCO GALAXY WARP™ 10 HB 05/04/2004
