Barefoot LFE15 User manual
Owner’s Manual
We will keep the model number and date of
purchase of your new Barefoot Sound product on
file to help you refer to this information in twhe event
of an insurance claim such as loss or theft.
CLICK HERE TO REGISTER NOW
PRODUCT REGISTRATION
PROTECT YOUR BAREFOOT MONITORS
Please complete the product registration form
for your Barefoot Sound studio monitors
to be registered for warranty and product updates.
CONTENTS
Description 04
Warnings! (please read carefully) 05
Inputs and Controls 06
Modes 07
Dual-Force™ Technology 08
Specifications 09
Drawings & Dimensions 10
Limited Warranty 11
Warranty Conditions 11
Obtaining Warranty Service 12
Post Warranty Repair 12
Warranty Exclusions 13
Service Request 13
Owner’s Manual

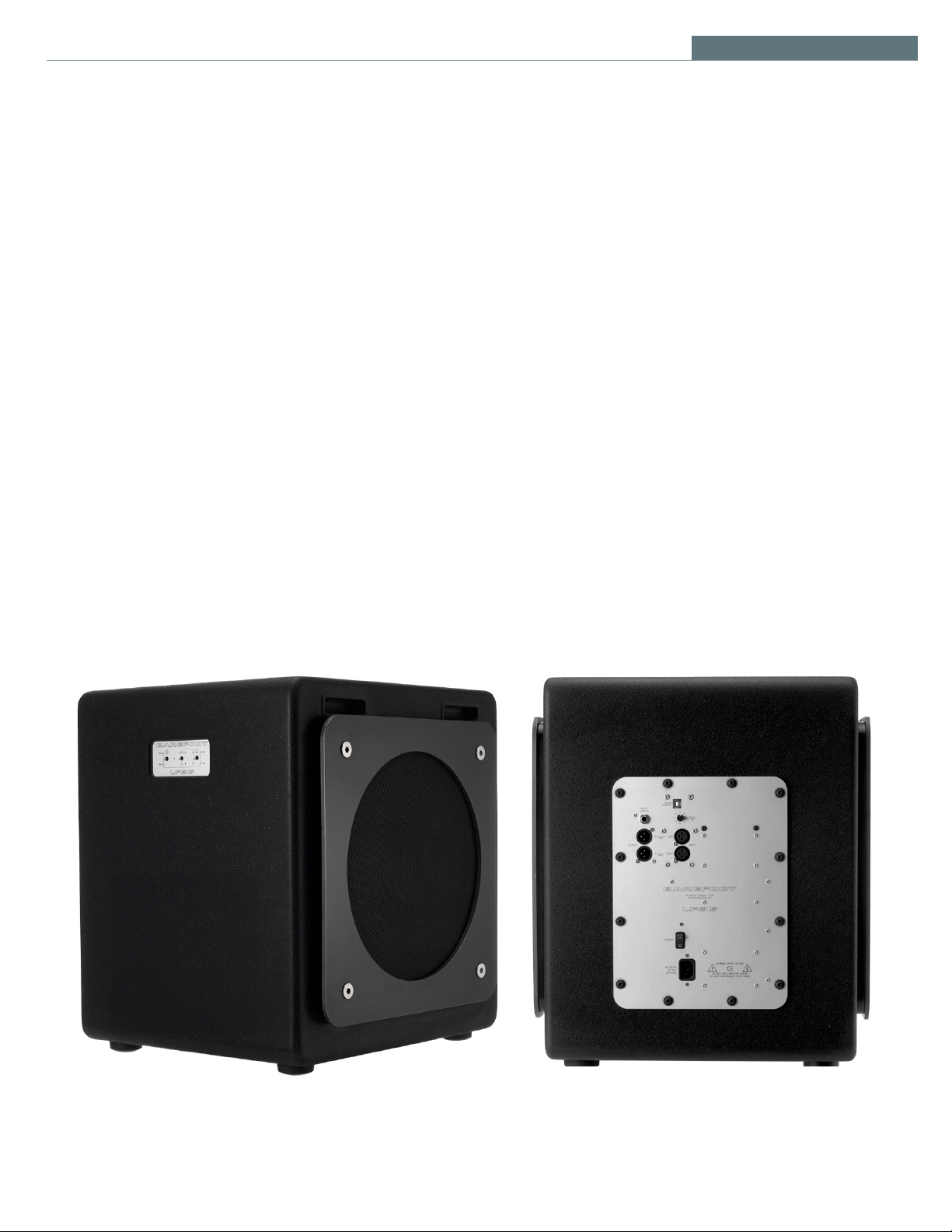

Intended for a Low Frequency Effects subwoofer in a
Barefoot Sound surround system. The LFE15 subwoofer
incorporates Barefoot’s signature and now most power-
ful Dual-Force™ Technology. The unique force cancel-
lation design features two opposing 15” drivers in phase,
eliminating all cabinet vibration at the source, creating a
tight low frequency extension that is unrivaled and can
be paired with any Barefoot Sound monitor.
Description
04 DESCRIPTION
With the flick of a switch, the low-pass filter can be
selected to crossover at 80 Hz or 120 Hz, allowing you to
quickly and easily integrate the LFE15 into any surround
sound environment. And for surround users, the LFE15
offers the necessary 10dB sensitivity boost to support
Low Frequency Effects channel — the 0.1 — in your 5.1
or 7.1 setup. Or if you have a 7.2, 9.2, or 9.2.4 system,
then two LFE15s will work perfectly as a pair to achieve
any submersive 3D soundscapes commercially used
today.
Warnings
Please read and follow the safety information below:
The Mains power voltage must never exceed 250
VAC. Connecting the power cord to AC power line
voltages over 250 VAC will damage the amplifier
and may cause the risk of fire. Such damage is NOT
covered under warranty.
• Do not remove the rear amplifier panel. There is a risk
of electric shock. No user serviceable parts are inside.
Please refer service issues to a qualified technician.
• Do not operate this device with an ungrounded mains
power cable or a mains connection that is ungrounded.
This may result in personal injury.
• Do not place open flames such as lighted candles on
or near this device.
• Do not expose this device to water, rain or high
humidity. Do not place objects filled with liquids, such
as vases, on or near this device.
REAR PANEL POWER INPUT LAYOUT.
• This subwoofer requires adequate airflow to maintain
proper cooling. Do not obstruct airflow around
the subwoofer.
• Do not operate this device in ambient temperatures
above 30°C (85°F). Over-temperature may cause
device failure.
Caution! This subwoofer is capable of producing sound
pressure levels in excess of 115dB which may cause
permanent hearing damage. Always verify that input
signal levels are attenuated before powering on
the subwoofer.
05 WARNINGS

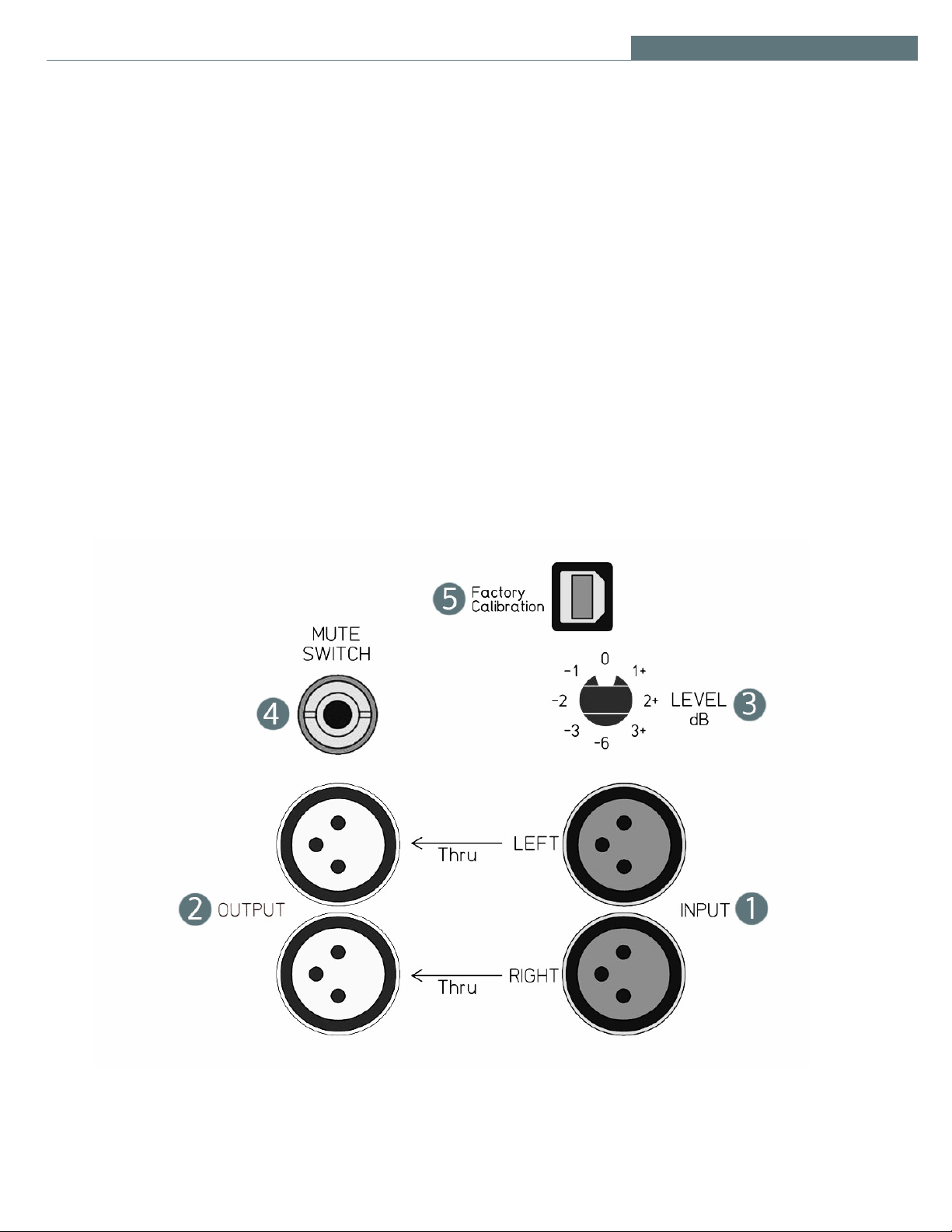

06 INPUTS & CONTROLS
1. [INPUT] XLR
Connectors are designed to receive analog balanced
line level audio signals from sources such as preamplifi-
ers, sound cards, monitor controllers and mixing con-
soles. Pin 1 is tied to chassis ground. Pins 2 & 3 are fully
floating differential inputs. Pin 3 must be referenced to
ground for single-ended input signals.
2. [OUTPUT] XLR
Connector is designed to send signel thru to corre-
sponding Barefoot monitor.
3. [LEVEL]
Eight position rotary switch adjusts the loudness in pre-
cise increments ( +3dB, 0, -1, -2, -3 and -6dB. ) The 0dB
setting corresponds to a sensitivity of 90dB at 1 meter
distance using a -15dBv input signal.
4. [MUTE]
1/4” TRS cable plugs into the foot pedal controller.
The subwoofer engages with a click of the foot pedal
switch. The subwoofer can be bypassed or muted by
pressing
the foot pedal switch a second time.
5. [FACTORY CALIBRATION]
The universal serial bus connector is for factory
adjustments and calibrations. This connector is NOT an
audio input.
Inputs & Controls
07 MODES
1. [LFE GAIN]
Select input gain of 0dB or +10dB.
2. [LFE]
For use as a Low Frequency Effects subwoofer in a surround system. Engages 4th order Low Pass filter.
3. [BOOST]
For use as a Low Frequency enhancement subwoofer in a stereo system. Engages 1st order Low Pass filter.
4. [LPF]
Select low pass filter frequency of either 60Hz or 80Hz.
Modes
Dual-Force™ Technology
Cabinet vibrations are a significant source of distortion
and coloration in most monitors. The primary mechanism
that generates cabinet vibrations is simple Newtonian
action and reaction. As the driver motor (magnet and
voice coil) forces the cone to move back and forth in
order to generate sound, the cone exerts an equal and
opposite force on the motor. This force is transmitted
through the driver frame to the cabinet, vibrating the
cabinet walls and coloring the sound emitted by the
cone. This effect is most especially prevalent in the low
frequency drivers where the cone motion is greatest.
While, the LFE15 is built with a well braced cabinet,
we also tackle the problem at its source by eliminating
vibrations before they even begin. This is achieved
through our innovative force cancellation design.
08 DUAL-FORCE™ TECHNOLOGY
The low frequency drivers are mounted on opposing
sides of the cabinet and their motors are locked to-
gether. As the cones are driven in and out in opposite
directions the forces exerted on the motors cancel one
another. The vibrations never make it to the cabinet
because they are not allowed to develop in the first
place.
This layout has further benefits. Since the drivers are
locked together, the motors and frames function as a
massive internal metal cabinet bracing. And because the
wavelengths generated by the woofers are much larger
than the speaker cabinet dimensions, the drivers radiate
as if they were a single point source.
Specifications
09 SPECIFICATIONS
Description 15” Dual-Force™ Technology Subwoofer
Use Low Frequency Effects subwoofer in a Barefoot Sound surround
system
Bass Response -3dB @ 15 Hz, Q = 0.707, Slope = 12 dB/octave
Max SPL Continuous 127 dB
Subwoofers 2 x 15” Dual-Force™ with neodymium motors
Low Pass Filter / LF
Mode
4th Order Butterworth, -6dB @ 80 Hz or 120 Hz selectable
Boost Mode: 1st Order Butterworth, -3dB @ 60 Hz or 80 Hz
selectable
Cabinet Sealed enclosure, Machined aluminum control and amplifier plates,
Steel and aluminum driver guards, Recessed lift handles
Amplifier 1400W
AC Power Input 85VAC – 265VAC, 50 – 60 Hz
Power Consumption Idle = 5W, Maximum = 1500W
Weight Subwoofer: 110 lbs (50 kg)
Shipping: 135 lbs (61 kg)
Dimensions WxDxH Cabinet: 18.5” Wide x 20.25 Deep x 22” Height (470 x 513 x 555 mm)
Overall: 24” Wide x 25 Deep x 31” Height (609 x 635 x 787mm)
Drawings & Dimensions [mm & inches]
10 DRAWINGS & DIMENSIONS
Limited Warranty
BAREFOOT SOUND warrants electronic components and
cabinetry for a period of three (3) years against manu-
facturing defects, covering parts and labor for necessary
repairs. Moving speaker components such as tweeters,
midranges and woofers are warranted for a period of one
(1) year against manufacturing defects.
Shipping fees incurred from returns for under-warranty
service in the first 30-days will be paid by BAREFOOT
SOUND. All shipping fees both to and from BAREFOOT
SOUND following this 30-day period must be paid by
the customer. All returns, both during and following the
30-day period, must be affected via the Procedures for
Obtaining Warranty Service described below.
BAREFOOT SOUND makes no other warranty, either
express or implied, including but not limited to implied
warranties of merchantability, fitness for a particular
purpose, or conformity to any representation or de-
scription, with respect to this product other than as set
forth below. BAREFOOT SOUND makes no warranty or
representation, either express or implied, with respect
to any other manufacturer’s product or documentation,
its quality, performance, merchantability, fitness for a
particular purpose, or conformity to any representation
or description.
Except as provided below, BAREFOOT SOUND is not
liable for any loss, cost, expense, inconvenience or
damage that may result from use or inability to use
the product. Under no circumstances shall BAREFOOT
SOUND be liable for any loss, cost, expense, inconve-
nience or damage exceeding the purchase price of the
product.
The warranty and remedies set forth below are exclusive
and in lieu of all others, oral or written, expressed or
implied. No reseller, agent or employee is authorized
to make any modification, extension or addition to this
warranty.
11 LIMITED WARRANTY
The above Limited Warranty is subject to the
following conditions:
This warranty covers only normal use of the product.
BAREFOOT SOUND shall not be liable under this
warranty if any damage or defect results from (i) misuse,
abuse, neglect, improper shipping or installation; (ii)
disasters such as fire, flood, lightning or improper
electric current; or (iii) repairs, service or alteration by
anyone other than an authorized BAREFOOT SOUND
representative; (iv) damages incurred through incorrect
connection or handling, abnormal conditions, high
humidity, deliberate abuse, power surges, water spills,
or any other accidents.
You must retain your bill of sale or other proof of
purchase to receive warranty service.
No warranty extension will be granted for any
replacement part(s) furnished to the purchaser in
fulfillment of this warranty.
To return a defective product, please contact our
Customer Service Department at service@barefoot-
sound.com for a Return Merchandise Authorization
(RMA) number and follow the Return of Products
Instructions below. The RMA is valid for 10 days from
date of issuance. Returns will not be accepted without
an RMA.
Warranty Conditions
12 LIMITED WARRANTY
RMA (Returning Merchandise Authorization) Policy:
If repairs are required, the customer must obtain a
RMA number and provide proof of purchase. RMA and
services are rendered by BAREFOOT SOUND only. Any
shipping costs after 30 days (starting from the original
date of purchase) on any item returned for repair is the
customers’ responsibility. All returned parts must have
a RMA number written clearly on the outside of the
package along with a letter detailing the problems and a
copy of the original proof of purchase. No COD packages
will be accepted. No package will be accepted without a
RMA number written on the outside of the package.
1. If the product must be repaired, a RMA number
(Return Merchandise Authorization Number) will be
issued for shipment to our repair department. Please
follow the instructions given by BAREFOOT SOUND
technical support staff to ship your product. BAREFOOT
SOUND will not accept any shipments without a RMA
number.
2. Pack the product in its original box or a well-protect-
ed box, as outlined by BAREFOOT SOUND Customer
Service. BAREFOOT SOUND will not be responsible for
shipping damage/loss of any product not shipped in
its original packaging. BAREFOOT SOUND will not be
responsible for shipping damage/loss of any product
outside the original 30-day paid service period. It is
very important that you write the RMA number clearly
on the outside of the package. Ship the product with a
copy of your bill of sale or other proof of purchase, your
name, address, phone number, email address, descrip-
tion of the problem(s), and the RMA number you have
obtained to the address provided to you by BAREFOOT
SOUND Customer Service.
3. Upon receiving the product, BAREFOOT SOUND will
repair or replace your product (at BAREFOOT SOUND’s
discretion) and will ship it back to you within 2 weeks
(dependent on parts availability) via FedEx.
4. Cross-exchange (Parts only): You will need to provide
a valid credit card number as a deposit guarantee when
the RMA number is issued. Once approval has been
obtained on your credit card, the part(s) will be shipped
FedEx. You will need to ship defective part(s) back to
BAREFOOT SOUND within 15 days to avoid charges
to your credit card. If such charges are incurred, the
shipped part(s) will be billed at the then current price.
5. BAREFOOT SOUND will pay for shipping to and from
the customer only within the first thirty days following
the original product ship date. Following this 30-day
period all shipping fees both for under warranty and
post warranty repairs are the sole responsibility of the
customer. The customer also assumes full liability for
losses or damages resulting from shipping as well as all
responsibility to pursue remuneration for such issues
with their selected carrier.
Procedures for Obtaining Warranty Service
Post Warranty Repair
BAREFOOT SOUND accepts no liability for problems
caused by after-market software or hardware modifica-
tions or additions. BAREFOOT SOUND is not responsible
for any loss of work (“down time”) caused by a product
requiring service. This warranty is null and void if the
defect or malfunction was due to damage resulting from
operation not within manufacturer specifications. It will
also be null and void if there are indications of misuse
and/or abuse. BAREFOOT SOUND has the option of
voiding the warranty if anyone other than an BAREFOOT
SOUND technician attempts to service the product.
BAREFOOT SOUND will not warrant any problems
arising from an act of God (lighting, flooding, tornado,
etc.), electrical spikes or surges, or problems arising out
of hardware, software, or additional devices added to
complement any product manufactured by BAREFOOT
SOUND. Under no circumstances will BAREFOOT
SOUND be responsible for any refund or remuneration
exceeding the original purchase price of the product less
any shipping fees. BAREFOOT SOUND will not be held
responsible for typographical errors on sales receipts,
BAREFOOT SOUND accepts no liability for problems
caused by after-market software or hardware modifica-
tions or additions. BAREFOOT SOUND is not responsible
for any loss of work (“down time”) caused by a product
requiring service. This warranty is null and void if the
defect or malfunction was due to damage resulting from
operation not within manufacturer specifications. It will
also be null and void if there are indications of misuse
and/or abuse. BAREFOOT SOUND has the option of
voiding the warranty if anyone other than an BAREFOOT
SOUND technician attempts to service the product.
BAREFOOT SOUND will not warrant any problems
repair tickets, or on our website. BAREFOOT SOUND
makes every effort to make sure all information on our
website is correct.
13 LIMITED WARRANTY
arising from an act of God (lighting, flooding, tornado,
etc.), electrical spikes or surges, or problems arising out
of hardware, software, or additional devices added to
complement any product manufactured by BAREFOOT
SOUND. Under no circumstances will BAREFOOT
SOUND be responsible for any refund or remuneration
exceeding the original purchase price of the product less
any shipping fees. BAREFOOT SOUND will not be held
responsible for typographical errors on sales receipts,
repair tickets, or on our website. BAREFOOT SOUND
makes every effort to make sure all information on our
website is correct.
Warranty Exclusions
Service Request
In order to serve you better, please complete the service request form in the following link for your Barefoot
Sound studio monitors. Once submitted and reviewed, a service representative will contact you.
https://barefootsound.com/service-request/
Table of contents
