Barnes SU33LT Series User manual

A Crane Co. Company
BARNESBARNES®
INSTALLATION MANUAL
Laundry Tray System
IMPORTANT! Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
 changeproductwithoutpriorwrittennotication.Thisunitwasthoroughlytestedand
carefully packed by manufacturer. Upon acceptance, the carrier assumes responsibility
for its safe arrival. Should you receive this unit in a damaged condition, apparent or
concealed, claim for damage must be made by you upon the carrier.
420 Third Street 83 West Drive, Brampton
Piqua, Ohio 45356 Ontario, Canada L6T 2J6
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
www.cranepumps.com Form No. 131785-Rev. E
Series:
SU33LT
120 Volts, 1 Phase, 60 Hz
1½” NPT, Female
Patent Pending

Please Read This Before Installing Or Operating
Pump. This information is provided for SAFETY and
to PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the following
symbols:
IMPORTANT! Warns about hazards that can
result in personal injury or Indicates factors
concerned with assembly, installation,
operation, or maintenance which could result
in damage to the machine or equipment if
ignored.
CAUTION! Warns about hazards that can or will
cause minor personal injury or property damage if
ignored. Used with symbols below.
WARNING! Warns about hazards that can or
will cause serious personal injury, death, or major
property damage if ignored. Used with symbols
below.
Only qualied personnel should install, operate and
repair pump. Any wiring of pumps should be performed
by a qualied electrician.
WARNING ! To reduce risk of electrical
shock, pumps and control panels must
be properly grounded in accordance with
the National Electric Code (NEC) or the
Canadian Electrical Code (CEC) and all
applicable state, province, local codes
and ordinances. Improper grounding voids
warranty. Prior to energizing the pump, a
verication of the pump ground circuit should
be made between the pump case and panel
ground.
WARNING! To reduce risk of electrical
shock, always disconnect the pump from the power
source before handling or
servicing. Lock out power and tag.
WARNING! Operation against
a closed discharge valve will cause premature
bearing and seal failure on any pump, and on
end suction and self priming pump the heat build
may cause the generation of steam with resulting
dangerous pressures. It is recommended that a high
case temperature switch or pressure relief valve be
installed on the pump body.
CAUTION ! Never operate a pump with a
plug-in type power cord without a ground
fault circuit interrupter.
CAUTION ! Pumps build up heat
and pressure during operation-
allow time for pumps to cool
before handling or servicing.
WARNING ! Do not pump hazardous
materials (ammable, caustic, etc.) unless
the pump is specically designed and
designated to handle them.
CAUTION ! Do not block or restrict
discharge hose, as discharge hose may
whip under pressure.
WARNING ! Do not wear loose clothing
that may become entangled in moving
parts.
WARNING ! Keep clear of suction and
discharge openings. DO NOT insert ngers
in pump with power connected.
Always wear eye protection when working
on pumps.
Make sure lifting handles are securely
fastened each time before lifting. DO NOT
operate pump without safety devices in
place. Always replace safety devices that
have been removed during service or repair.
Secure the pump in its operating position so
it can not tip over, fall or slide.
DO NOT exceed manufacturers
recommendation for maximum
performance, as this could cause the motor
to overheat.
DO NOT remove cord and strain relief.
DO NOT connect conduit to pump.
WARNING ! Cable should be protected at all
times to avoid punctures, cut, bruises and
abrasions. Inspect frequently. Never handle
connected power cords with wet hands.
WARNING ! To reduce risk of electrical
shock, all wiring and junction connections
should be made per the NEC or CEC
and applicable state or province and local
codes. Requirements may vary depending
on usage and location.
WARNING! Submersible Pumps are not
approved for use in swimming pools,
recreational water installations decorative
fountains or any installation where human
contact with the pumped uid is common.
WARNING! Products returned must be
cleaned, sanitized, or decontaminated
as necessary prior to shipment, to insure
that employees will not be exposed to
health hazards in handling said material.
All Applicable Laws And Regulations Shall
Apply.
Bronze/brass and bronze/brass tted
pumps may contain lead levels higher than
considered safe for potable water systems.
Lead is known to cause cancer and birth
defects or other reproductive harm. Various
government agencies have determined that
leaded copper alloys should not be used in
potable water applications. For non-leaded
copper alloy materials of construction,
please contact factory.
Crane Pumps & Systems, Inc. is not
responsible for losses, injury, or death
resulting from a failure to observe these
safety precautions, misuse or abuse of
pumps or equipment.
SAFETY FIRST!
Hazardous
uids can
cause re or
explosions,
burns or death
could result.
Extremely hot
- Severe burns
can occur on
contact.
Biohazard can
cause serious
personal injury.
Hazardous u-
ids can Hazard-
ous pressure,
eruptions or ex-
plosions could
cause personal
injury or prop-
erty damage.
Rotating
machinery
Amputation
or severe
laceration
can result.
Hazardous volt-
age can shock,
burn or cause
death.
Other brand and product names are trademarks or registered trademarks of their respective holders.
® Barnes is a registered trademark of Crane Pumps & Systems, Inc.
2002, 2003, 6/2004, 5/06, 9/06 Alteration Rights Reserved

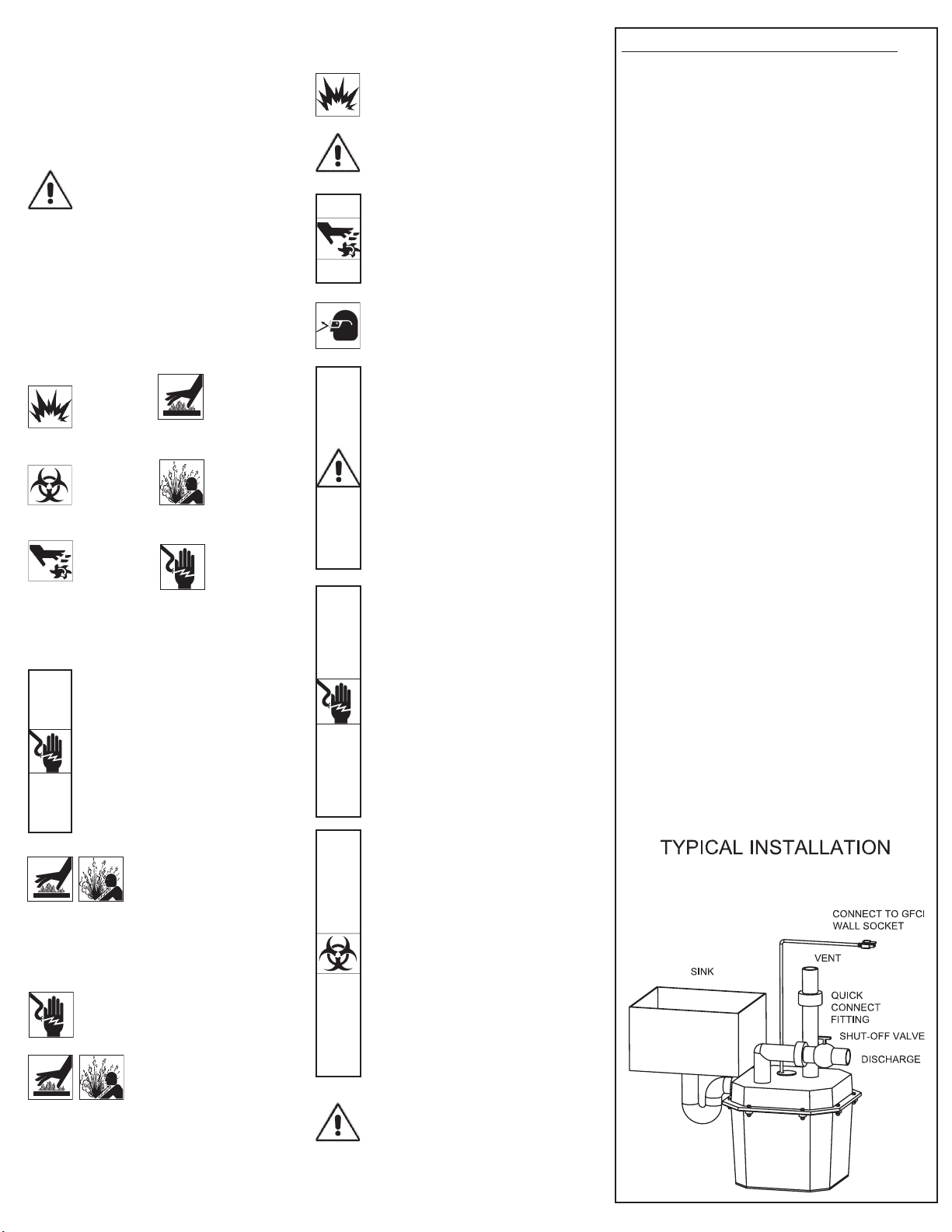

RECOMMENDED INSTALLATION
1. LOCATION: This unit is self-contained
and is recommended for use beneath
a sink or to collect condensate. This
unit shall NOT be installed in locations
classied as hazardous in accordance
with the National Electrial Code (NEC),
ANSI/NFPA 70 or the Canadian Electrical
Code (CEC). The unit shall be vented in
accordance with local plumbing codes.
The unit shall be installed on a rm, level
surface.
2. DISCHARGE: Discharge pipe should
be as short as possible. This unit has a
self-contained check valve. No additional
check valve is required.
3. VENT: Do not use an automatic
plumbing vent device.
4. GENERAL: Always disconnect the unit
from the electrical power source before
handling.
Plug the unit into a GFCI receptacle.
5. TEST OPERATIONS: One cycle of
operation should be observed so that
any potential problems can be corrected.

TROUBLE SHOOTING
CAUTION! Always disconnect the unit from the
electrical power source before handling. If the system
fails to operate properly, carefully read instructions and
perform maintenance recommendations.
If operating problems persist, the following chart may
be of assistance in identifying and correcting them:
MATCH “CAUSE” NUMBER WITH
CORRELATING “CORRECTION” NUMBER.
NOTE: Not all problems and corrections are included.
PROBLEM CAUSE CORRECTION
Pump will not
run
1. Poor electrical
connection, blown fuse,
tripped breaker or other
interruption of power,
improper power supply.
2. Float is damaged,
dislocated.
3. Insufcient liquid level.
1. Check
all electrical
connections for
security. Check
for blown fuses,
tripped circuit
breakers or tripped
GFCI outlets.
2. Claim the
damage through
the carrier and
arrange for a
replacement unit.
3. Make sure liquid
level is at least
equal to suggested
turn-on point.
4. Recheck all
sizing calculations
to determine proper
pump size.
5. Check discharge
line for restrictions,
including ice if line
passes through or
into cold areas.
6. Replace with a
new check valve.
7. Open valve.
8. Clean impeller
and inlet of any
obstruction.
9. Check pump
temperature limits
& uid temperature.
10. Replace portion
of discharge
pipe with exible
connector.
11. Check for leaks
around basin inlet
and outlets.
Pump will not
turn off
2. Float is damaged,
dislocated.
4. Excessive inow or
pump not properly sized
for application.
Pump hums but
does not run
1. Incorrect voltage
8. Impeller jammed or
inlet plugged.
Pump delivers
insufcient
capacity
1. Incorrect voltage.
4. Excessive inow or
pump not properly sized
for application.
5. Discharge restricted.
6. Check valve stuck.
7. Shut-off valve closed.
8. Impeller jammed or
damaged, inlet plugged.
Pump cycles
too frequently
6. Check valve stuck.
11. Clean the basin and
inlet of any obstruction.
Pump shuts off
and turns on
independent of
switch, (trips
thermal overload
protector).
CAUTION!
Pump may start
unexpectedly.
Disconnect
power supply.
1. Incorrect voltage.
4. Excessive inow or
pump not properly sized
for application.
8. Impeller jammed,
damaged, inlet plugged.
9. Excessive water
temperature.
Pump operates
noisily or
vibrates
excessively
5. Discharge restricted.
8. Impeller broken.
10. Piping attachments to
building structure too rigid
or too loose.

IMPORTANT!
WARRANTY REGISTRATION
Your product is covered by a warranty:
www.cranepumps.com/downloadables/CATALOGS_OIPMs/Warranty/24MonthWarranty.pdf
To complete the Start-Up / Warranty Registration form go to:
https://www.cranepumps.com/ProductRegistration/
If you have a claim under the provisions of the warranty, contact your local
Crane Pumps & Systems, Inc. Distributor.
RETURNED GOODS
RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”.
CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR.
Products Returned Must Be Cleaned, Sanitized,
Or Decontaminated As Necessary Prior To Shipment,
To Insure That Employees Will Not Be Exposed To Health
Hazards In Handling Said Material. All Applicable Laws
And Regulations Shall Apply.
IMPORTANT!
WARRANTY REGISTRATION
Your product is covered by the enclosed Warranty.
If you have a claim under the provision of the warranty, contact your local
Crane Pumps & Systems, Inc. Distributor.
