Barranca Diamond HP30 Manual

HP30 Slab Saw
Owner’s Manual and Operating Instructions
Caution: Read all safety and operating
instructions before using this equipment.
This manual MUST accompany the
equipment at all times.
Revision 107 09.2018
Manual Part No. 168578 Barranca Diamond Products, Inc.
1315 Storm Parkway
Torrance, CA 90501
Toll-Free: [phone]
Phone: [phone]
Fax: [phone]
www.barrancadiamond.com
MADE IN USA

26
HP30 EXPLODED VIEW
HP30 Slab Saw Part# 168084
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
5
1
21
5
6
1
10
18
ITEM DESCRIPTION PART # QTY.
1 NUT, HEX, 3/8 - 16 101188 15
2 NUT, HEX, 5/16 -18 101196 8
3 HOSE, VINYL, 1/4X3/8 TSAW 132951 1
4 SCREW, HEX HEAD, 1/4 - 20 X 5/8 150404 2
5 WASHER, FLAT, SAE, 3/8 150923 34
6 WASHER, 3/8 LOCK, SPLIT 150925 11
7 WASHER, LOCK, SPLIT, 5/16 151747 8
8 WASHER, FLAT, SAE, 5/16 151754 16
9 NUT, HEX, 1/4 -20 151893 18
10 WASHER, FLAT, SAE, 1/4 151915 36
11 SCREW, HEX HD, 1/4 - 20 X 3/4 152370 16
12 SCREW, RND HD, #8-32 X X 1/2 152517 2
13 SCREW, 3/8-16 X 1-1/2 HEX HEAD 153528 4
14 SCREW, HEX HD, CAP, 3/8 -16 X 2-1/4 153529 1

27
HP30 PARTS LIST
HP30 Slab Saw Part# 168084
ITEM DESCRIPTION PART # QTY.
15 COLLAR, SHAFT, 3/4" I.D. 153814 1
16 SCREW, HEX HD, 5/16-18X1-1/4 153950 8
17 SCREW, FLAT HD, 1/4-20 X 3/4 154657 4
18 SCREW, PAN HD, CAP, 1/4-20 X 1/2 155452 7
19 WASHER, FLAT, SAE, #8 155454 2
20 BLADE, 30", 303 156732 1
21 SCREW, 3/8-16 X 1-3/4 HEX HD 158398 6
22 CONNECTOR, CORD, LTF11 159582 1
23 WASTER PUMP 115V/60HZ 300 GPH 160509 1
24 BEARING, FLANGE, 2-BOLT, 1" SHAFT 161363 2
25 BUSHING, BRONZE FLANGED 3/4 X 1/2 X 1 -1/4 161372 1
26 GEAR, SPUR, BRONZE 4" OD, RAW 161577-RW 1
27 NUT, WING FLANGE 3/8 - 16 161718 1
28 WHEEL, CASTER 3 X 1-1/4 162344 2
29 WHEEL, CASTER 3 X 1-1/4 162794 2
30 TABLE, ARBOR 164953 1
31 NUT, HEX 1"-12UNF 165038 1
32 CORD, POWER ASSEMBLY, ON/OFF SWITCH 166505 1
33 LEVER, ON/OFF SWITCH 16 6511 1
34 CHAIN, ON/OFF SWITCH 166512 1
35 GROMMET, ON/OFF LEVER 166513 1
36 COVER, GEAR BOX 166705 1
37 LATCH, HOOD 166985 1
38 SCREW, FLAT HD, PHILLIPS 10-32 X 3/8" 166986 2
39 GASKET, BEARING 167049 1
40 ASSEMBLY, DRIVE SHAFT 167366 1
41 GASKET, GEAR BOX 167373 1
42 TABLE TOP 167670 1
43 SHAFT, ARBOR, HP-24 167678 1
44 WELDMENT, TANK 168085 1
45 ASSY, VISE 168087 1
46 FLANG, BLADE, 5" 168094 2
47 WELDMENT, BELT GUARD 168098 1
48 ASSEMBLY, SPRING GAS LIFTING 16 8115 2
49 ASSEMBLY, ON/OFF SWITCH 168564 1
50 ASSY, HOOD 172309 1

28
HP30 PARTS LIST
HP30 Slab Saw Part# 168084
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
5
15
4

29

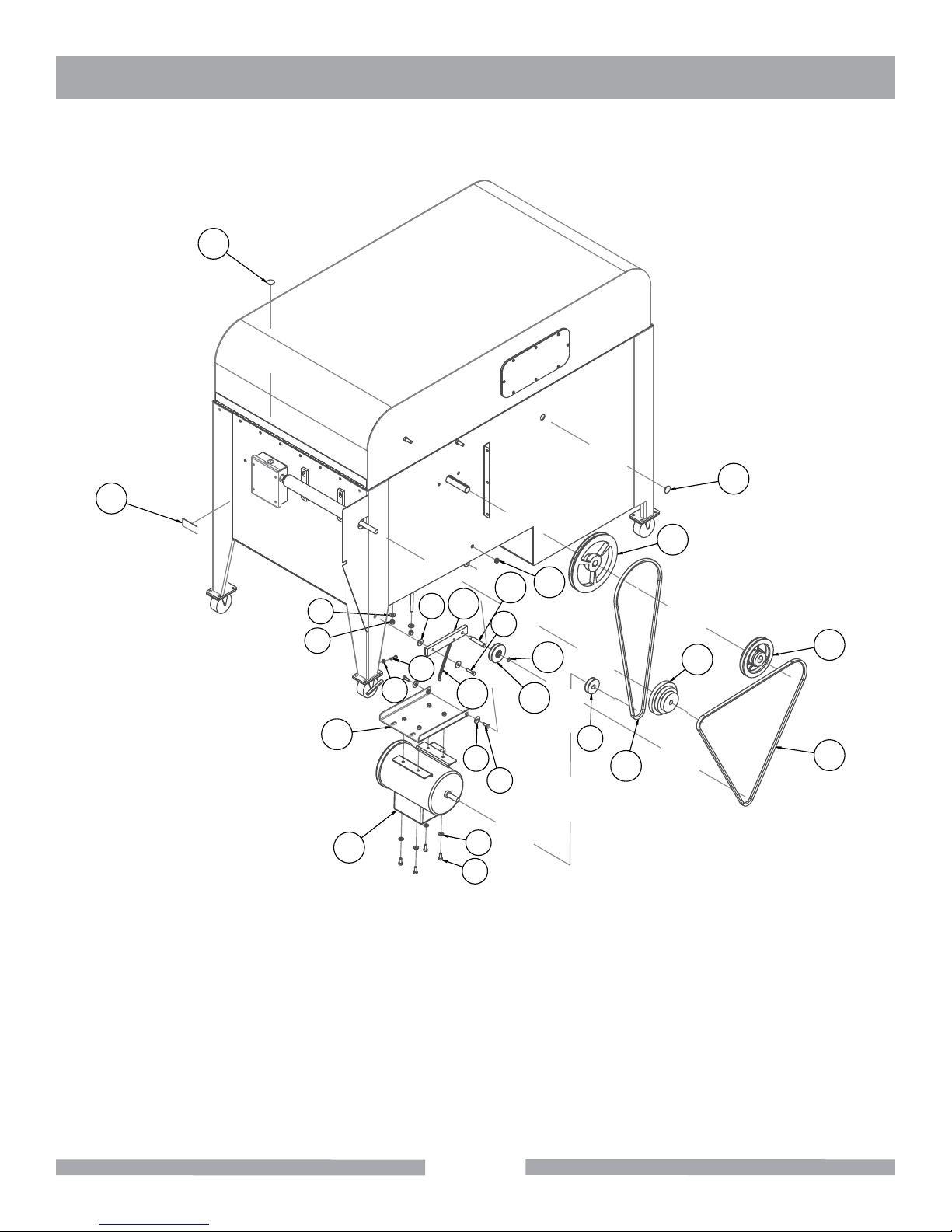

HP30 EXPLODED VIEW
HP30 Slab Saw Assy. Bottom Part# 168084
ITEM DESCRIPTION PART # QTY.
1 NUT, HEX, 3/8-16 101188 2
2 PULLEY, 1A22 X 5/8" BORE 133157 1
3 WASHER, FLAT, SAE, 3/8 150923 2
4 WASHER, FENDER, 5/16 X 1.0 151053 4
5 SCREW, HEX HD, CAP, 5/16-18 X 3/4 151369 6
6 WASHER, FLAT, SAE, 5/16 151754 4
7 NUT, HEX, 1/4-20 151893 1
8 SCREW, HEX HD, TAP, 1/4-20X1 152676 1
9 SCREW, HEX HD, 5/16-18X1-1/4 153950 1
10 TAG, SERIAL NUMBER, BLANK 157500-RW 1
11 BELT, A58 161411 1
12 PULLEY 6" OD. 1" BORE 161778 1
13 PULLEY, STEP CONE 3, 4, 5 X 5/8 BORE 161784 1
14 SPRING, EXTENSION 162337 1
15 CAP, FINISHING 165483 2
16 MOUNT, MOTOR 166299 1
17 TENSIONER BRACKET 166396 1
18 SHAFT, TENSIONER 166425 1
19 PULLEY, ASSEMBLY 166426 1
20 RING, RETAINING 1/2" 166427 1
21 PULLEY, 9" X 1" BORE 167365 1
22 MOTOR, 2HP 60HZ 1725R.P.M 1PH 168092 1
23 BELT, A70 168107 1
24 GROMMET, 1/4 X 5/8 X 1/8 168266 1

30

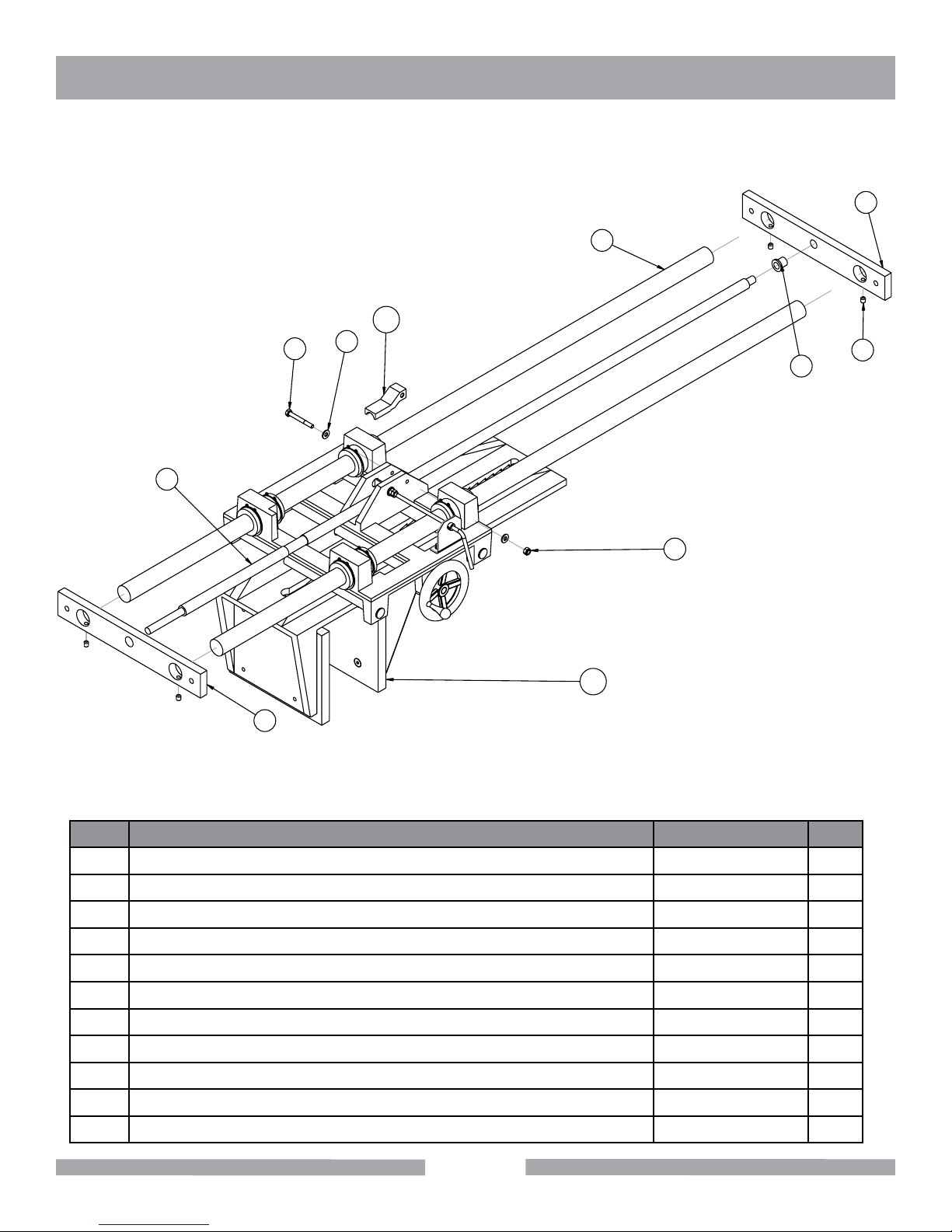

HP30 EXPLODED VIEW
Vise Assembly Part # 168087
SCALE 0.375
1
2
4
5
6
7
8
3
11
9
10
ITEM DESCRIPTION PART # QTY.
1 WASHER, FLAT, SAE, 1/4 151915 2
2 SCREW, HEX HD, CAP, 1/4-20X 2-1/4 156607 1
3 SCREW, 5/16-18 X 3/8 SOCKET HEAD SET 157083 4
4 NUT, HEX, NYLK, 1/4-20 159857 1
5 BUSHING, BRONZE FLANGED 5/8 X 1/2 X 3/4 162304 1
6 SUPPORT BAR, RIGHT 166416 1
7 SUPPORT BAR, LEFT 166417 1
8 ROD, VISE TRAVEL 167369 2
9 ROD, THREADED FEED 168088 1
10 SHOE, CLUTCH (COMP) 168089 1
11 ASSEMBLY, VISE HP-24/30 171244 1

31

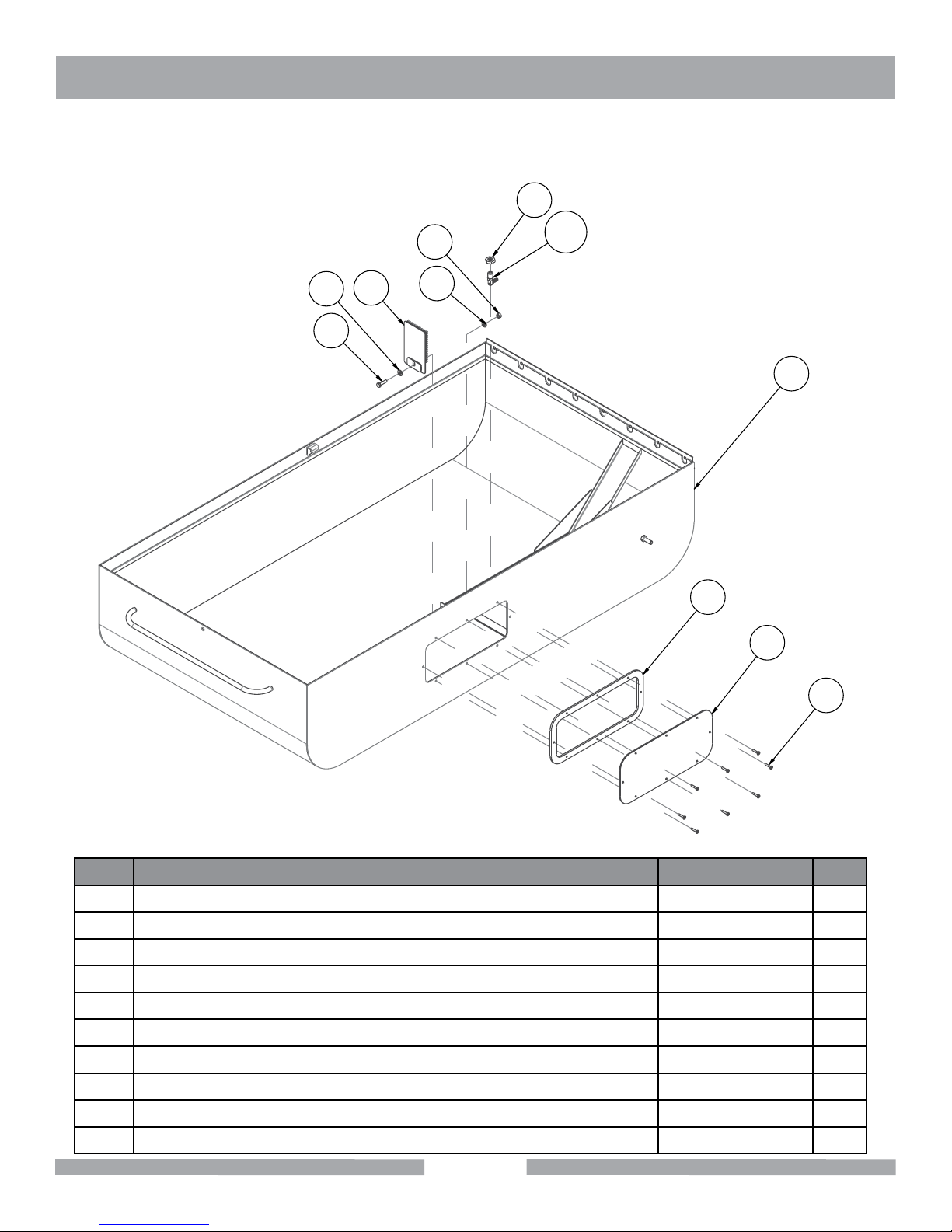

Vise Assembly Part # 172309
HP30 PARTS LIST
1
3
4
6
7
8
9
1
2
5
10
ITEM DESCRIPTION PART # QTY.
1 WASHER, FLAT, SAE, 1/4 151915 2
2 SCREW, HEX HD, TAP, 1/4-20 X 1 152676 1
3 NUT, HEX, NYLK, 1/4-20 159857 1
4 GUARD, SPLASH, NO LOGO 160310-NL 1
5 NUT, BRASS 1/4 NPTF 165184 1
6 WINDOW 166151 1
7 GASKET, WINDOW 166213 1
8 SCREW, PAN HD PHIL 8-32 X 3/4" SEALING 166257 8
9 WELDMENT, HOOD 168086 1
10 FITTING ELBOW, PUSH ON HOSE 1/4 X 1/4 MALE 168104 1

32
HP-30 WARRANTY
Barranca Diamond warrants to the original retail purchaser for a period of 90 days except as noted,
from the date of purchase all products covered by this Warranty to be free of defects in materials and
workmanship.
This Warranty shall not apply to any parts that have been subjected to misuse or improper service,
that had been damaged in transit or handling, or that have been altered or repaired by unauthorized
representatives. This Warranty does not cover defects caused by or resulting from misuse, abuse, ne-
glect or damage caused by accident or the failure to provide reasonable maintenance. This Warranty
is void if the product or any of its individual components is altered or modied by the purchaser or if
the product is used in a manner or with a blade not recommended by the manufacturer.
Any claim arising under this Warranty must be submitted by the original purchaser within the warranty
period specied above, and shall include proof of purchase. During said warranty period Barranca
Diamond shall, at its option, either replace or repair, at no charge to the original purchaser, any parts
or components that are found to be defective by Barranca Diamond. Barranca Diamond shall not be
responsible for or obligated to pay for freight or other transportation related costs or expenses in con-
nection with any defective products or components that are either returned to Barranca Diamond’s
facility or any authorized repair station and/or any replacement products or components that are
shipped from Barranca Diamond pursuant to this Warranty.
Parts and labor needed to maintain products and the replacement of components due to normal
wear and tear are the purchaser’s responsibility and are not covered by this Warranty. All products
or components replaced under warranty become the property of the manufacturer. All replacement
parts will be considered to be part of the original product and any warranty on such parts will expire
coincidentally with the original Warranty. Barranca Diamond will pay for parts and labor in connection
with warranty repairs conducted by Barranca Diamond or its authorized repair centers. Replacement
part(s) installed by anyone else will be provided without a charge for such replacement part(s), but
this Warranty will not apply to labor charges in connection therewith.
IN NO EVENT SHALL ANY LIABILITY UNDER THIS WARRANTY EXCEED THE REPLACEMENT
COST OF ANY DEFECTIVE PRODUCT OR COMPONENT THEREOF, AND BARRANCA DIAMOND
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR ANY
OTHER DAMAGE OR LOSS NOT EXPRESSLY ASSUMED AS SET FORTH HEREIN.
The foregoing constitutes an expressed warranty on the terms set forth above and is the only warran-
ty or warranties applicable to the products it covers. All other warranties, including, without limitation,
the implied warranty of merchantability and/or tness for a particular purpose or use being denied.
This limited warranty is expressly in lieu of all other warranties, whether expressed or implied.
BARRANCA DIAMOND LIMITED WARRANTY
Please complete the warranty registration card and return. Any problems encountered should be di-
rected to Barranca Diamond Customer Service department at [phone] M-F 8am - 5pm PST.

33
HP-30 WARRANTY
SPECIFICS APPLICABLE TO LIMITED WARRANTY OF DIAMOND BLADES AND CORE BITS
Laser Welded Blade and Bit Warranty
If the laser weld between the segment and the steel core or barrel fails during normal use, the blade
or bit will be replaced free of charge. Blades and bits damaged due to careless or improper use are
not covered under this warranty.
Brazed Blade, Bit, and Cup Wheel Warranty
If the brazed bond between the segment and the core, barrel, or cup fails within the rst .050 of seg-
ment wear, the blade, bit, or cup will be replaced free of charge. Blades, bits, and cup wheels dam-
aged due to careless or improper use are not covered under this warranty.
Continuous Rim Blade Warranty
If the bond between the rim and the core fails during normal use, the blade will be replaced free of
charge. Blades and bits damaged due to careless or improper use are not covered under this war-
ranty.
Exclusions
Barranca Diamond does not warrant the following components, which carry their own manufacturer’s
warranty for the indicated periods:
Electric Motors Manufacturer’s Warranty
ABB Baldor: 1 year
Ryobi: 1 Year
Soga: 1 Year
Gas Engines Manufacturer’s Warranty
Honda: 2 years
Engine Power Information
Engine power ratings are calculated by the individual engine manufacturer and the rating method
may vary among engine manufacturers. Barranca Diamond Products makes no claim, representation
or Warranty as to the power rating of the engine on this equipment and disclaims any responsibility
or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are
advised to consult the engine manufacturer’s owner's manual and website for specic information
regarding the engine power rating.

34
HP-30 SERVICE & WARRANTY
REPLACEMENT PARTS
Replacement parts for this tool may be ordered form your Barranca Diamond distributor or directly
from Barranca Diamond. Please have the following information ready before calling:
• Model and serial number of the machine
• Date of purchase
• Description of parts being ordered (see attached parts list)
RETURN MATERIALS PROCEDURE
To expedite the service relative to the return of a product purchased through Barranca Diamond,
please have the following information available:
• Model and serial number of the machine
• Date of purchase
• Distributor’s name
Then please call Barranca Diamond at [phone] or toll free at 800-630-7682 to obtain a Return
Goods Authorization number (RGA) authorizing the return.
Please Note:
• Ensure your item(s) are prepaid to the destination
• Return items must have been purchased within the previous twelve (12) months
• Follow the packaging instructions in the following section
• Be sure to include the RGA number, return address and your phone number on or within the
return shipping box.
PACKAGING INSTRUCTIONS
Ship the saw using its plywood shipping crate. Use wood screws to fasten the baseboard to the 1/2"
plywood crate bottom so as to secure it inside the shipping crate.
