Barton 99806 Original instruction manual

TWIN TUB WASHER WITH DRAIN PUMP
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 99806
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric re and/or serious injury. Save all warnings and instructions for future
reference.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover
all possible conditions and situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be supplied
by the operator. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS
before operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
1
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modication may impair the function and/or
safety and could affect the life of the product. There are specic applications for which the product was
designed.
This appliance is for household use only. It is not intended for commercial applications.
The appliance is intended for indoor use only. DO NOT use outdoors.
Use only detergents or softeners recommended for use in this manual and keep them out of the reach
of
DO NOT unplug your appliance by pulling on its power cord. ALWAYS grasp the plug rmly and pull it
straight out from the outlet.
DO NOT operate any appliance that has a damaged cord or plug, if it is damaged or malfunctions in any
way, or if the outlet is not in proper working order. Contact customer service or a service technician.
ALWAYS turn off and unplug from outlet before servicing, changing accessories or cleaning the unit.
Allow unit to cool down completely before cleaning, moving or servicing. Turning the unit off does not
disconnect it from the power source.
DO NOT put anything ammable or explosive in, on, or near the appliance. DO NOT wash articles of
clothing or items that have been soaked in ammable or explosive chemicals.
ALWAYS wait for the washer tub to completely stop moving before reaching in to add or remove any
clothes.
The loading door must be closed when the tub is spinning.
DO NOT operate this washer unless all enclosure panels are properly installed.
DO NOT tamper with or modify the controls.

IMPORTANT SAFETY INFORMATION
2
WARNING: Risk of child entrapment. DO NOT allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is used around them.
The appliance must be plugged into a properly installed and grounded outlet that meets the voltage
requirements listed on the ratings label.
CAUTION: The power cord is equipped with a 3-prong grounding plug to protect against shock hazards.
ALWAYS plug the cord into a properly installed and grounded 3-prong wall receptacle, and DO NOT
remove the grounding prong.
Keep the fuel supply hose away from any heated surfaces.
Under certain conditions, hydrogen gas may be produced in a household hot water system that has not
been used for two weeks or more. Hydrogen gas is highly explosive. If the hot water system has not been
used for more than two weeks, turn on all hot water faucets and let the water ow for several minutes
prior to using your compact washer.
DO NOT modify or repair the unit by yourself. Contact customer service or a qualied service technician if
service is required.
To reduce the risk of electric shock or re, DO NOT use an extension cord or outlet adapters to connect
the unit to an electrical power source. The appliance must be properly grounded using a three-prong
electric receptacle wall outlet.
DO NOT install the washing machine in a moist or wet area, or where it can get wet. DO NOT spray with
water when cleaning.
DO NOT put children on top of, or allow children to climb in or on, the washer.
Regularly clean the power plug to remove dust and dirt, in order to prevent electrical failure.
It is recommended to unplug the unit when it is not in use.
ALWAYS be sure to properly and securely connect the power cord to the outlet, and the water hoses to
prevent leakage or electrical shock.
DO NOT operate the unit or handle the plug with wet hands.
The water temperature to the washing machine should not exceed 131° F (55° C).
DO NOT wash raincoats, heavy jackets, or similar, heavy items.
DO NOT put heavy or hot items on top of the machine.
DO NOT wash laundry soaked with petrol and organic solvent.
DO NOT share on power source with other appliances. DO NOT use an unappointed power source.
Keep the plug strip clean.
DO NOT place the machine in the bathroom. Such action may damage the electricak insulation and
cause the body to rust.
SAVE THESE WARNINGS

3

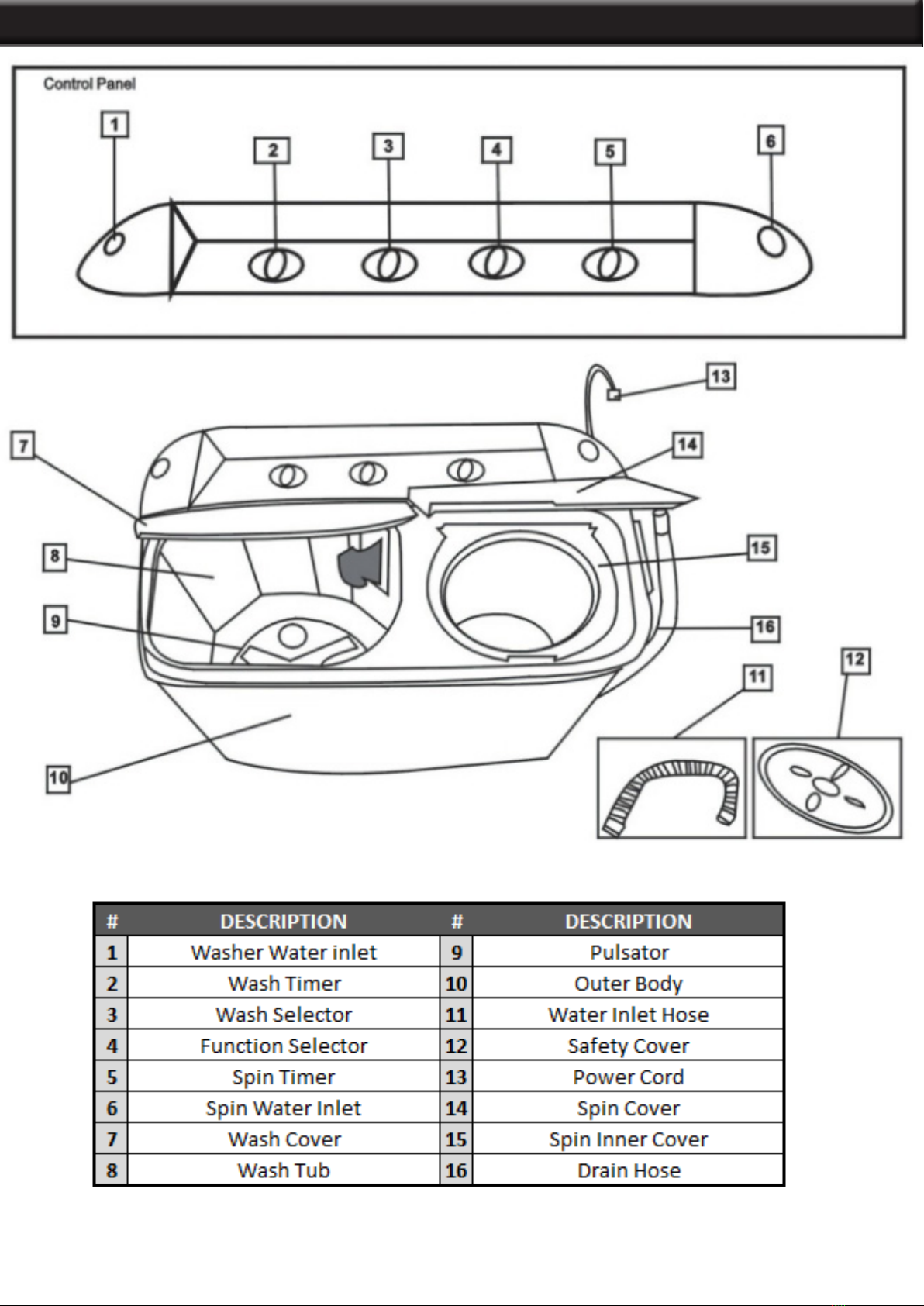

PARTS DIAGRAM AND LIST

4

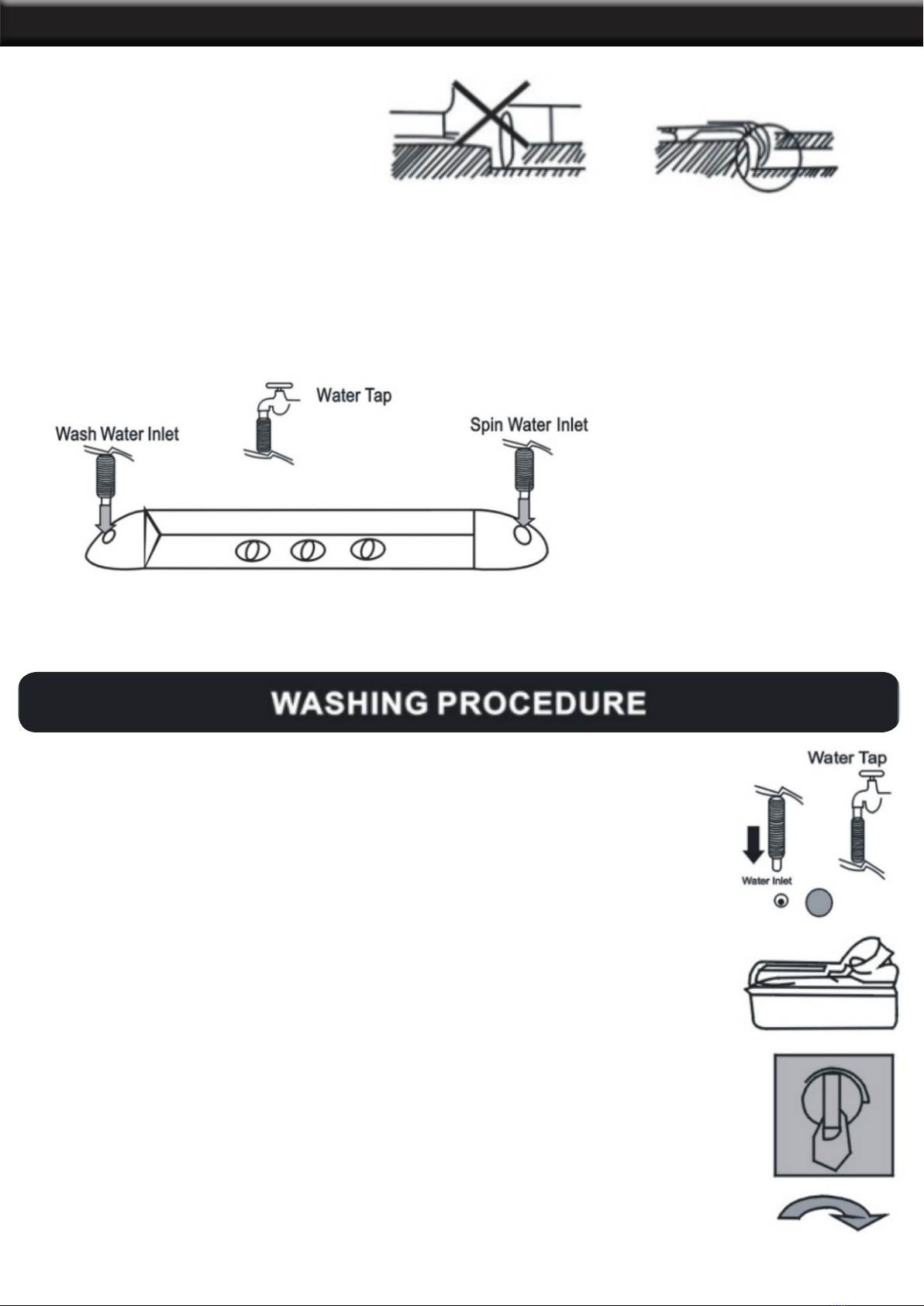

OPERATION
PRIOR TO OPERATION:
1. Set the drain hose to drainage.
2. Plug the power supply cord into the mains but be sure to check rst of the voltage corresponds to the
rating label of the appliance.
3. Insert the water inlet hose into the water inlet connector.
4. Select the water your level according to the quantity of laundryby referring to water level marking.
WASHING:
1. Water Inlet: Select the water lever to the desired position.
2. Add in water and dissolved detergent to make the water reach the expected level.
Operate the machine to stir the detergent evenly by turning the WASH KNOB.
3. Put in your laundry and select the wash duration according to the weight of the
laundry.
4. Select the washing type (Normal/Stronger) according to the weight of the laundry.
After each washing operation ends, set the washing selector to DRAIN.
DRAIN THE WATER:
Since the washing machine has a drain pump, the water will ow faster upon turning the
Drain Selector to the DRAIN position. Be sure to turn the Drain Selector immediately
back the NORMAL position when the water is completely gone from the wash tub.

5
OPERATION and MAINTENANCE MAINTENANCE and TROUBLESHOOTING
INTERMEDIATE SPIN (REMOVING DETERGENT/DRY):
1. Move the laundry from the WASH tub to the SPIN tub.
2. Spin to remove dissolved detergent. Be sure to arrange laundry uniformly without
stacking them all on one side. Press the laundry down rmly and place the safety cap
on top of them.
3. After rinsing, close the outer cover of the spin tub and spin for one minute.
NOTE: An unbalanced spin tub may cause abnormal vibrations or noise. If this occurs,
open the cover and rearrange the laundry, then ontinue the spinning operation.
SOAK RINSE:
1. Place laundry into the wash tub, then select the suitable wash type. Select the water level (according to the
amount of laundry). RINSE, set the timer to 0-5 minutes and let it rinse.
2. DRY SPIN: Arrange the laundry uniformly in the spin tub (do not stack on one side). Press the laundry
down rmly and place the safety cover on top of them. Select a suitable spinning duration according to the
quantity of laundry. 1-5 minutes.
Unplug the power supply before performing and disposal. There will be lint left behind in the overow
lter and the lint lter after every use. These lters need to be cleaned frequently in order to maintain
the performance of this machine.
Clean the entire machine with a damp, soft cloth. DO NOT spray water directly into the machine. If the
machine is too dirty, add neutral detergent to clean it. DO NOT use petroleum based detergent to clean the
machine, this will affect the appearance.
CLEANING THE OVERFLOW FILTER:
1. Dismanteling the Overow Filter: Pinch the exible-fastening claw, pull it gently away from the machine
as shown. Do this at least once every two months.
2. Dismanteling the Bellows: Dismantle the top of the pipe in the overow lter.
3. Cleaning the Overow Filter: Clean the lter completely under running water.
4. Installing the Overow Filter: Install the bellows, then insert the tie plate of the bottom valve cover. Put
the hook at the top left. Press the top to the slot as shown in the picture. Clean the lint lter.

6
MAINTENANCE and TROUBLESHOOTING
1. Dismanteling the Lint Filter: Hold the lter frame as shown, gently press downward and pull off the lter
frame.
2. Cleaning the Filter: Wash the lter while it is still wet. Wash only with plain water. After wash, dry it. Avoid
drying in direct sunlight.
3. Installing the Filter: Insert the bottom part of the lter frame into the slot and then gently push the lter in
place.
**DO NOT attempt to repair the machine by yourself. Consult a technician for help.

7
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
WARRANTY
PRODUCT MADE IN CHINA
